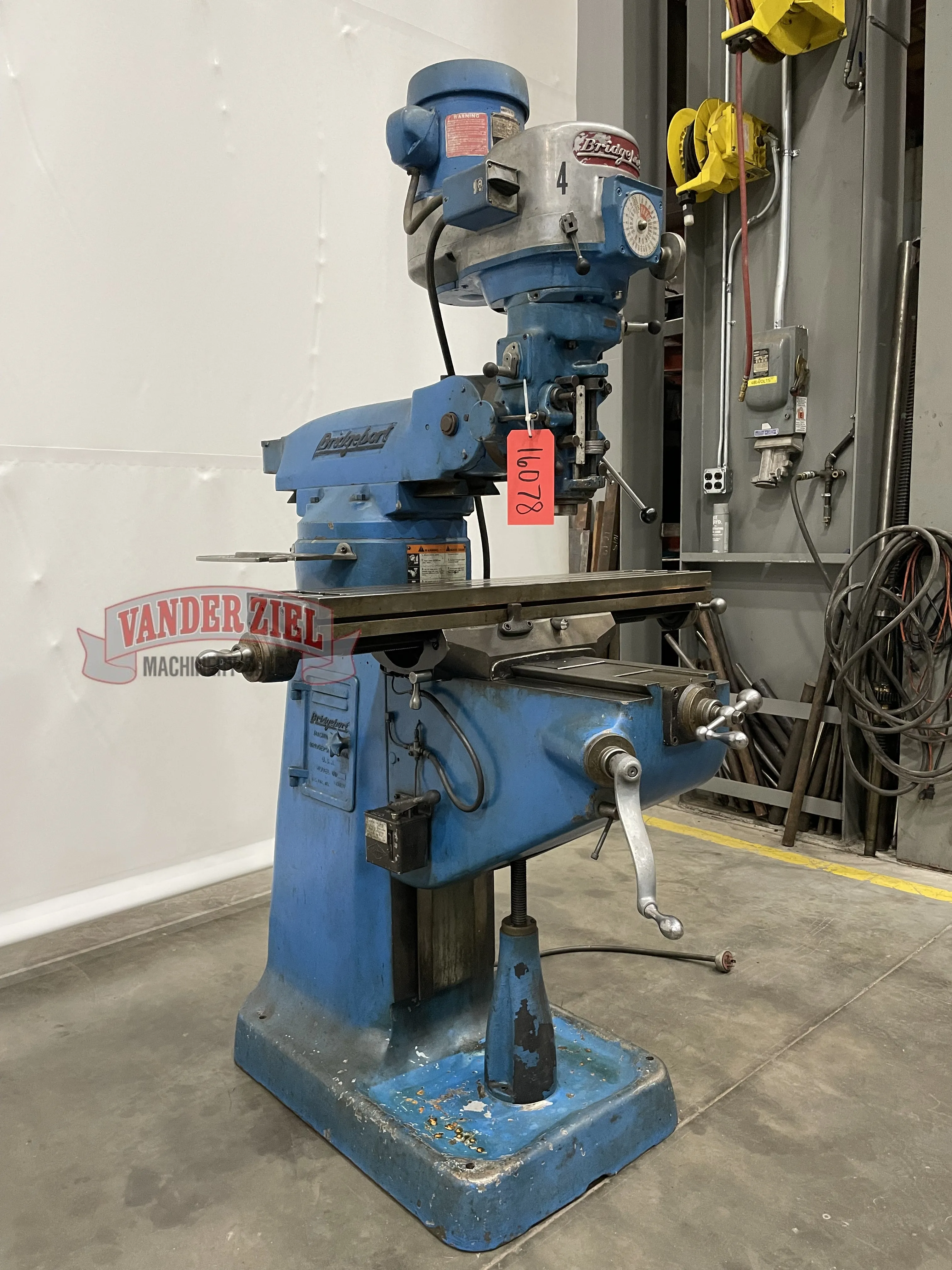

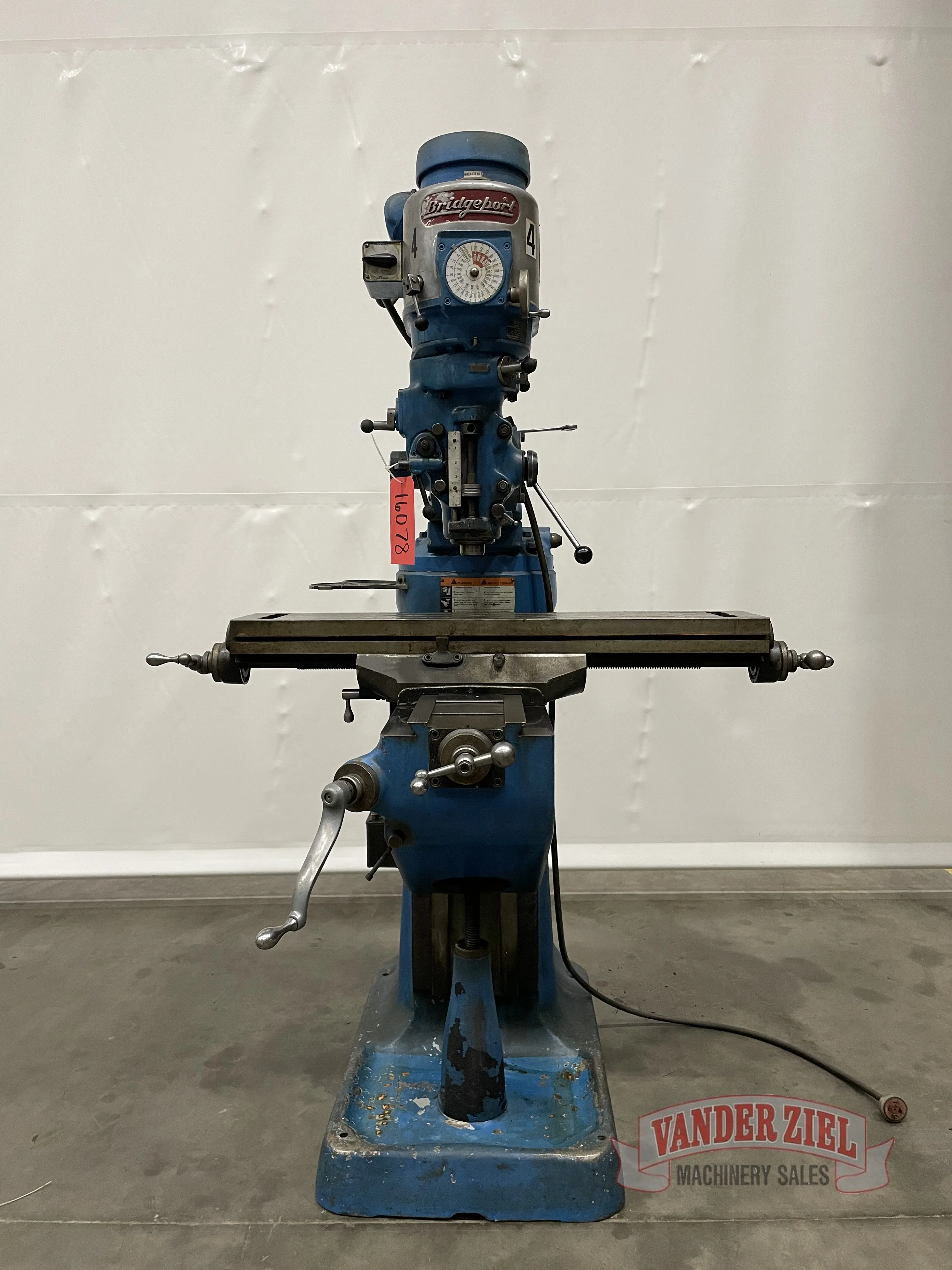

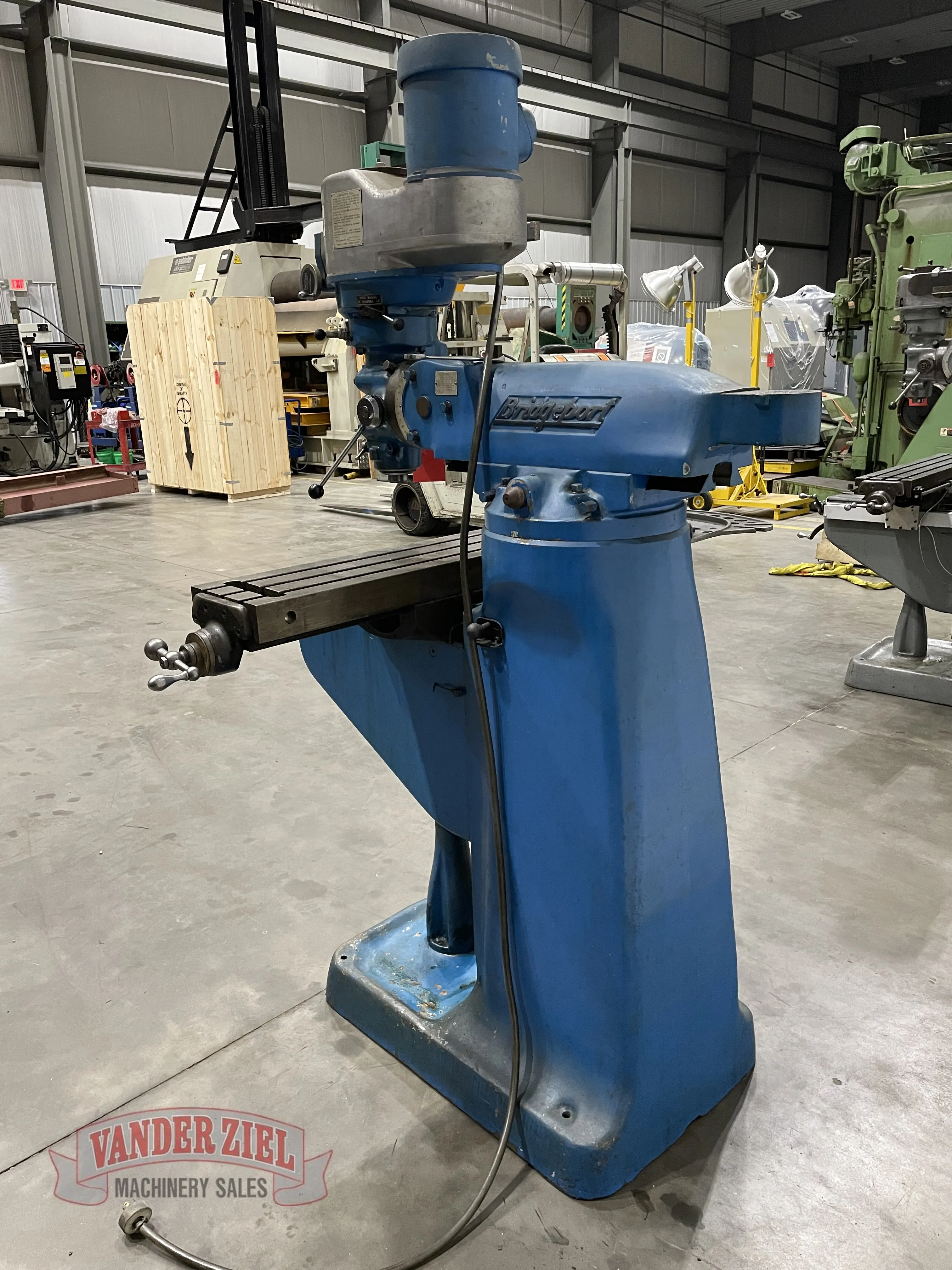

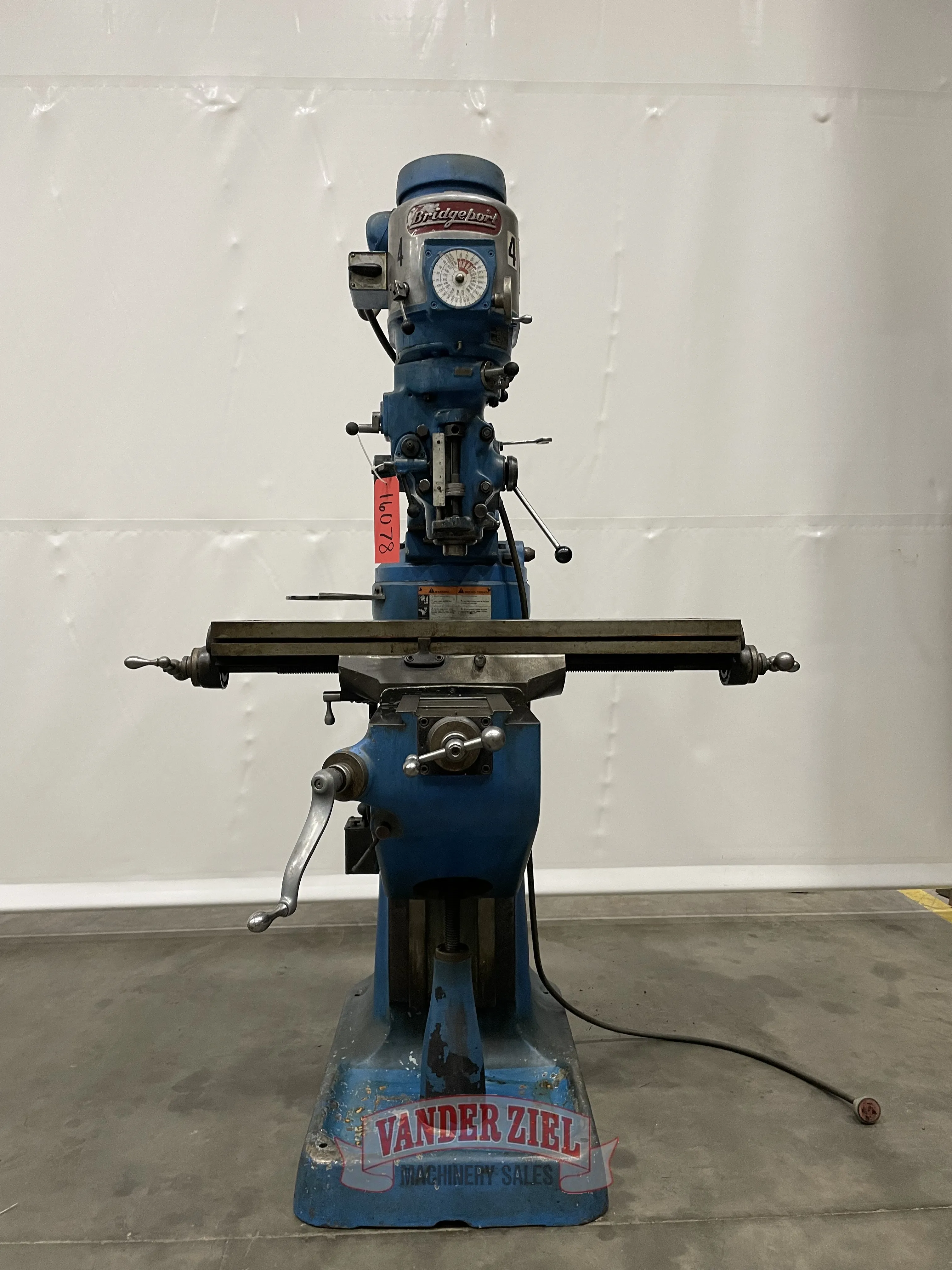

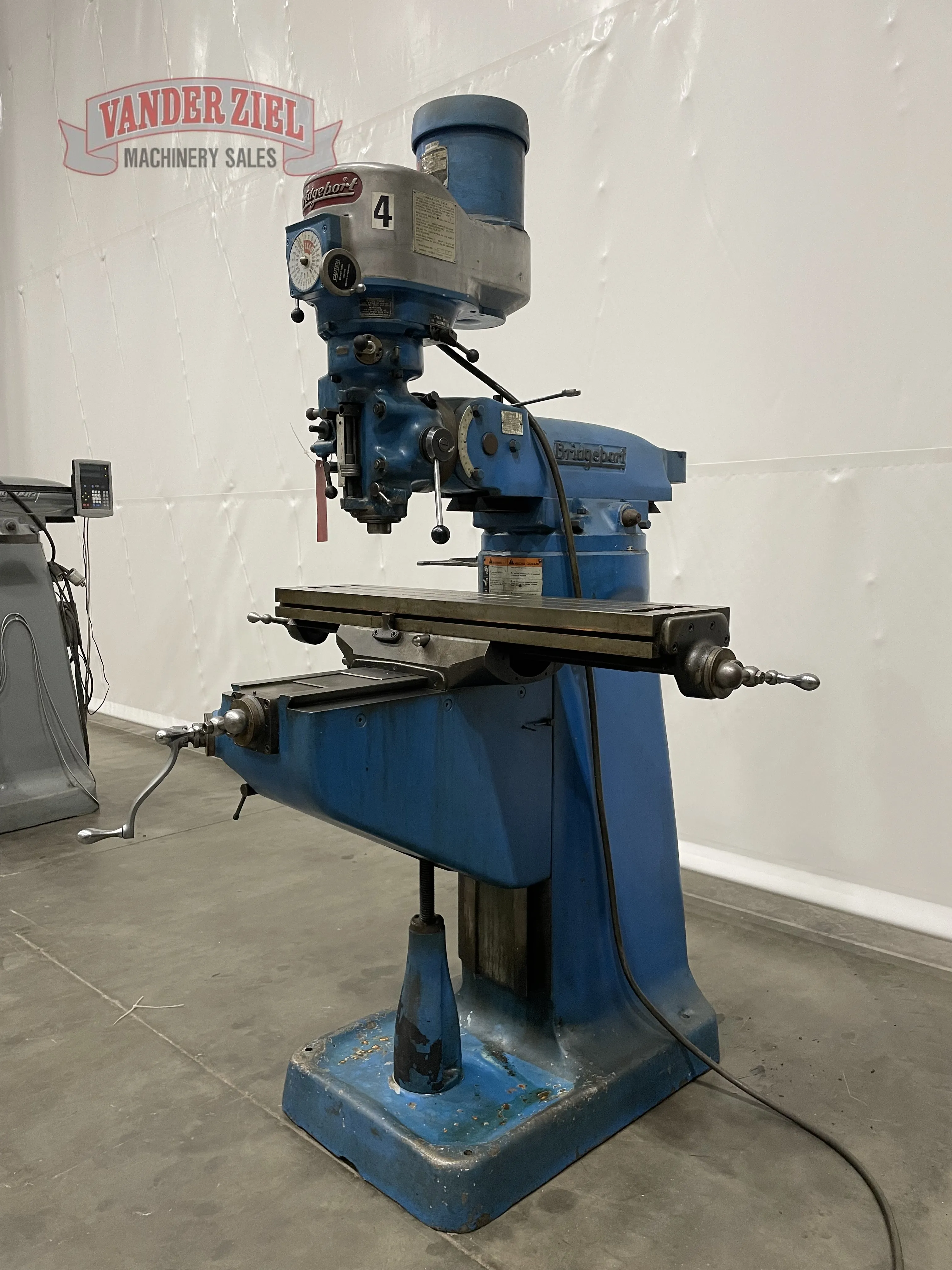

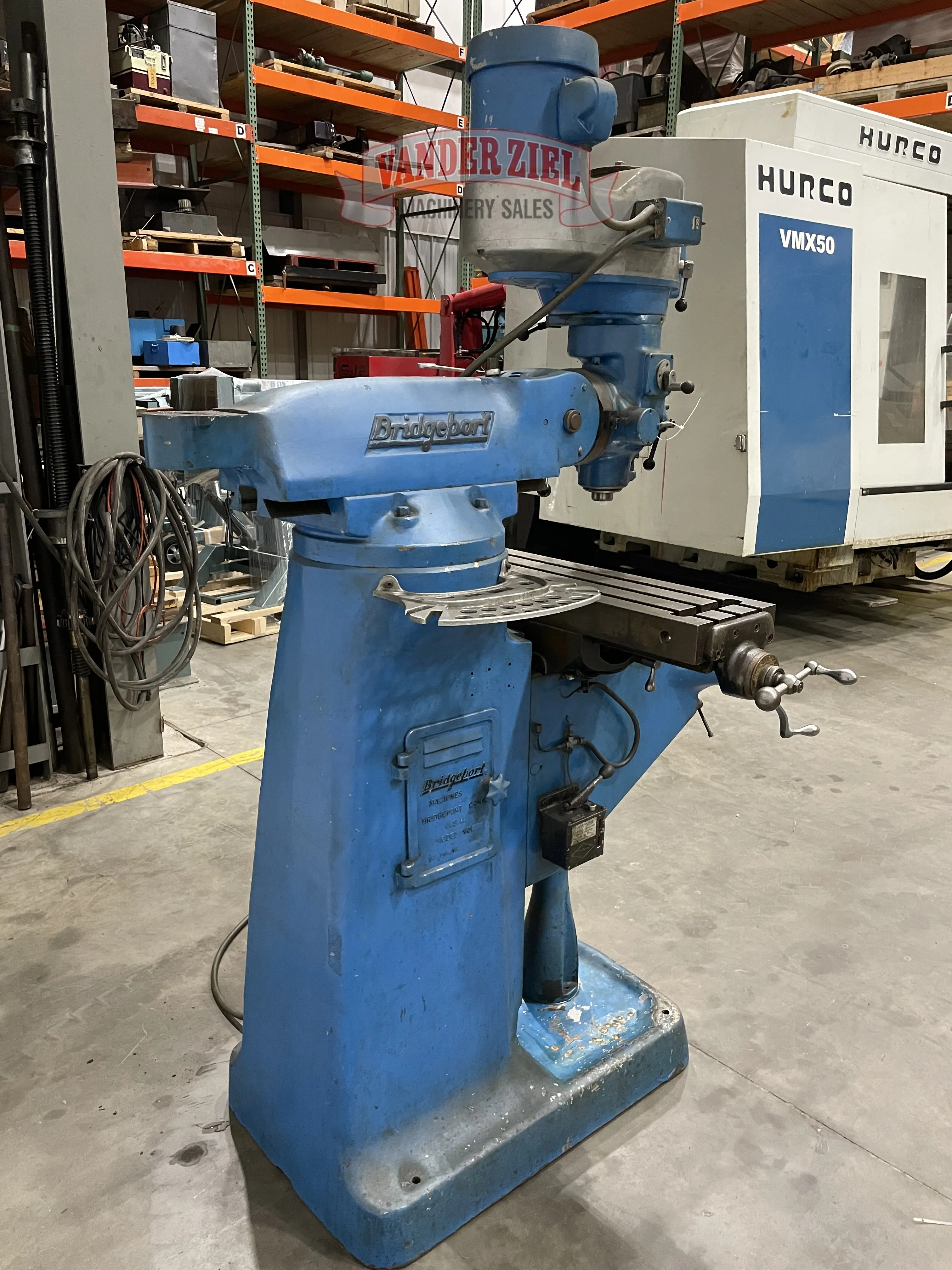

Bridgeport Series I Vertical Knee Mill, 9" x 42" Table, 1 ½ HP

Bridgeport Series I Vertical Knee Mill, 1 ½ HP

Serial #12/BR 157867
Asset # 16078

Specifications:

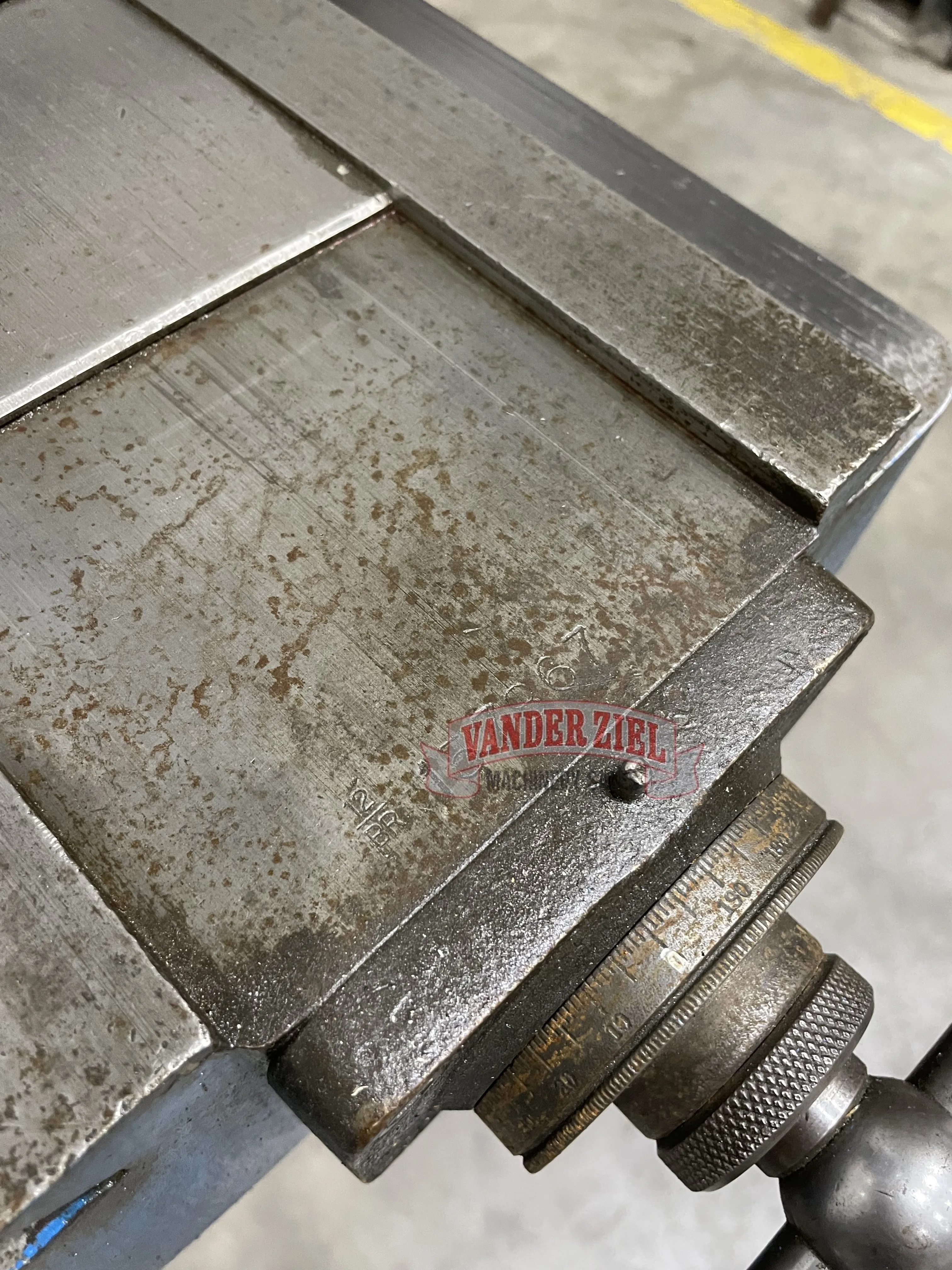

Table Size 9” x 42”
Longitudinal Travel 26 ½”
Cross Travel 9”
Vertical Travel of Knee 16”
Table to Spindle Min – Max 0 – 18.5”
Spindle to Column Min – Max 6.75” – 18.75”
Spindle Speeds 60 – 4200 RPM
Power Feed .0015, .003, .006 RPM
Spindle R8 Taper
Collet Capacity ¾”
Quill Travel 5”
Approx. Height 84”
Approx. Dimensions 76” x 59”

Mill is equipped with Collet Holder.

Preliminary Specifications – Subject to Verification
