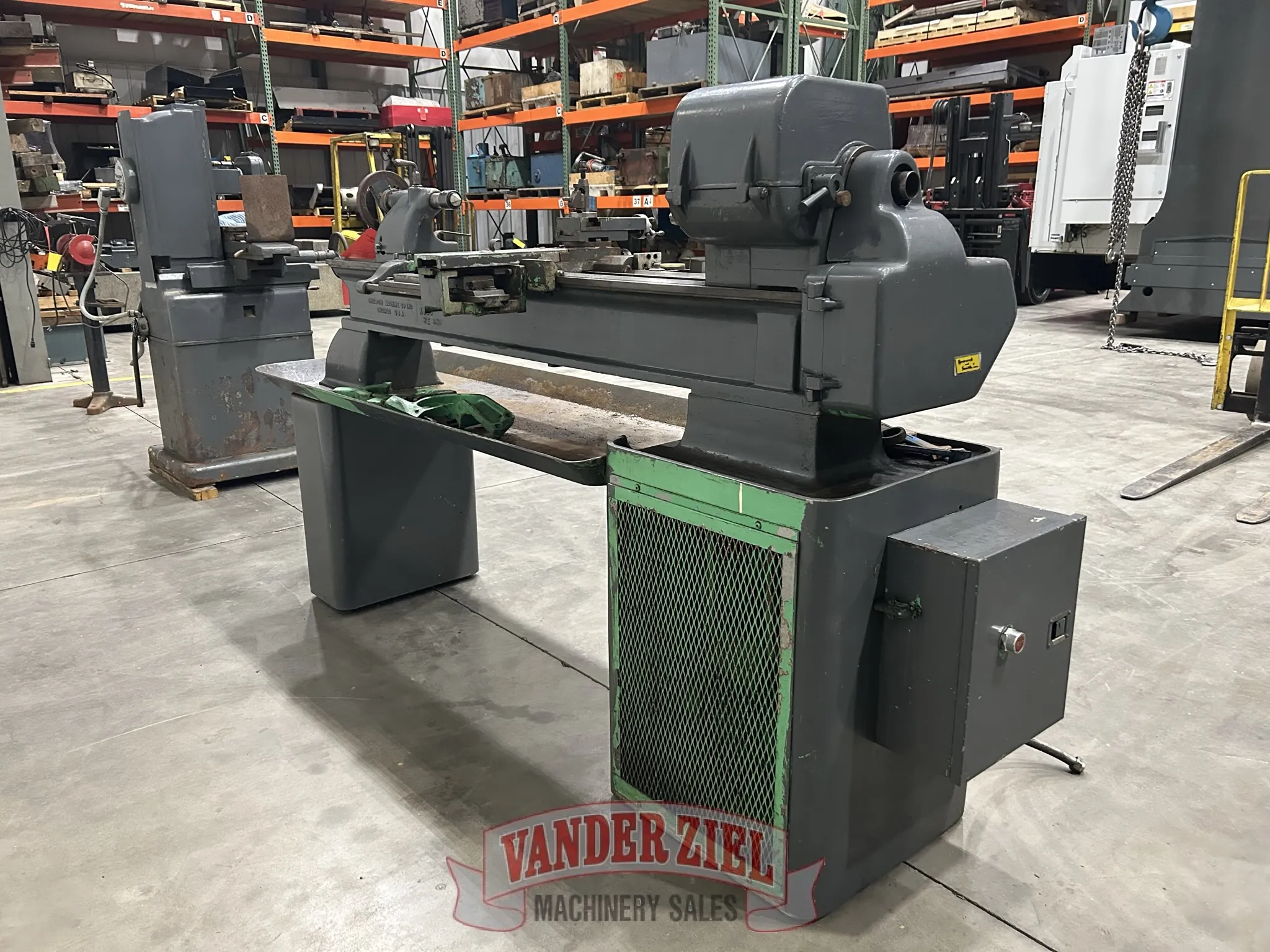

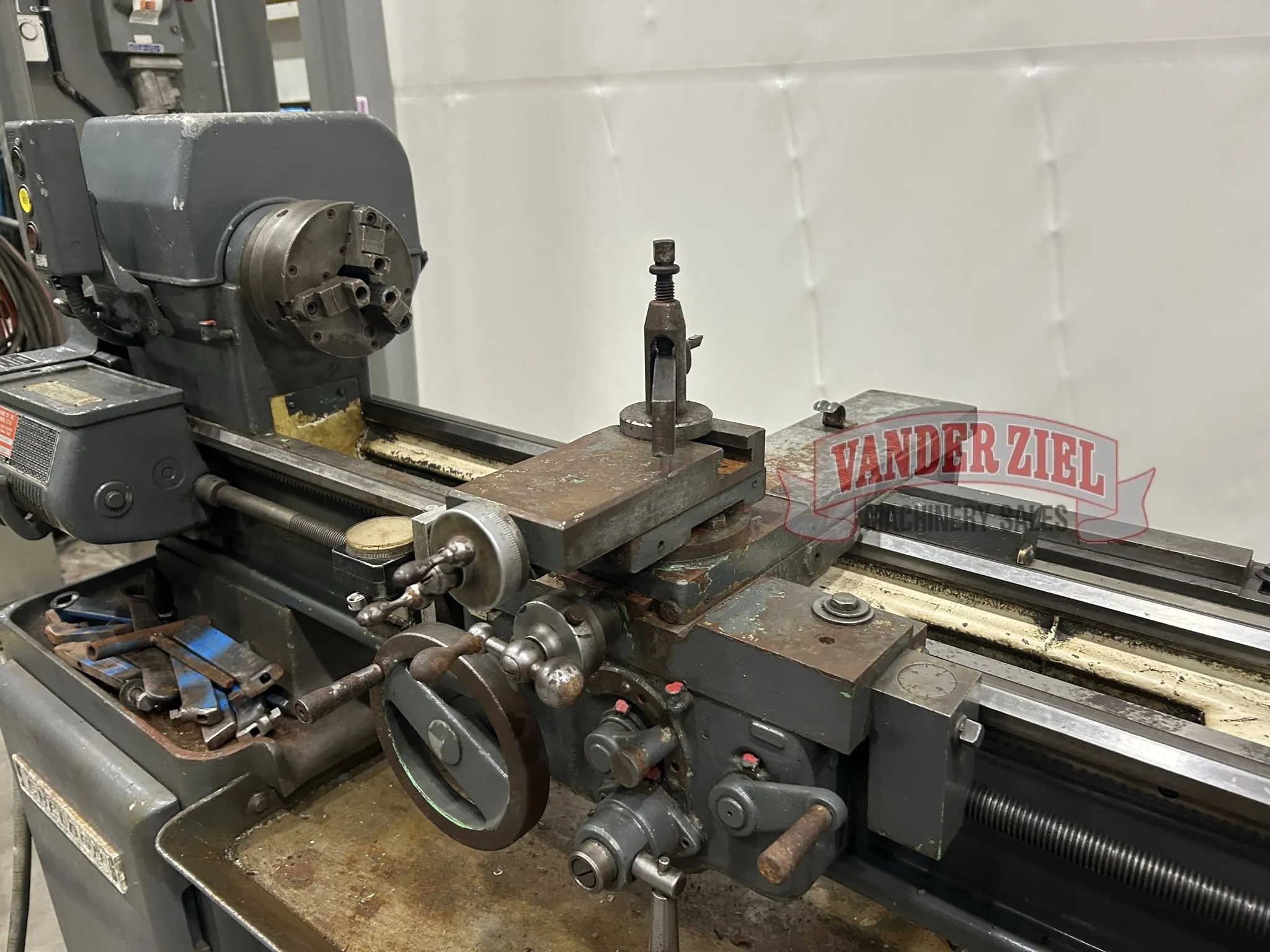

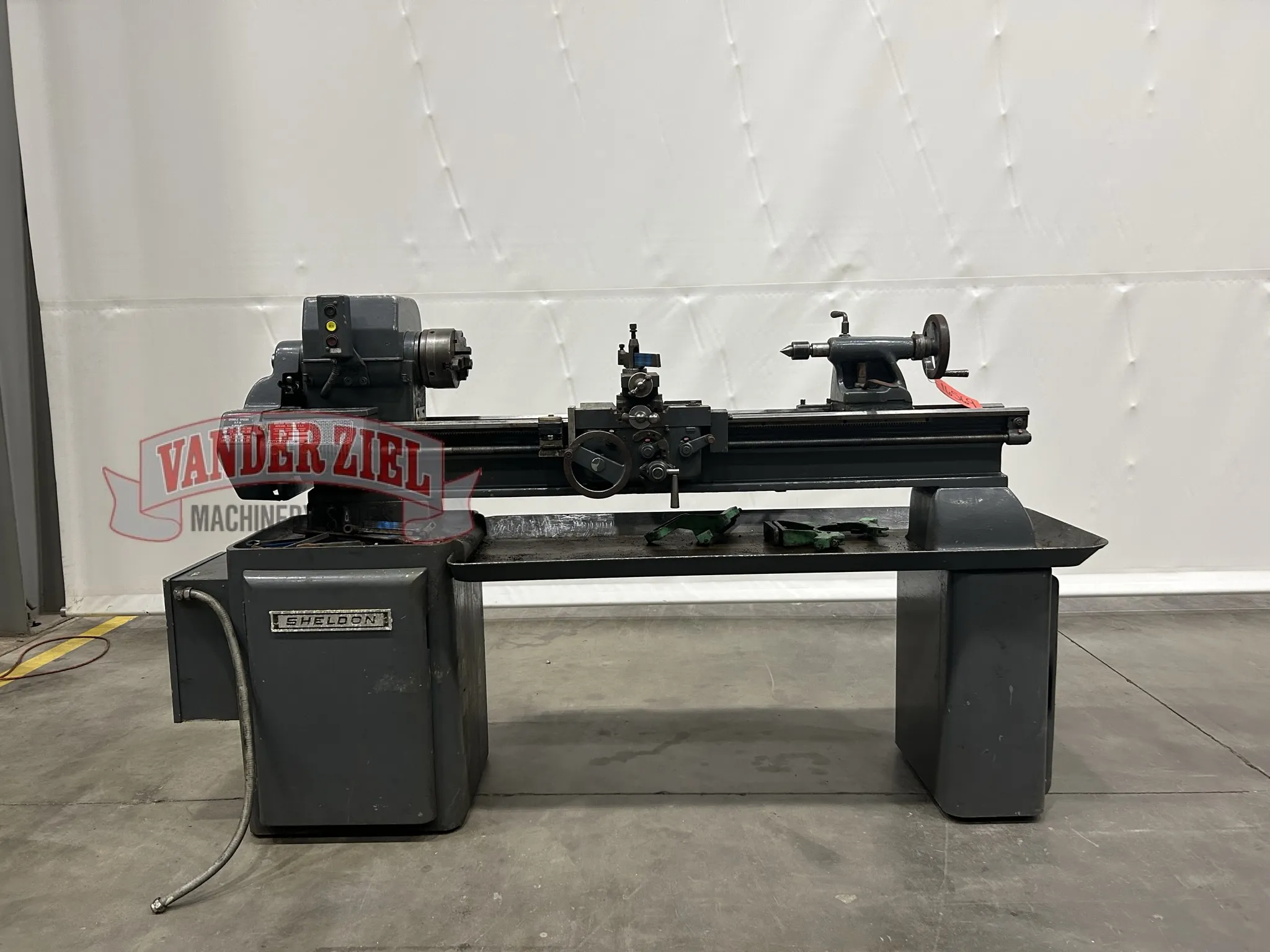

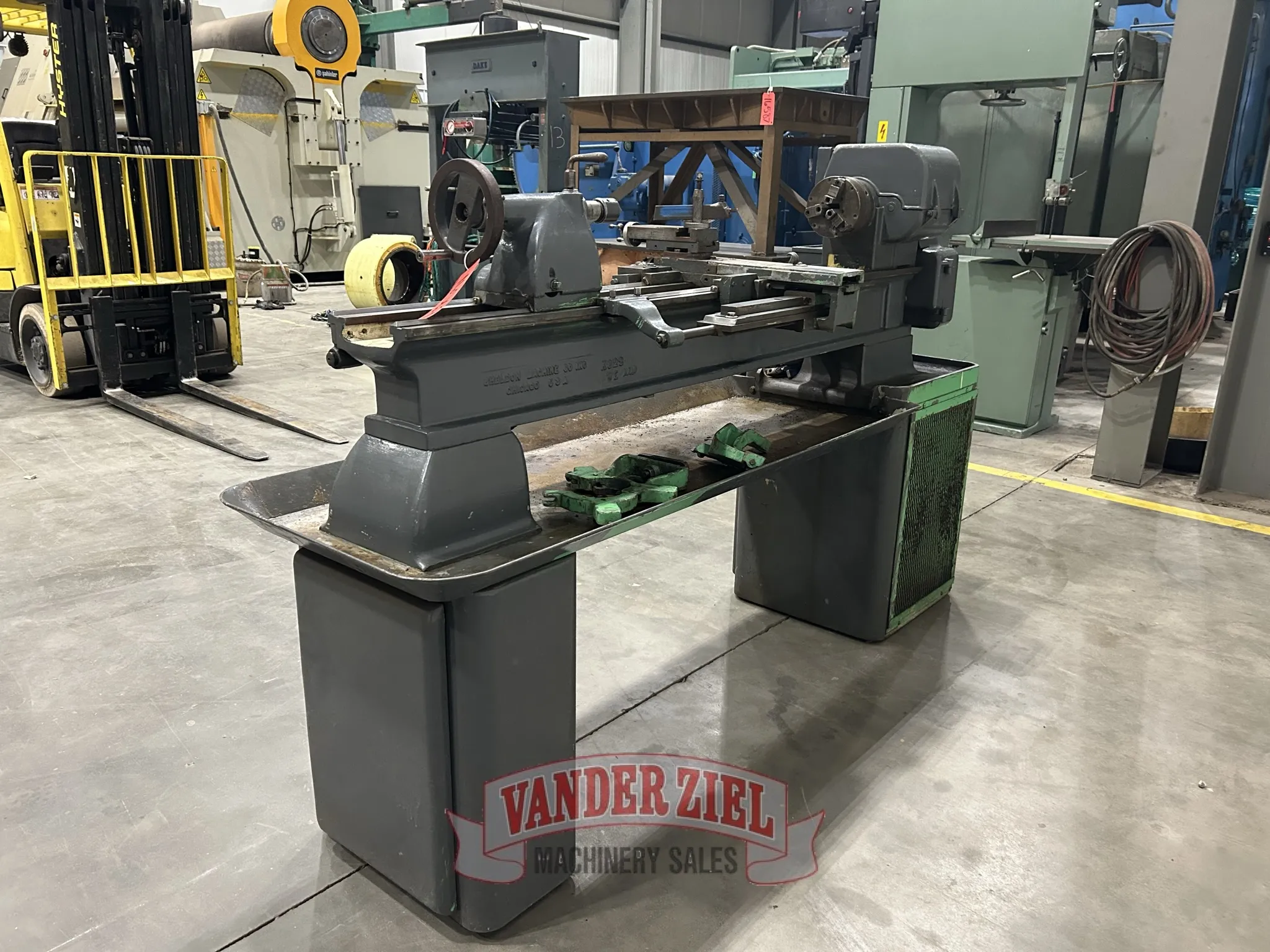

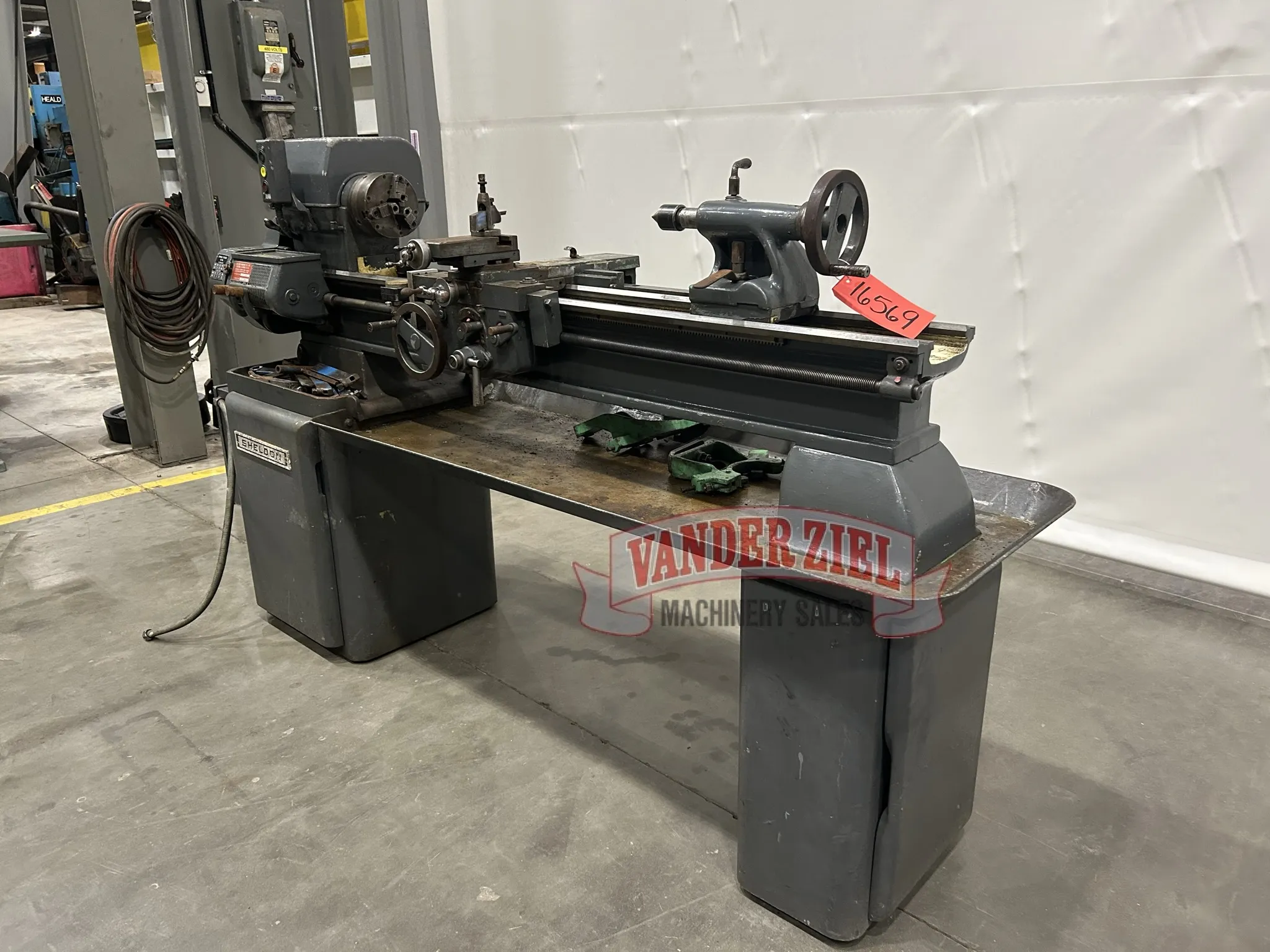

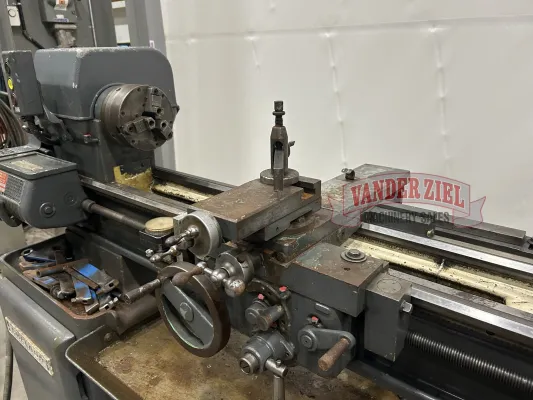

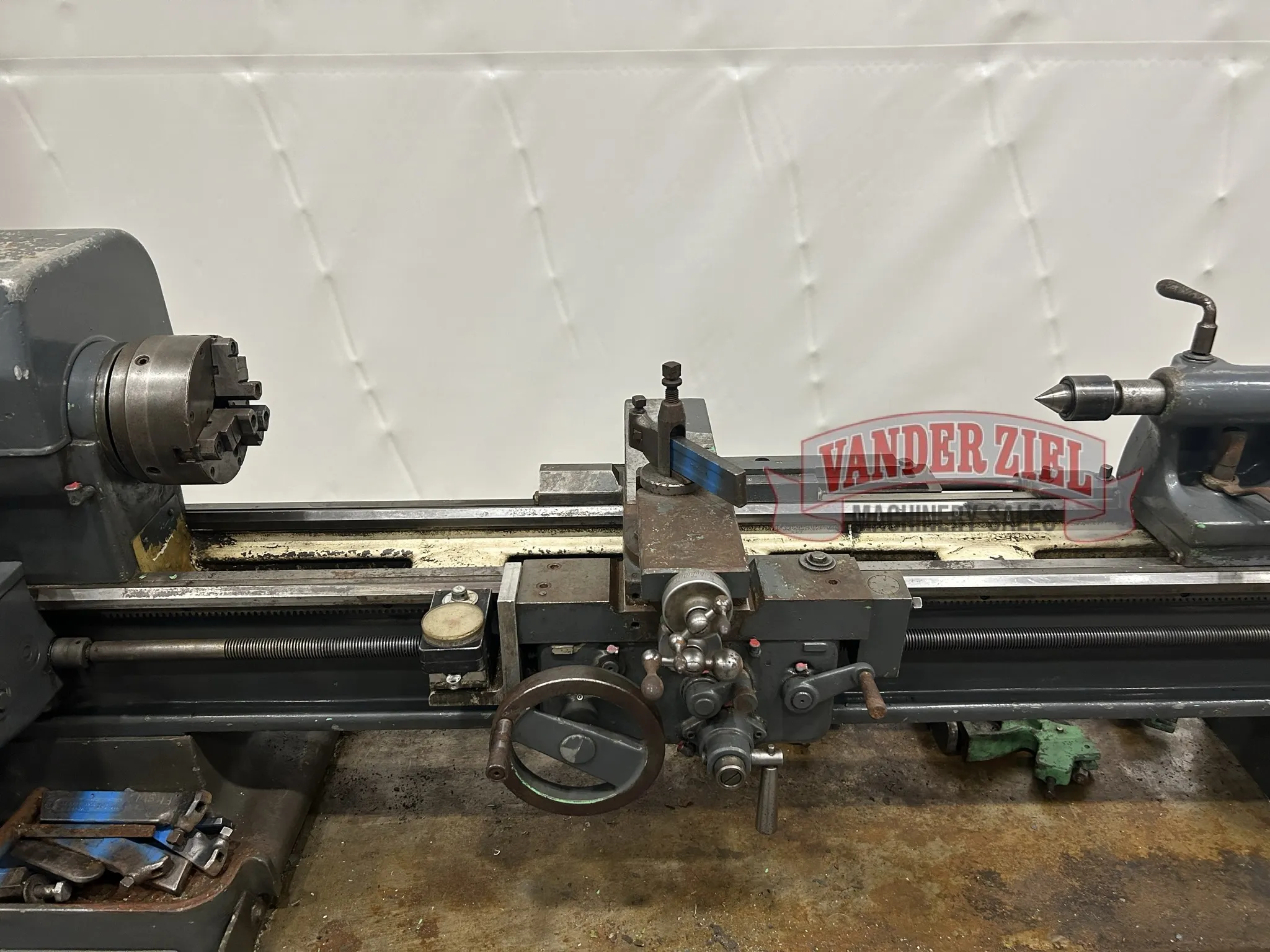

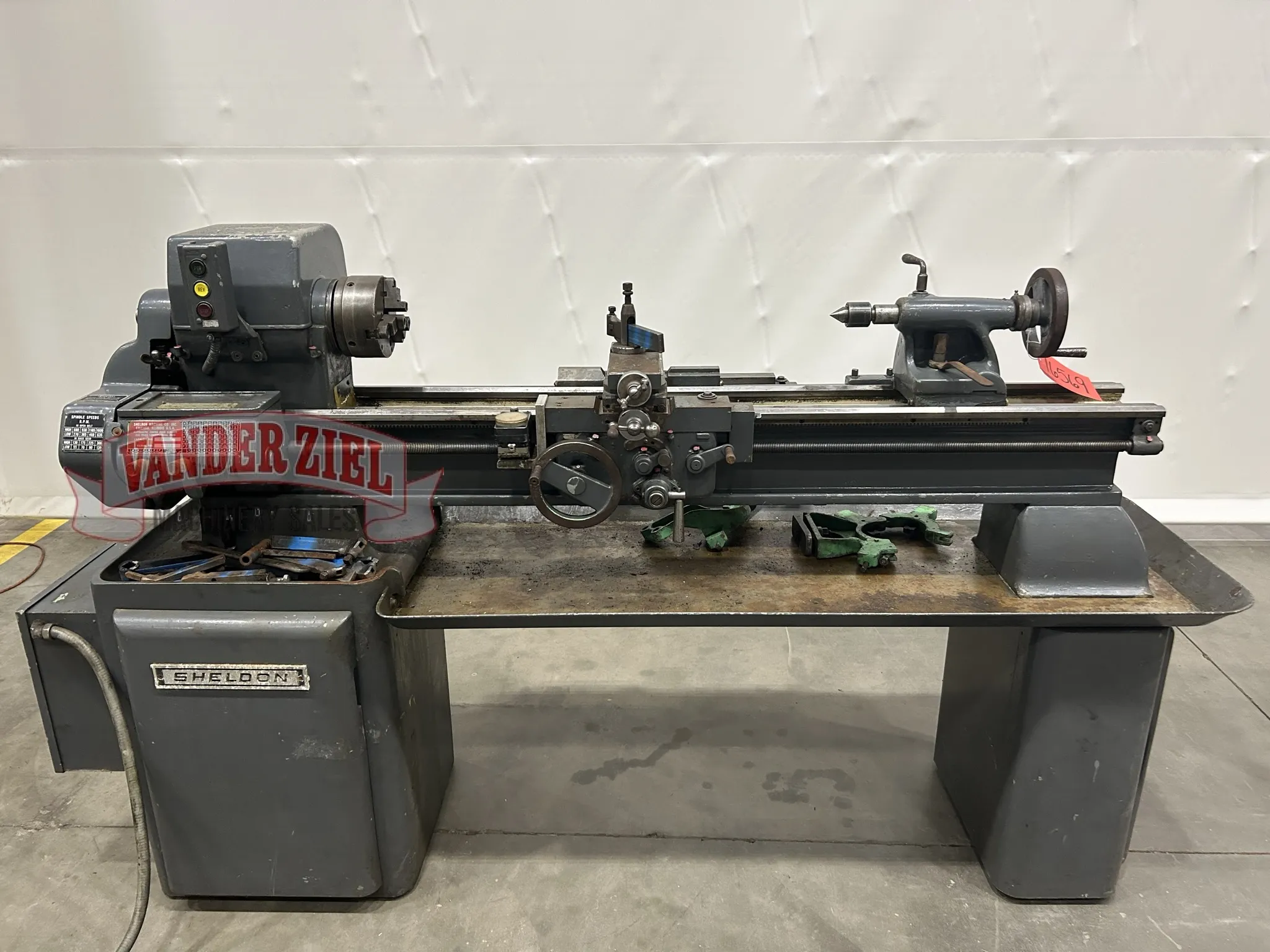

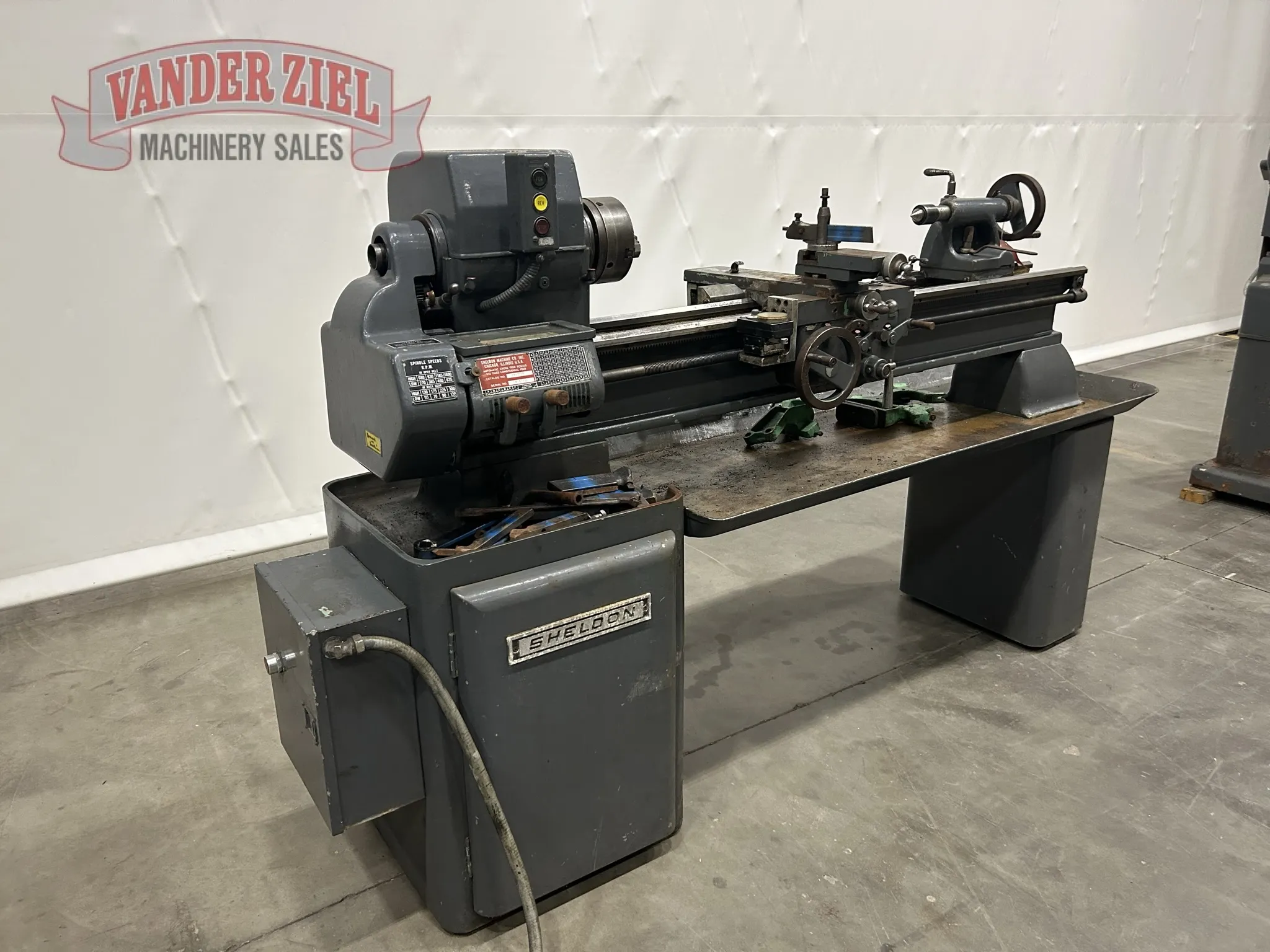

Sheldon 13” x 47” Lathe with Taper Attachment, 1 3/8” Spindle Bore, Catalog No. EM-70-P

Sheldon 13” x 47” Lathe with Taper Attachment, 1 3/8” Spindle Bore, Catalog No. EM-70-P

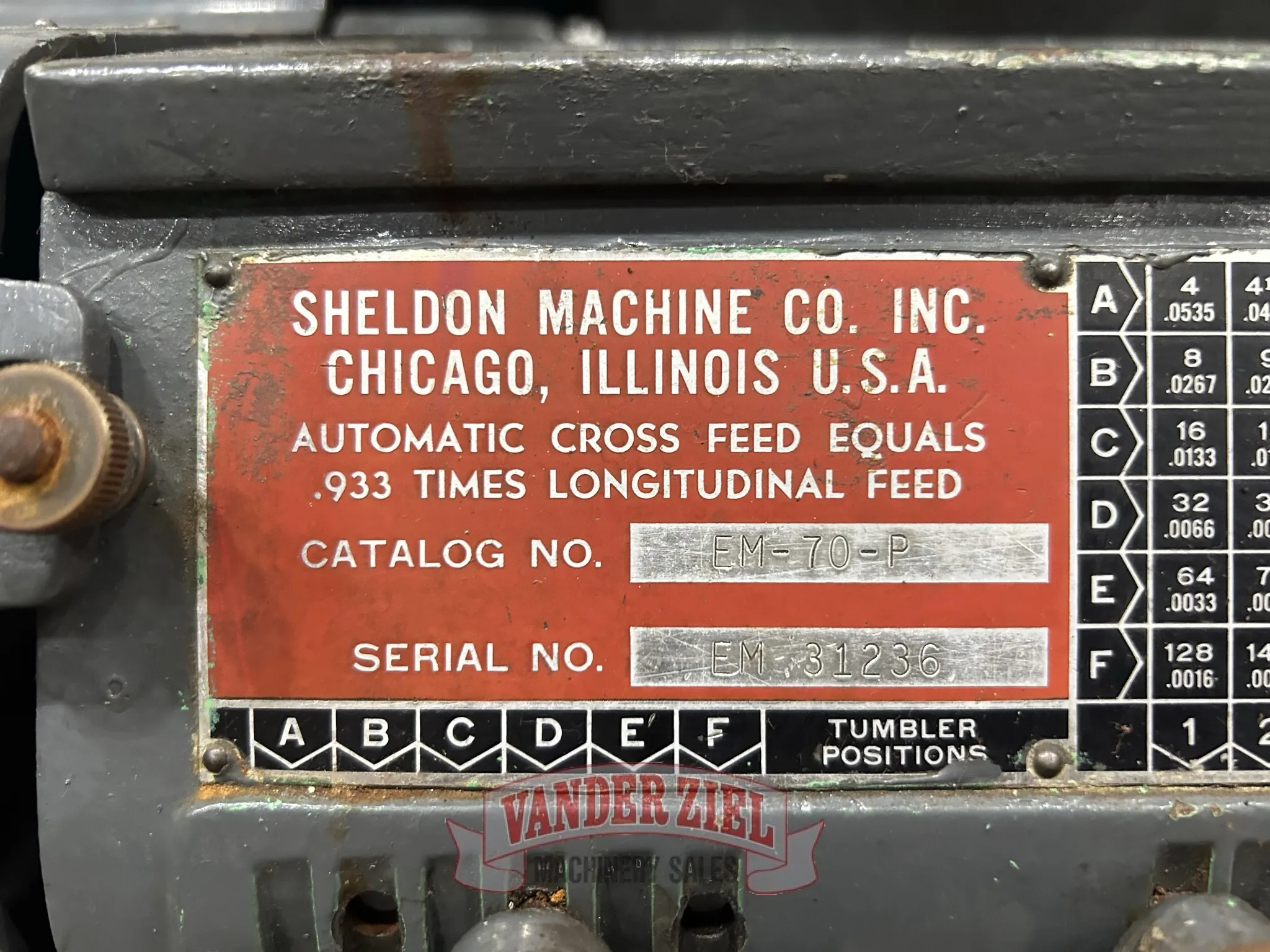

Serial #EM 31236
Asset #

Specifications:
Swing Over Bed 13 1/8”
Swing Over Cross Slide 8 7/8”
Distance Between Centers 47”
Spindle Bore 1 3/8”
Spindle Nose and TPI 2 ¼ x 8”
Headstock Morse Taper 5
Cross Slide Travel 6 9/16”
Tailstock Morse Taper No. 3
Threads (60) 2 – 240 TPI
Longitudinal Feed Range .0535 – .00085
Cross Feed Range .0499 – .0079

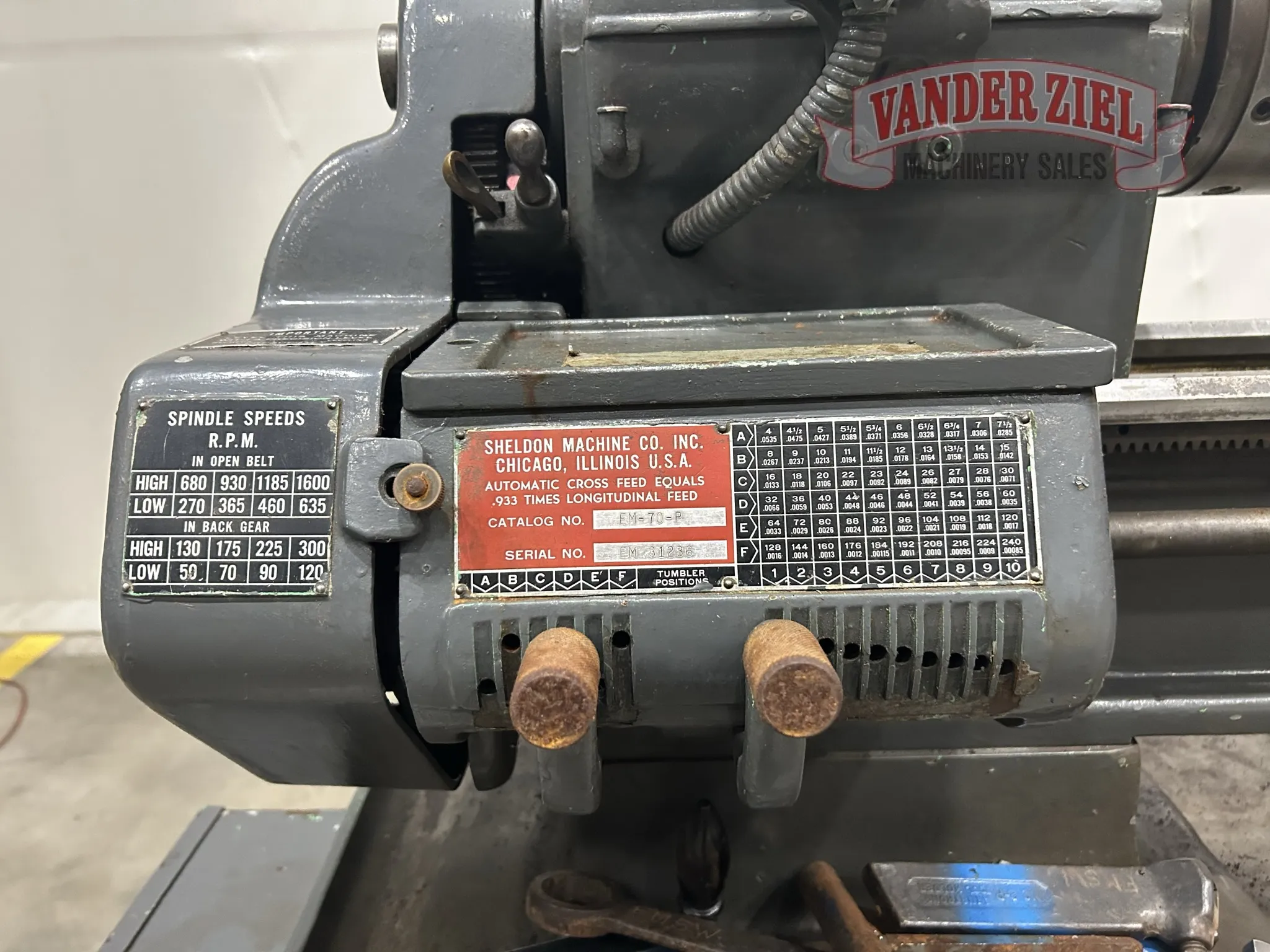

Spindle Speeds (16) 50 – 1600 RPM

Preliminary Specifications - Subject to Verification
