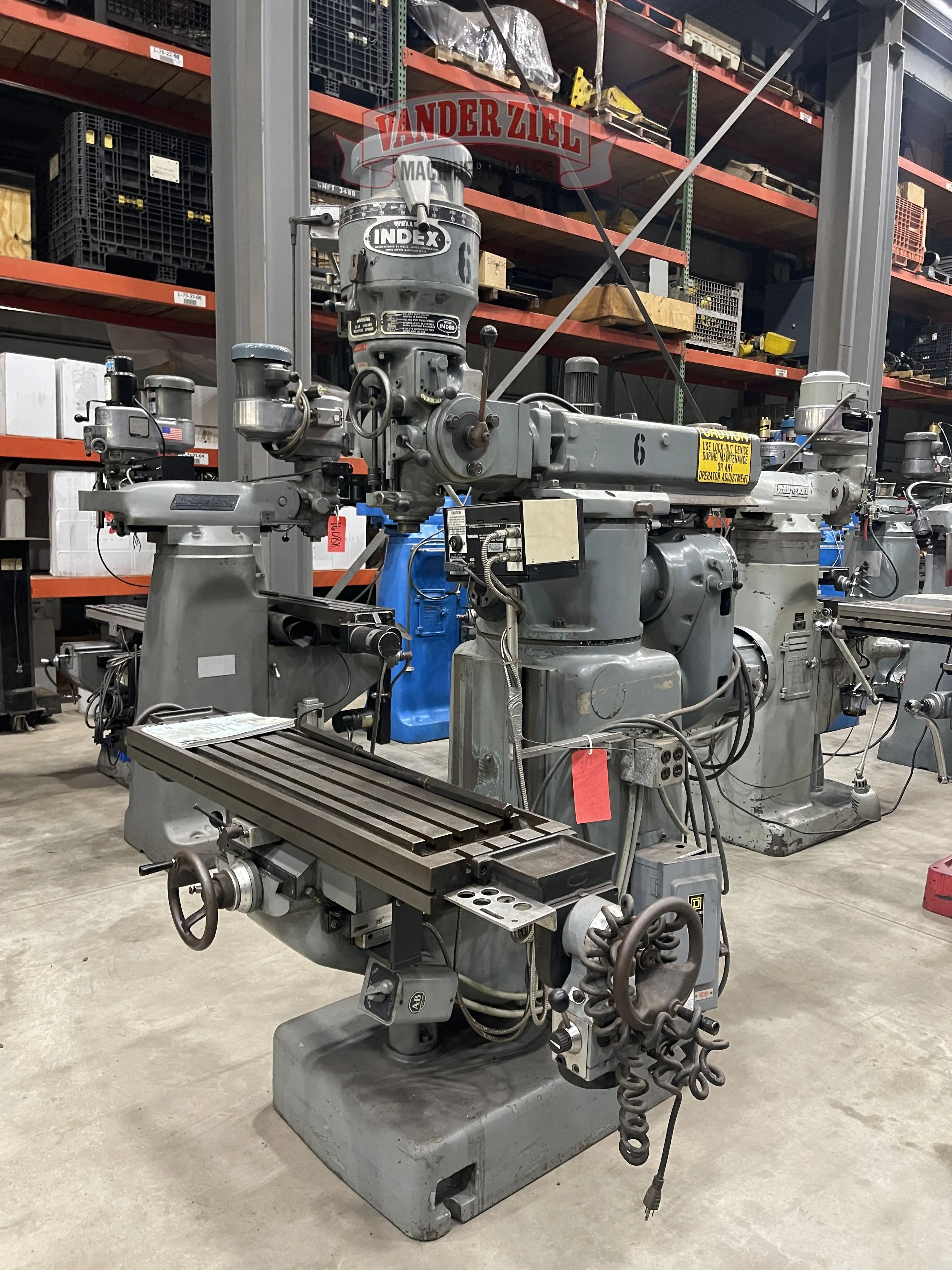

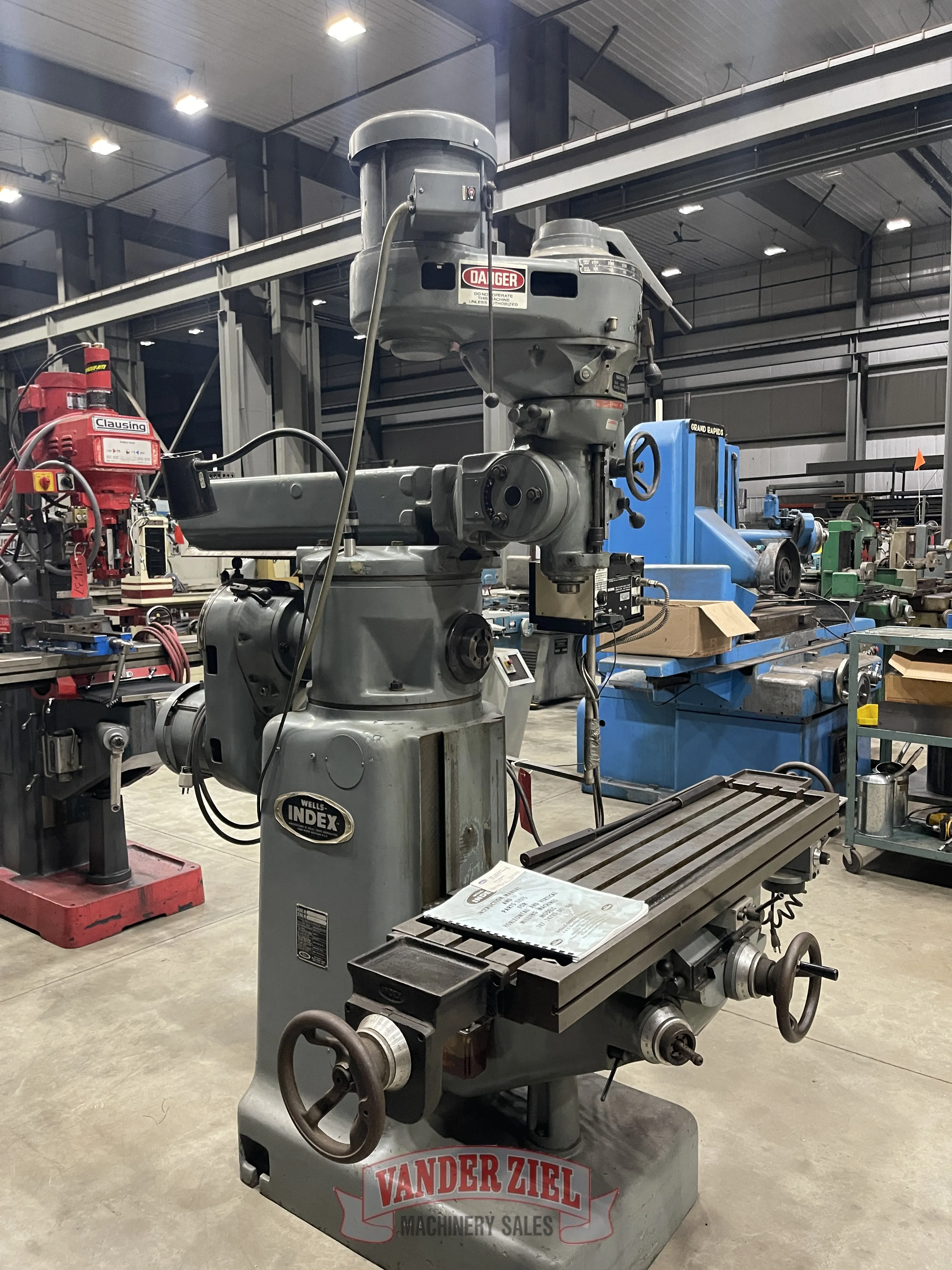

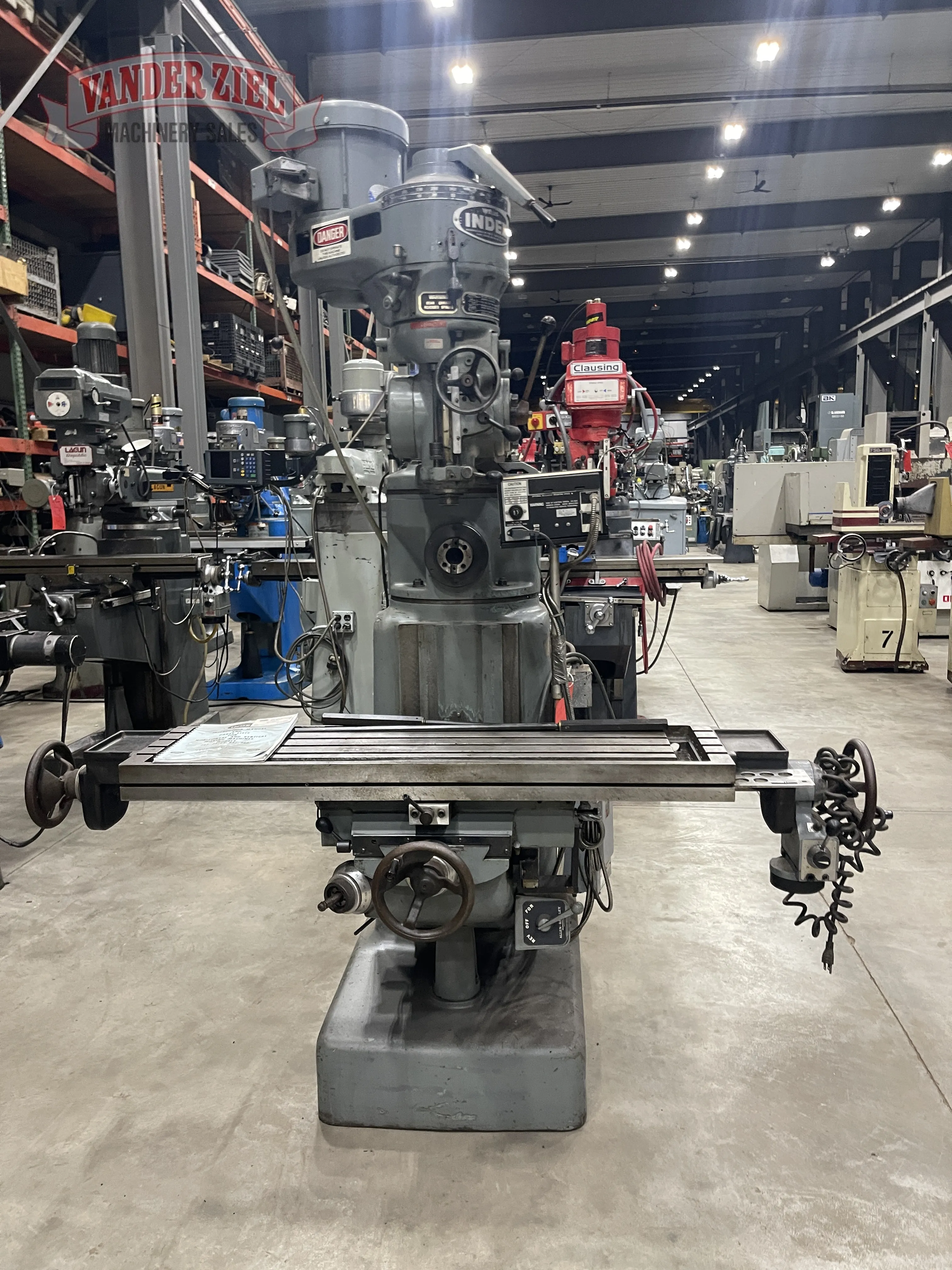

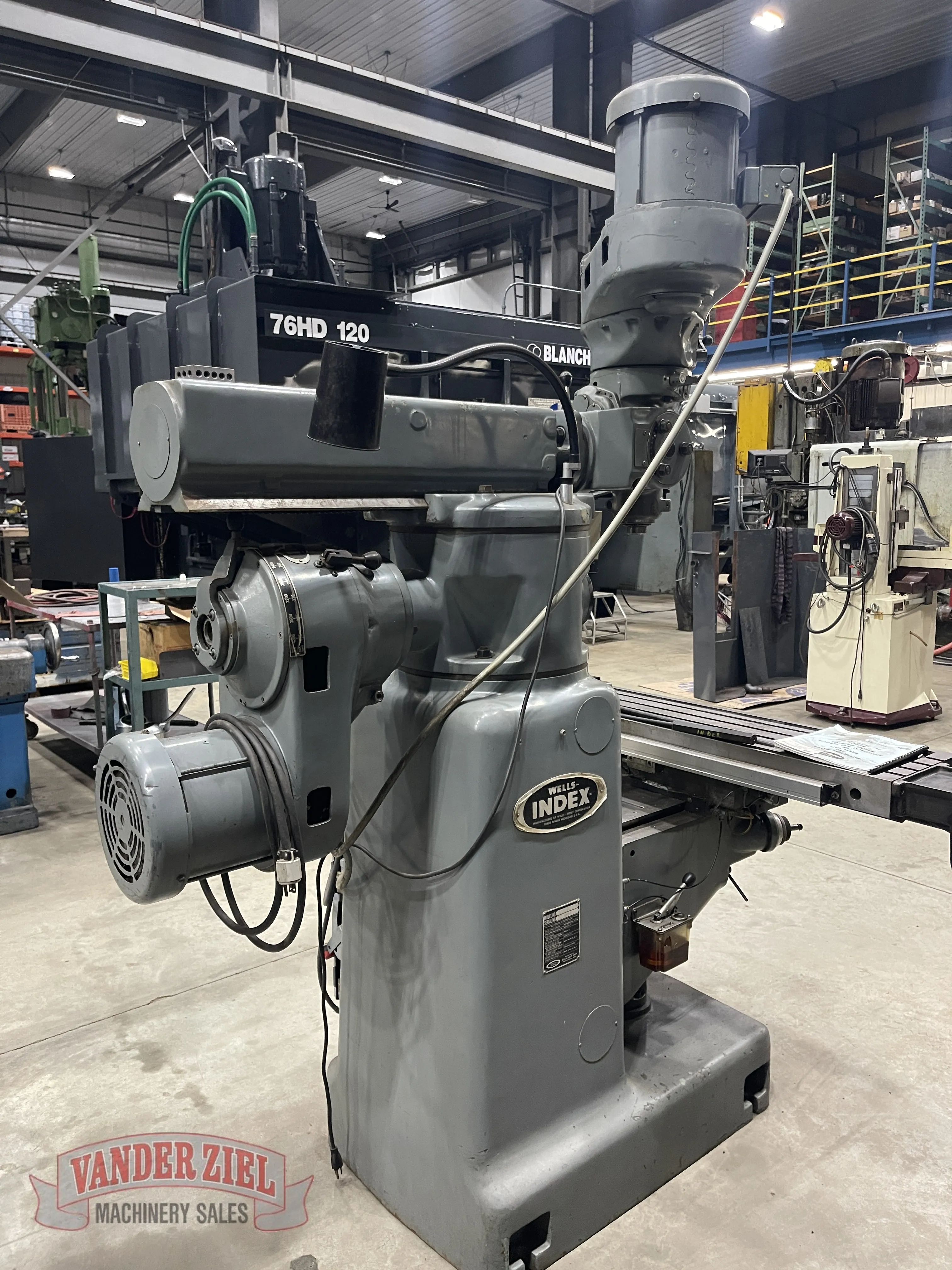

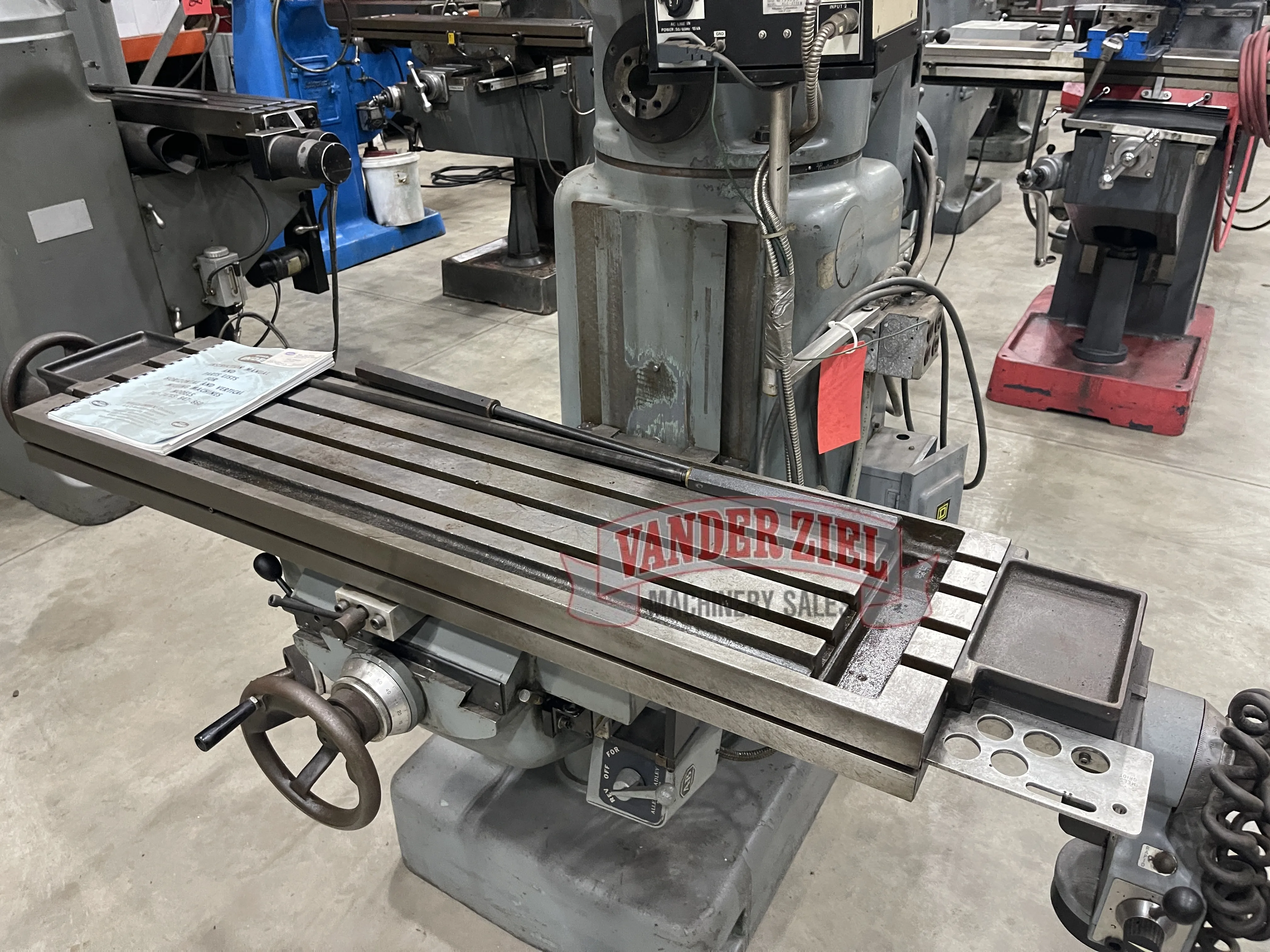

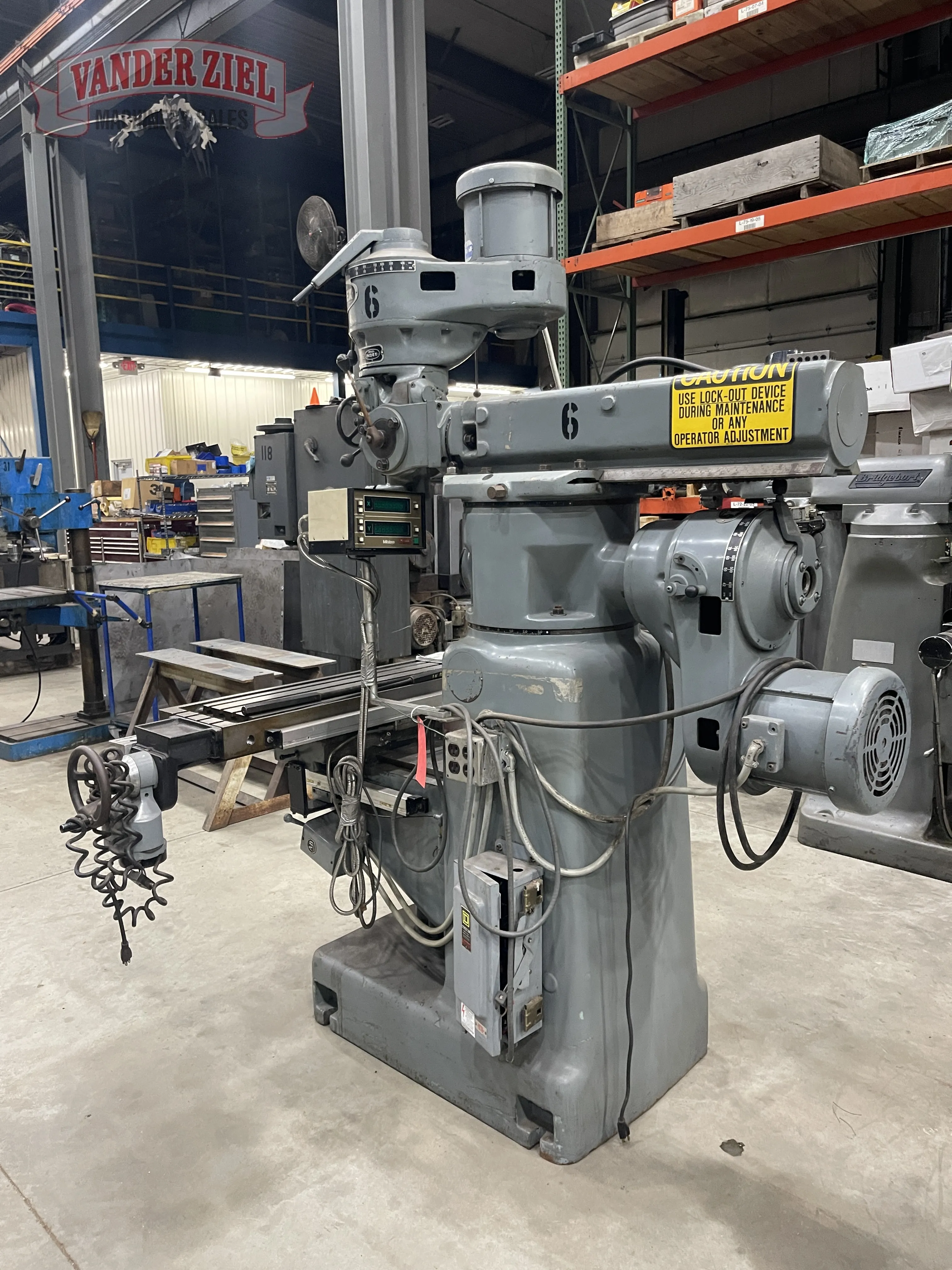

Wells Index Model 860, 2 Hp, 9"x46" tbl, 42-425 RPM, Vertical Horizontal Combination Mill

Wells Index Model 860, 2 Hp, 9"x46" tbl, 42-425 RPM, Vertical Horizontal Combination Mill

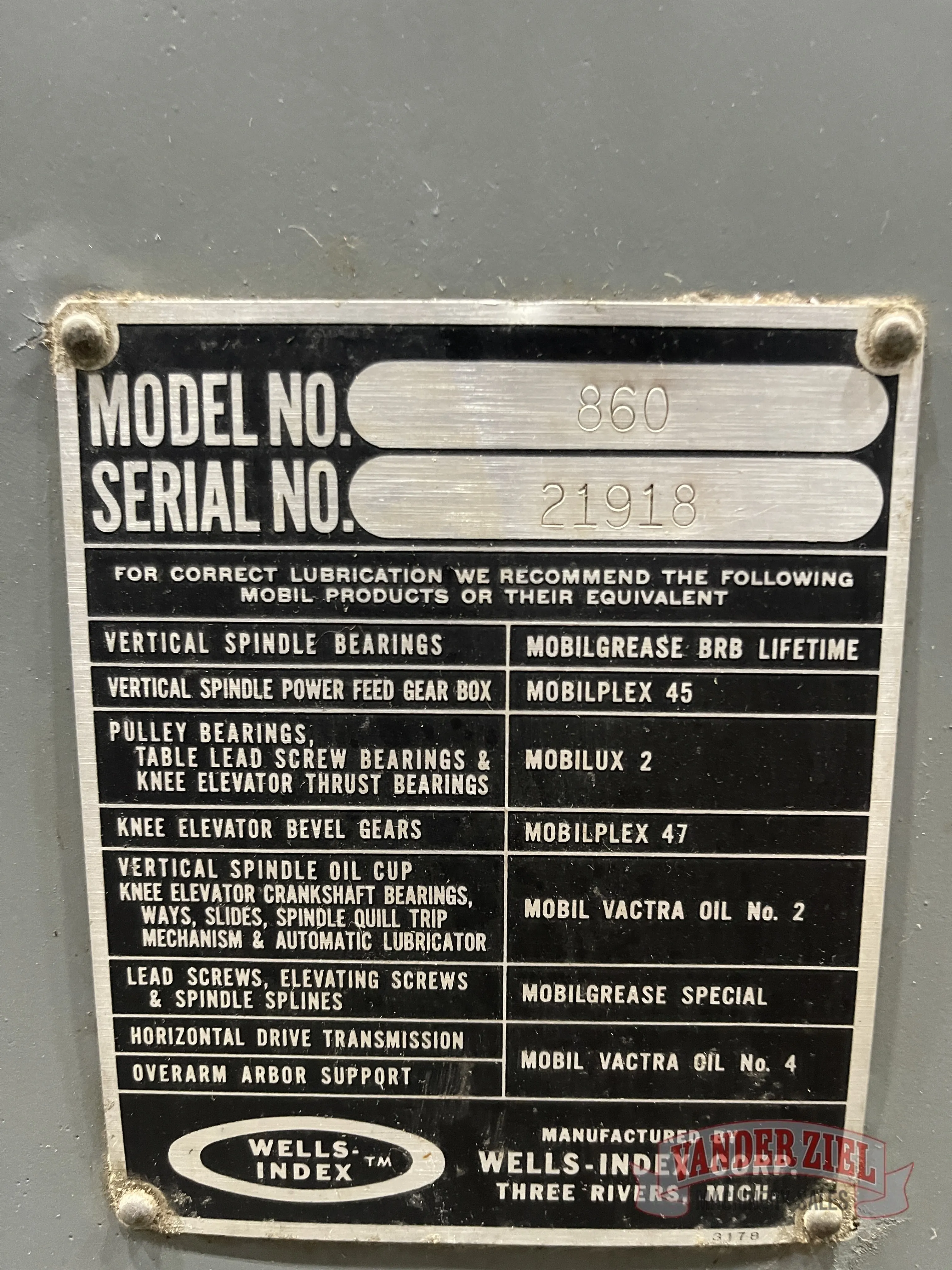

Asset # 16792
Serial # 21918

Specifications:

Table 9″x46″, 3 T-slots
Dial graduations .001
Longitudinal range 32″
Cross range 10″
Vertical-knee range 16 1/2″

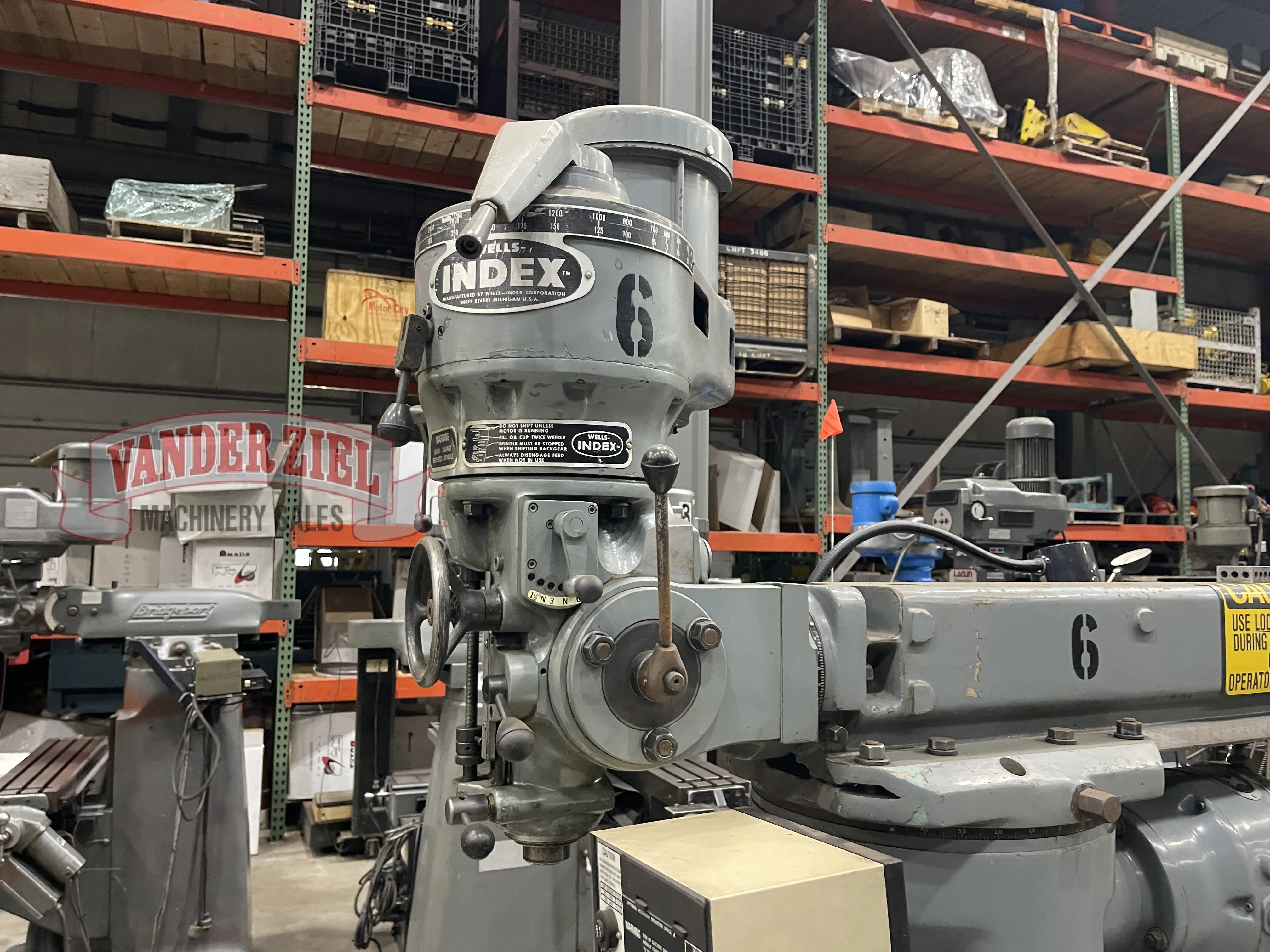

Vertical Spindle
Quill 5″
Head tilt forward & back 45 degree & 45 degree
Head rotation, side to side 180degree & 180 degree
Spindle nose to top of table 21 1/2″ max
0 min
Spindle Speeds
Vertical/Horizontal Variable speed
42 to 425 RPM back gear
412 to 4200 RPM direct drive
Spindle motor 2 Hp, variable speed
Approx dimensions 68″D x 102″W x 85″H
Approx weight 2,800 lbs
440 volts

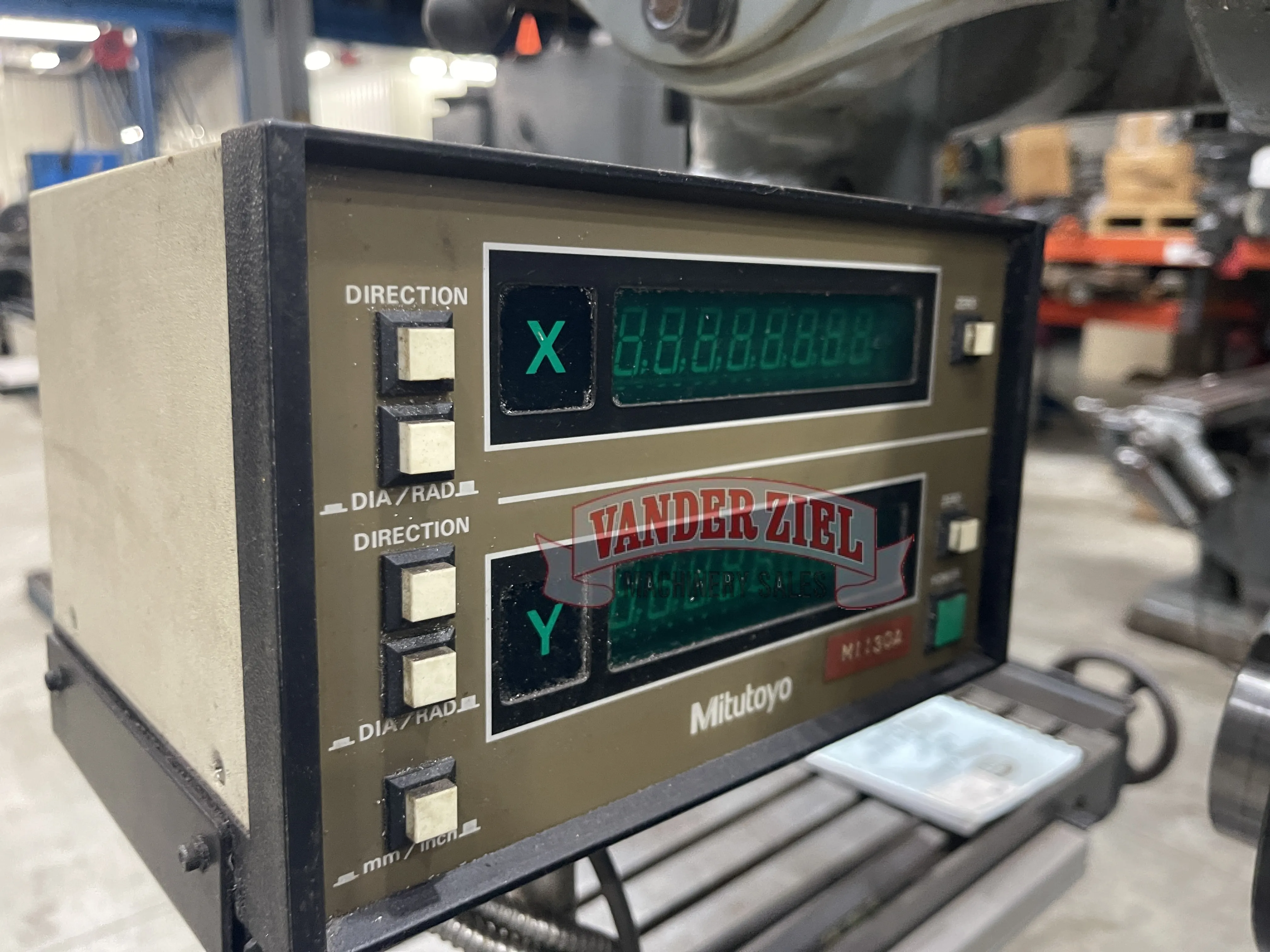

Machine is equipped with R8 spindle, 40 taper, servo power feed on X and Mitutoyo 2 Axis DRO.

Preliminary Specifications – Subject to Verification
