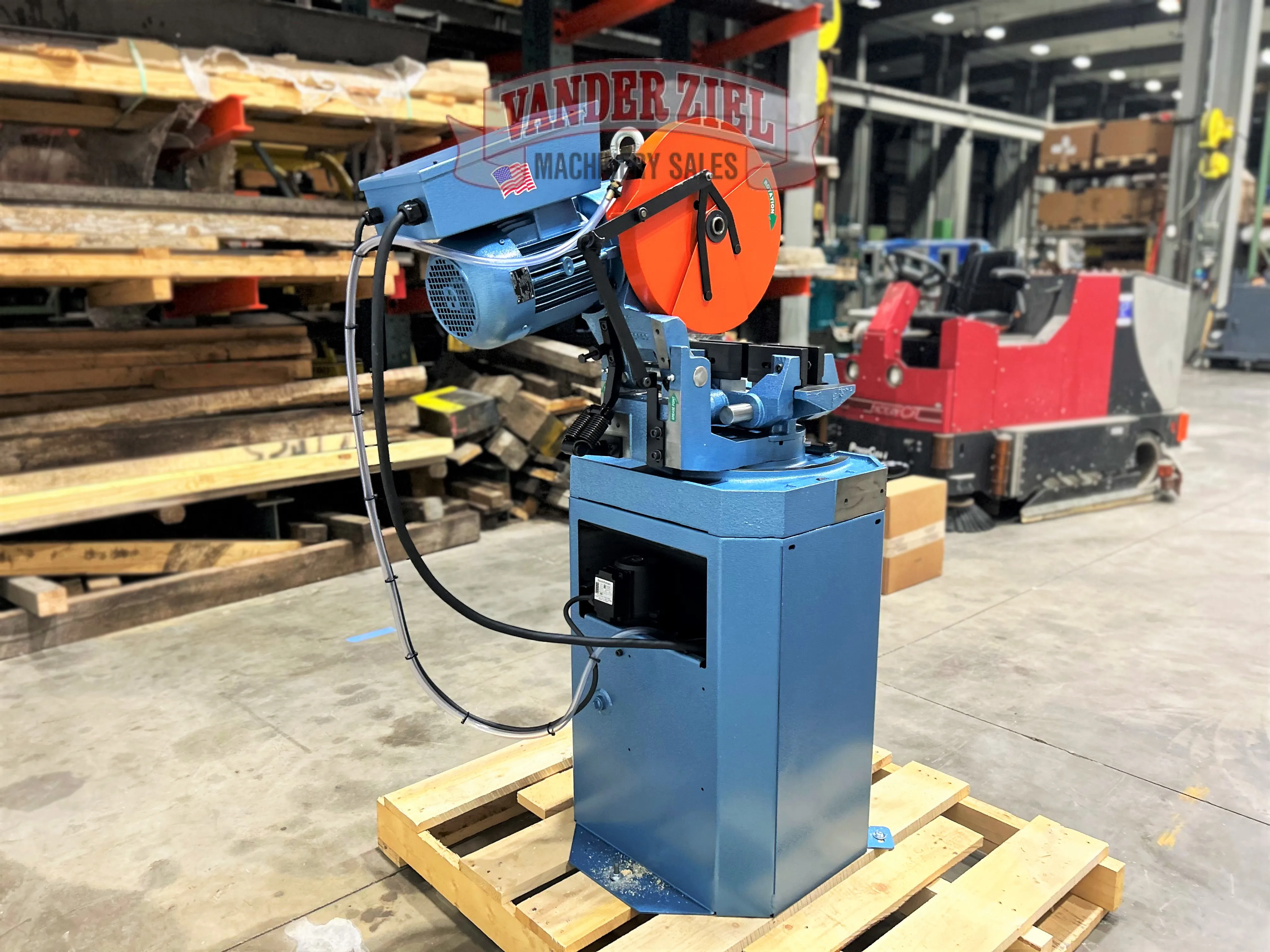

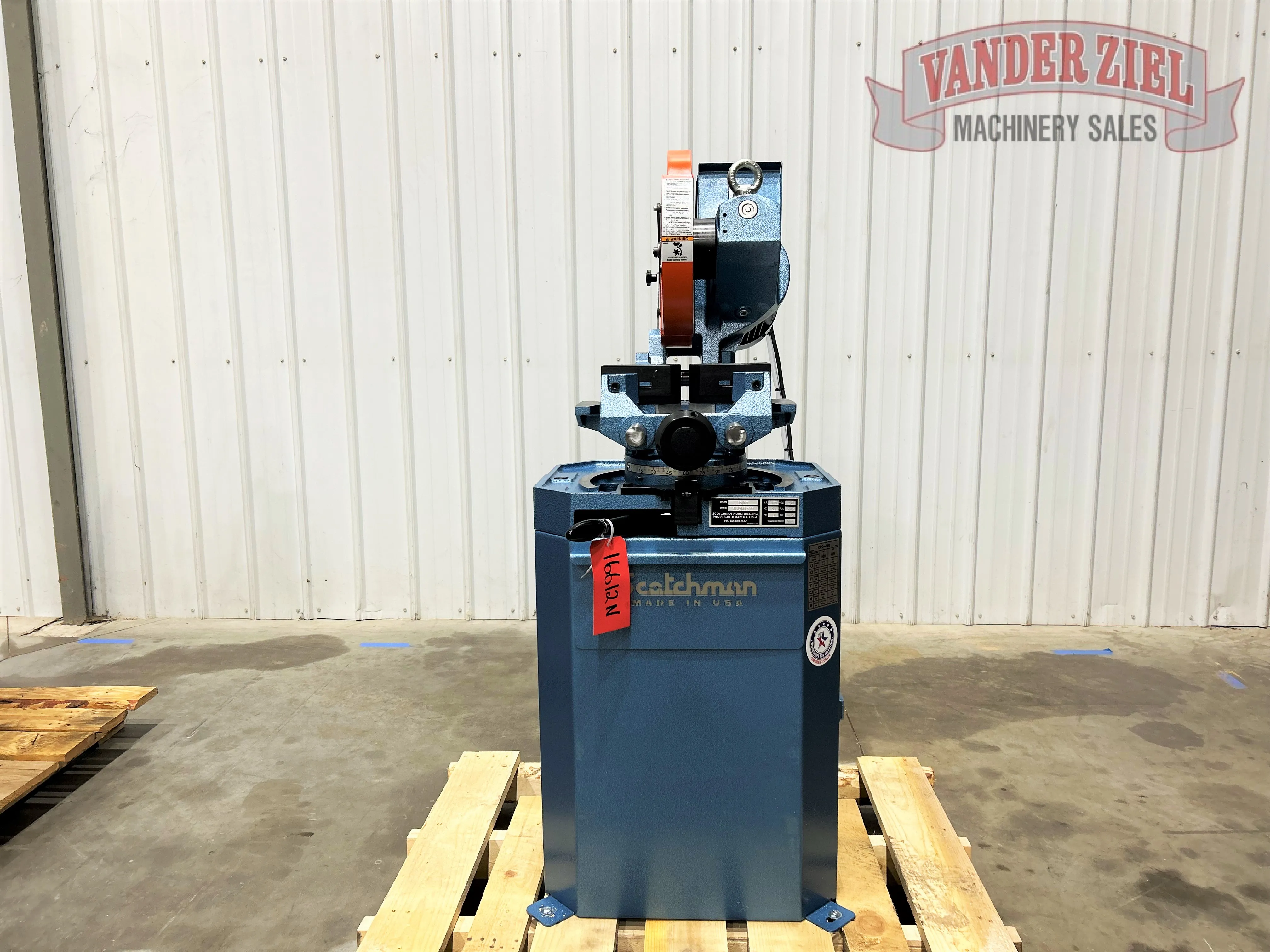

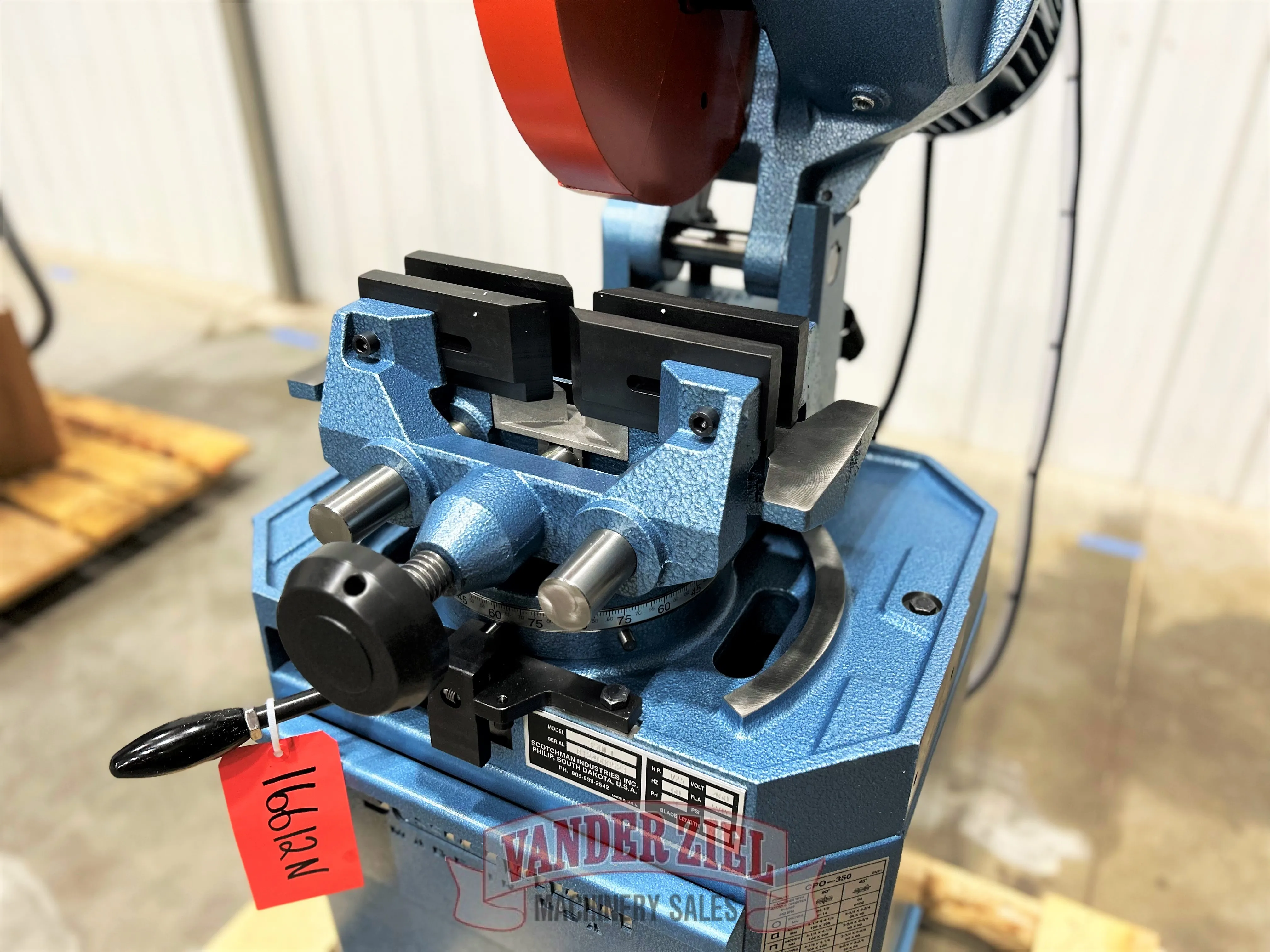

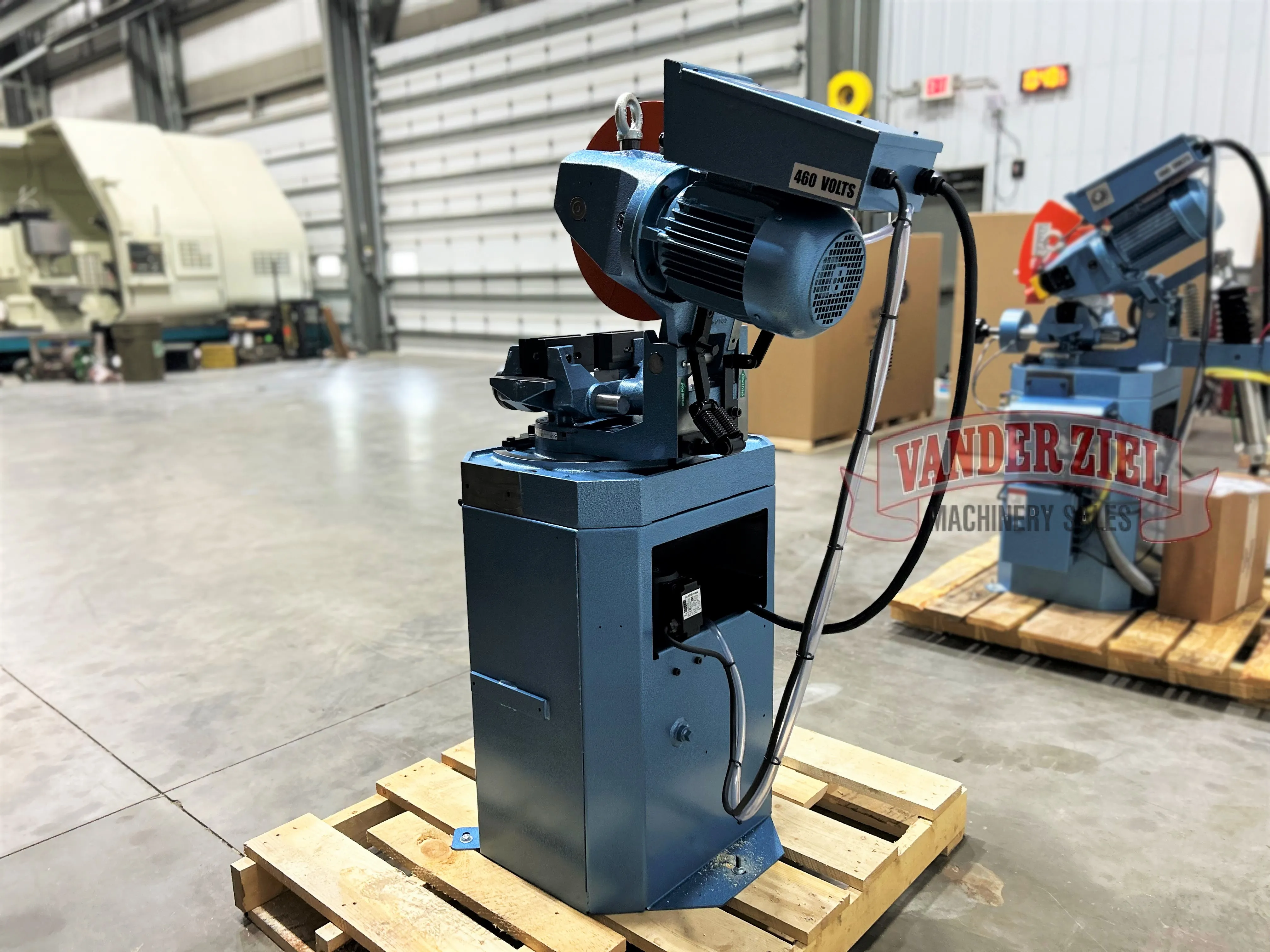

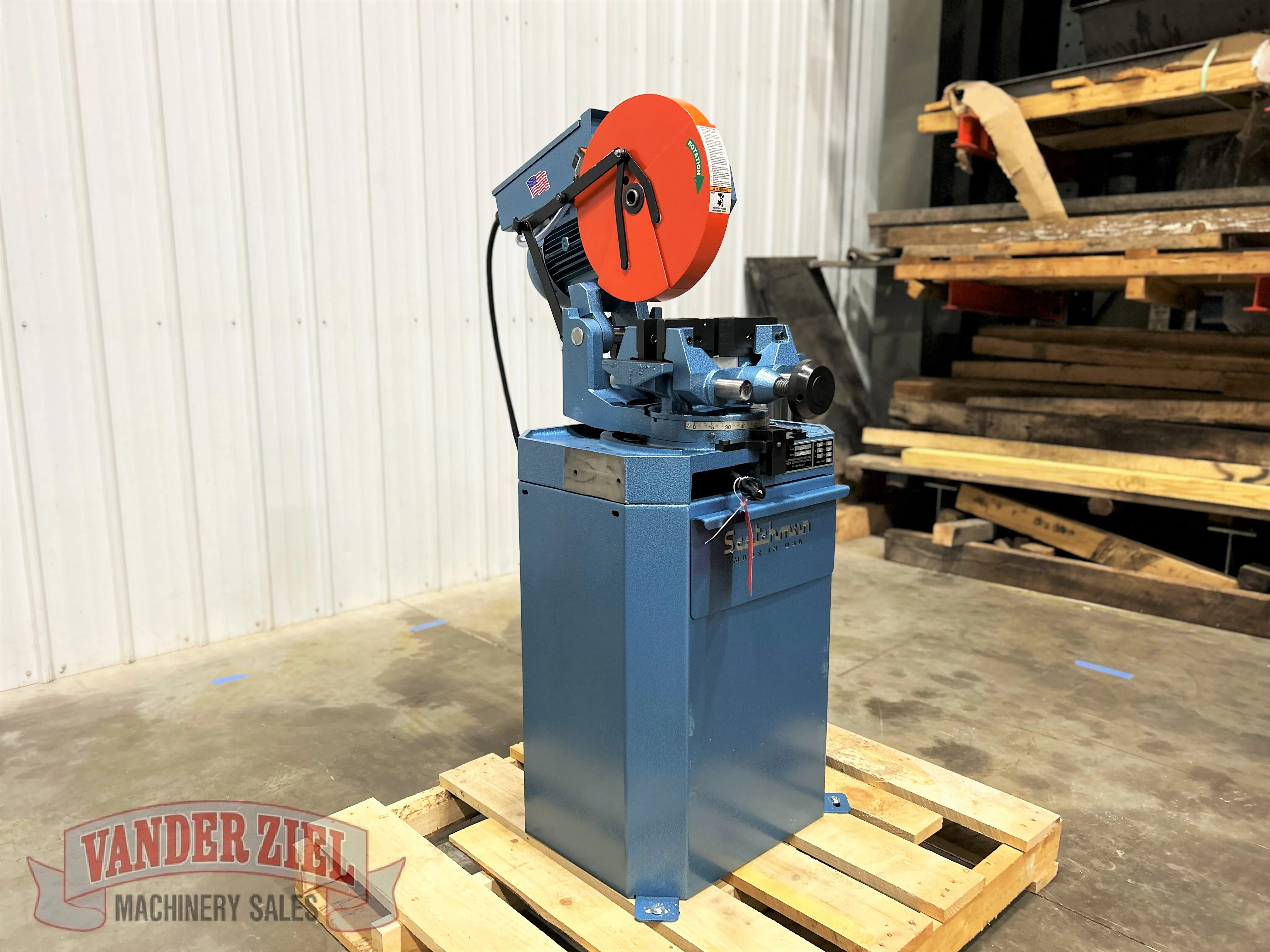

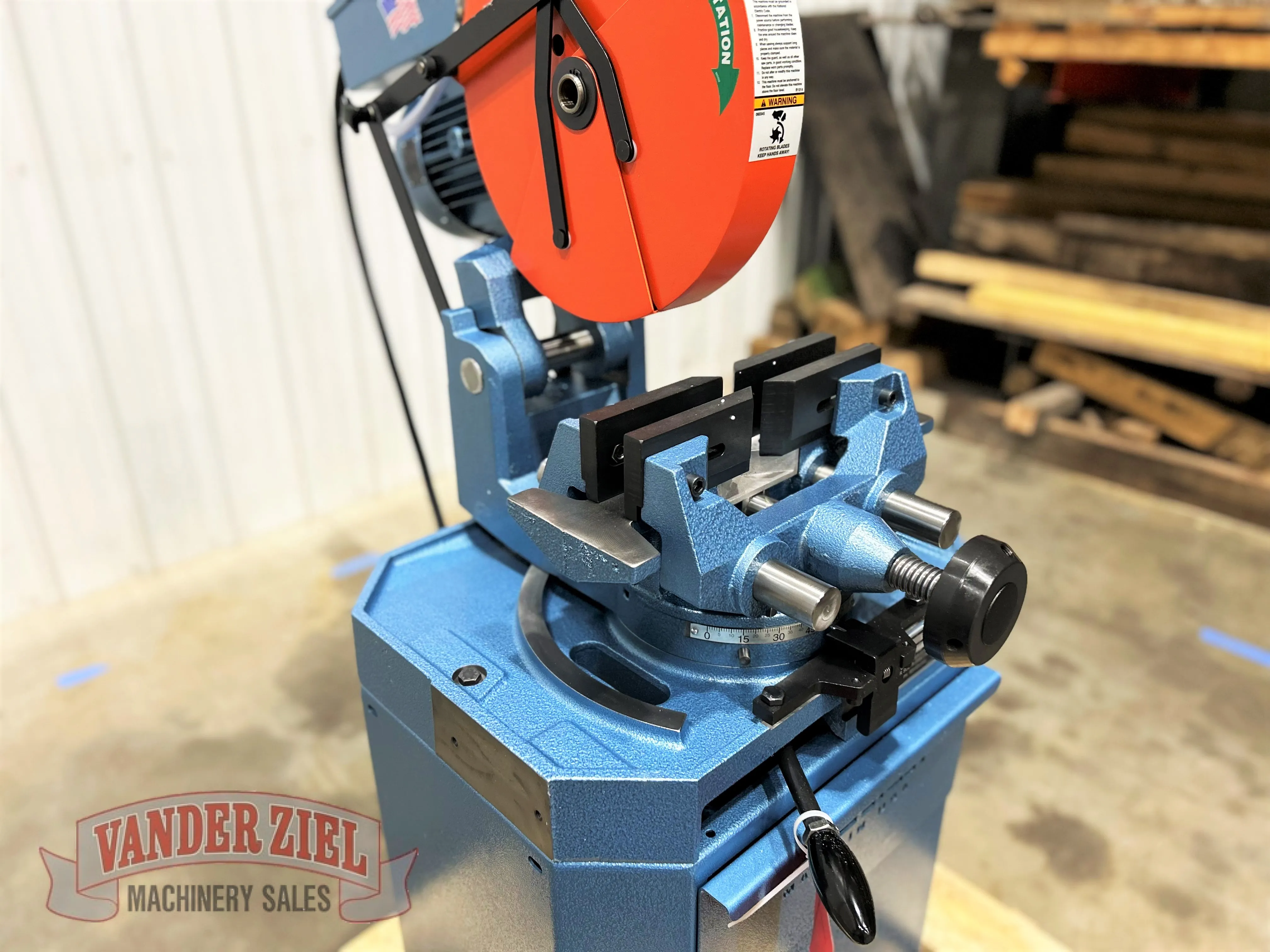

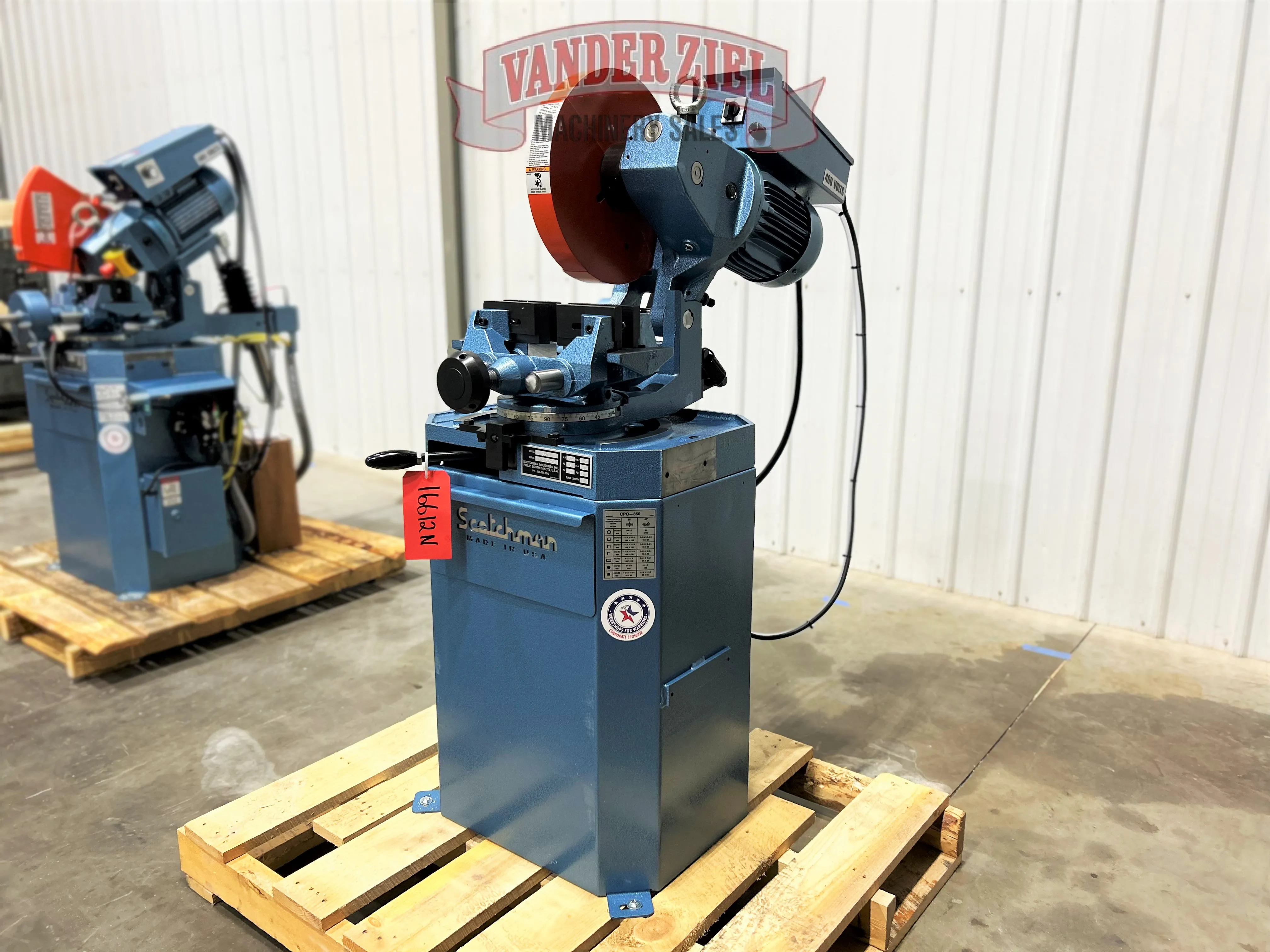

Scotchman 14″ Cold Saw, Model CPO 350 LT, 480V – NEW
Technical Specs
Catalog ItemYes
Description
Scotchman 14″ Cold Saw, Model CPO 350 LT 480V, 3PH– NEW
Asset 17030N
Specifications:
| Cutting Speeds | Must Specify when Ordering |
| LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe | LT (Low Turn)22 rpm / 44 rpm |
| TUBINGRoundSquare Rectangle SOLIDRoundSquare | 90 Degree4-1/2″ (114 mm)4-1/4″ x 4-1/4″ (108 x 108 mm)5-1/2″ x 4″ (140 x 102 mm)90 Degree2″ (51 mm)2″ x 2″ (51 x 51 mm) |
| Factory Wired | Specify208 3 ph230 3 ph460 3 ph575 volt, 3 ph 60 hz220 1-ph 60 Hz (SS Model only) |
| Maximum Diameter Blade | 14″ |
| Arbor Bore | 1-9/16″ |
| Pin Spacing | 4/12/64 |
| Width | 21-7/8″ |
| Depth | 43-1/2″ |
| Height not including handle | 56-1/4″ |
| Height from floor to vise | 37-7/16″ |
| Shipping Weight | 660 lbs. |
REF: 001394
