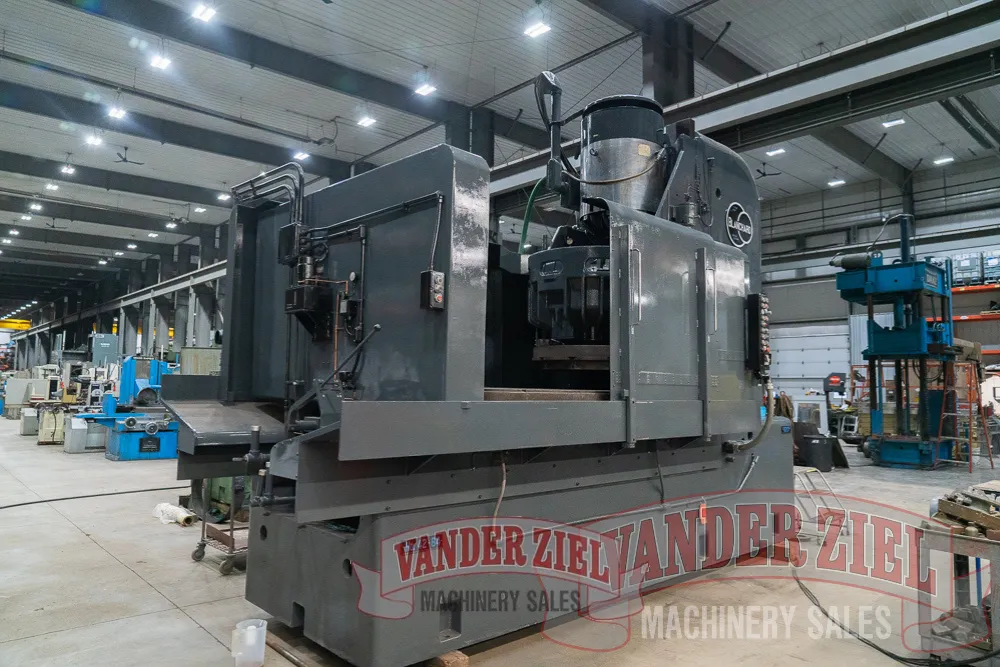

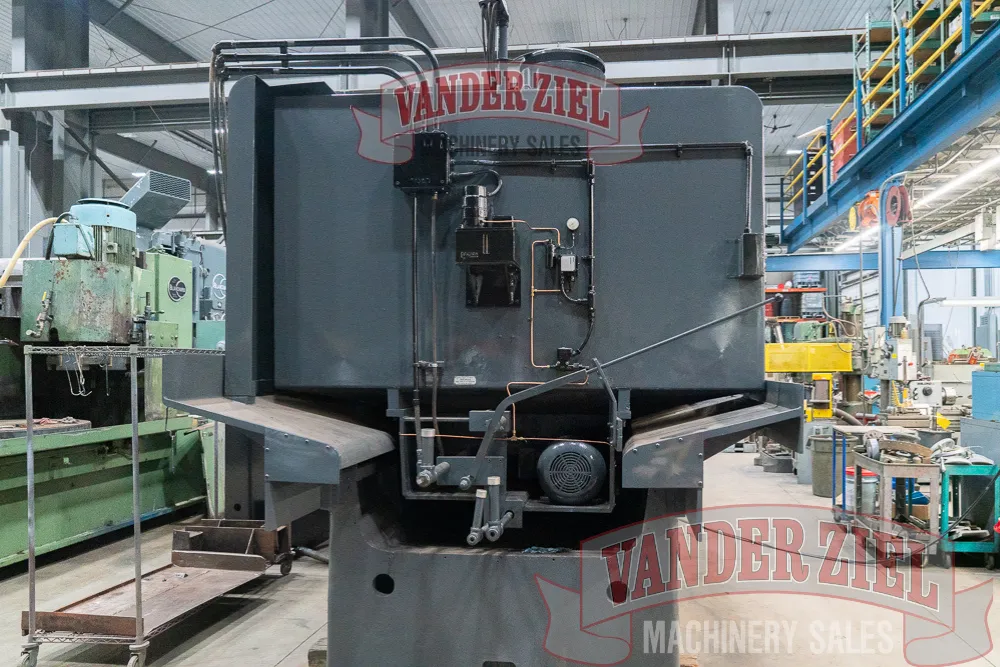

Blanchard 84" Rotary Grinder, Model 42HD-84

Blanchard 84" Rotary Grinder, Model 42HD-84

Asset # 17035
Serial # 13943

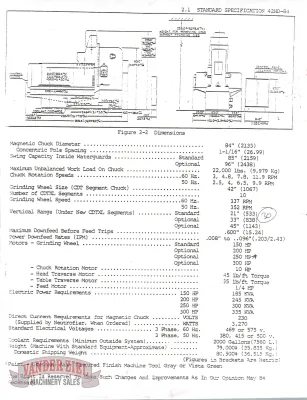

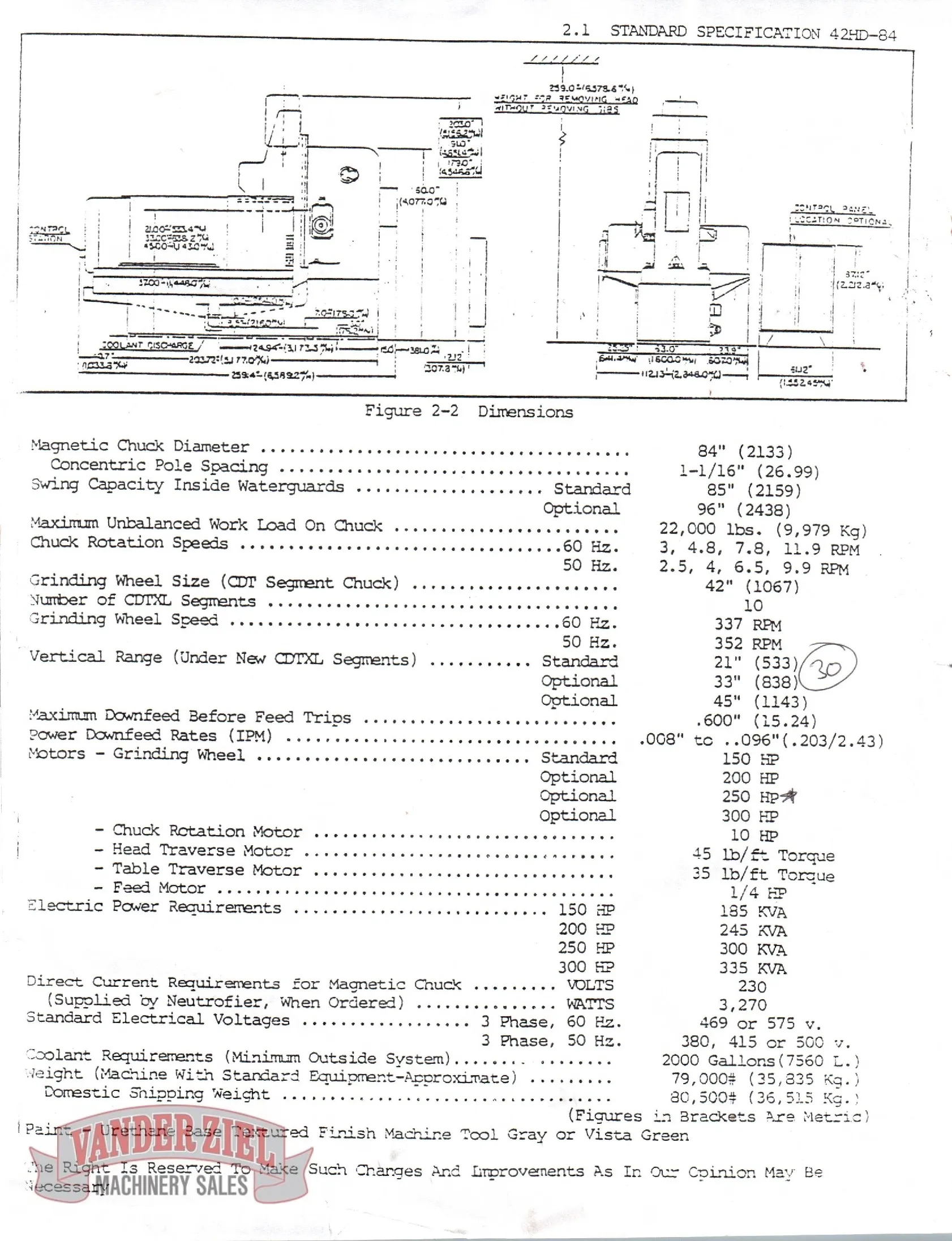

Specifications
Magnetic Chuck Diameter 84"
Concentric Pole Spacing 1-1/16"
Swing Capacity Inside Water guards Standard 85"
Maximum Unbalanced Work Load on Chuck 22,000 lbs
Chuck Rotating Speeds 60 Hz 3, 4.8, 7.8, 11.9 RPM
Grinding Wheel Size (CDT Segment Chuck) 42"
Number of CDTXL Segments 10
Grinding Wheel Speed 60 Hz 337 Rpm
50 Hz 352 Rpm
Vertical Range 21"
Maximum Downfeed Before Feed Trips .600
Power Downfeed Rates (IPM) .008 - 0.96"
Motors - Grinding Wheel 150HP

Preliminary Specifications - Subject to Verification
