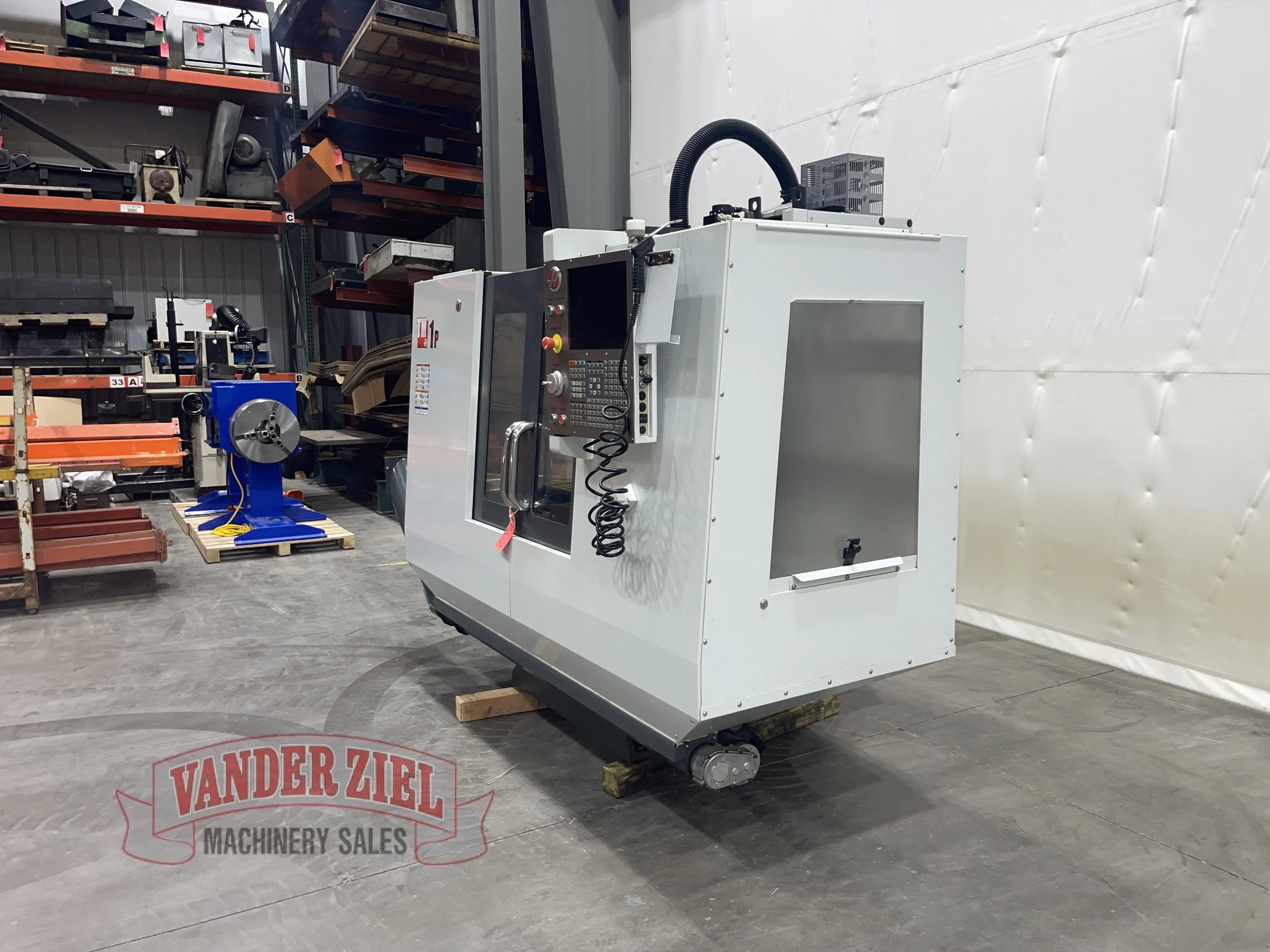

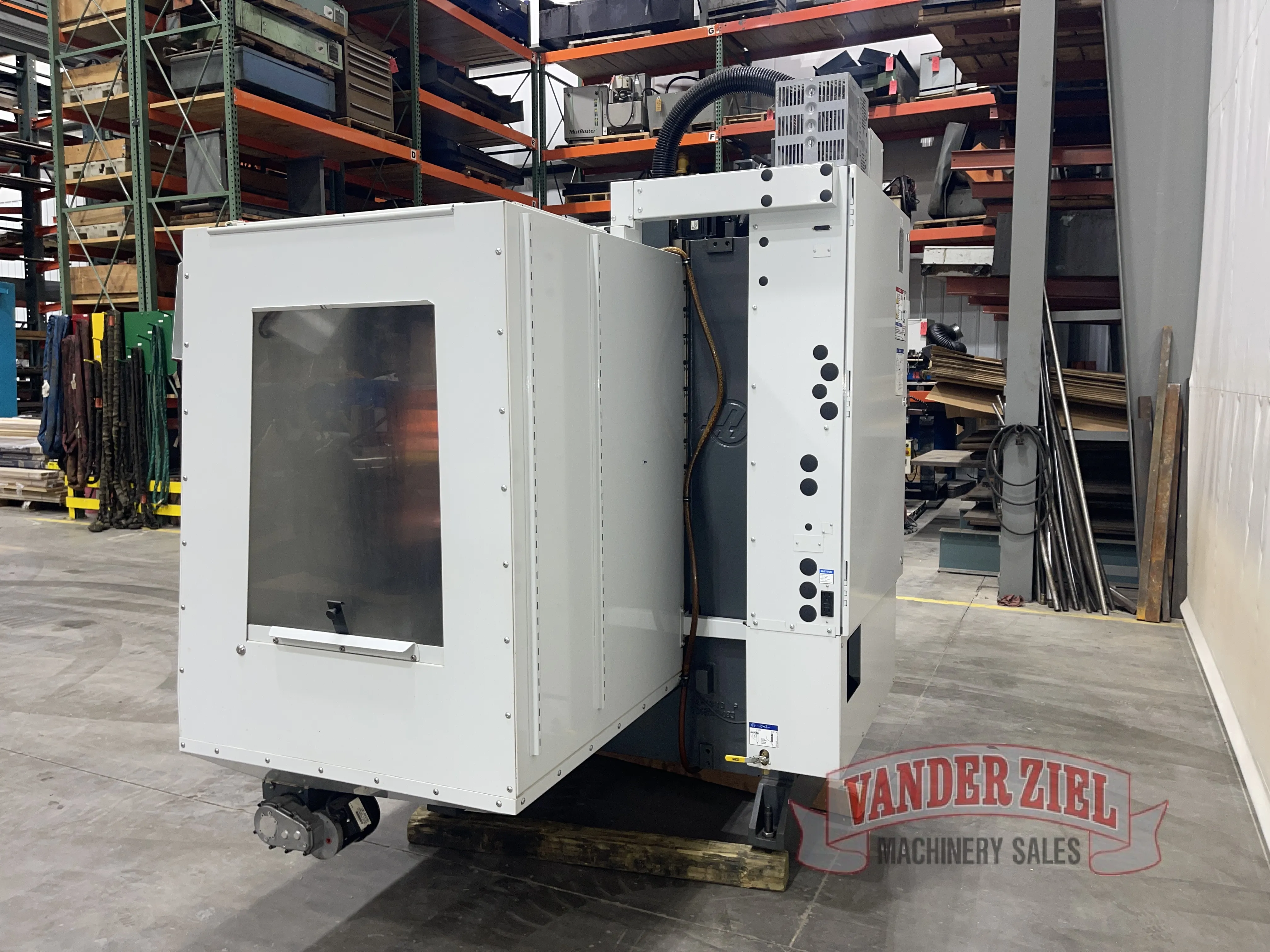

Haas TM-1P CNC Mill - 2012
Technical Specs
As-IsNo
Description

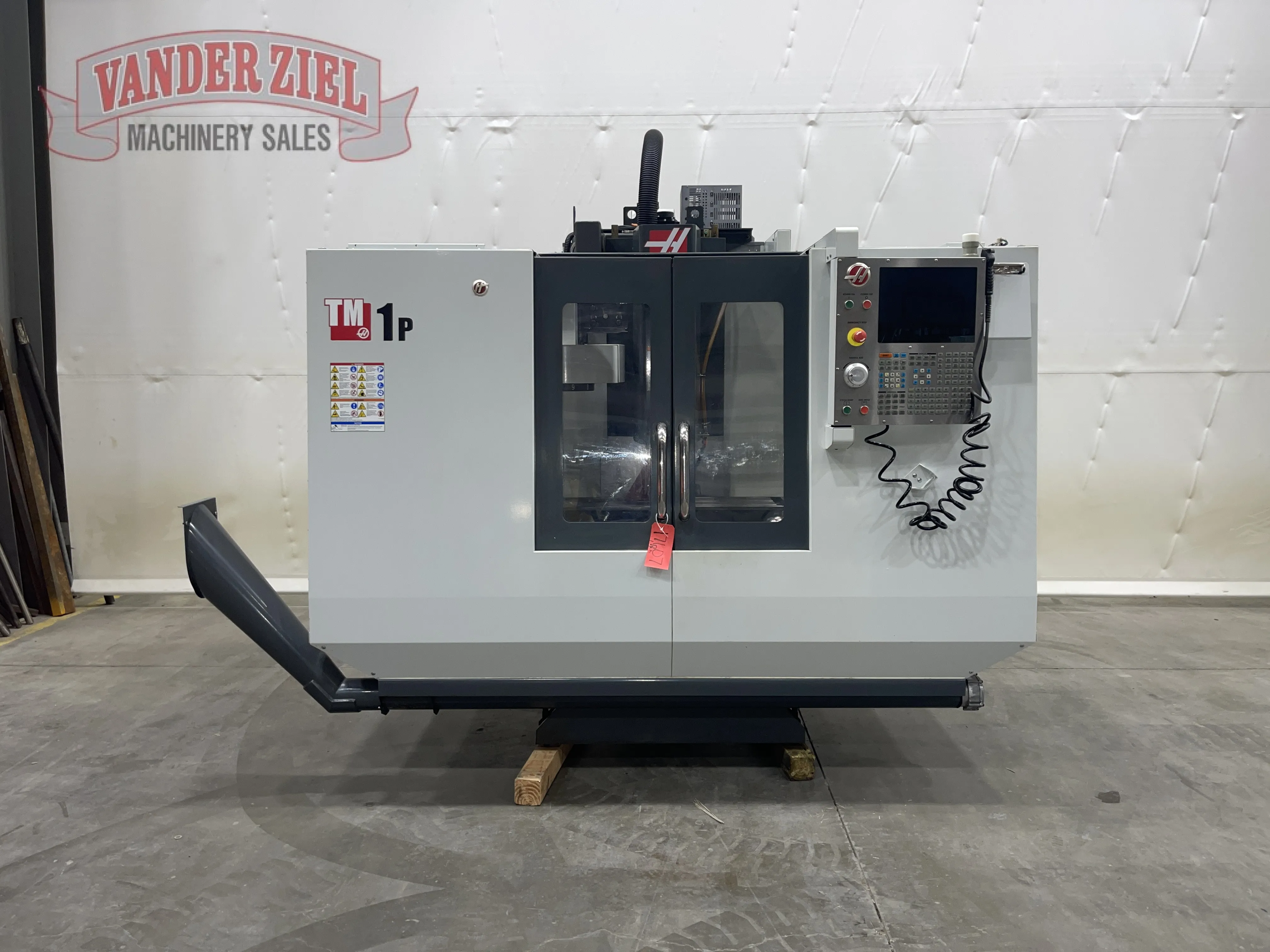

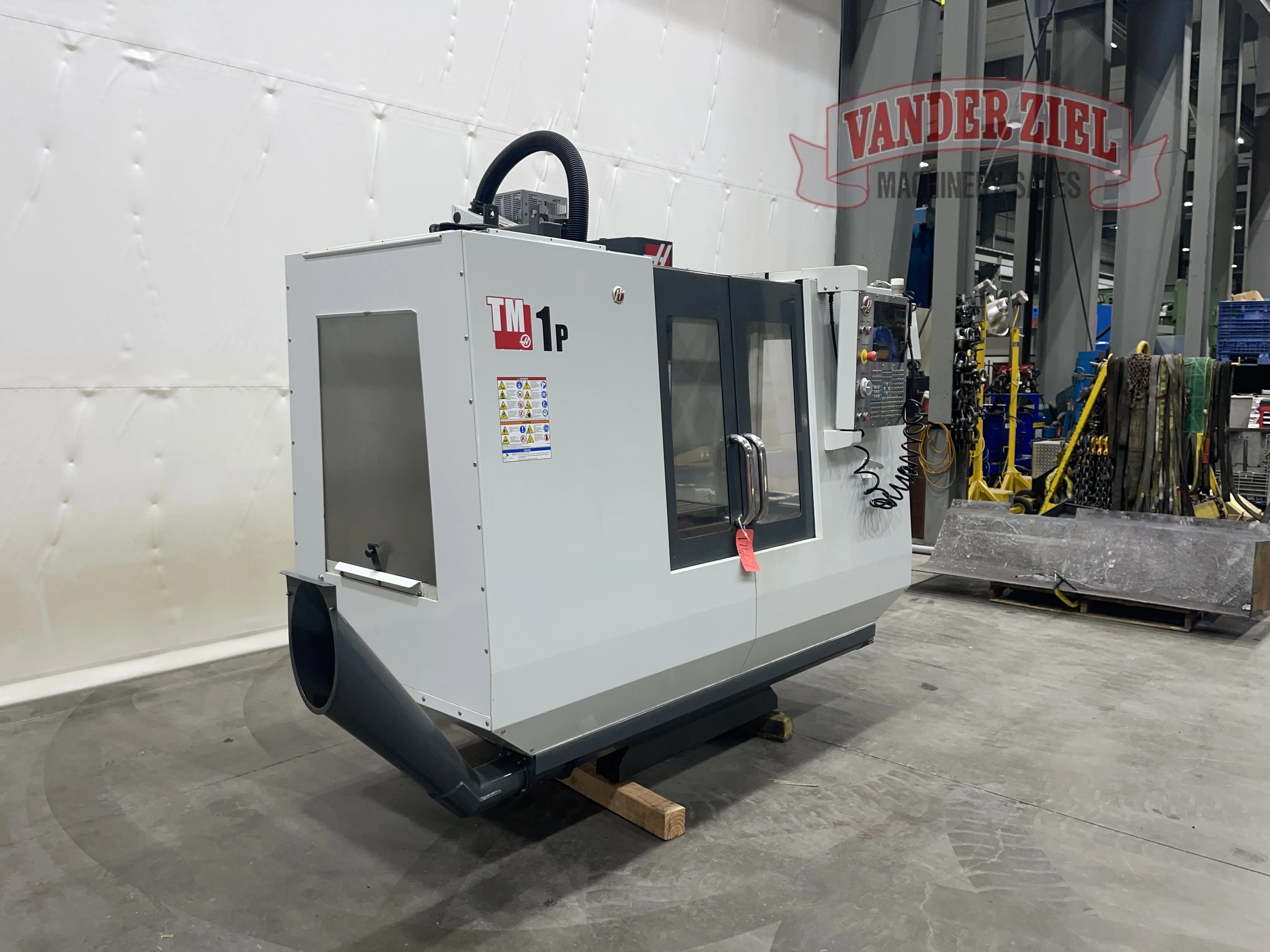

Haas TM-1P CNC Mill - 2012
Asset # 17615
| Travels | S.A.E | METRIC |
|---|---|---|
| X Axis | 30.00 in | 762 mm |
| Y Axis | 16.00 in | 406 mm |
| Z Axis | 16.00 in | 406 mm |
| Spindle Nose to Table (~ max) | 20.0 in | 508 mm |
| Spindle Nose to Table (~ min) | 4.0 in | 102 mm |

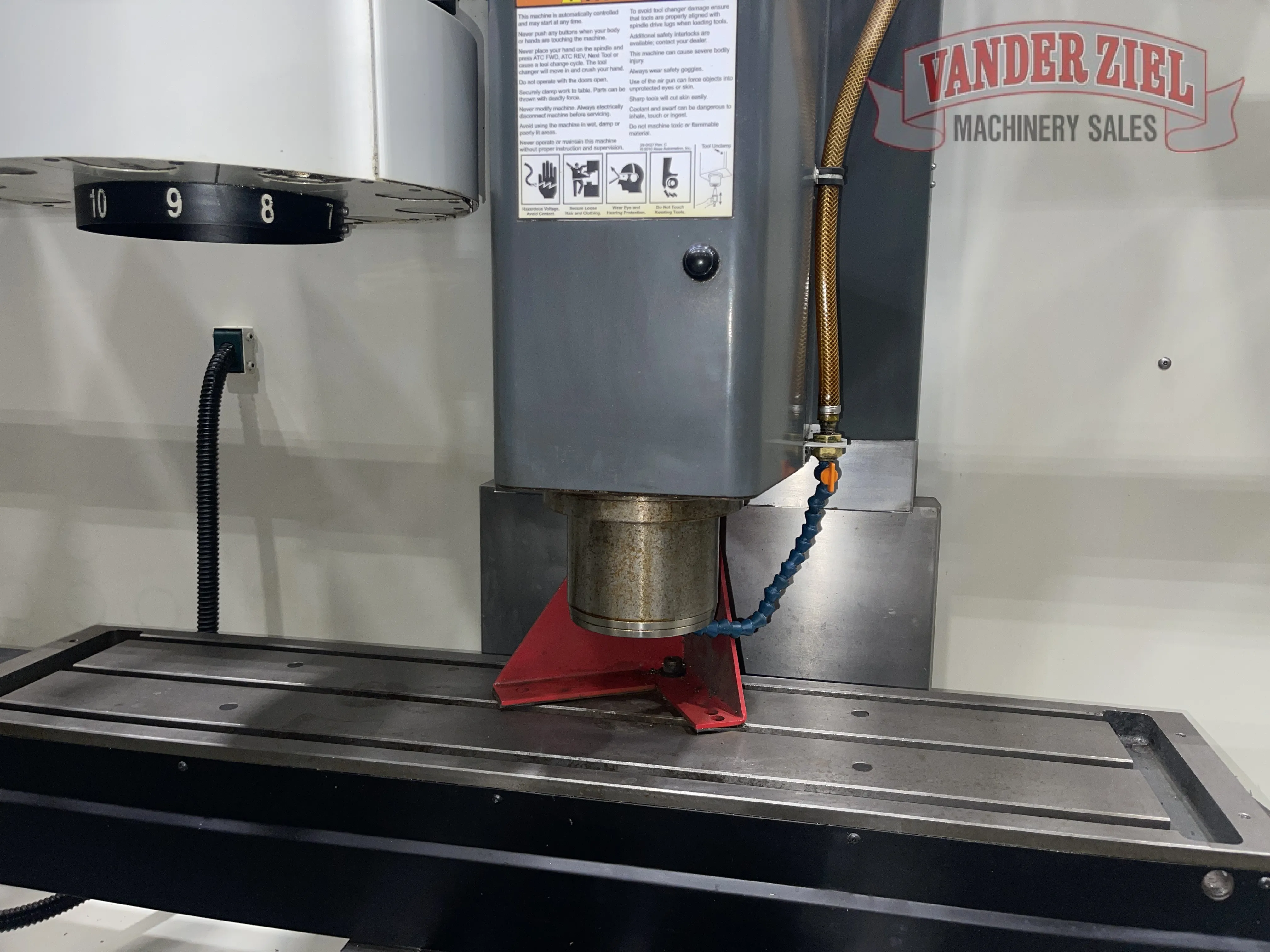

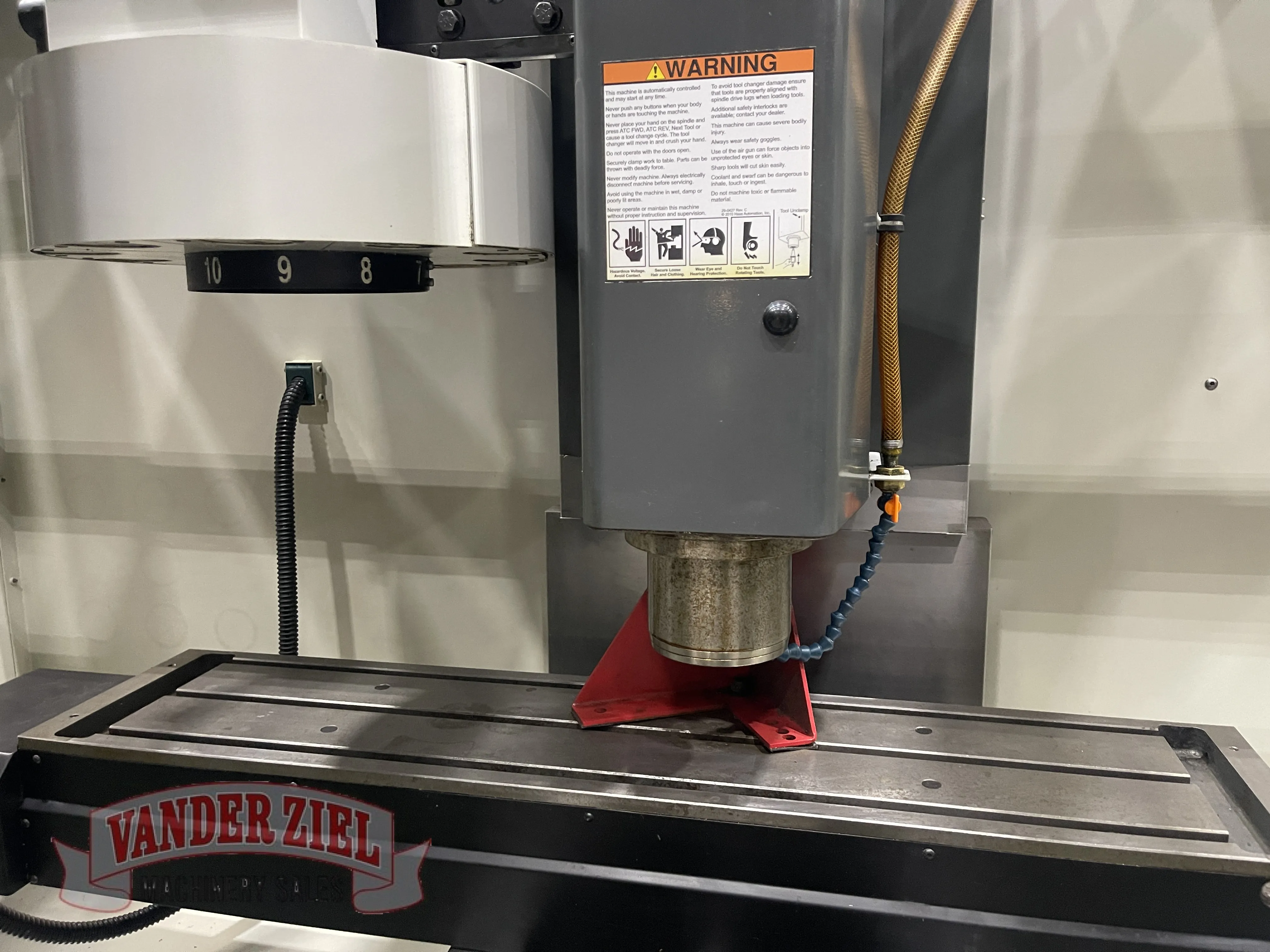

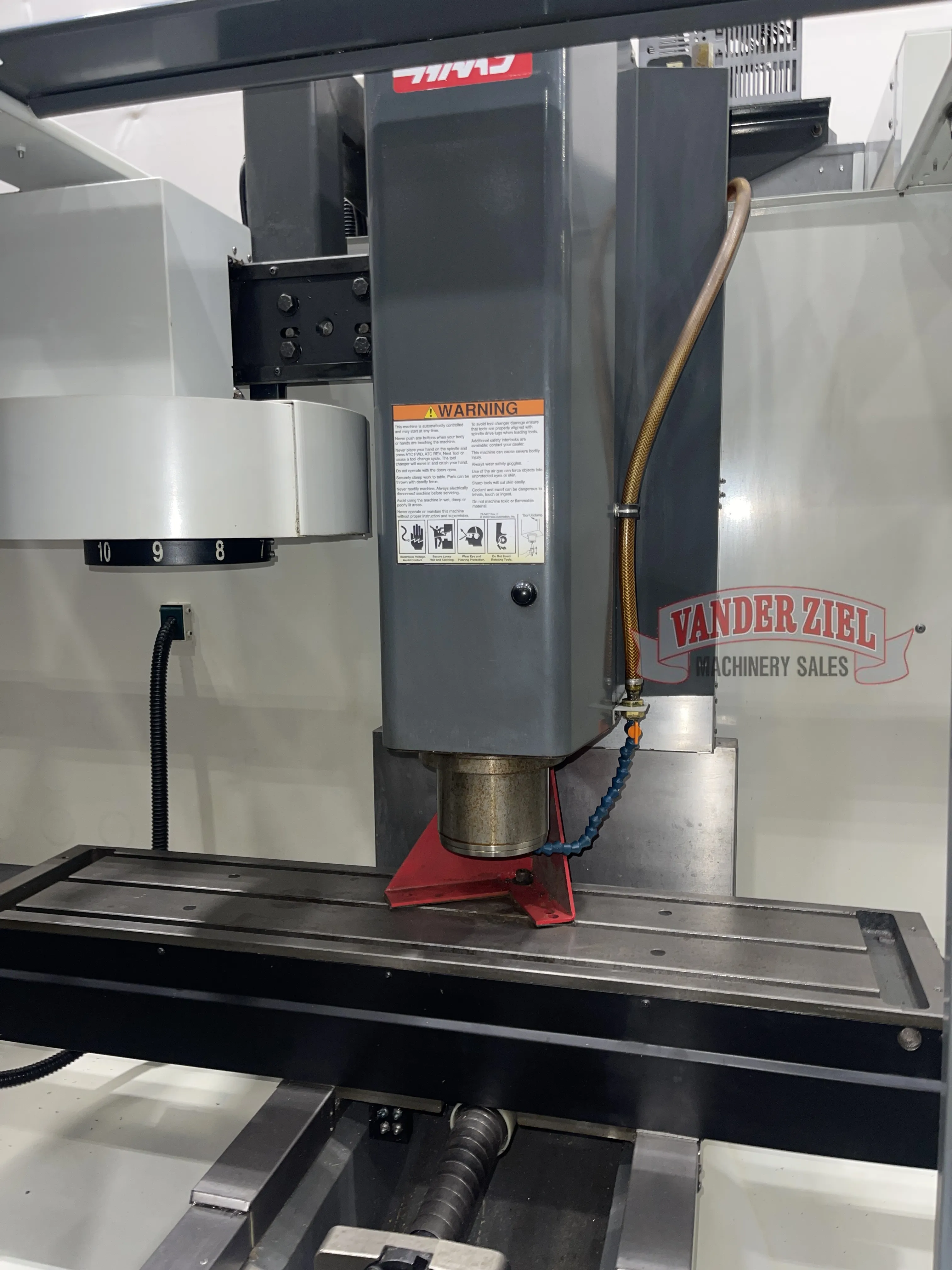

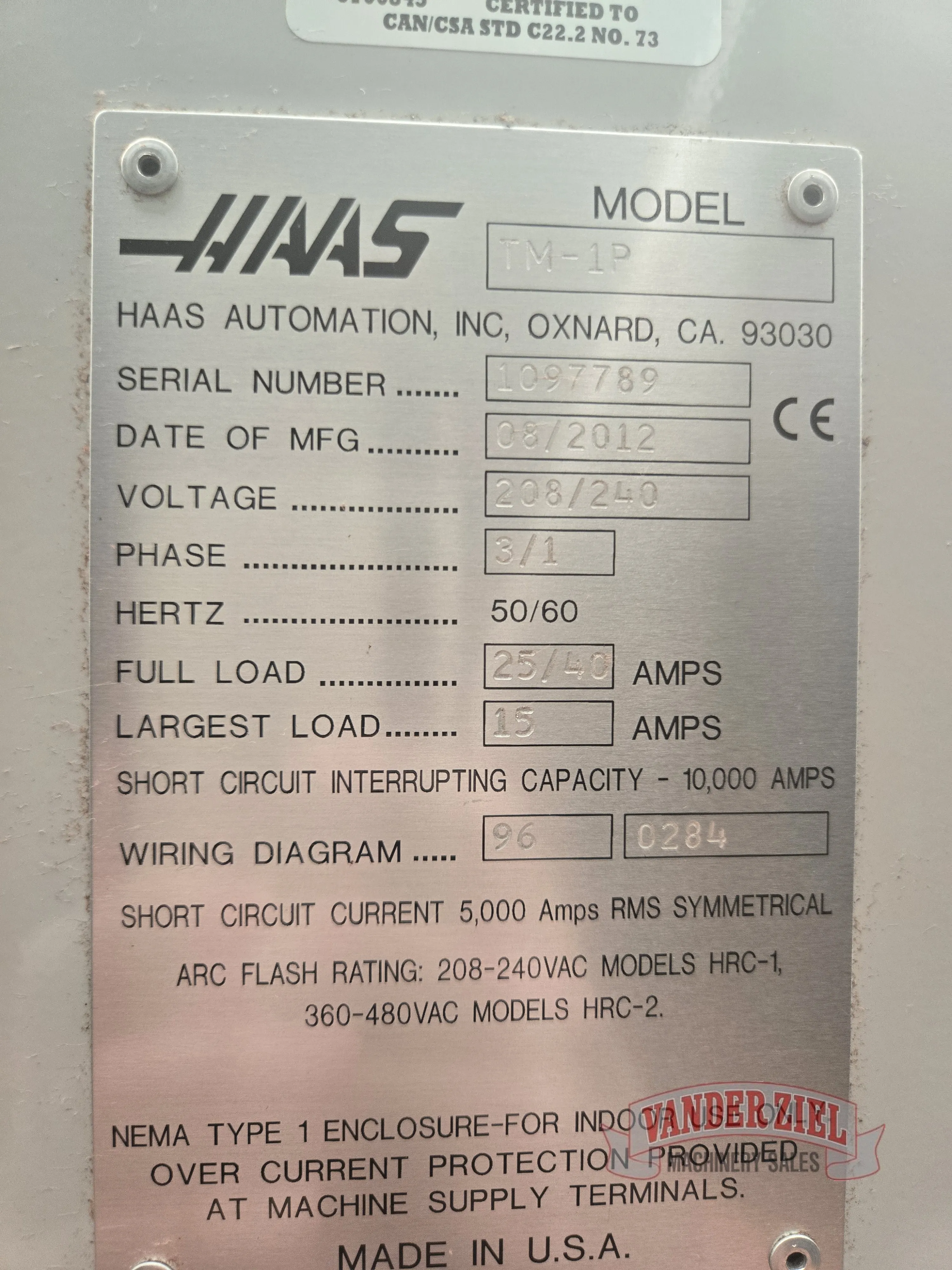

| Spindle | S.A.E | METRIC |
|---|---|---|
| Max Rating | 7.5 hp | 5.6 kW |
| Max Speed | 4000 rpm | 4000 rpm |
| Max Torque | 33.0 ft-lbf @ 1200 rpm | 45.0 Nm @ 1200 rpm |
| Drive System | Direct Speed, Belt Drive | Direct Speed, Belt Drive |
| Taper | CT or BT 40 | CT or BT 40 |
| Bearing Lubrication | Grease Packed | Grease Packed |
| Cooling | Air Cooled | Air Cooled |
| Table | S.A.E | METRIC |
|---|---|---|
| Length | 47.8 in | 1213 mm |
| Width | 10.5 in | 267 mm |
| T-Slot Width | 0.626 in to 0.630 in | 15.90 mm to 16.00 mm |
| T-Slot Center Distance | 4.00 in | 102 mm |
| Number of Std T-Slots | 3 | 3 |
| Max Weight on Table (evenly distributed) | 350 lb | 159 kg |
| Feedrates | S.A.E | METRIC |
|---|---|---|
| Max Cutting | 200 ipm | 5.1 m/min |
| Rapids on X | 200 ipm | 5.1 m/min |
| Rapids on Y | 200 ipm | 5.1 m/min |
| Rapids on Z | 200 ipm | 5.1 m/min |
| Axis Motors | S.A.E | METRIC |
|---|---|---|
| Max Thrust X | 2000 lbf | 8896 N |
| Max Thrust Y | 2000 lbf | 8896 N |
| Max Thrust Z | 2000 lbf | 8896 N |
| Air Requirements | S.A.E | METRIC |
|---|---|---|
| Air Required† | 4 scfm @ 100 psi | 113 L/min @ 6.9 bar |
| Inline Air Hose | 3/8 in | 3/8 in |
| Coupler (Air) | 3/8 in | 3/8 in |
| Air Pressure Min | 80 psi | 5.5 bar |
| Electrical Specification | S.A.E | METRIC |
|---|---|---|
| Spindle Speed | 4000 rpm | 4000 rpm |
| Drive System | Direct Speed, Belt Drive | Direct Speed, Belt Drive |
| Spindle Power | 7.5 hp | 5.6 kW |
| Input AC Voltage (1 Phase) | 220 VAC | 220 VAC |
| Full Load Amps (1 Phase) | 40 A | 40 A |
| Input AC Voltage (3 Phase) - Low | 220 VAC | 220 VAC |
| Full Load Amps (3 Phase) - Low | 25 A | 25 A |
| Input AC Voltage (3 Phase) - High* | 440 VAC | 440 VAC |
| Full Load Amps (3 Phase) - High* | 13 A | 13 A |
| Dimensions - Shipping | S.A.E | METRIC |
|---|---|---|
| Domestic Pallet | 112.0 in x 80.0 in x 100.0 in | 284 cm x 203 cm x 254 cm |
| Export Pallet | 112.0 in x 80.0 in x 100.0 in | 284 cm x 203 cm x 254 cm |
| Weight | 4440 lb | 2014.0 kg |
Machine is equipped with:

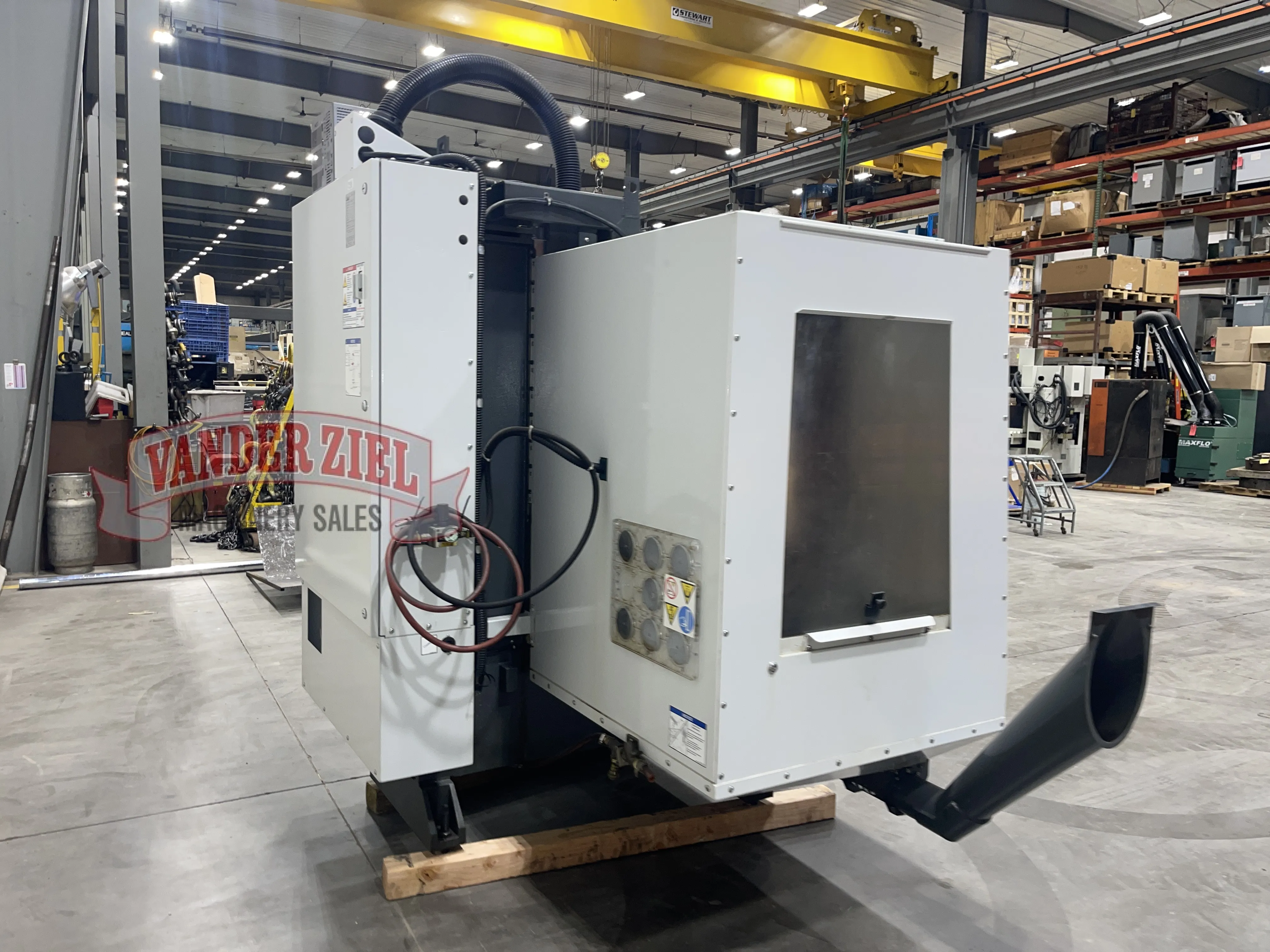

Chip Auger

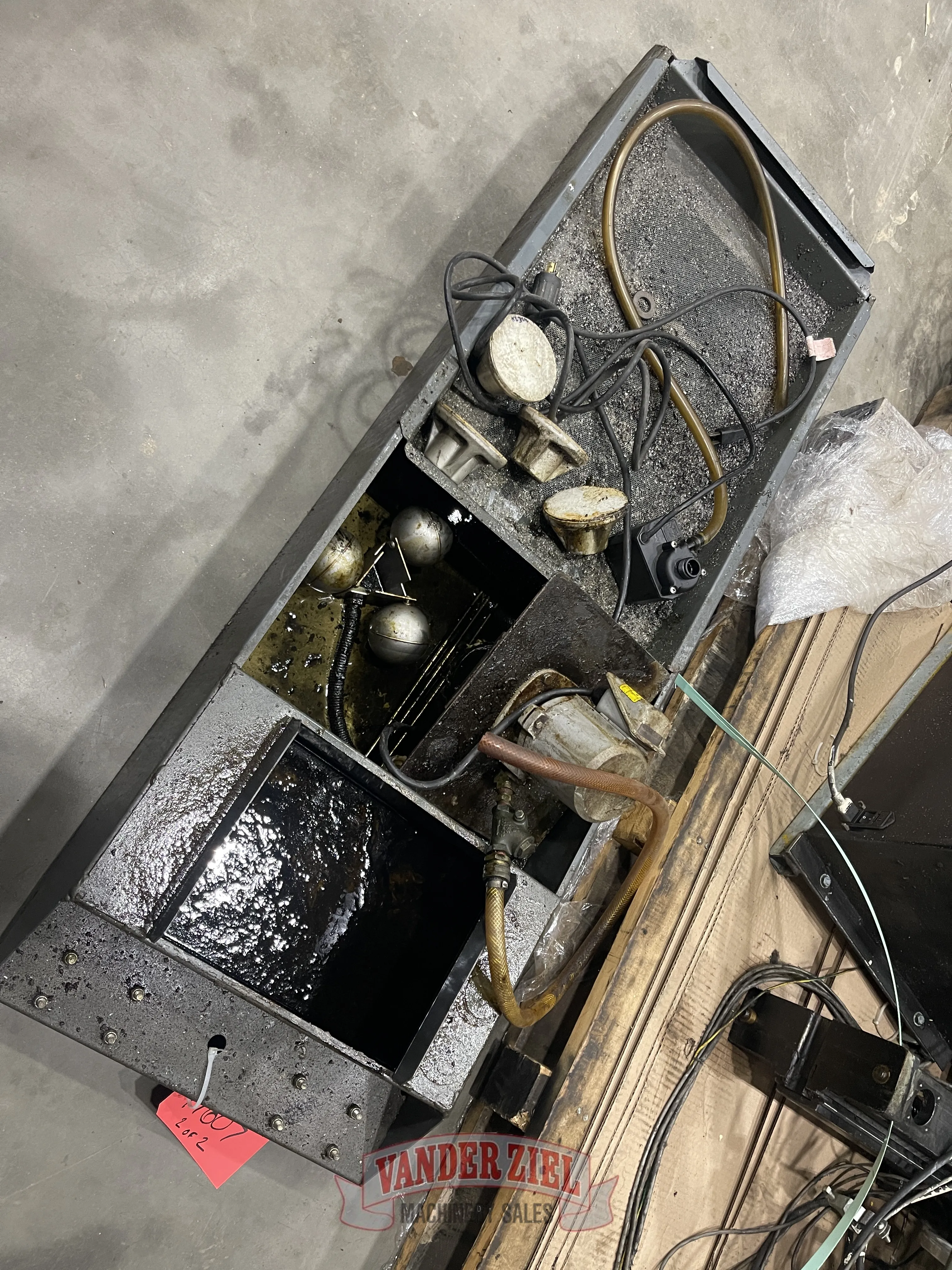

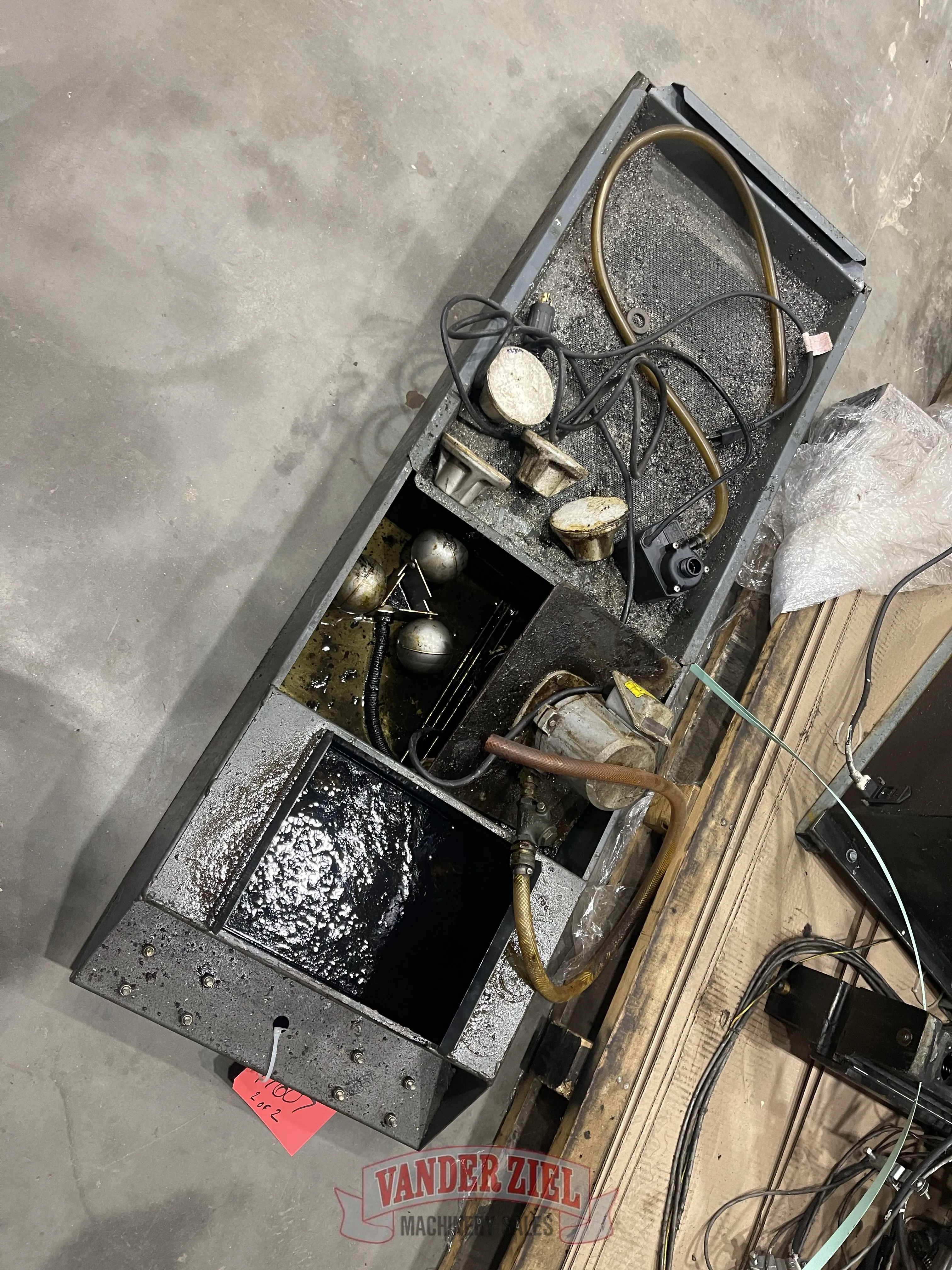

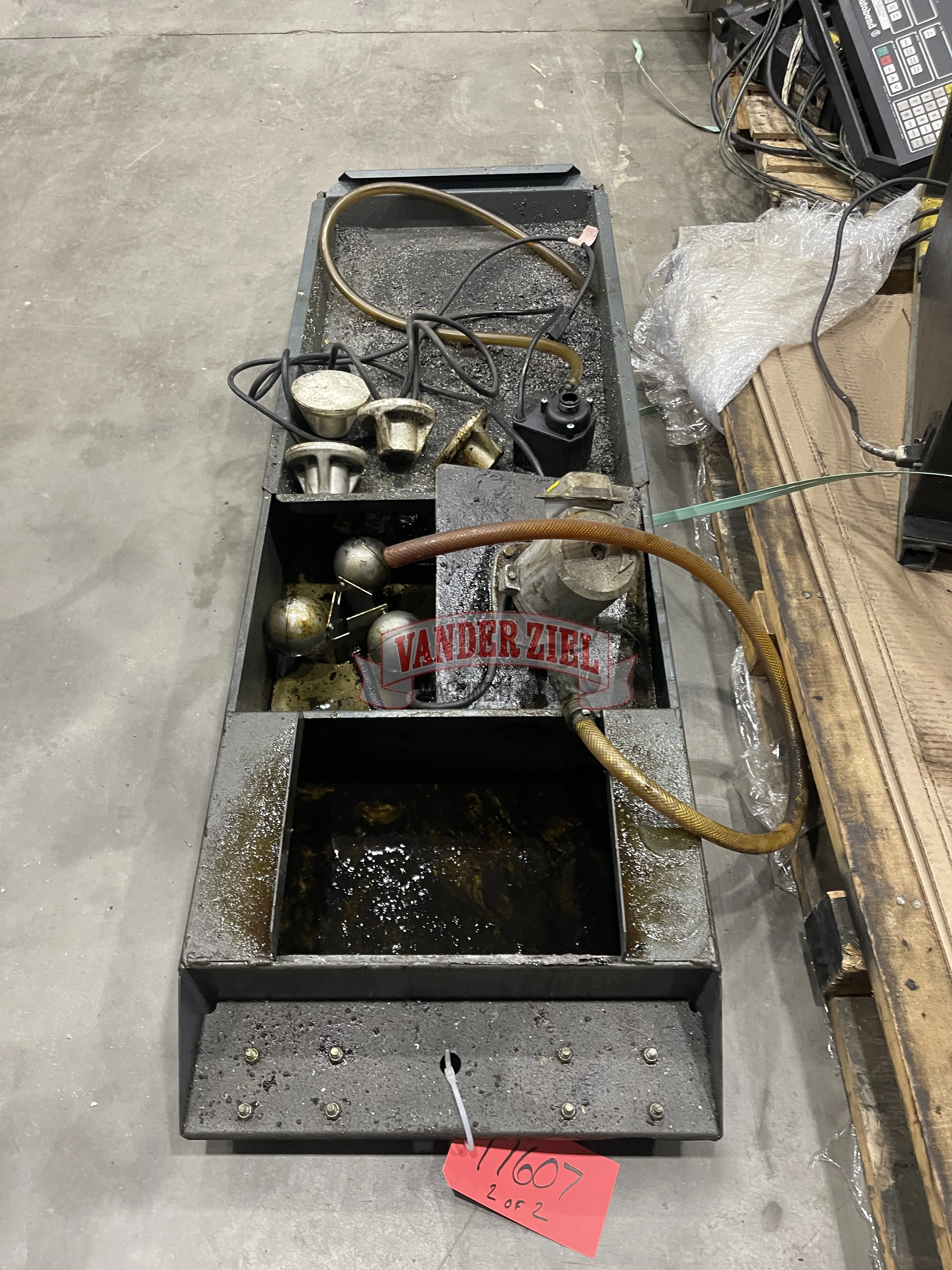

Coolant Pump

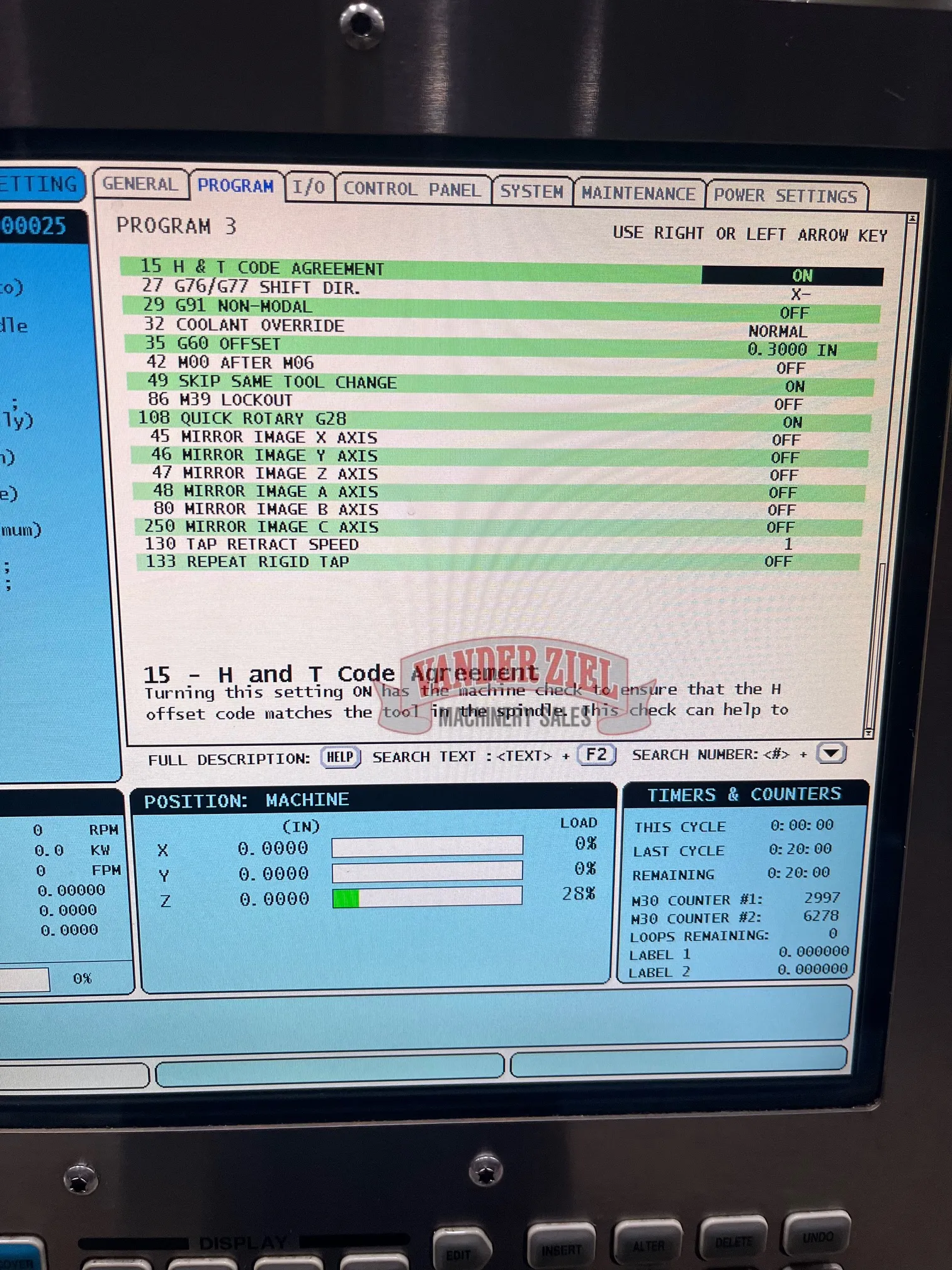

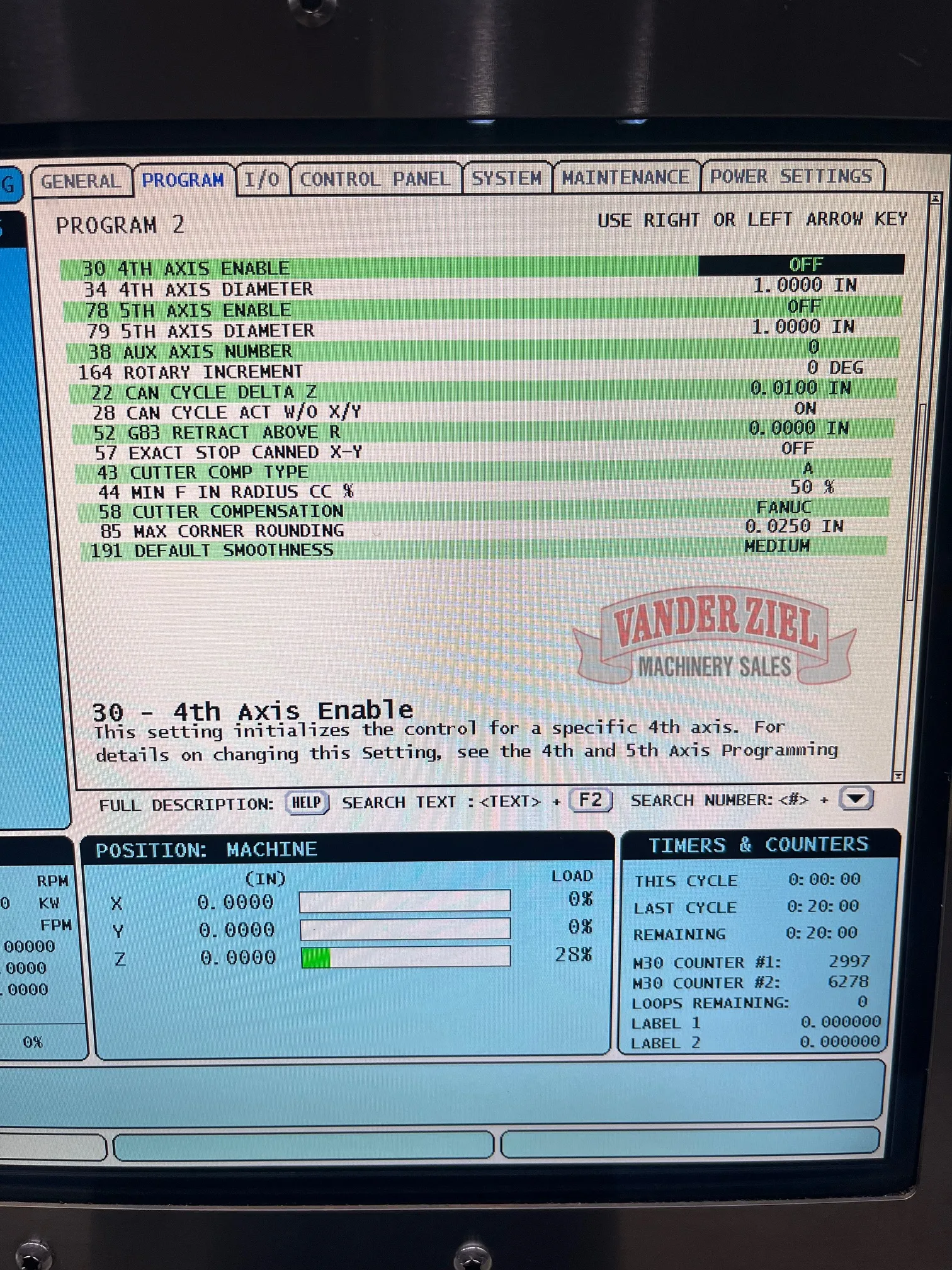

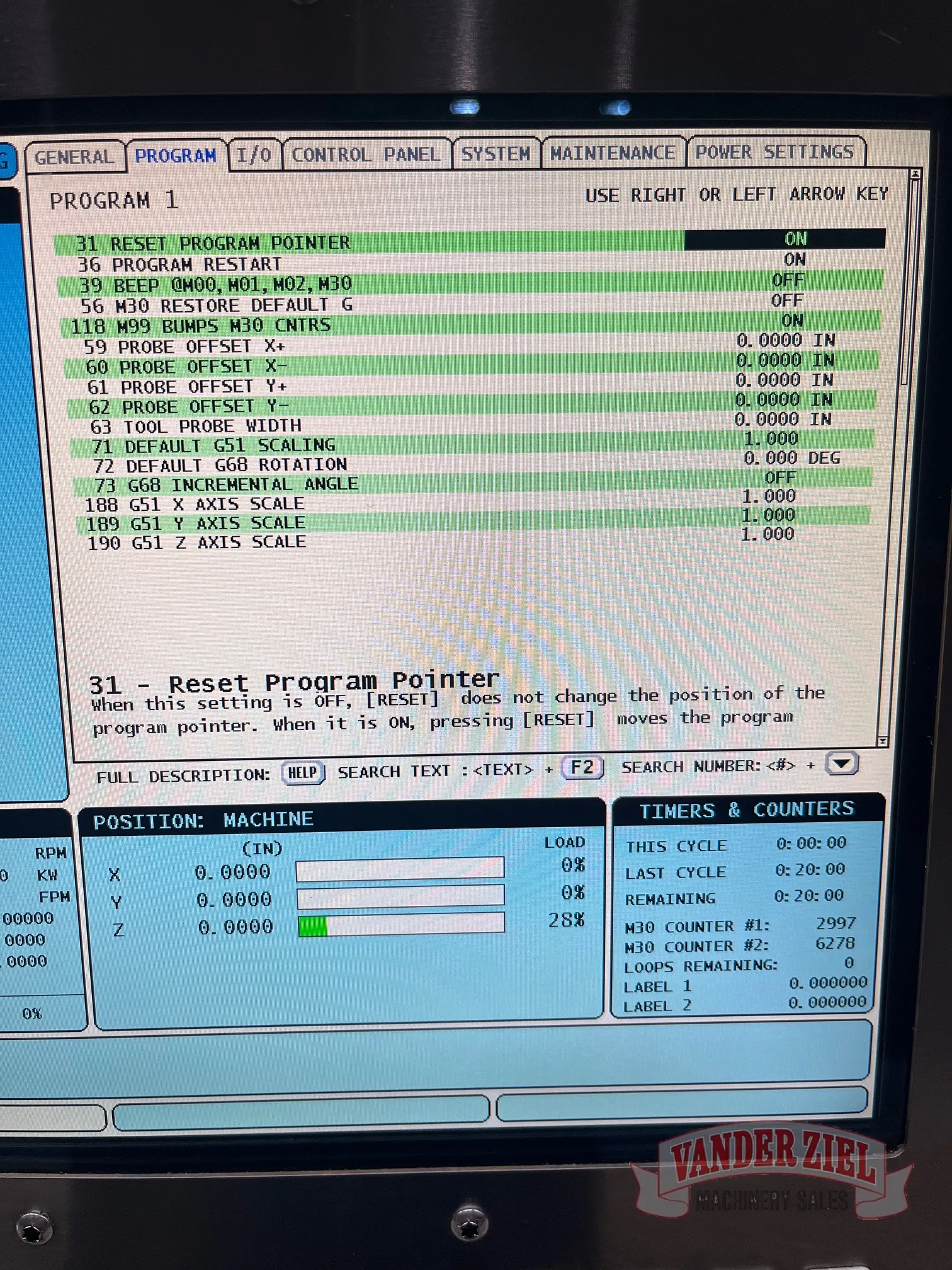

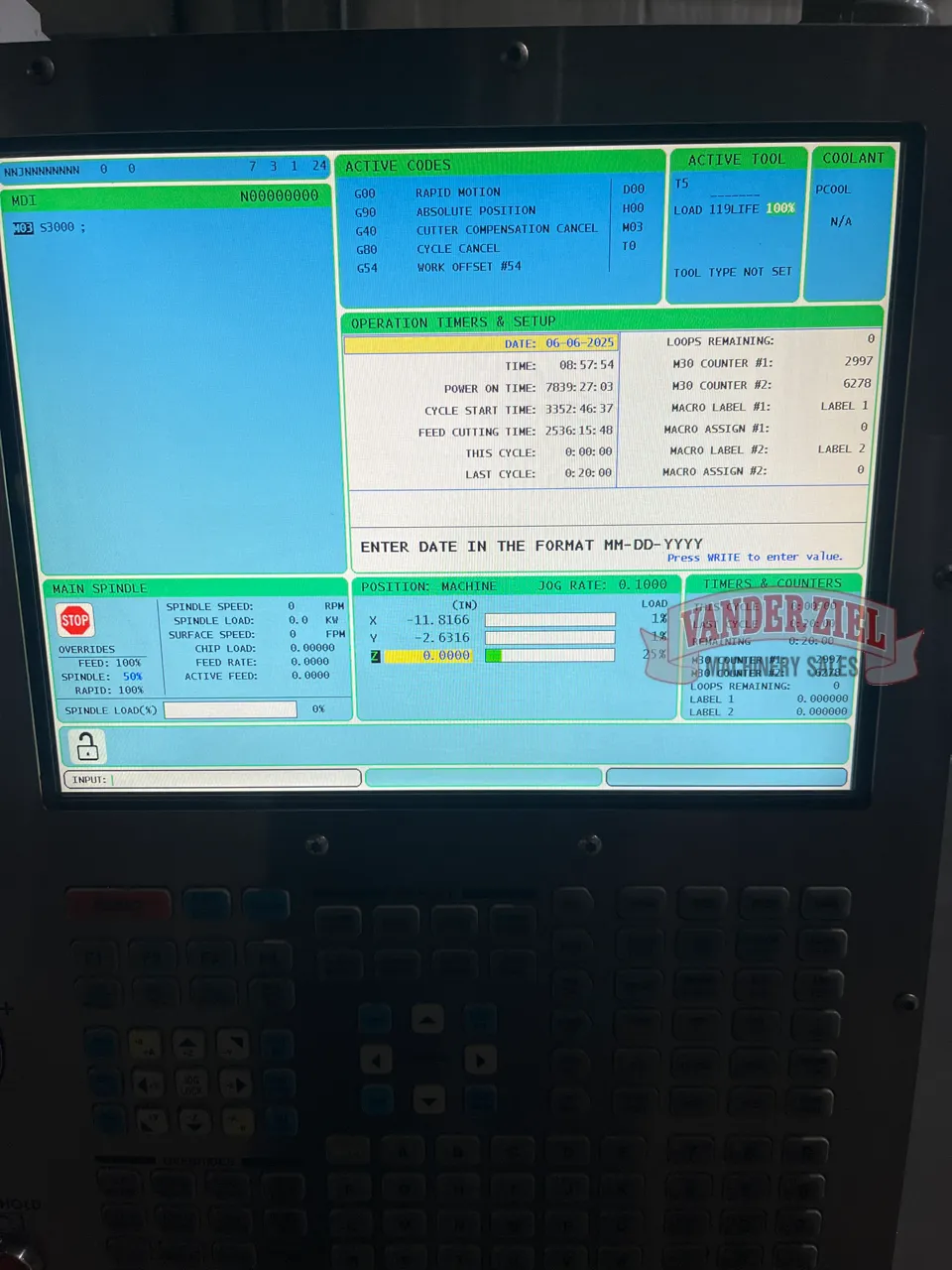

Inteligent Programming System (IPS)
Work Light
10 Pocket Tool Changer
REF: 000405
