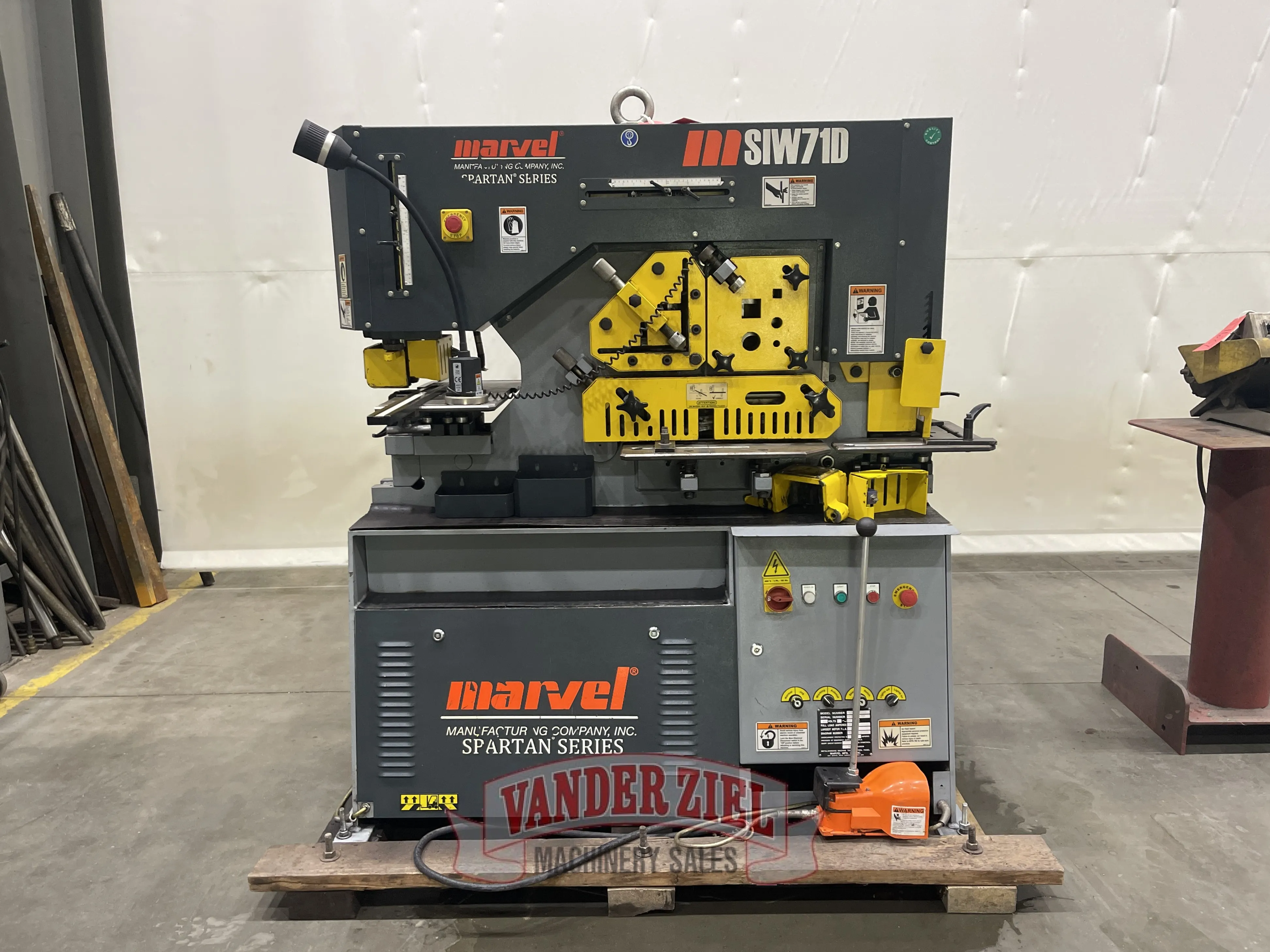

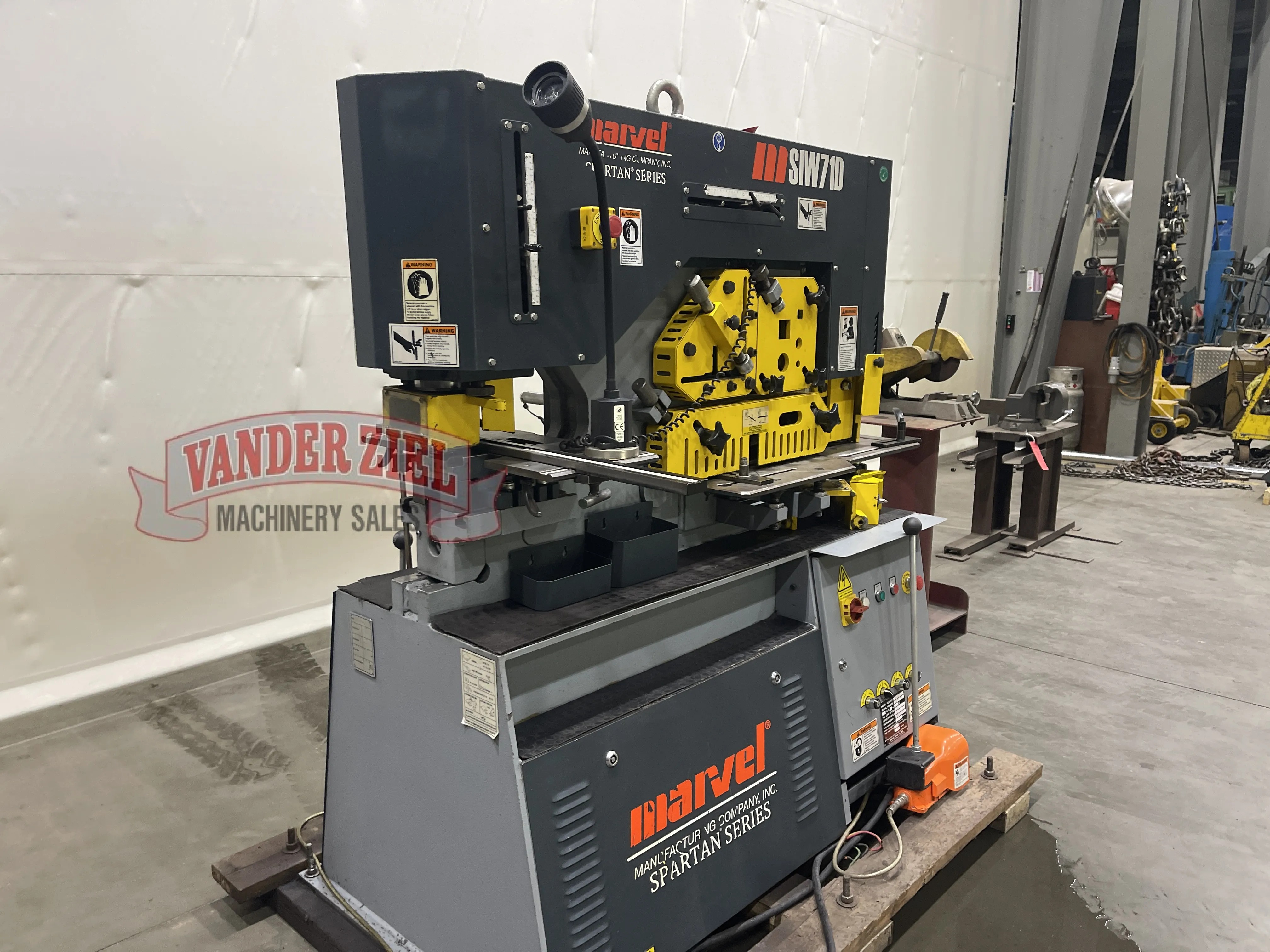

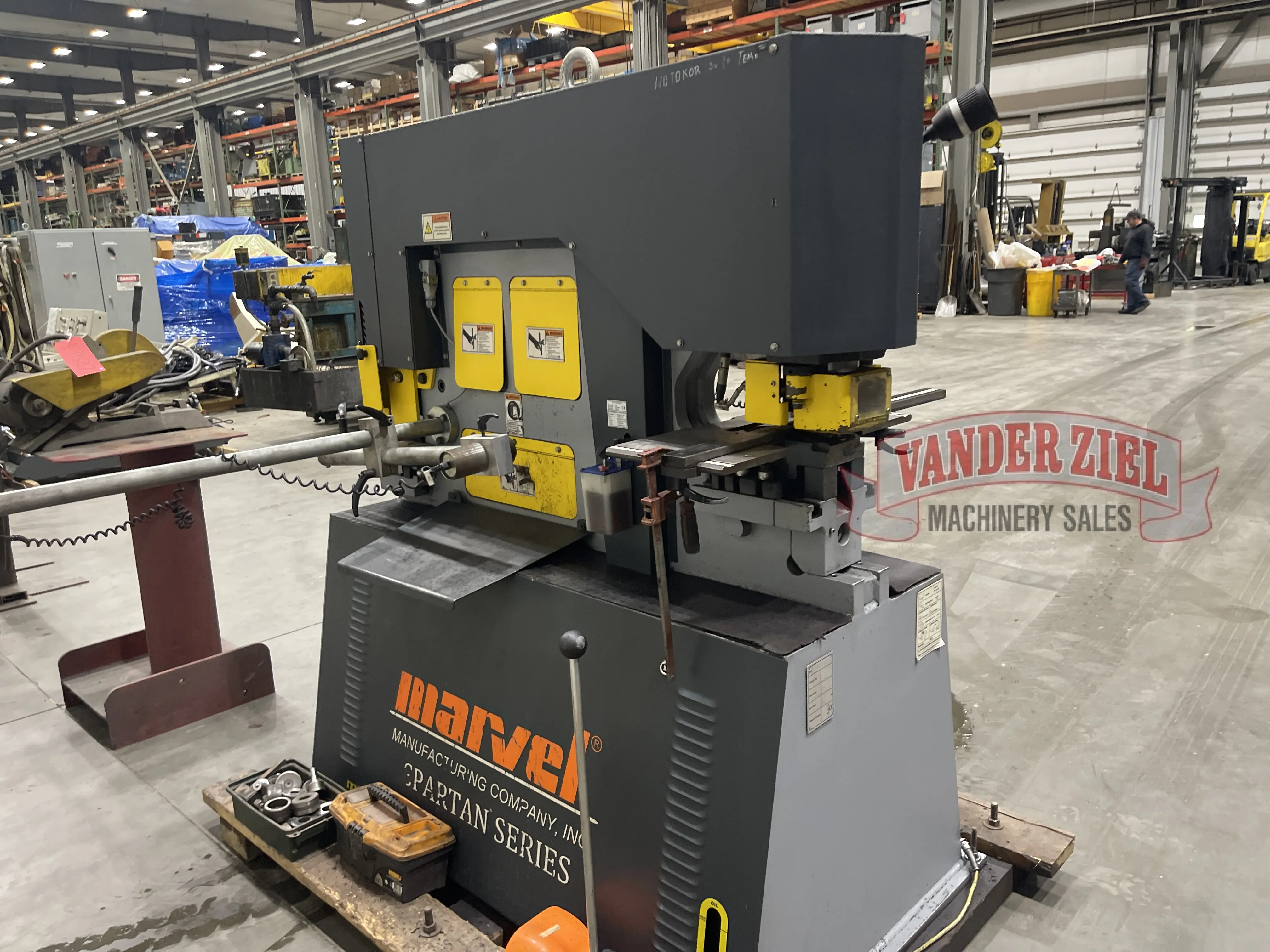

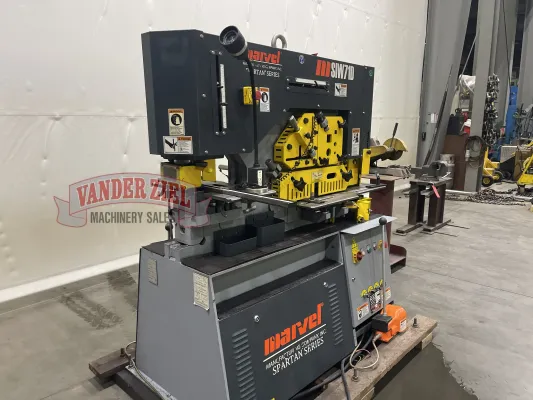

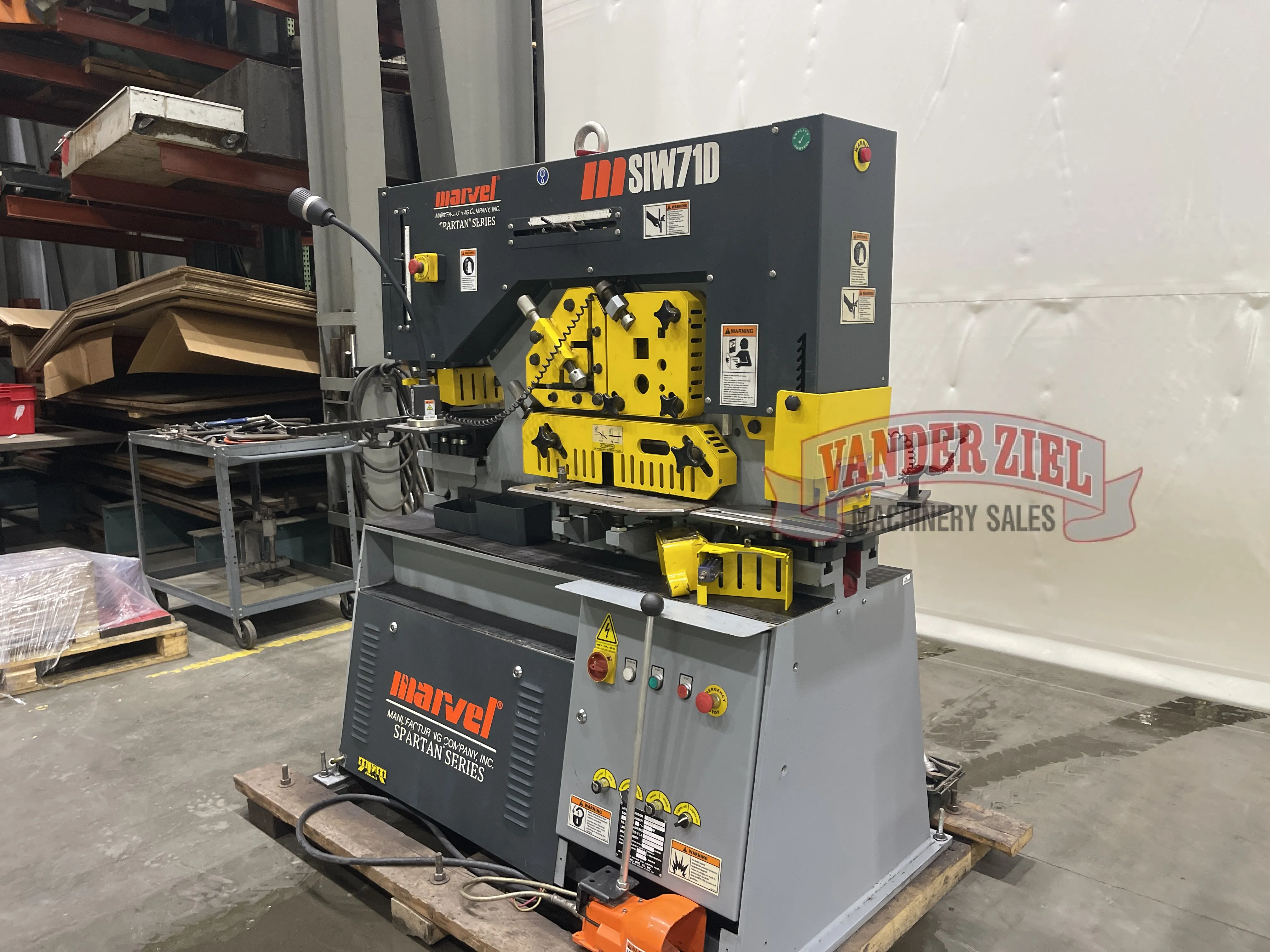

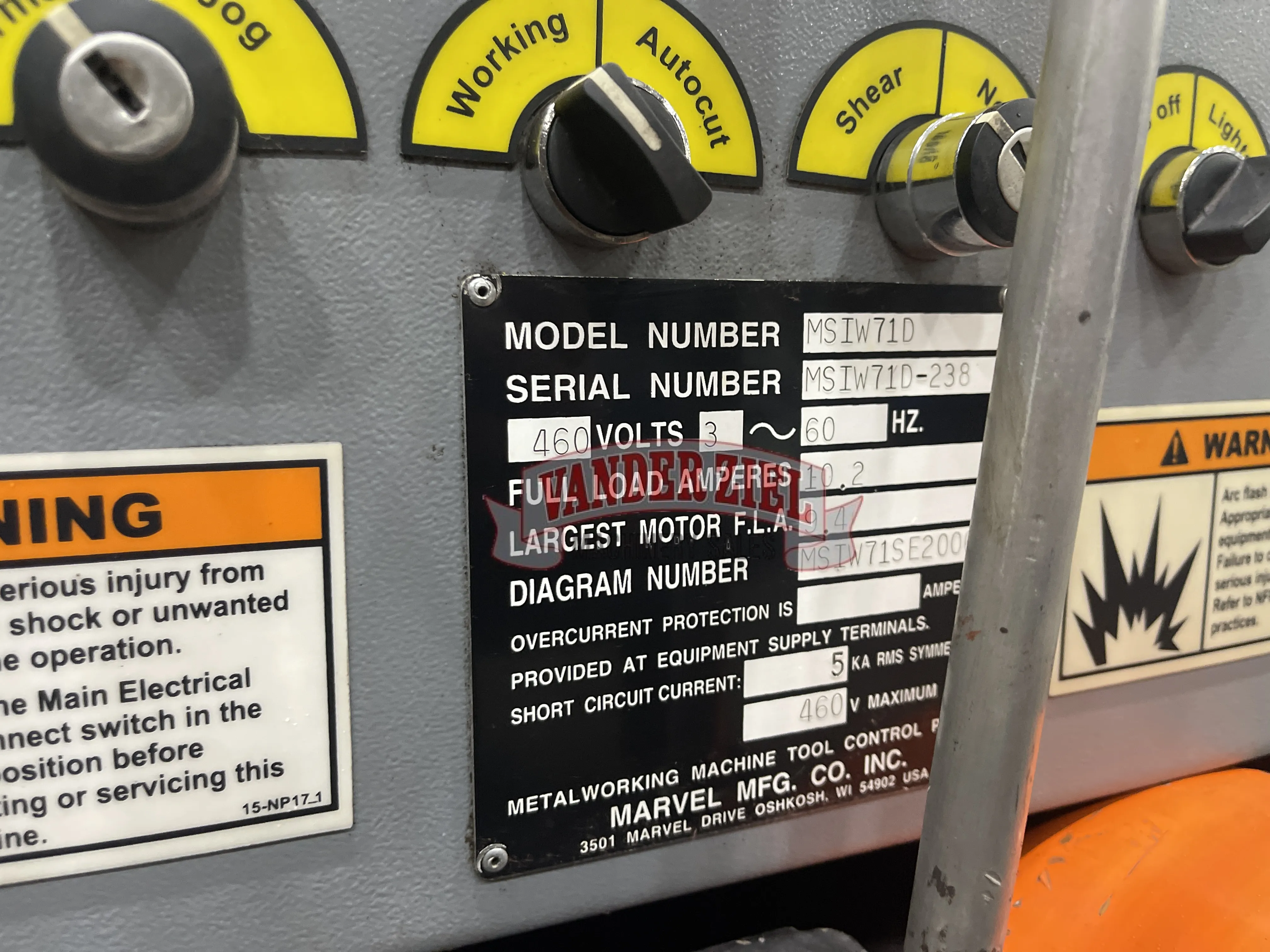

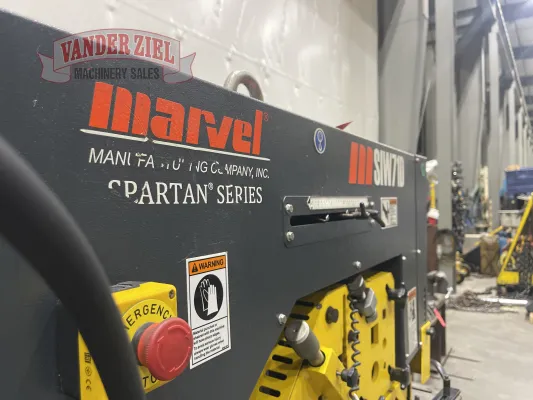

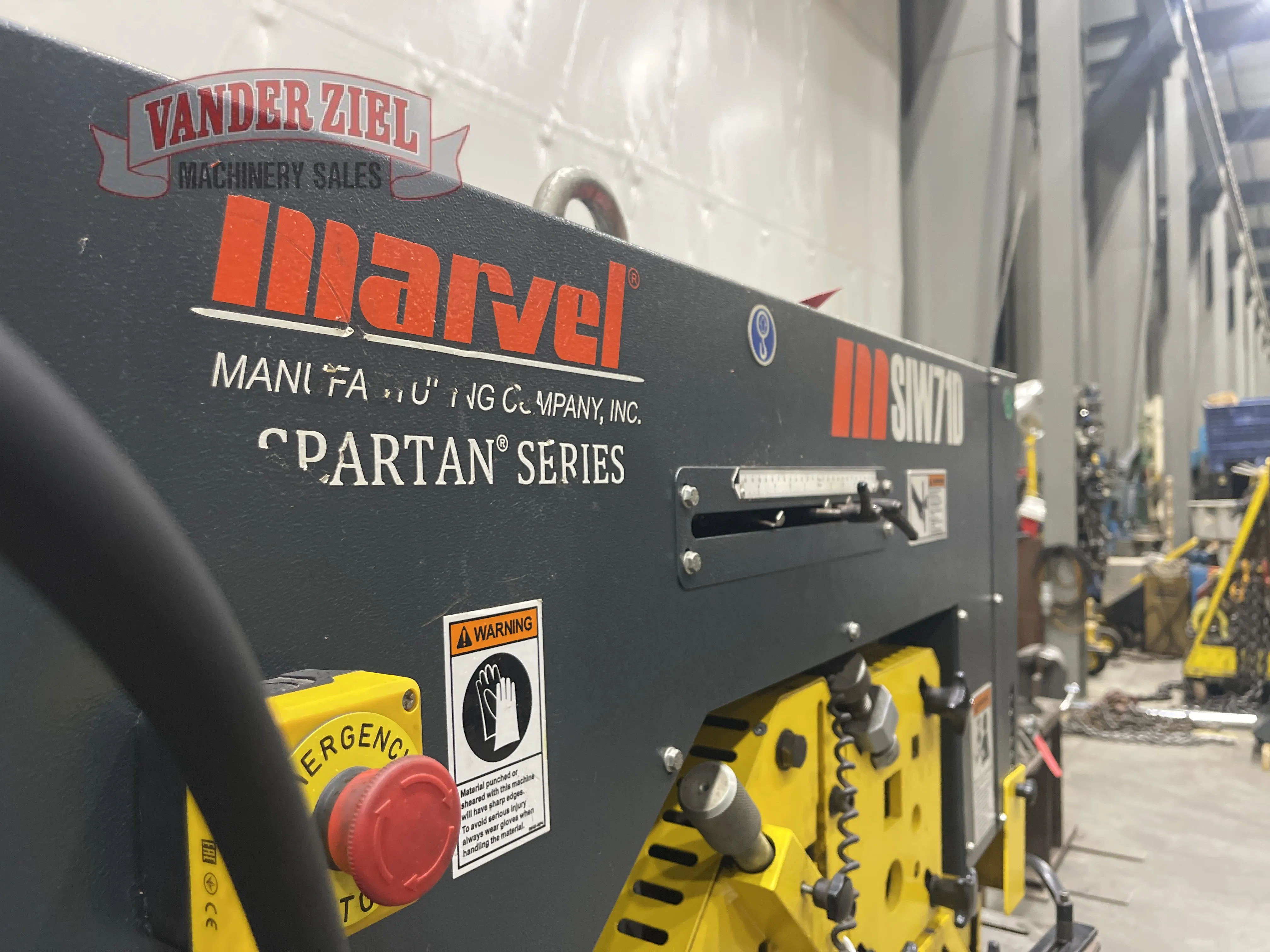

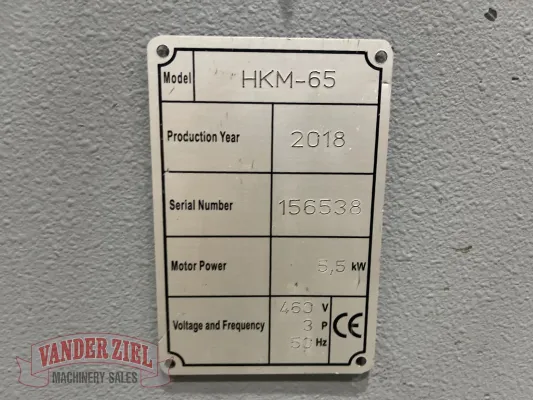

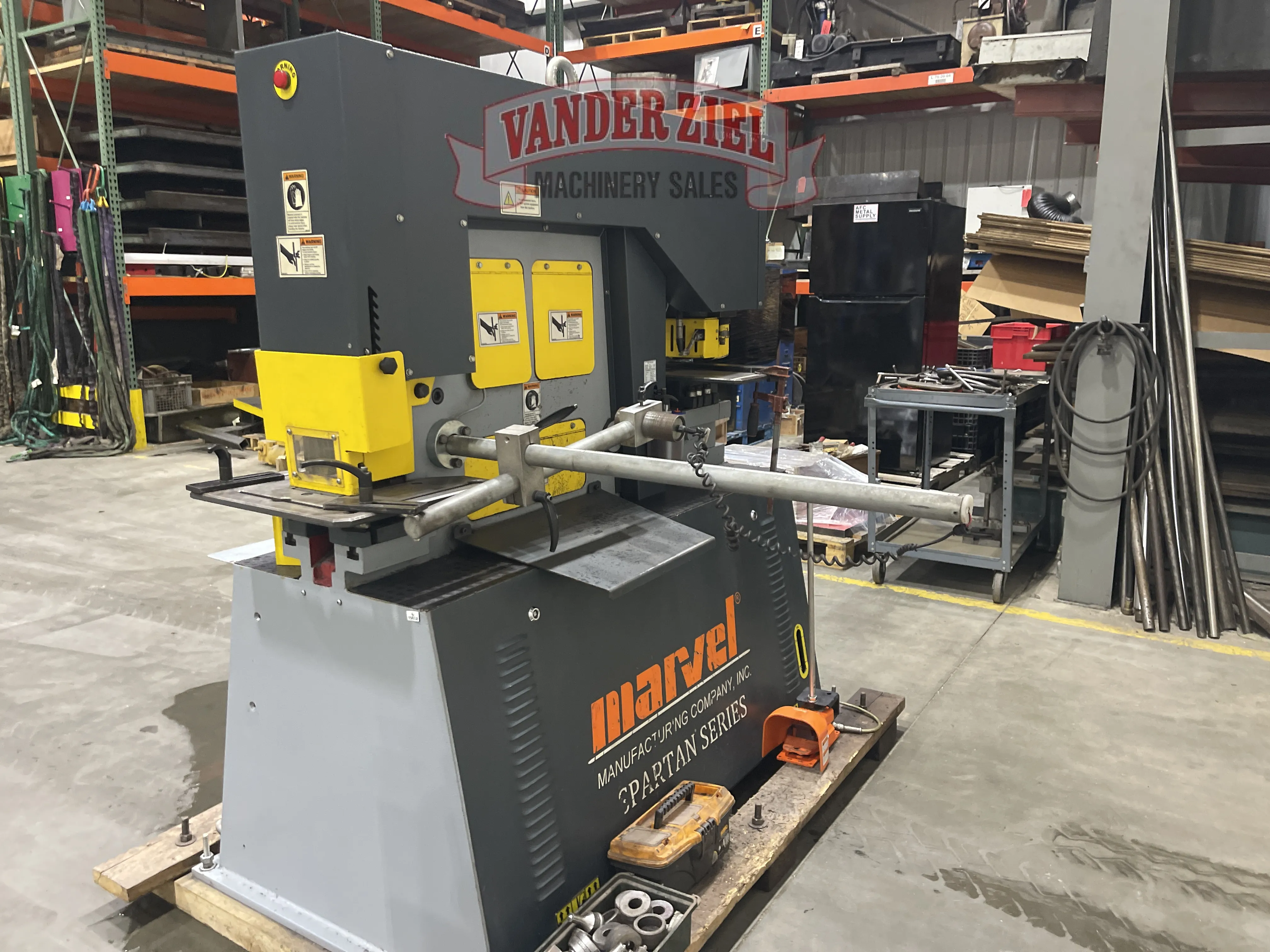

Marvel Spartan Model MSIW71D Ironworker, 71 Ton
Technical Specs
As-IsNo
Description
Marvel Spartan Model MSIW71D Ironworker, 71 Ton
Asset # 17680
Capacities & Specifications Rated on 65,000 PSI Tensile

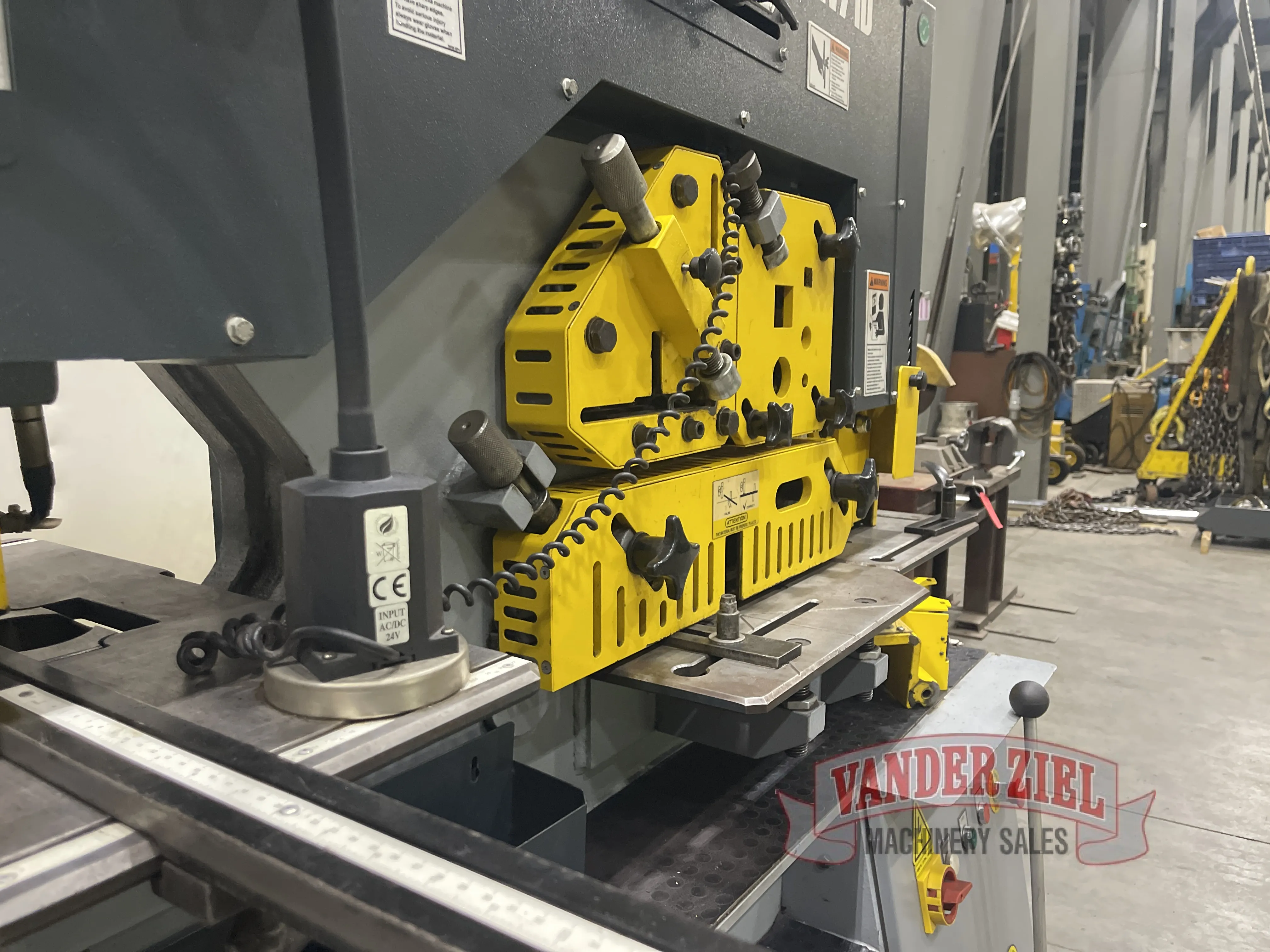

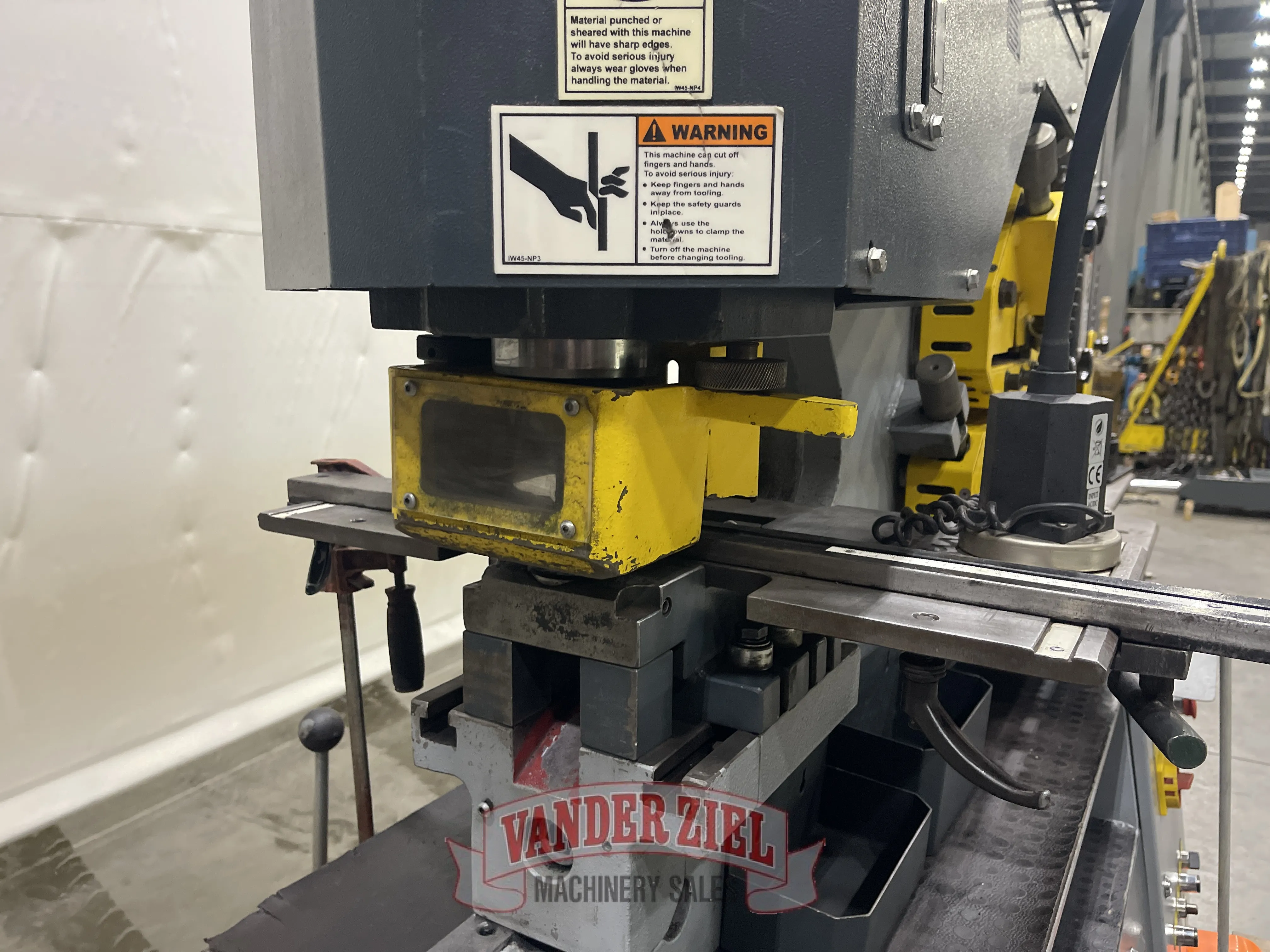

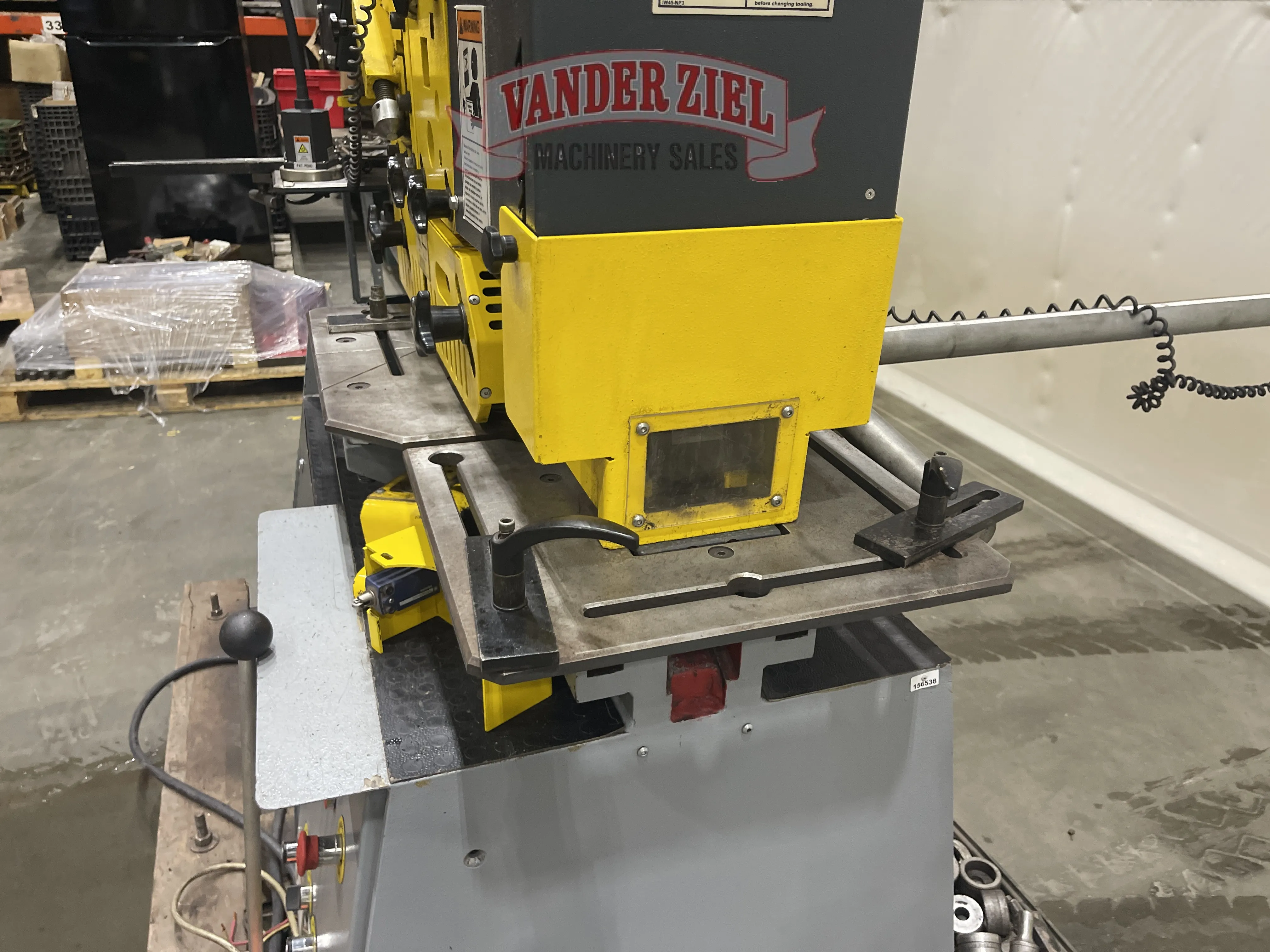

PUNCHINGPunch Pressure: 71 tons.Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper: For fast and easy setup.Die Holder: Adjustable in machined T-slots for quick punch and die alignment.Standard Tooling: 1-1/2” in 9/16”.CPD Series: 26 punch, 62 die.Large Tooling: 2” in 7/16″CPD Series: SP51P punch, SP80D die.Optional Oversize Tooling: 4-5/16” in 3/16” material.Throat Depth: 12”Stroke Length: 2-5/32”.Cycles per Minute in 3/4”: 25.Punching Station Work Height: 40-9/16”FLAT BAR SHEARINGFlat Bar Shear Capacity: 14” in 5/8”.Maximum Width x Thickness: 12” in 3/4”.Lower Blade: Four (4) usable edges.Support Table: Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down: Holds work piece securely in position when shearing.Upper Shear Blade: Provides for minimum distortion. Two (2) usable edges.Blade Length: 15”.Angle Flange Trim: 4”.Flat Bar Shear Work Height: 35-1/2”ANGLE SHEARINGMaximum Capacity – 90 degrees: 5” x 5” x 1/2”.Maximum Capacity – 45 degrees: 2-1/2” x 2-1/2” x 3/8”.Shearing with no material loss and minimum deformity.Shear Blades: Four (4) usable edges.Angle Shear Work Height: 44-7/8”. | BAR SHEARINGRound Bar Max. Capacity: 1-3/4”.Square Bar Max. Capacity: 1-3/4” x 1-3/4”.Six Cavity Round and Square Bar Shear Sizes: Round: , 1/2”, 1”, 1-3/4”Square: 3/4”, 1-3/4”Channel Shear Max. (optional): 5”.I-Beam Shear Max. (optional): 5”.Bar Shear Work Height: 44-7/8”NOTCHINGRectangular Notcher: 1-3/4” x 3-9/16” x 3/8”.Electrical Interlock Safety GuardGauge Table with Stops: For precise positioning.Notcher Work Height: 35-1/2”.OTHER STANDARD EQUIPMENTFive (5) Sets of Punches and Dies:Punches: 9/16”, 11/16”, 13/16”, 15/16”, 1-1/16”Dies: 19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”CPD Series: 26 punch, 62 die.Magnetic Base Work LightAdjustable Electric Back Gauge (36”)24 Volt DC Control VoltageScrap Boxes at Punching and Notching StationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die HoldersTwo (2) Piece Gauging Table at Punch StationKeyed Punch Holder for Shaped ToolingStandard Voltage 230/460 Volt, 3 Phase, 60HzSingle Phase Machines: Not Available.Machine Net Weight: 3520 lbsMachine Dimensions: 70” L x 39” W x 74” H3’ Electric Back Gauge |
REF: 000476
