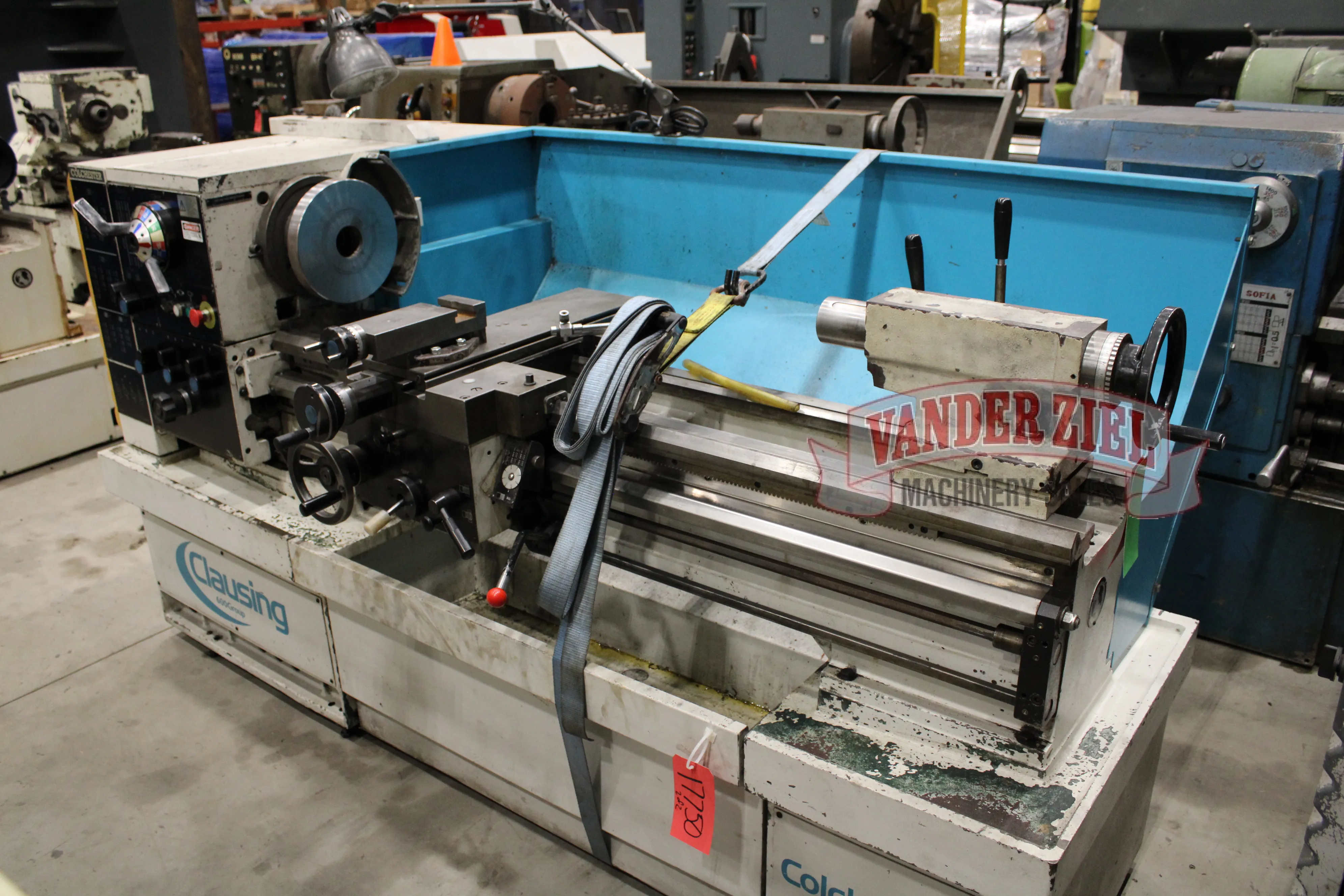

Clausing Colchester 15” x 50” Geared Head Lathe, 2.125” Spindle

Clausing Colchester 15” x 50” Geared Head Lathe, 2.125” Spindle

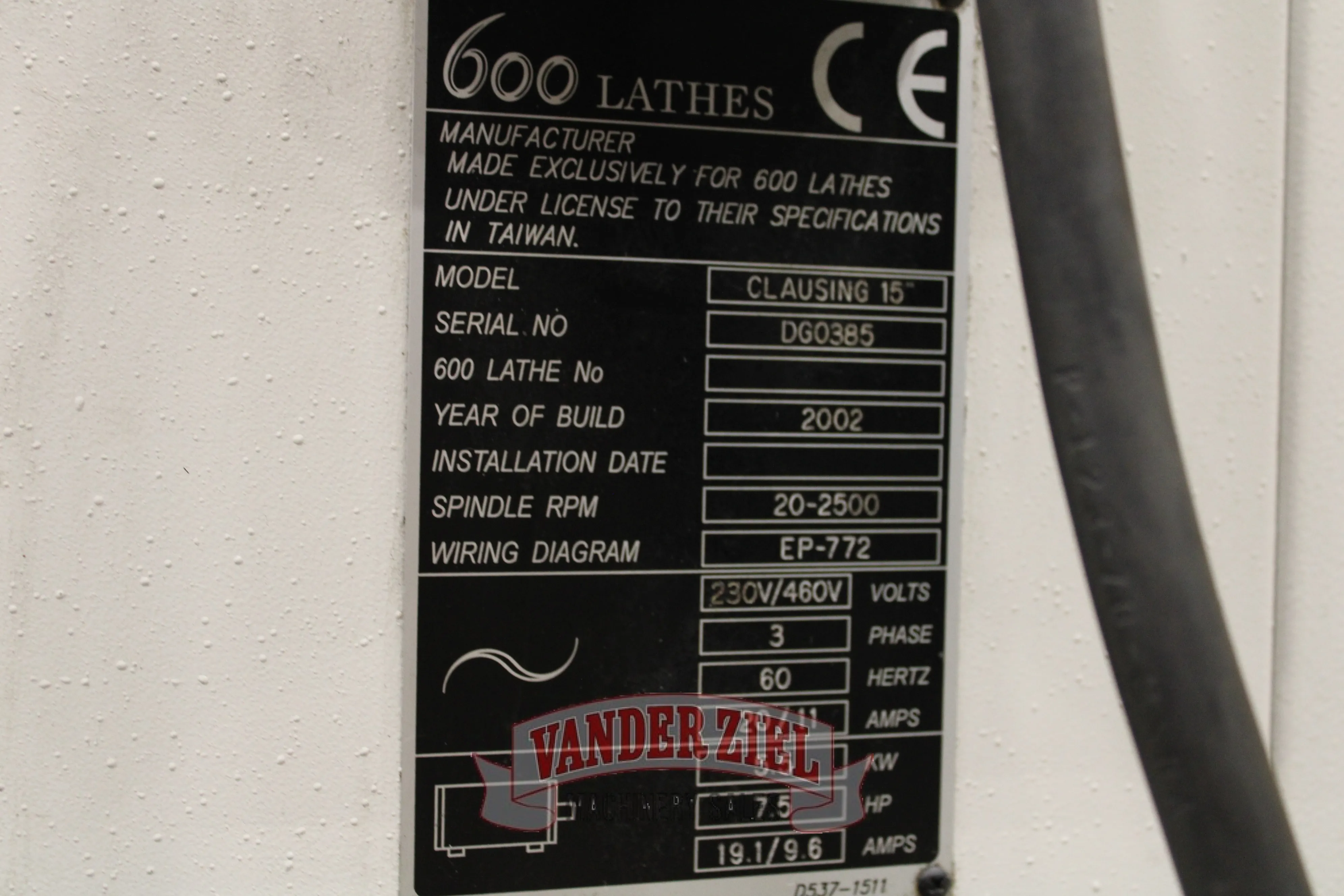

Serial # DGO385
Asset # 17750

Specifications:
Swing over Bed 15.7”
Swing Over Cross Slide 9.7”
Center Distance 50”
Bed Width 12.5”
Swing in Gap 23”

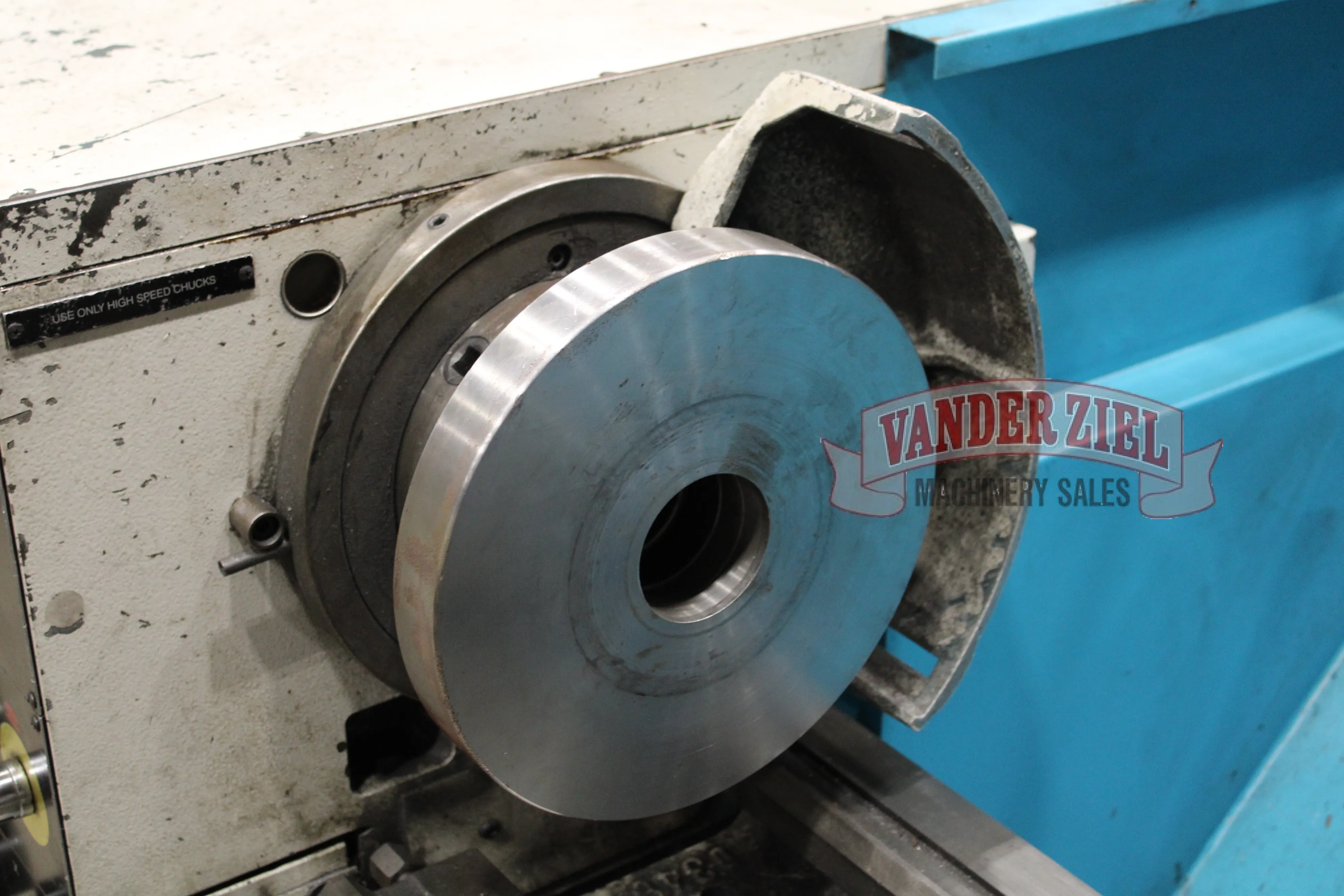

Spindle Nose D1-6
Spindle Bore 2.125”

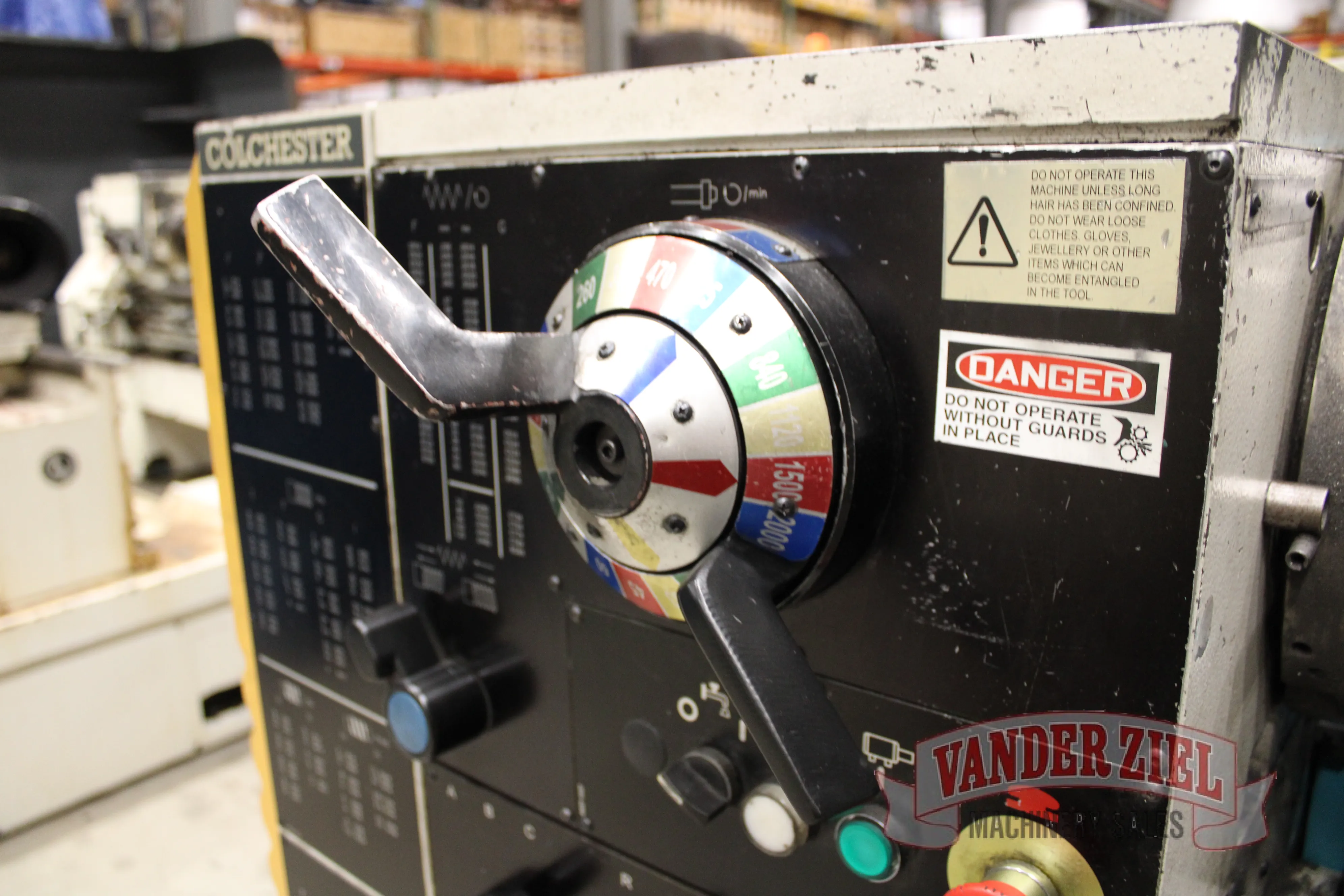

Spindle Speeds (16) 25-2000 RPM
Spindle Center 4MT
Logitudinal Feed Range 0.0014” – 0.096”
Cross Feed Range .0007” -.048”
English Threads (56) 2-56 TPI
Metric Threads (51) .2-14mm
Leadscrew Diameter 1.25/4TPI

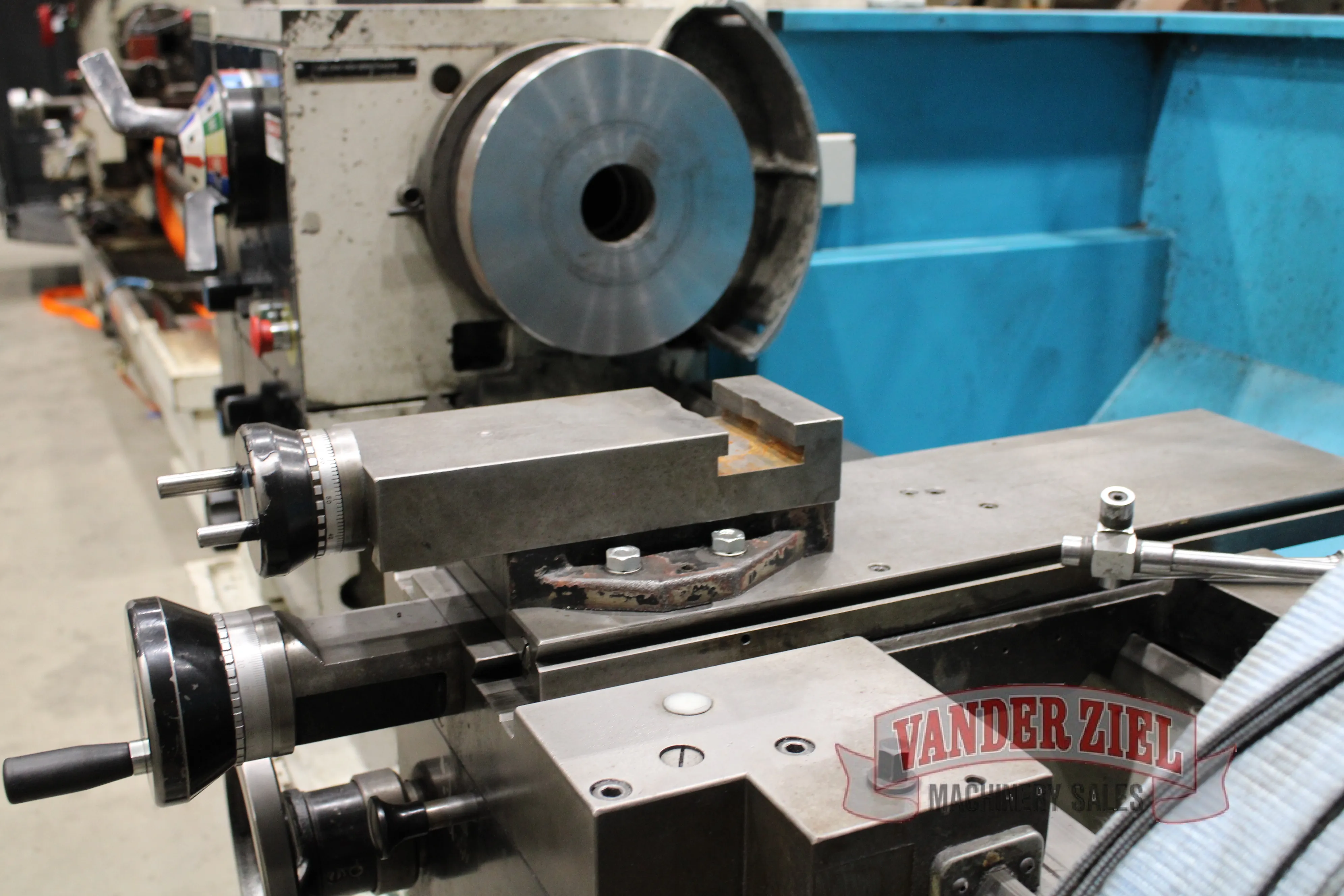

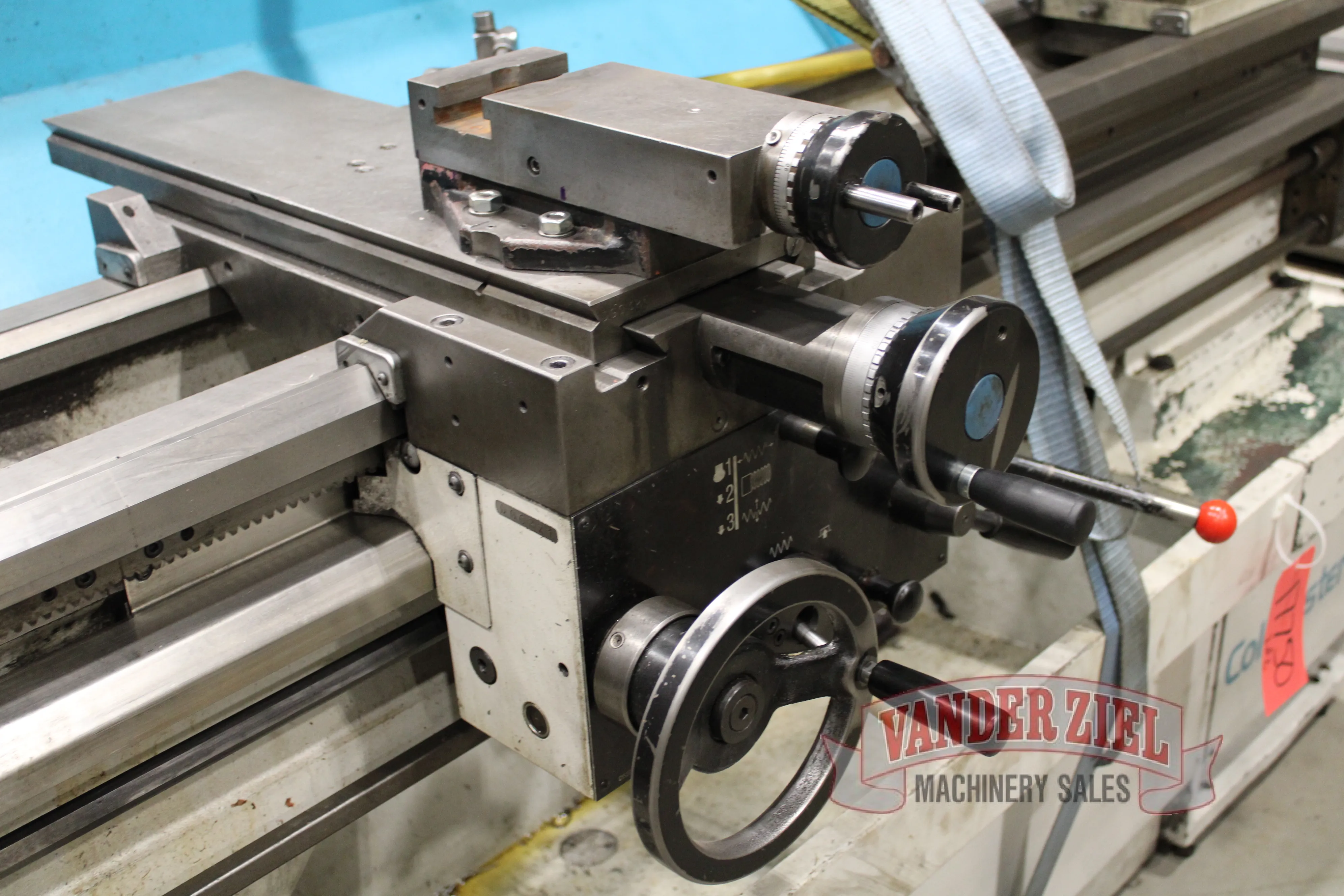

Cross Slide Travel 9.8”
Compound Slide Travel 5.1”

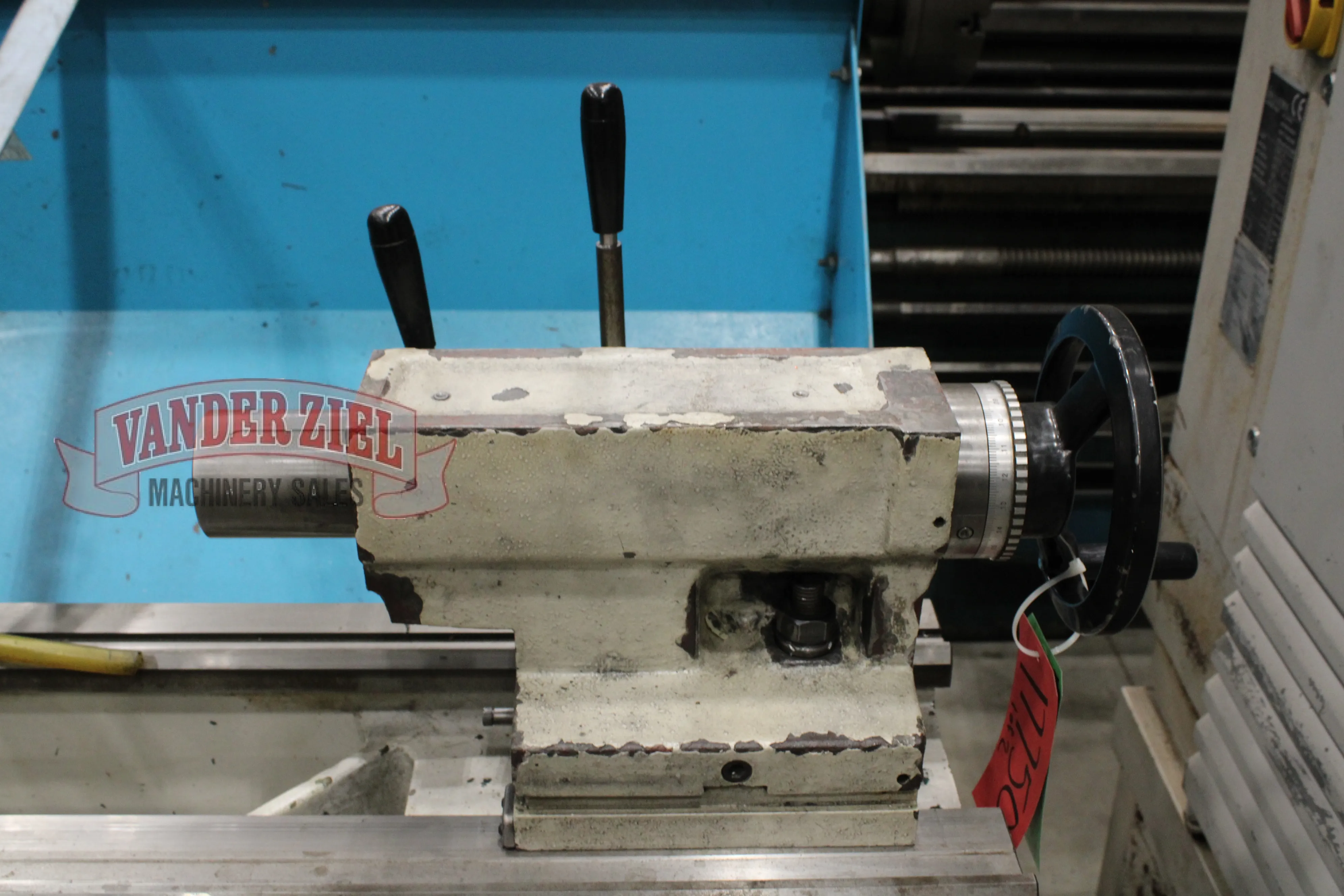

Tailstcok Quill Diameter 2.8”
Tailstock Center 5 MT
Quill Travel 5.5”
Drive Motor 7.5 HP
Weight 3,300 lbs.
Dimensions 99” x 49” x 51”H

Preliminary Specifications – Subject to Verification
