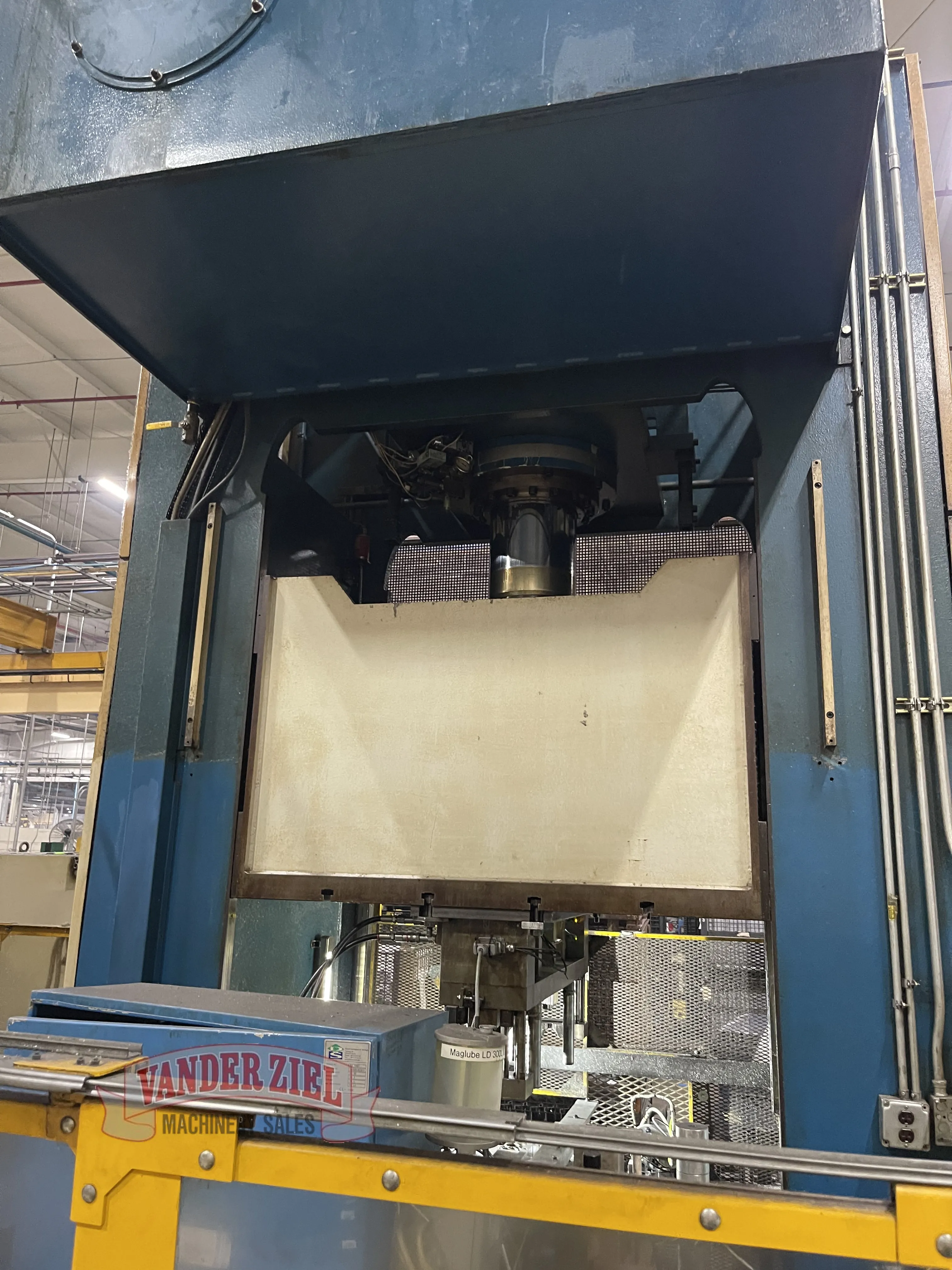

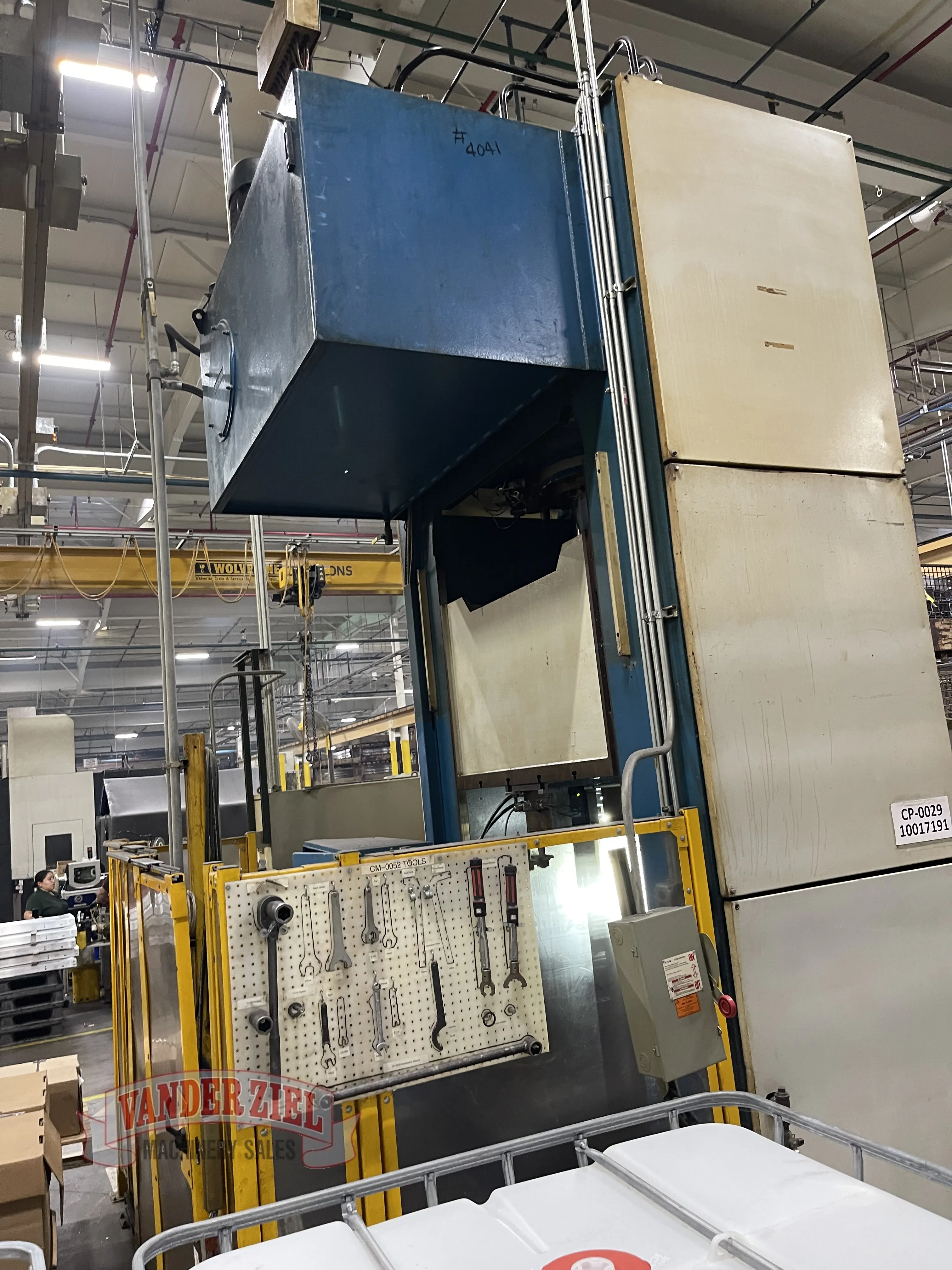

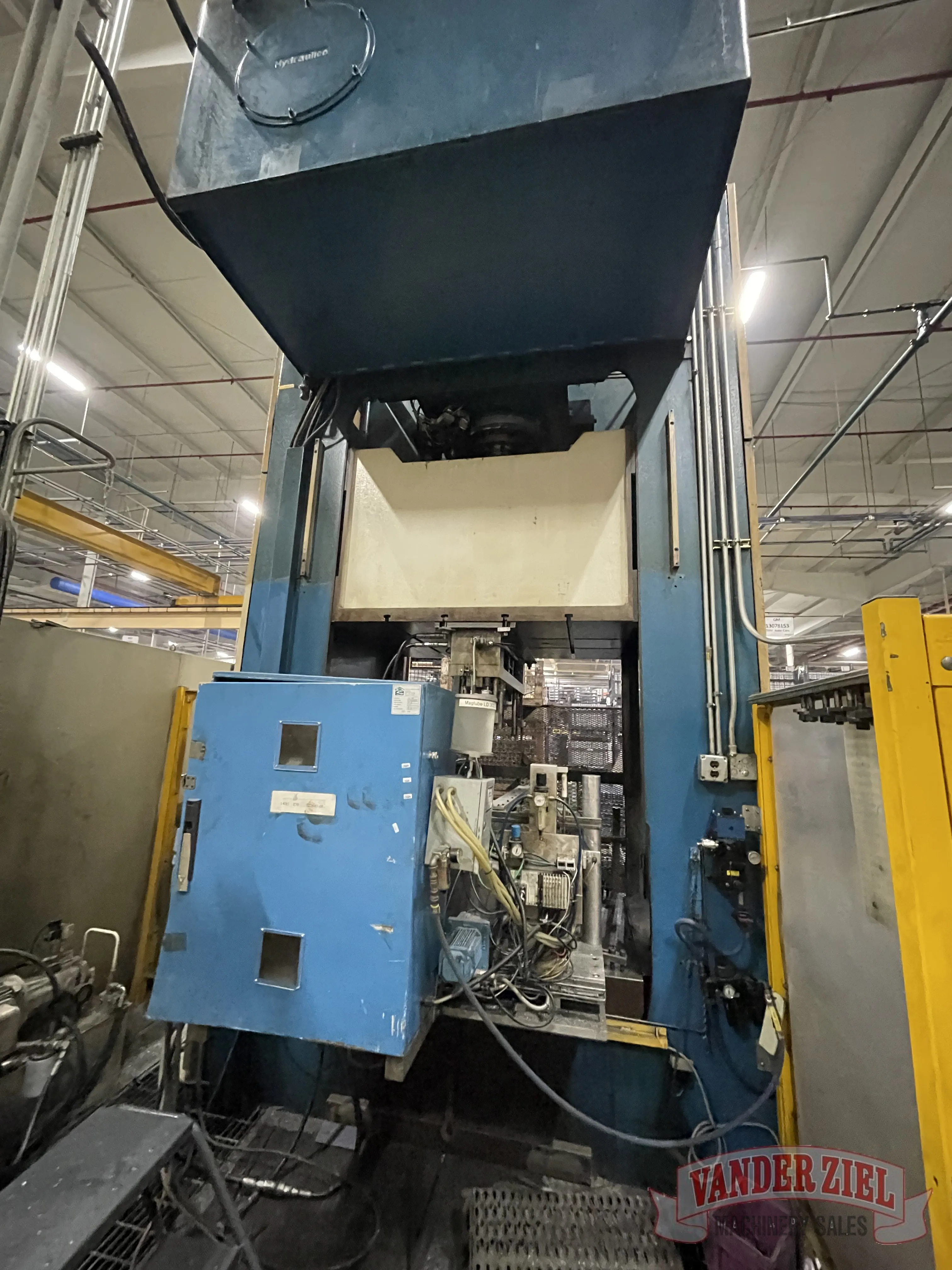

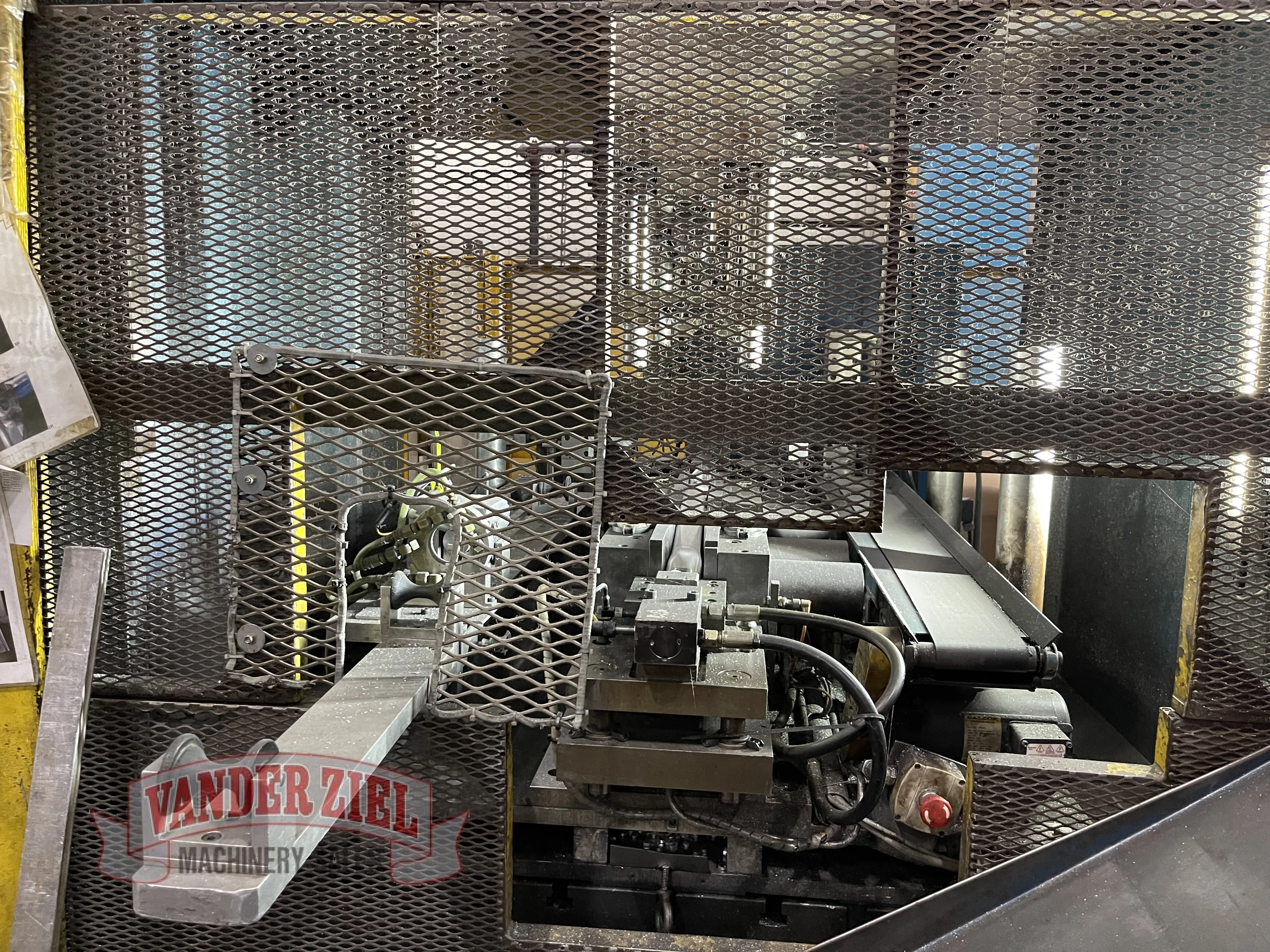

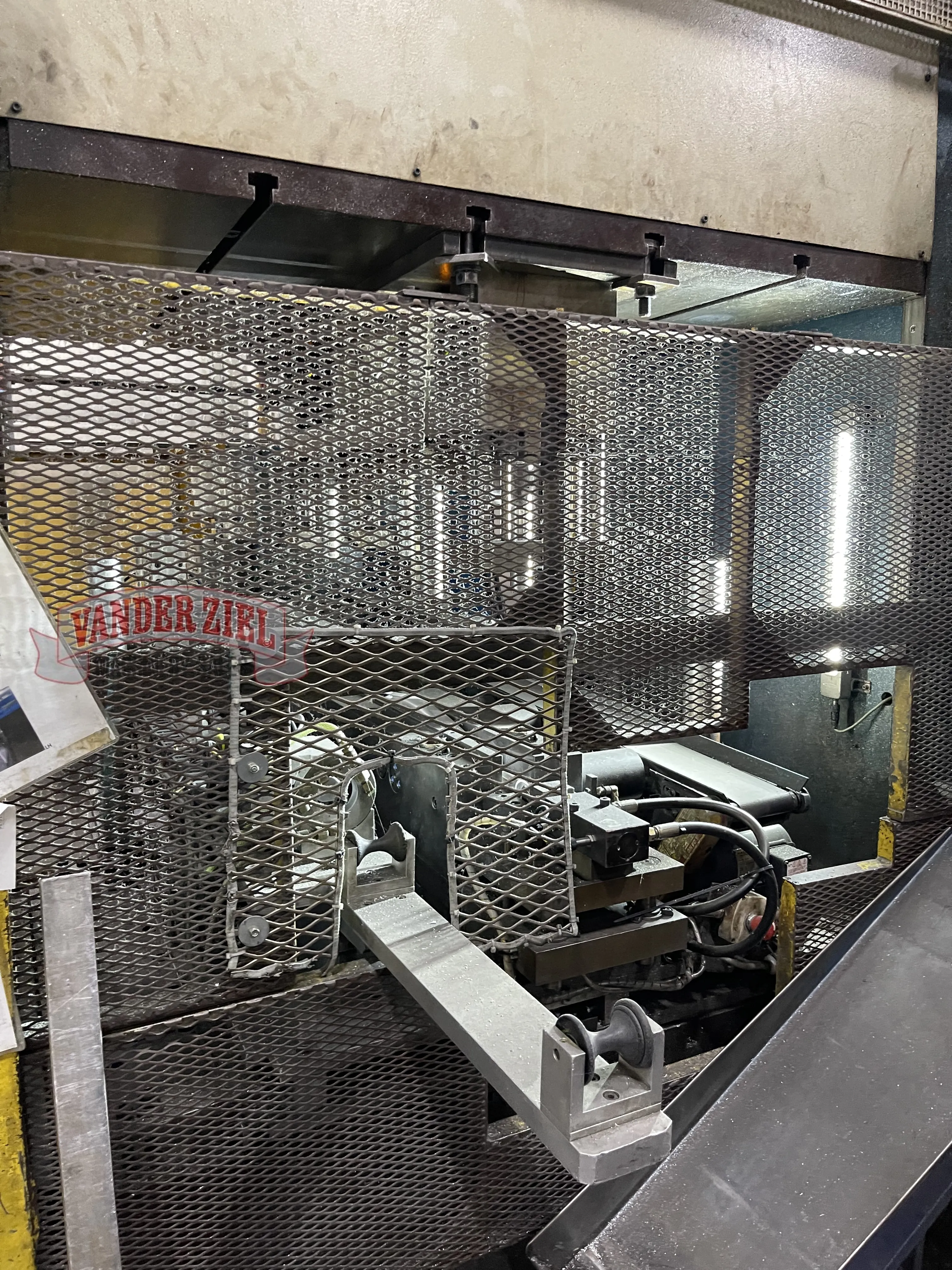

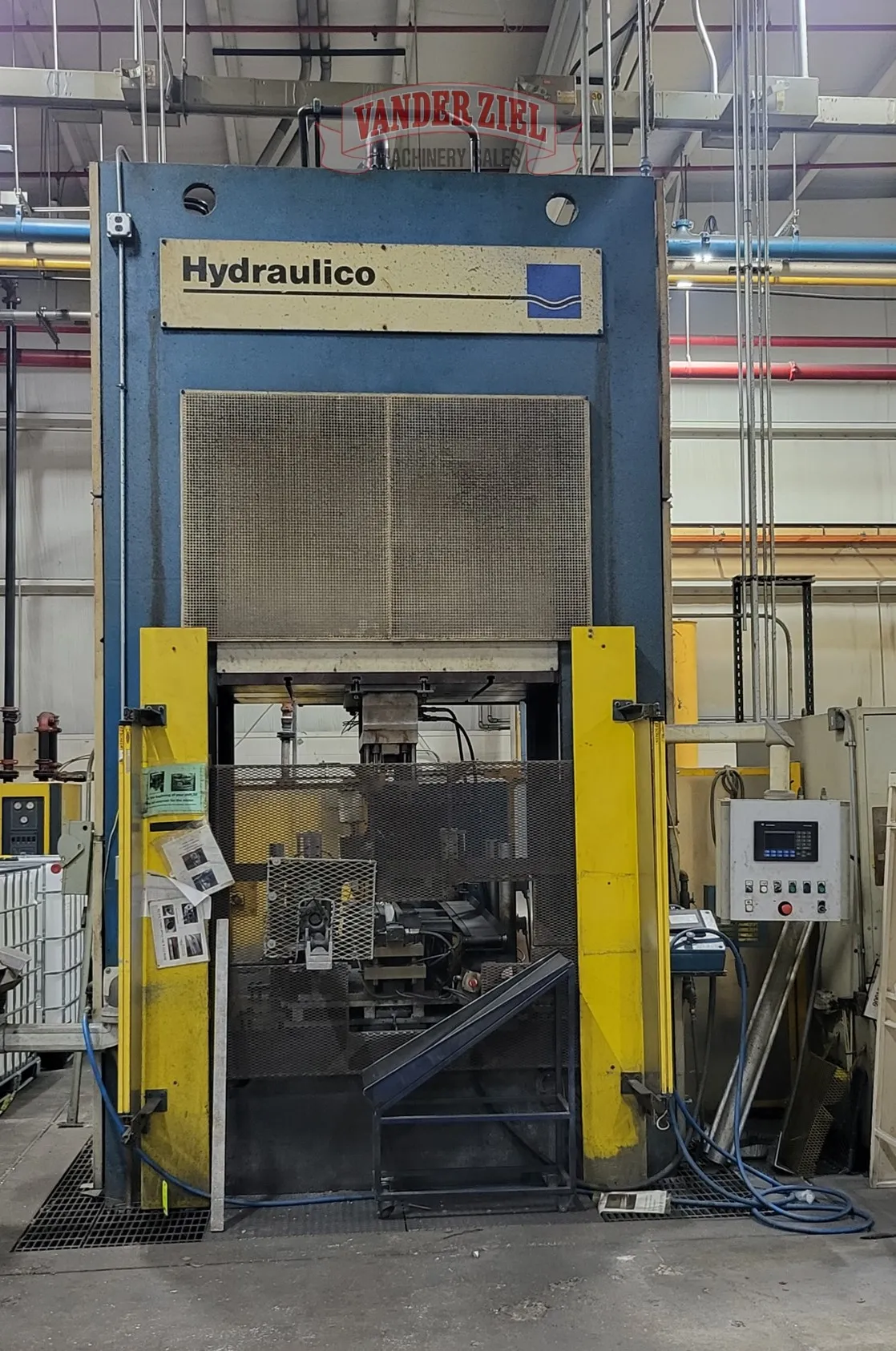

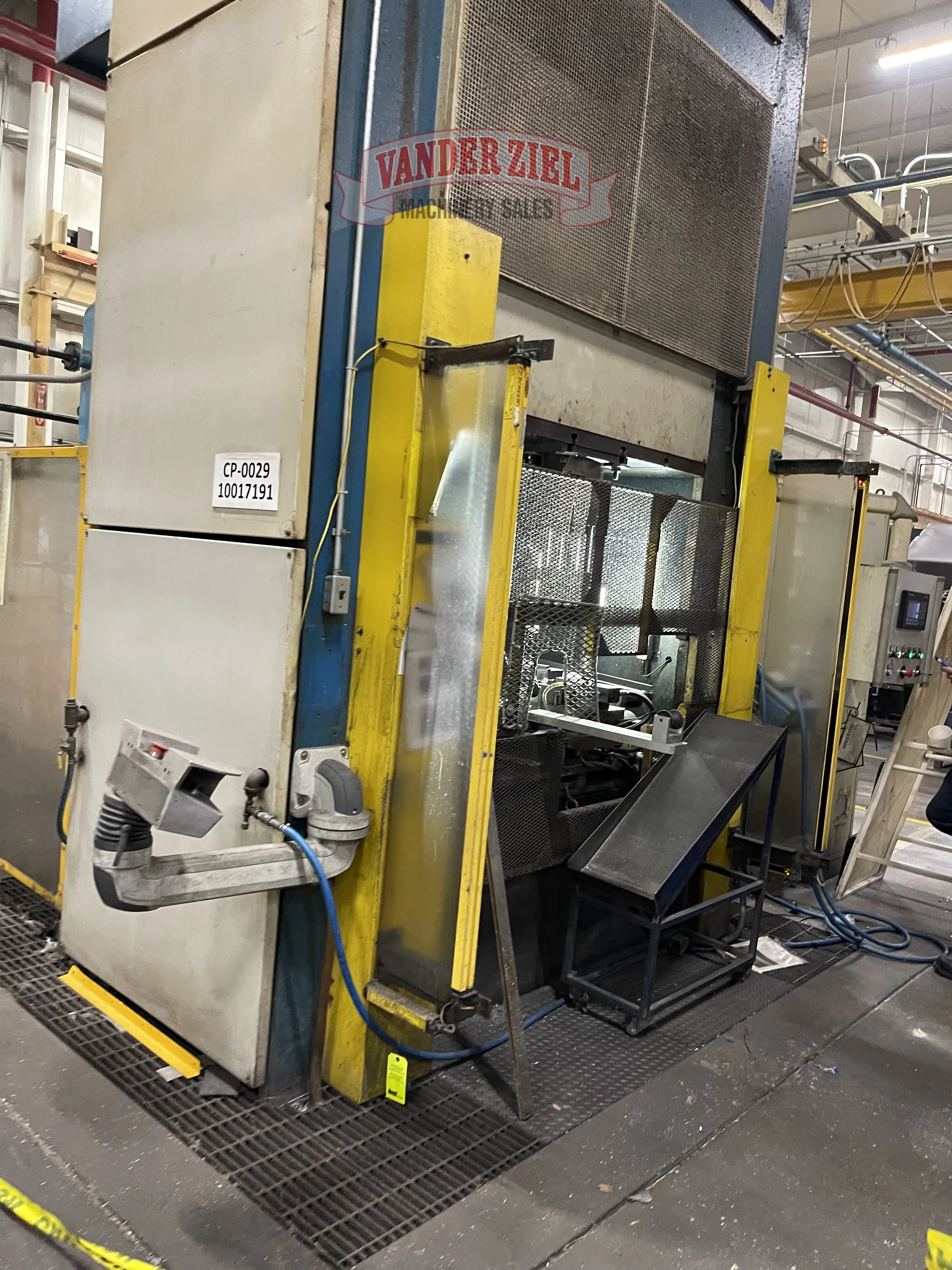

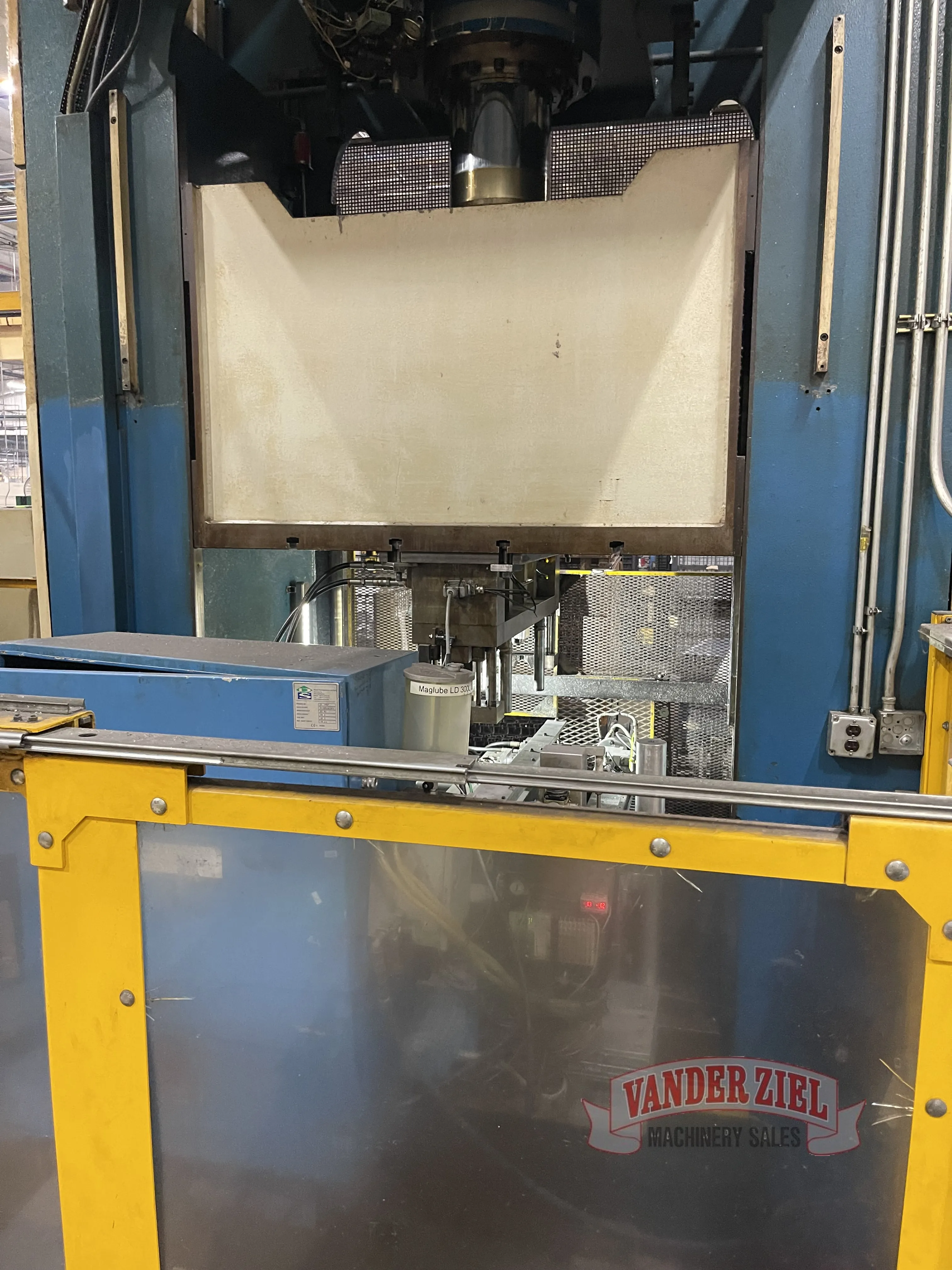

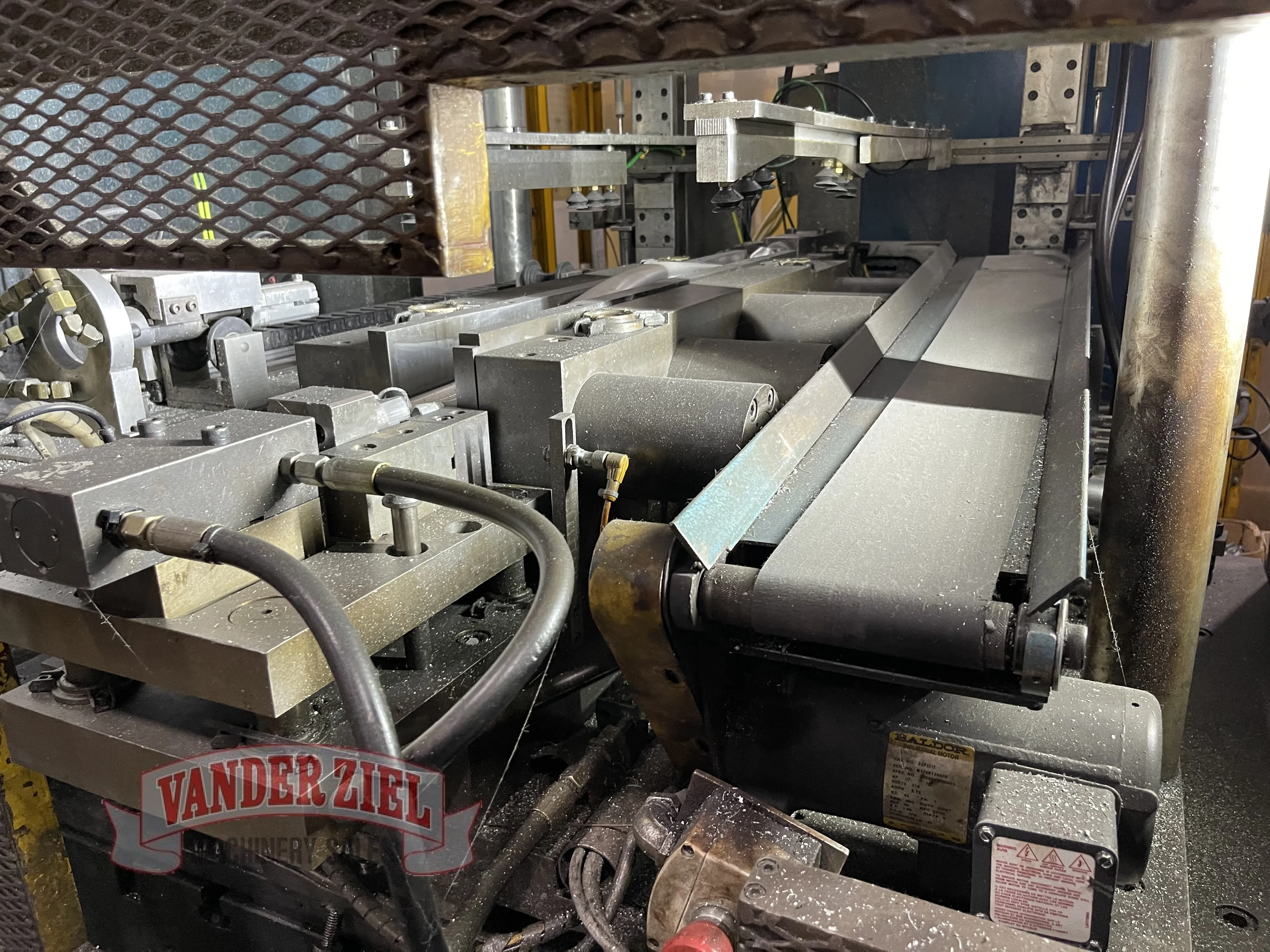

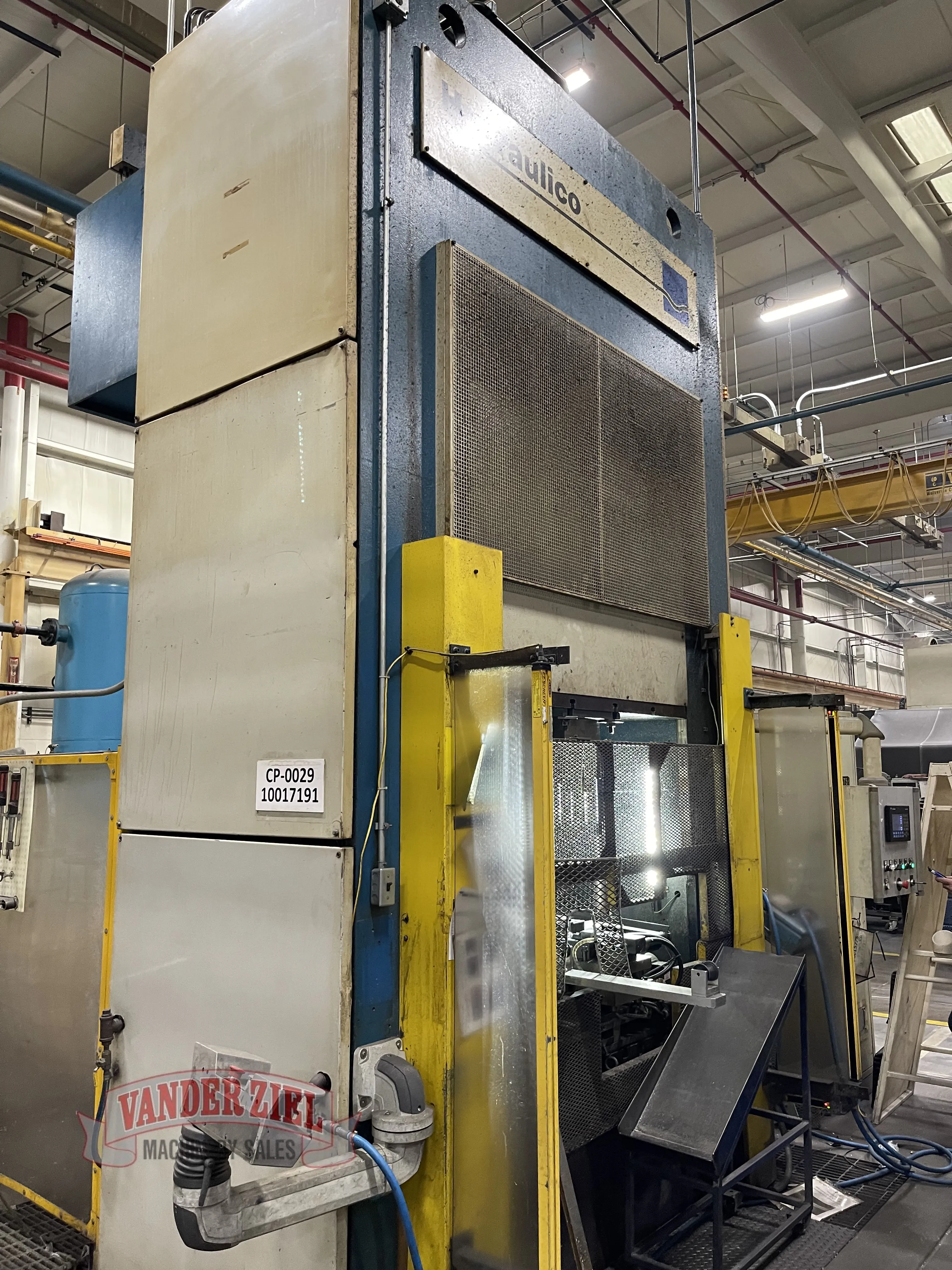

Hydraulico 300 Ton Model ON2044 Type 275/90, Bed Size 60” x 48”

Hydraulico 300 Ton Model ON2044 Type 275/90, Bed Size 60” x 48”

Serial # 1892
Asset # 16833

Specifications:
Max. Main Ram Force 302 US Tons
Length of Stroke 36”
Daylight, Max. Opening 60”
Bed Area 60” x 48”
Man Ram Area 60” x 48”
Speed of Approach 354 in/min
Speed of Return 283 in/min
Speed of Press 0-80 in/min
Main Motor 45 kW, 1700 RPM, 3x480 V, 60 HZ
Max. Cushion Force 99 US Tons
Stroke of Cushion 21”
Cushion Area 54” x 40”
Upstroke Speed 150 in/min

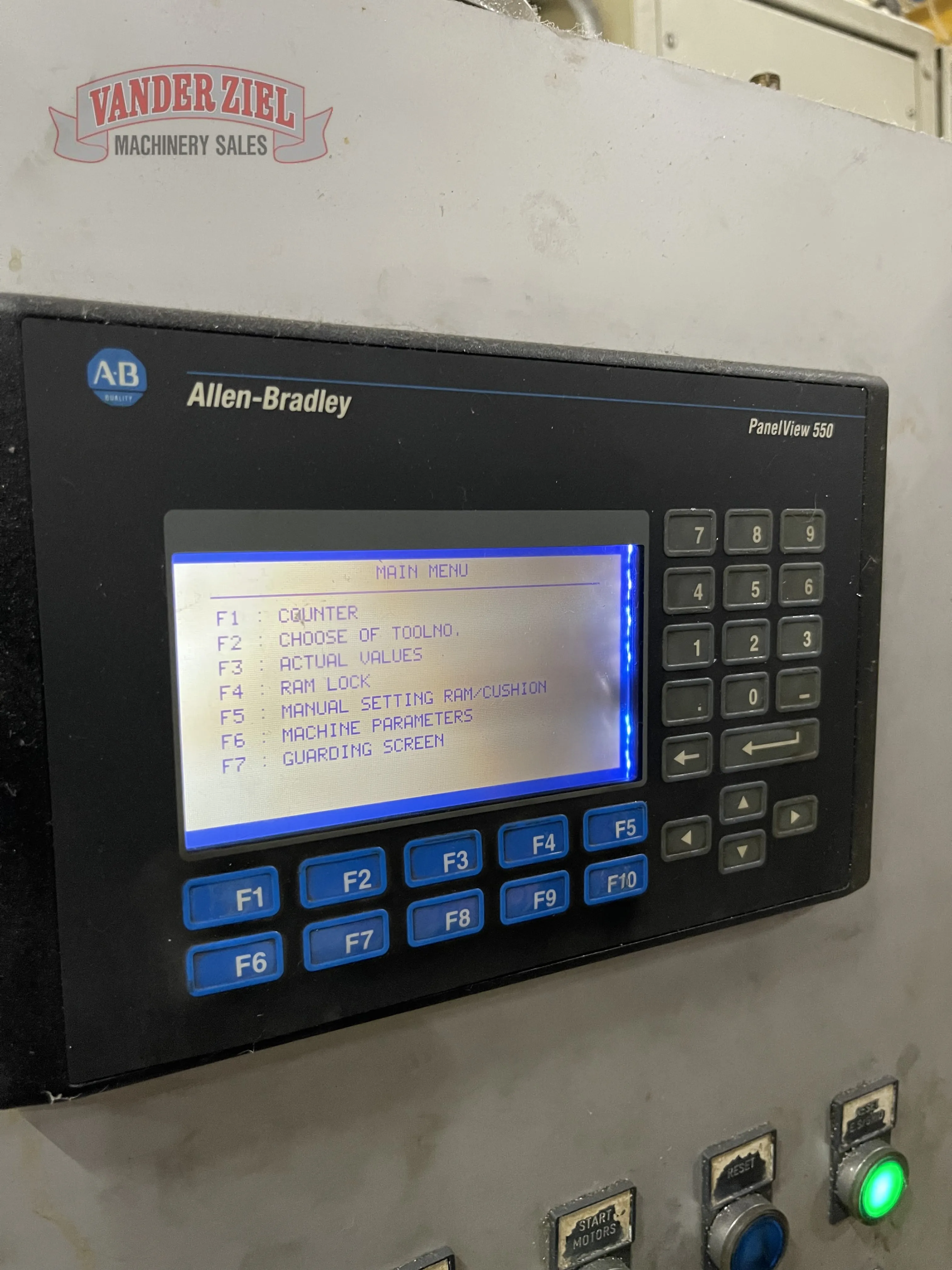

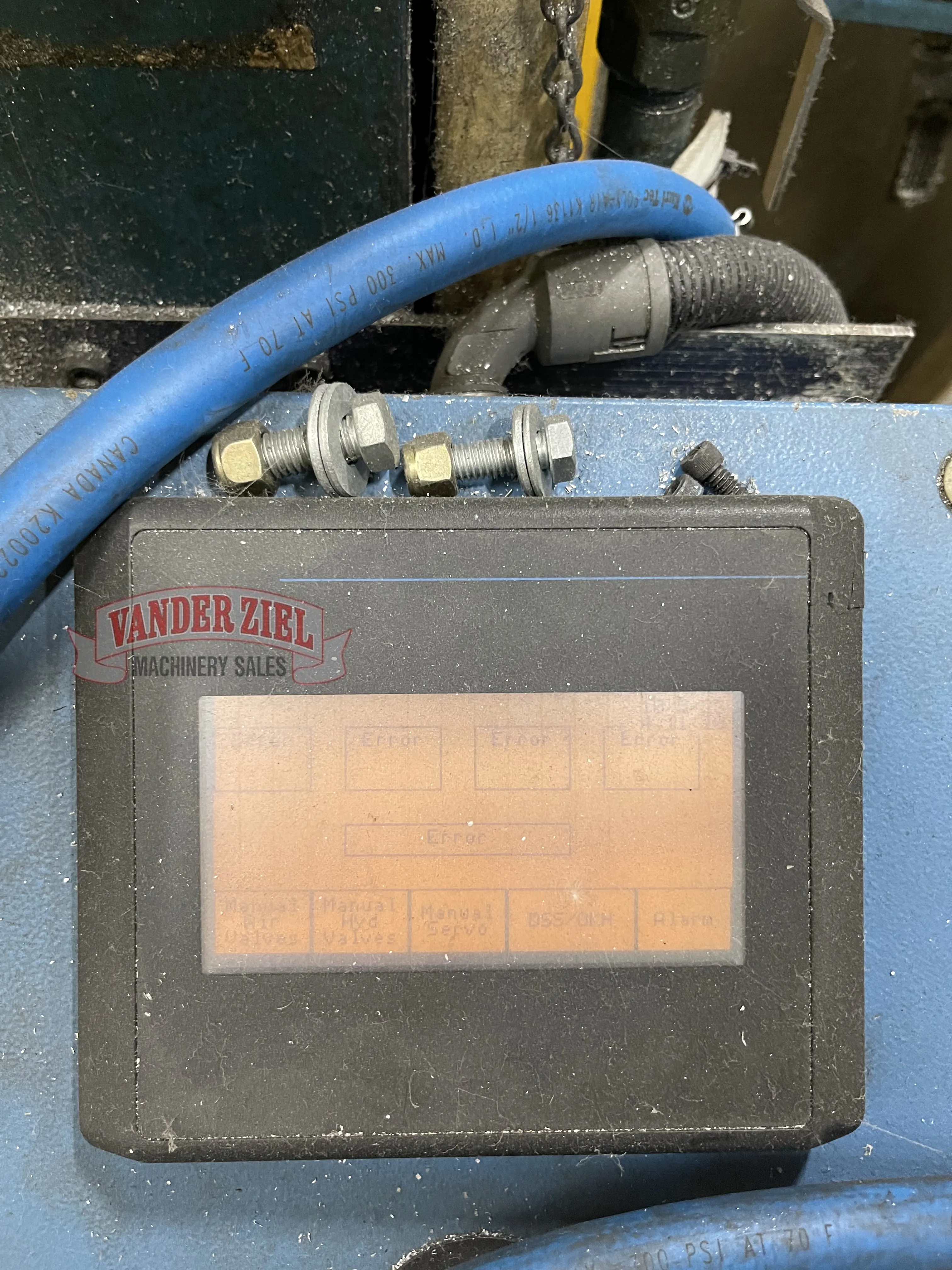

Control Allen Panel PanelView 550
Year 1996
Total Height 242.5”
Overall Size 99” x 92”
Height of Bed Area 28”
Weight 28 US Ton
Tooling Not Included

Preliminary Specifications - Subject to Verification
