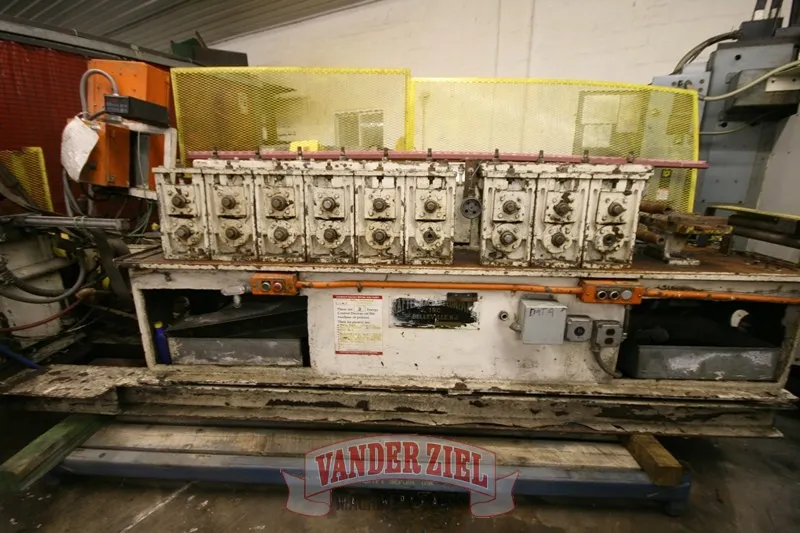

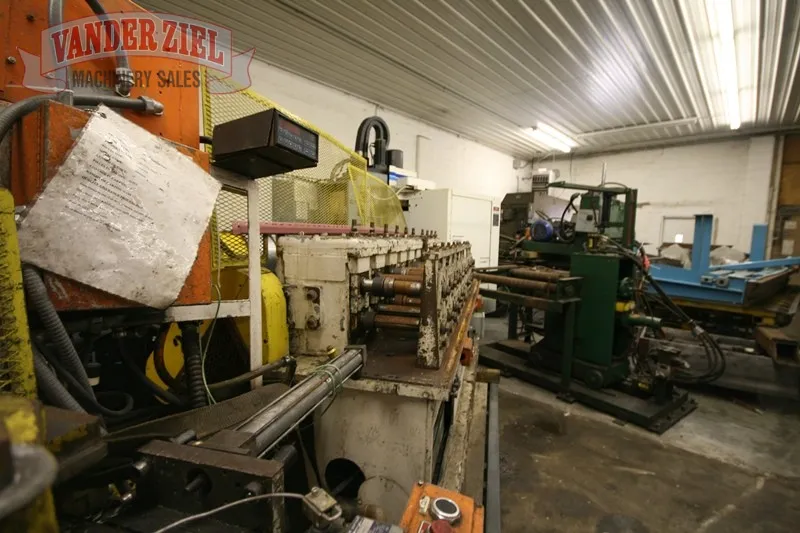

Rafter Equipment 10 Stand Lockformer

Rafter Equipment 10 Stand Lockformer

Serial # 8410
Asset # 10865

Specifications:
Standard Roll Shaft Diameter 1 7/8"
Upper Spindle Adjustment 4 3/8" to 5 3/4"
Spindle Key Size 5/16" x 1/4"
Roll Space 8"
Max. Shape Height with St'd Gearing 1"
Horizontal Center Distance 8"
Unequal Gearing Ratio 1.22
Worm Gearing Ratio 5 to 1
Base to Lower Roll Shaft 4 5/8"
Horsepower 15 HP
Maximum Strip Thickness .062"

Lockformer is currently priced AS-IS

Preliminary Specifications - Subject to Verification
