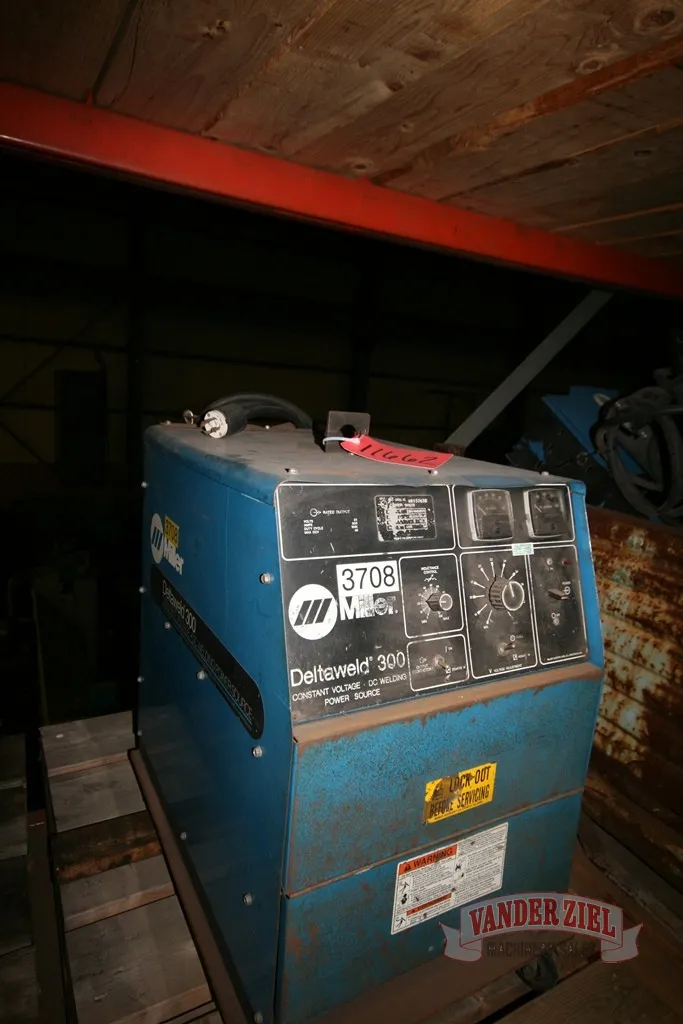

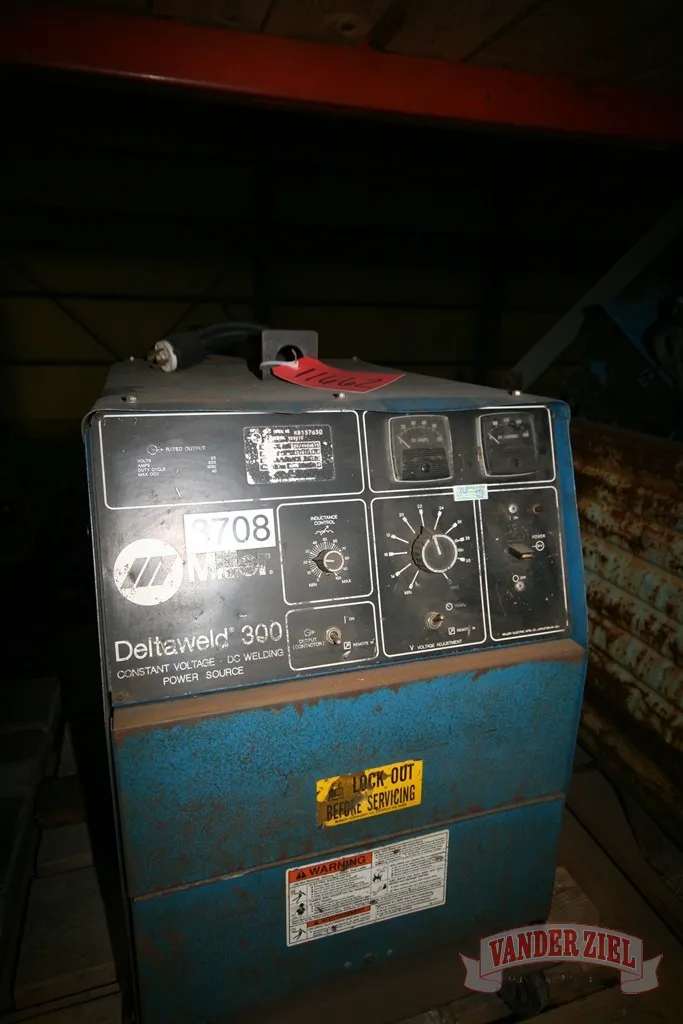

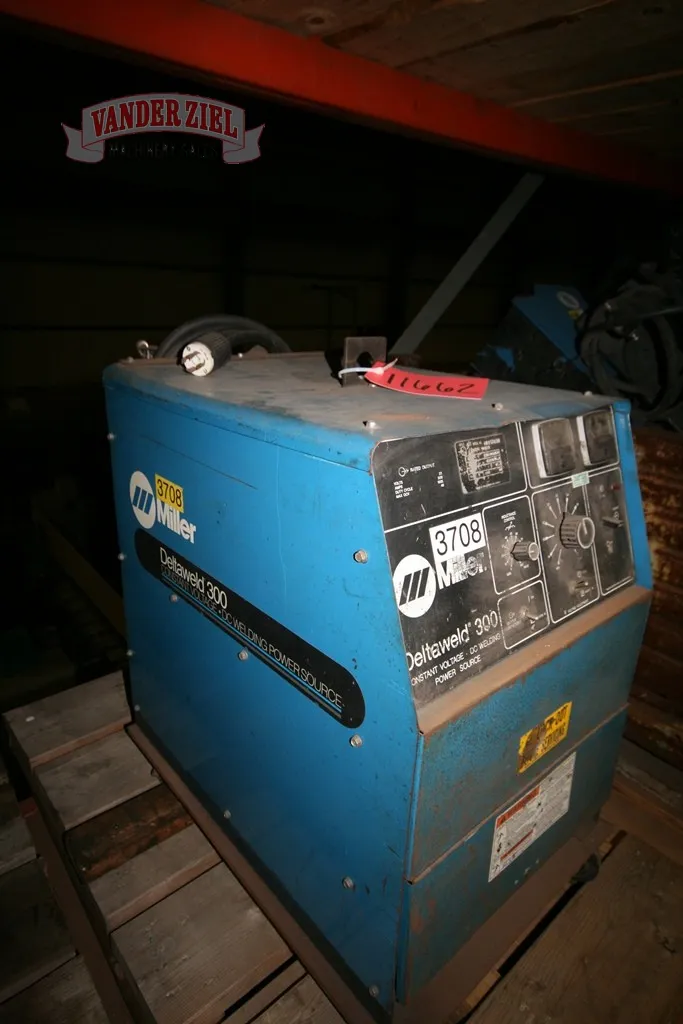

Miller Deltaweld 300 Arc Welder

Miller Deltaweld 300 Arc Welder

Serial # KB157630
Asset # 11662

Specifications:
Type of Output    Constant Voltage/Direct Current
Rated Weld Output NEMA Class 1 at 100% Duty Cycle    300 Amps, 32 Volts DC
Type of Input Power    3PH, 200/230/460/575 Volts AC, 60 HZ
Input Amperes at Rated Output
48.3 Amps at 200 Volts
42 Amps at 230 Volts
21 Amps at 460 Volts
16.8 Amps at 575 Volts
KVA/KW Used at Rated Output    16.8 kVA/12.3 KW
Max. Open Circuit Voltage    40 Volts DC
Welding Processes    Gas Metal Arc/Flux Cored Arc
Height    30"
Dimensions    20" x 27"
Weight    340 lbs.

Preliminary Specifications - Subject to Verification
