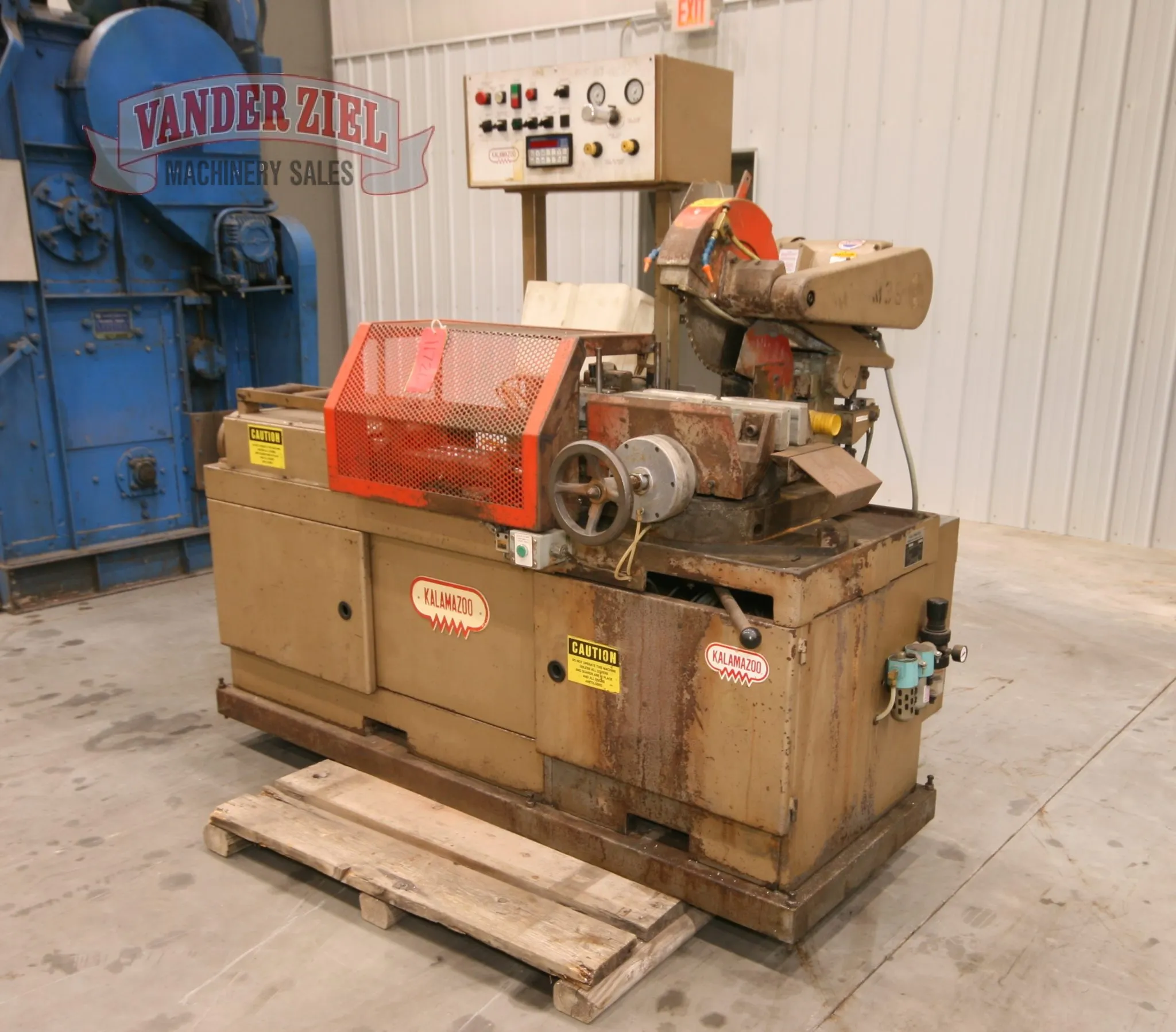

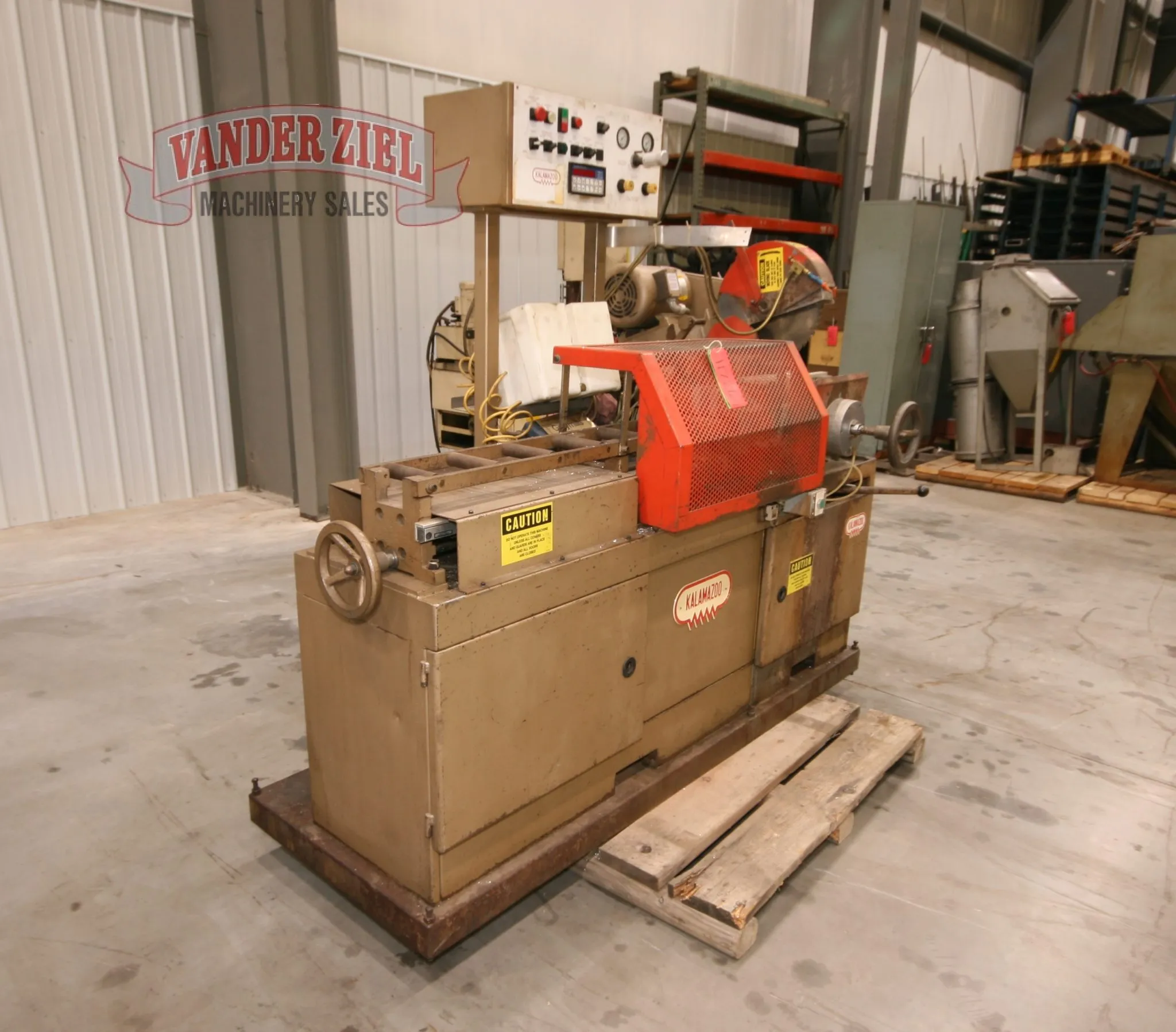

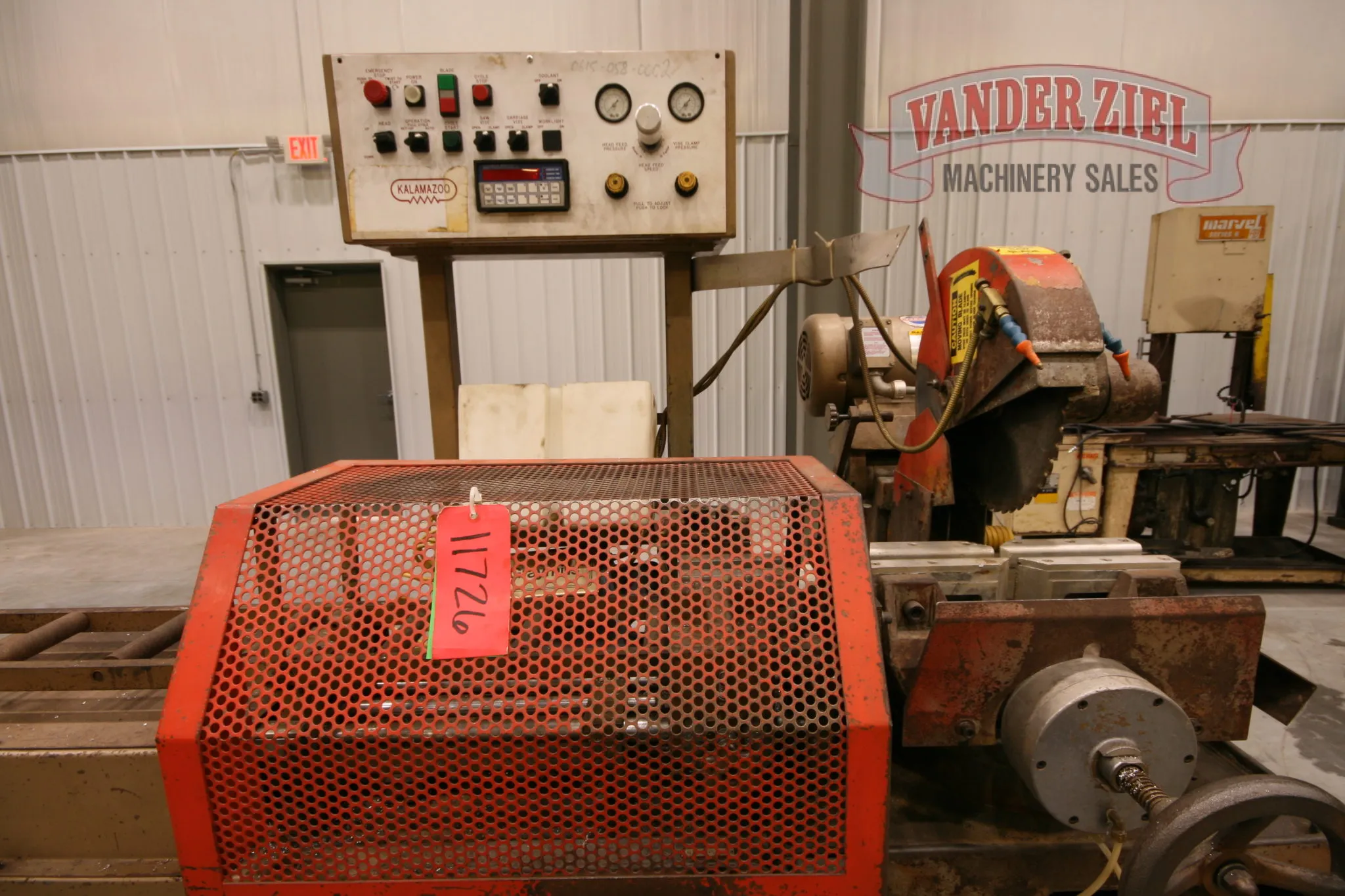

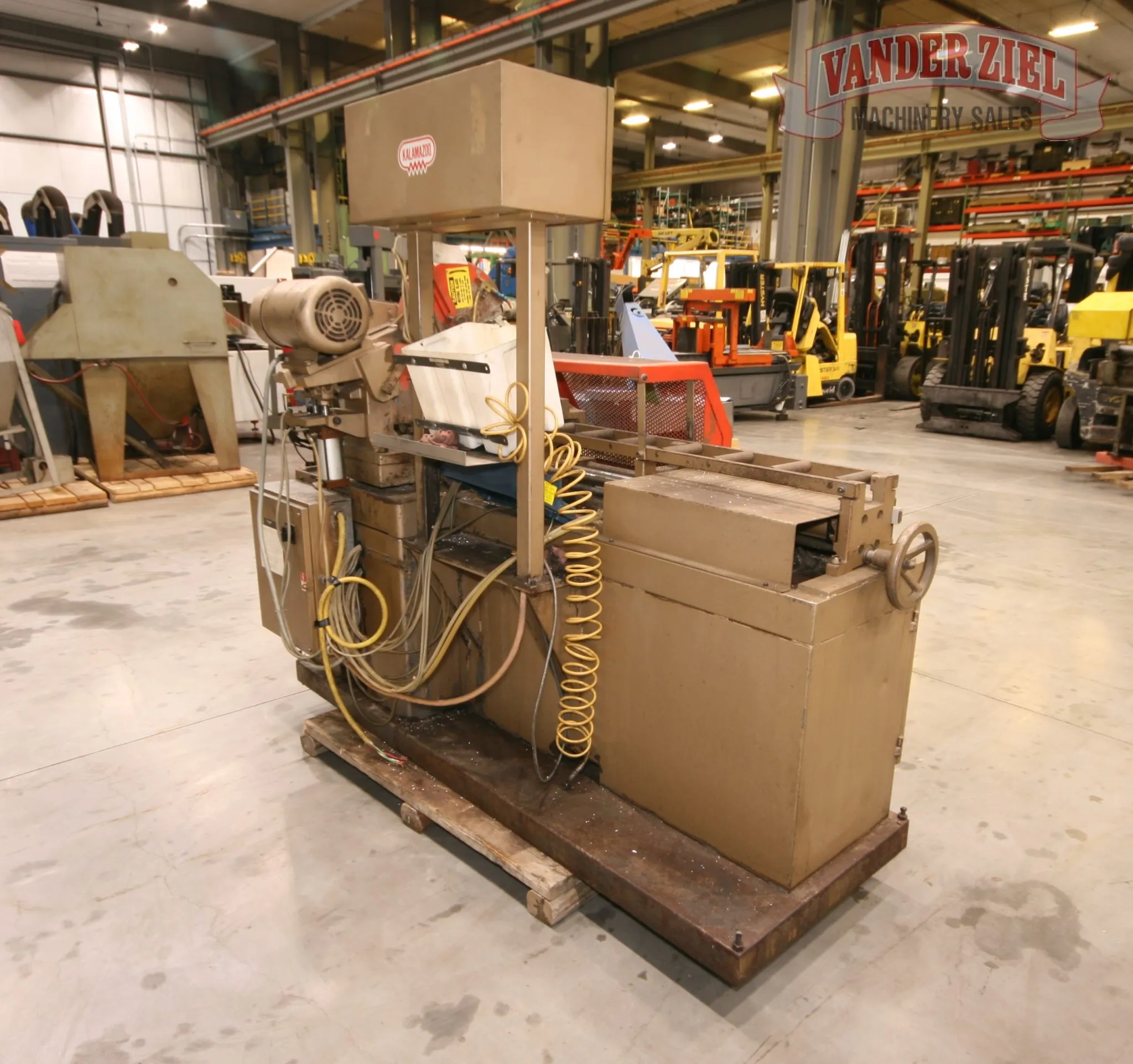

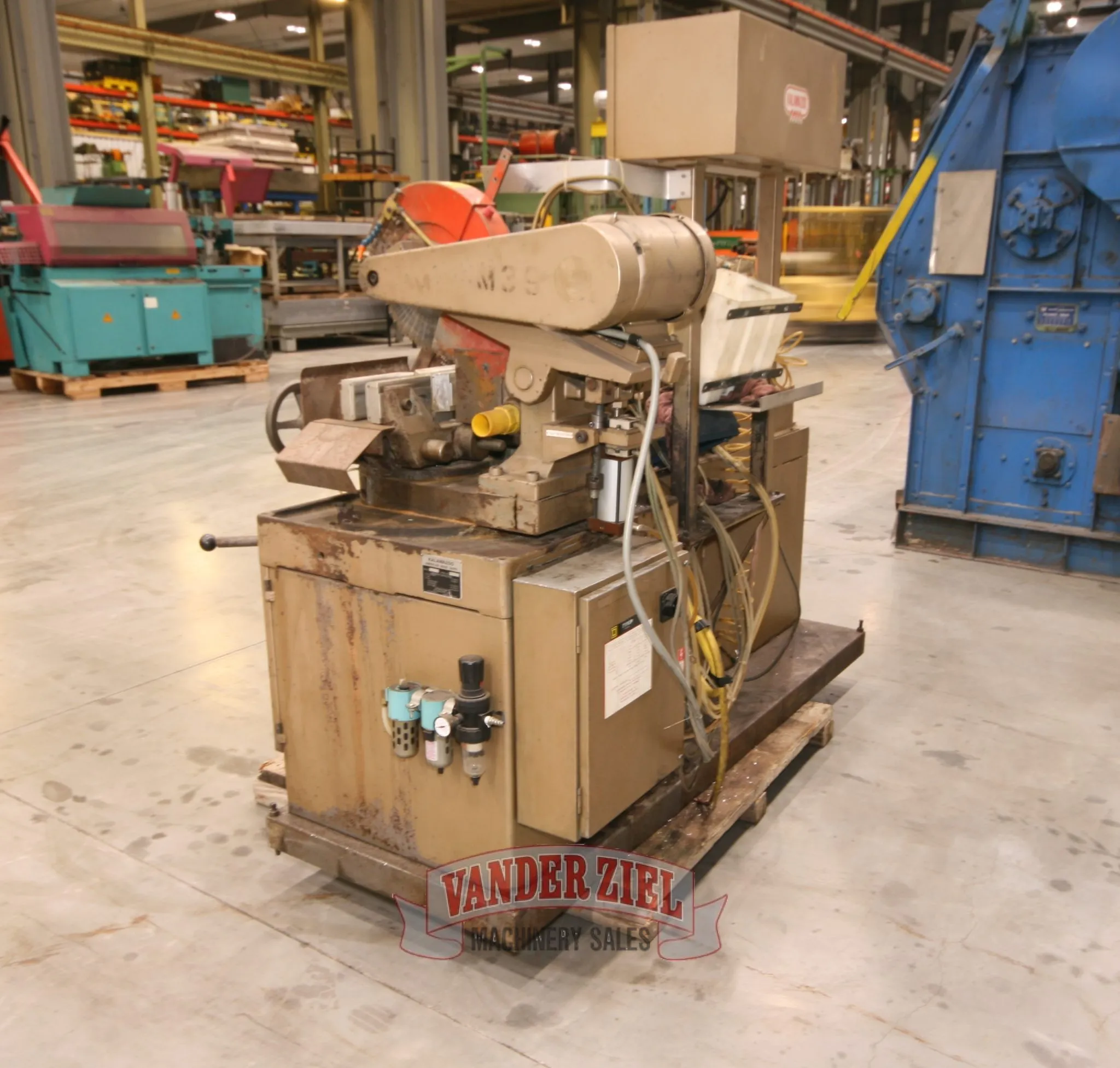

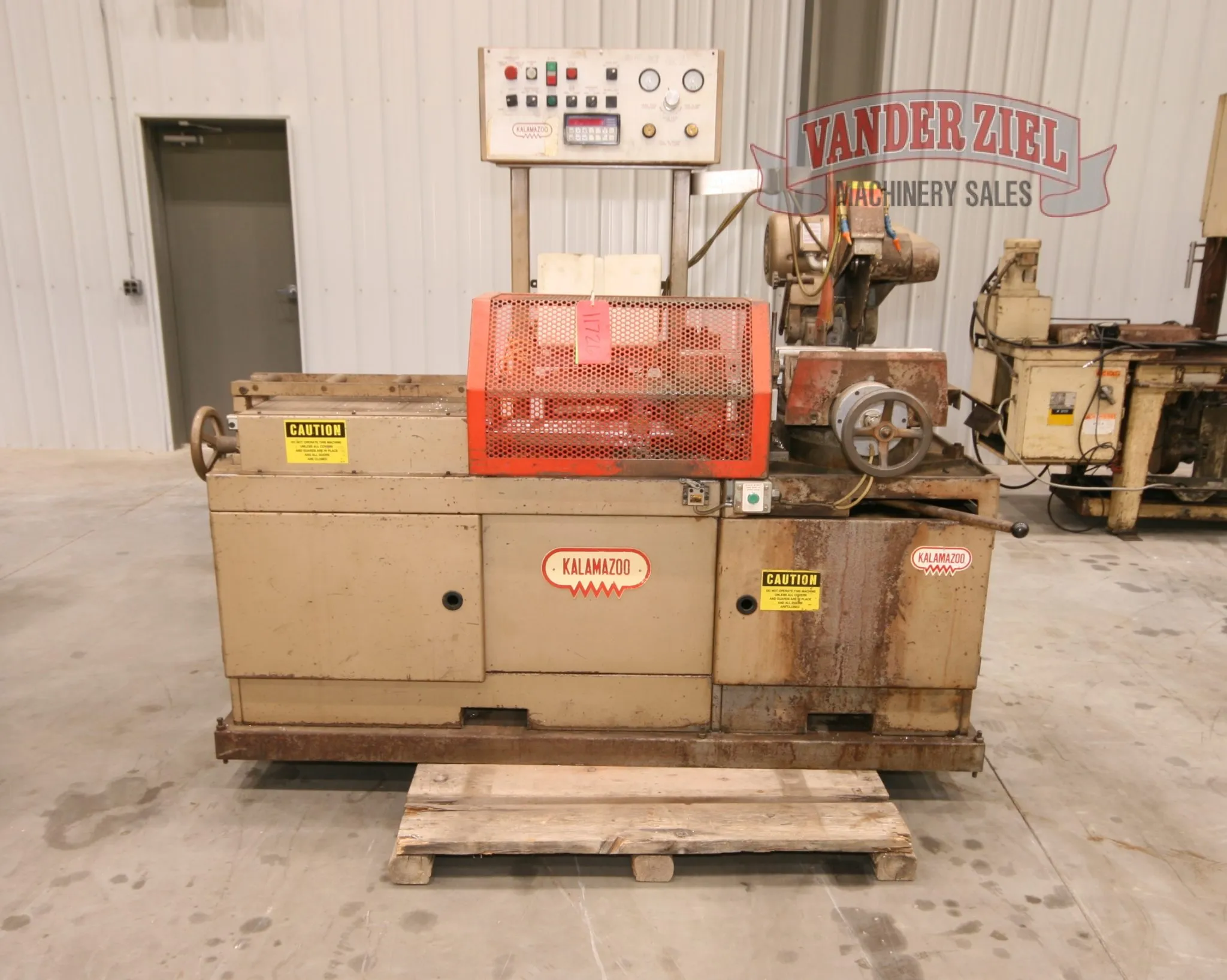

Kalamazoo 14" Automatic Cold Saw, Model FA350A

Kalamazoo Model FA350A Automatic Cold Saw

Serial # 186
Asset # 11726

Specifications:
Drive Motor    5 HP
Angles    45 Deg. L, 15 Deg. R
Spindle Speeds    1700/3400 RPM
Max. Blade Size    14”
Max. Vise Opening    6”
Capacity – Round at 90 Degrees    5”
Capacity – Square at 90 Degrees    4 ½”
Capacity – Rectangular Tube at 90 Degrees    6” x 4 ½”
Capacity – Round Solid at 90 Degrees    4”
Capacity – Square Solid at 90 Degrees    4”
Capacity – Round at 45 Degrees    4 1/2”
Capacity – Square at 45 Degrees    4 ½”
Capacity – Rectangular Tube at 45 Degrees    4 ½” x 4”
Capacity – Round Solid at 45 Degrees    4”
Capacity – Square Solid at 45 Degrees    4”
Dimensions    95” x 50”
Height    62”
Weight    1,800 lbs.

Preliminary Specifications – Subject to Verification
