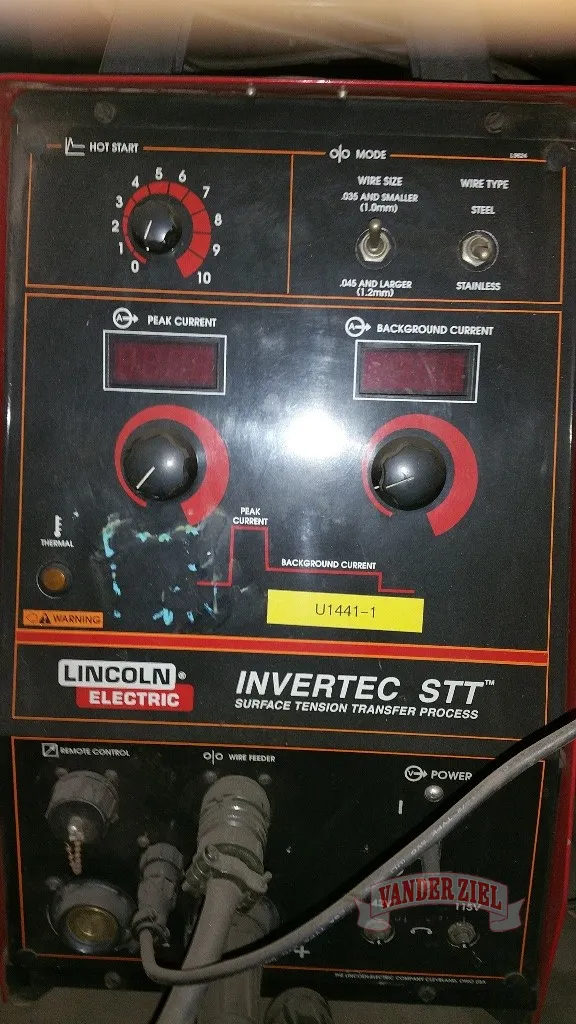

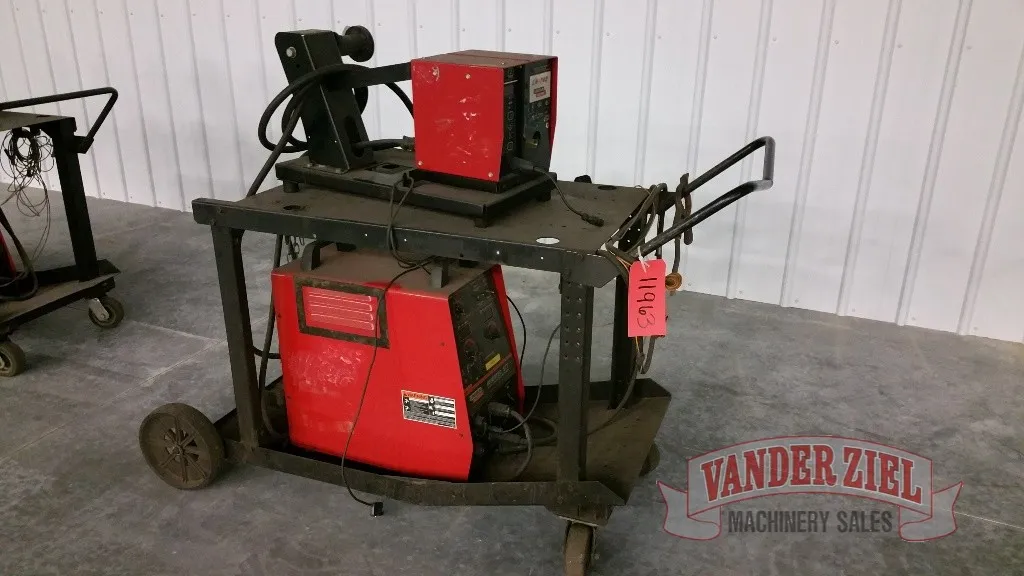

Lincoln Invertec STT Welder with Lincoln LN-742 Feeder

Lincoln Invertec STT Welder with Lincoln LN-742 Feeder

Serial # U1950902T8
Asset # 11963

Specifications:
Standard Voltage    208/230/460/3/60 HZ
Input Current at Rated Output    33/30/19
Standard Voltage    200/220/380/415/440/3/50/60 HZ
Input Current at Rated Output    32/30/18/17/16
Rated Output at 60% Duty Cycle     225 Amps/29 Volts
Rated Output at 100% Duty Cycle    200 Amps/28 Volts
Output - Peak Current    0-450 Amps
Output - Background    0-125 Amps
Open Circuit Voltage    85 VDC Max.
Auxiliary Power - Peak    112 VAX at 4 Amps
Auxiliary Power - Background    42 VAX at 4 Amps
Dimensions (WO Cart)    24" x 13"
Height    23"
Weight    100 lbs.

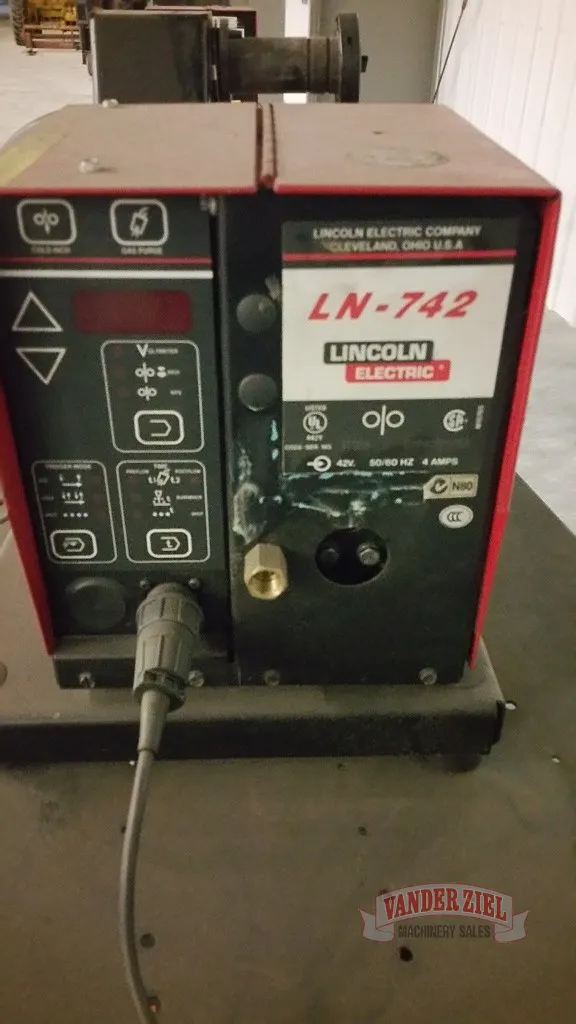

Welder is equipped with a Lincoln LN-742 Feeder.

Preliminary Specifications - Subject to Verification
