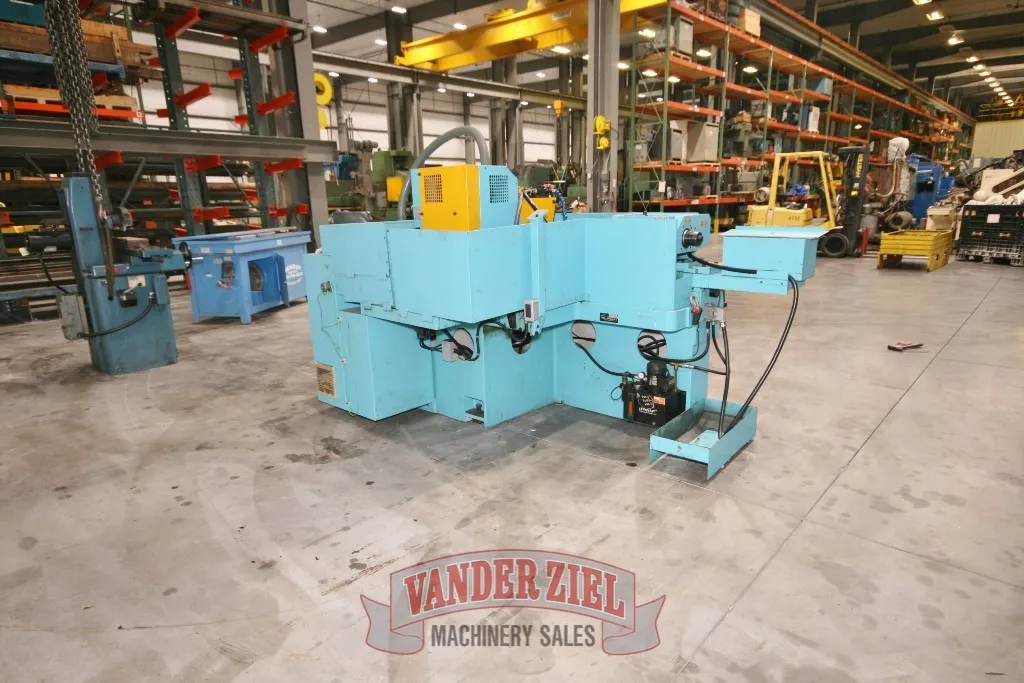

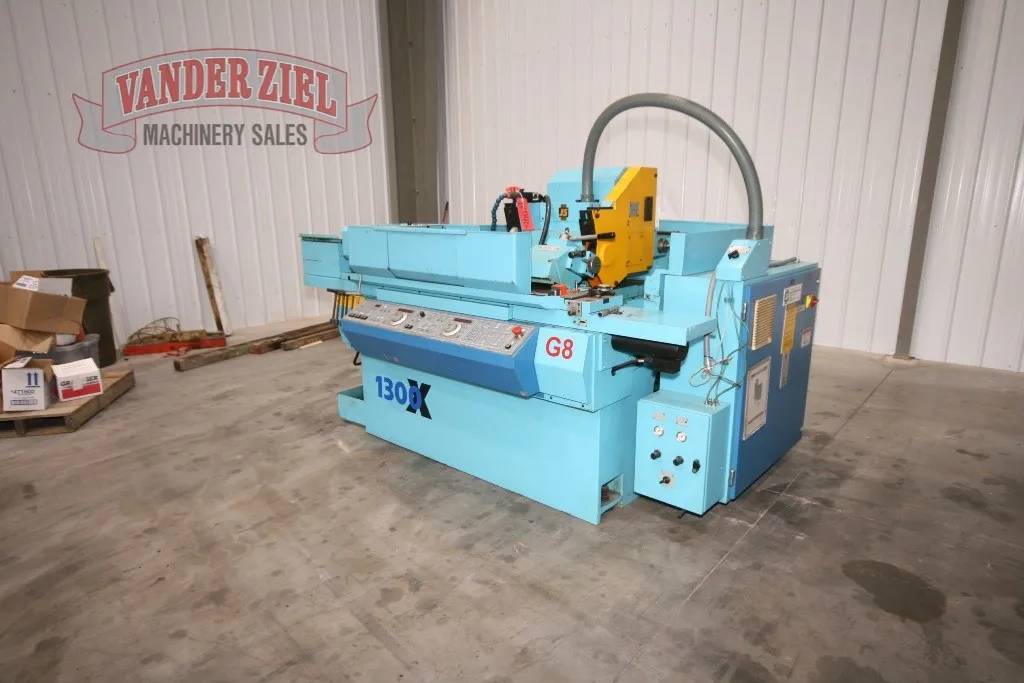

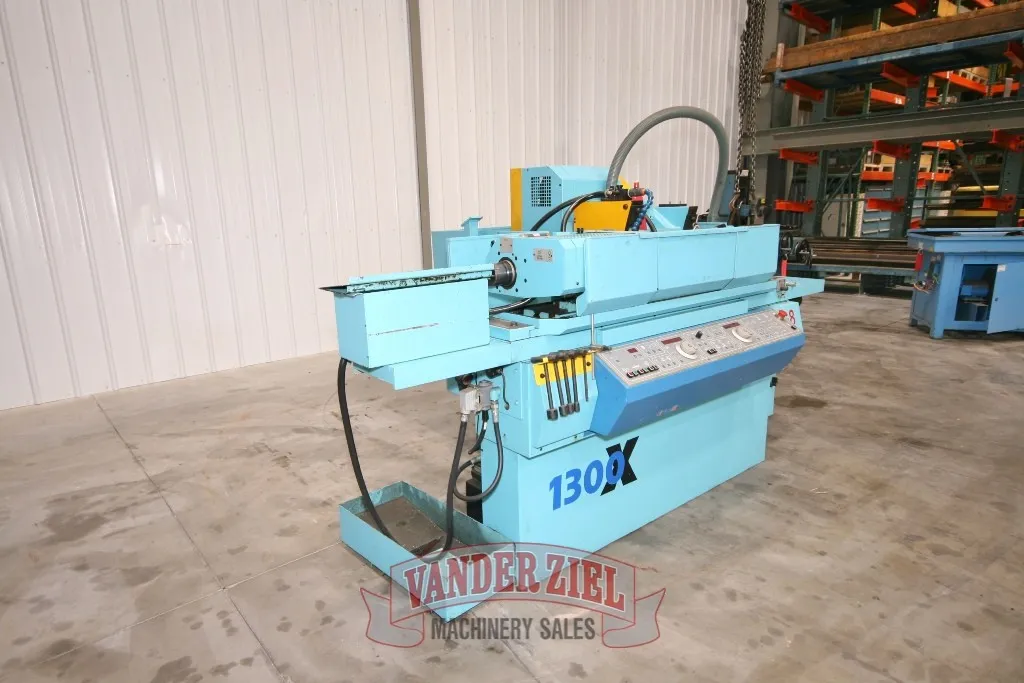

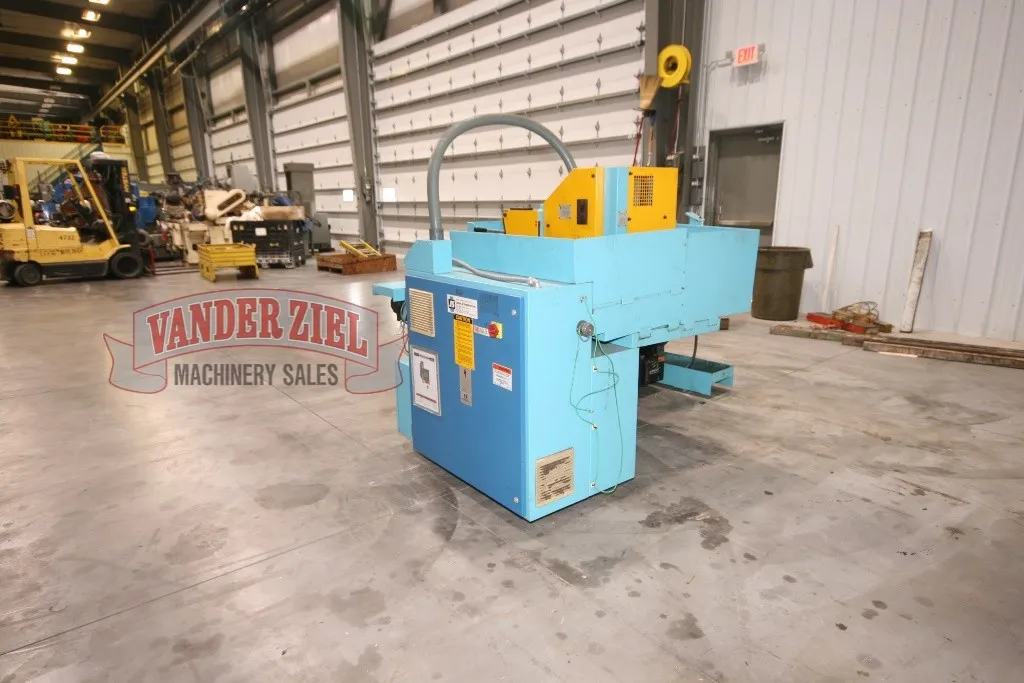

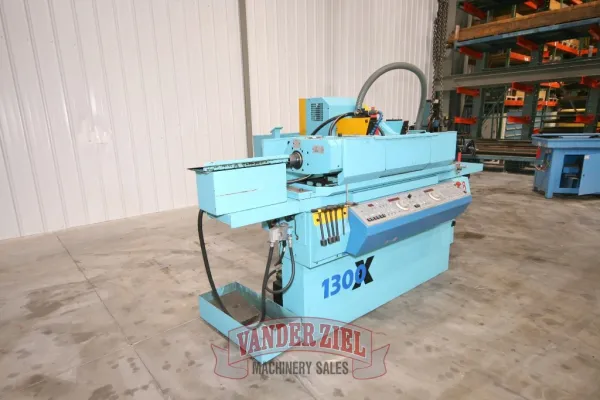

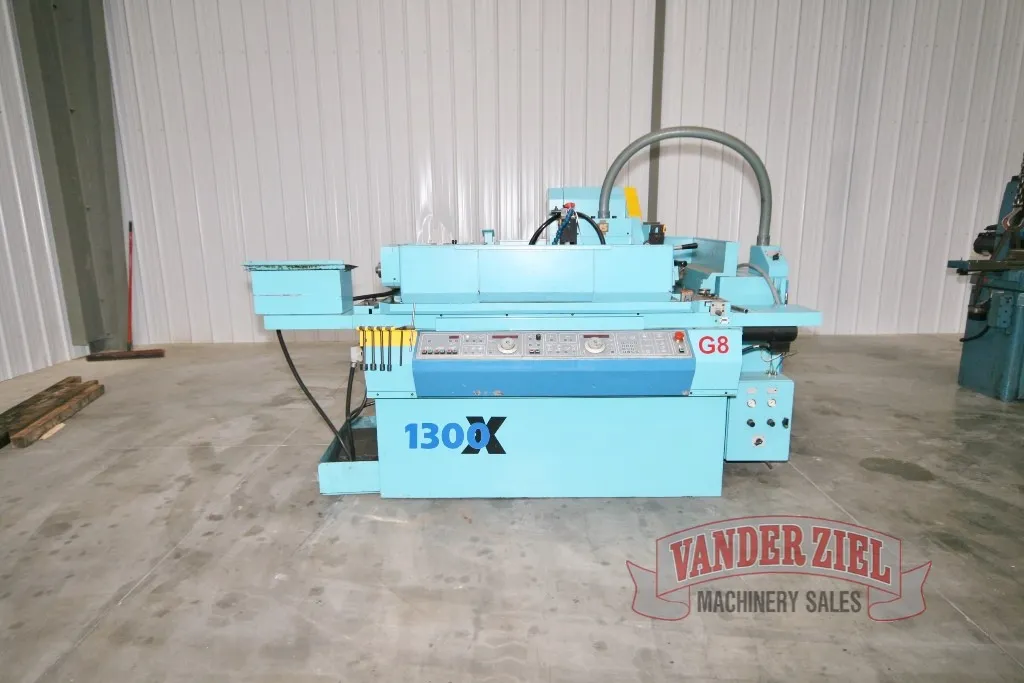

Jones & Shipman Model 1300X 10" x 27" Cylindrical Grinder

Jones & Shipman Model 1300X 10" x 27" Cylindrical Grinder

Serial # M19357
Asset # 12048

Specifications:

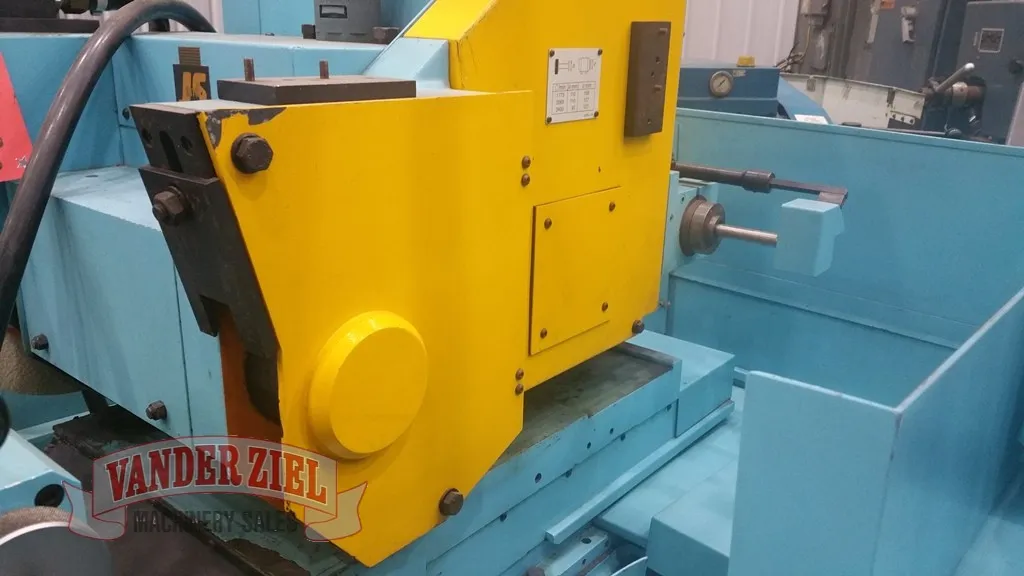

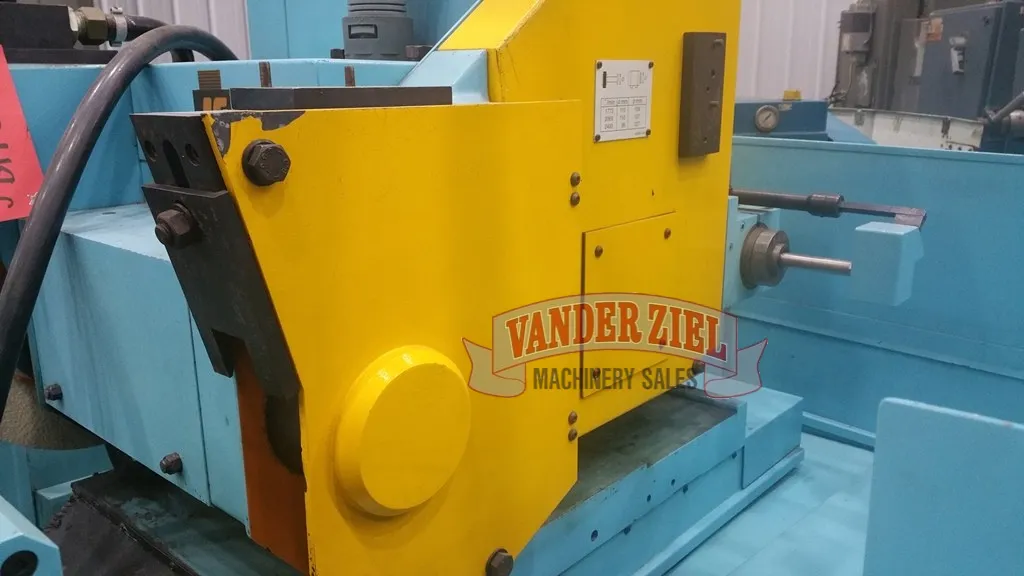

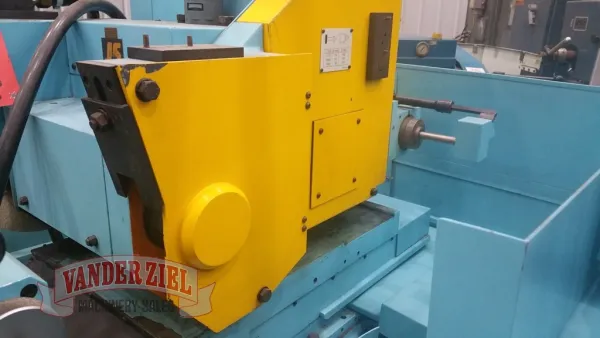

Wheelhead:
Total Infeed,     9.6"
Max. Programmable Diametral Infeed Rate, per Min.,     3.9"
Min. Programmable Increment    0.00005"
HPG Increments    0.00005", 0.0005", 0.005"
Swivel Range    109 Deg. CW or 45 Deg. CCW
External Grinding Wheels:
Left Hand Standard    14" x 2" x 5"
Right Hand Standard    12" x 1" x 5"
Max. Diameter Ground Using 14" Wheel    12"
Max. Diameter Ground Using 12" Wheel    14"
Spindle Speeds    1775, 2068, 2400rpm
Motor Power    5.5HP
Internal Grinding Wheels:
Diameter Range (Standard Spindle)     0.75" - 1.5"
Spindle Speeds, Standard     16500rpm
Motor Power     3HP
Table:
Maximum Traverse Speed, Per Minute    196.8"
Minimum Programmable Increment    0.00005"
HPG Increments    0.00005", 0.0005", 0.005"
Maximum Length Between Centers    27"
Table Swivel Angle    16 Deg. CW to 18 Deg. CCW

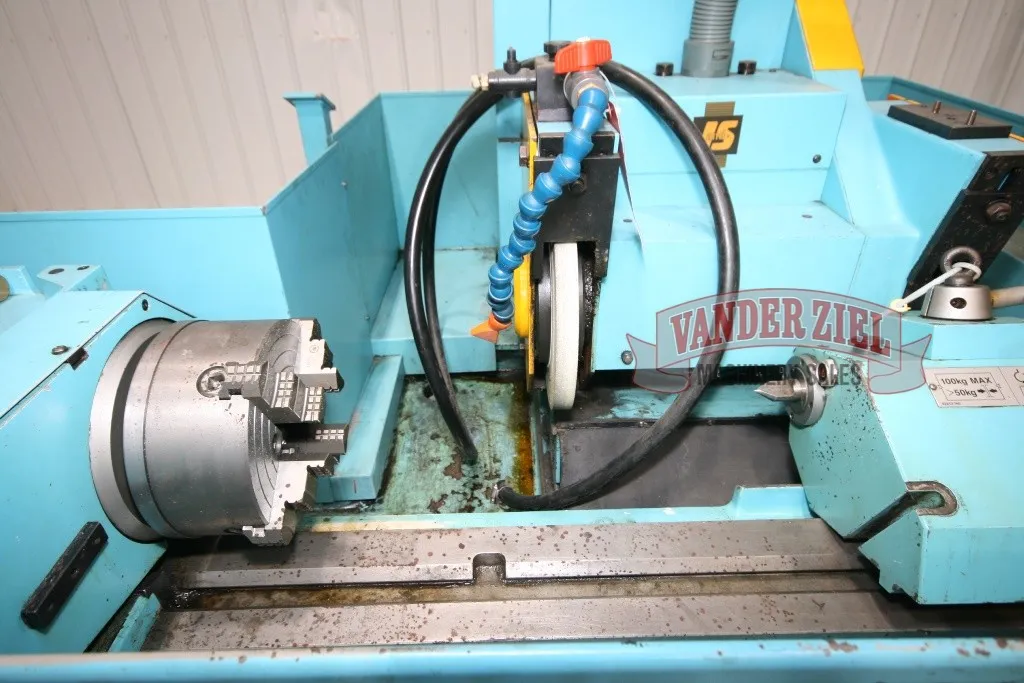

Workhead:
Center Height, Standard    5"
Maximum Workpiece Weight Between Centers    220lbs.
Motor Power    1.5HP
Speed Range, Continuously Variable    1 to 660rpm
Swivel Range    15 Deg. CW to 90 Deg. CCW
Centers, Standard    5MT
Floor Space Required (LxWxH)     173" x 65" x 71"
Machine Weight    5300 lbs.

Preliminary Specifications - Subject to Verification
