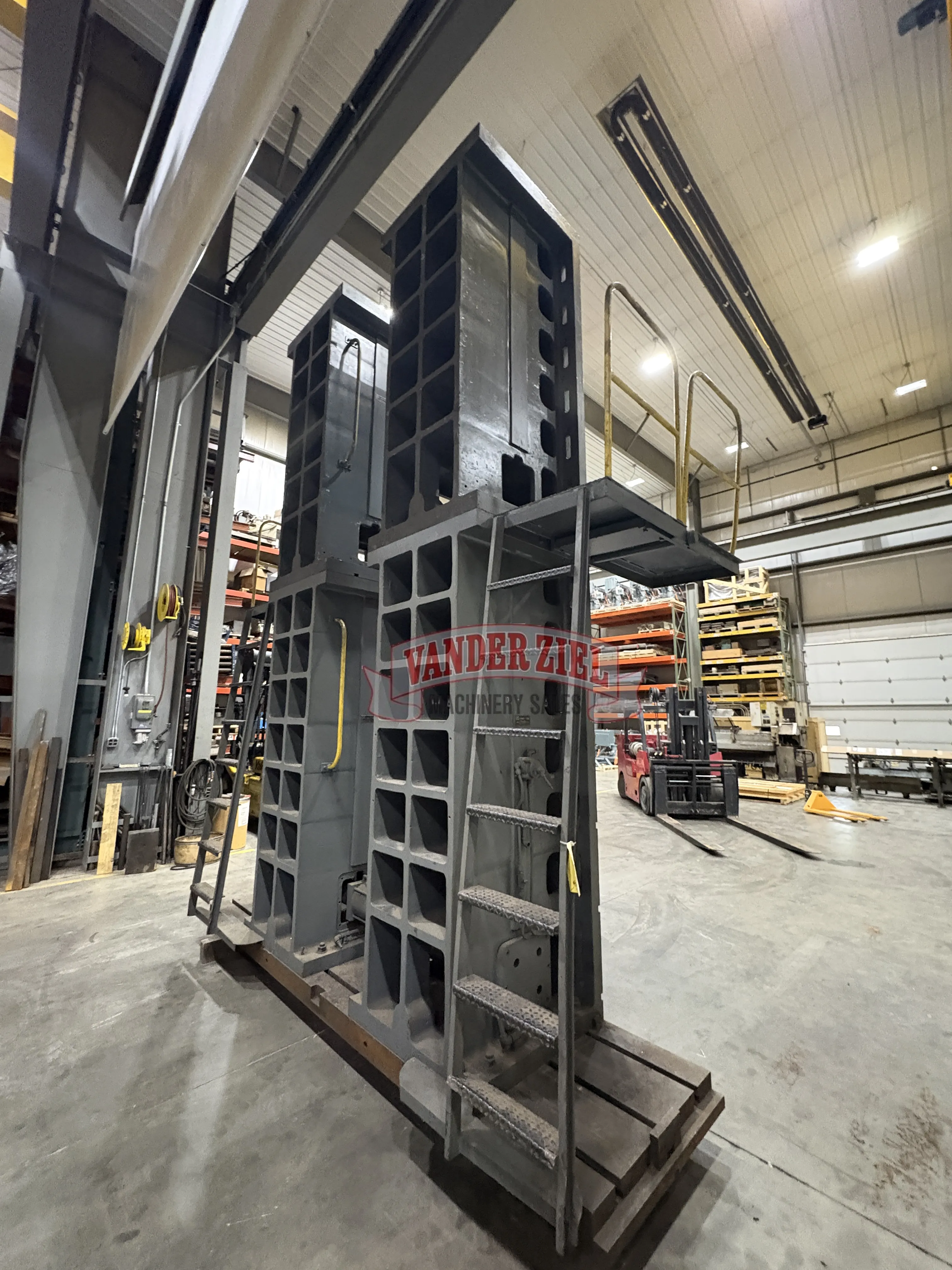

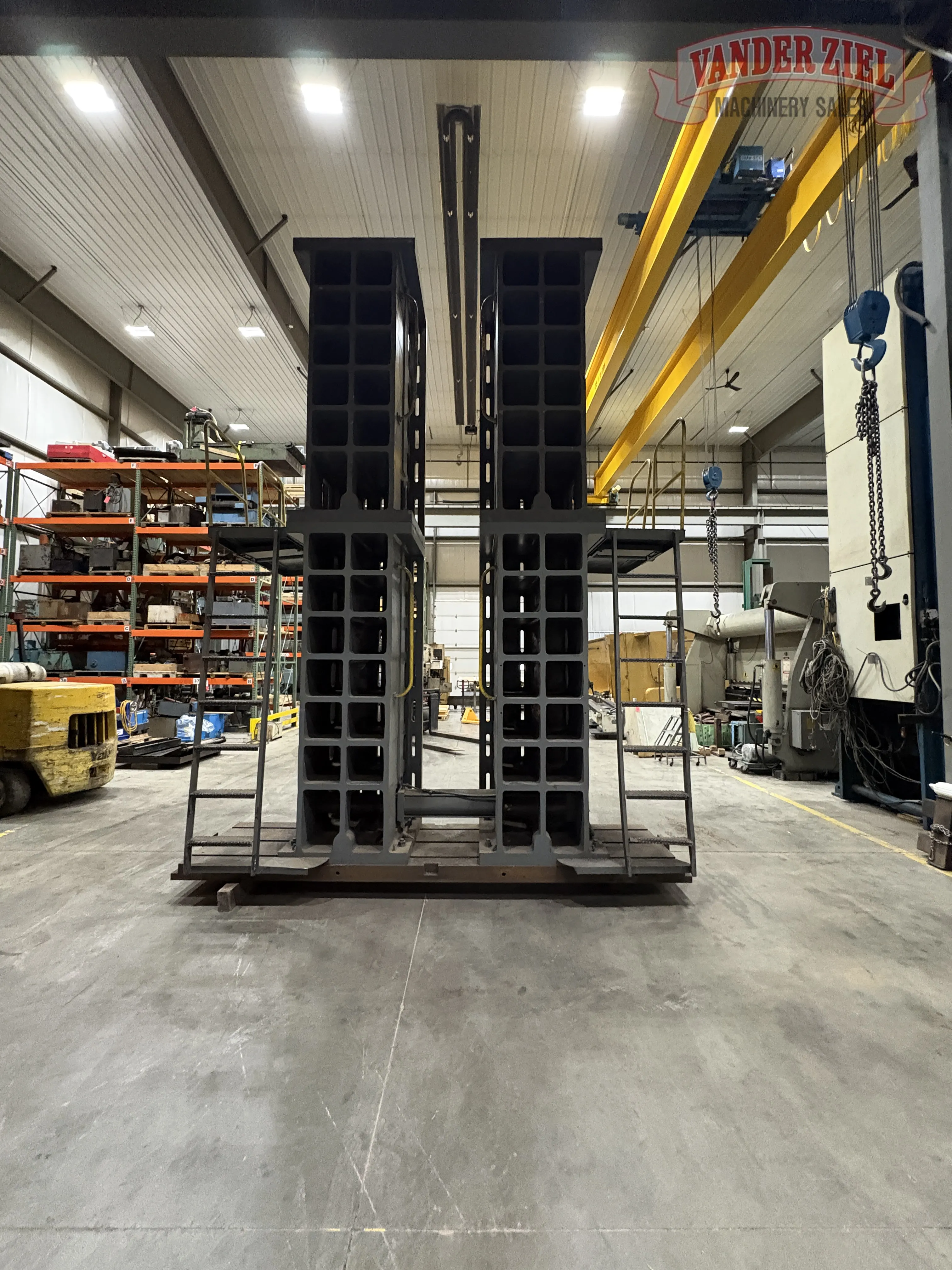

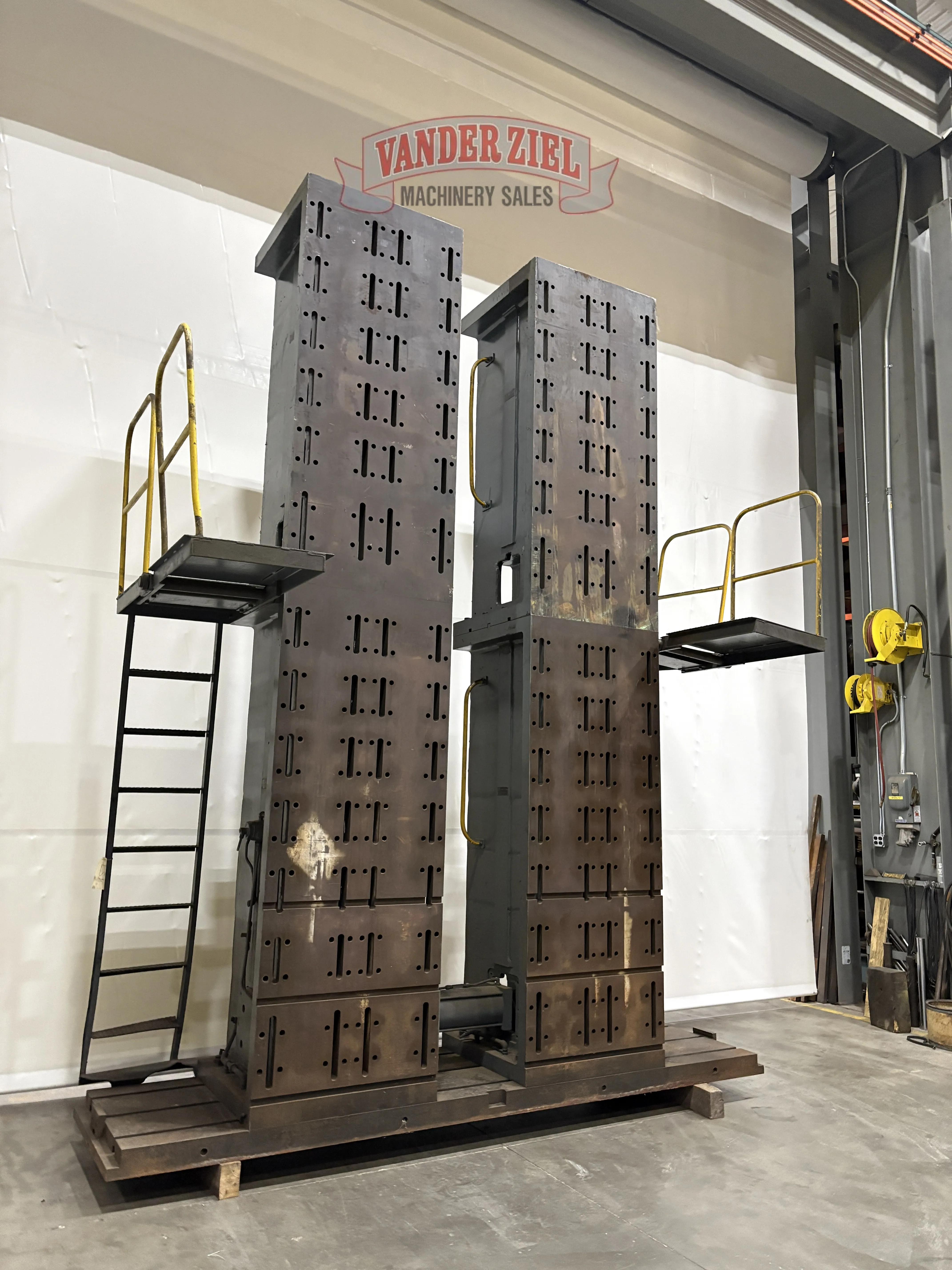

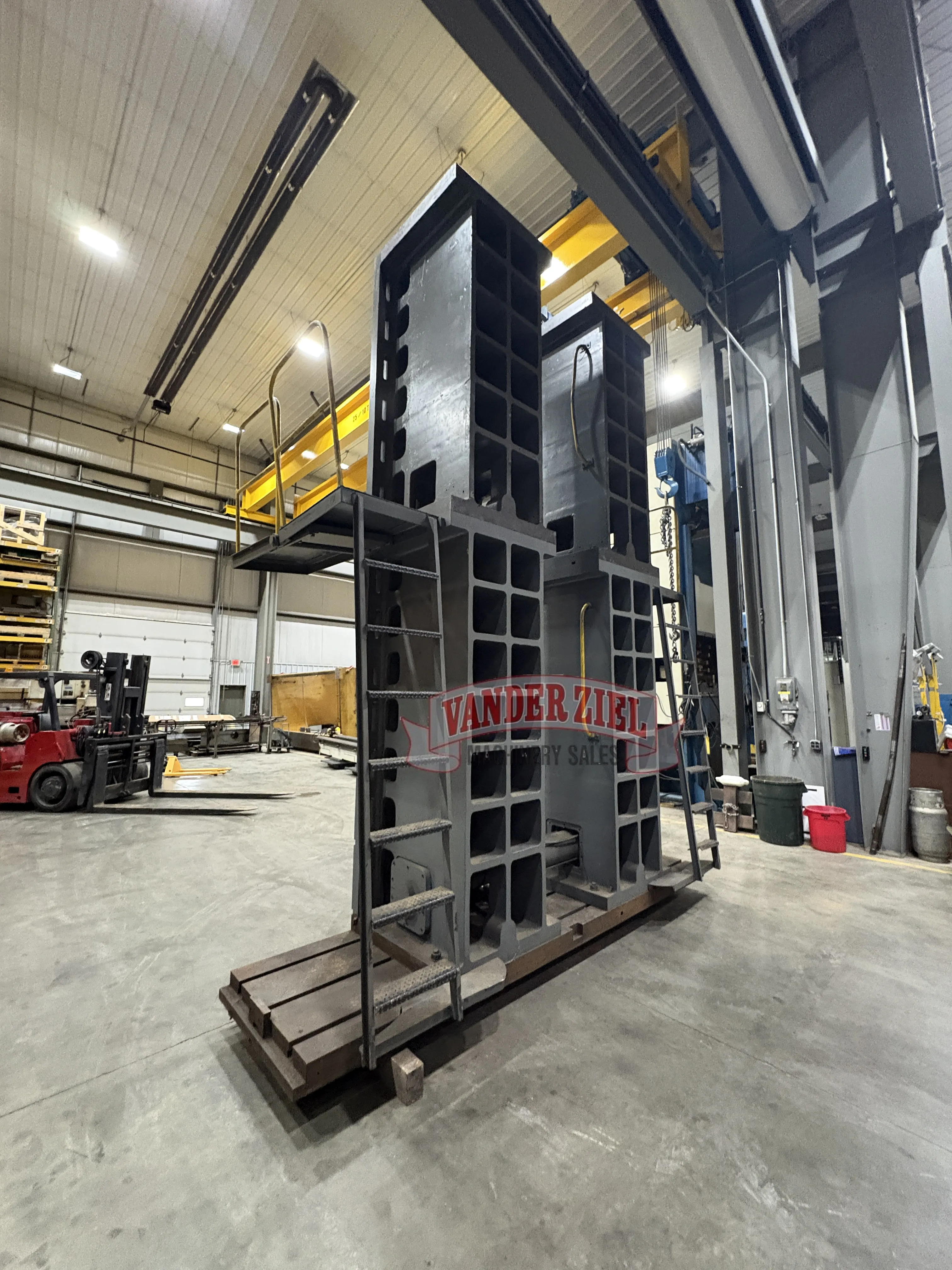

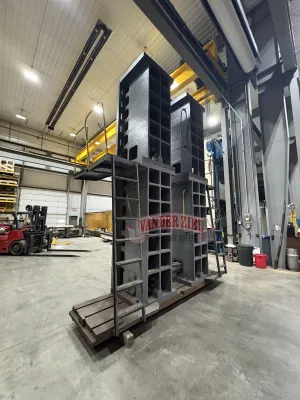

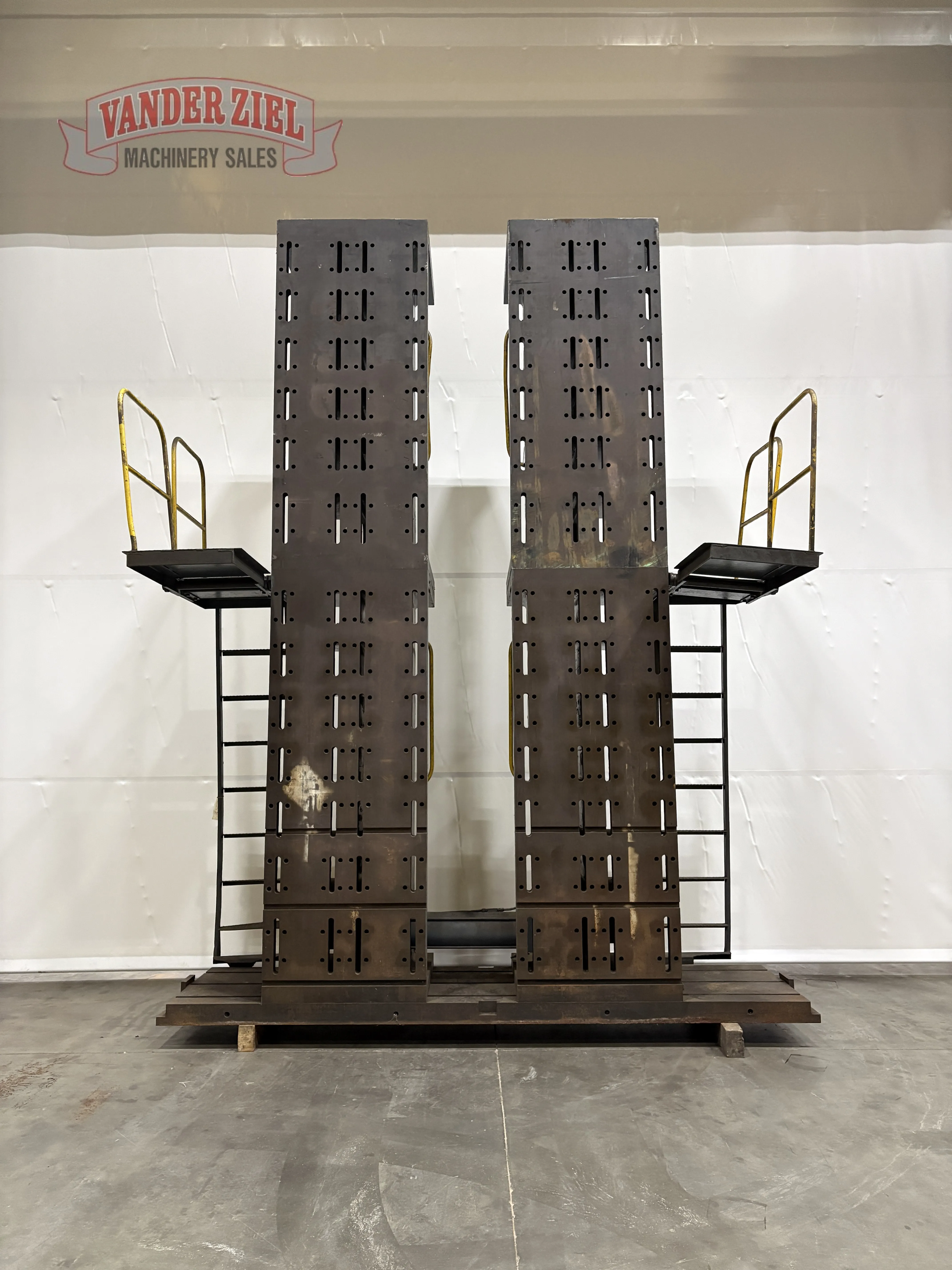

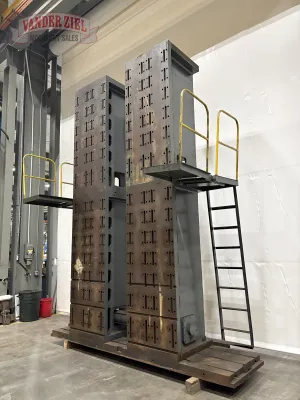

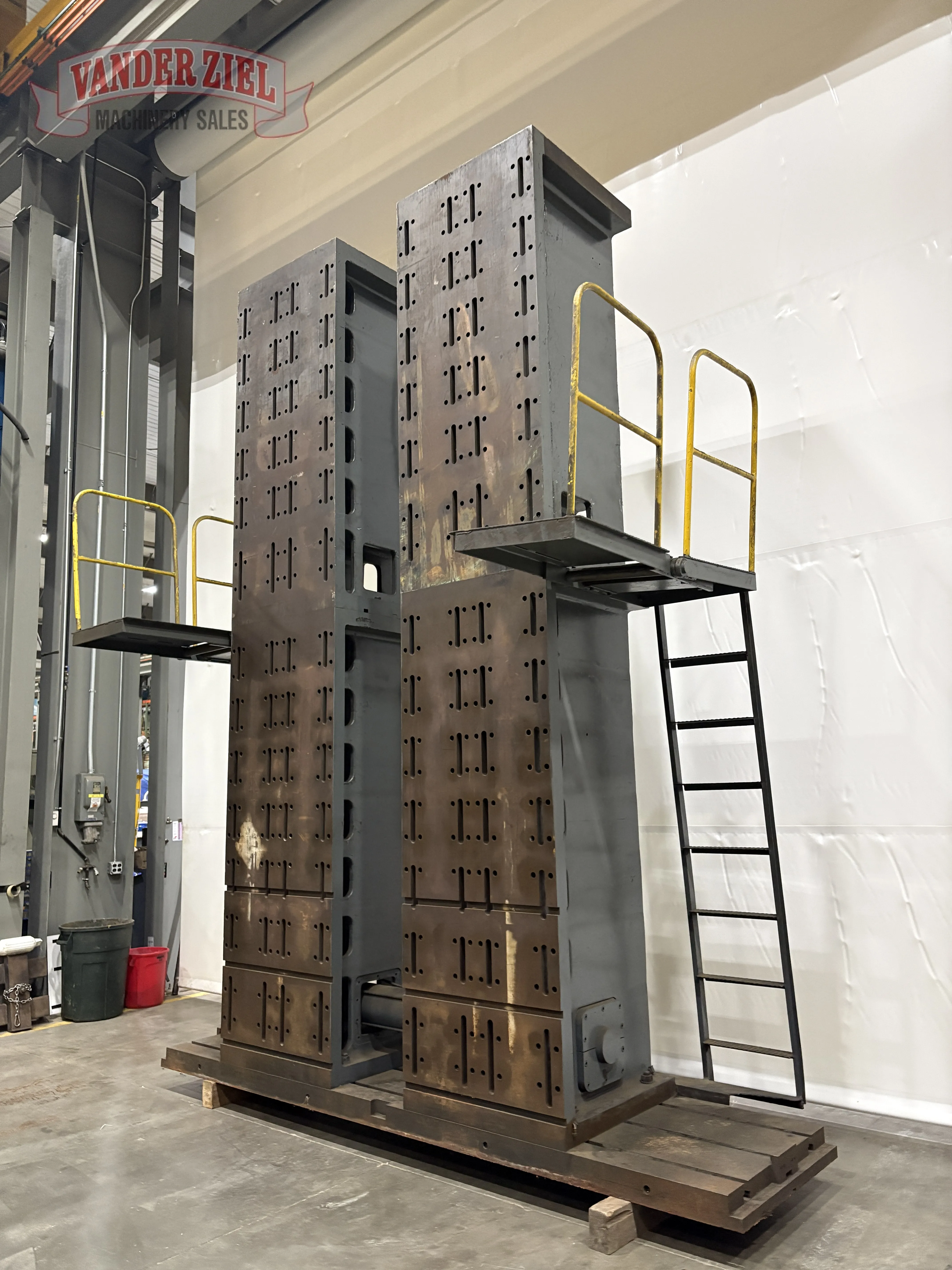

180" x 36" x 36" Giddings & Lewis Angle Plate, Pair

Giddings & Lewis 15' (180") x 36" x 36" Angle Plate, Pair
Specifications on Lower Set:
2-G&L: 36" Wide x 96" Tall x 36" Deep
Mounted to a T-Slotted Floor Plate: 12' Long x 36" Wide x 5" Thick
1.5" T-Slots @ 6", 18", 30" on Floor Plates
Total Weight: Approx. 25,000 Lbs
Air Cylinder mounted on the 2 Vertical Plates can be moved Side to Side
Specifications on Upper Set:

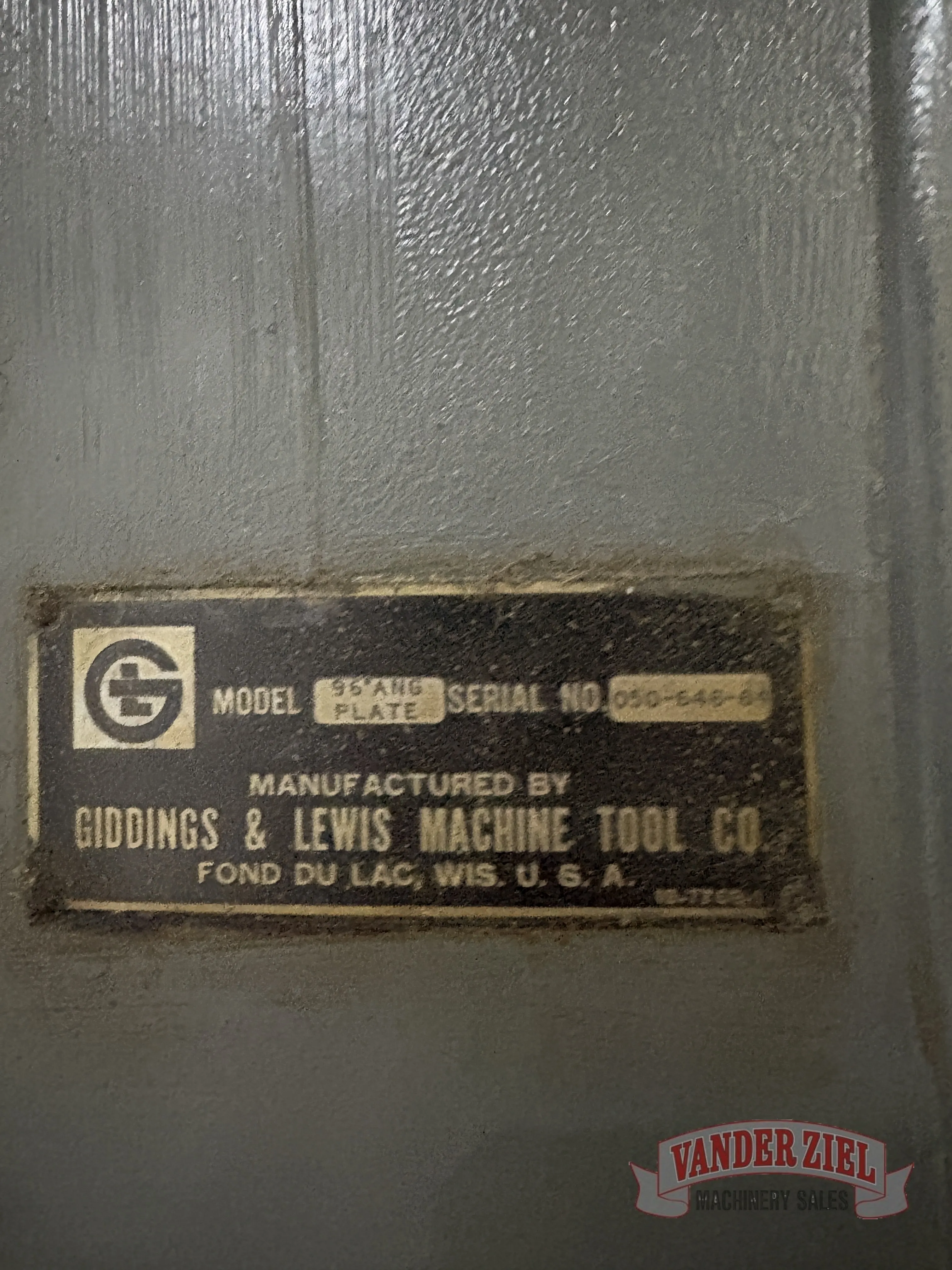

Serial # 050-649-64
Serial # 050-648-64
Plate Dimensions 84" x 36" x 36"
Slot Spacing 3", 15", 21", 33"
Slot Dimensions 1 1/4" x 9"
Hole Size 1"
Preliminary Specifications - Subject to Verification
REF: 000146
