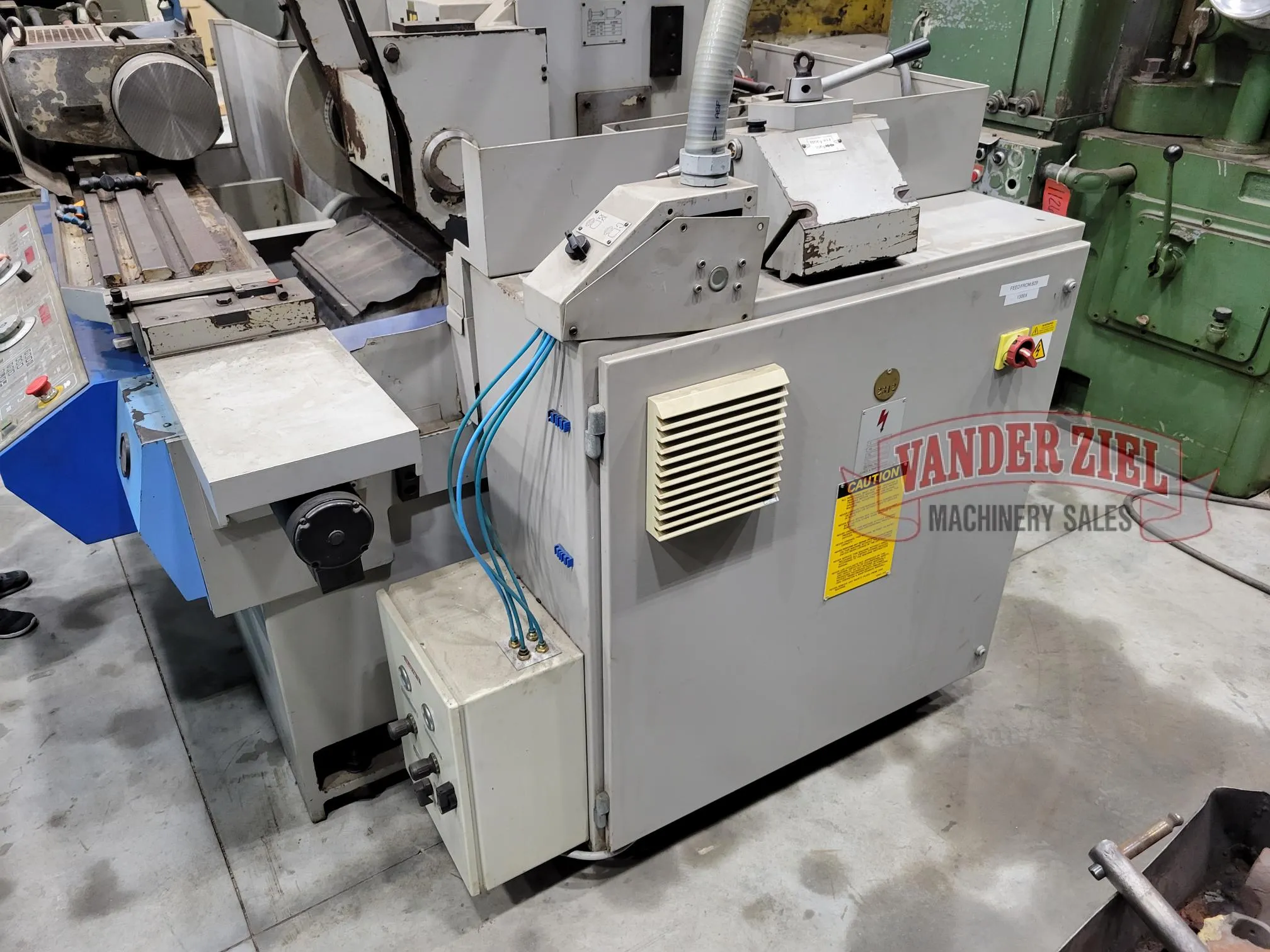

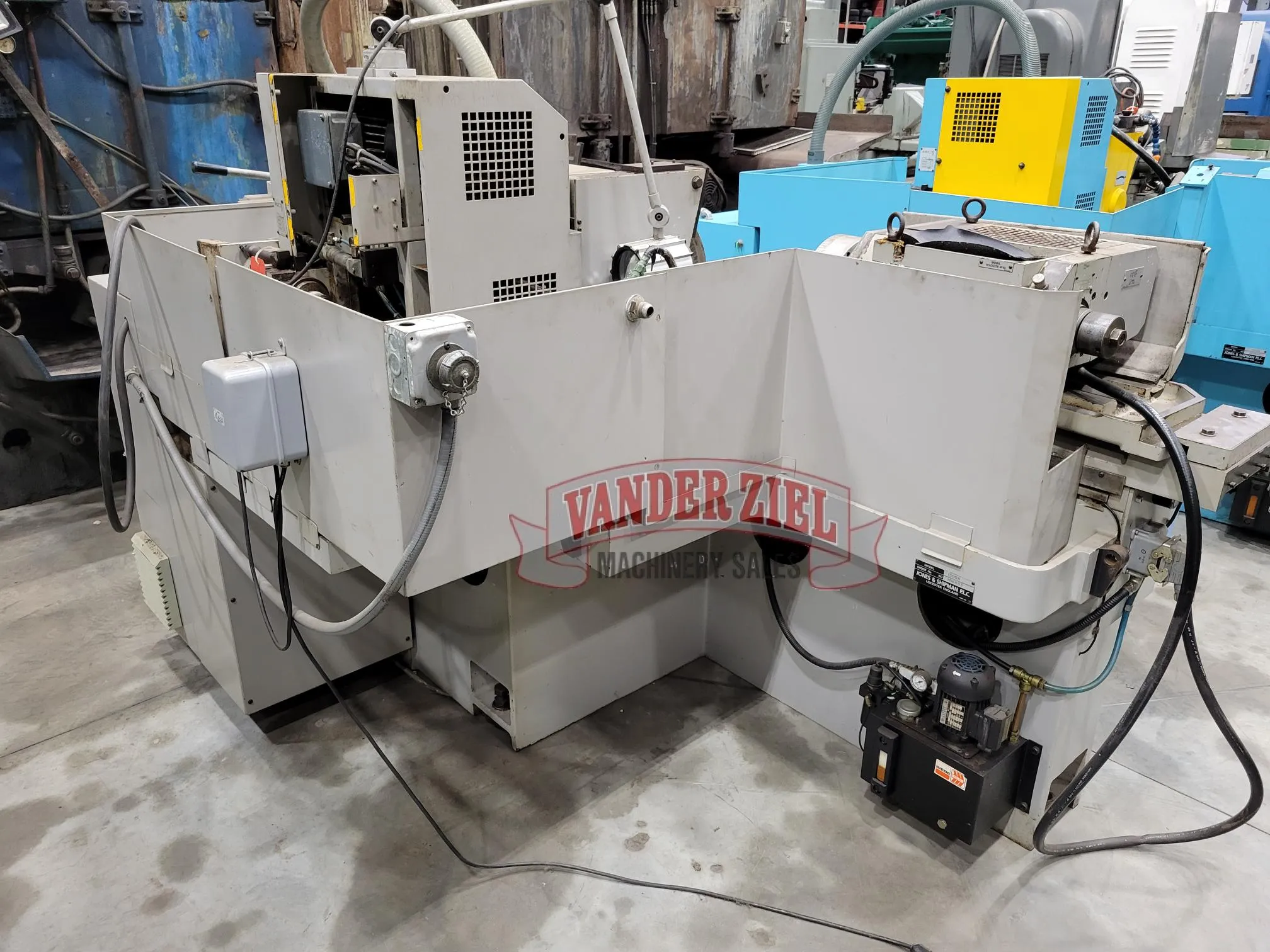

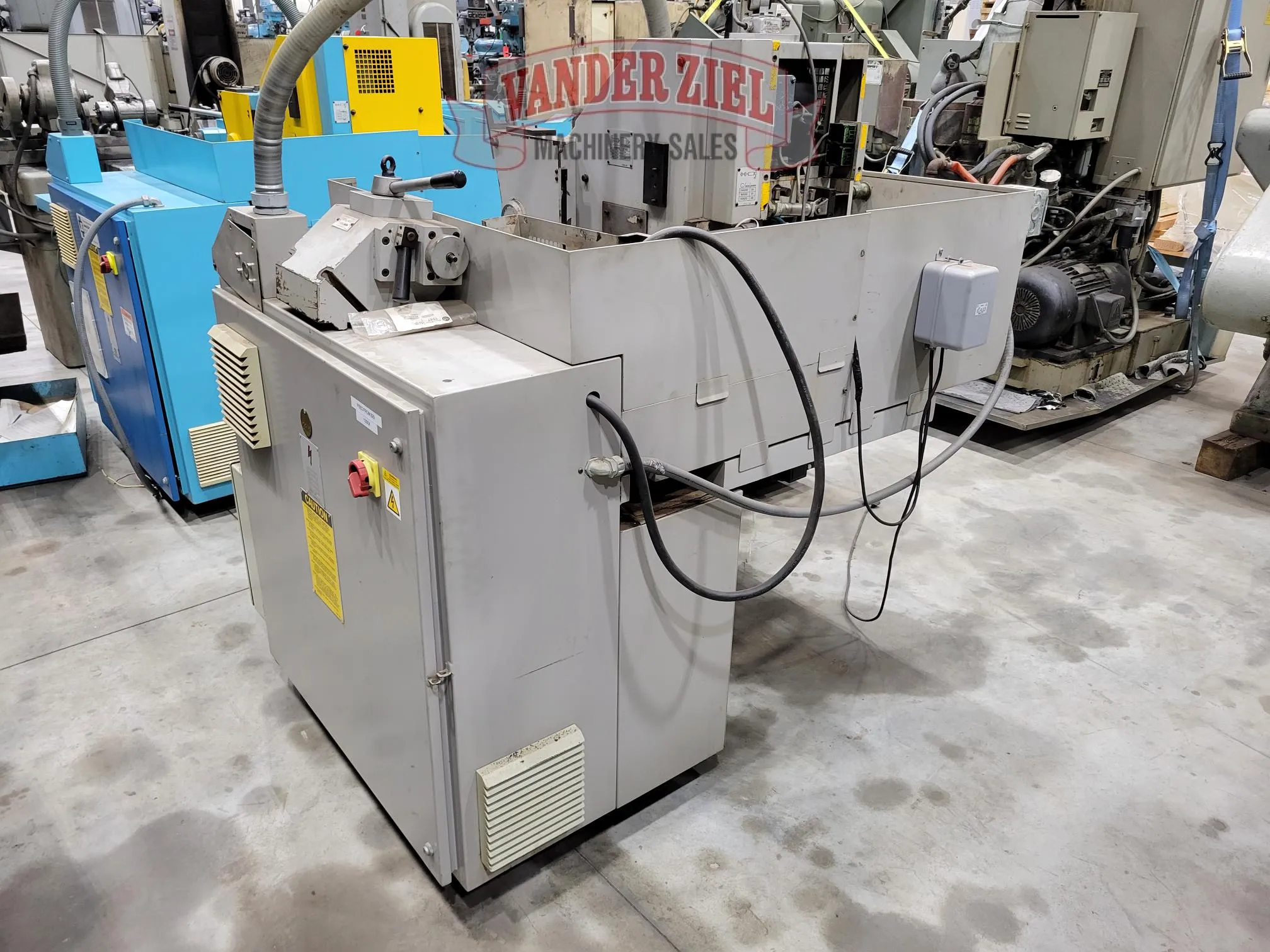

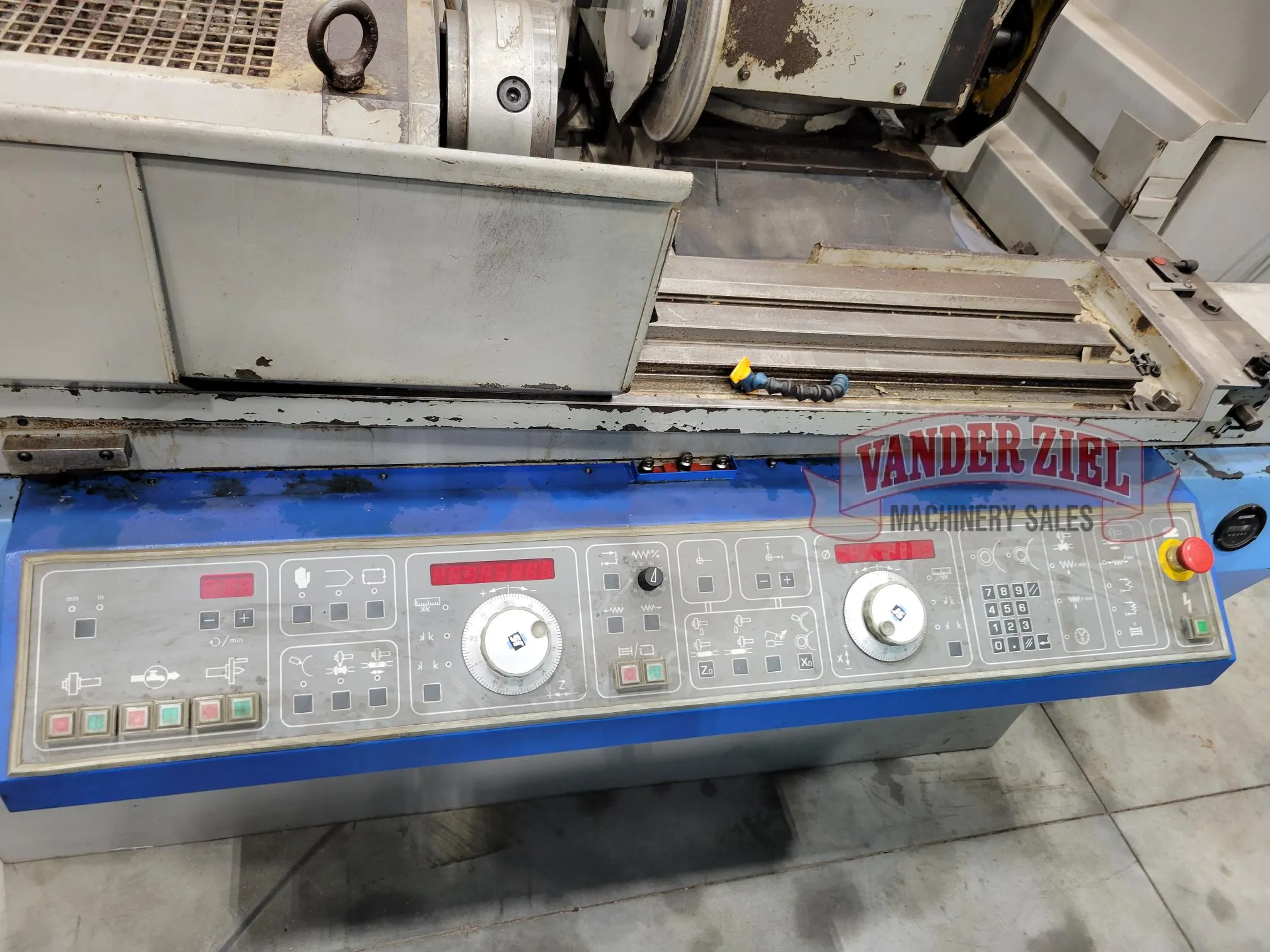

Jones & Shipman Model 1300X 10" x 27" Cylindrical Grinder
Jones & Shipman Model 1300X 10" x 27" Cylindrical Grinder
Serial # M18883
Asset # 13204
Specifications:
Wheelhead:
Total Infeed, 9.6"
Max. Programmable Diametral Infeed Rate, per Min., 3.9"
Min. Programmable Increment 0.00005"
HPG Increments 0.00005", 0.0005", 0.005"
Swivel Range 109 Deg. CW or 45 Deg. CCW
External Grinding Wheels:
Left Hand Standard 14" x 2" x 5"
Right Hand Standard 12" x 1" x 5"
Max. Diameter Ground Using 14" Wheel 12"
Max. Diameter Ground Using 12" Wheel 14"
Spindle Speeds 1775, 2068, 2400rpm
Motor Power 5.5HP
Internal Grinding Wheels:
Diameter Range (Standard Spindle) 0.75" - 1.5"
Spindle Speeds, Standard 16500rpm
Motor Power 3HP

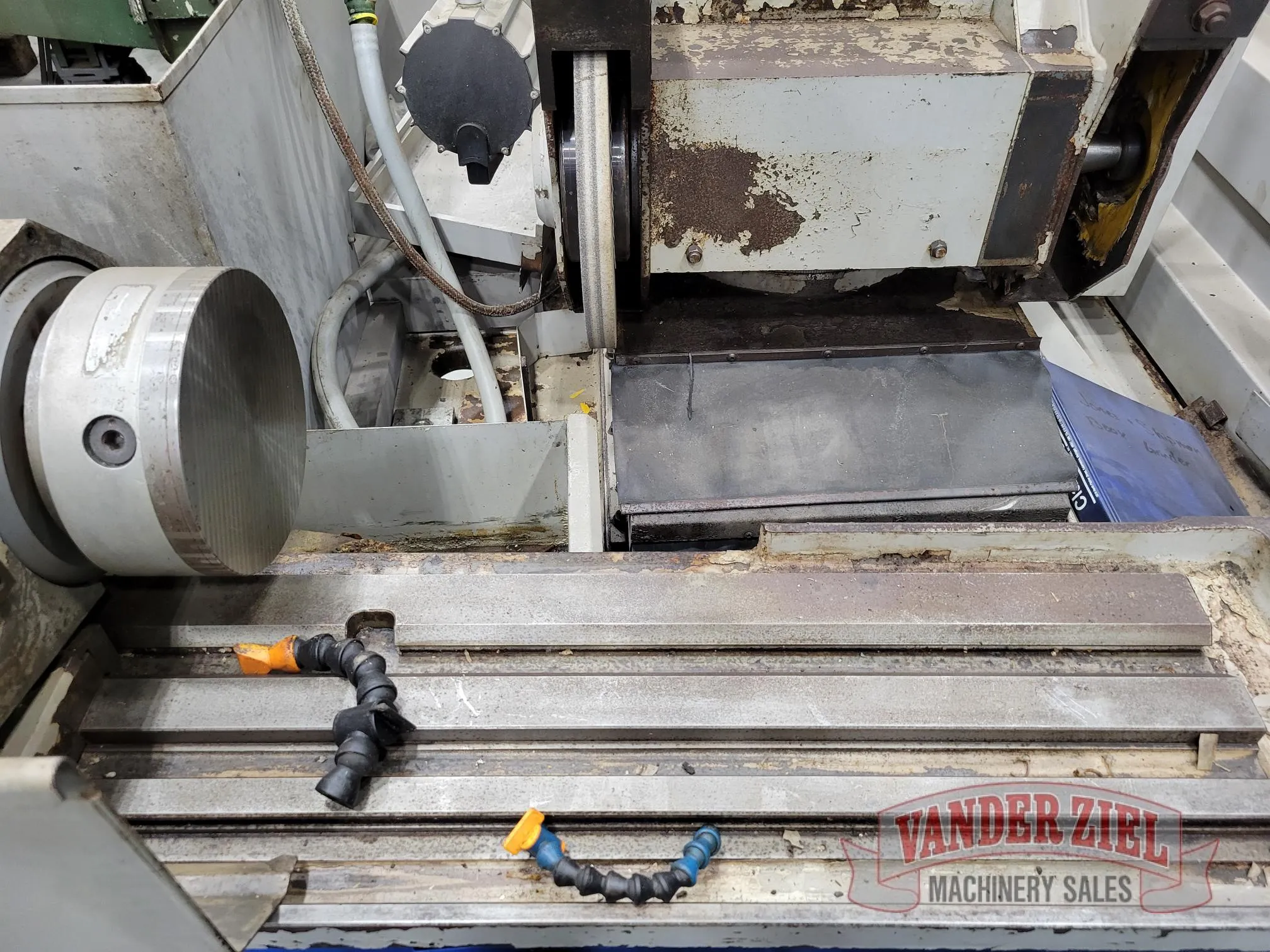

Table:
Maximum Traverse Speed, Per Minute 196.8"
Minimum Programmable Increment 0.00005"
HPG Increments 0.00005", 0.0005", 0.005"
Maximum Length Between Centers 27"
Table Swivel Angle 16 Deg. CW to 18 Deg. CCW
Workhead:
Center Height, Standard 5"
Maximum Workpiece Weight Between Centers 220lbs.
Motor Power 1.5HP
Speed Range, Continuously Variable 1 to 660rpm
Swivel Range 15 Deg. CW to 90 Deg. CCW
Centers, Standard 5MT
Floor Space Required (LxWxH) 173" x 65" x 71"
Machine Weight 5300 lbs.
Preliminary Specifications - Subject to Verification
