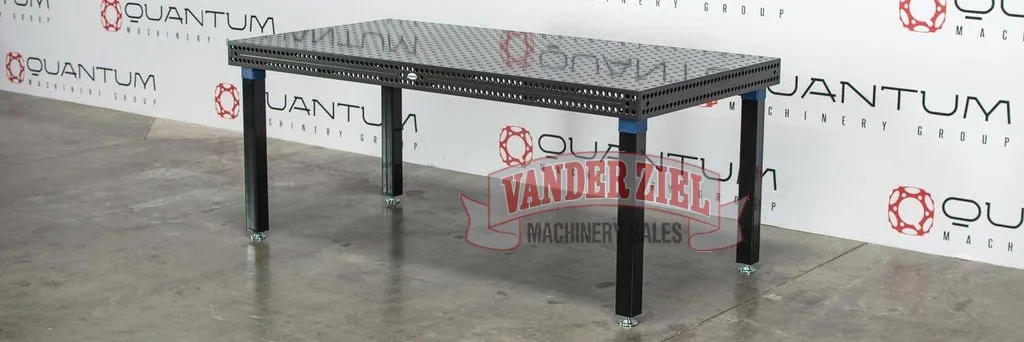

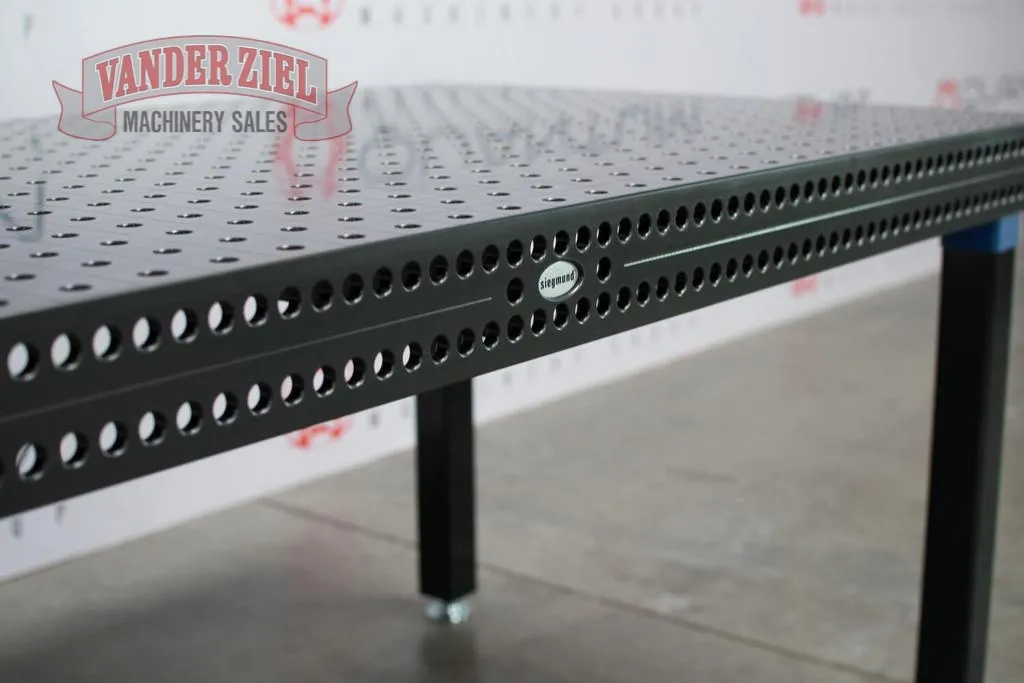

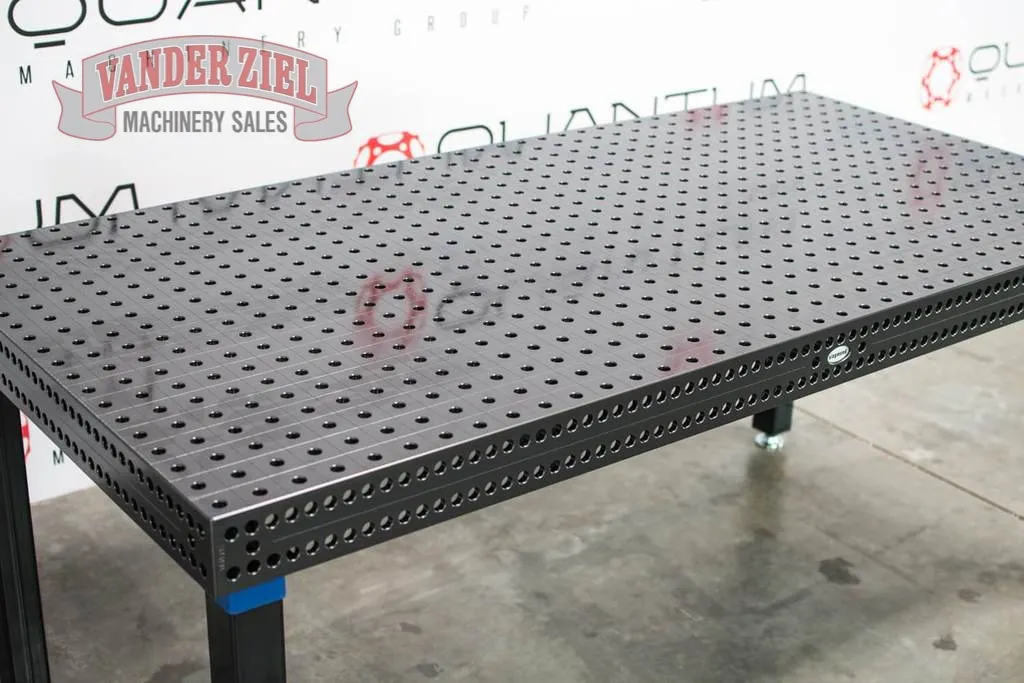

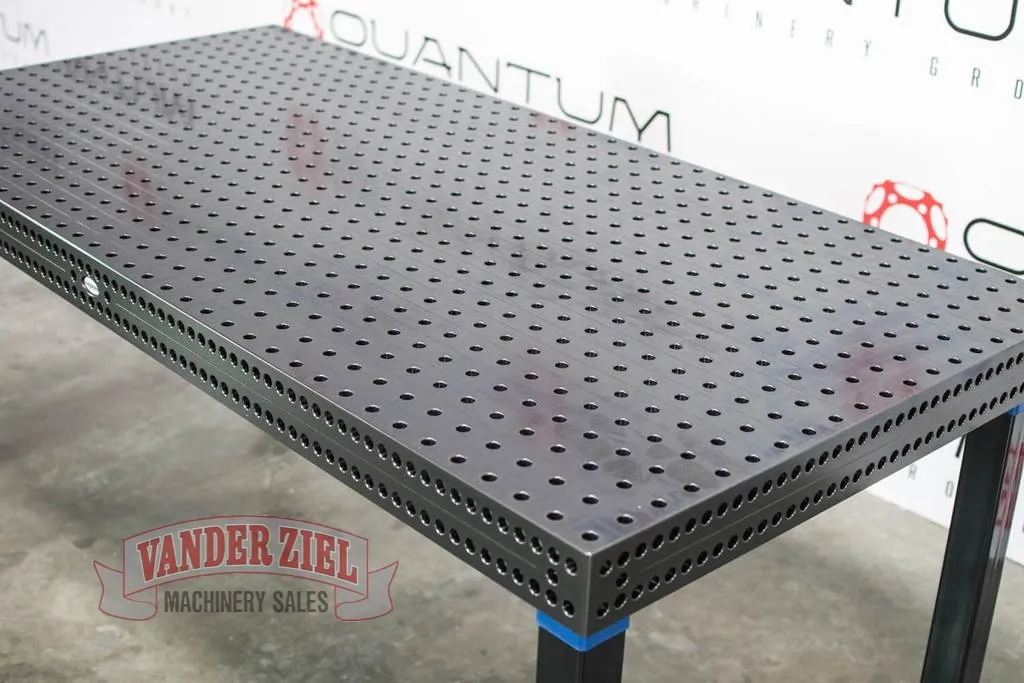

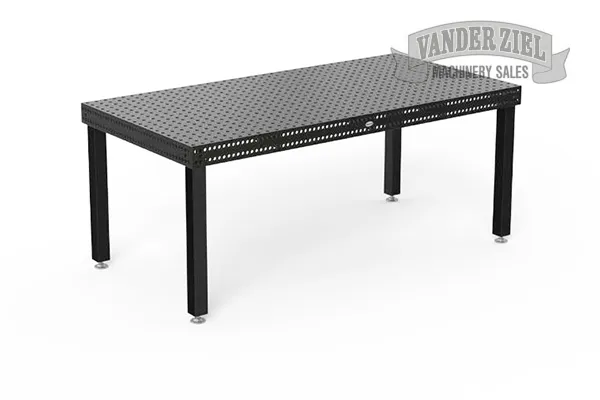

Siegmund 47" x 94" (1200x2400x100mm) Welding Table with Plasma Nitration, 1/2" Series (System 16)

Siegmund 47" x 94" (1200x2400x100mm) Welding Table with Plasma Nitration, 1/2" Series (System 16), Model 4-160030.X7 - NEW

SKU # 13364

The System 16 Welding Table Series is the ideal choice for fine detail applications.

• Overall Tabletop Size: 2400x1200x100mm (94.48" x 47.24" x 3.93")


• Welding Table Series: Professional Extreme 8.7 Series


• Welding Table Material Thickness: Approx. 11.5 - 13mm (0.45" - 0.51")


• Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated


• Official Welding Table Part No.: 4-160030.X7


• Approximate Table Weight: 1,109 lbs. / 503 kg.

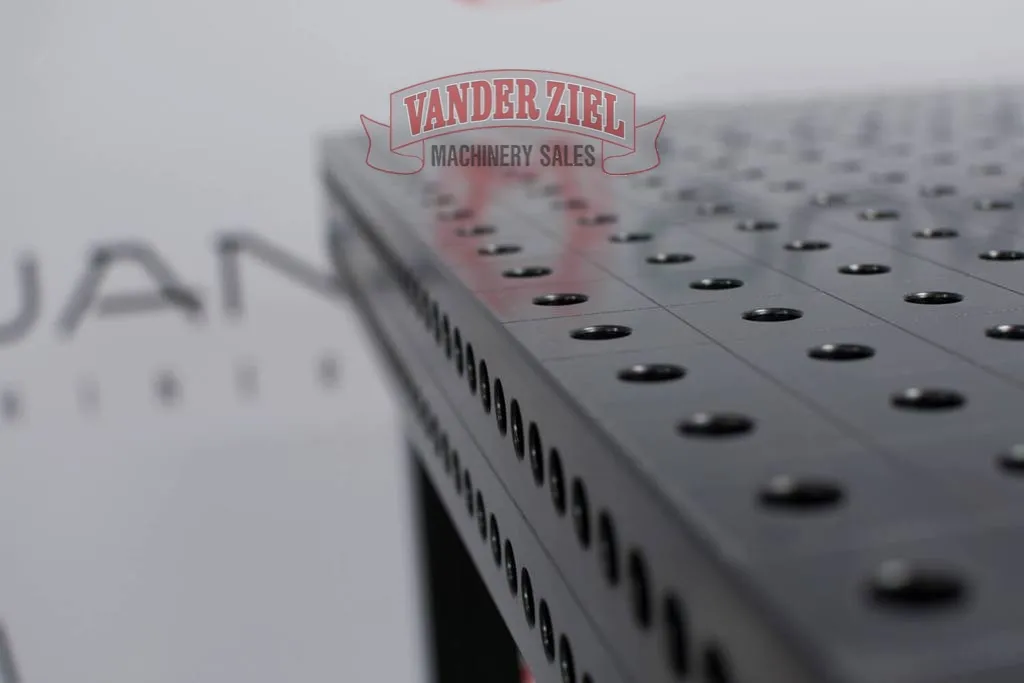

• Borehole: Ø 16mm (0.629")

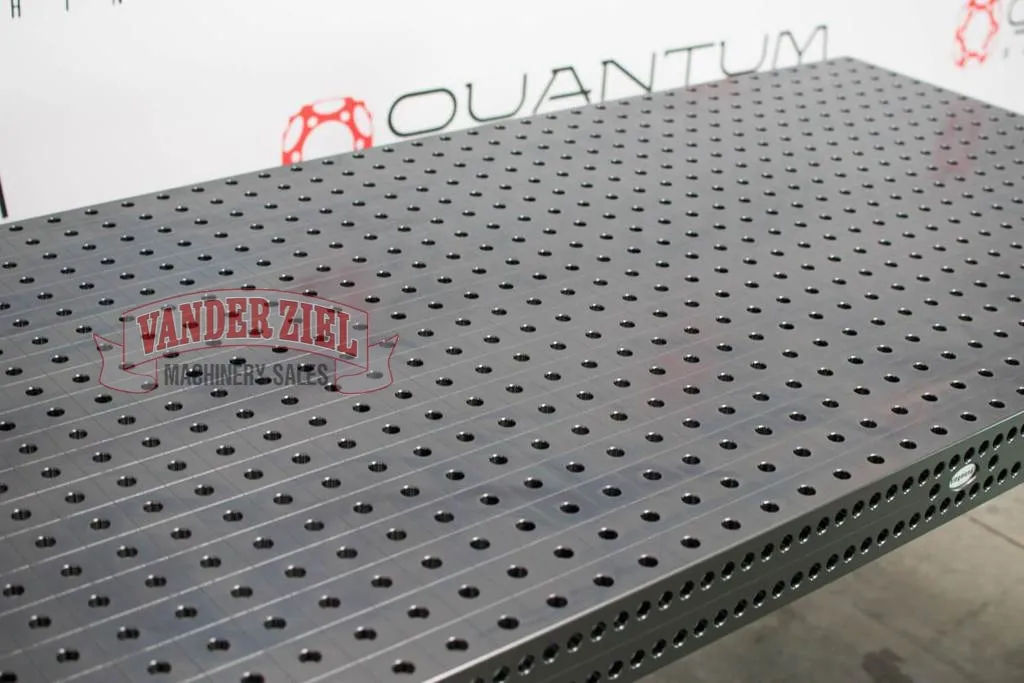

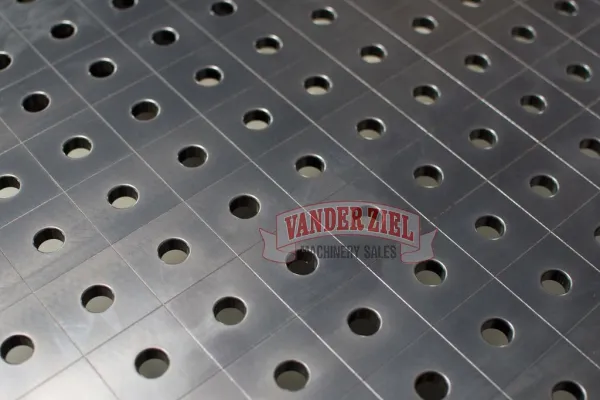

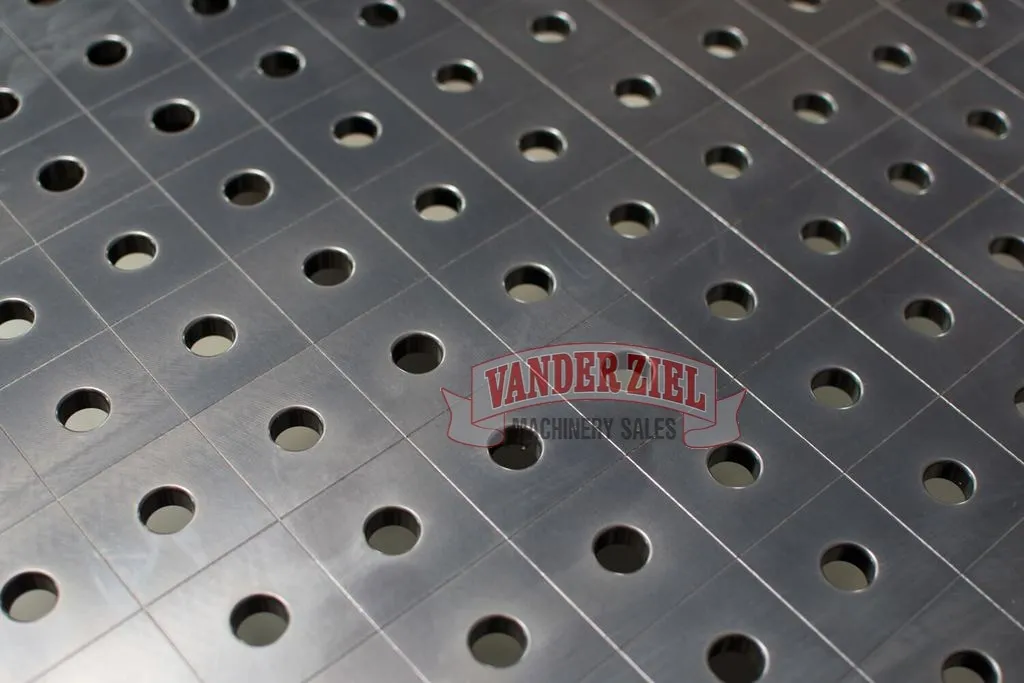

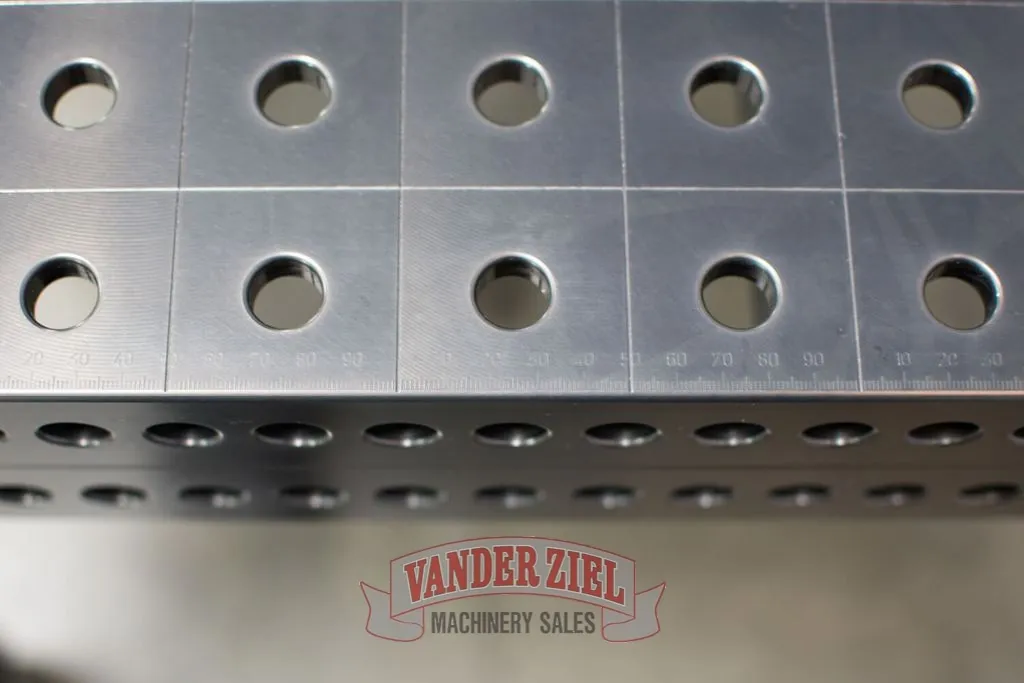

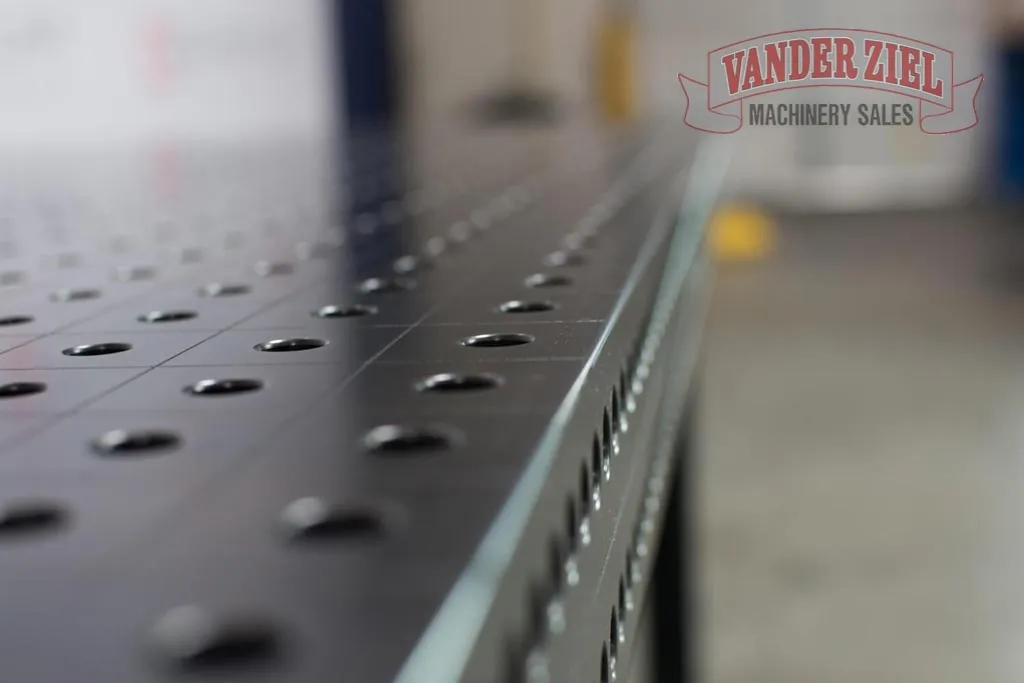

1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").


2. Boreholes have a radius of 2mm (0.078").


3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.

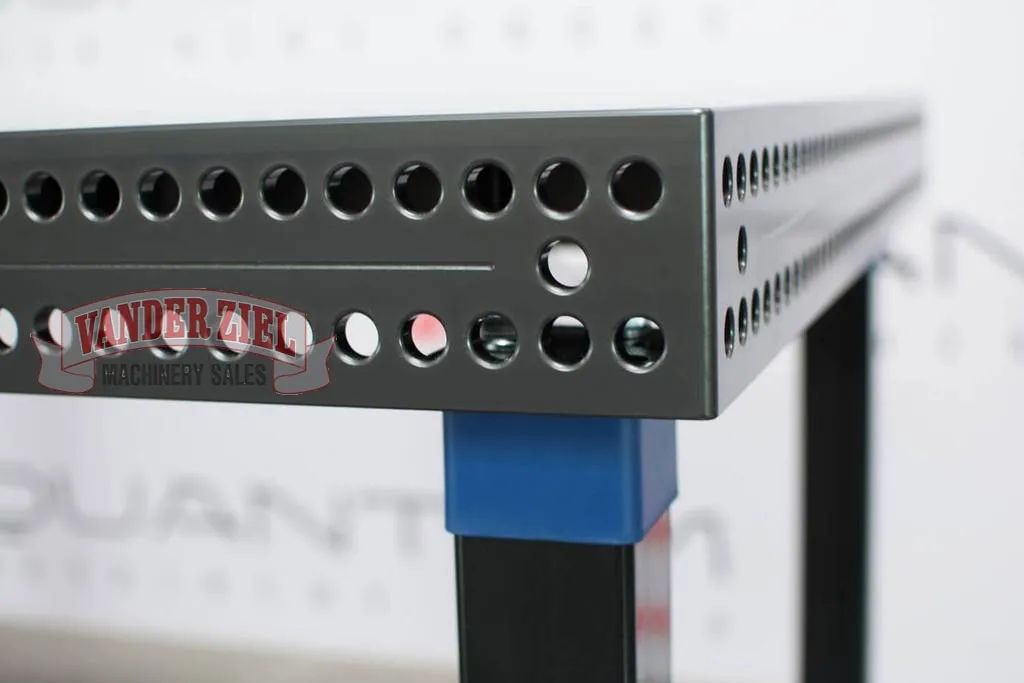

4. Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")


5. Metric Scaling on the surface.


6. Construction reinforced with ribbing.

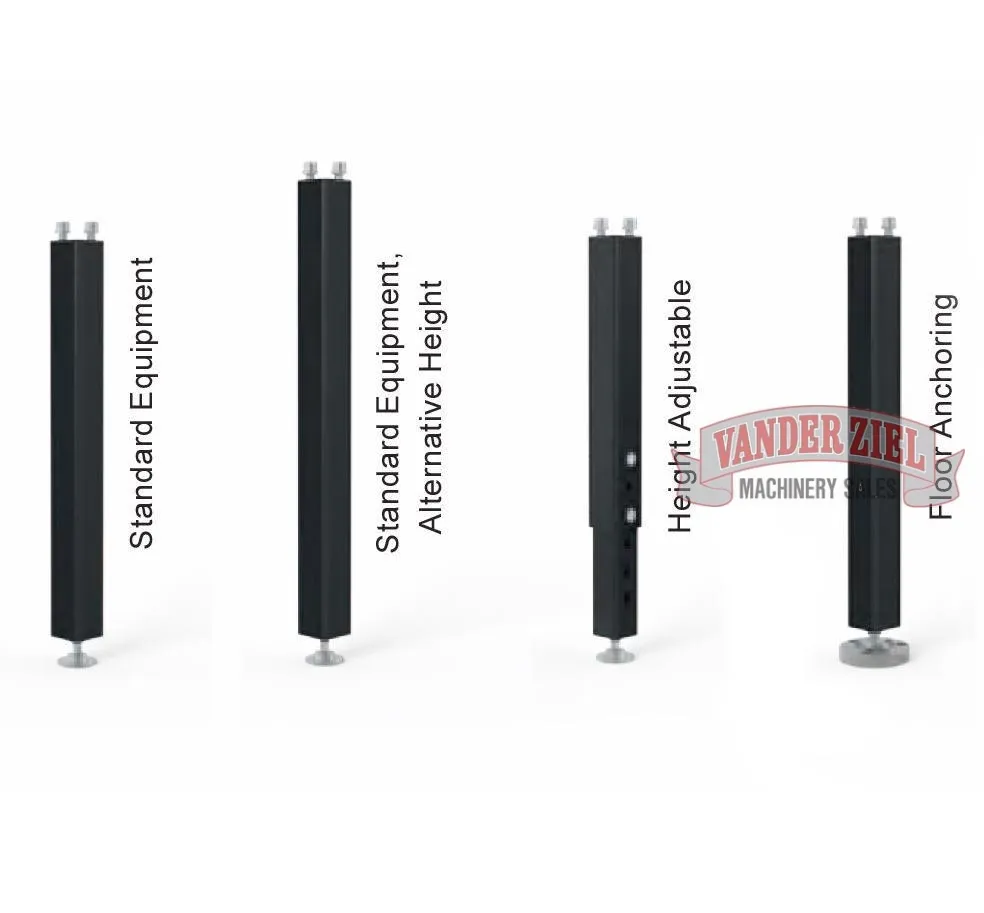

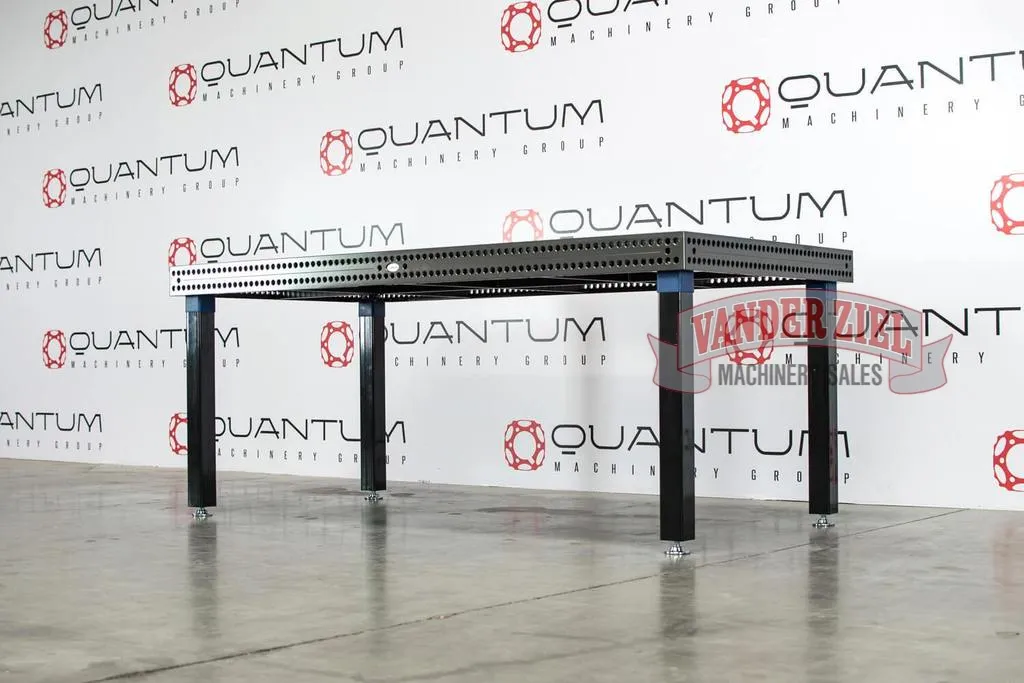

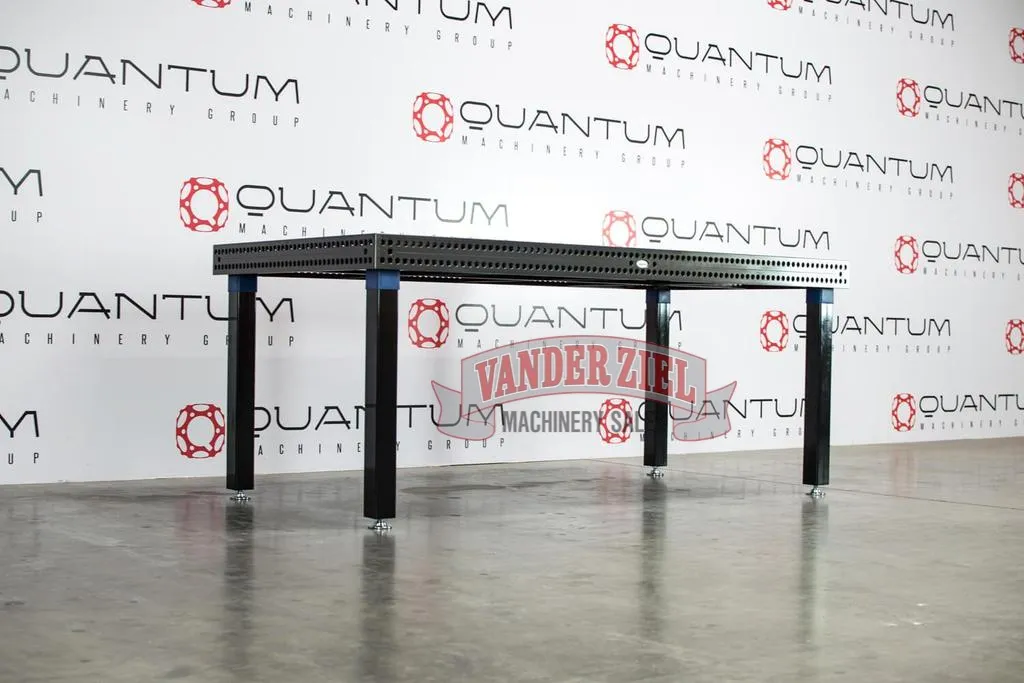

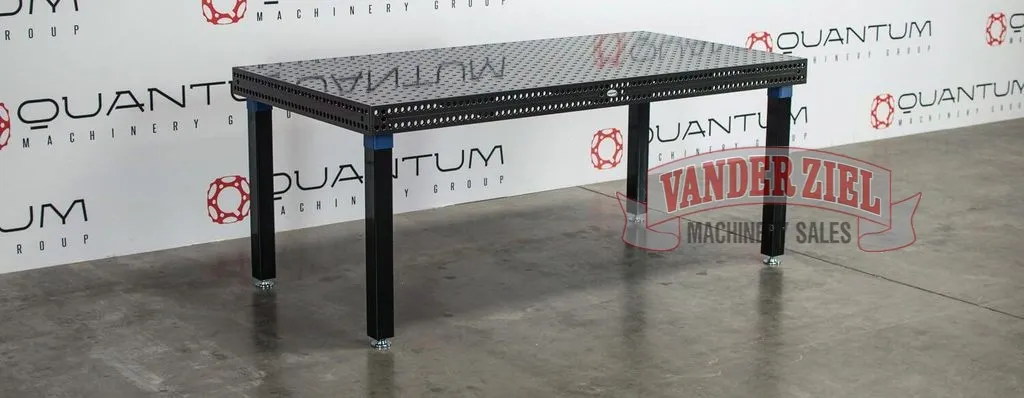

Welding Table Leg Options
Part Numbers, Specs and Pricing:

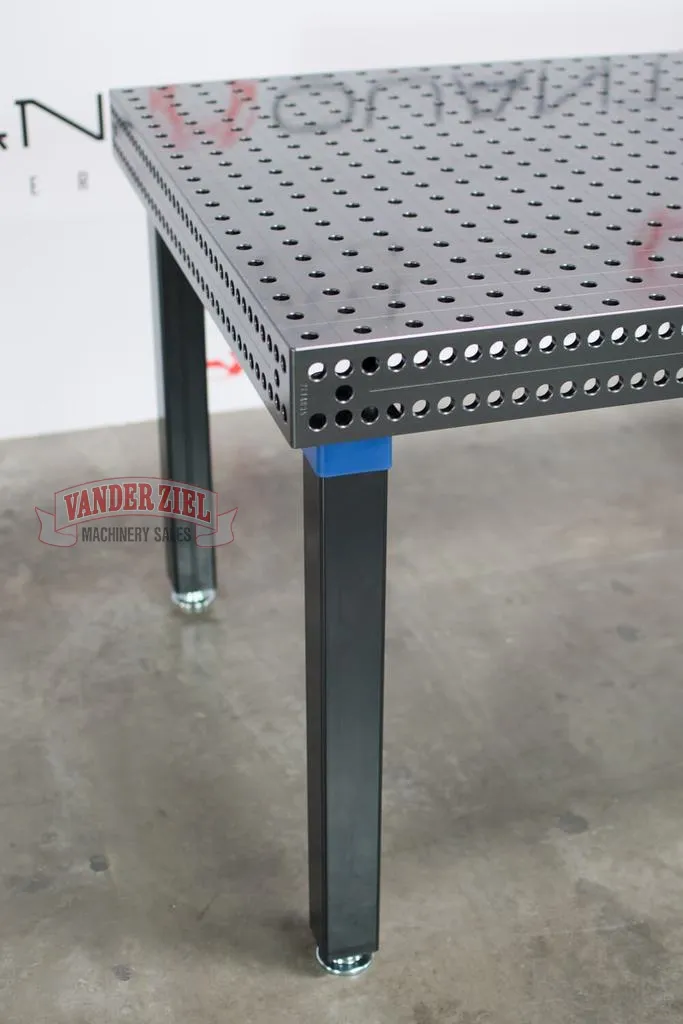

• Standard Siegmund Leg(s)



  • Item No.: 160858.X


  • Leg Height: 29.5" / 750mm


  • Table Height: 33.4" / 850mm

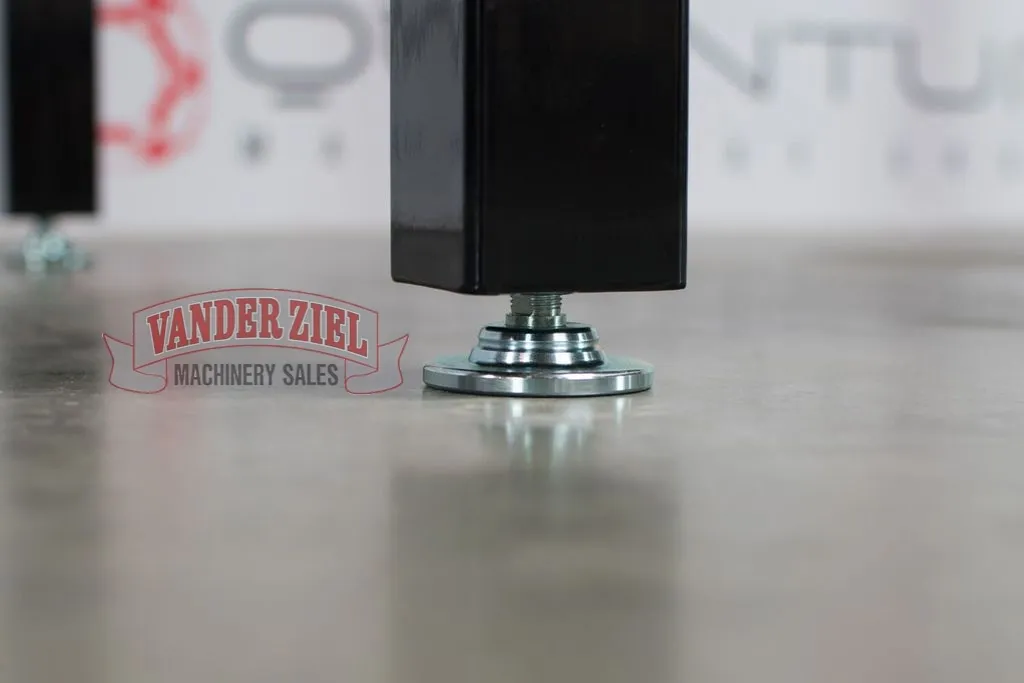

  • Fine Adjustment: 1.57" / 40mm


  • Capacity Per Table Leg: 2,200 lbs.


  • Cost Per Leg: $0 (Included with Welding Table as a Standard)


  • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
