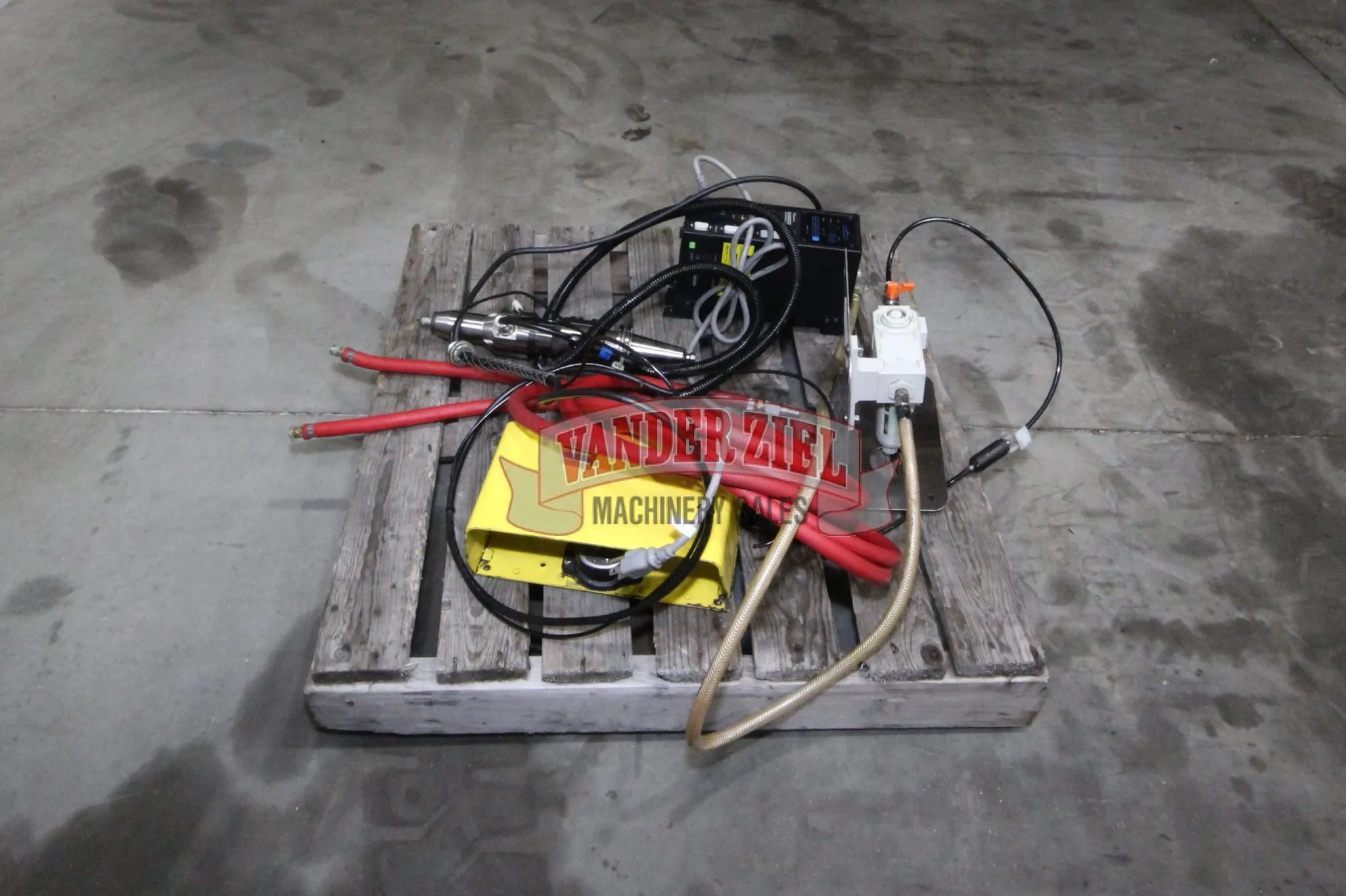

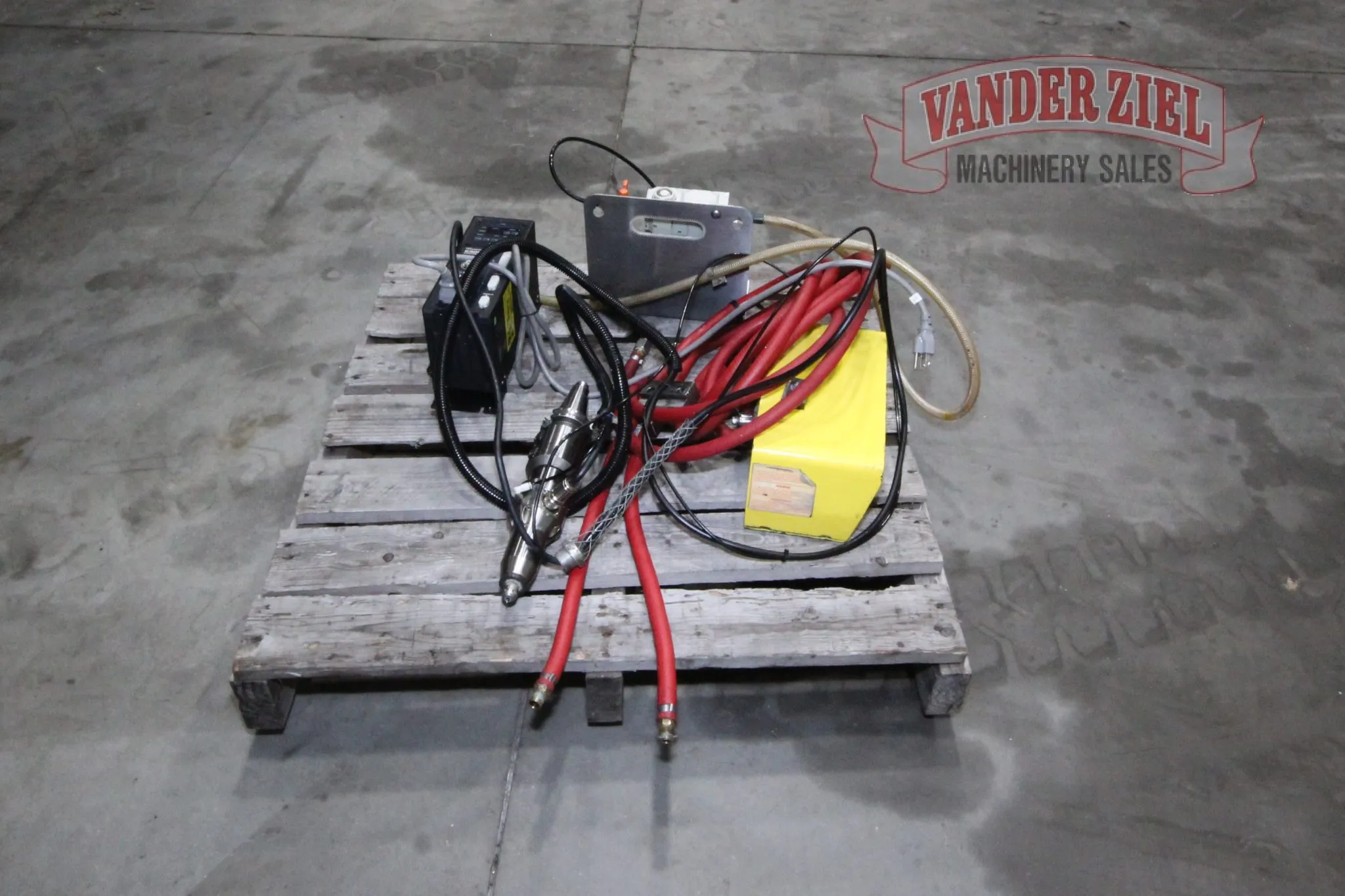

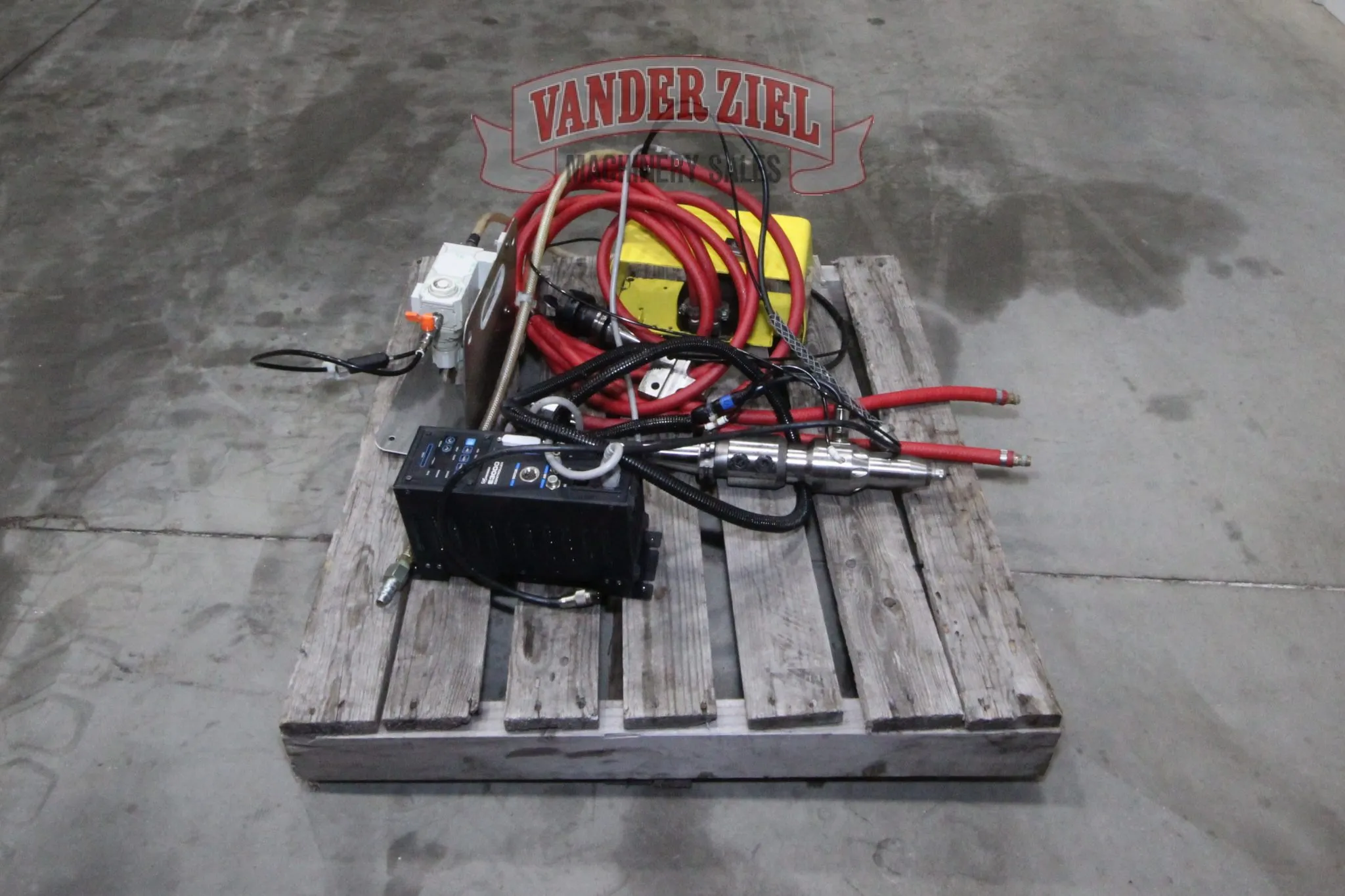

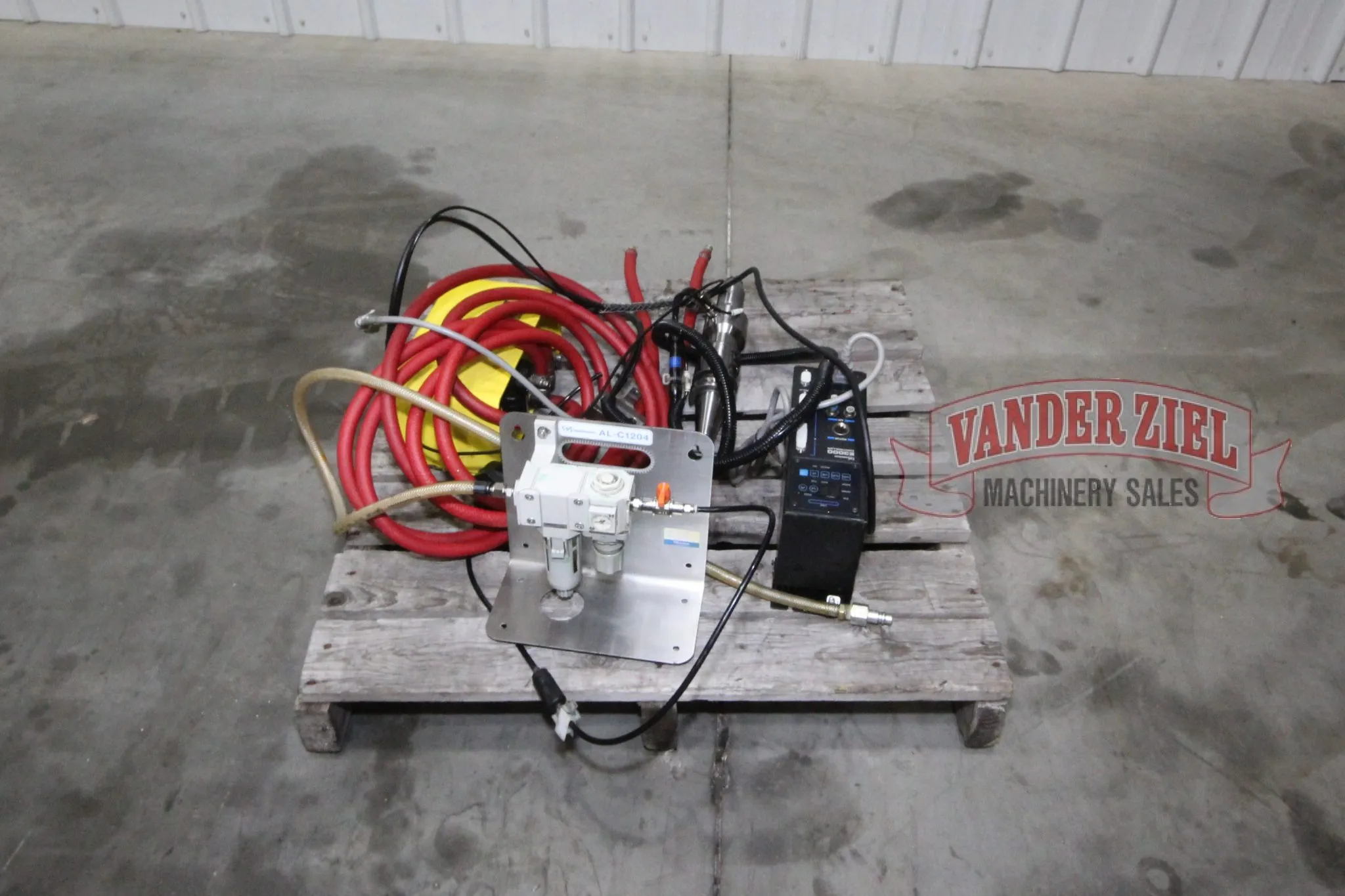

Nakanishi Model NE211, E3000C Controller with Model NE5510

Nakanishi Model NE211, E3000C Controller with Model NE5510

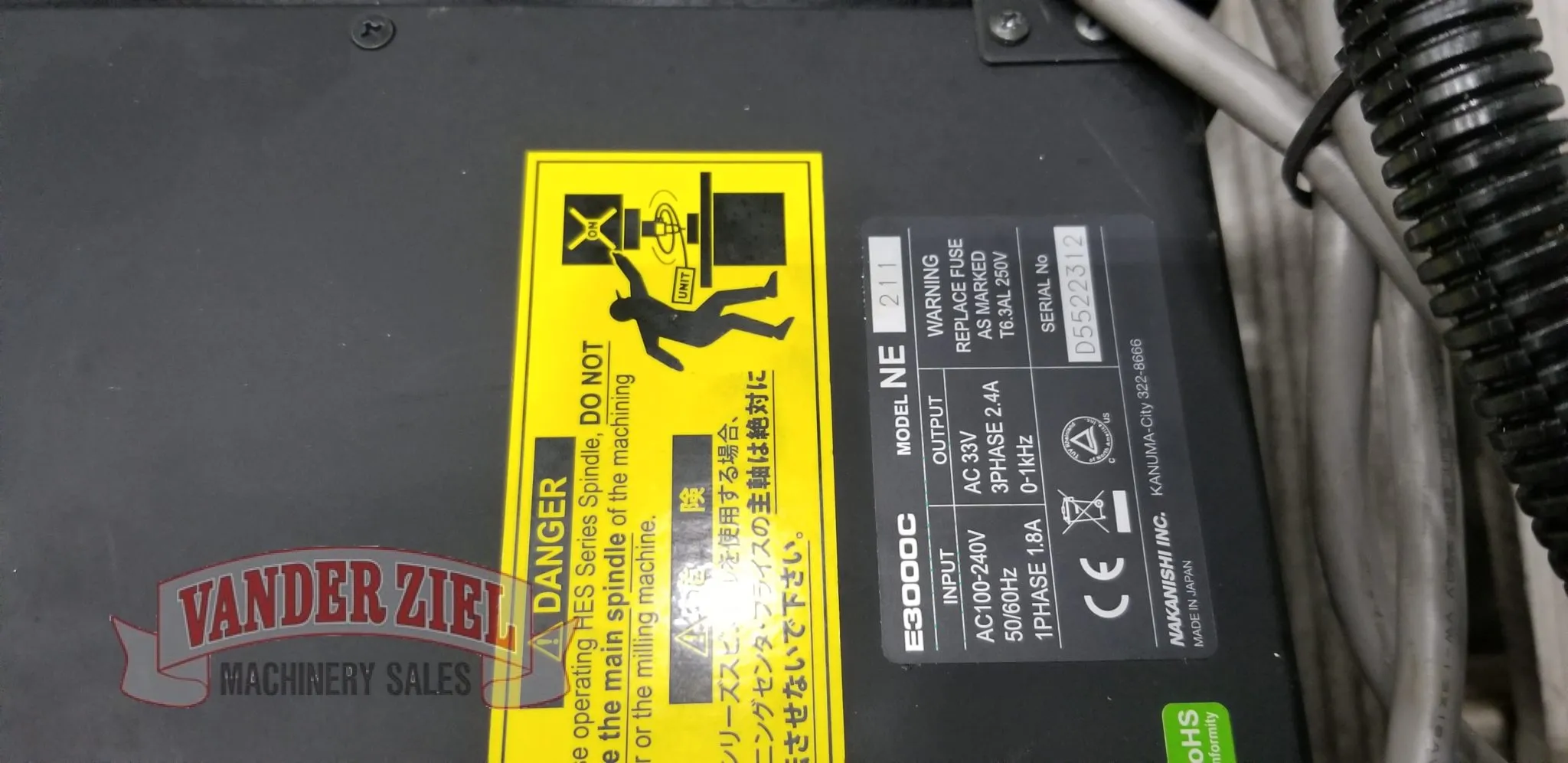

Serial # Control D5522312, Spindle ABF40577
Asset # 13999

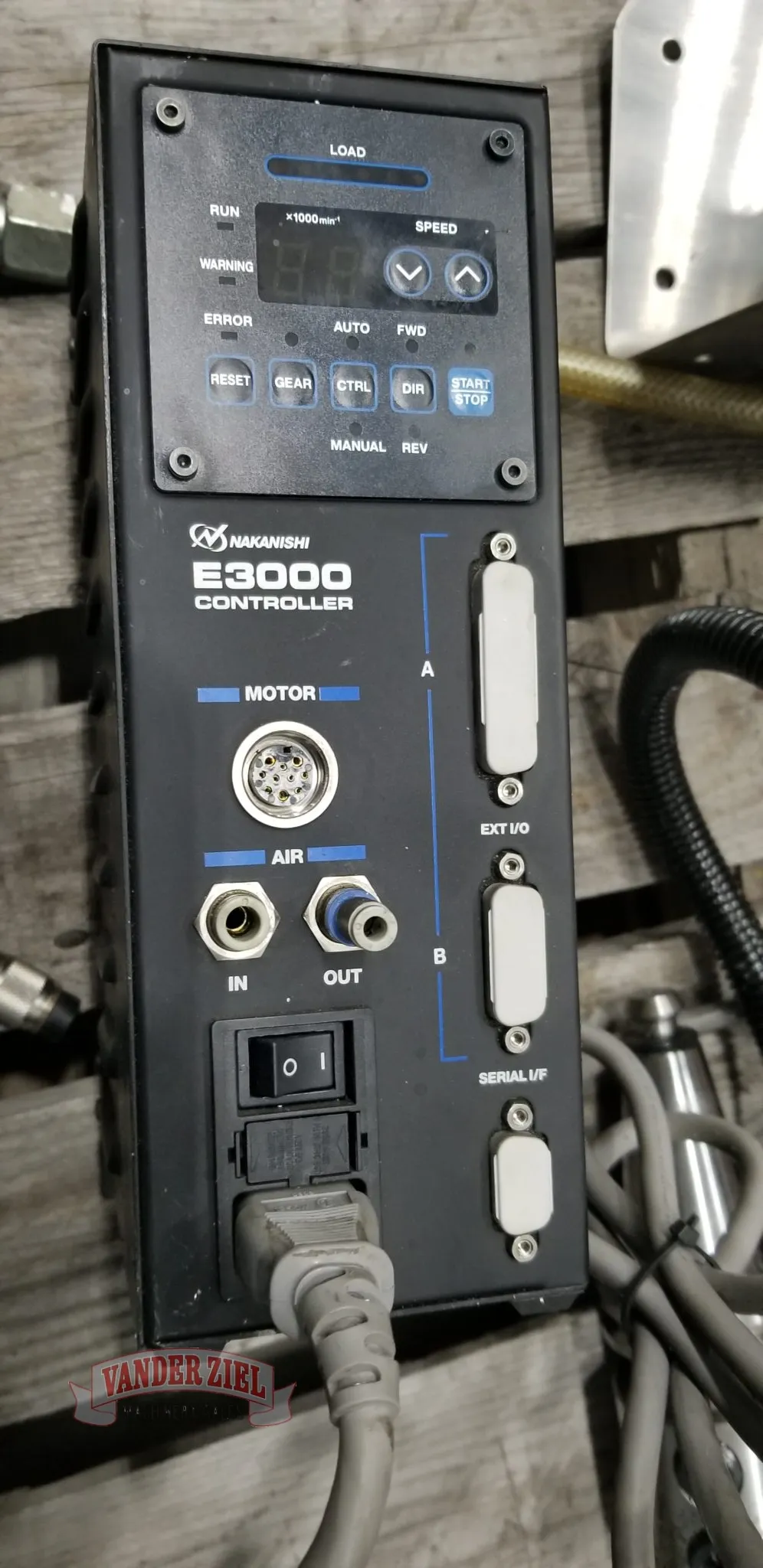

Control Specifications:
Input AC100V-240V, 50/60 HZ, 1 Phase, 1.8 Amps
Output AC33V, 0-1 KHz, 3 Phase, 2.4 Amps
Operating Temperature 0-40 deg. Celsius
Max. Ambient Humidity 85%
Speed Range 1,000 – 80,000

Spindle Specifications:
Speed 5,000-50,000 min-1(rpm)
Max. Output Power 340W (.45HP)
Spindle Accuracy Within 1 μm
Standard Size Collet (CHK-3.175) ø1/8
Type CAT 40

Preliminary Specifications – Subject to Verification
