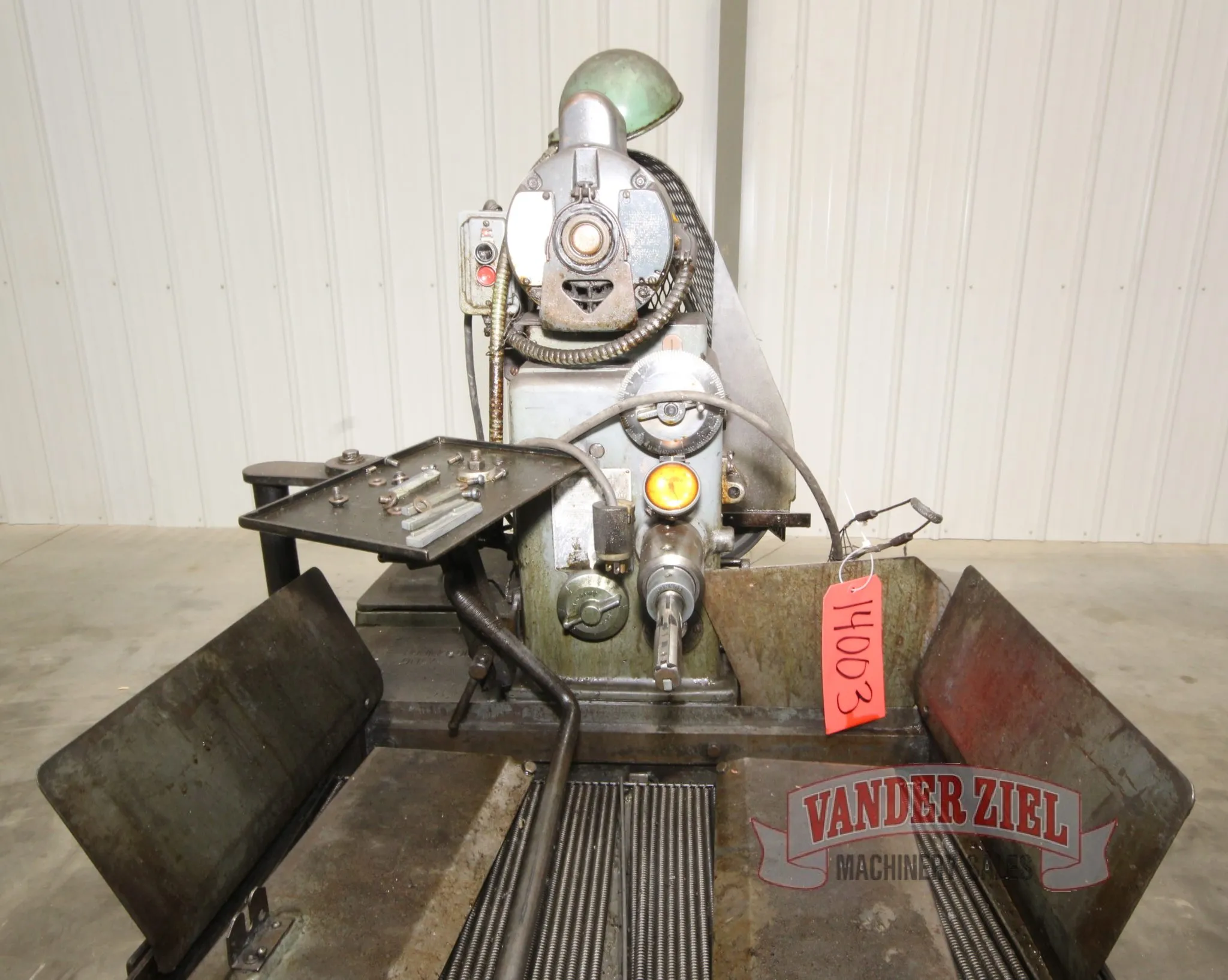

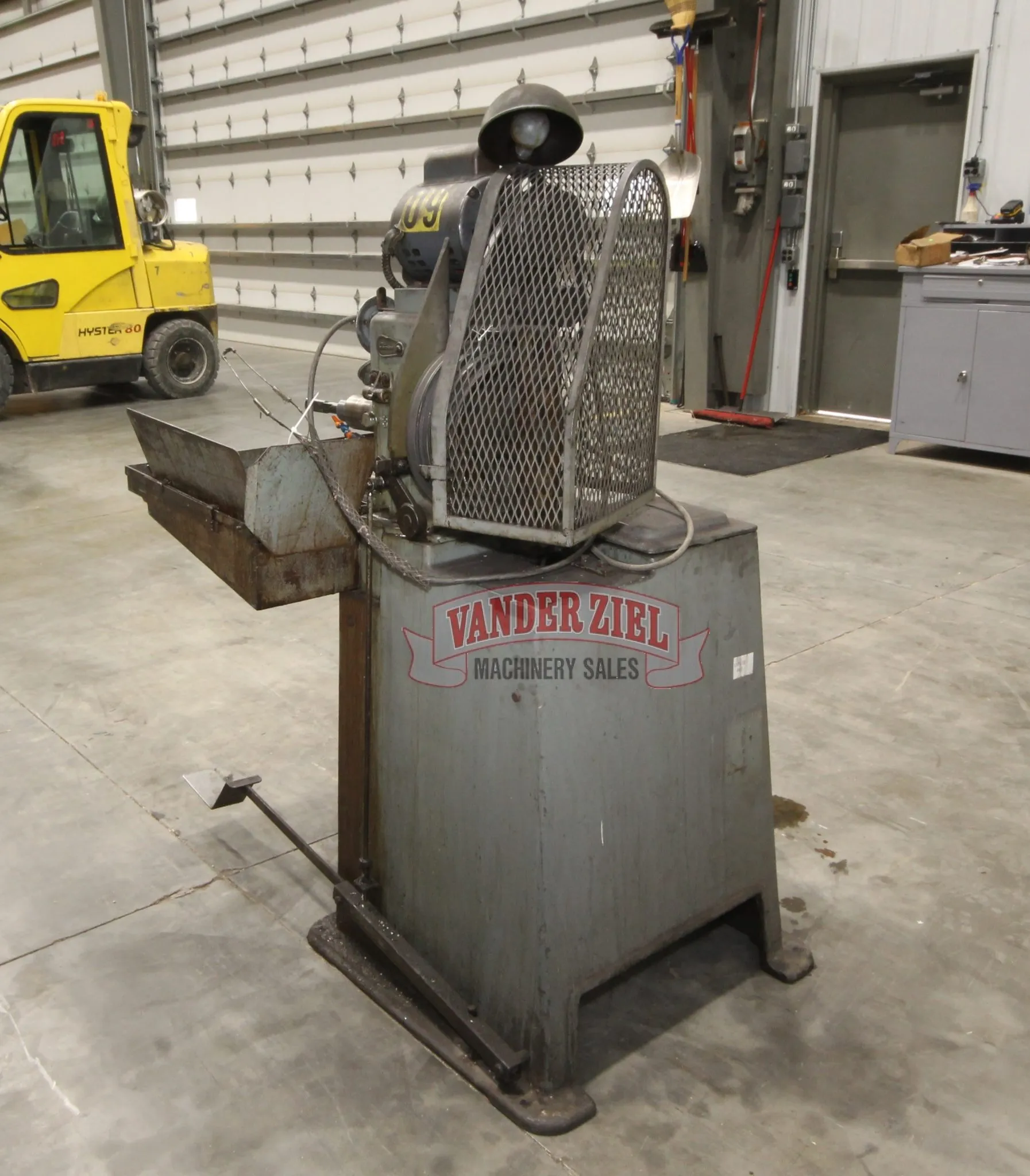

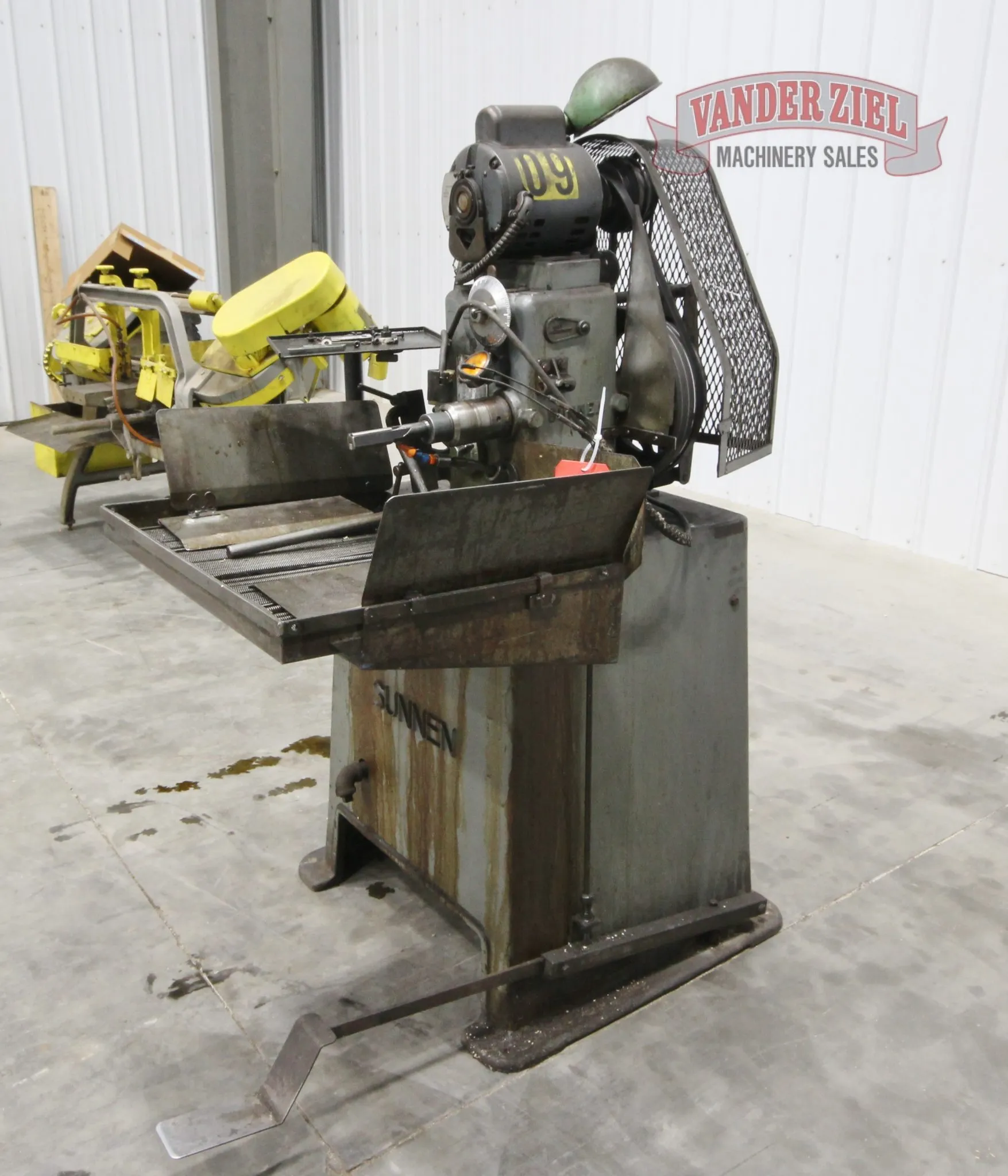

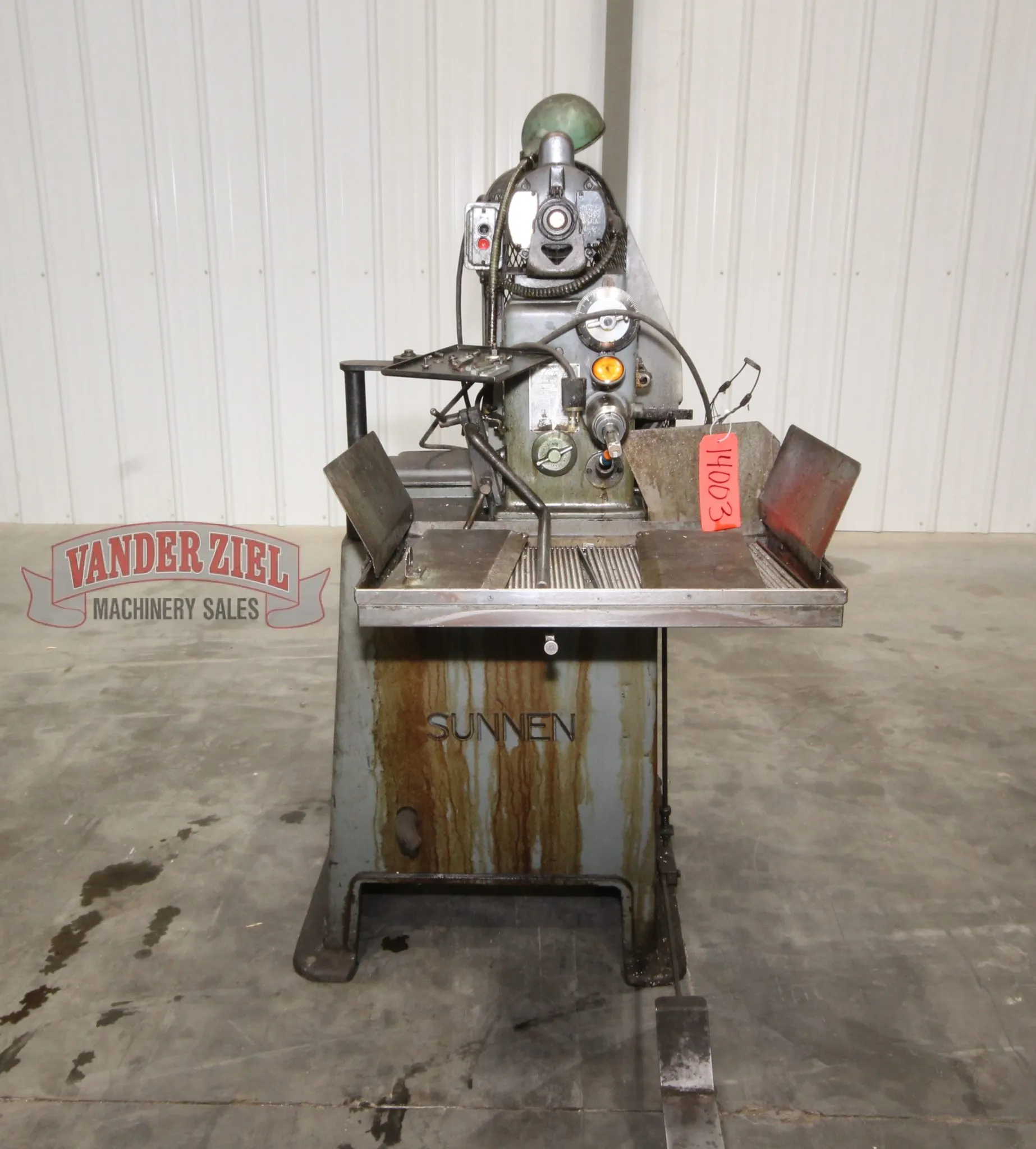

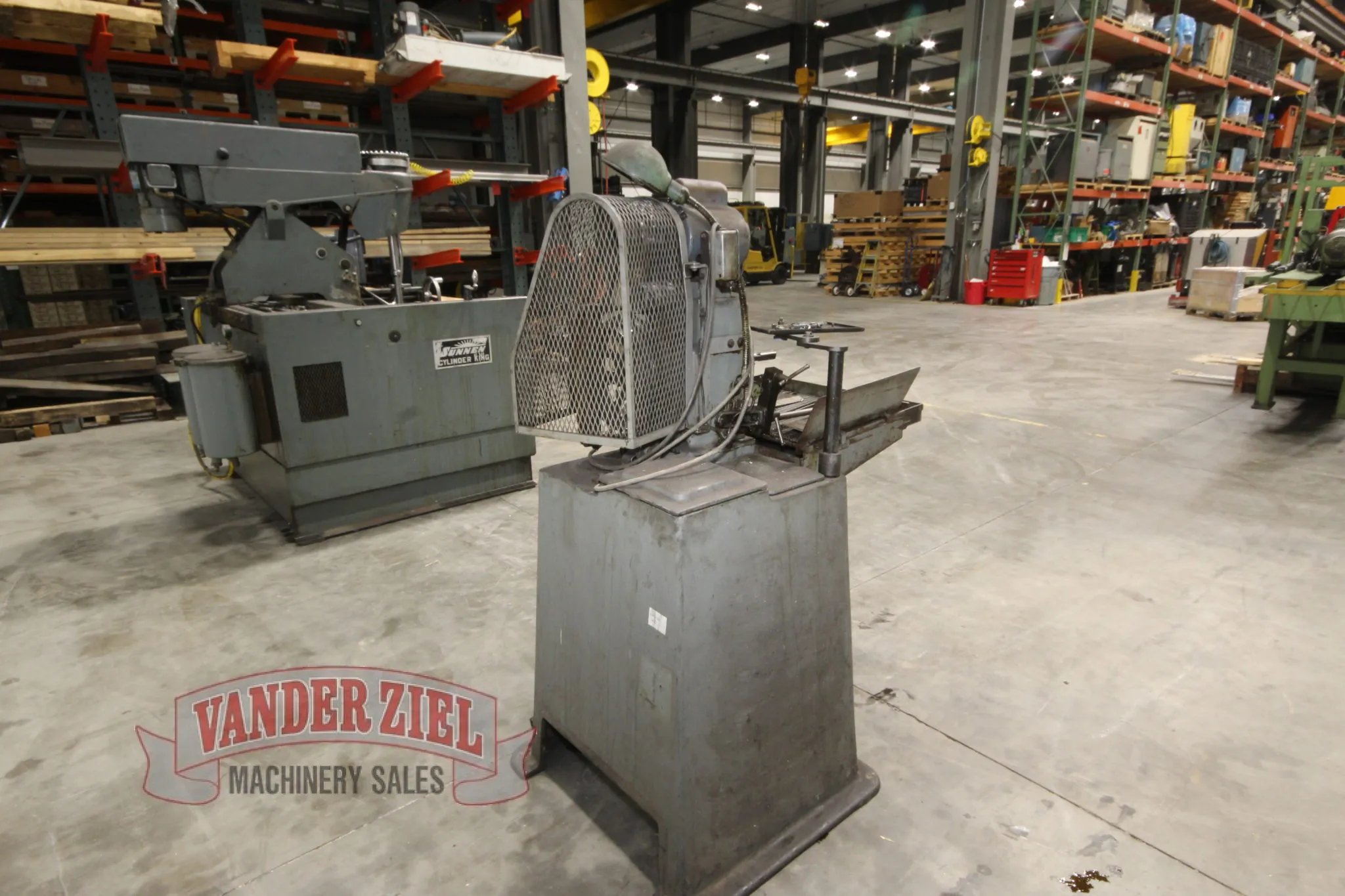

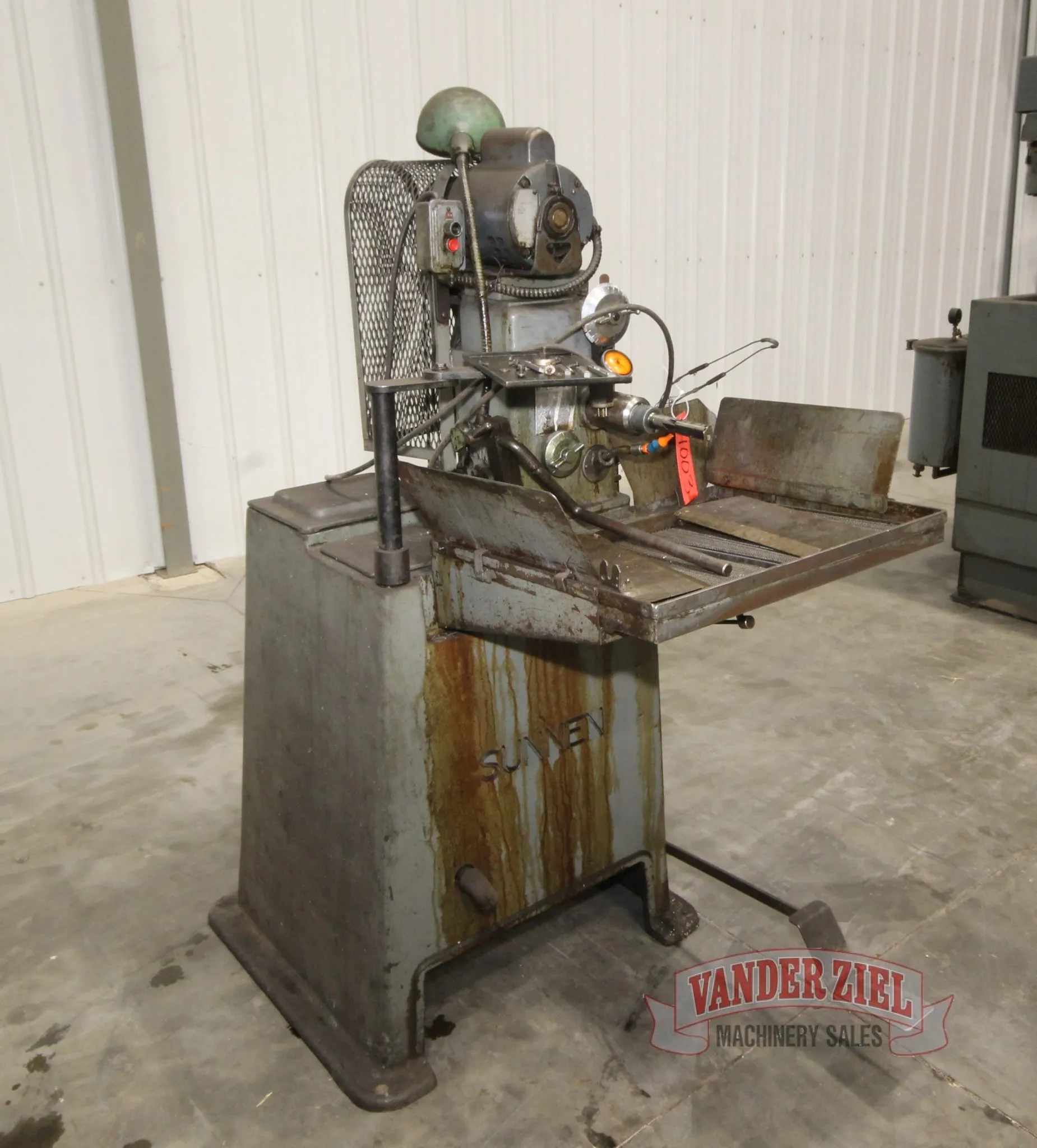

Sunnen Model MBB-1290D Horizontal Hone
Sunnen Model MBB-1290D Horizontal Hone
Serial # 7516
Asset # 14003
Specifications:
Diameter Range: .120" to 2.625"
Length of Work Honed Depends on Diameter
Maximum Honing Length of 1/8" Bore is 1 7/8", while
Maximum Honing Length of 2 5/8" Bore is 18"
Honing Speeds: 300, 450, 650, 850 RPM
Honing Speeds Via 4-Position Manually Adjustable Flat Belt Drive
Tool Socket Size: 1 3/4" Diameter
Honing Oil System: Approx. 12 Gallon
Self Energizing Friction Spindle Brake
Manual Operation with Manual Cutting Pressure, Adjustment & Gage Dial
Foot Pedal Operation Control
Motor Pulley Cage Type Guarding
17" x 24" Flow Back Oil Tray with Side & Rear Splash Guards
Belt Driven Honing Oil Pump & Piping
1/2 HP Motor, 1 Phase, 115/220 Volts with On-Off Switch
Overall Dimensions: 32" L-R x 39" F-B x 58" H
Approx. 800 Lbs.
Preliminary Specifications - Subject to Verification
