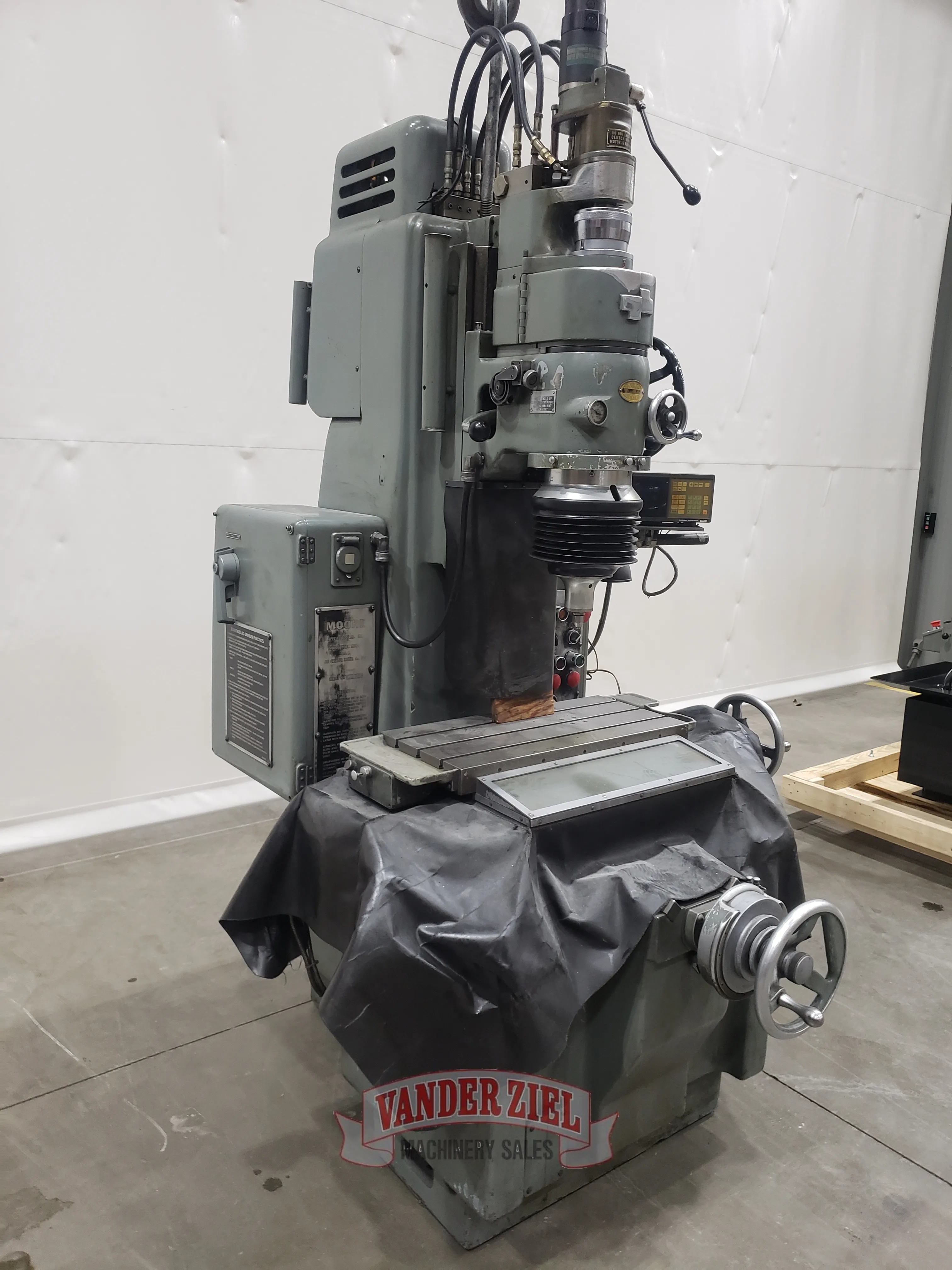

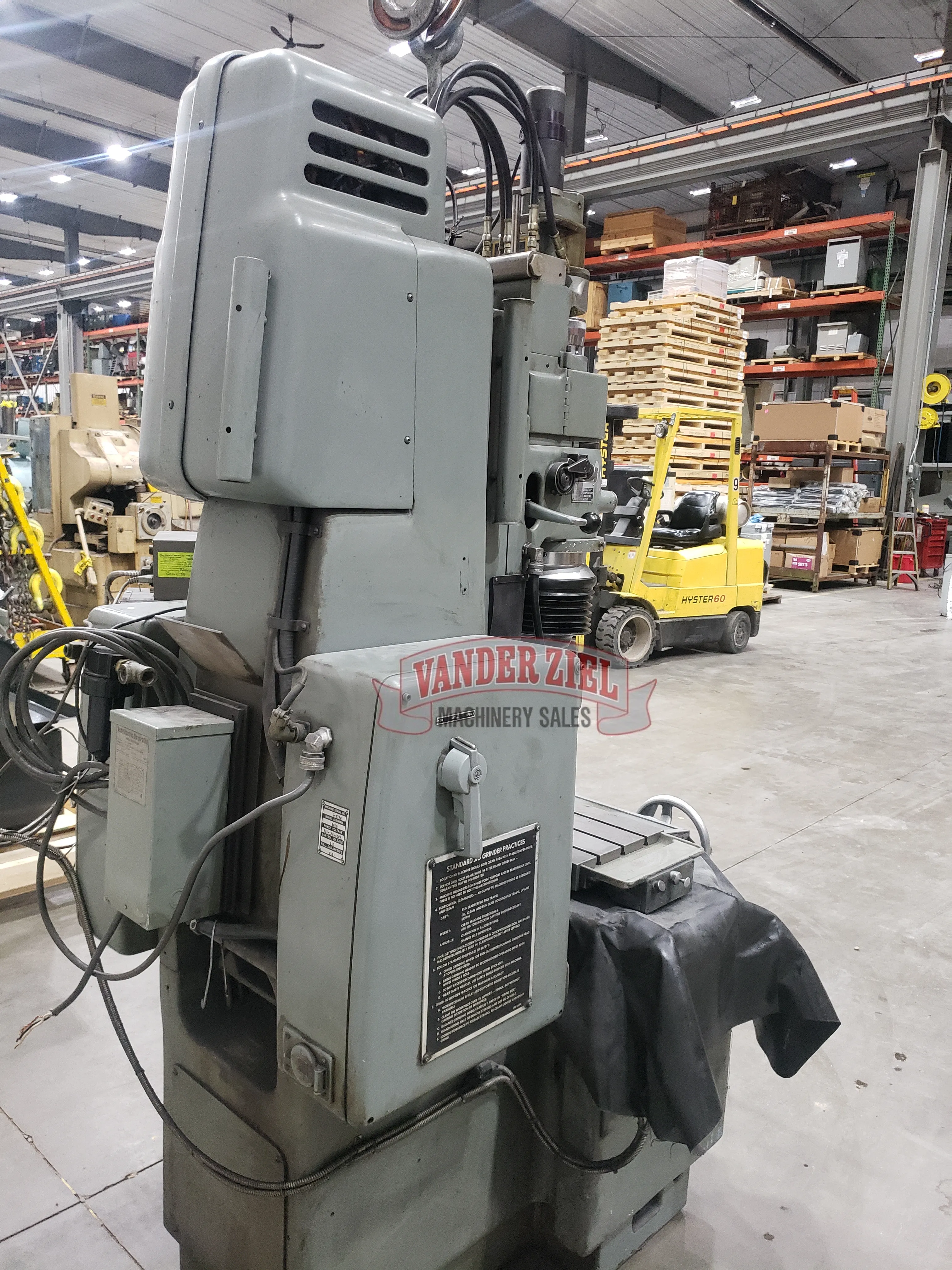

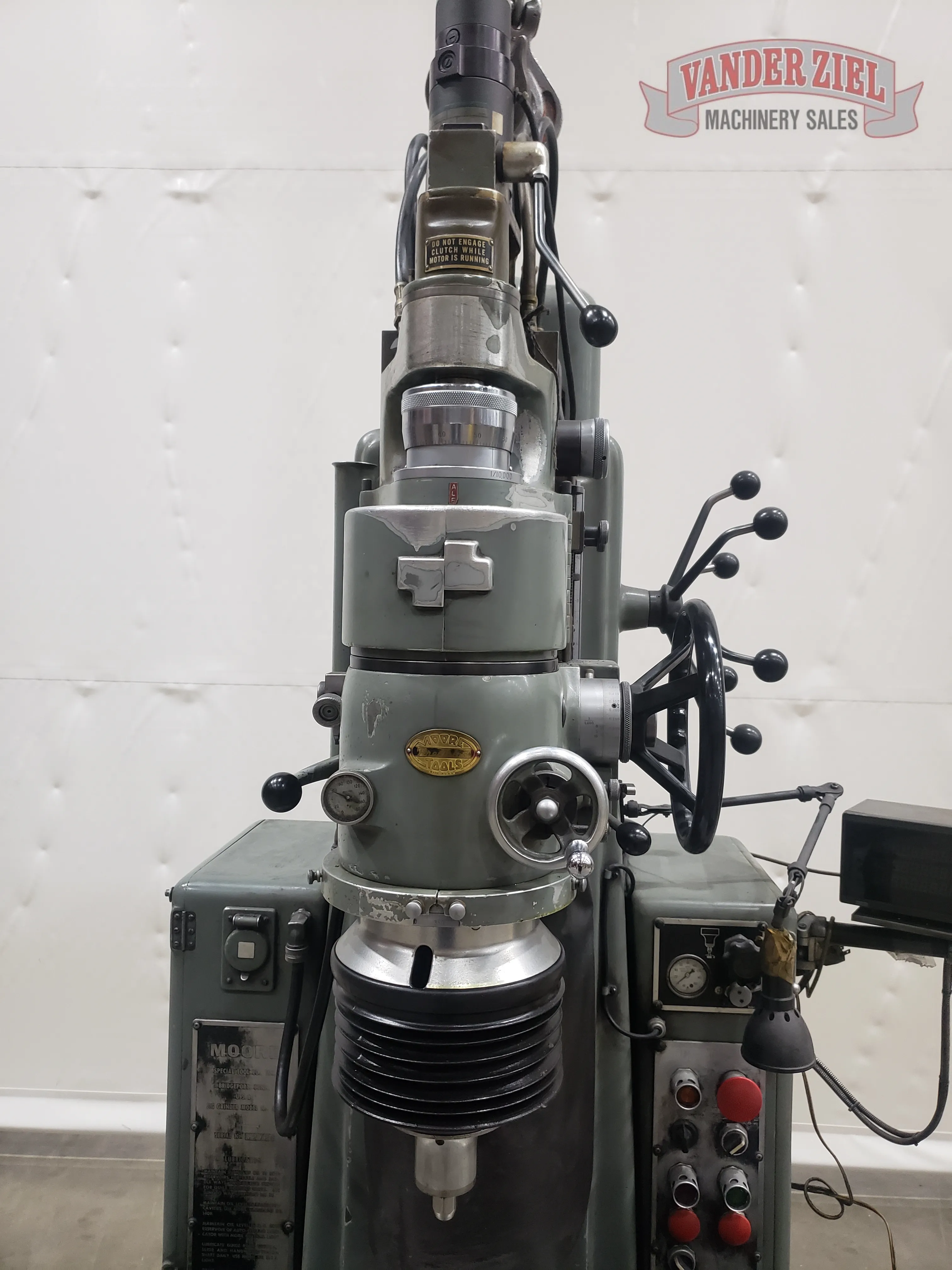

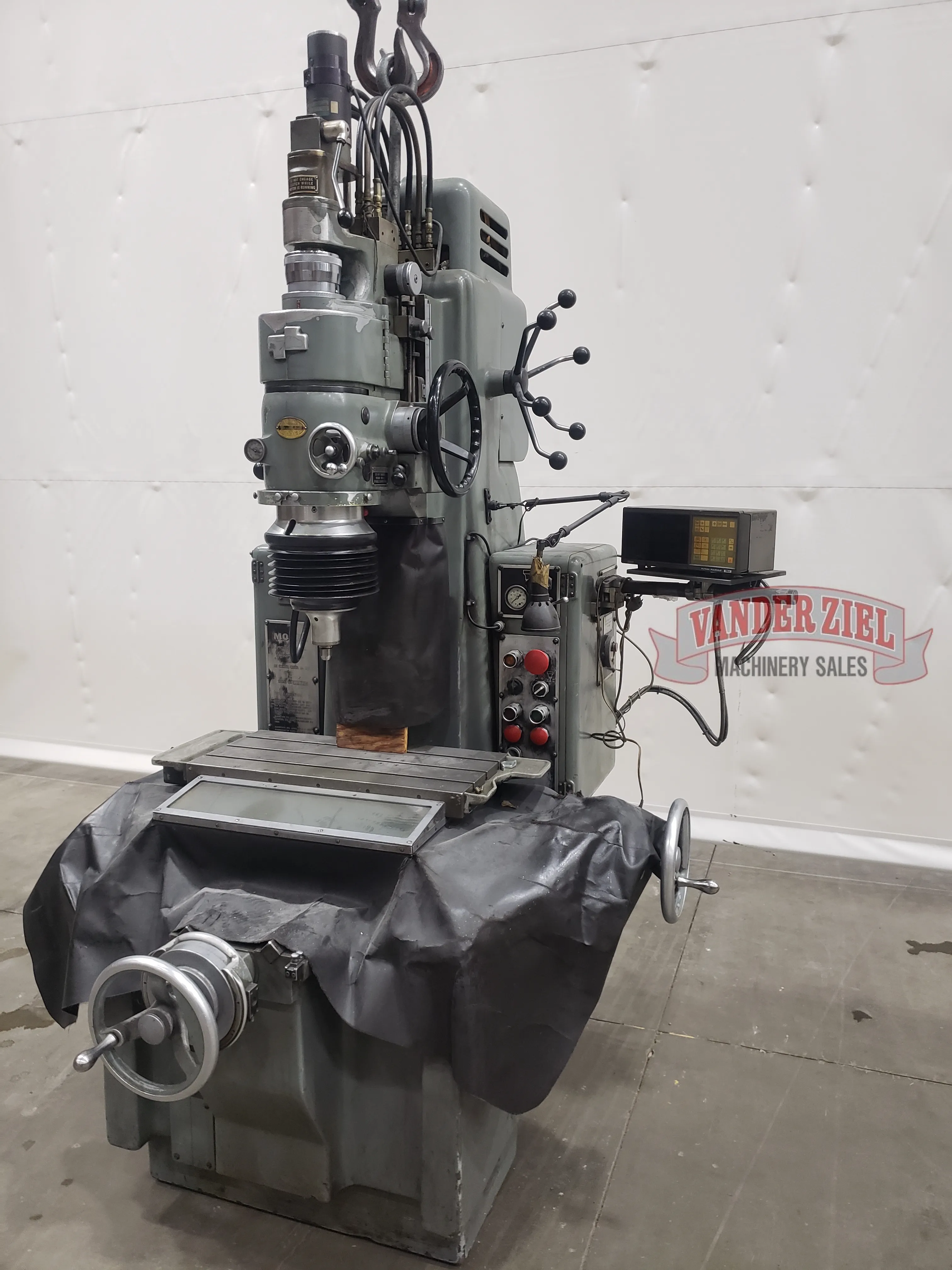

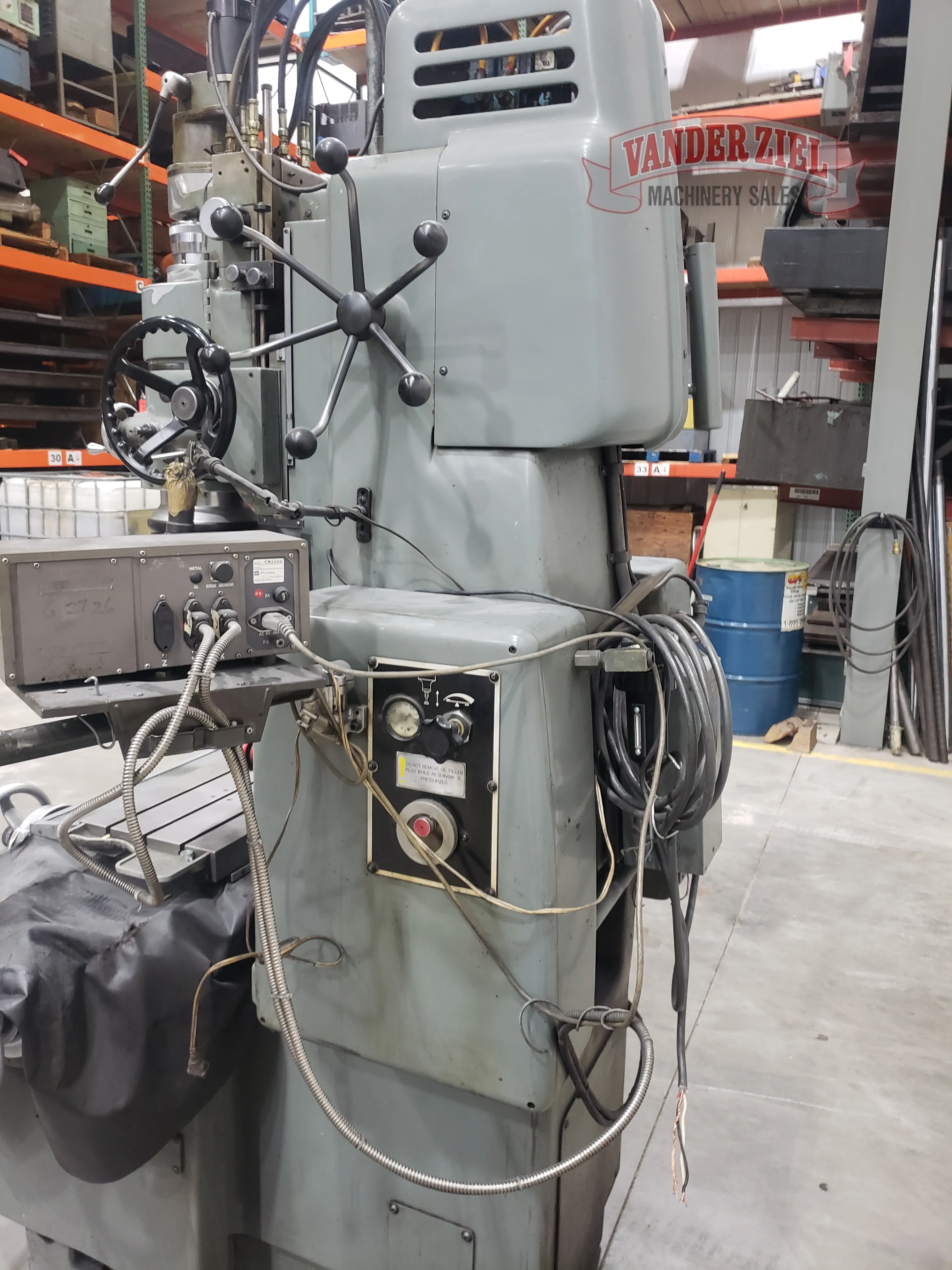

Moore Model G18 Jig Grinder, 11” x 24” Table

Moore Model G18 Jig Grinder, 11” x 24” Table

Serial # G2726
Asset # 14567

Specifications:

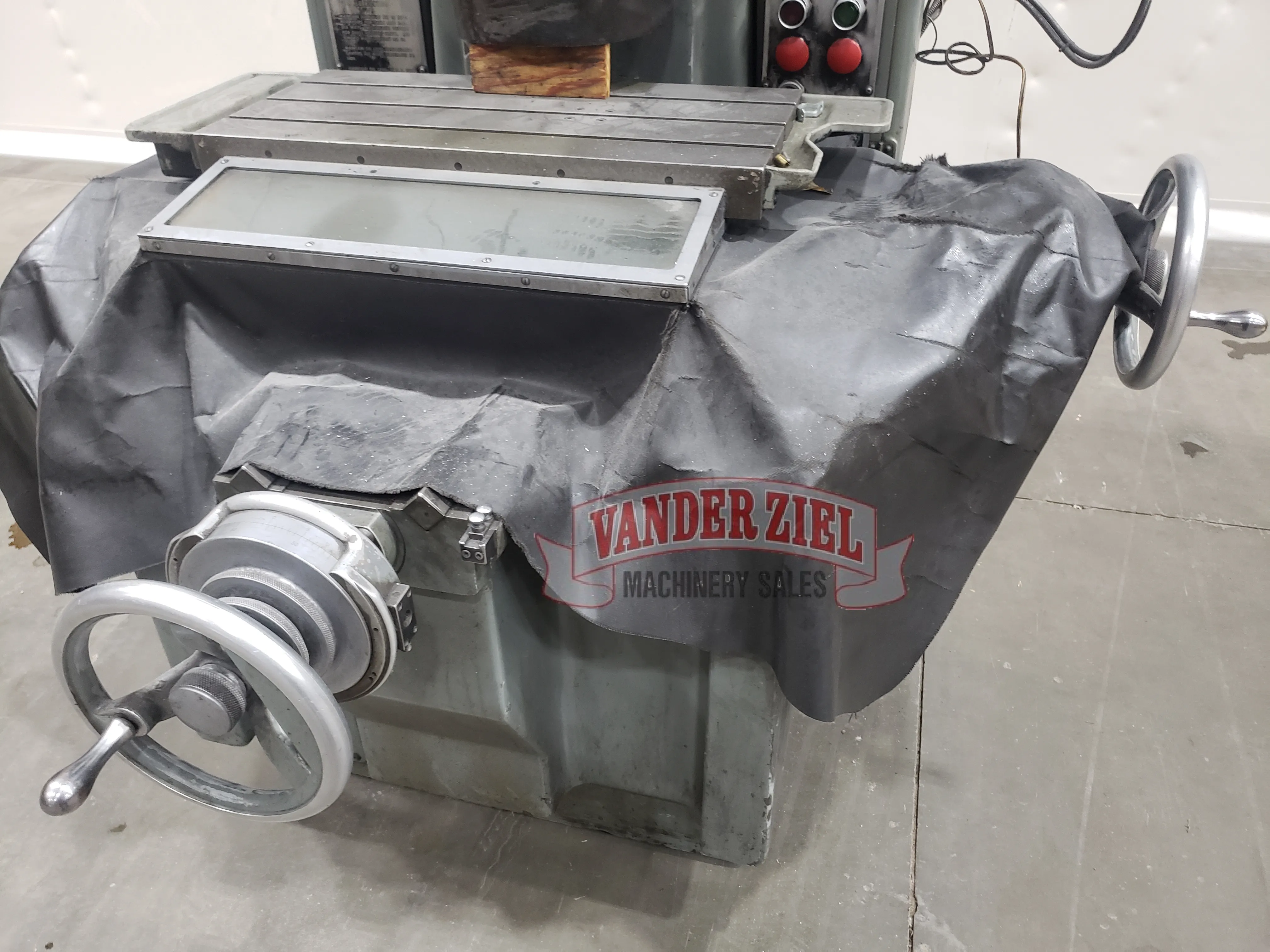

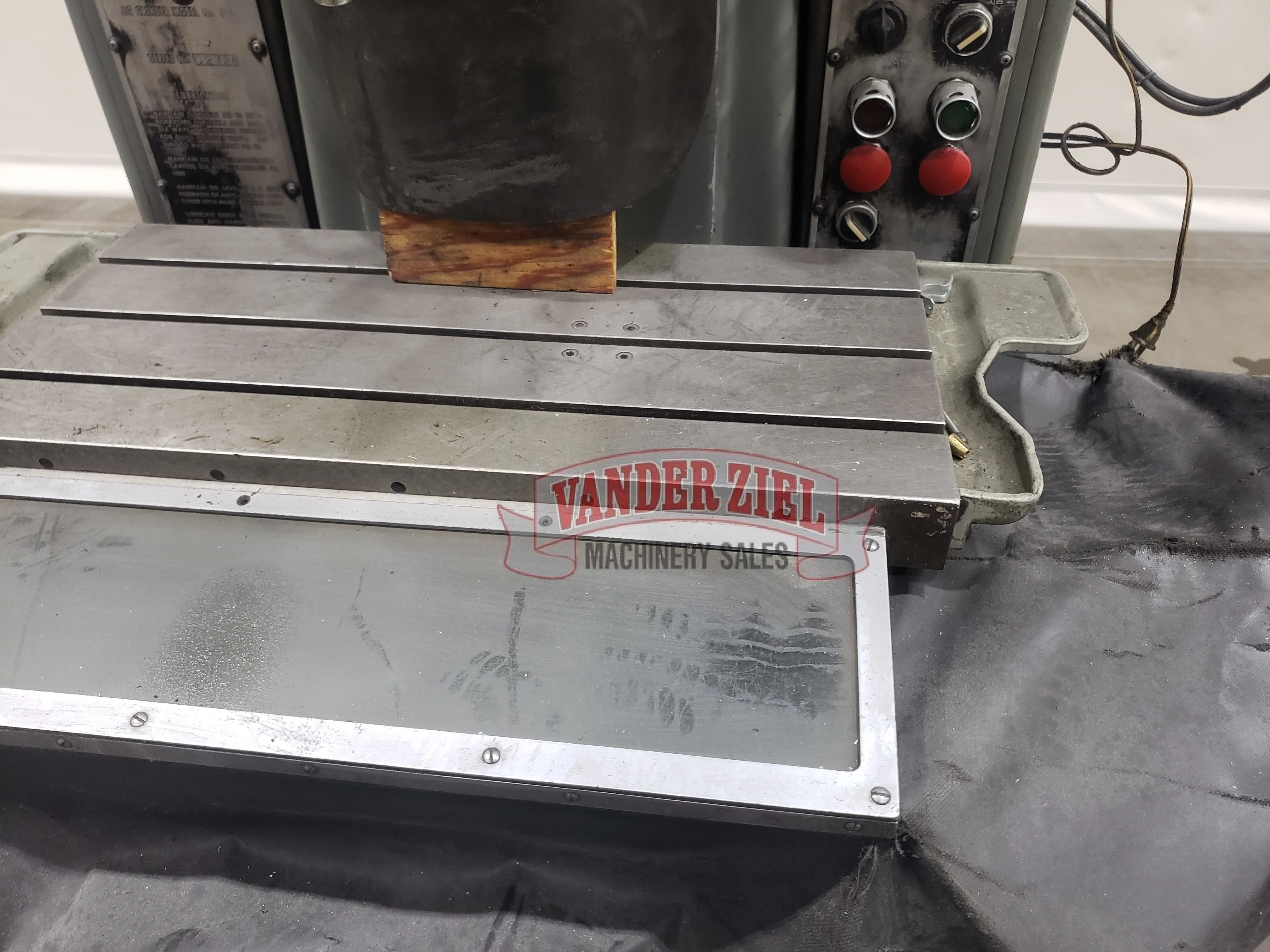

Working Surface of Table 11" x 24"
Table Travel, Cross & Longitudinal 11" x 18"
Main Spindle Travel 3-5/8"
Distance Table Top to Wheel Collet 2" - 18"
Spindle Housing Vertical Travel 12-5/8"
Distance Spindle to Column Ways 10"
Distance Spindle to Column Below Ways 13.5"
Spindle Speeds (Infinite) 40-250 RPM
Spindle Feeds, Air Hydraulic (Infinite) 2-120 Cycles PM
Grinding Wheel Speed Range 9,000-40,000 RPM
Grinding Capacity with Wheels 1/64" - 5"
Overall Height 102"
Approximate Weight 4,000 lbs.

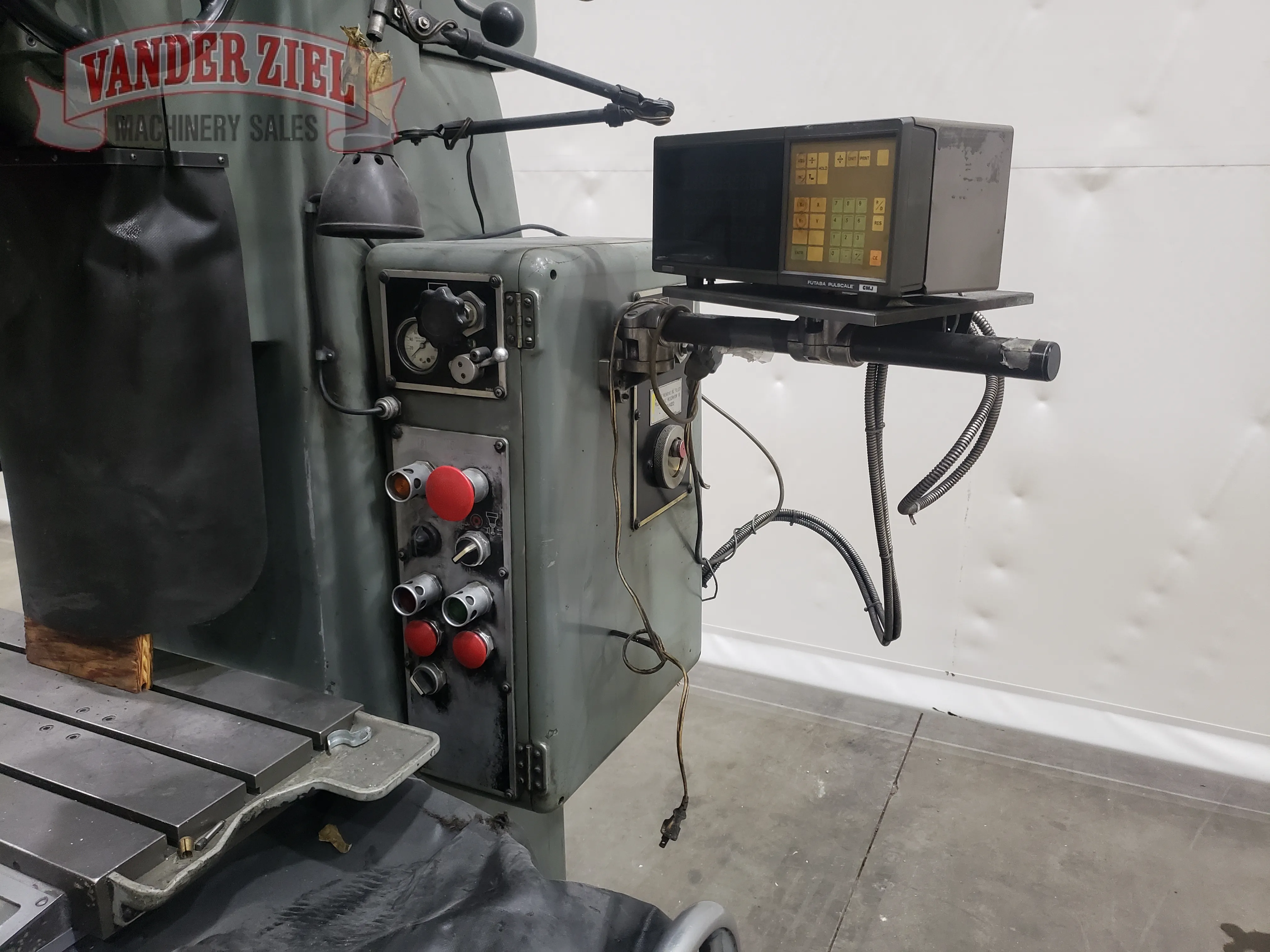

Machine is equipped with a 2 Axis DRO.

Preliminary Specifications - Subject to Verification
