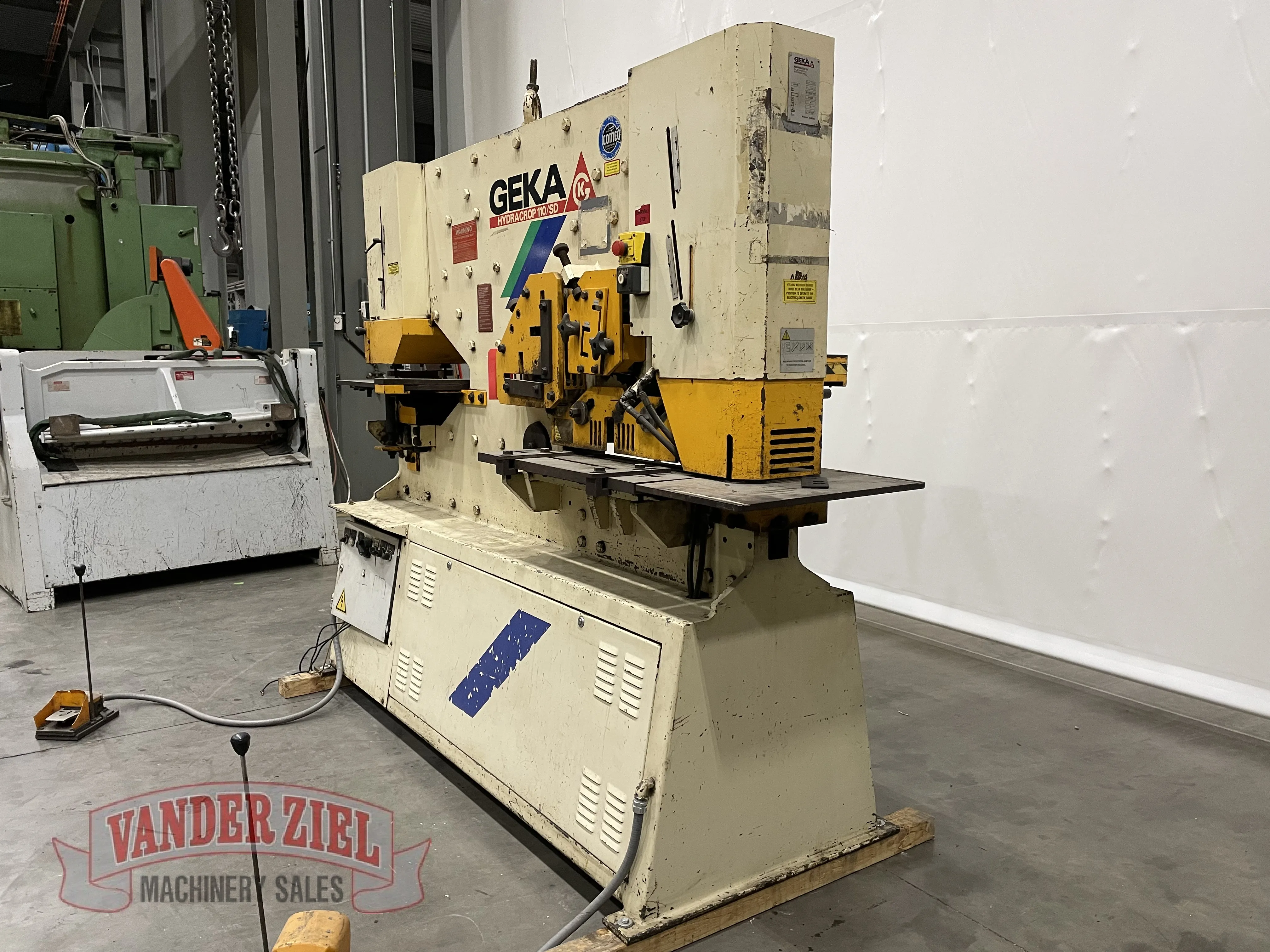

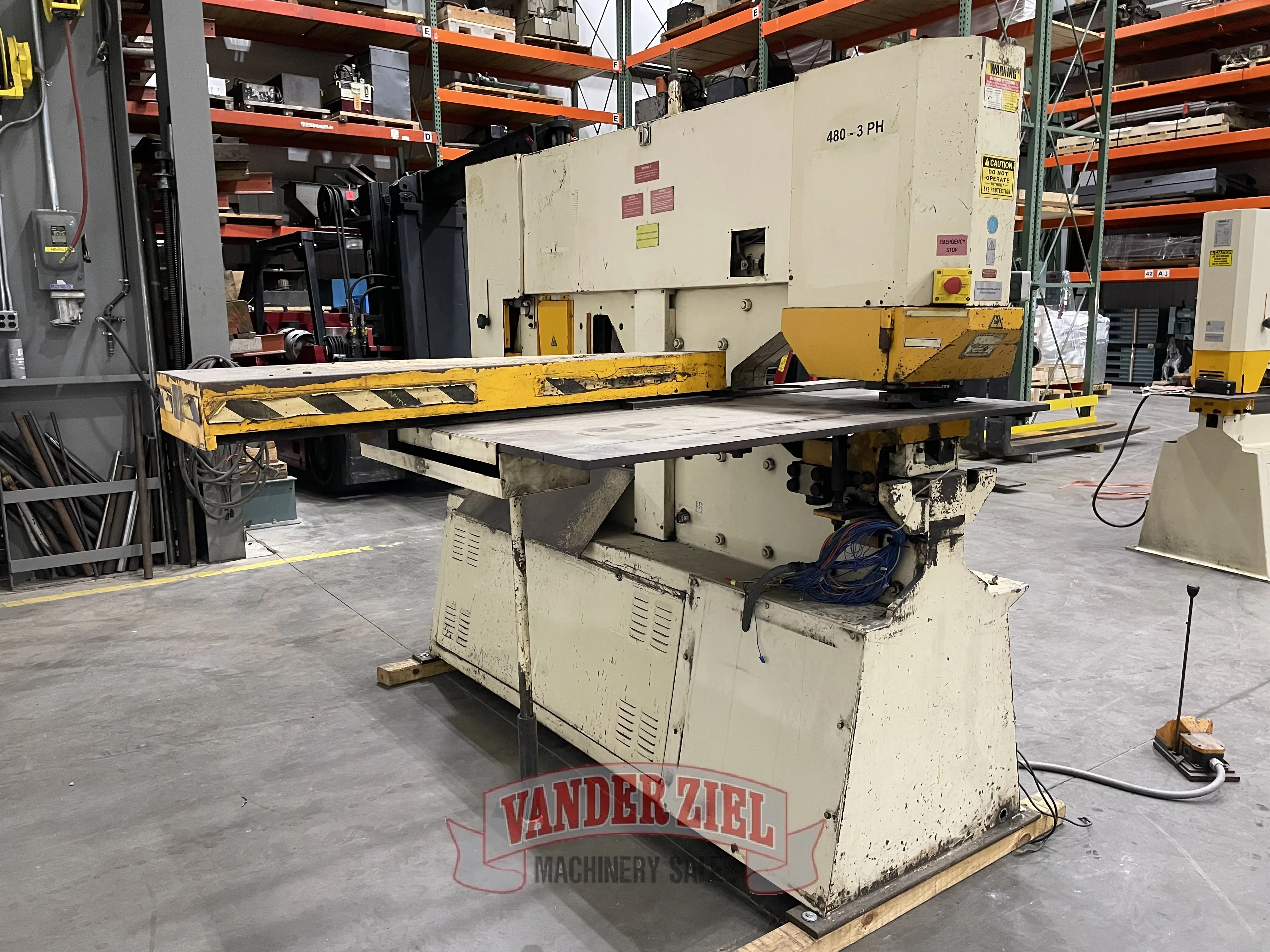

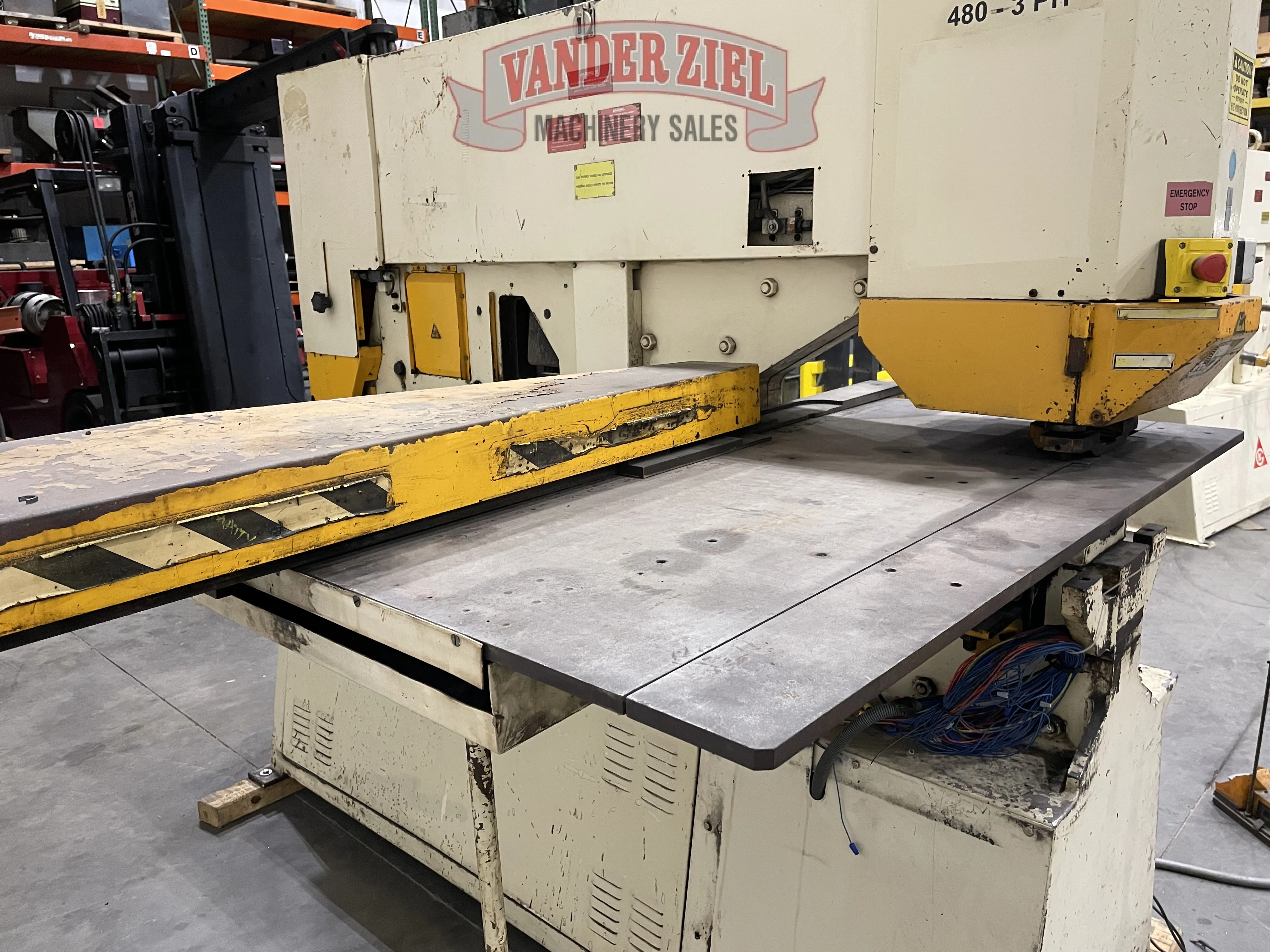

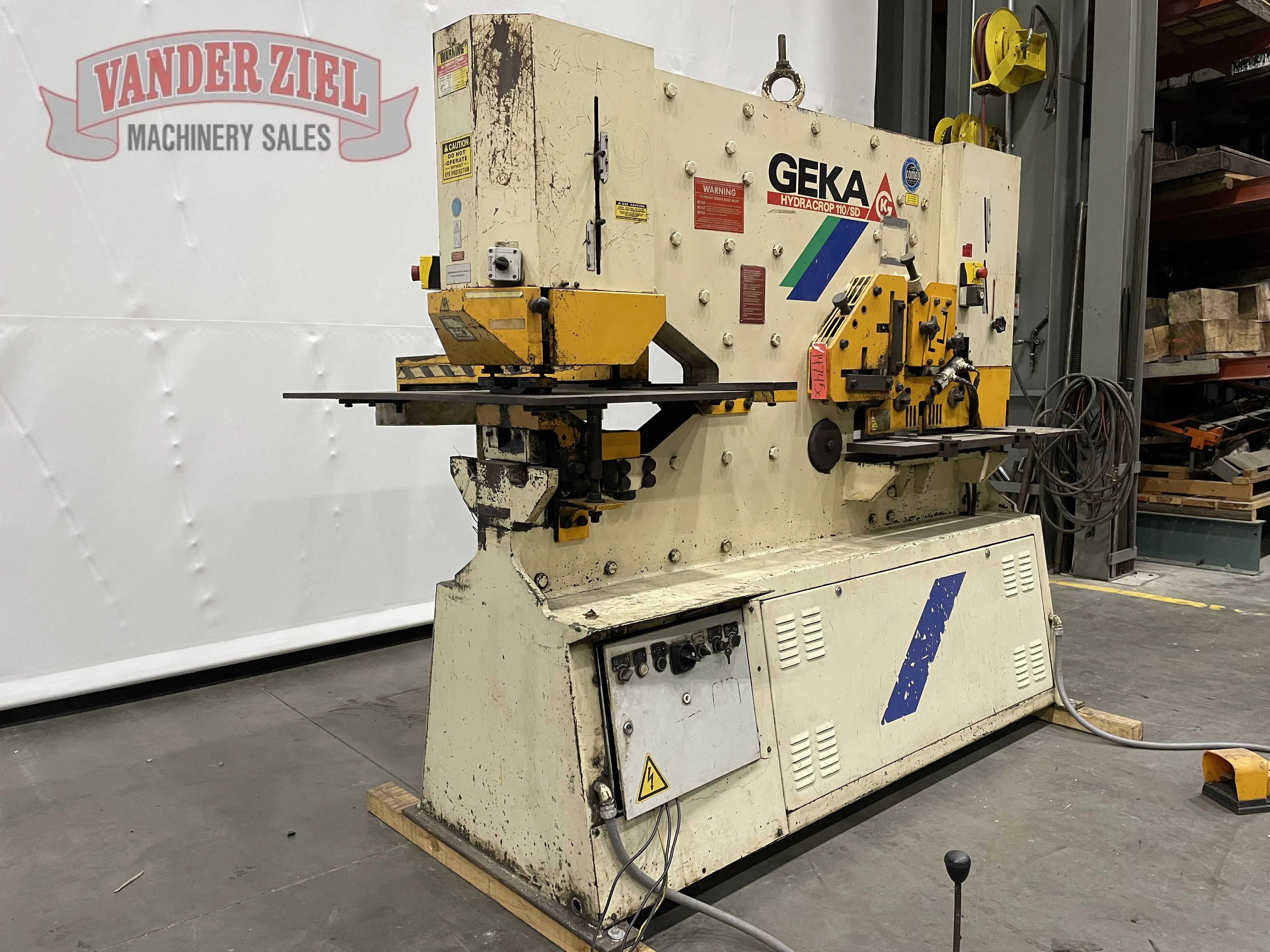

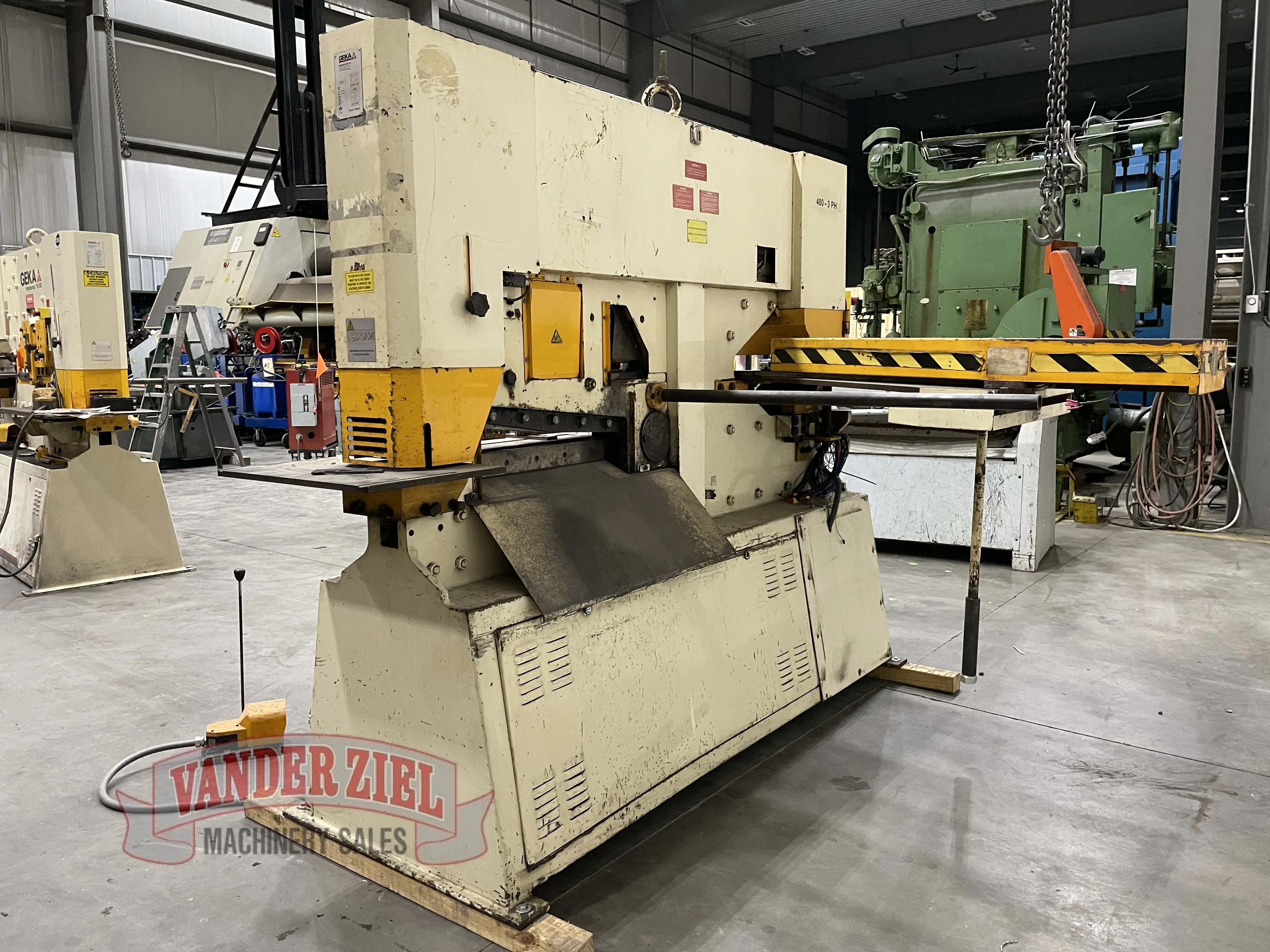

Geka 110 Ton Ironworker

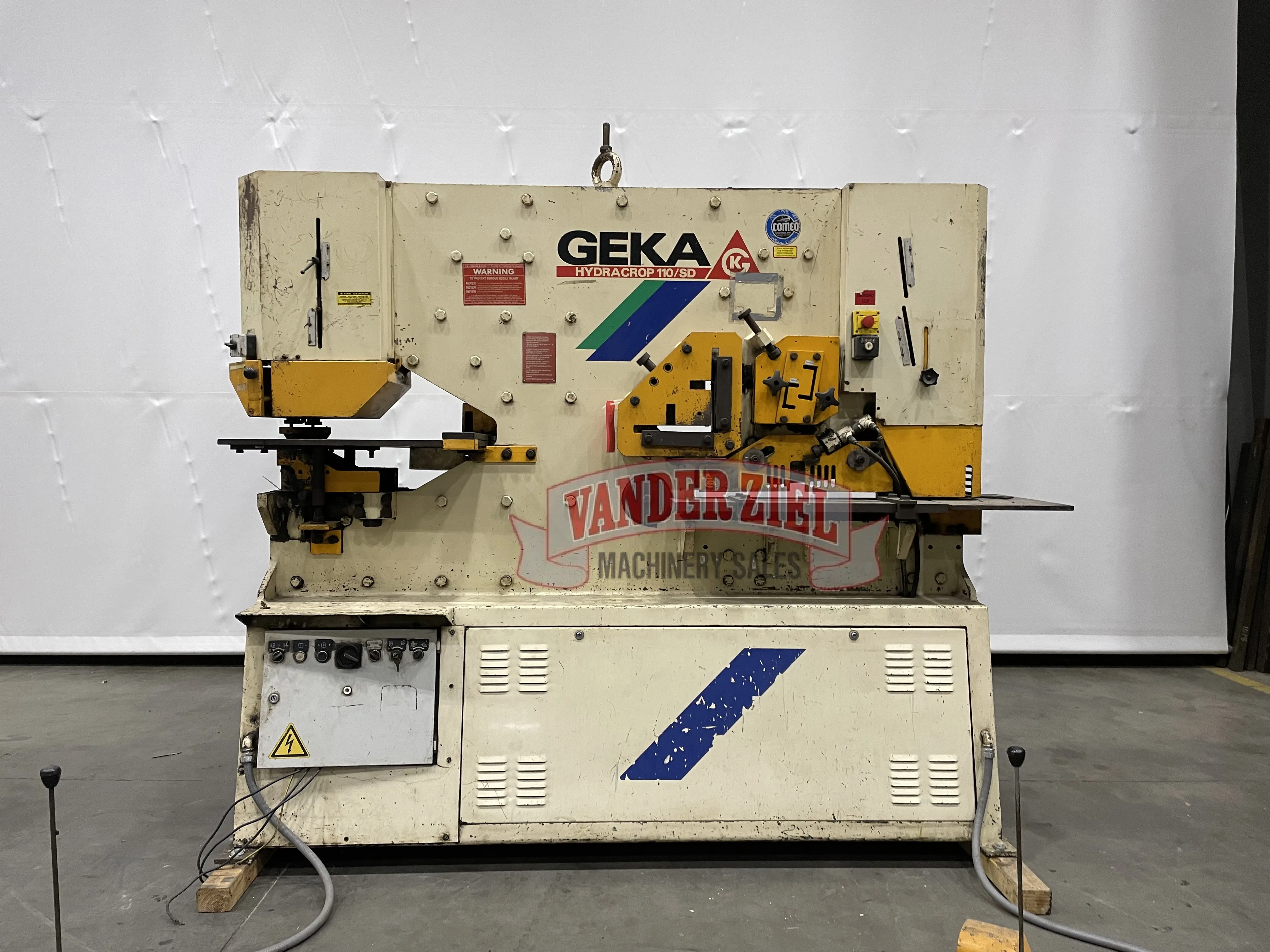

Geka 110 Ton Ironworker, Model Hydracrop 110/80 SD

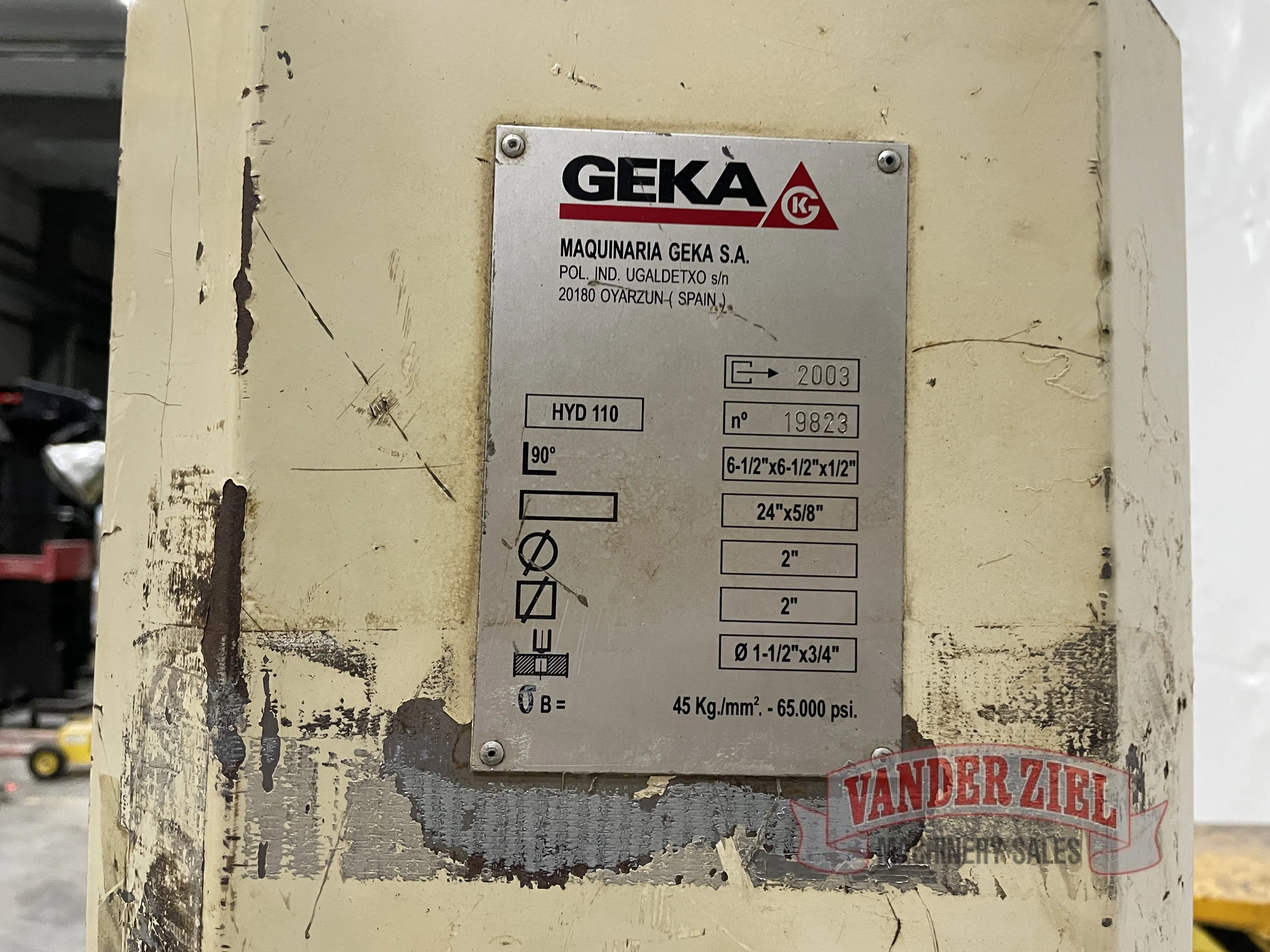

Serial # 19823
Asset # 14745

Specifications:

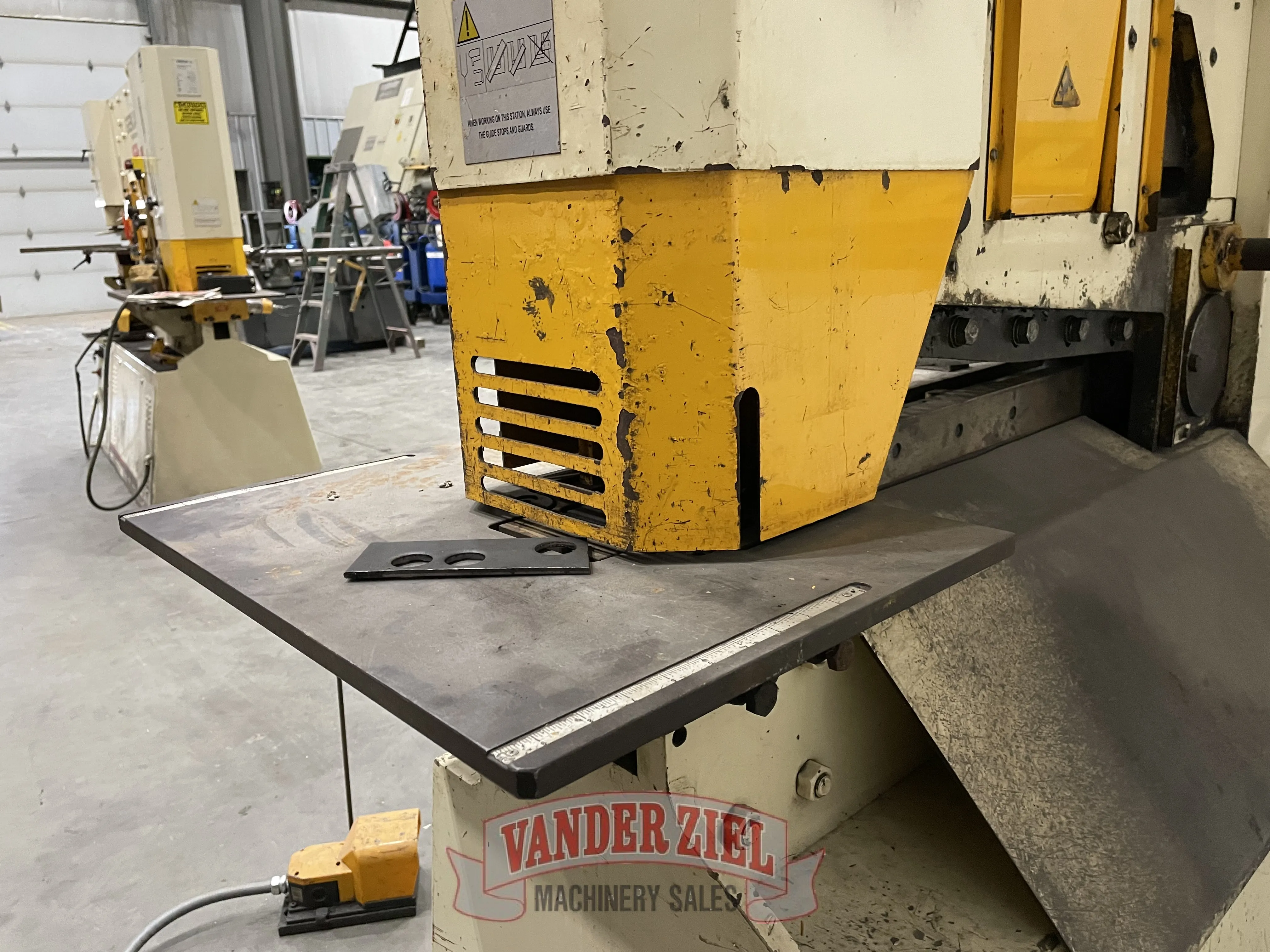

Shear for Flats
Flats 24" x 5/8", 16" x 3/4"
Length of Blades 24"
Working Height 38"
Cutting and L-Iron Leg at 45 Degrees 4"
Shear for Section Iron
Angle Station 200 Tons
L at Right Angle 5" x 5" x 1/2"
With Special Blades, L at Right Angle 6" x 6" x 5/8"
Bar Chopper
Round Bar 2"
Square Bar 2"
With Special Blades
Channel UNP 6"
Beams INP 6"

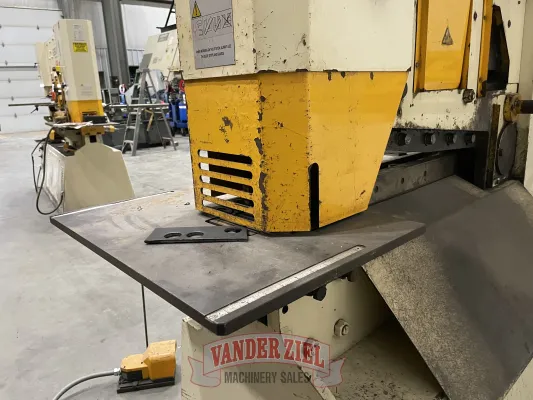

Notcher
Sheet Metal 1/2"
L Iron 4"
Depth 3 1/2"
Width 2"

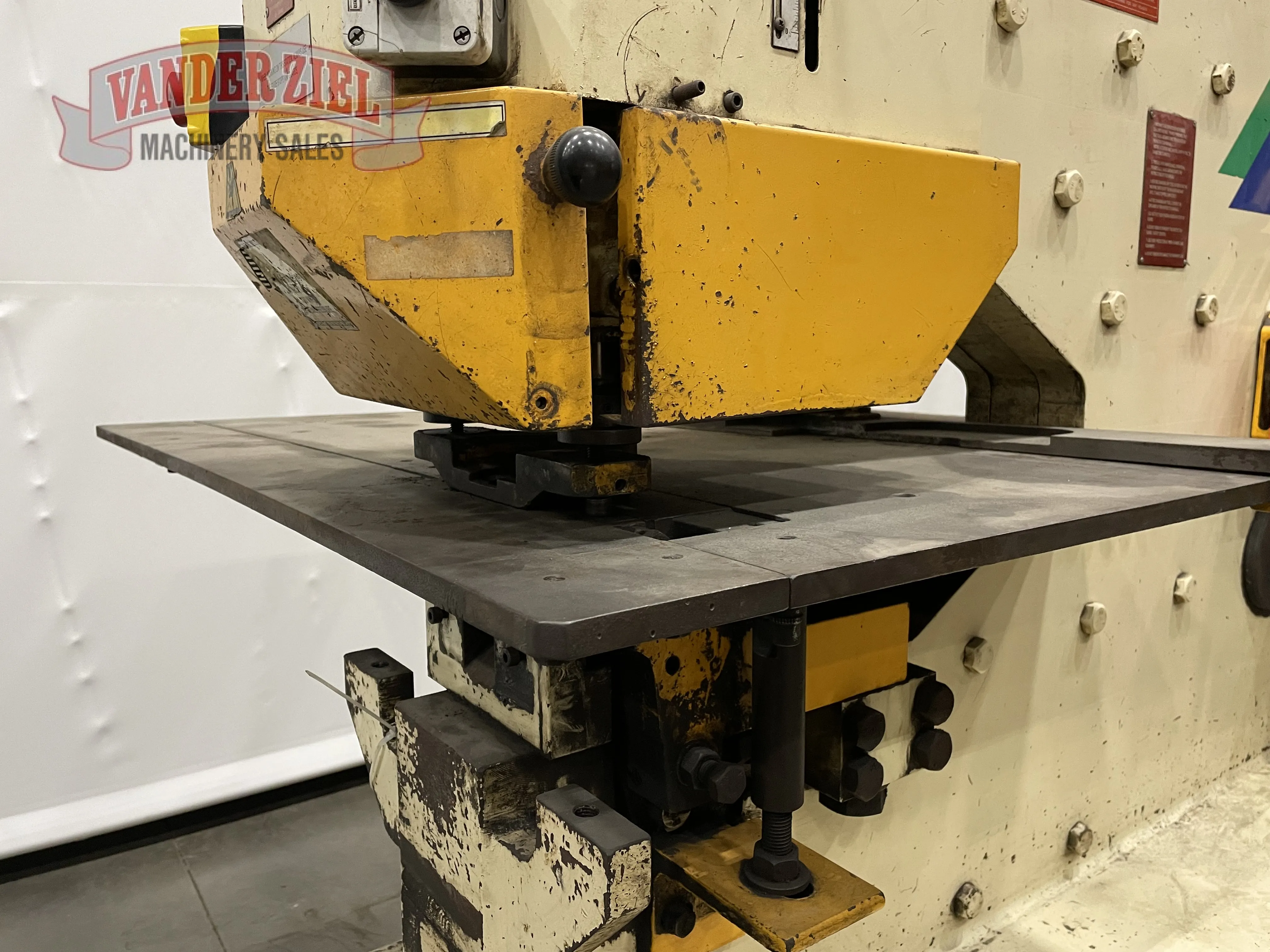

Punching Tool
Power 120 Tons
Max. Capacity with Quick Change System 1 1/2" x 3/4"
Depth of Throat 24"
Travel 3 5/32"
Working Height 43 15/16"
General Specifications
No. Strokes 3/4" Travel Full Cycle 28 HP
Motor Power 12.5 HP
Net Weight 7,260 lbs.
Dimensions 98" x 34"
Height 82"

Preliminary Specifications - Subject to Verification
