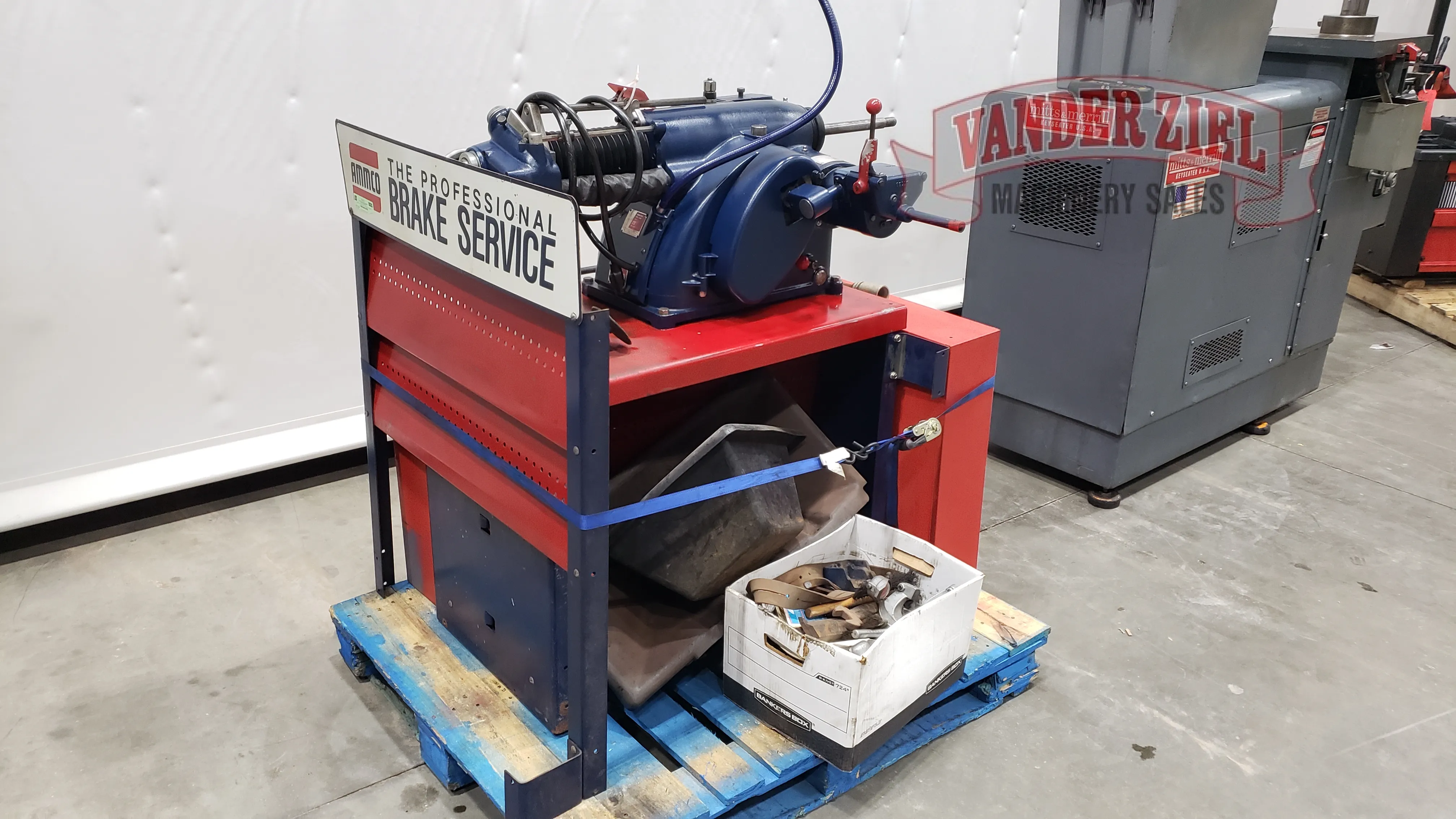

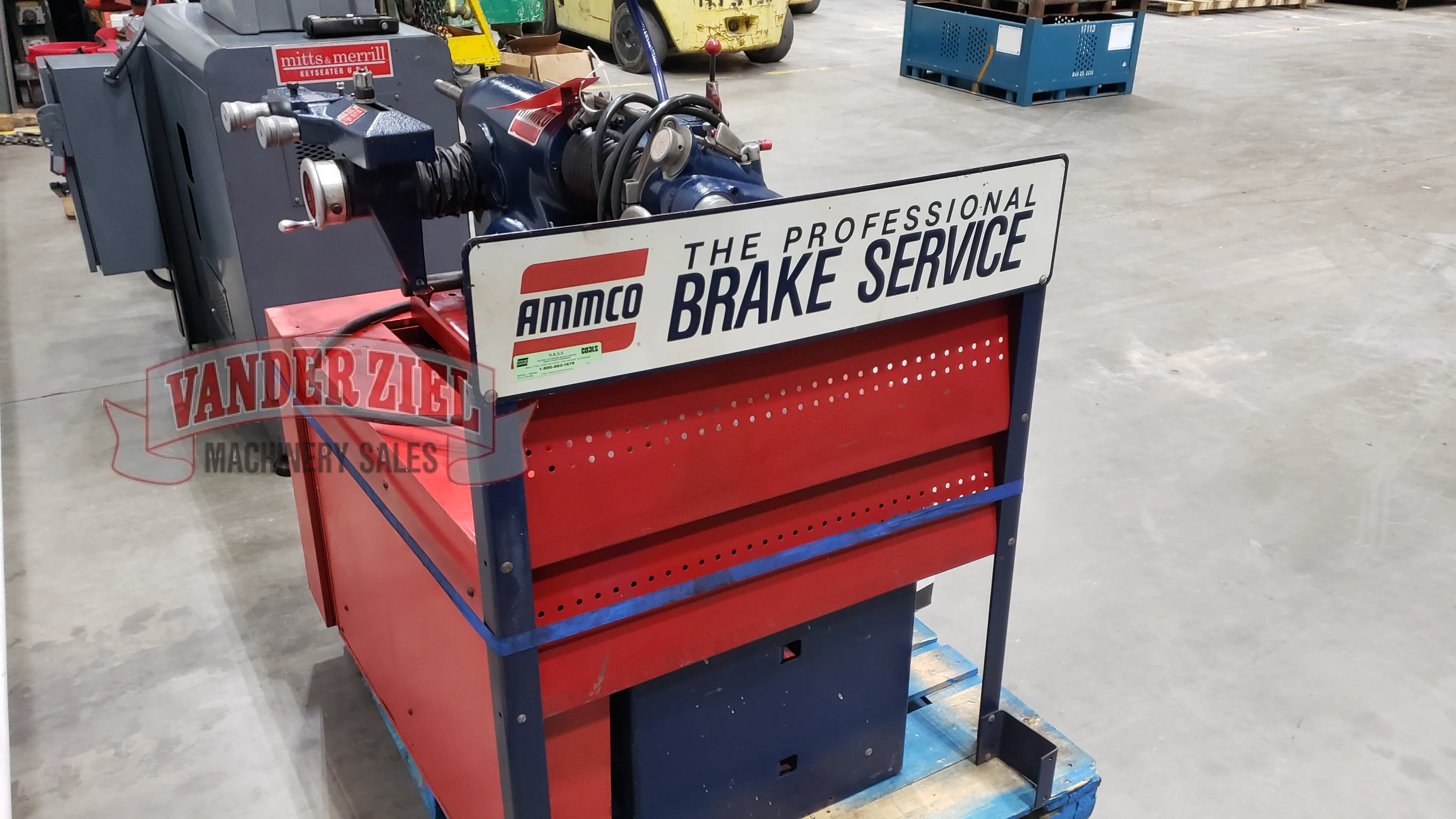

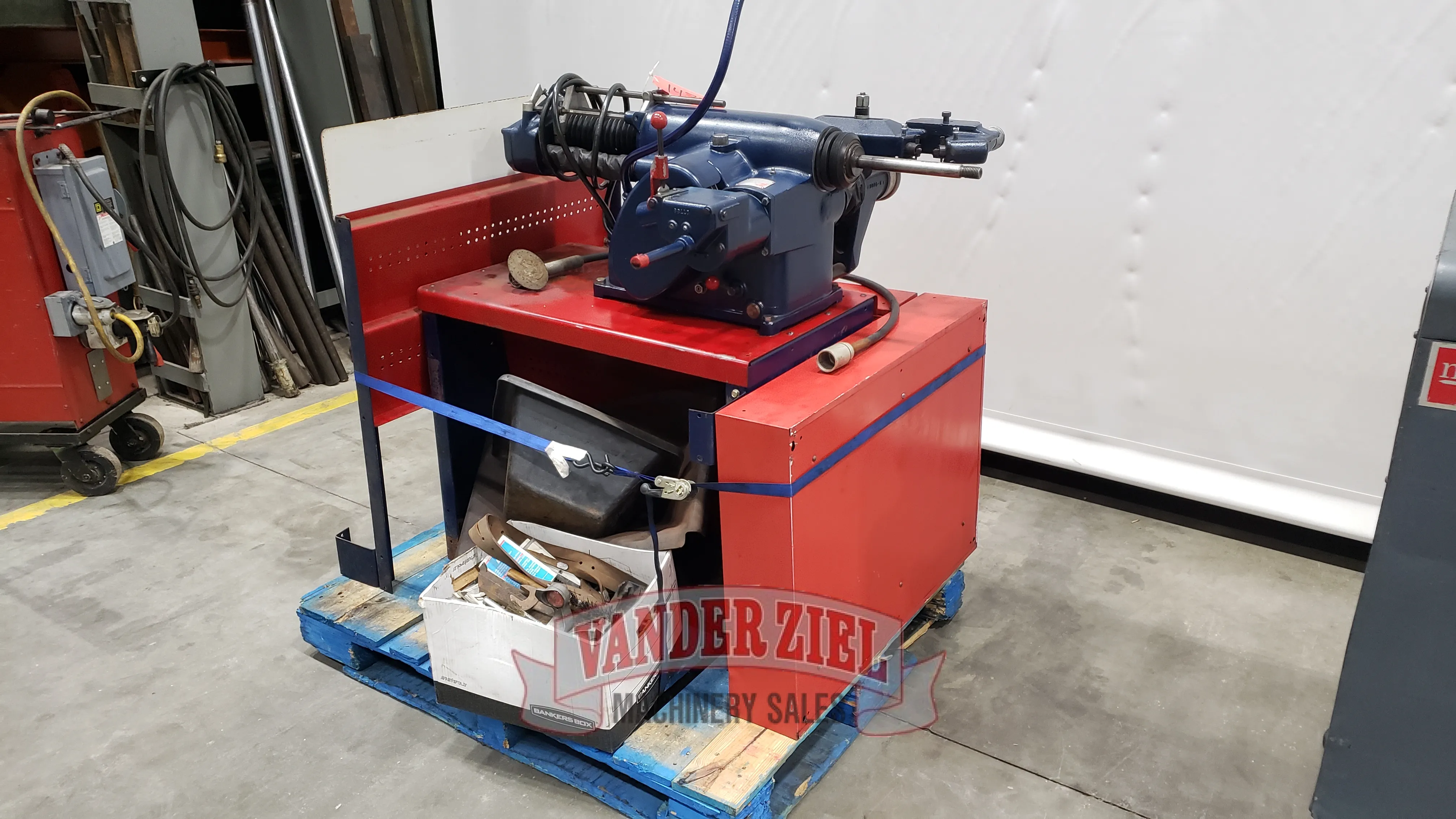

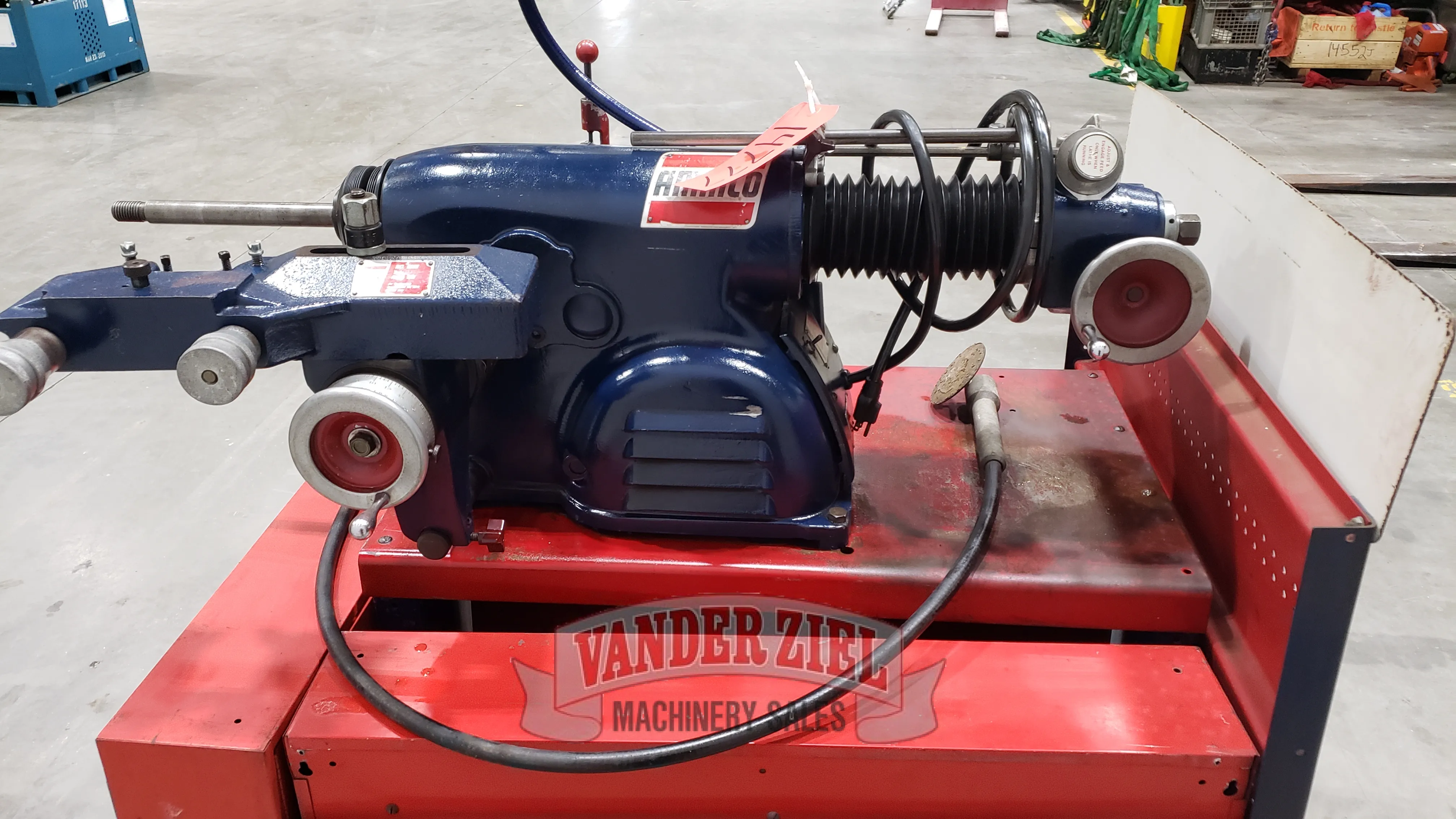

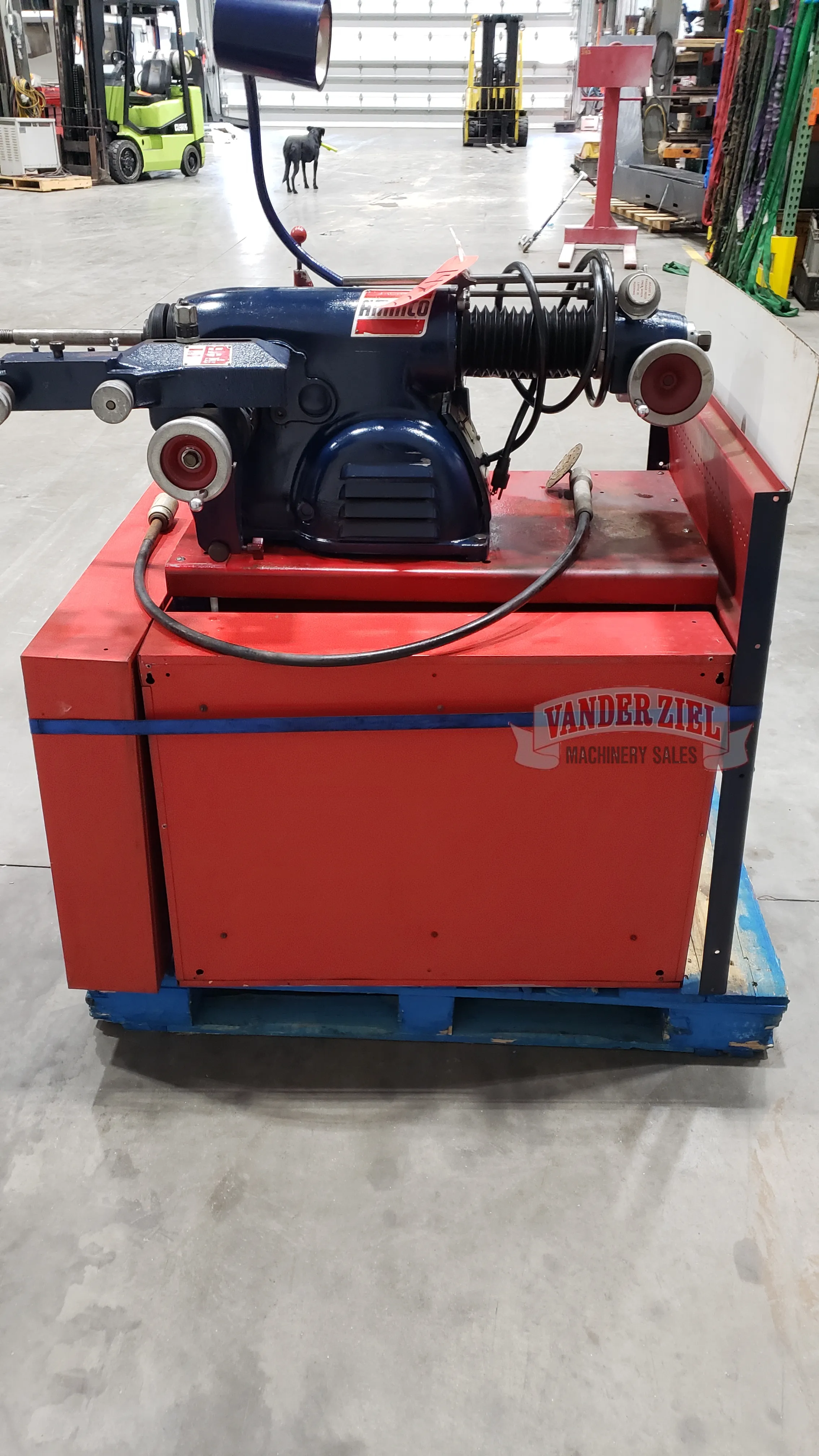

Ammco Model 4000 Brake Lathe

Ammco Model 4000 Combination Brake Lathe

Type: Rotor & Drum

Tool Bits (shipped with): Negative Rake

Application: Car & Light Truck

Standard Max Arbor capacity: 100lbs

Spindle Speed: 100, 200 RPM

Spindle Bearings: Bronze

Rotor Feed rate: .002"/.010"/REV

Rotors: Yes

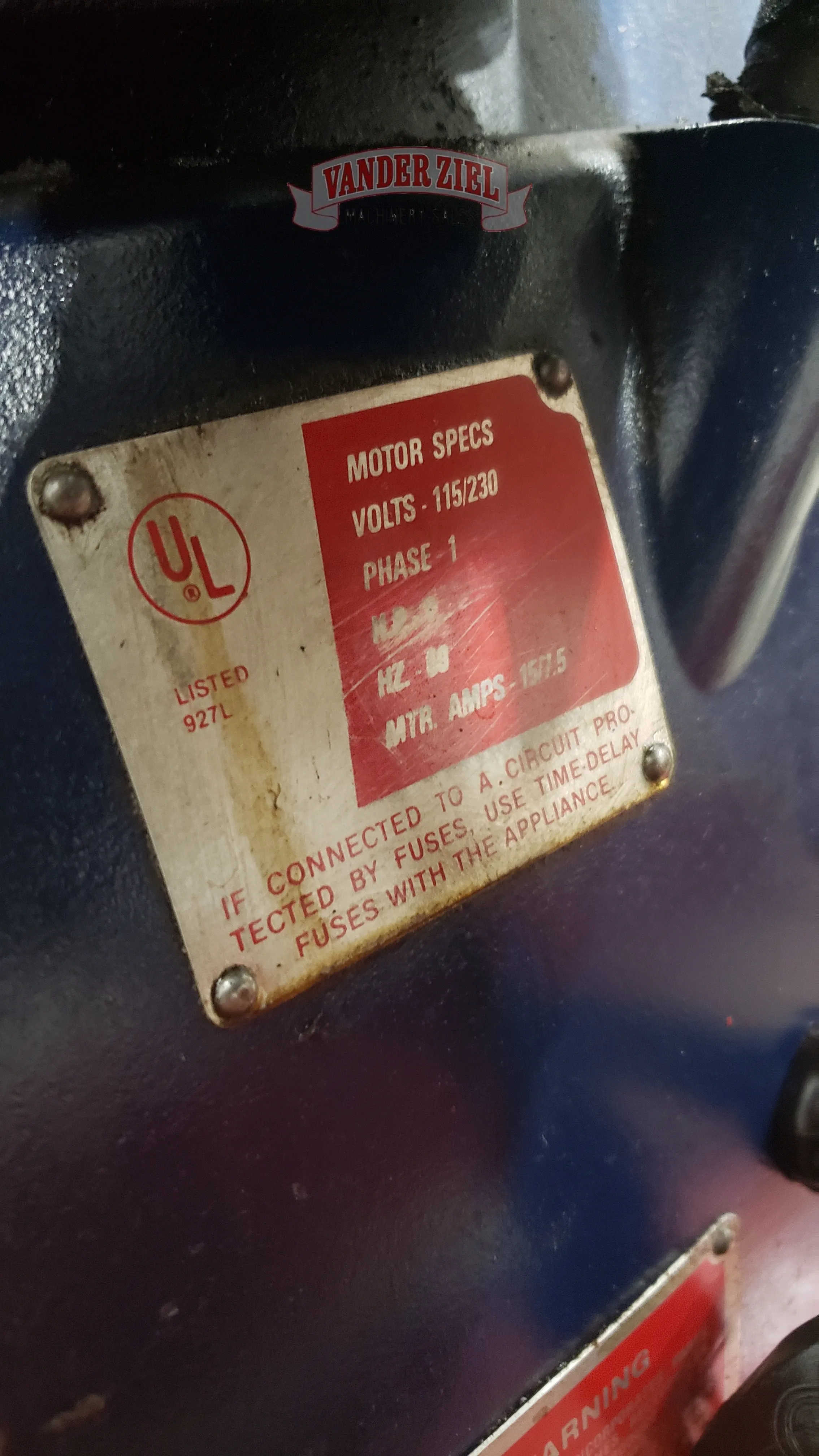

Motor: 1 hp

Max Rotor thickness: 1.875"

Max Rotor Diameter: 14.5"

Max Drum Diameter: No

Max Drum Depth: 6.875"

Double Taper Arbor: Yes

Flywheel Service capable: Yes

Drum Feed Rate: .002" to .020" /REV

Heavy Duty Max Arbor Capacity: 200LBS

Preliminary Specifications - Subject to Verification
