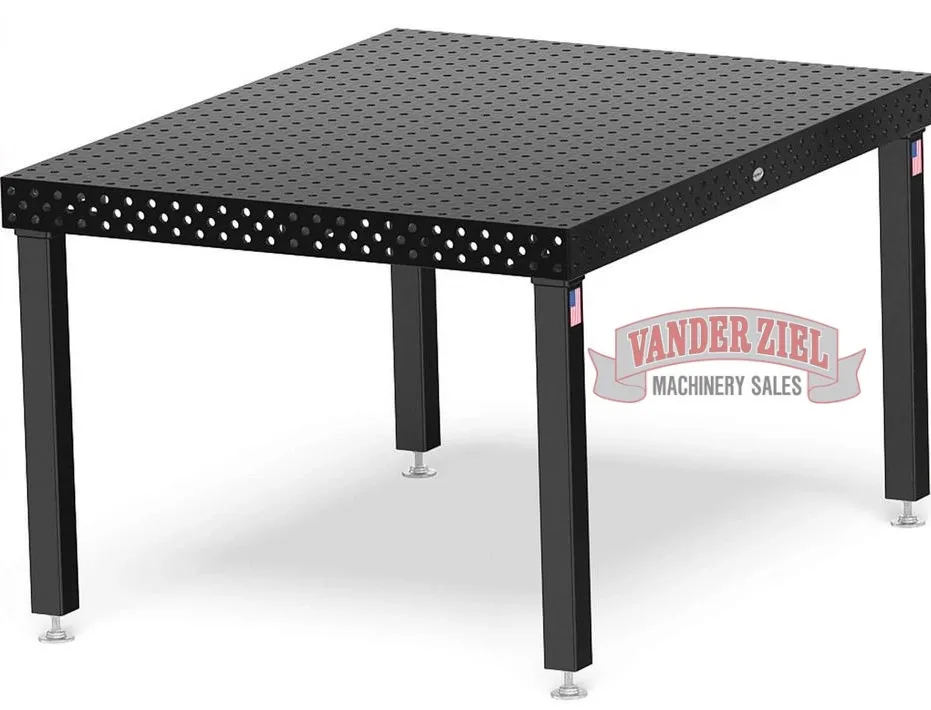

Welding Table Specs and Features:
- Overall Tabletop Size: 4' x 5' (48" x 60")
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US160035.X7
- Maximum Weight Load: 8,075 lbs. (Based on Even Distribution)
- Approximate Table Weight: 725 lbs.
- Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
- Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 3-5/16" - Borehole in Diagonal Grid.

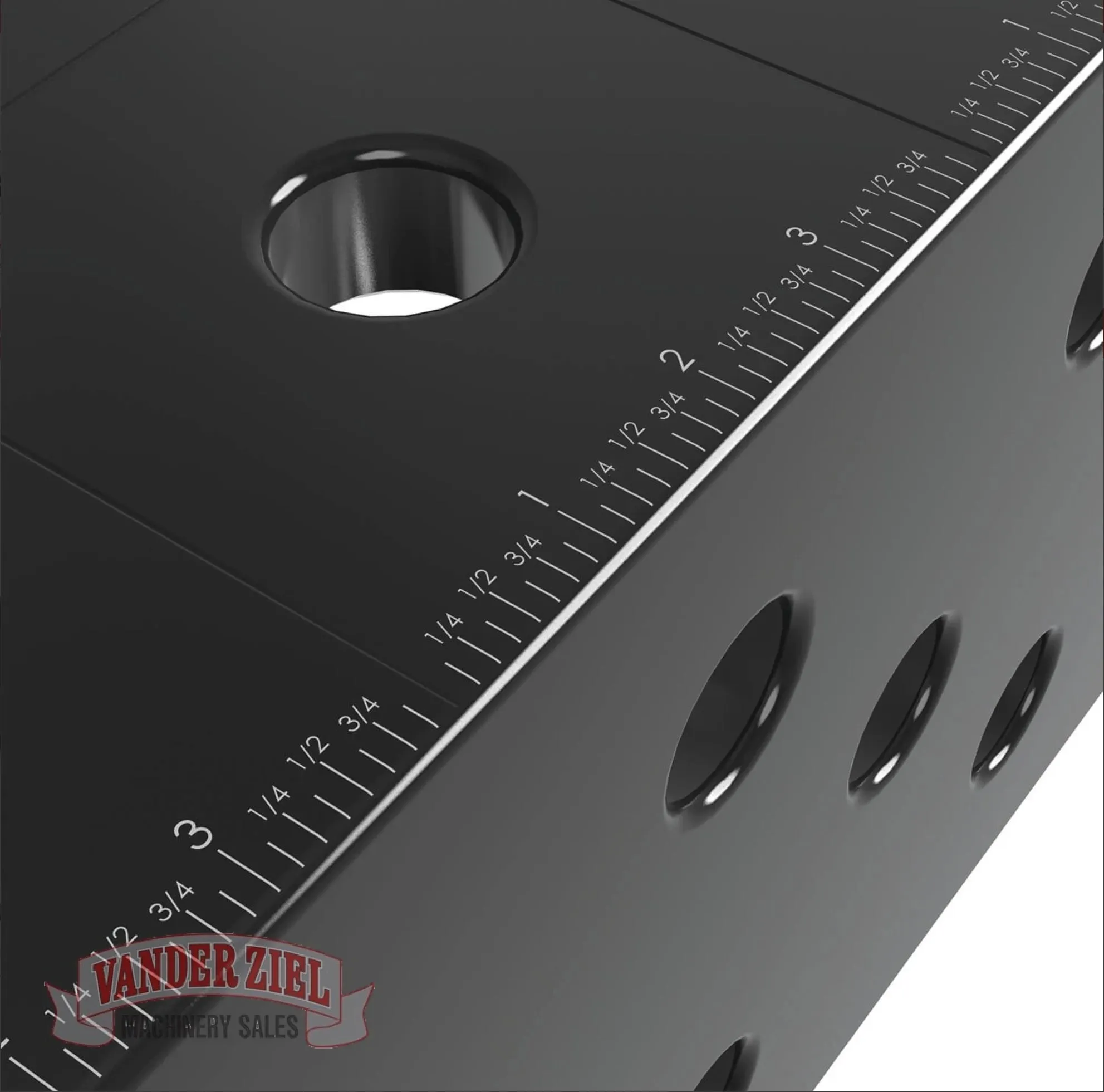

- INCH Scale Engraved on the Surface.
- Bottom of Structure has Reinforced Ribbing.
1. Standard Siegmund Leg(s)
- Item No.: US160858.X
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
