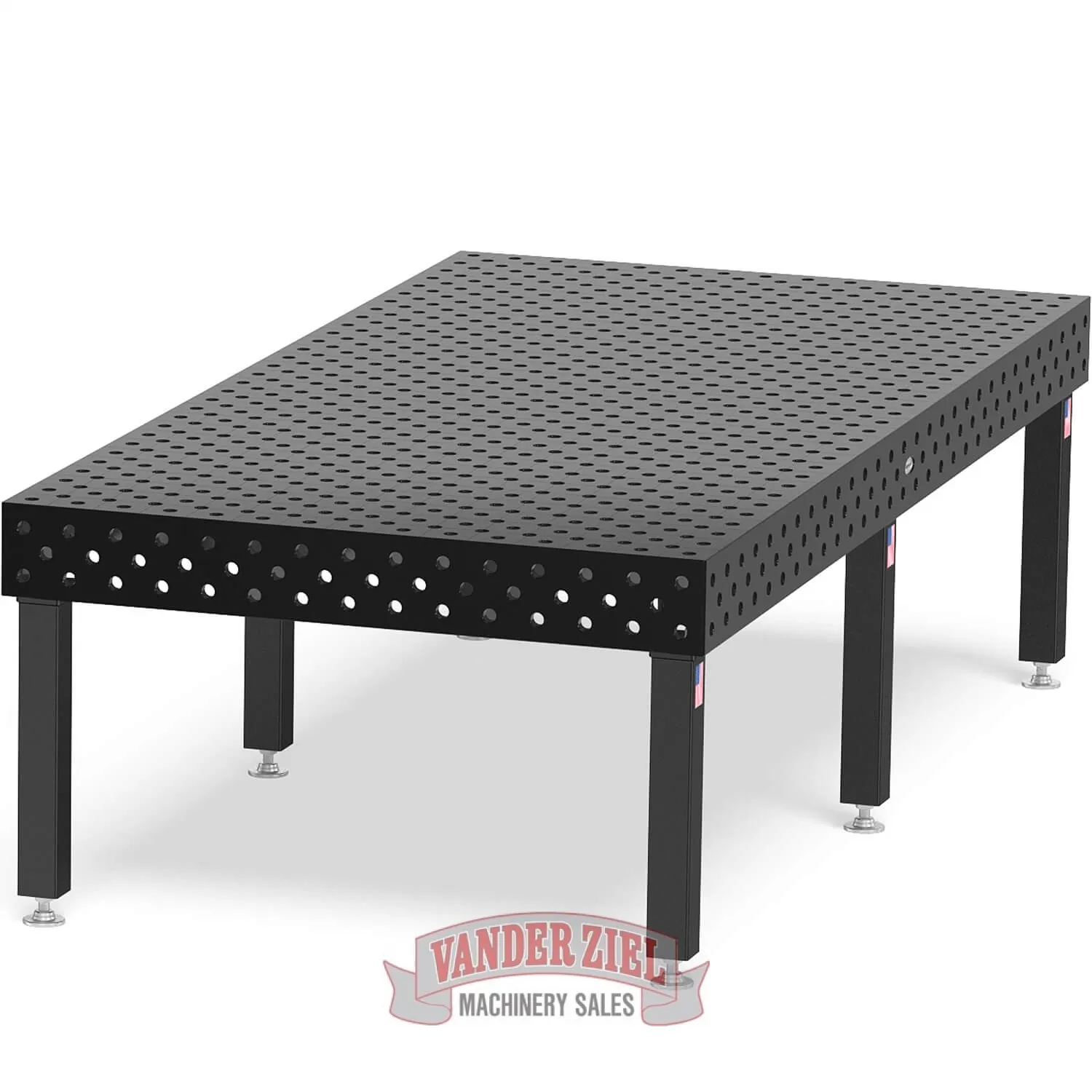

Welding Table Specs and Features:
- Overall Tabletop Size: 5' x 10' (60" x 120")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US280040.XD7
- Maximum Weight Load: 23,110 lbs. (Based on Even Distribution)
- Approximate Table Weight: 3,290 lbs.
- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 7-7/8" - Borehole in Diagonal Grid.

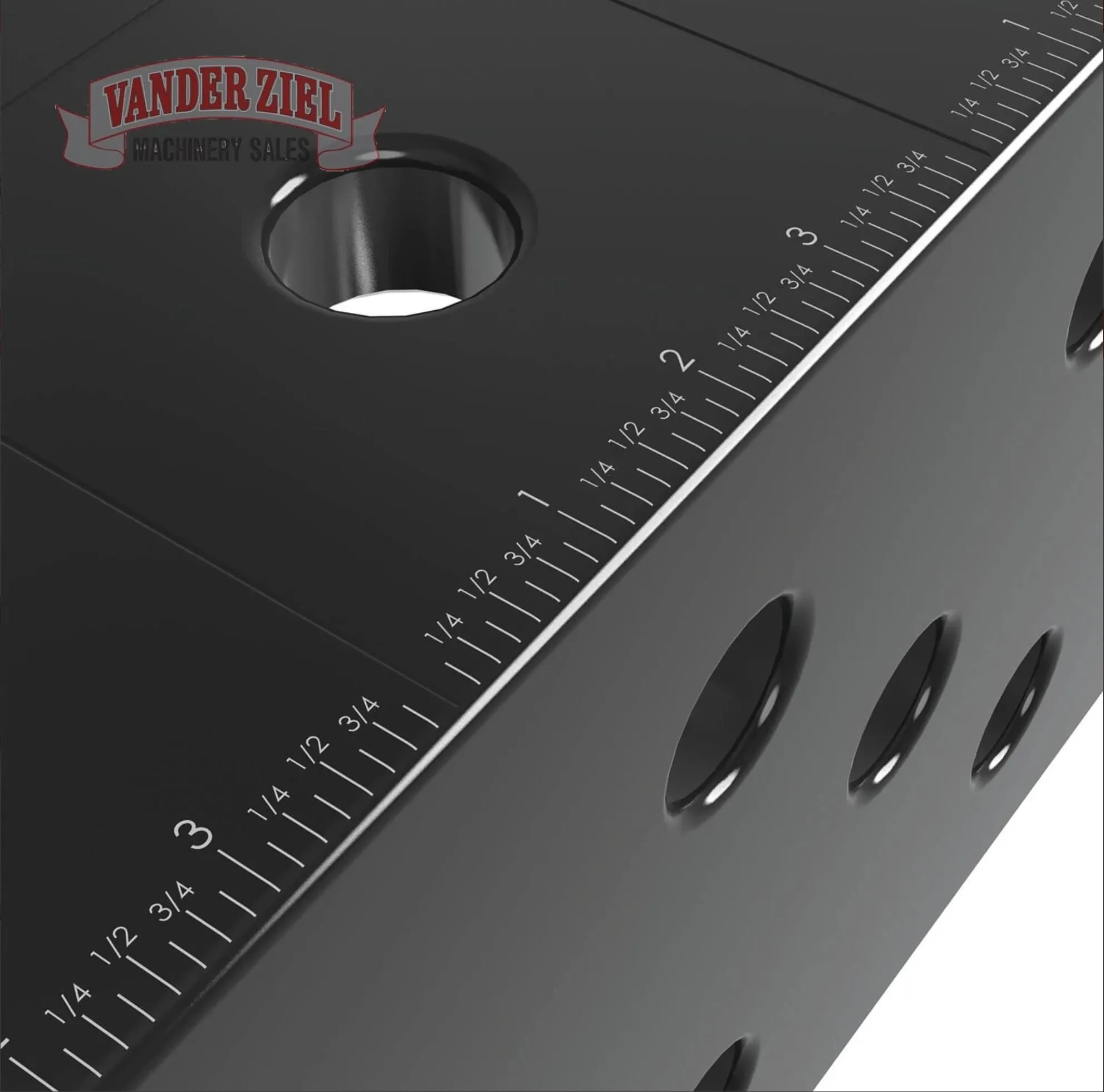

- INCH Scale Engraved on the Surface.
- Bottom of Structure has Reinforced Ribbing.
Standard Siegmund Leg(s)
- Item No.: US280858.X
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
