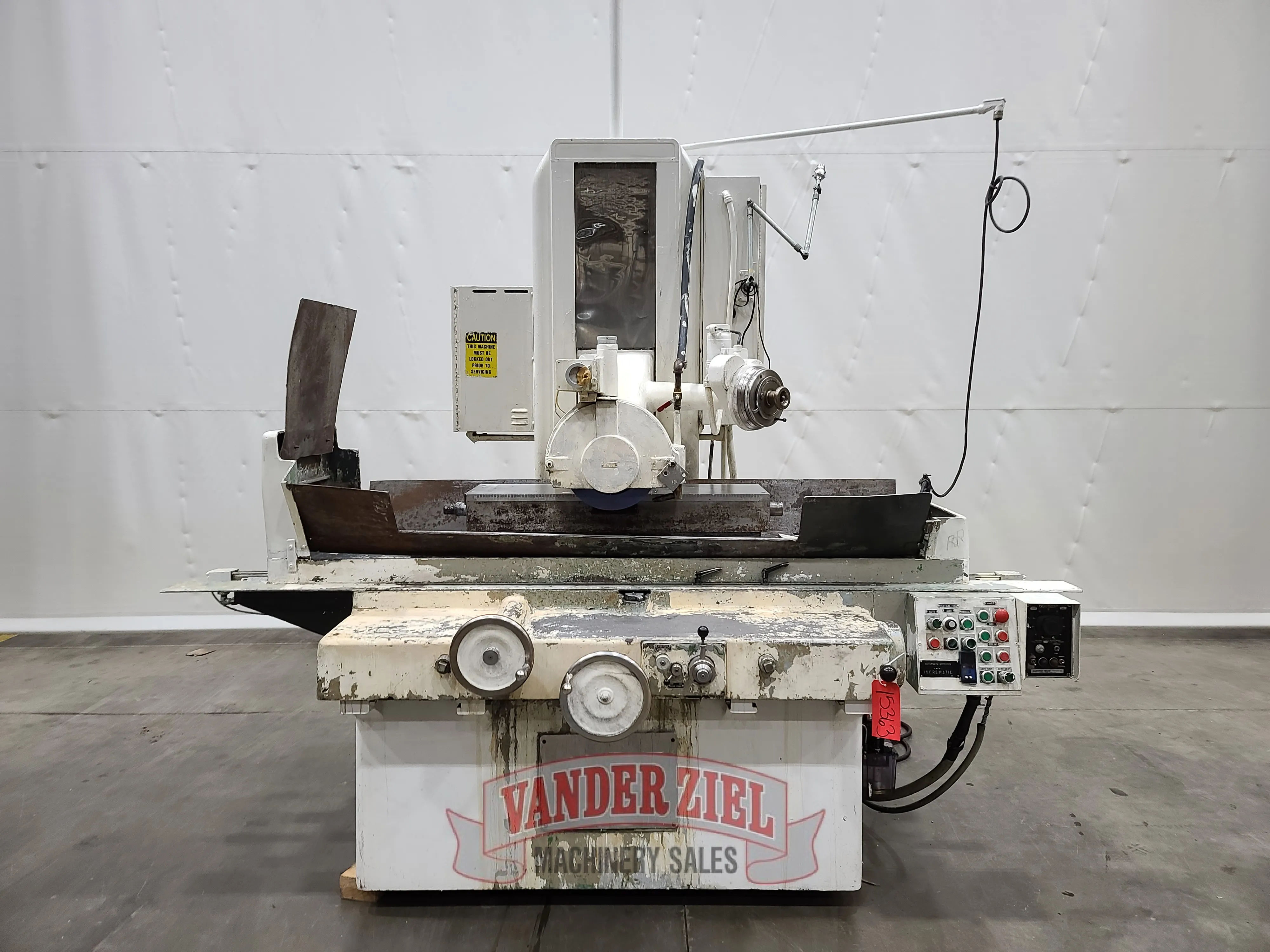

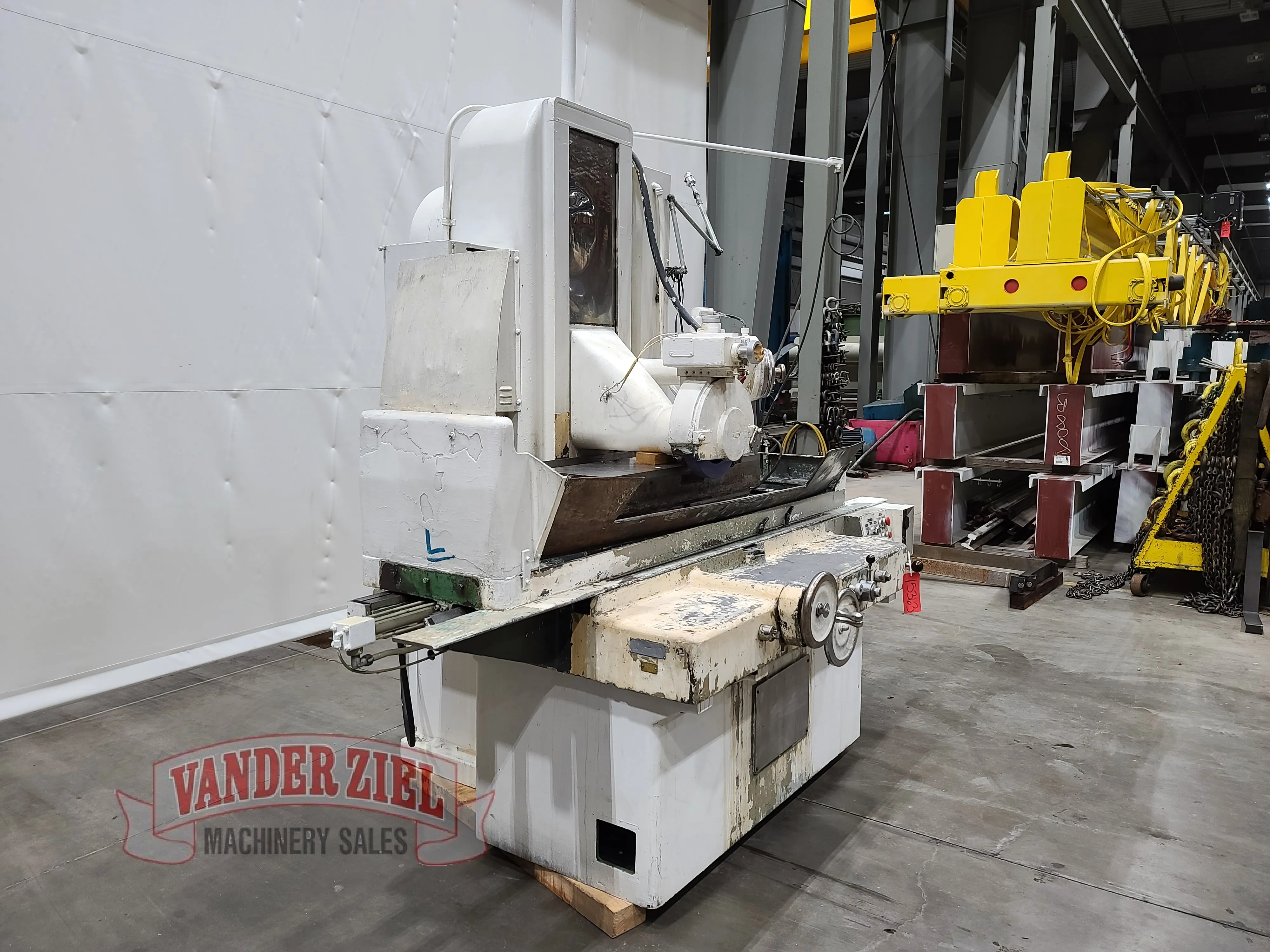

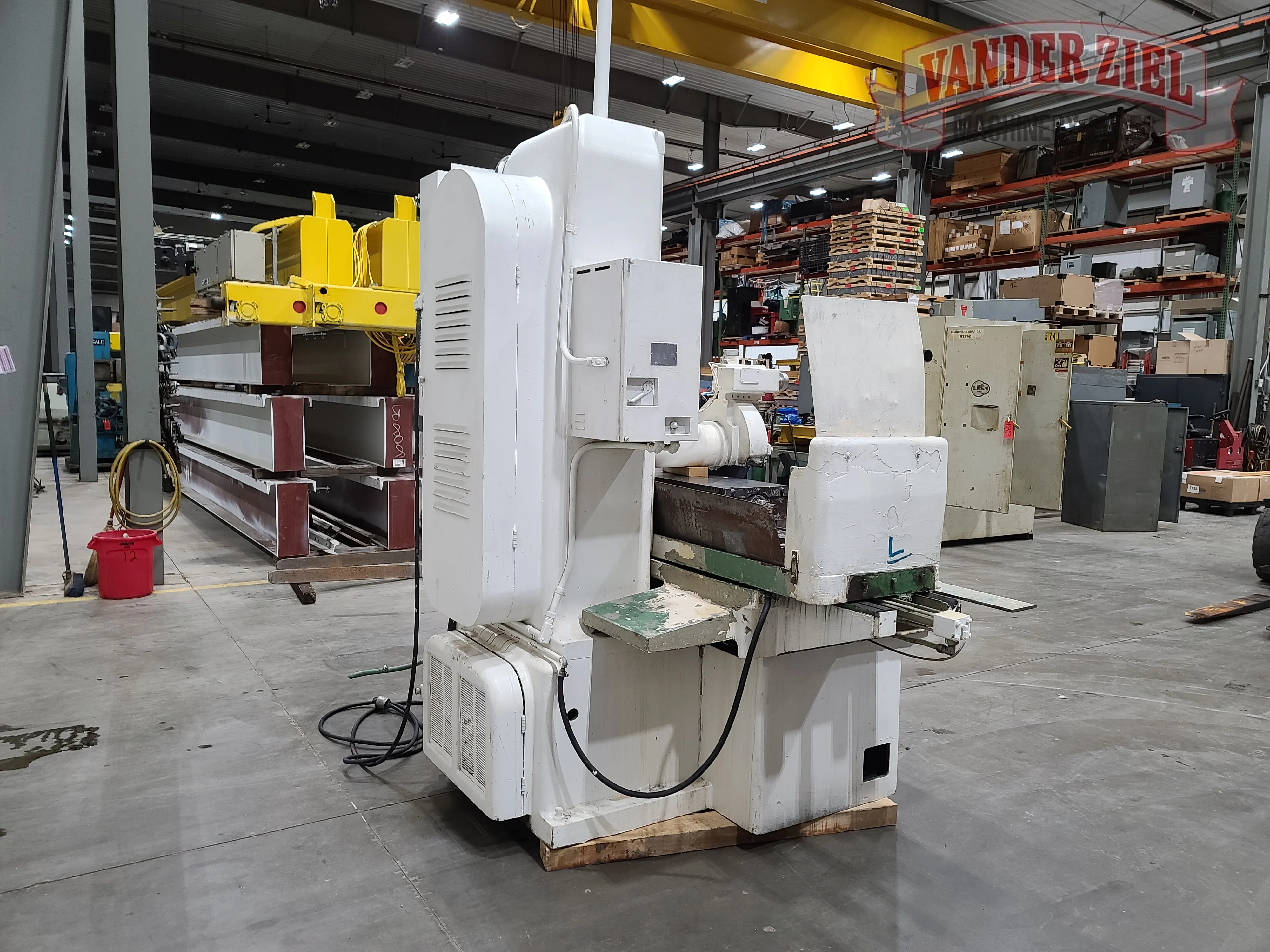

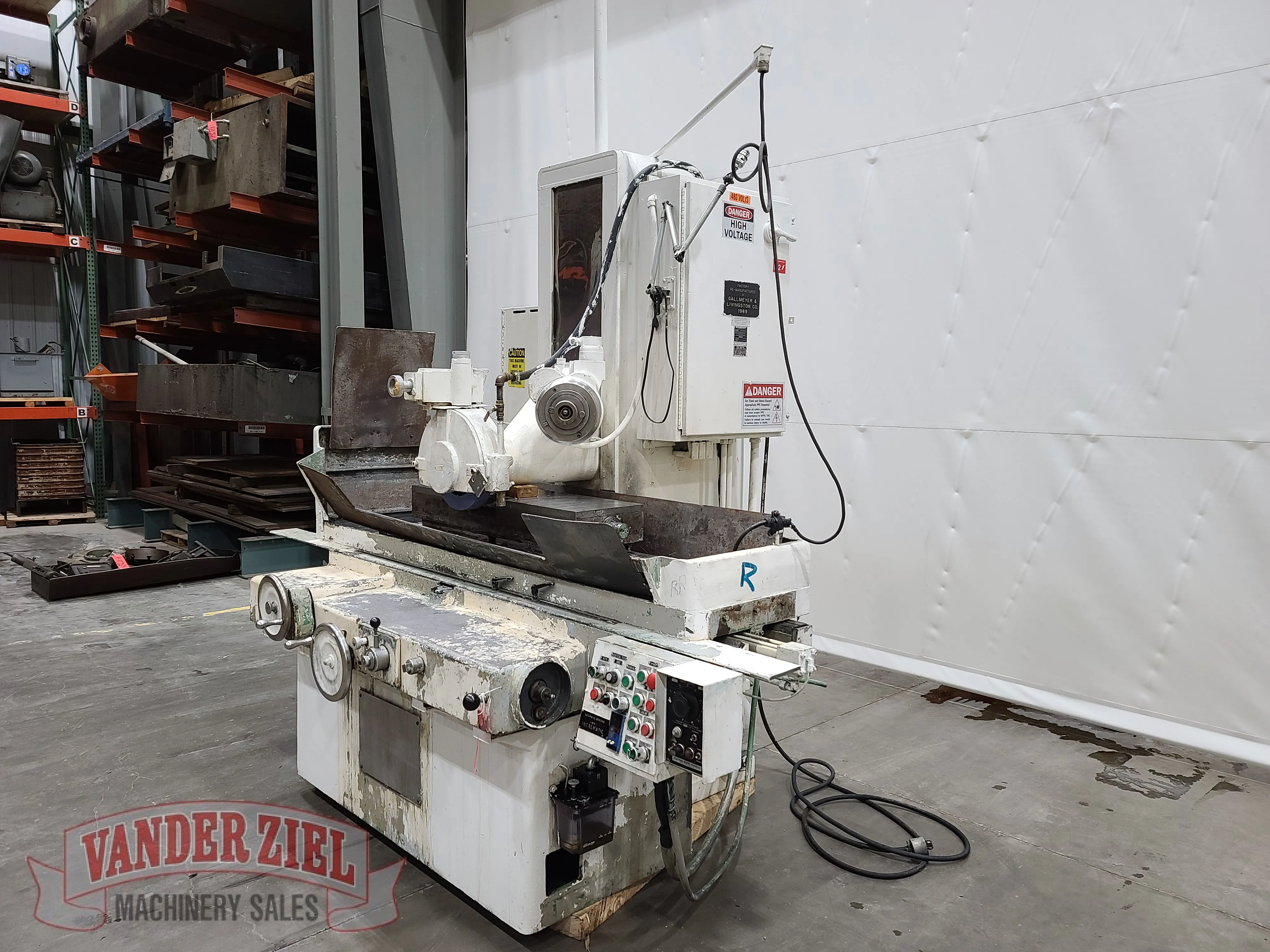

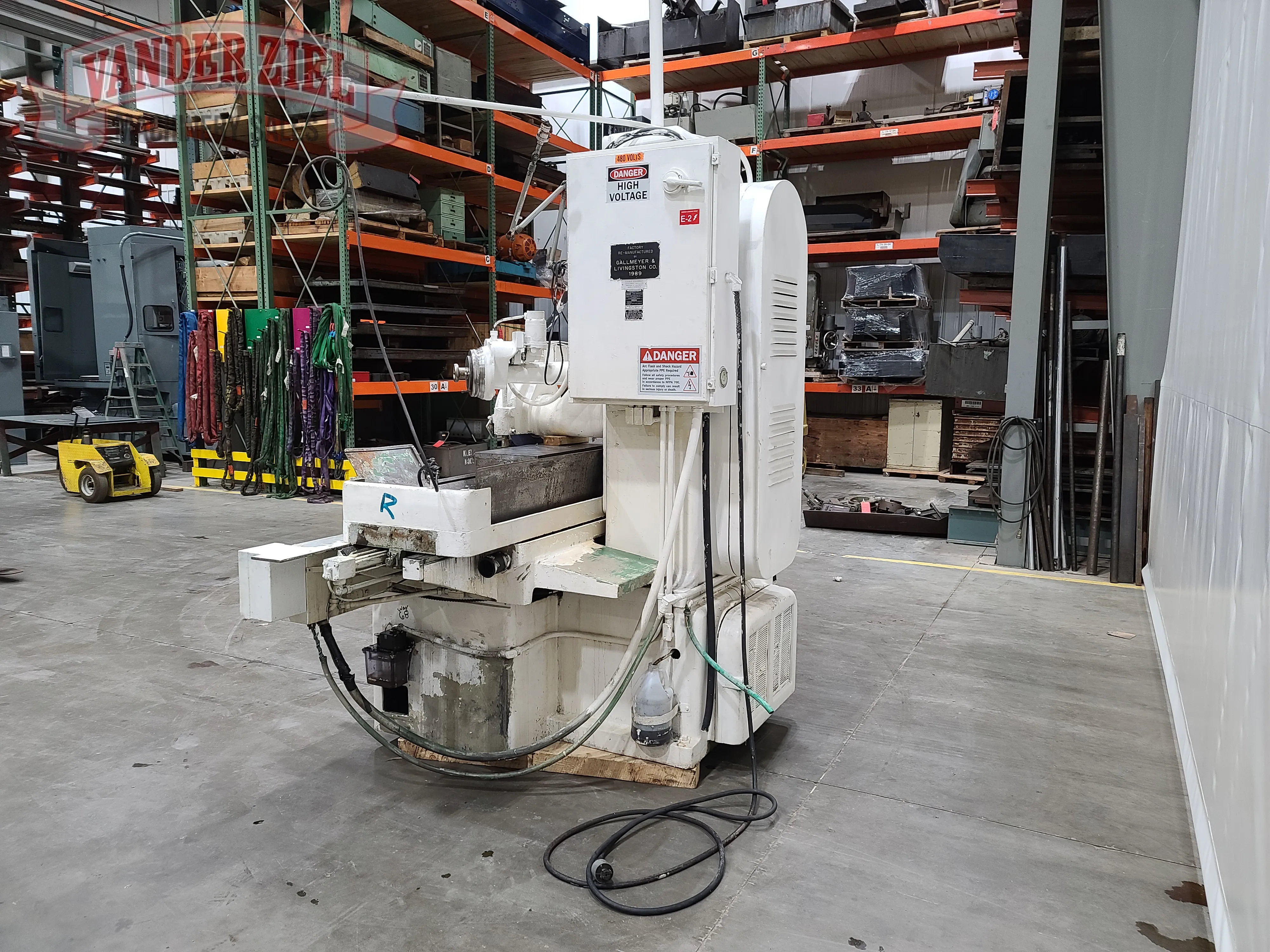

Gallmeyer & Livingston 16” x 48” Hydraulic Grinder, Model 670

Gallmeyer & Livingston 16” x 48” Hydraulic Grinder, Model 670

Asset # 15363

Specifications:

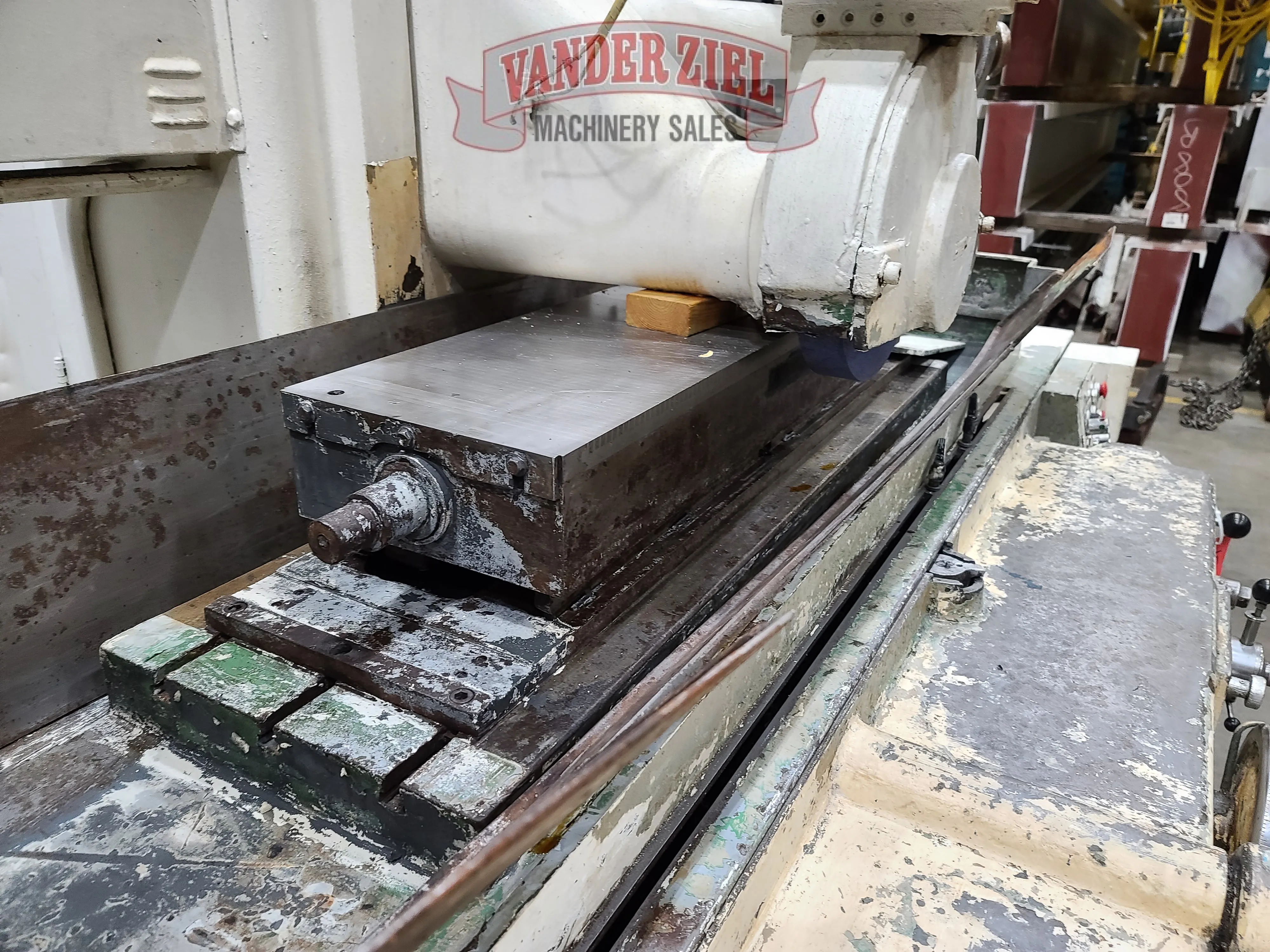

Chuck Size 12” x 40”
Max. Grinding Width 19”
Max. Grinding Length 48”
Work Height – Full Wheel 18”
Height Floor to Work Surface 38”
Spindle Wheel Diameter 14”
Spindle Wheel Width 1 ½”
Spindle Wheel Bore Size 5”
Throat Depth 19 1/8”
Housing Radius 3”
Spindle Speed 1750 RPM
Spindle Drive Motor 7 ½ HP
Vertical Adjustment Speed per Minute 9.33”
Table Work Surface 16” x 49”
Maximum Longitudinal Travel 59 ½”
Maximum Longitudinal Speed 100 ft/min
Maximum Cross Travel 17 ¾”
Continuous Cross Speed – Max. per Minute 120 per minute
Step Cross Travel – Maximum ¾”
Hydraulic Motor 3 HP
Floor Space 217” x 111”
Machine Height 103”
Approximate Weight 11,000 lbs.

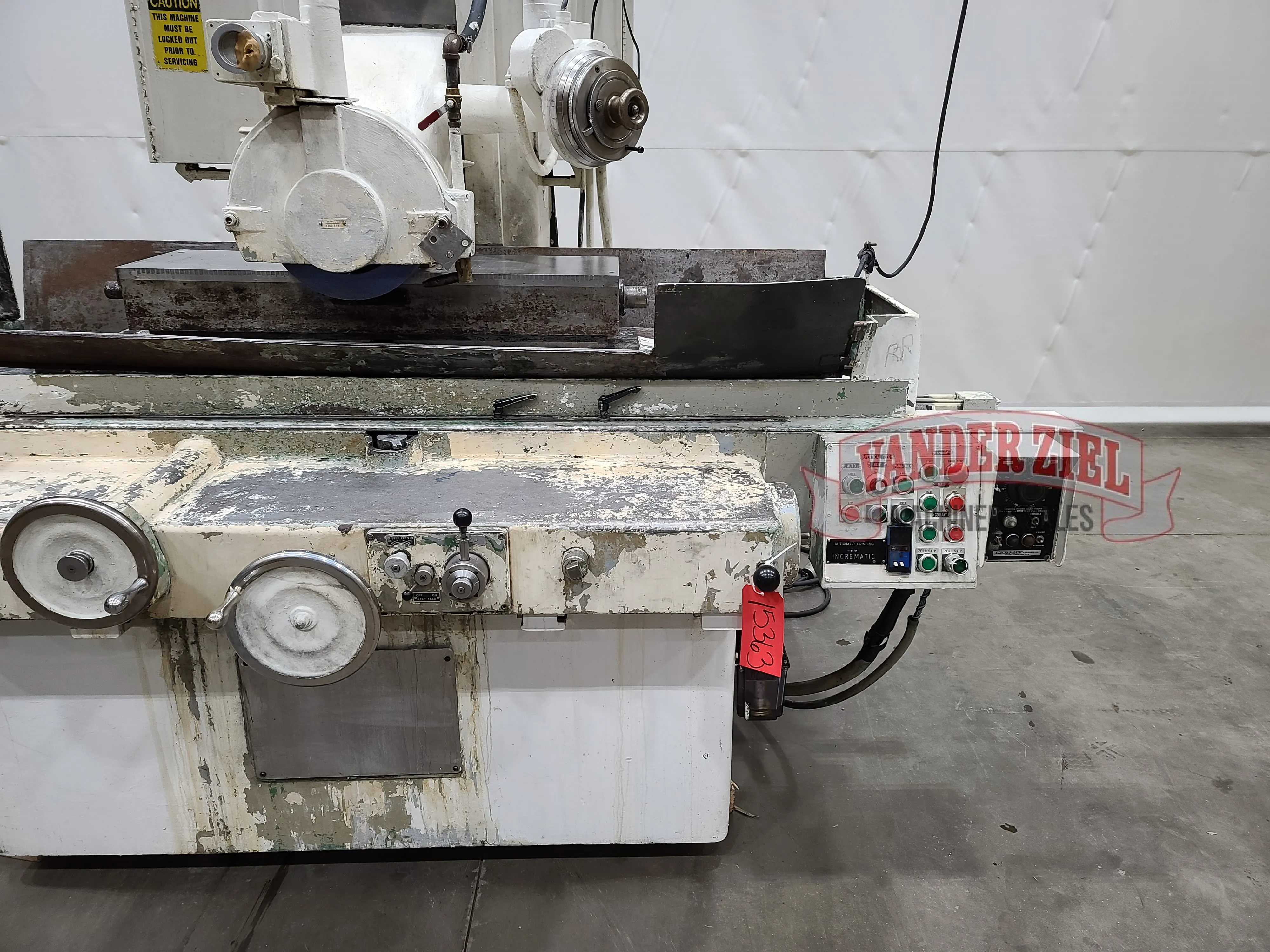

Grinder is equipped with incremental downfeed and a electromagnetic chuck control.

Preliminary Specifications – Subject to Verification
