Akyapak CR10 Conventional Rotator 10 Ton
Akyapak CR10 Conventional Rotator 10 Ton
Asset #15479

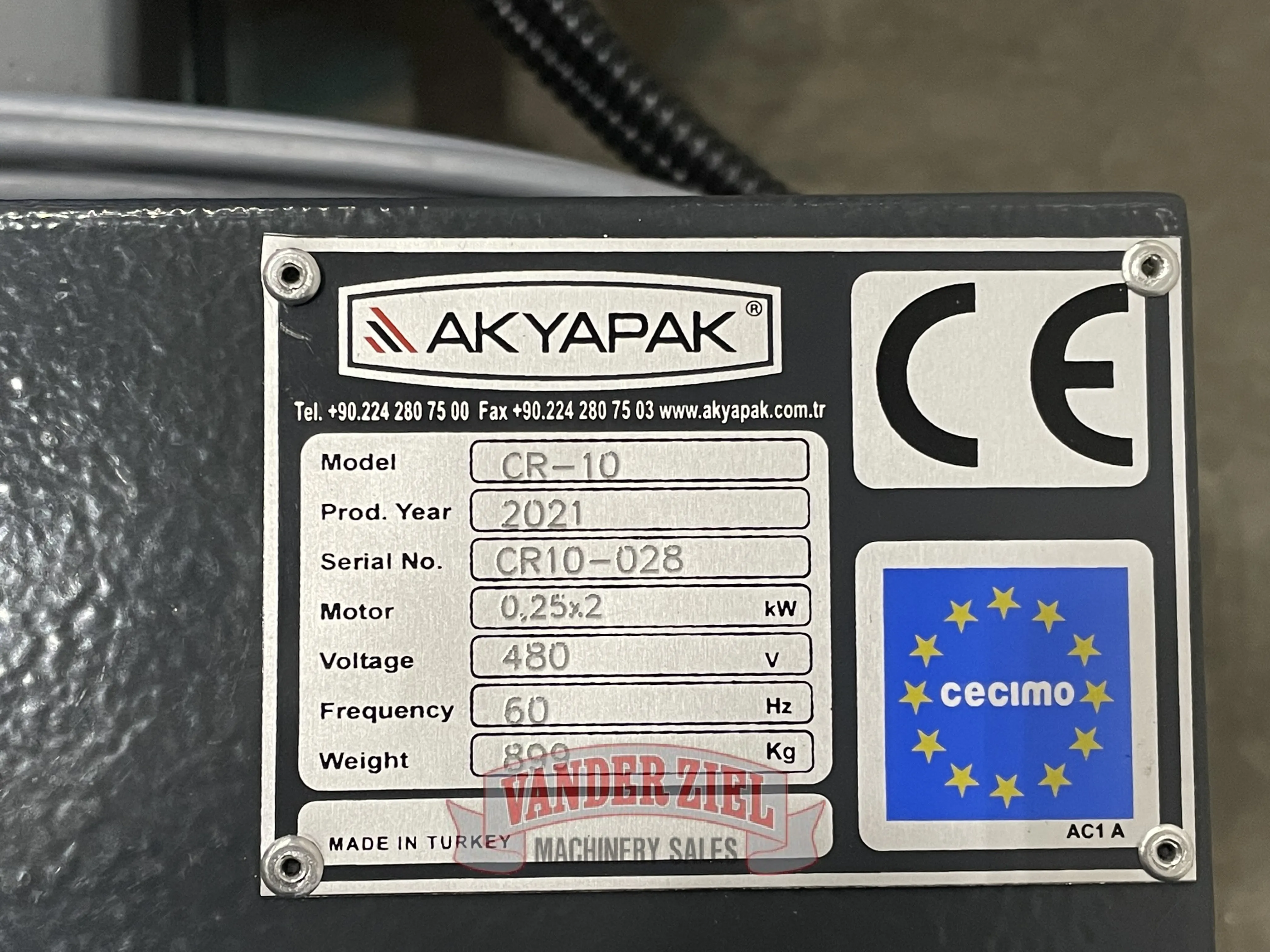

Serial #CR10-028

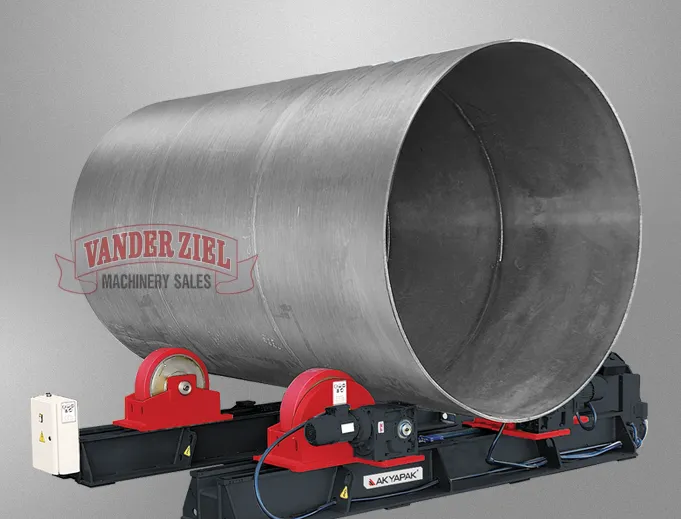

Conventional rotators are a high quality and economical solution for peripheral welding of cylindrical parts in cases that the diameter is not highly variable. Used for rotating circular parts such as tanks, pressurized containers, tower piping, boiler, silos, reactors, fuel drums etc.
Rotators improve the speed and efficiency both during automatic and manual welding and have an important role in steel construction workshops by minimizing crane operation..

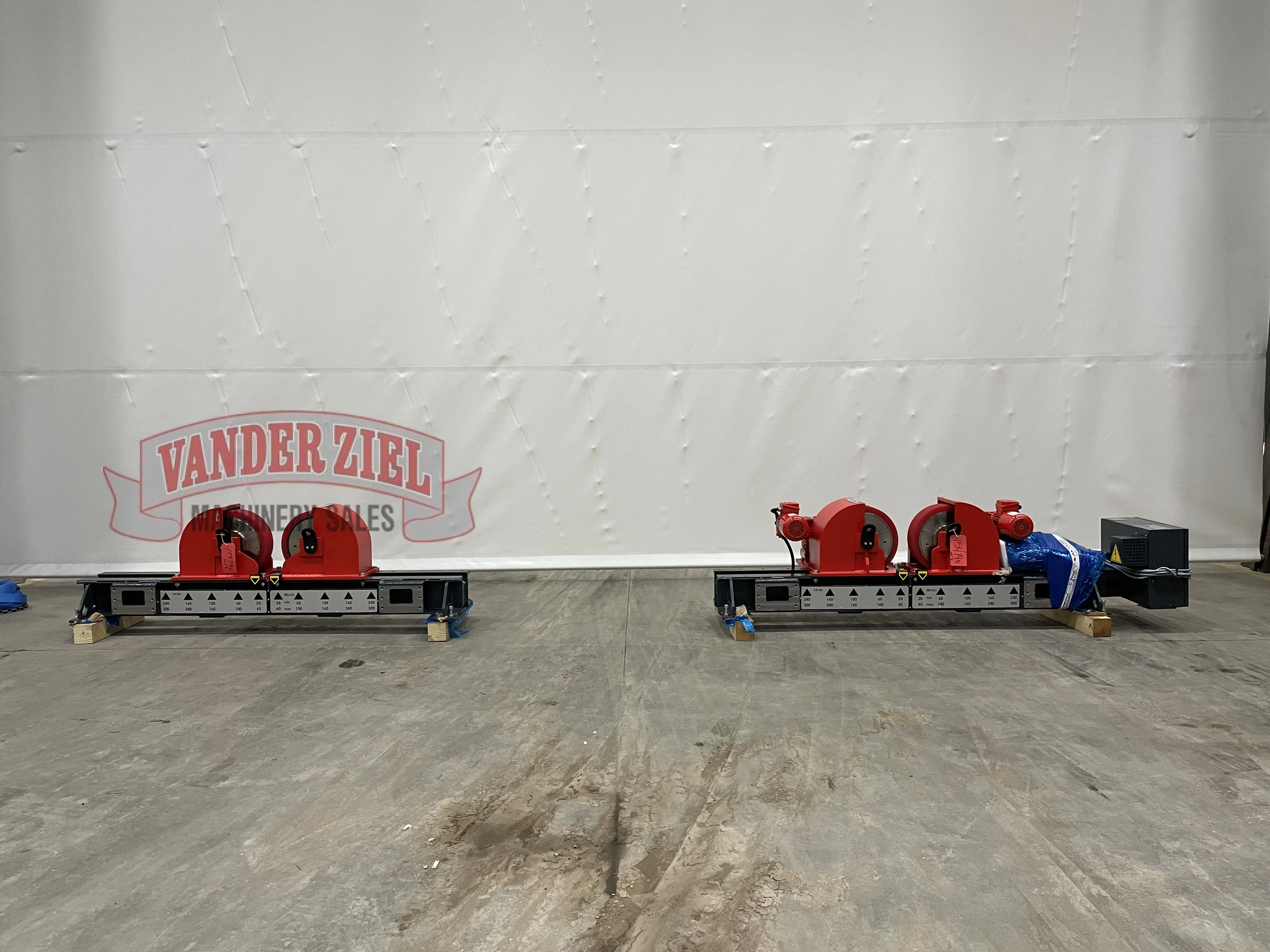

Operators can rotate the pieces mounted on the rotator clockwise or counterclockwise, precisely, well-aligned and controllable via control panel, in easily adjustable speeds. Conventional rotators comprise of two units as 1 drive and 1 idle unit. Number of drive and idle units can be changed according to the application conditions.
Akyapak includes 1 to 300 tons conventional rotators in its standard lists. However, custom production can be realized up to 600 tons.
Standard Features:
- "PU" roller absorbing shocks and vibrations
- Manual diameter adjustments
- Adjustable rotating speed
- Remote controller with 5 meter cable length
- Digital speed indicator on the controller panel for monitoring rotation
- Motors with brake
Optional Features:
- Custom roller designs for areas that require high temperature
- Axis Support
- Brush Earthing System
- Bogie Rail Travel system
- Master Control Panel (see the option in Column &Boom)
- Rail
- Auto diameter adjustment (motorized)
- Wireless remote controller
Load Capacity 22,000 lbs.
Load Capacity per Units 11,000 lbs.
Minimum Diameter 9.84"
Maximum Diameter 118.11"
Roller Diameter 15"
Roller Width 4"

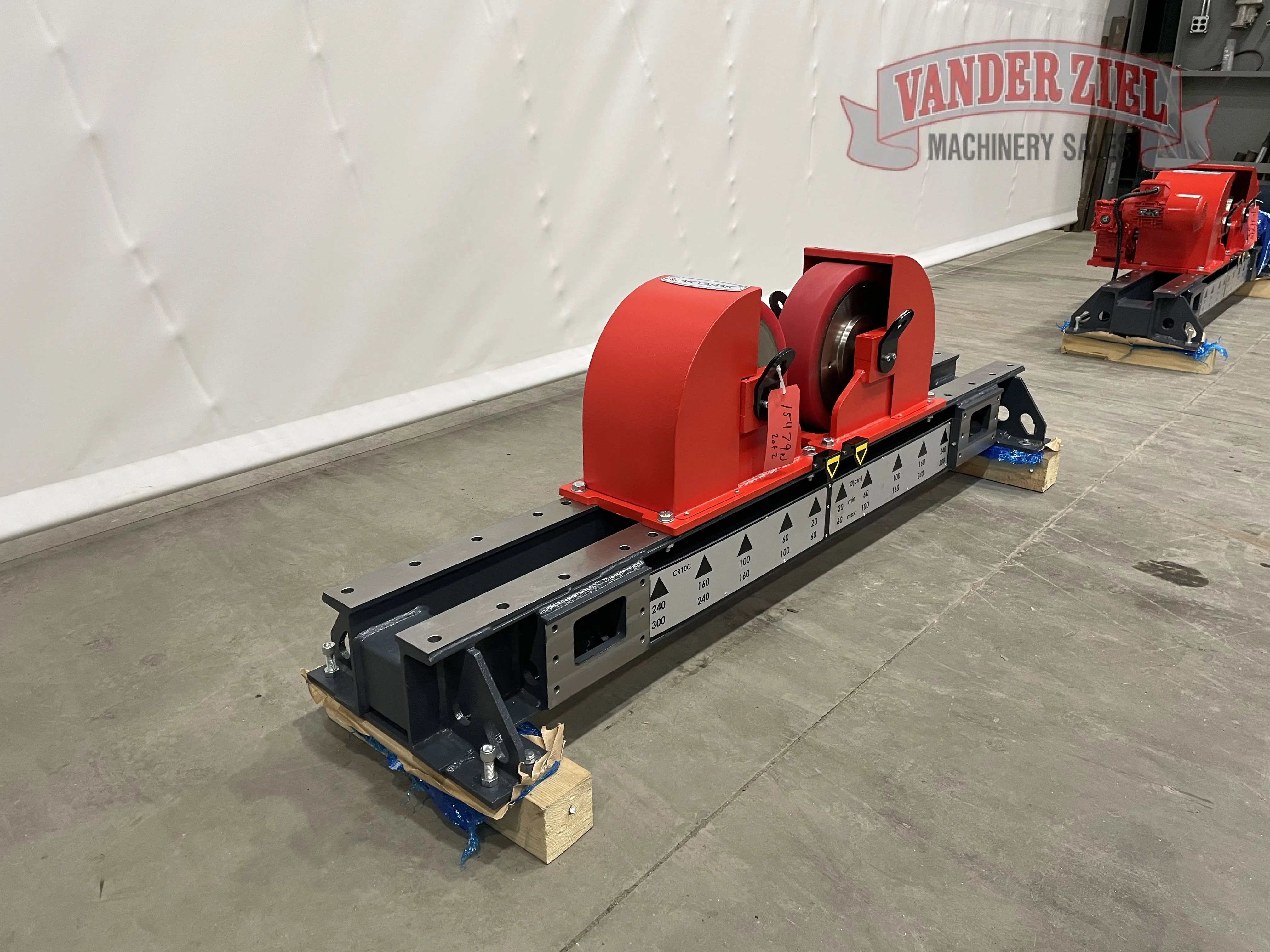

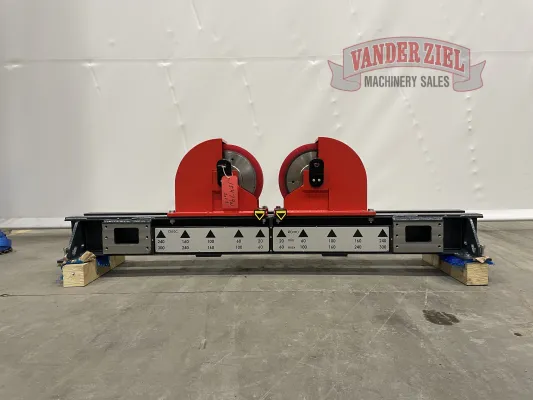

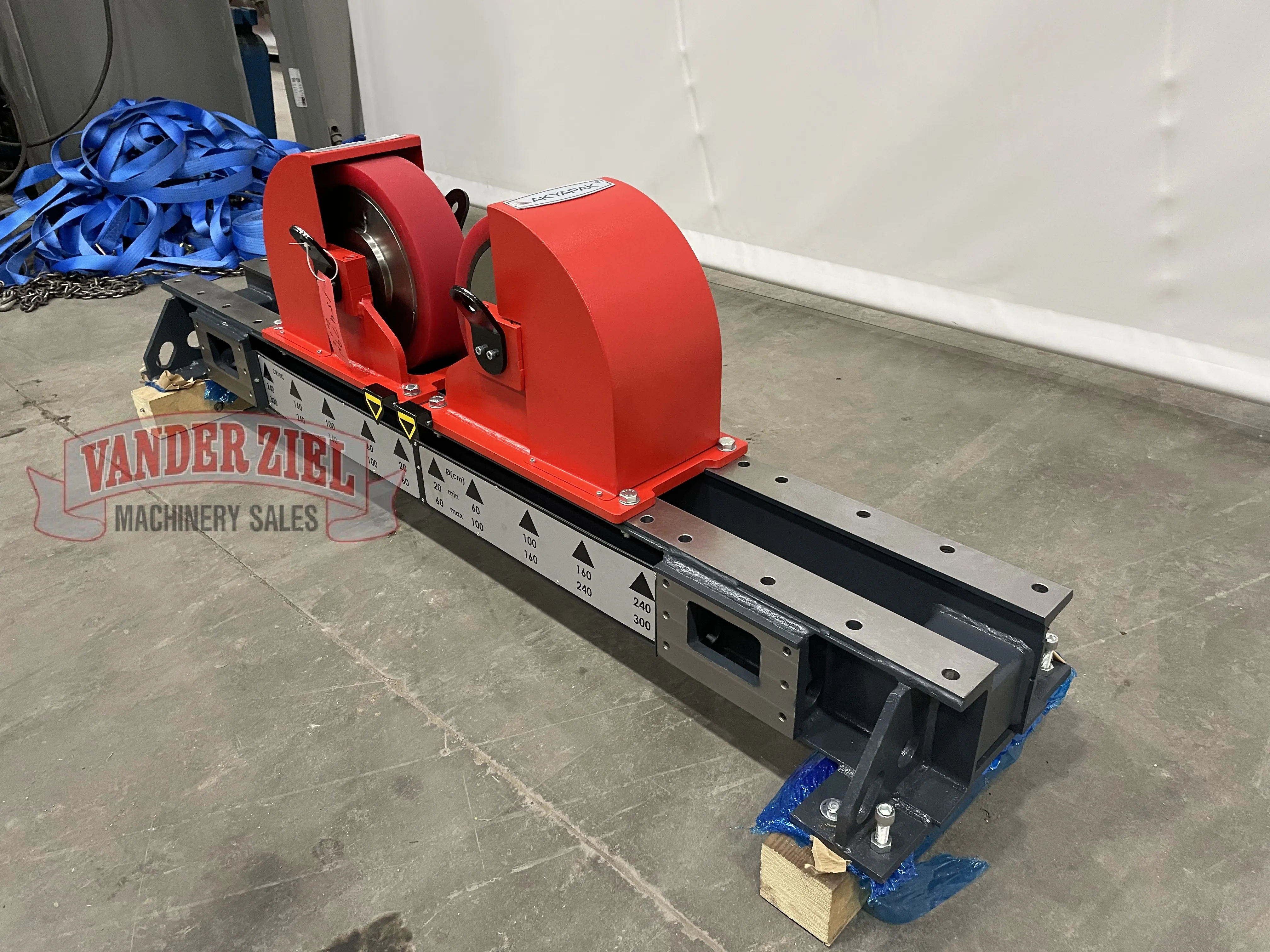

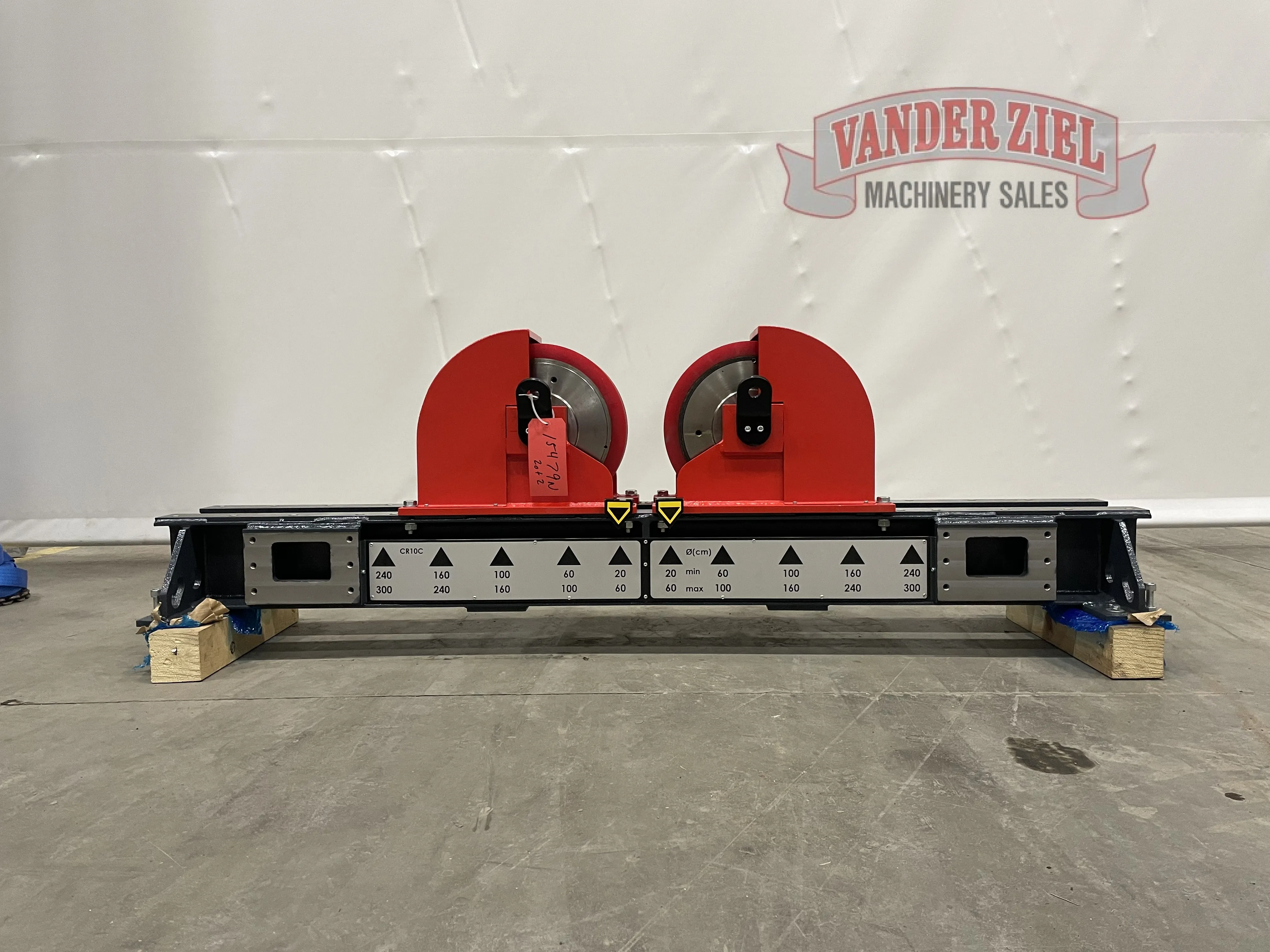

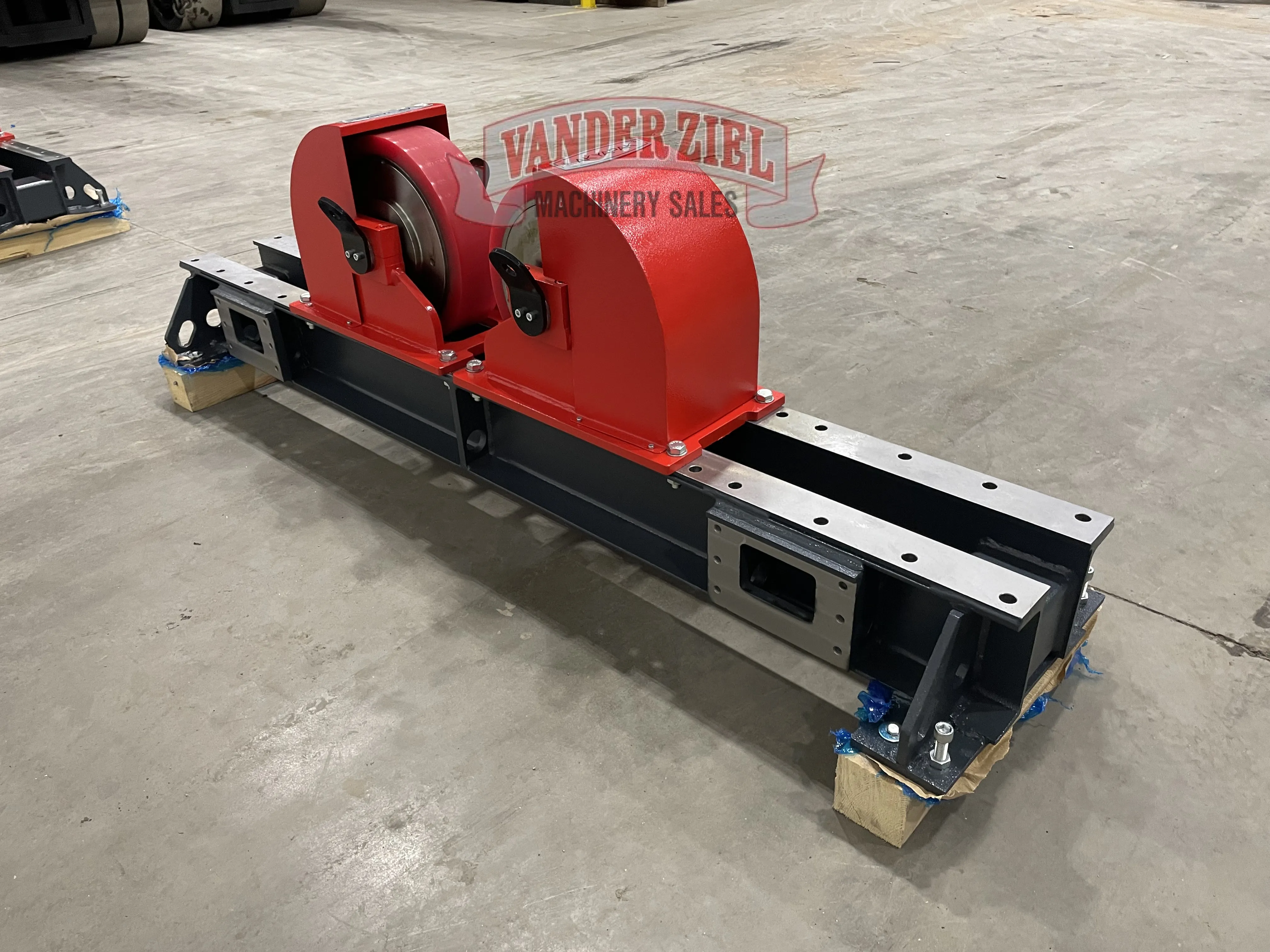

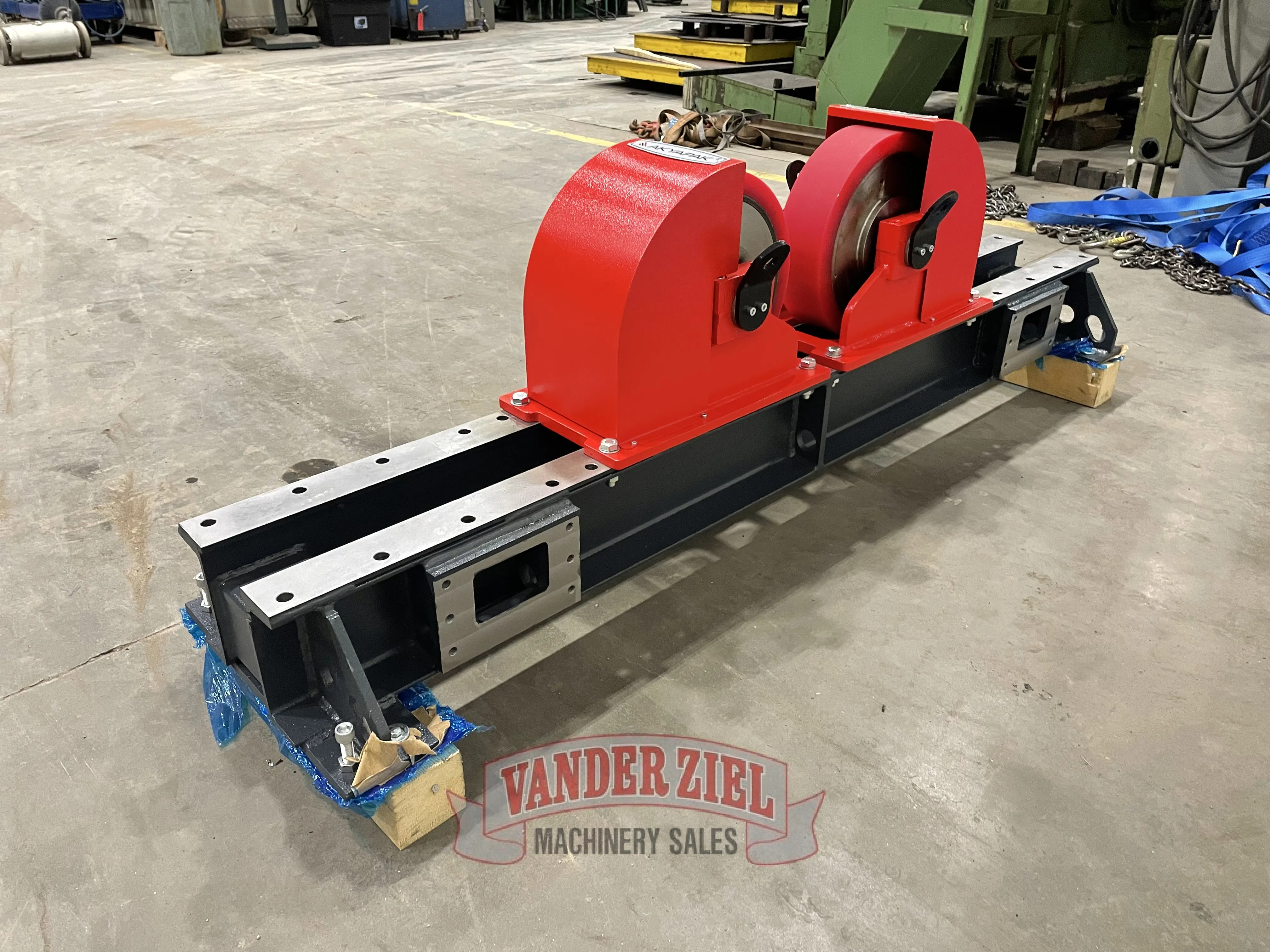

Overall Length Idler 78.74"
Overall Width Idler 18.90"

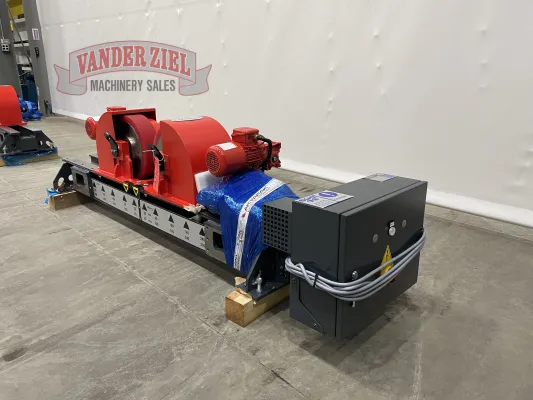

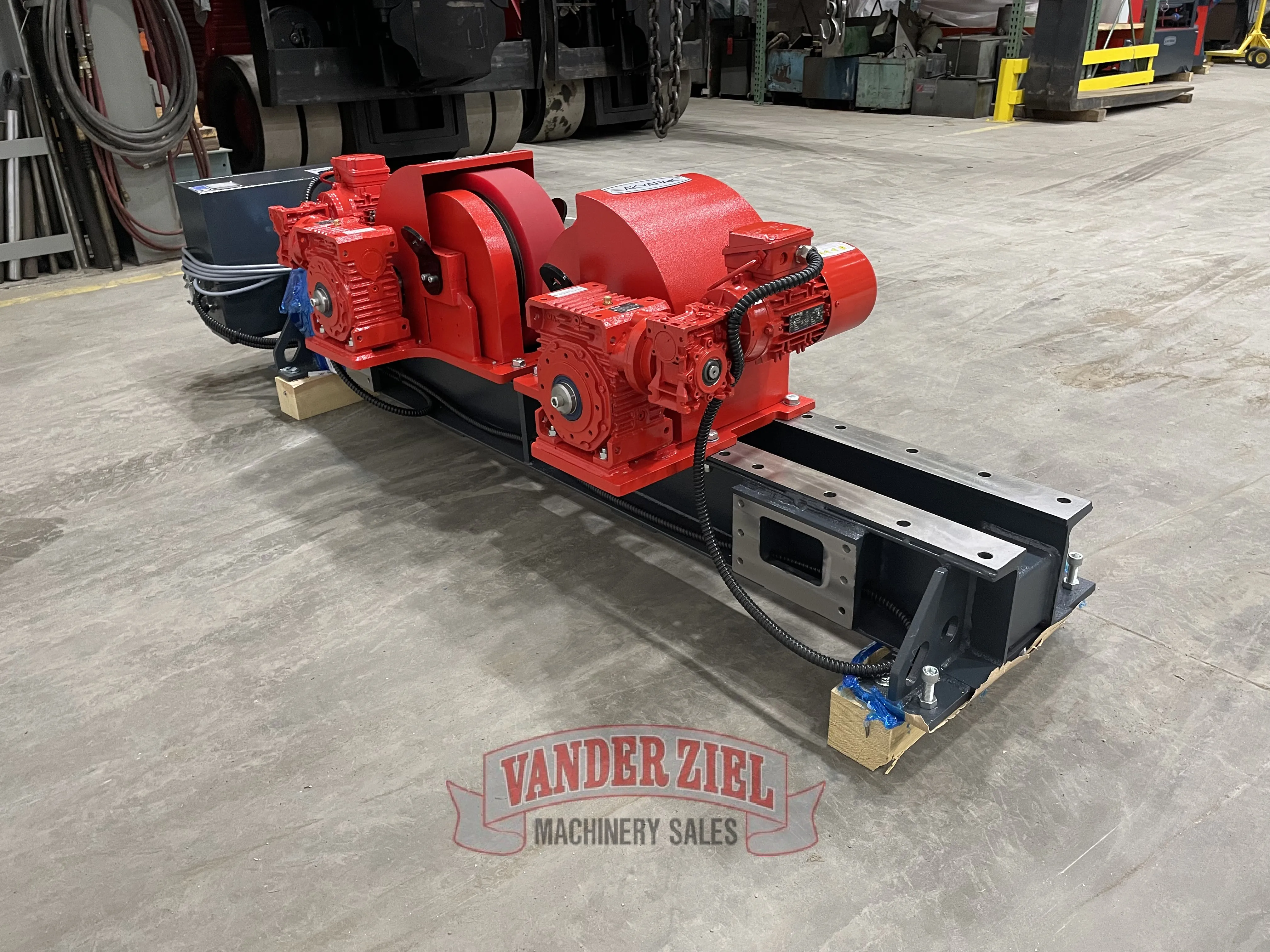

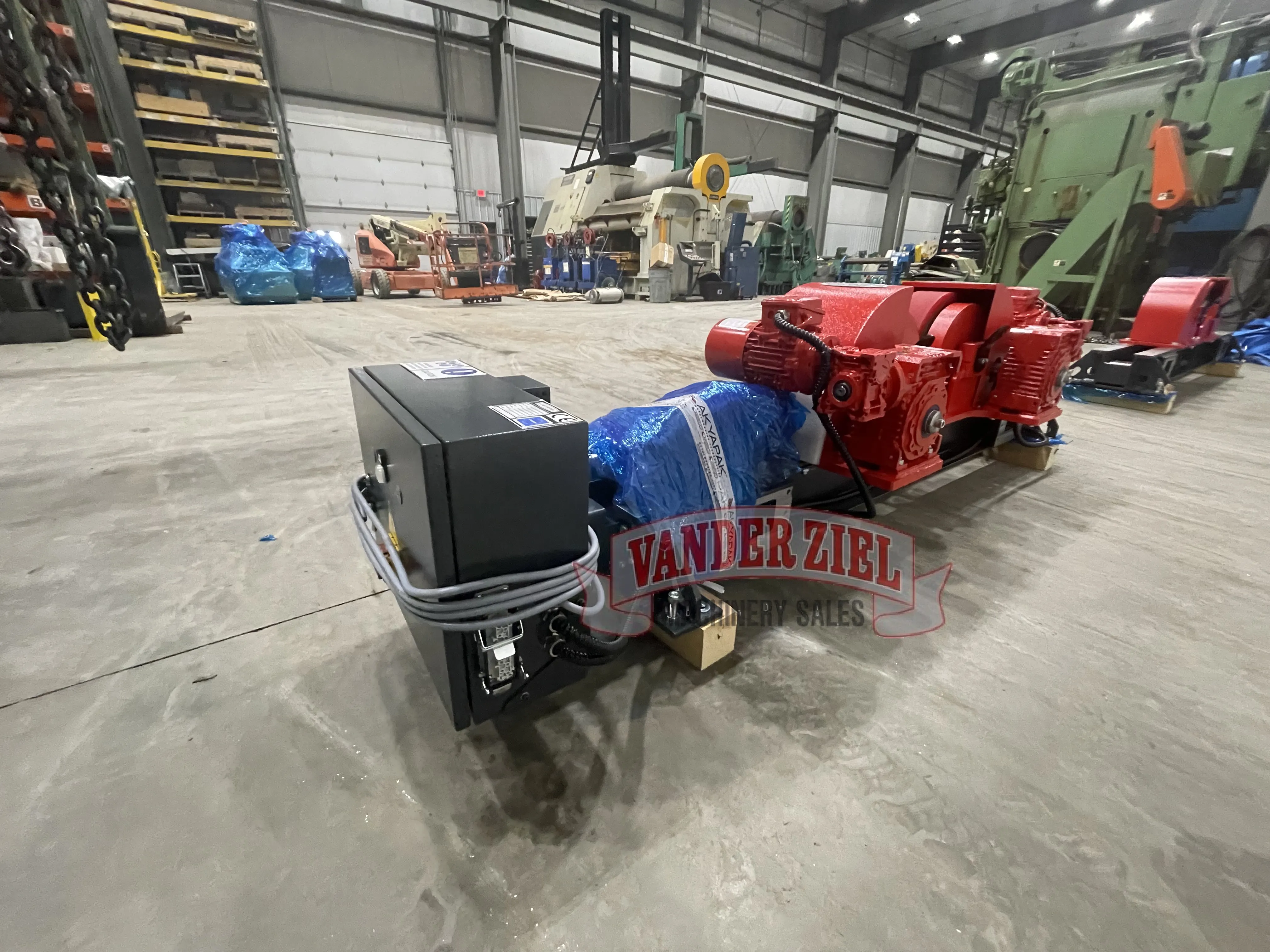

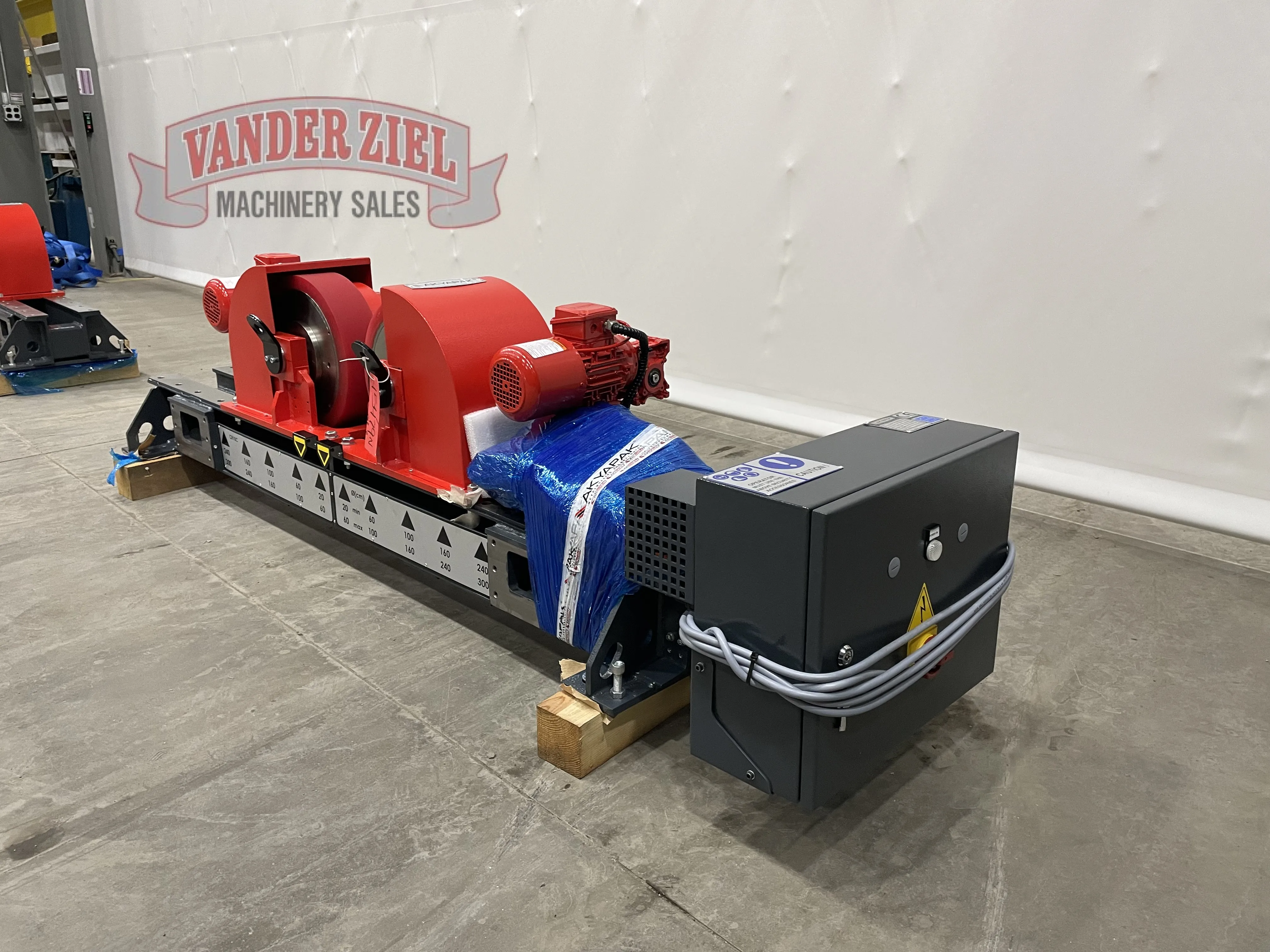

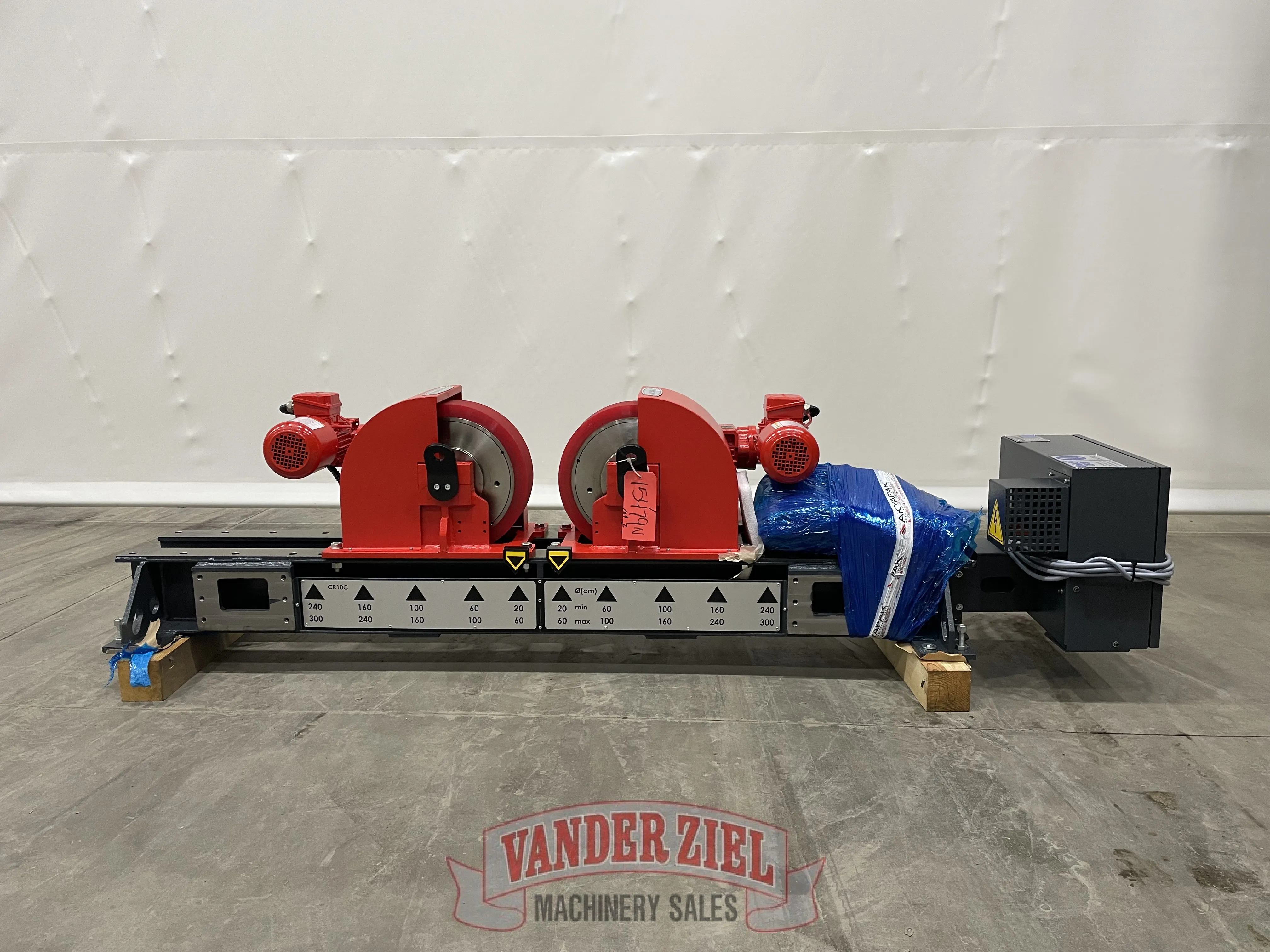

Overall Length Drive 110.24"
Overall Width Drive 23.23"
Height over Rollers 22.05"
Motor 2x0.24 HP
Preliminary Specifications - Subject to Verification
