Scotchman 95 Ton Dual Operator Ironworker, Model DO 95/140-24M, 480 Volt / 3 Phase - NEW
Technical Specs
Description

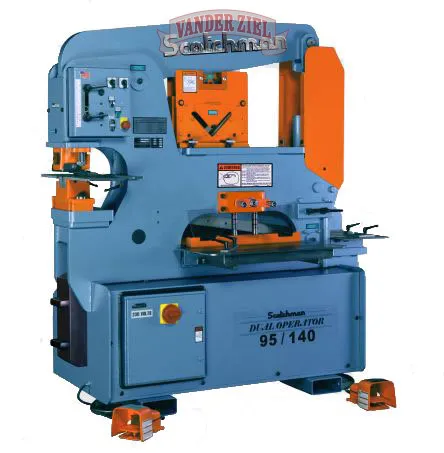

Scotchman 95 Ton Dual Operator Ironworker, Model DO 95/140-24M, 480 Volt / 3 Phase - NEW
Asset #15651N
The two main features that set Scotchman’s Dual Operator Ironworkers apart from others are:
1) On all non-Scotchman dual operator models, the punch station must be used as one of the two functions. On the Scotchman, the punch can be used as one if needed, but it is not required.
2) The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.
The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus the best in the business, 3-year parts warranty makes DO 95/140/24M hydraulic ironworker an industry leader.
| Rated on: | 65,000 PSI Tensile | A 36 Mild Steel |
| Punching Capacity | 95 ton1-3/16" in 1" | 86 mt27 mm in 25 mm |
| Special Tooling | 4" Max. Dia. | 100 mm through 5.5 mm |
| Throat Depth | 9" | 225 mm |
| Flat Bar Shear(sabre blade-std.) | 140 ton24" Length1" x 8"3/4" x 12"1/2" x 16"3/8" x 24" | 127 mt609 mm25 mm x 203 mm18 mm x 304 mm12 mm x 406 mm10 mm x 609 mm |
| Angle Shear 90°Angle Shear 45°(with Bar Shear) | 6" x 6" x 1/2"3" x 3" x 3/8"4" x 4" x 1/2" | 150 mm x 150 mm x 12 mm75 mm x 75 mm x 10 mm100 mm x 100 mm x 12 mm |
| Brake 12"Brake 24" | 80 ton55 ton | 72.50 mt50 mt |
| Open End Brake | Max. 1/4" x 5"Flat or Angle Iron | 6 mm x 125 mm |
| Pipe NotcherSchedule 40 | 3/4"1"1-1/4"1-1/22" | 19 mm25 mm32 mm38 mm50 mm |
| 90° V-Notcher | 6" x 6" x 5/16" | 150 mm x 150 mm x 8 mm |
| Rectangle Notcher | 3" x 5" x 3/8"3" x 4" x 1/2" | 75 mm x 125 mm x 10 mm75 mm x 100 mm x 12 mm |
| V-Notch | 3" x 3" x 3/8" | 75 mm x 75 mm x 10 mm |
| Notching in Leg of Channel | 6" to 10" | 150 mm to 250 mm |
| Channel Shear | 2" to 6" adj. | 50 mm to 150 mm adj. |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/4" to 1-1/4", 9 Cavity1/4" to 1", 1 Cavity | 6 mm to 32 mm6 mm to 25 mm |
| Strut Shear | Samples Required | |
| Square Tube Shear | 1/2" to 2"12 gauge | 12 mm to 55 mm2.75 mm |
| Picket Tool | 1/2"3/4"1"16 gauge | 12 mm19 mm25 mm1.6 mm |
| Offset Die Holder | Max. 40 ton | Max. 36 mt |
| Strokes per minute in light material | 1/4" stroke [Punch Station] | 47 spm |
| Strokes per minute in heavy material | 3/4" stroke [Punch Station] | 16 spm |
| Hydraulics | 3,500/3,500 psi | 241/241 bar |
| Motor Standard | 10 hp 3 ph230/460208/380/575 | 7.46 kW |
| Motor Optional | 10 hp 1 ph220v | 7.46 kW |
| Dimensions | W-30"L-65"H-72 1/8" | 76 cm165 cm183 cm |
| Shipping Weight | 3,800 lbs. | 1,723 kg |
| Dual Operator, 5 Stations |
| Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity |
| 95 Ton Punch Station (1-3/16" in 1") |
| Keyed Punch Ram for Safety |
| 9" Throat Depth |
| Punch Gauging Table with Fence and Scale |
| Die Holder Complete with 2" Die Insert |
| Punch Nut with Wrench & Stripper |
| Adjustable Swing-Away Stripper |
| One Round Punch & Die: Max. Dia. 1-1/4" |
| Punch Jog Control |
| Two Adjustable Electric Stroke Controls with Scale |
| Two Electric Remote Foot Pedals |
| Two 2-Stage Hydraulic Pumps |
| Two Valves |
| Angle Shear Capacity 6" x 6" x 1/2" at 90° |
| Rectangle Notcher 3" x 4" x 1/2" |
| Notcher Table with Guides |
| 140 Ton, 24" Flat Bar Shear with Sabre Blade (1" x 8", 3/8" x 24") |
| Shear Table with Miter Fence |
| Tool Table Work Area |
| Slug Receptacles |
| Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations |
| 230/460 Volt /3 Phase Electrics (must specify voltage) |
| All Guards Necessary to Comply with ANSI B 11-5 Standards |
| Forklift Accommodations |
| Warranty: Three Years on Parts |
