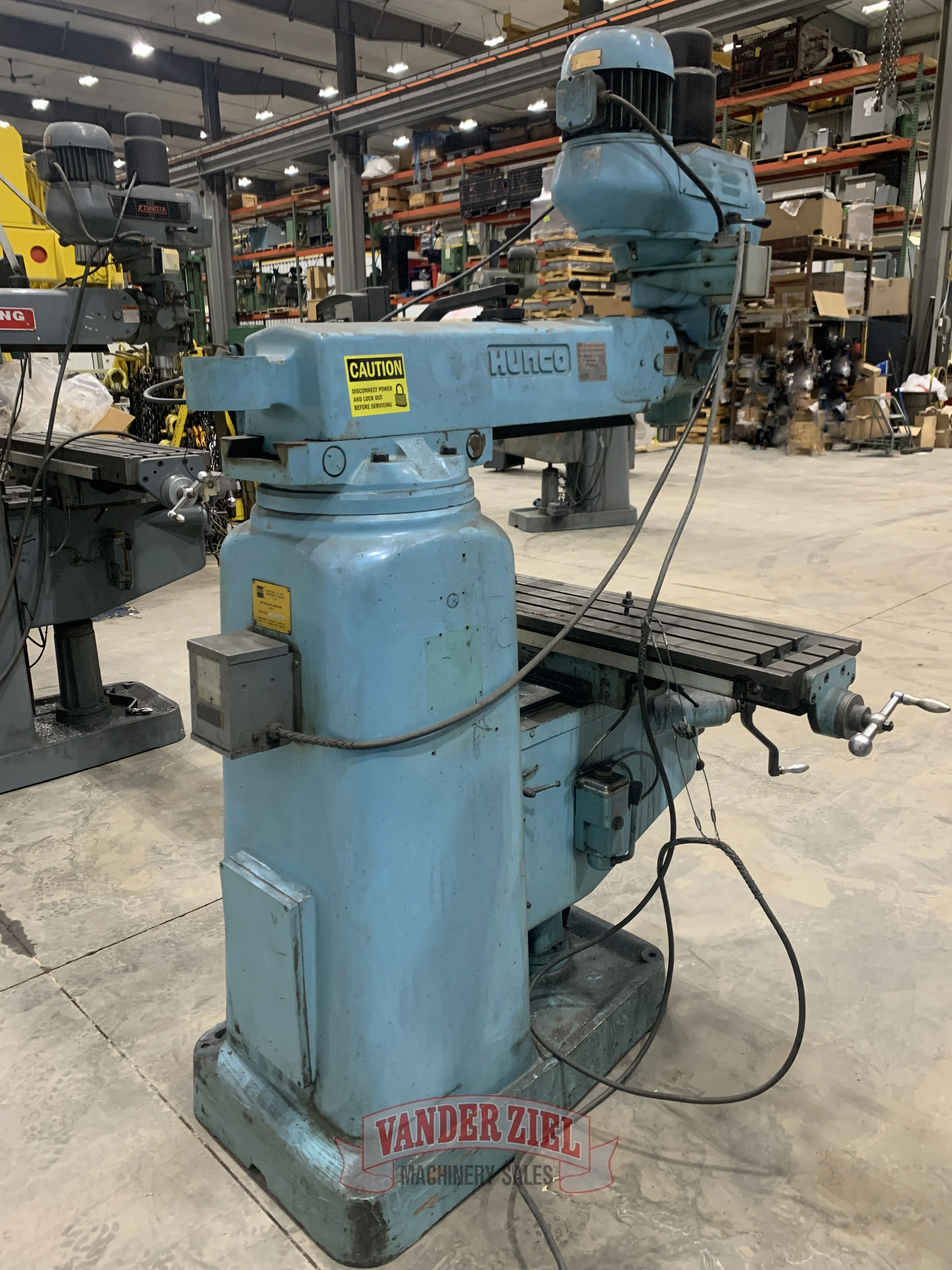

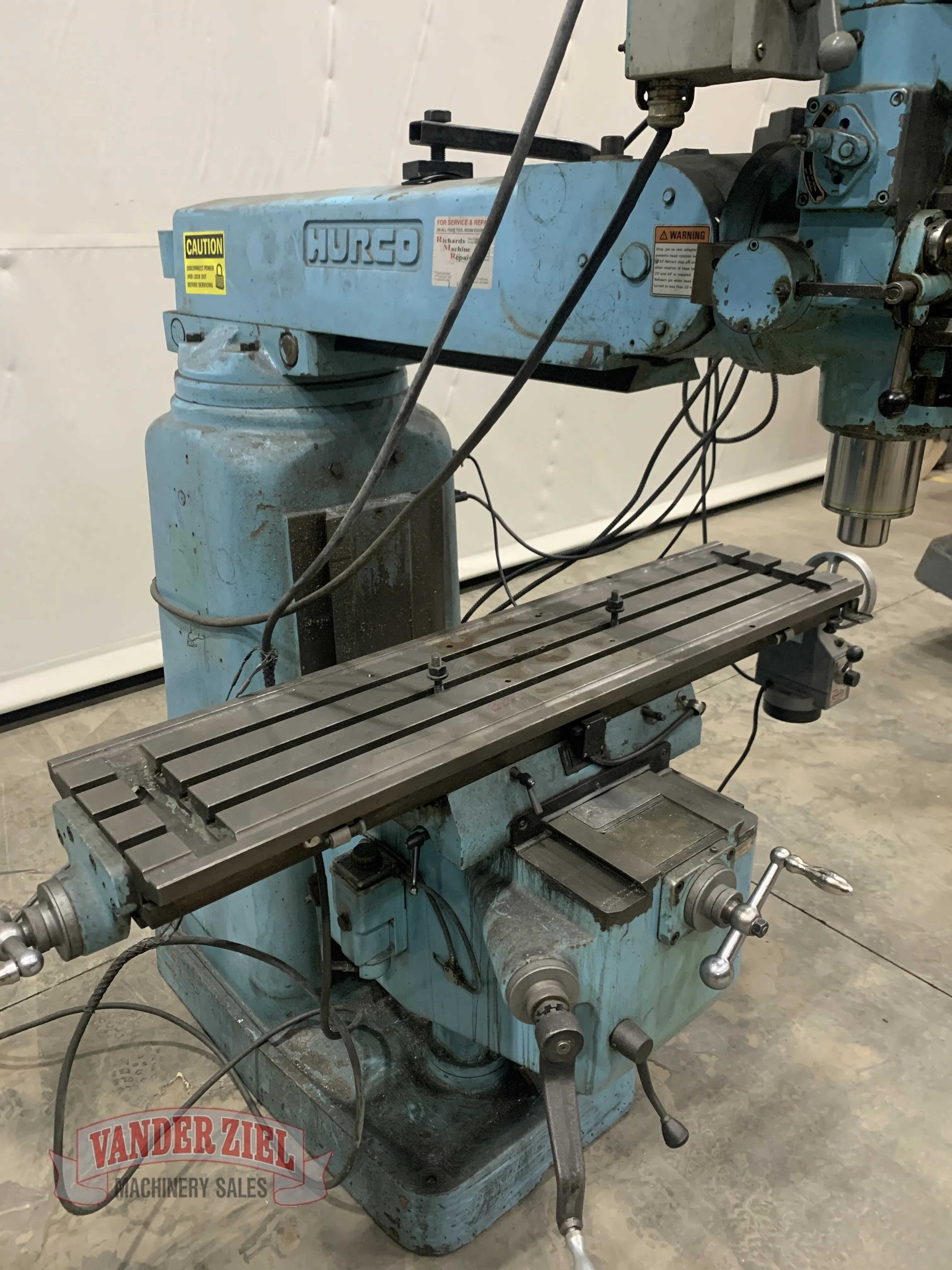

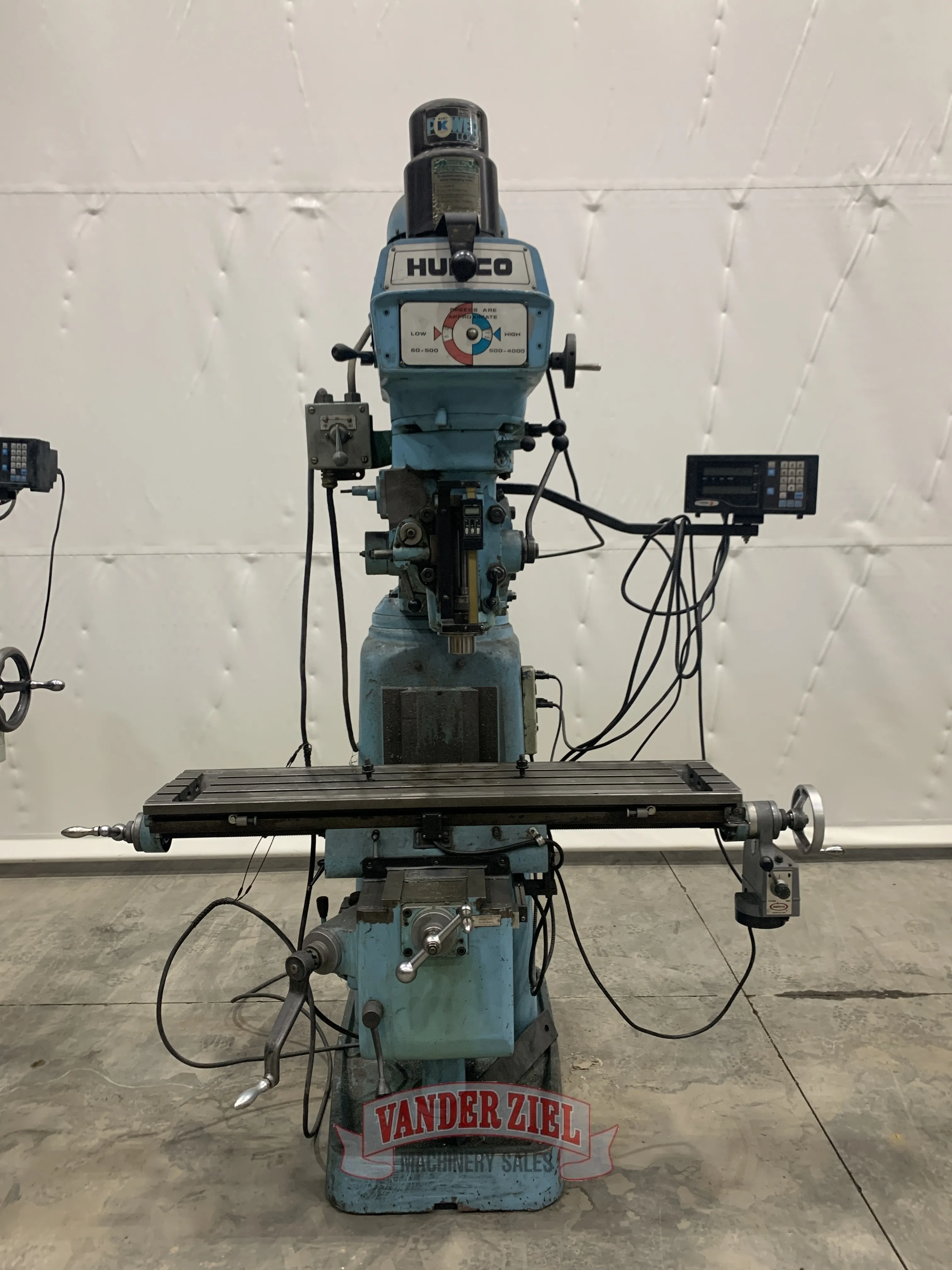

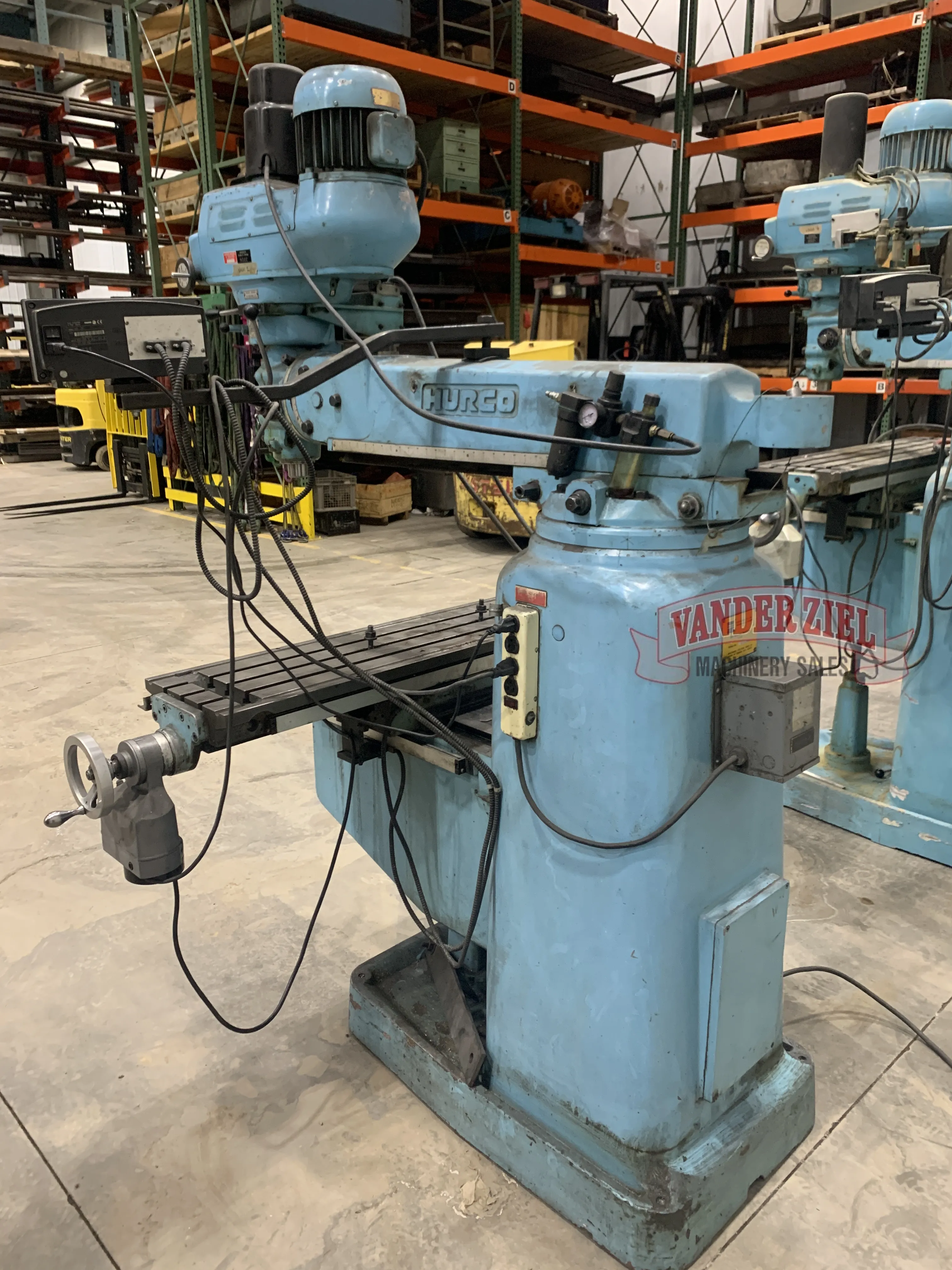

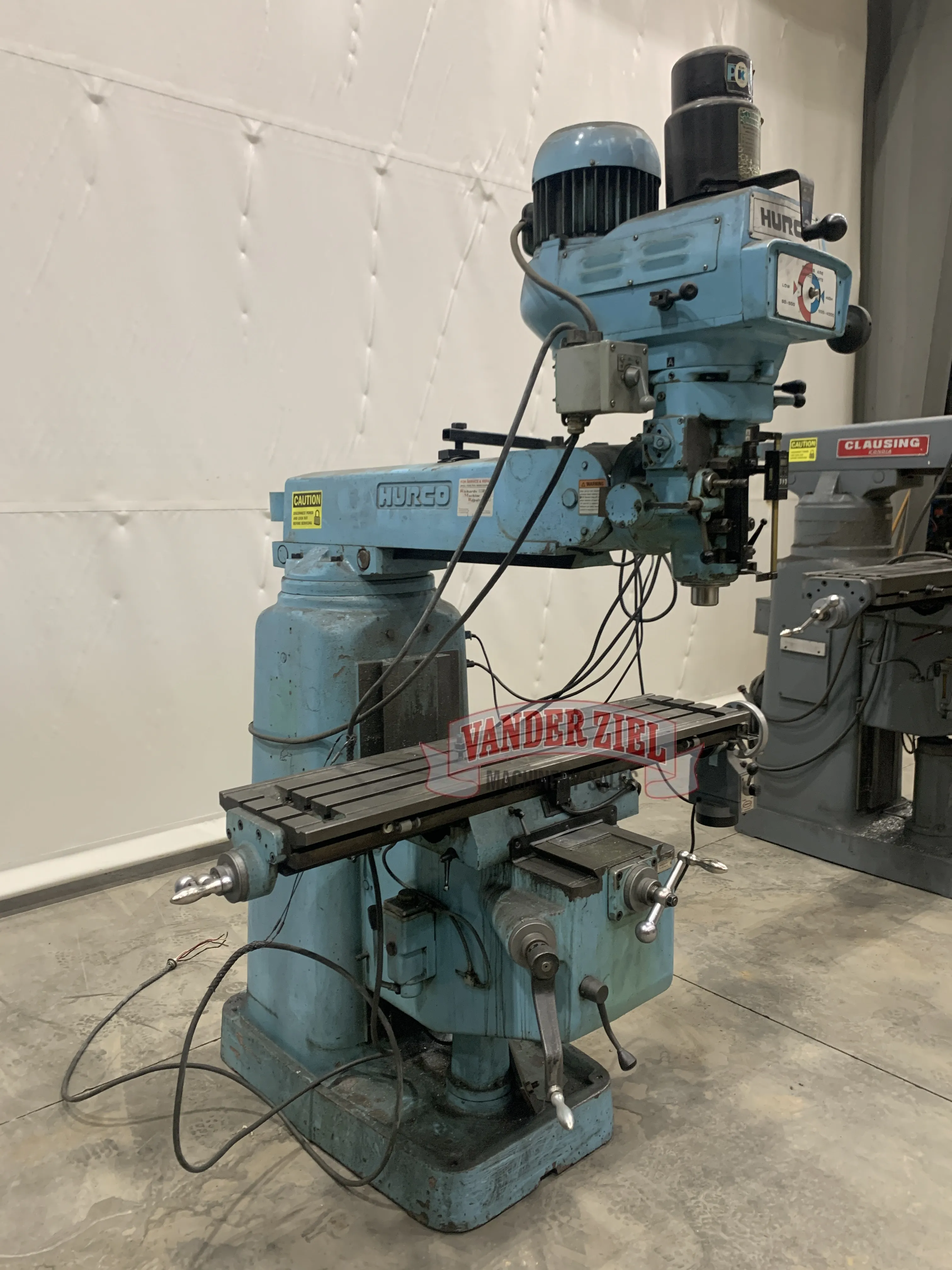

Hurco Vertical Knee Mill, 11” x 48” Table, Model SM-1

Hurco Vertical Knee Mill, 11” x 48” Table, Model SM-1

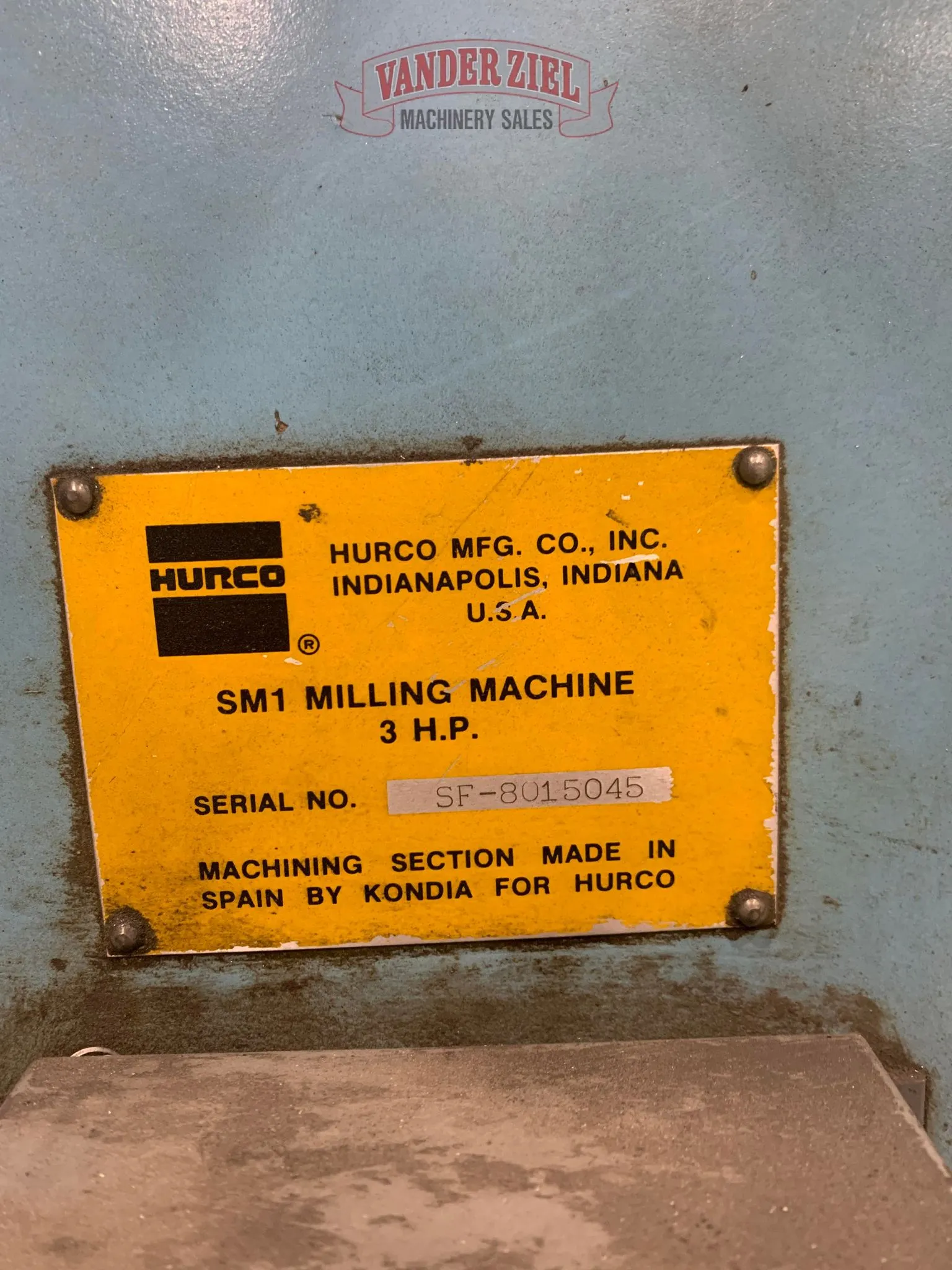

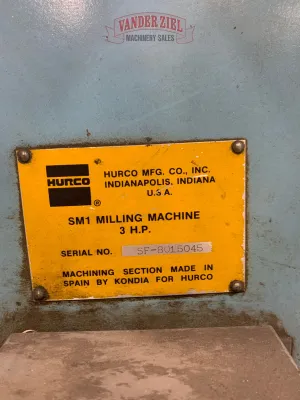

Serial # SF-8015045
Asset # 15655

Specifications:
Overall Table Size 11” x 48”
Distance between T-Slots 2 ½”
Longitudinal Table Travel 30”
Cross Travel 14”
Vertical Travel 18”
Overarm Travel 23”
Distance Center of Spindle to Column 10” – 26”
Distance Center of Table to Column 6” – 19 ½”
Distance Spindle Nose to Top of Table 8 ½” – 30”
Head Tilt, Front to Back 45 degrees
Head Tilt, Side to Side 90 Degrees
Spindle Speeds 60-4000 ROM
Quill Feeds 5”
Quill Diameter 2”
Spindle Motor 3 HP

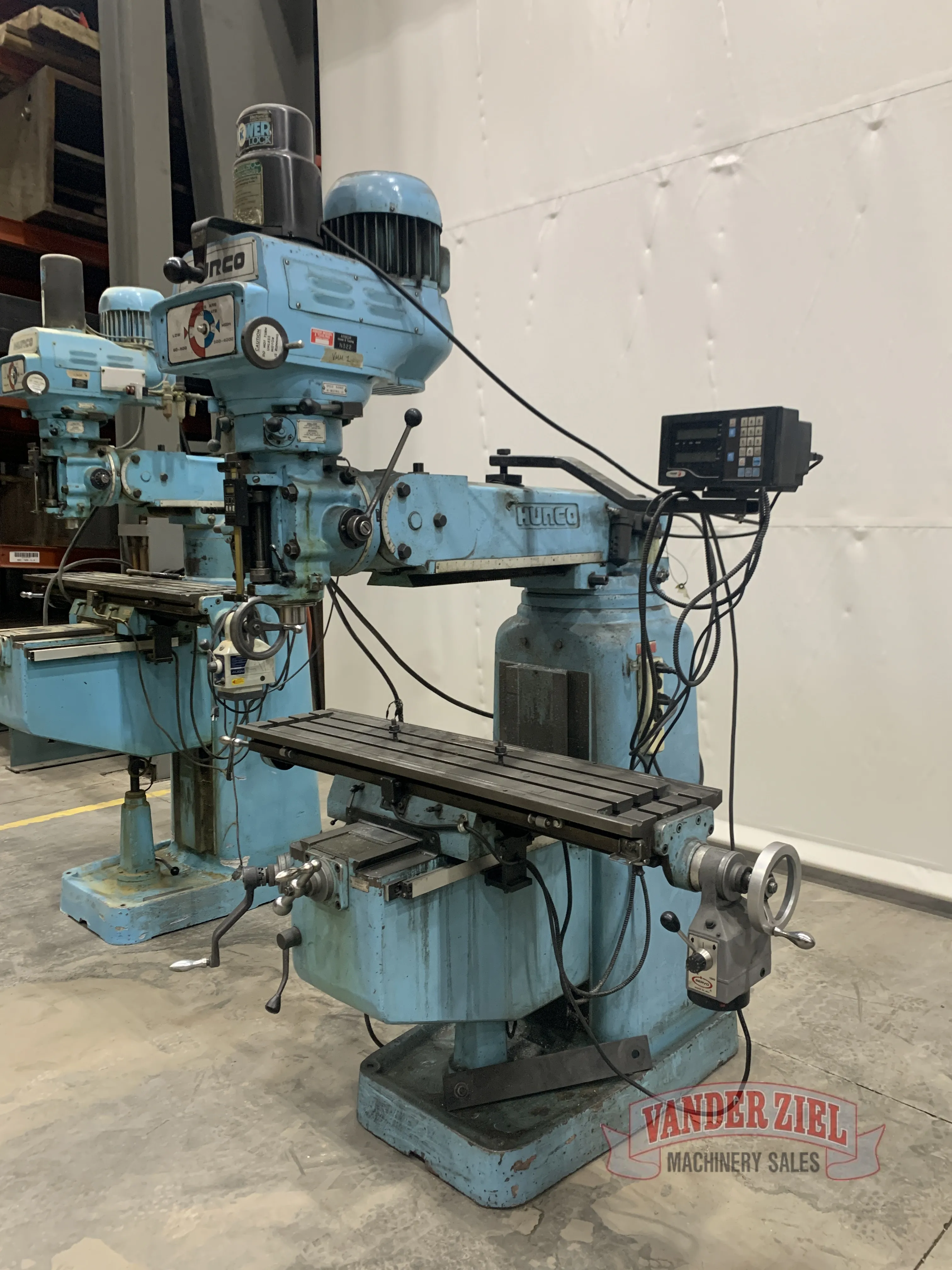

Mill is equipped with power draw bar, X power feed, and a Fagor 3 Axis DRO.

Preliminary Specifications – Subject to Verification
