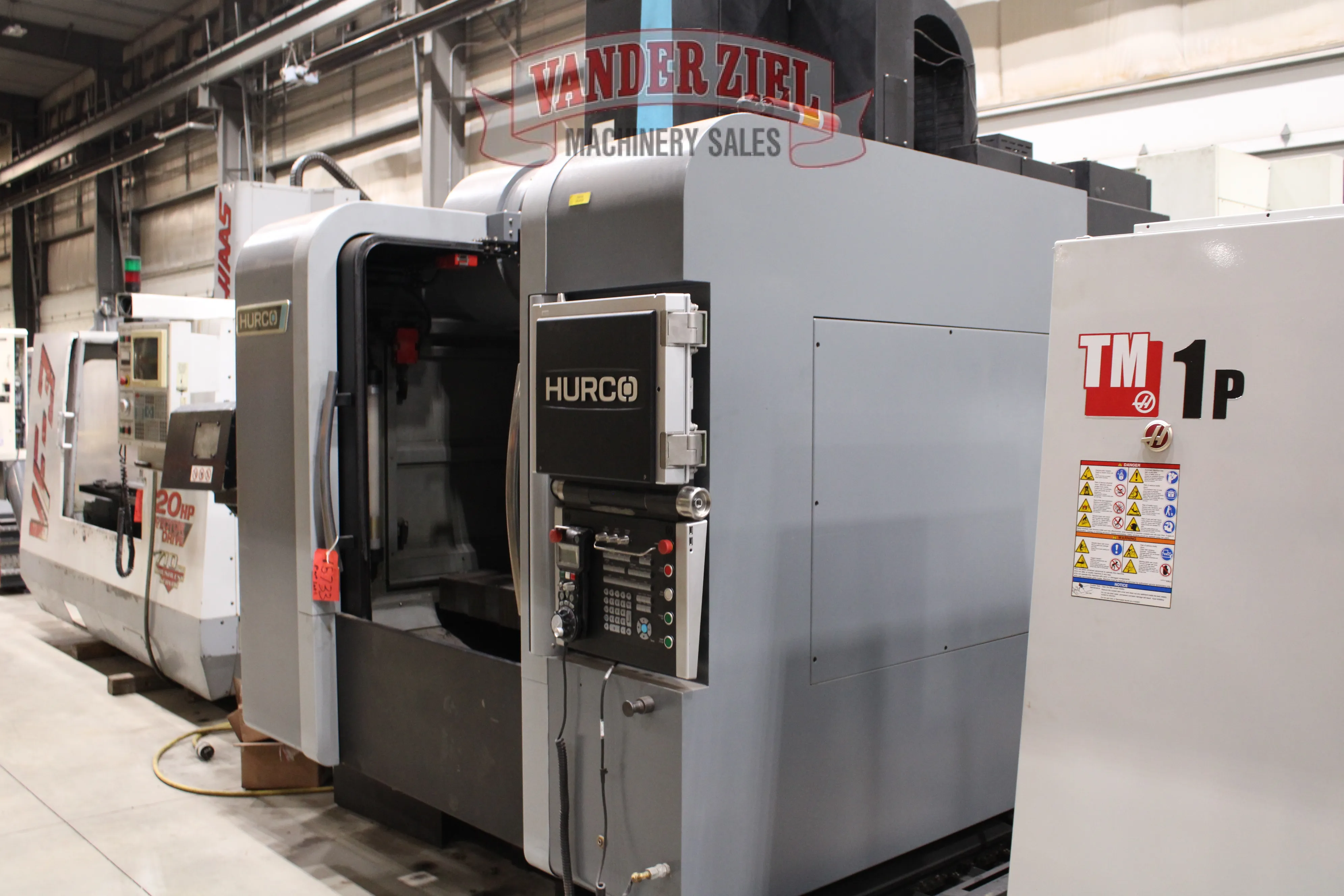

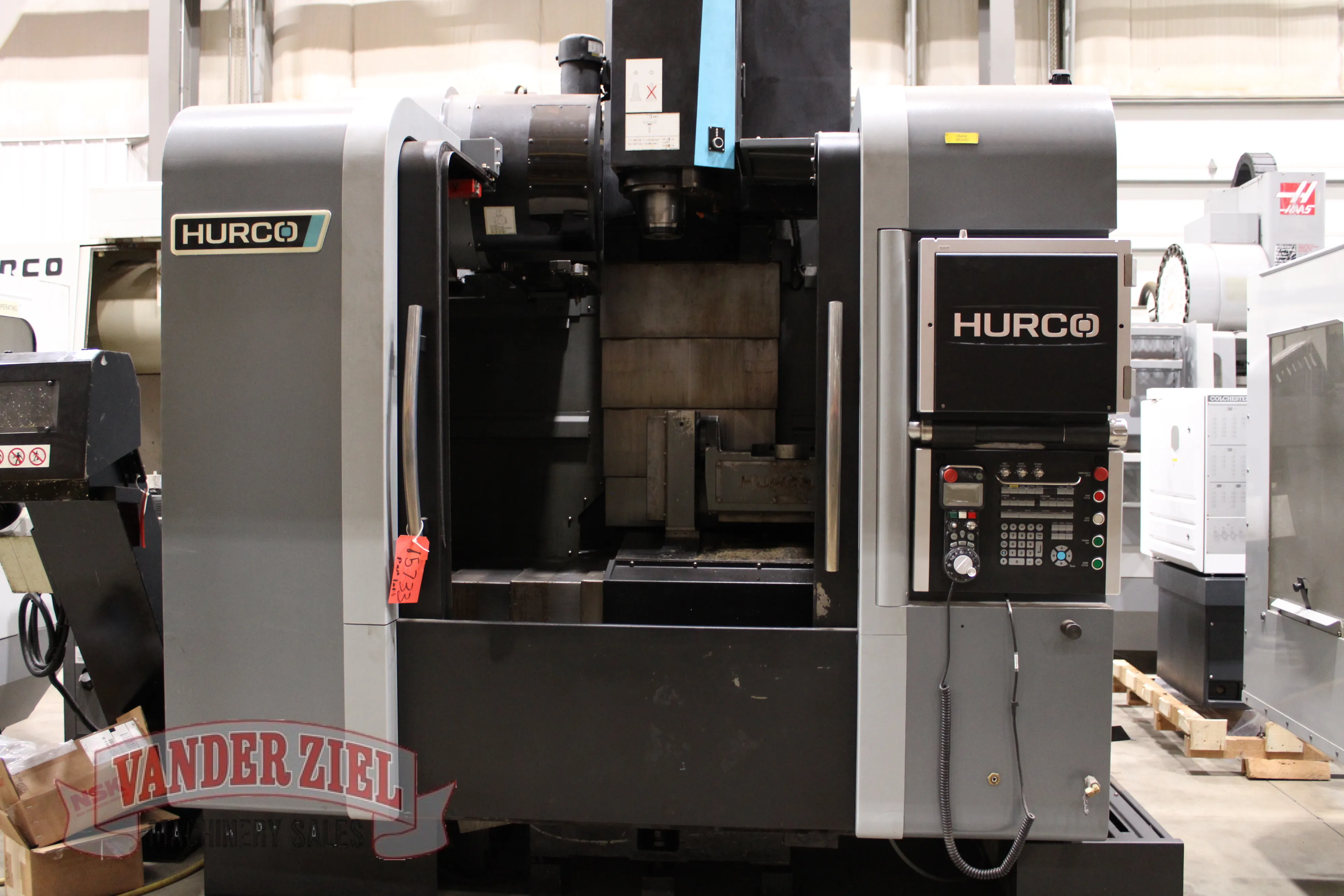

Hurco VMX30UHS 5-Axis Machining Center, 2014

Hurco VMX30UHSi 5-Axis Machining Center w/5th Axis Chip Conveyer

Dimensions: 114" x 87" x 105"

Asset #15733

Serial # H-VHS3004

Year: 2014/04/23

MACHINE SPECIFICATIONS

TRAVELS & CAPACITY
X, Y, Z Axis Travel 30 x 20 x 20.5 in (762 x 508 x 520 mm)

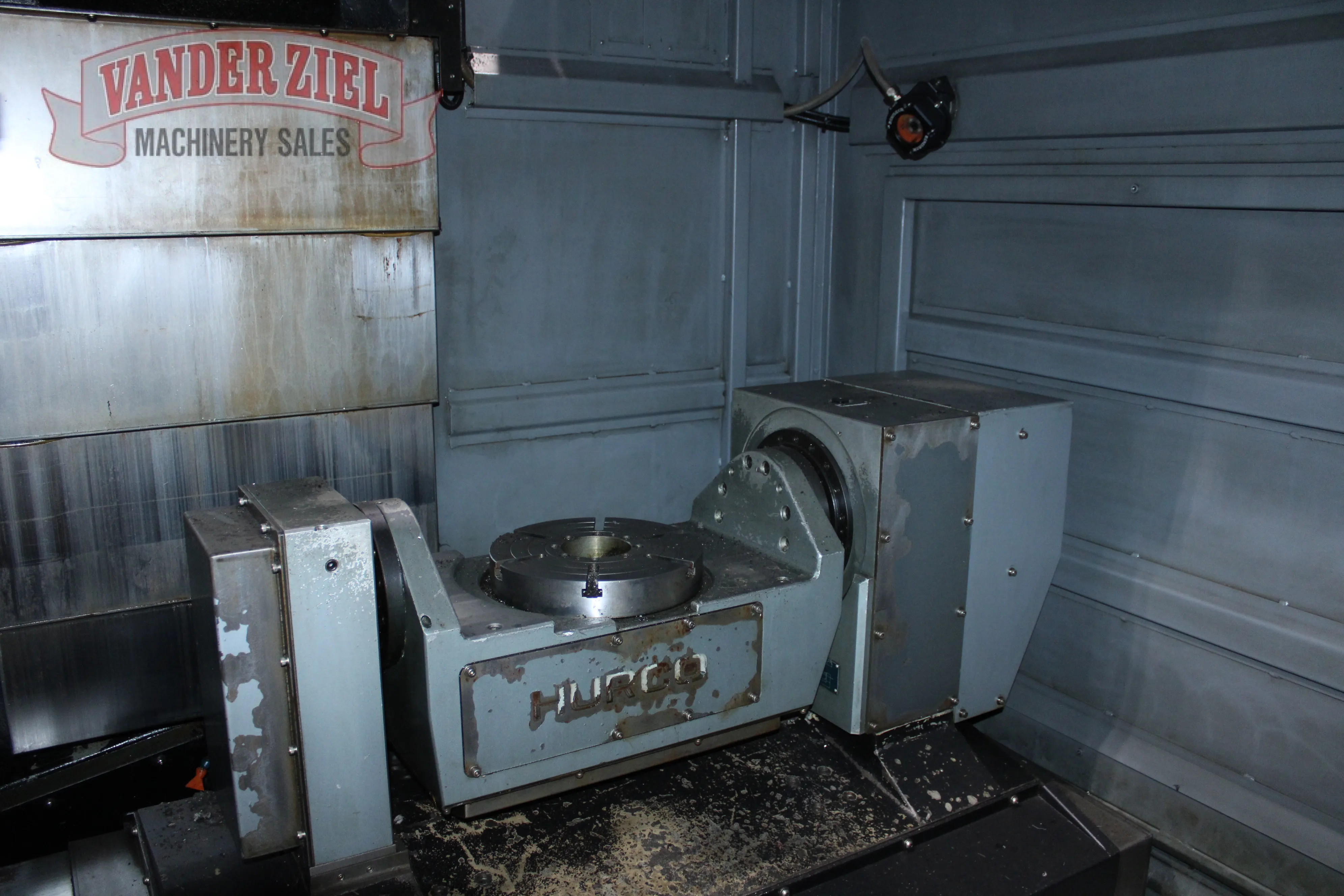

A-Axis Travel +30°/-110°
C-Axis Travel 360°
Spindle Nose to Table (Min-Max) 3.5 in / 24 in (90 mm / 610 mm)
Table Diameter 9.8 in (248 mm)
Max. Weight on Table 440 lbs (200 kg)
T-Slot Size 6 x .48 in x 60° (6 x 12 mm x 60°)

SPINDLE
Max. Spindle Speed 18000 rpm
Peak Spindle Motor 47 hp @ 2,800 rpm (35 kW @ 2,800 rpm)
Spindle Torque (peak) 88 ft. lbs (119 Nm)
Tool Capacity 40
Max Tool Diameter 3.1 in (75 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb (7 kg)

FEEDRATES
Rapid Traverse X,Y,Z Axis 1771,1771, 1575 in/min (45,45, 40 m/min)
Max Programmable Feedrate 1575 in/min (40 m/min)
A, C Axis max. RPM 25 rpm

SIZE
Max. Operating Floor Space 155.1 x 161.5 in ( 3,939 x 4,102 mm)
Machine Weight 11640 lbs (5280 kg)

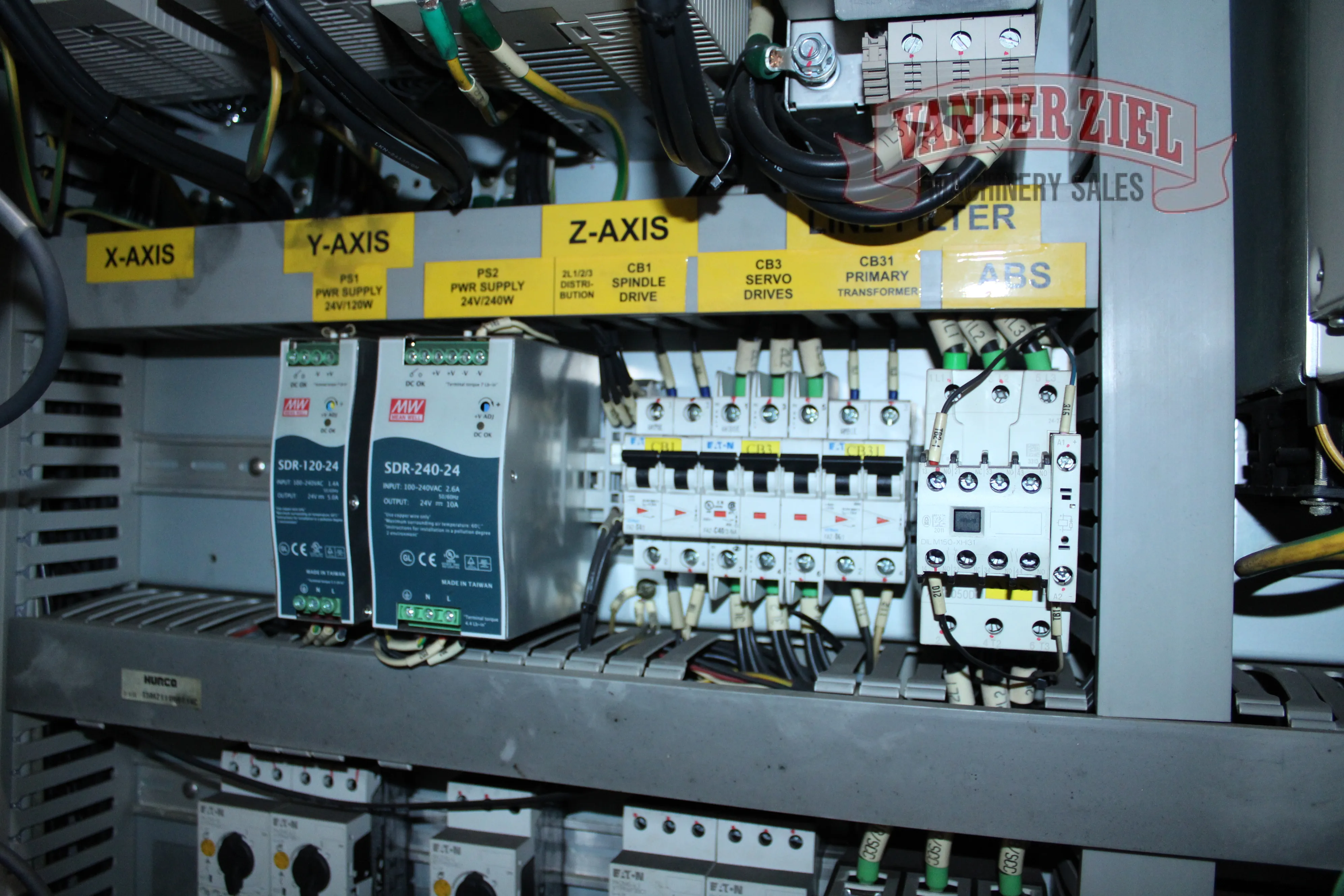

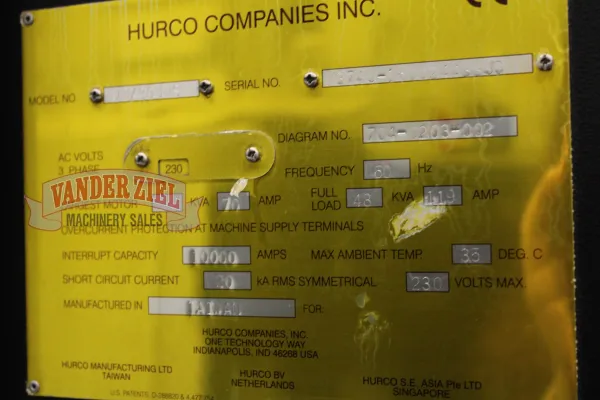

ELECTRICAL
Power Rating/ Full Load KVA 48 KVA

Preliminary Specifications – Subject to Verification
