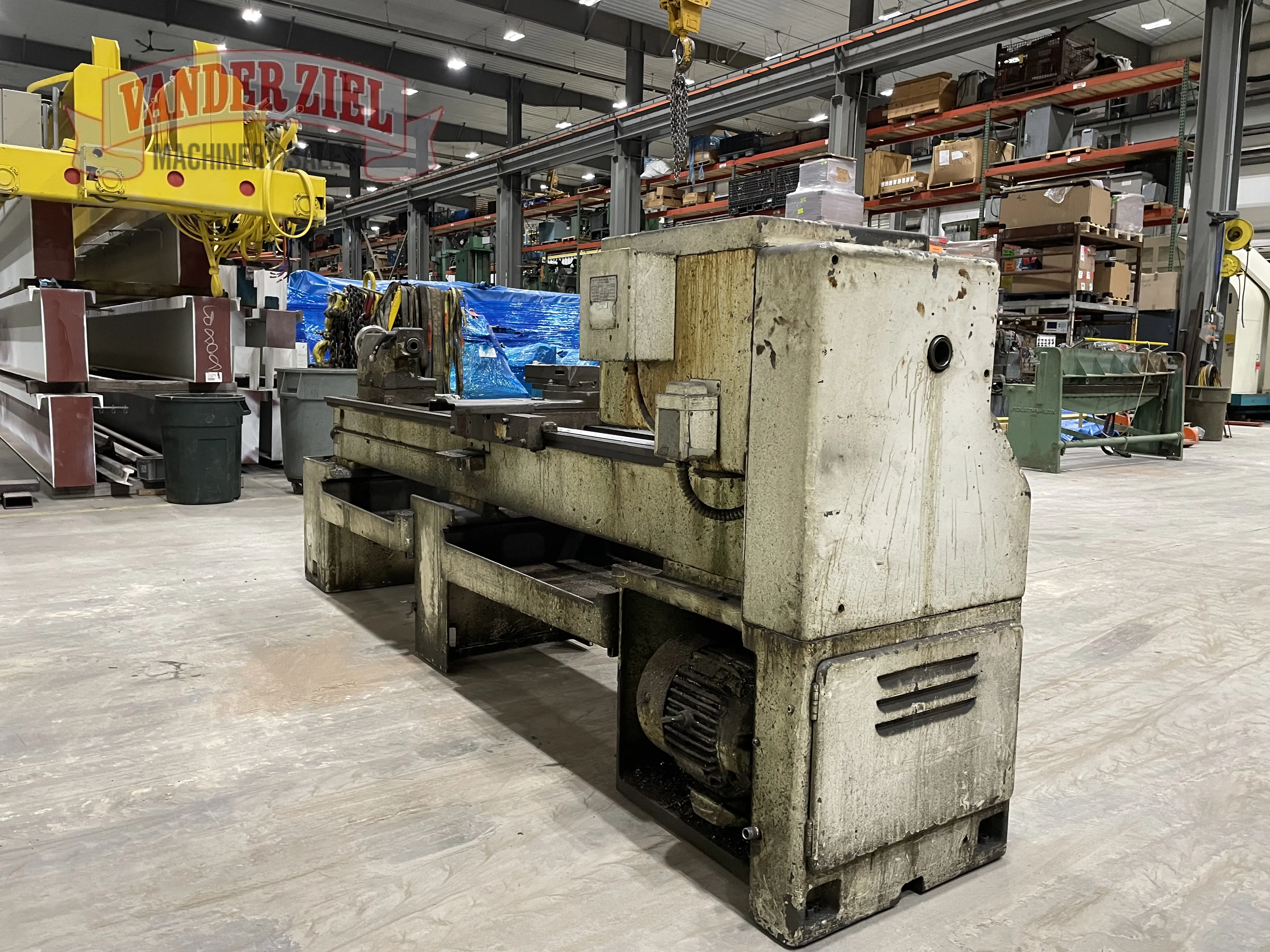

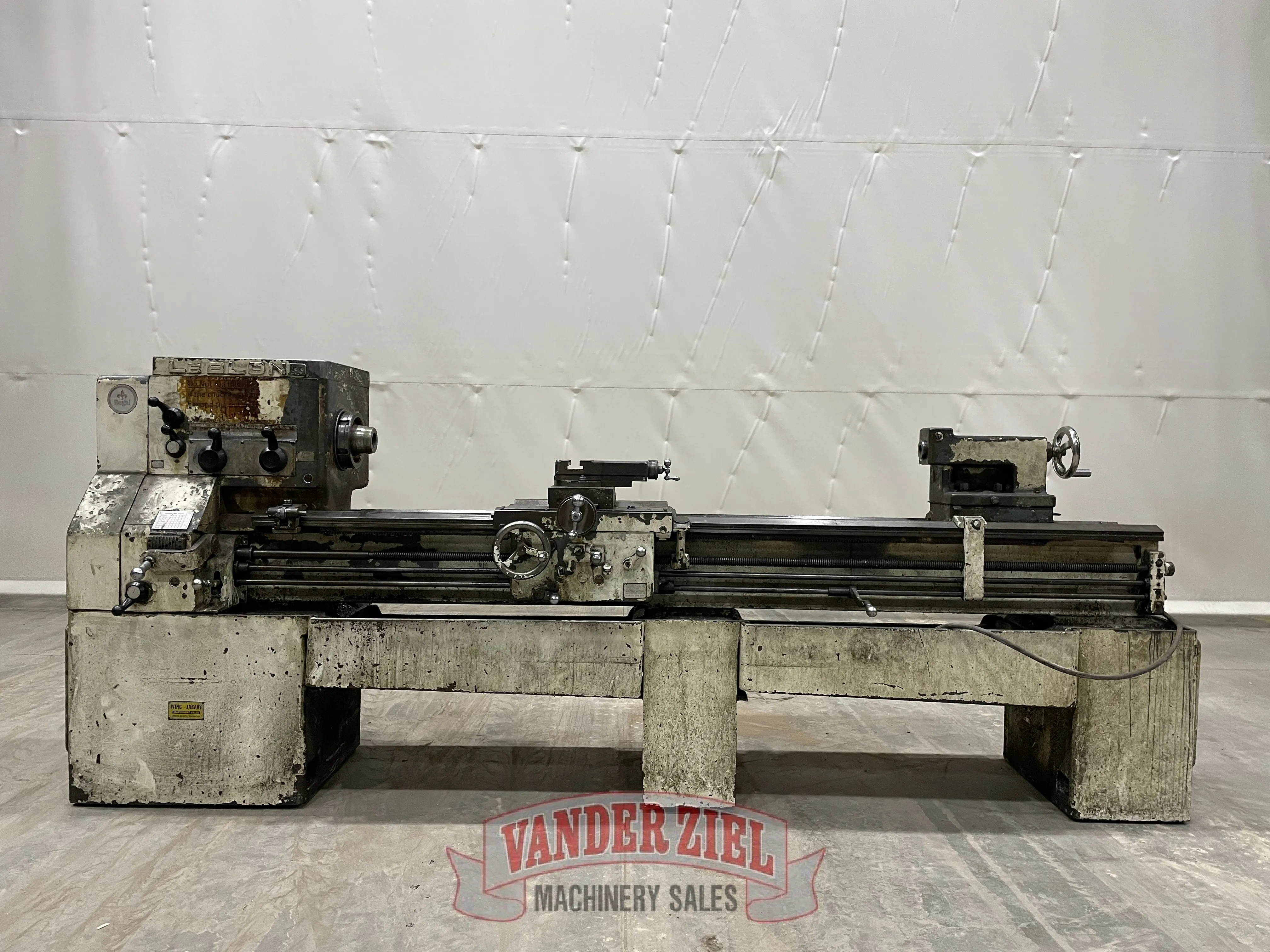

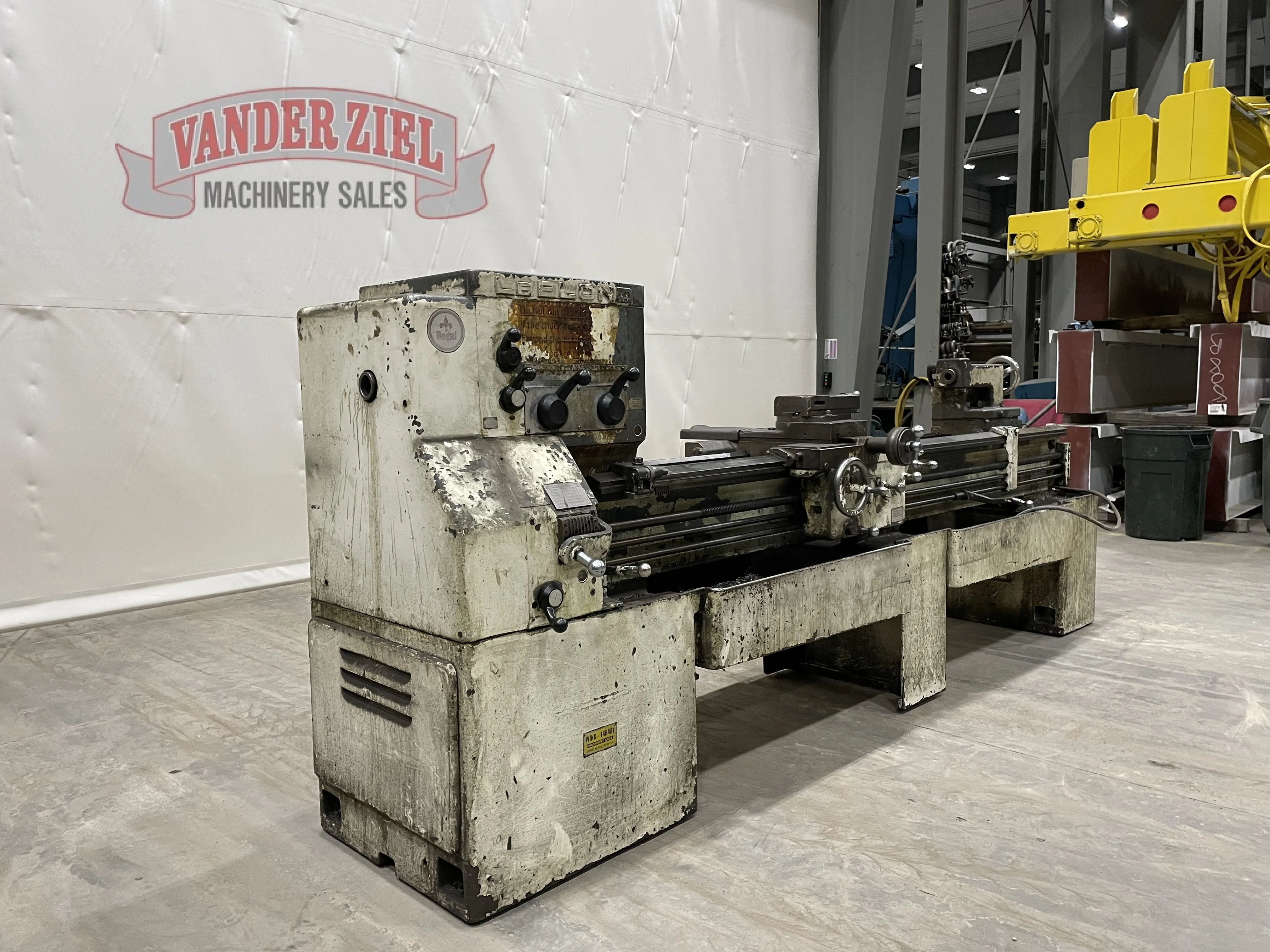

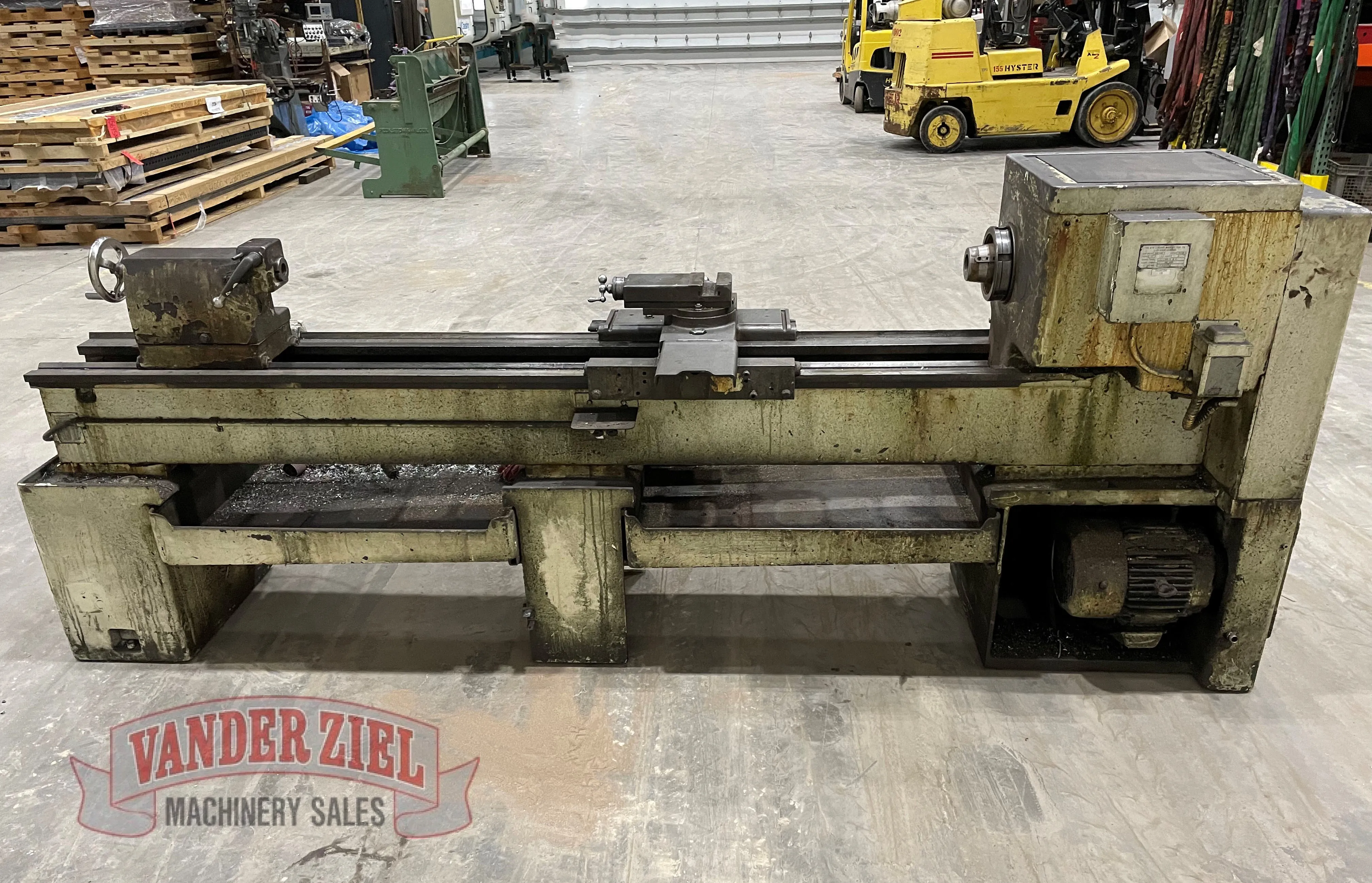

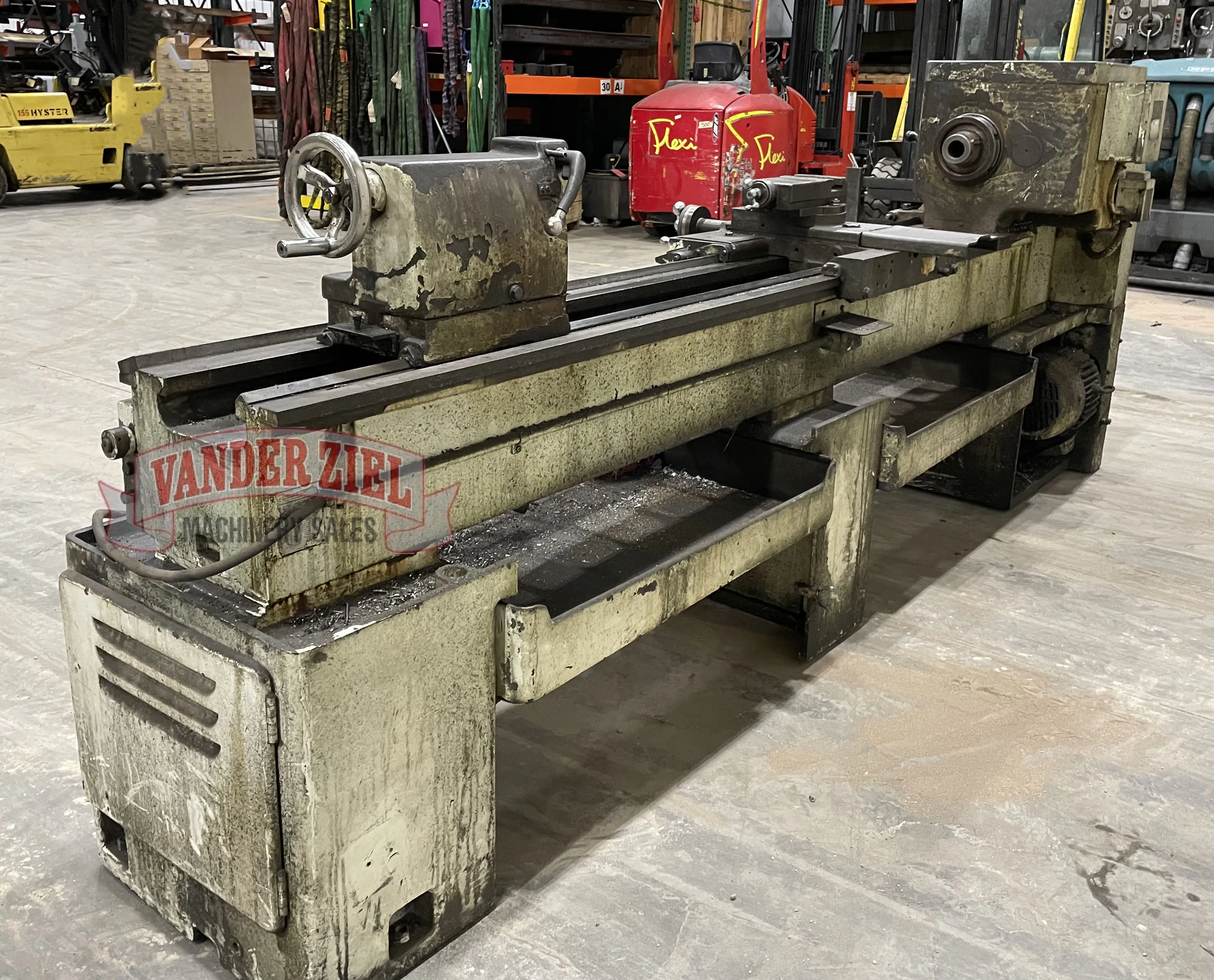

LeBlond 19" x 78" Regal Lathe, 1 49/64" Spindle Bore

LeBlond 19" x 78" Regal Lathe, 1 49/64" Spindle Bore

Serial # 5E-271
Asset # 15736

Specifications:
Swing over Bed & Carriage Ways 19 1/4"
Swing over Cross Slide 12 1/4"
Distance Between Centers 78"
Spindle Speeds (12) 25-1000 RPM
Spindle Bore 1 49/64"
Spindle Mores Taper No. 4
Spindle Nose L-1
Headstock Length on Bed 21 1/8"
Bed Length 10'3"
Bed Width 14 3/8"
Bed Depth 11 1/2"

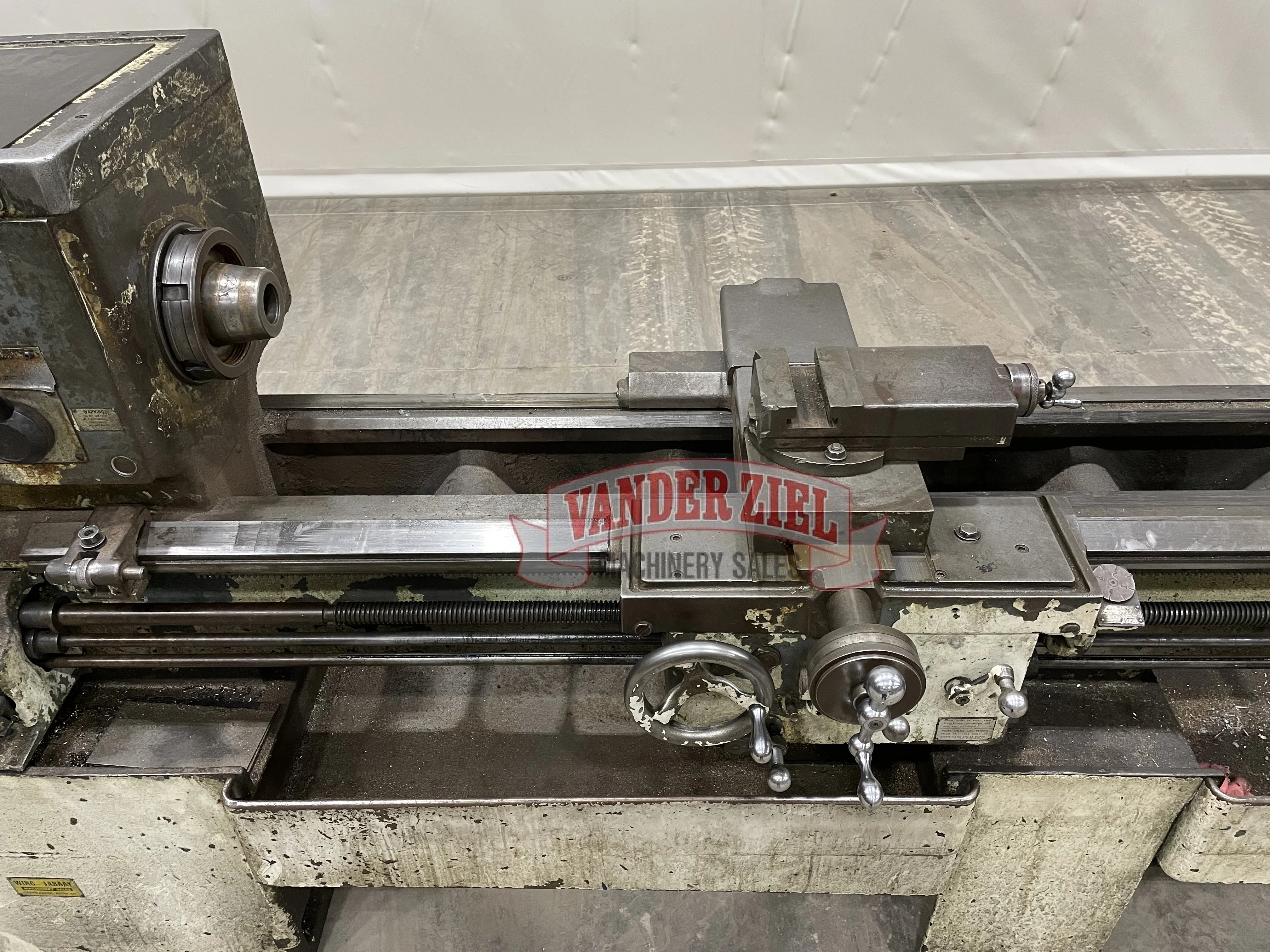

Carriage Length on Bed 21"
Cross Slide Travel 11 1/4"
Feeds (48) .0023 - .123
Threads (48) 2 - 112
Leadscrew Diameter and TPI 1 3/16", 4
Tailstock Spindle Diameter 2 7/16"
Tailstock Center 4 MT
Tailstock Length on Bed 12 3/4"
Motor 7 1/2 HP, 1800 RPM
Approx. Floor Space 137" x 50"
Approx. Weight 4,750 lbs.

Preliminary Specifications - Subject to Verification
