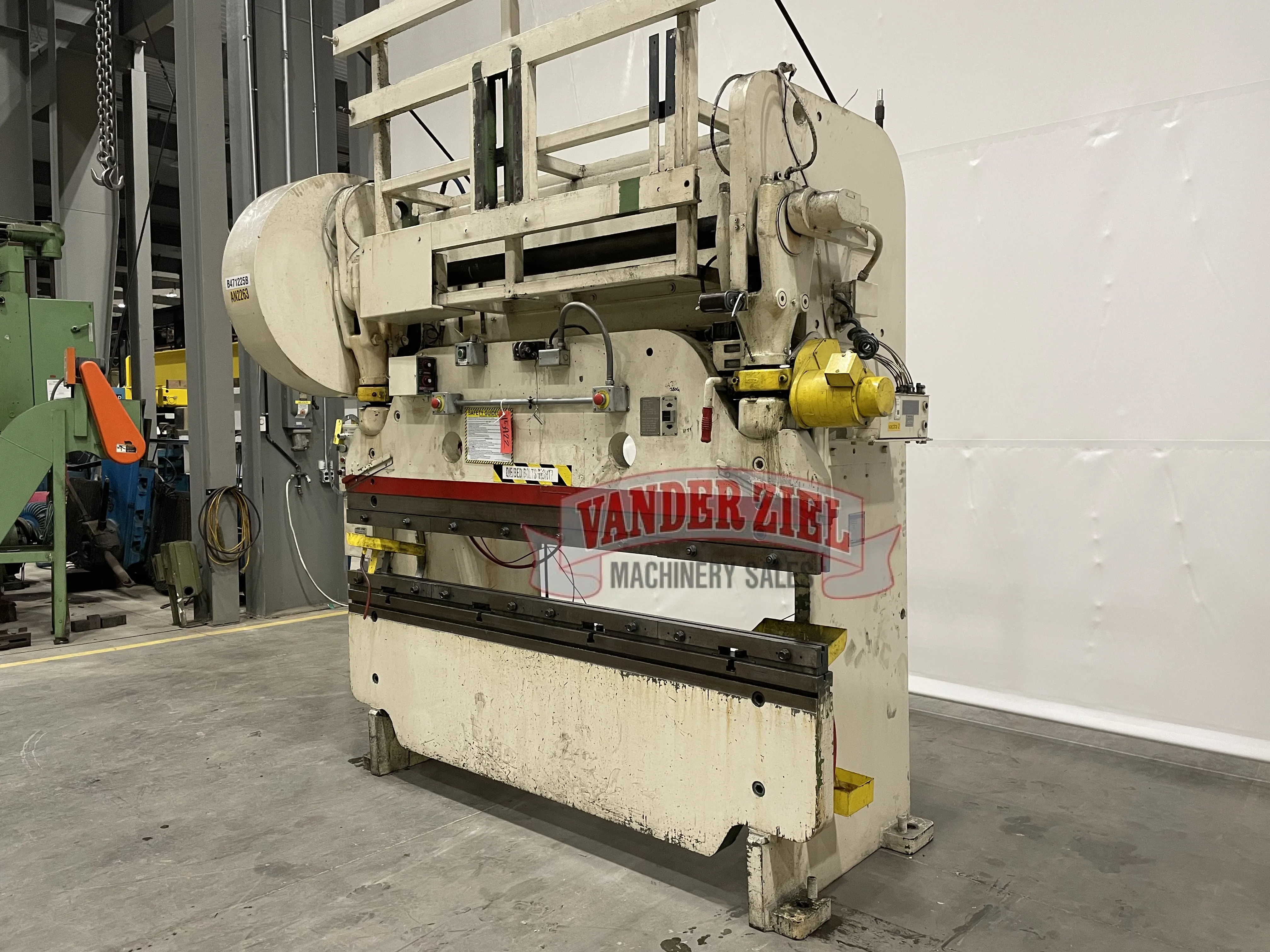

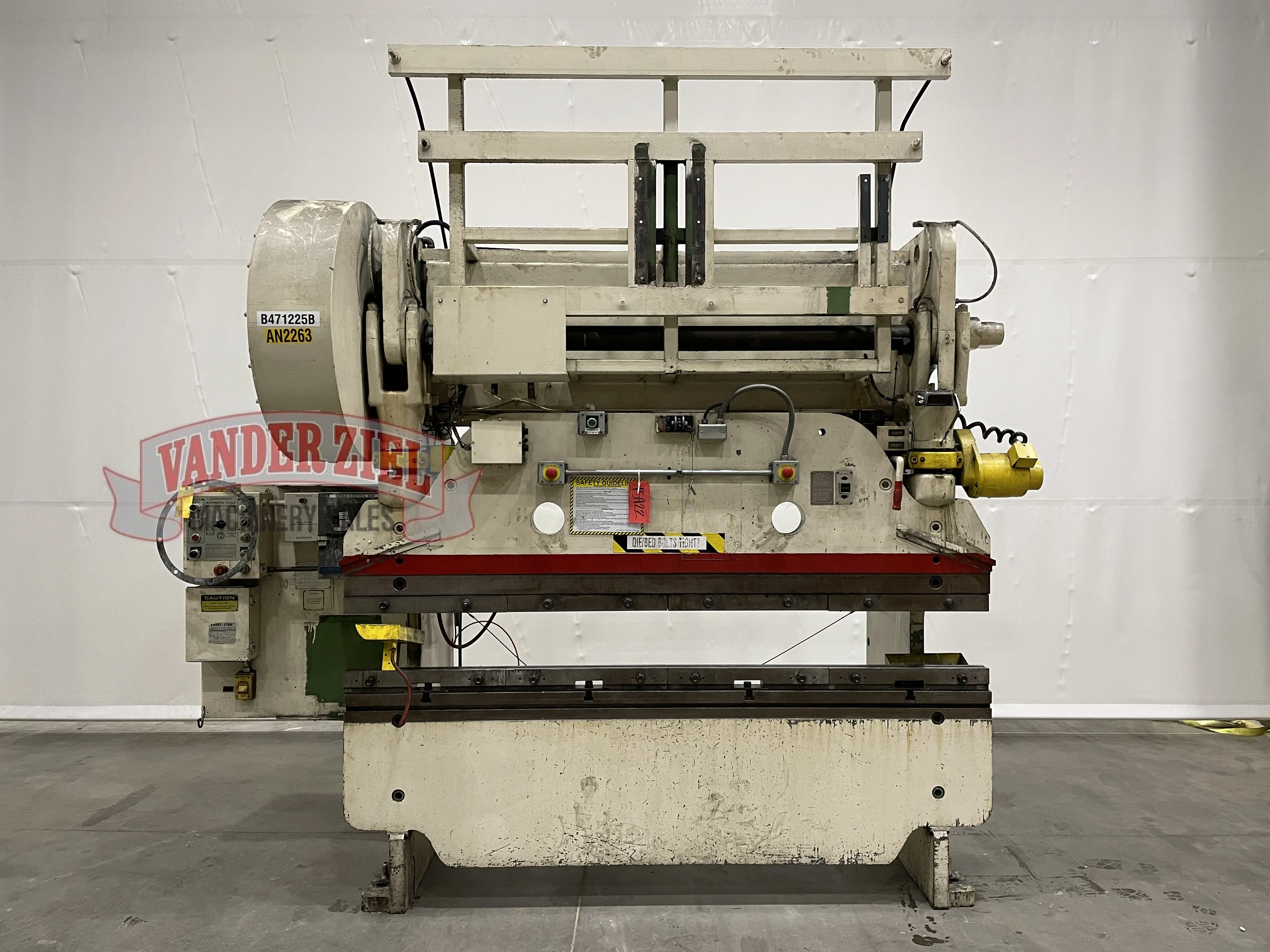

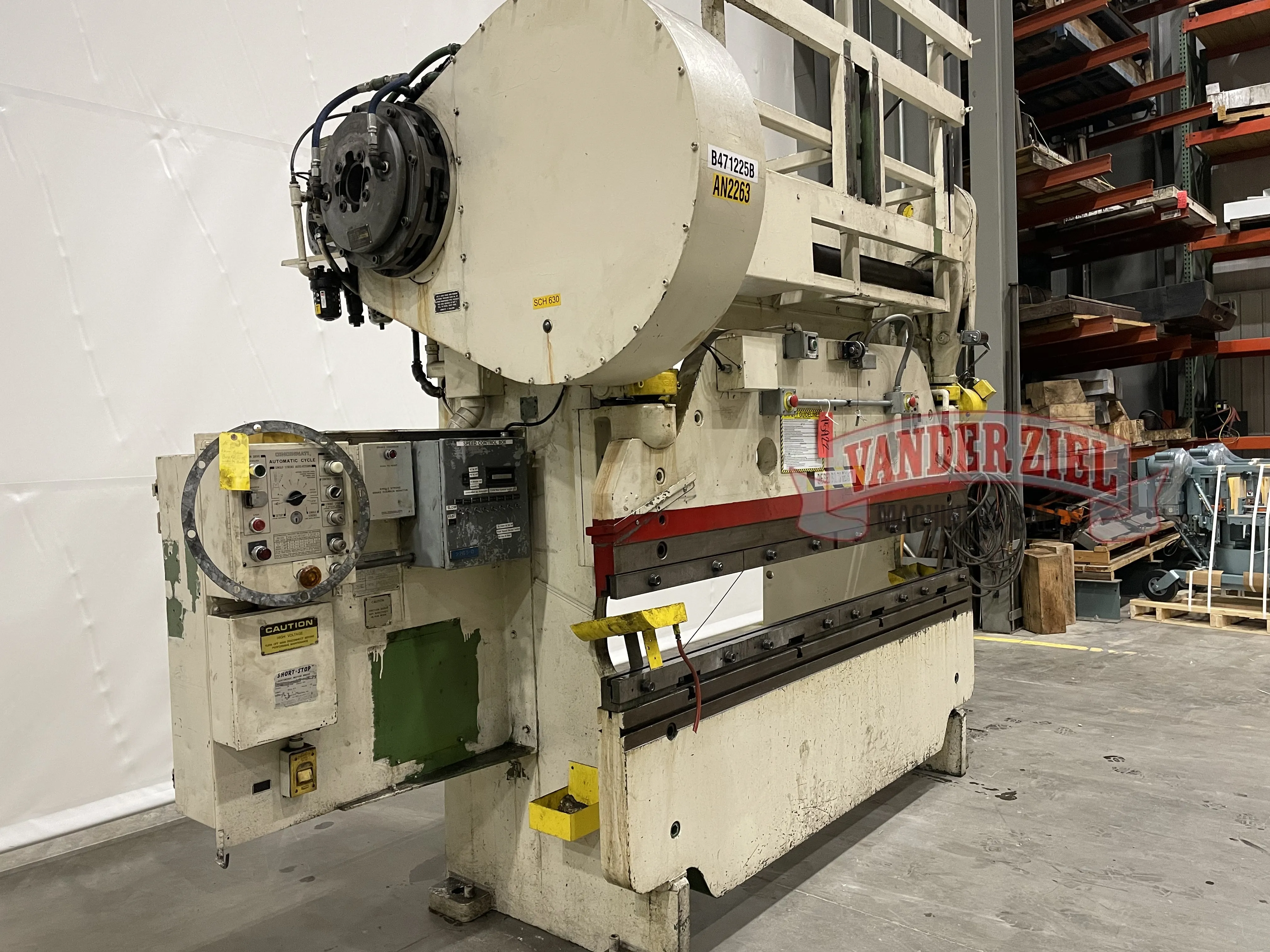

Cincinnati 6’ x 135 Ton Mechanical Press Brake, Series 5 x 6’

Cincinnati 6’ x 135 Ton Mechanical Press Brake, Series 5 x 6’

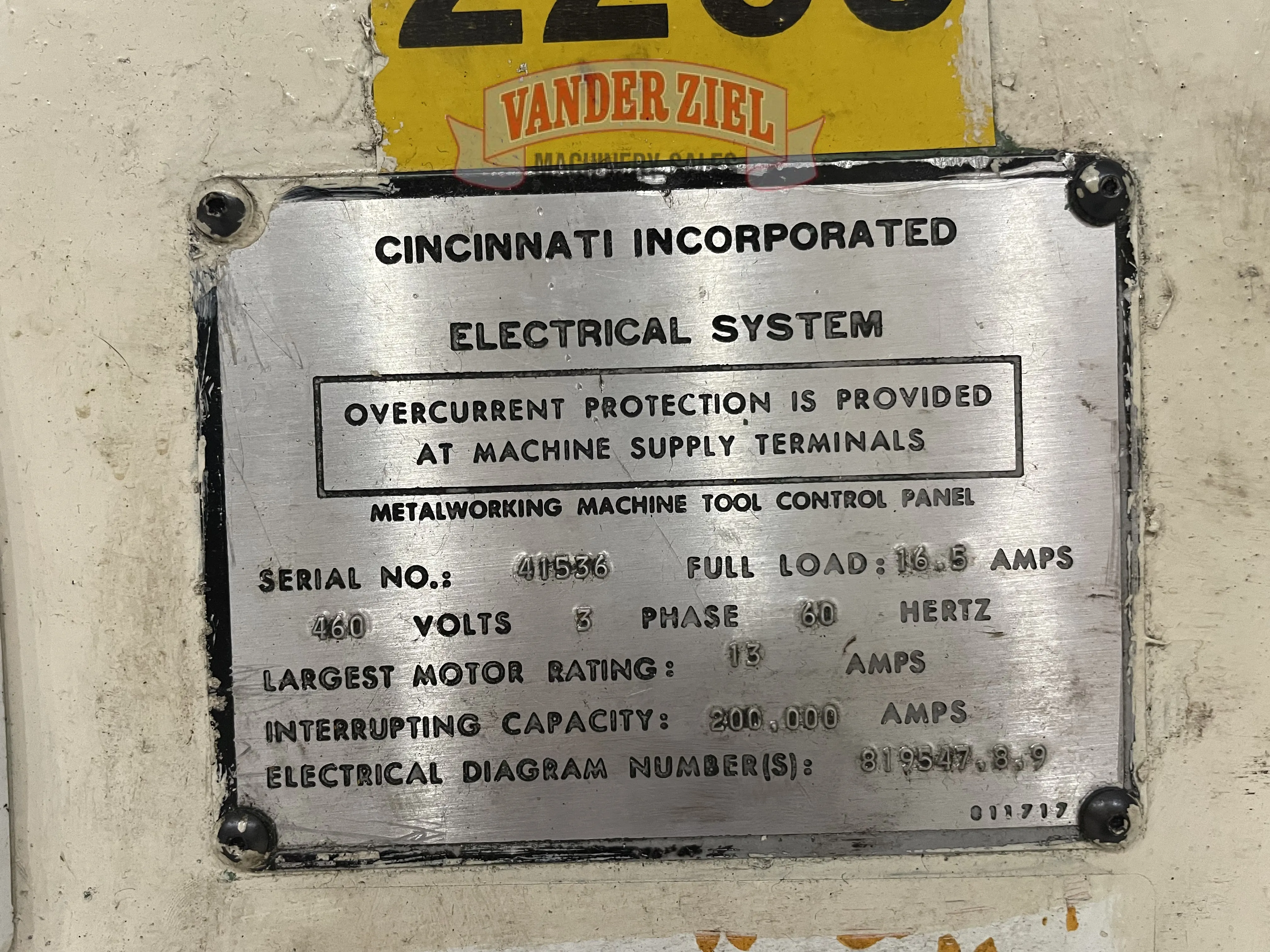

Serial # 41536
Asset # 15922

Specifications:
Overall Die Length 8”
Distance between Housings 8’ 6”
Tonnage at Bottom of Stroke 135 Tons
Tonnage at Mid Stroke 90 Tons
Bending Capacity with Standard Stroke 5/16” x 4’, 1/4” x 6’
Standard Stroke 3”
Ram Adjustment 5”
Throat Clearance from Center of Dies 8”
Die Space, Stroke 12”
Standard Speed, Strokes Per Minute 35
Flywheel Diameter 32 1/2
Flywheel Weight 650 lbs.
Flywheel Speed 500 RPM
Housing Plates 2”
Bed Plates 4”
Ram Plates 3”
Approx. Weight 13,400 lbs.

Preliminary Specifications – Subject to Verification
