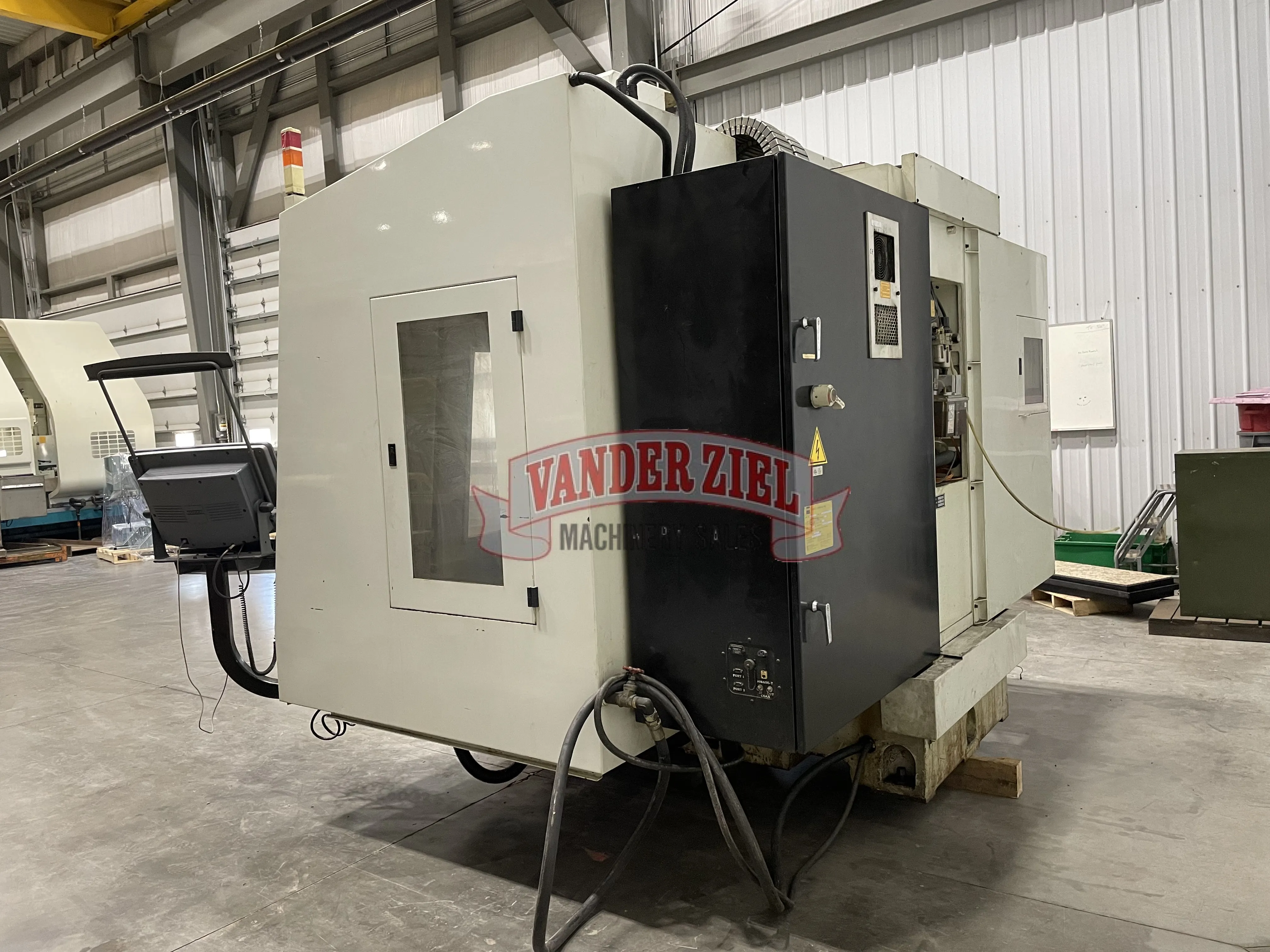

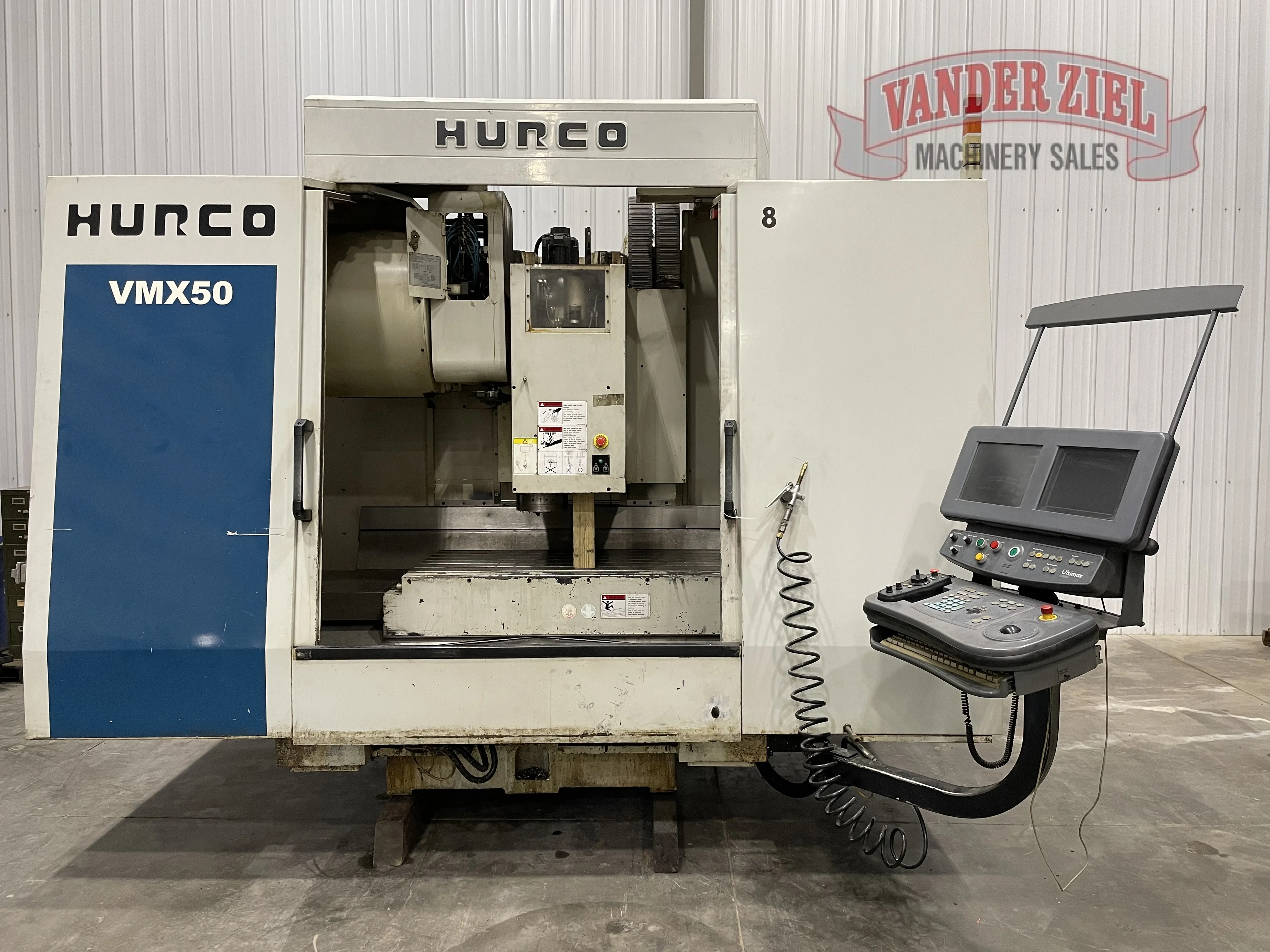

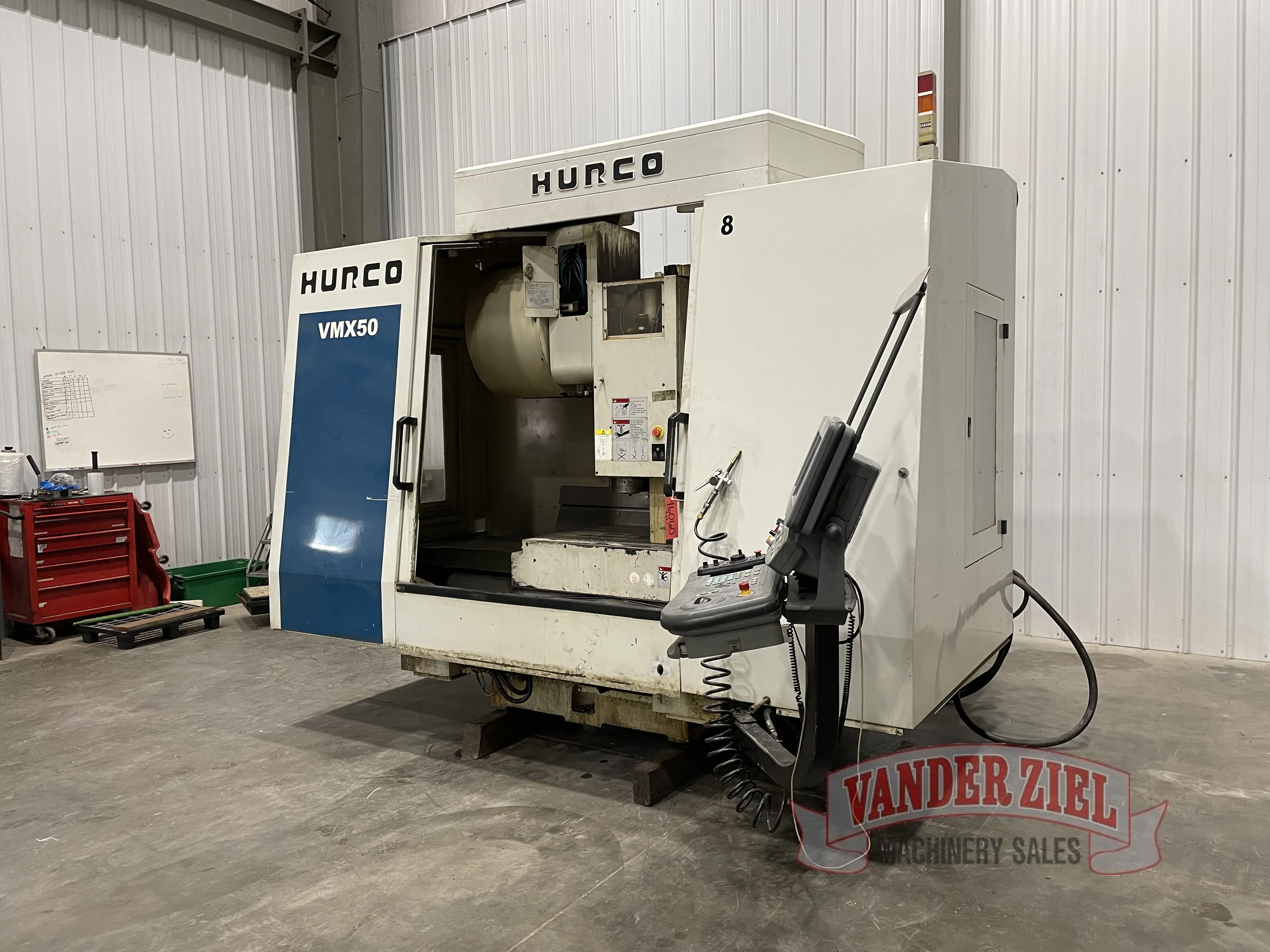

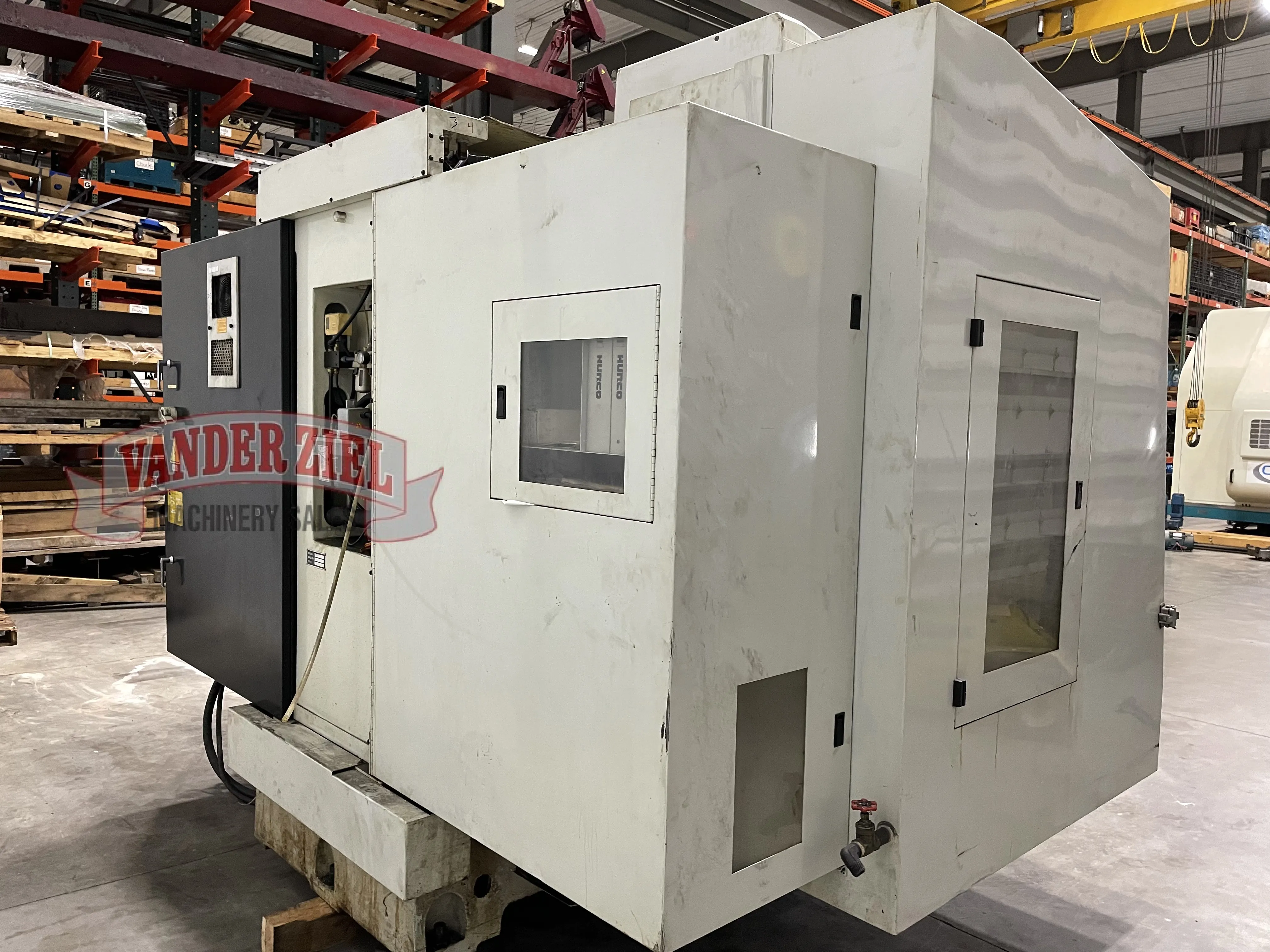

Hurco VMX50 CNC Vertical Machining Center, 2001

Hurco VMX50 CNC Vertical Machining Center, 2001

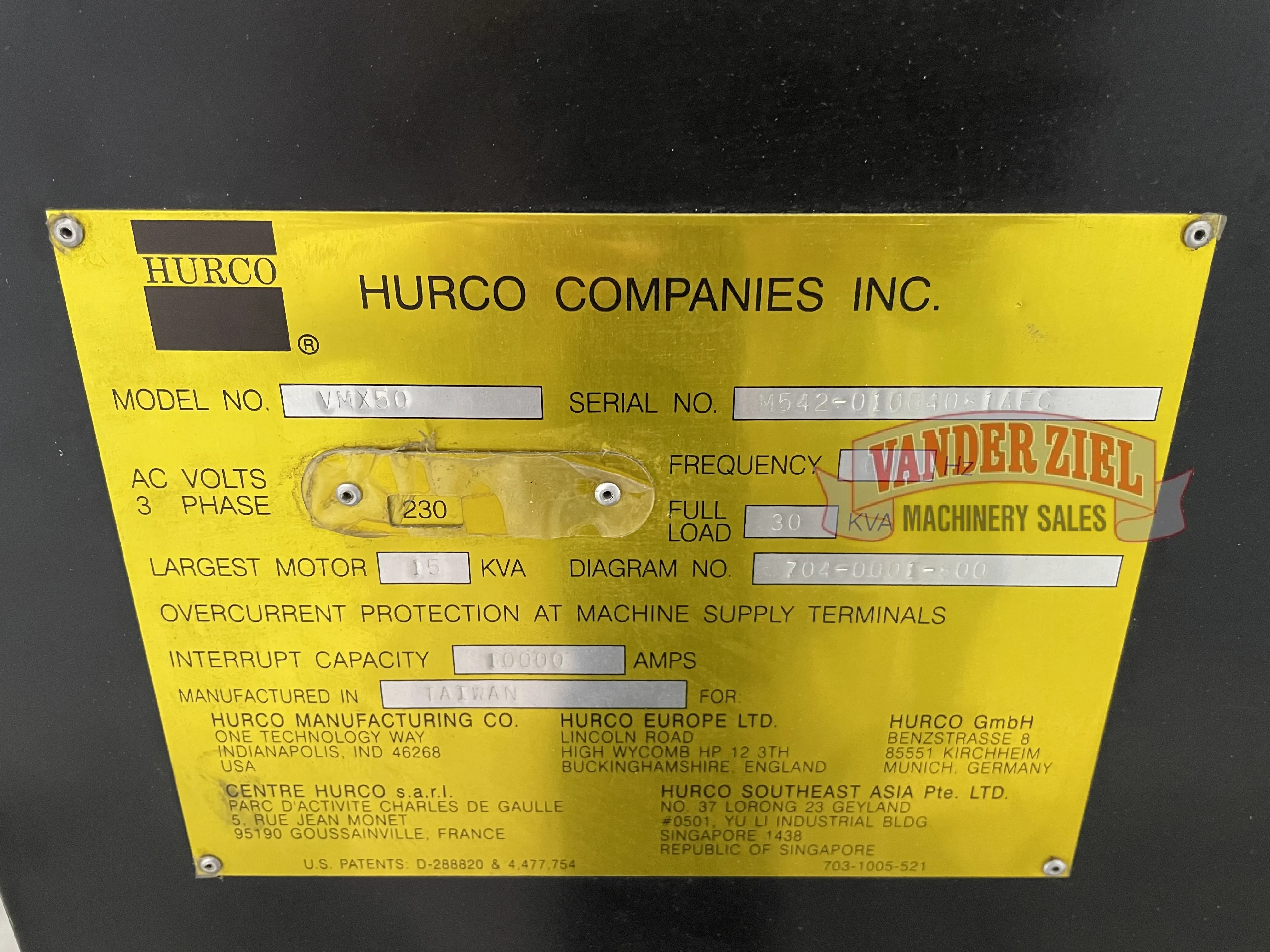

Serial #M542-01004081AFC
Asset #16060

Specifications:
X, Y, Z Travel 50" x 26" x 24"

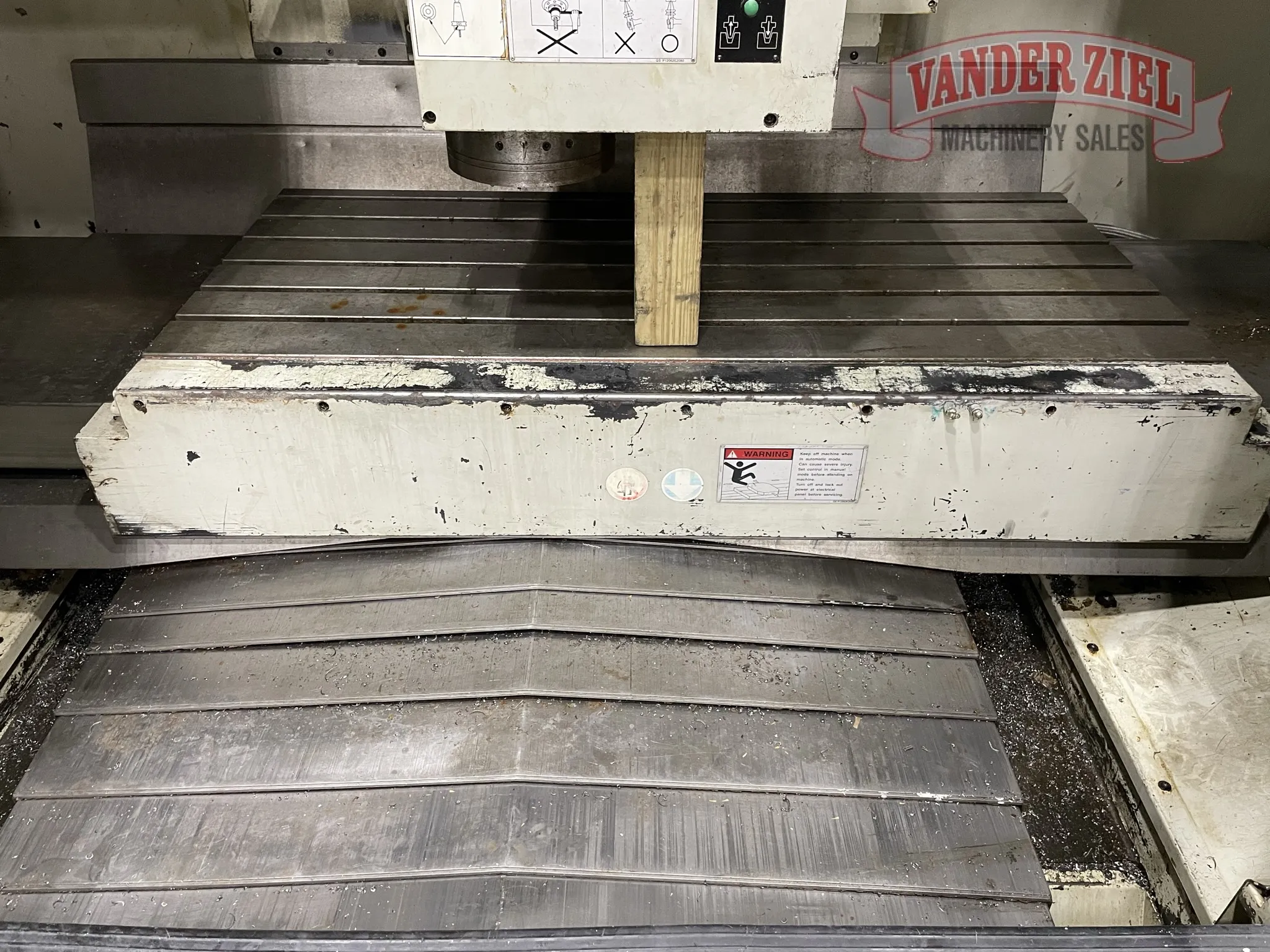

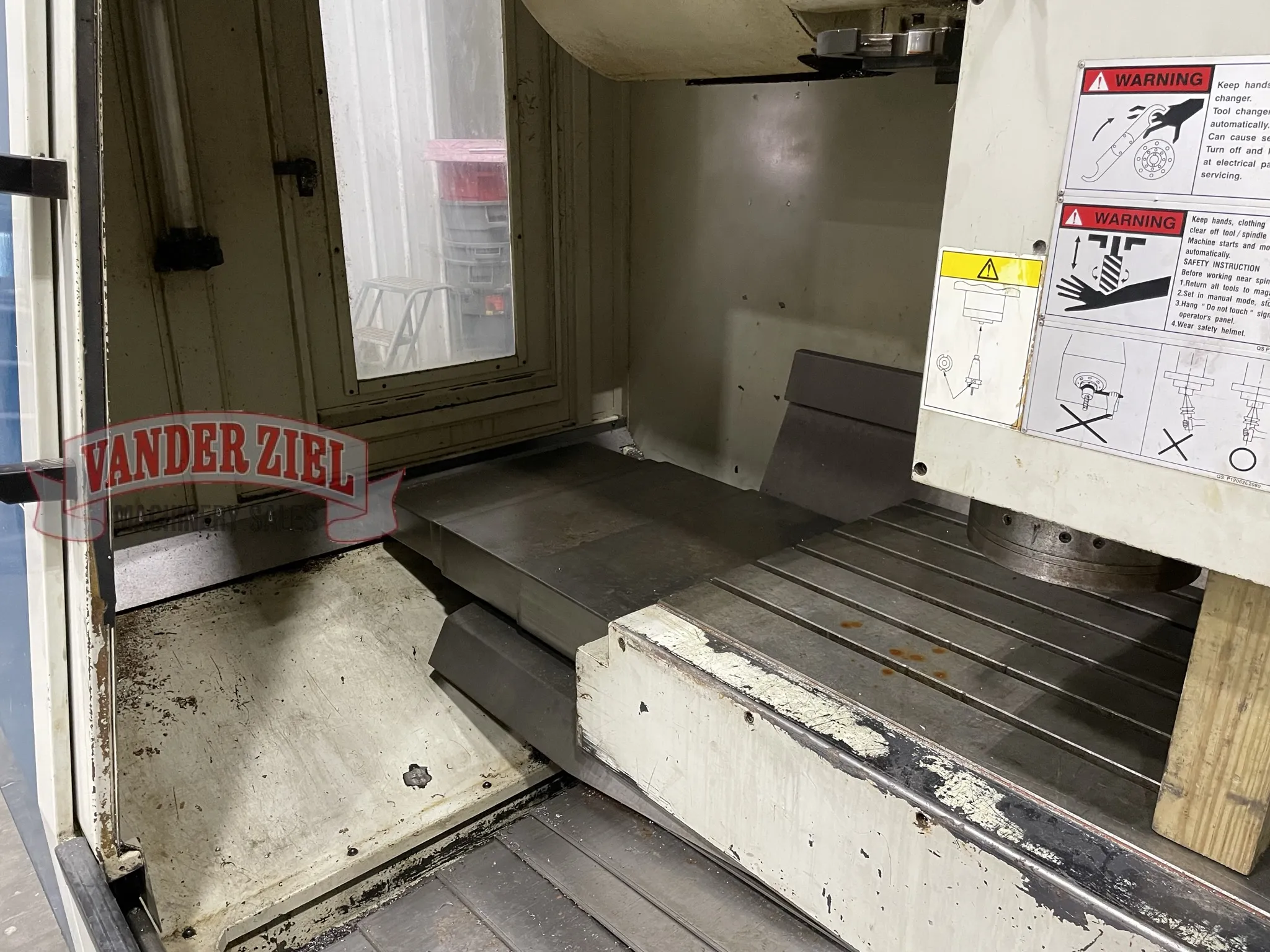

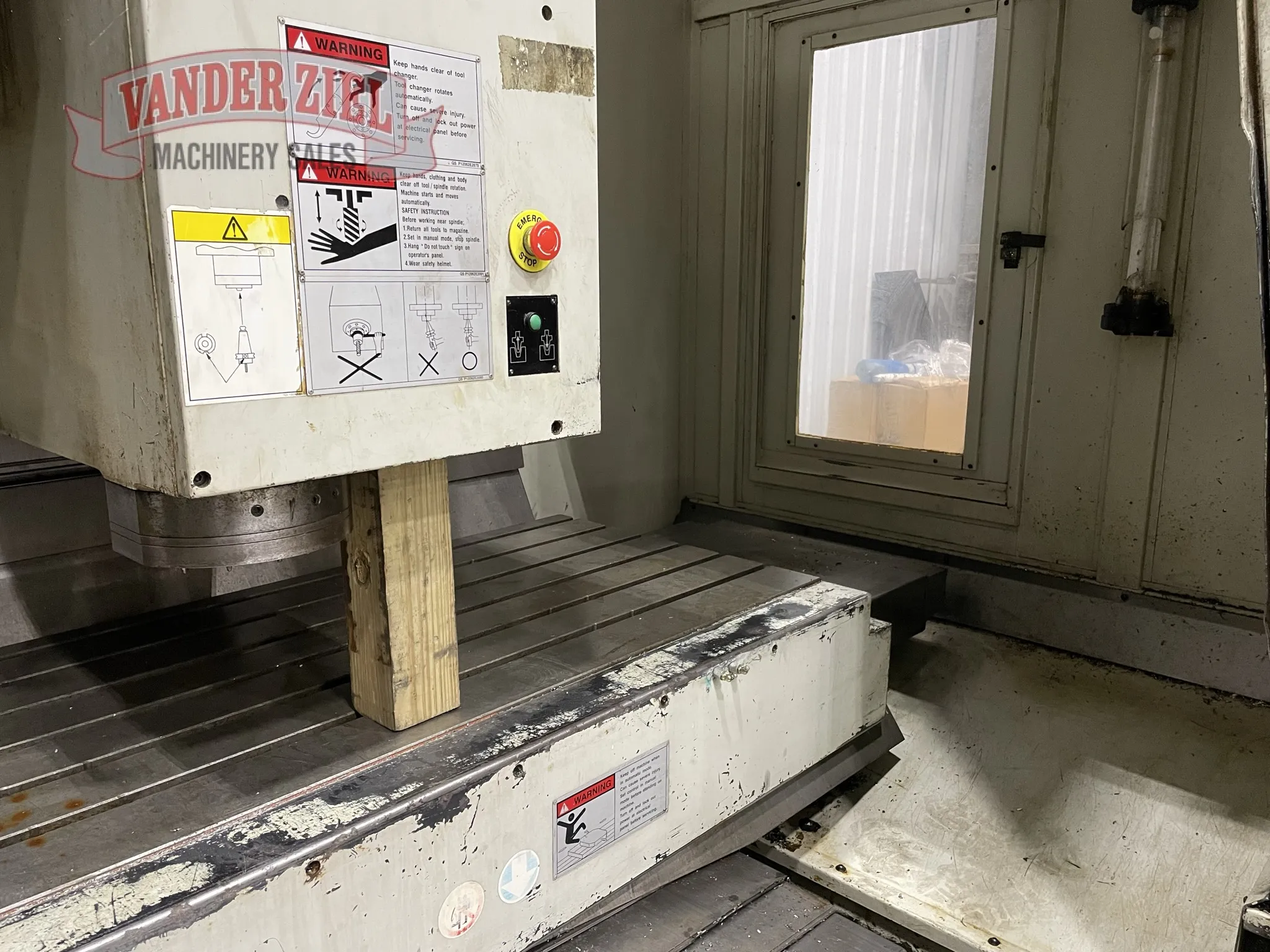

Table Working Surface 59" 26"
Maximum Table Load 3000 lbs
T Slots spacing x width 6 x 0.71" on 3.94" centers
Floor to table surface 36"
Spindle nose to table 6"/30"
Spindle Center to Column 29.5"
Spindle Taper, VMX 40T = CAT/BT #40 Taper
Spindle Speed VMX=10,000 RPM / VMXS = 15,000 RPM
X axis and Y axis Rapid Feed Fire Rate 1181 IPM
Z-axis Rapid Feed Rate 787 IPM
Cutting Feed Rate 300 IPM (450 IPM @ 150% override)
Least Command Increment 0.0001"
Number of stations 24
Maximum Tool Diameter 3.2"
Maximum Tool Length 11.8"
Maximum tool Weight 15 lbs
Voltage Required 200-240 VAC / 60HZ

Preliminary Specifications - Subject to Verification
