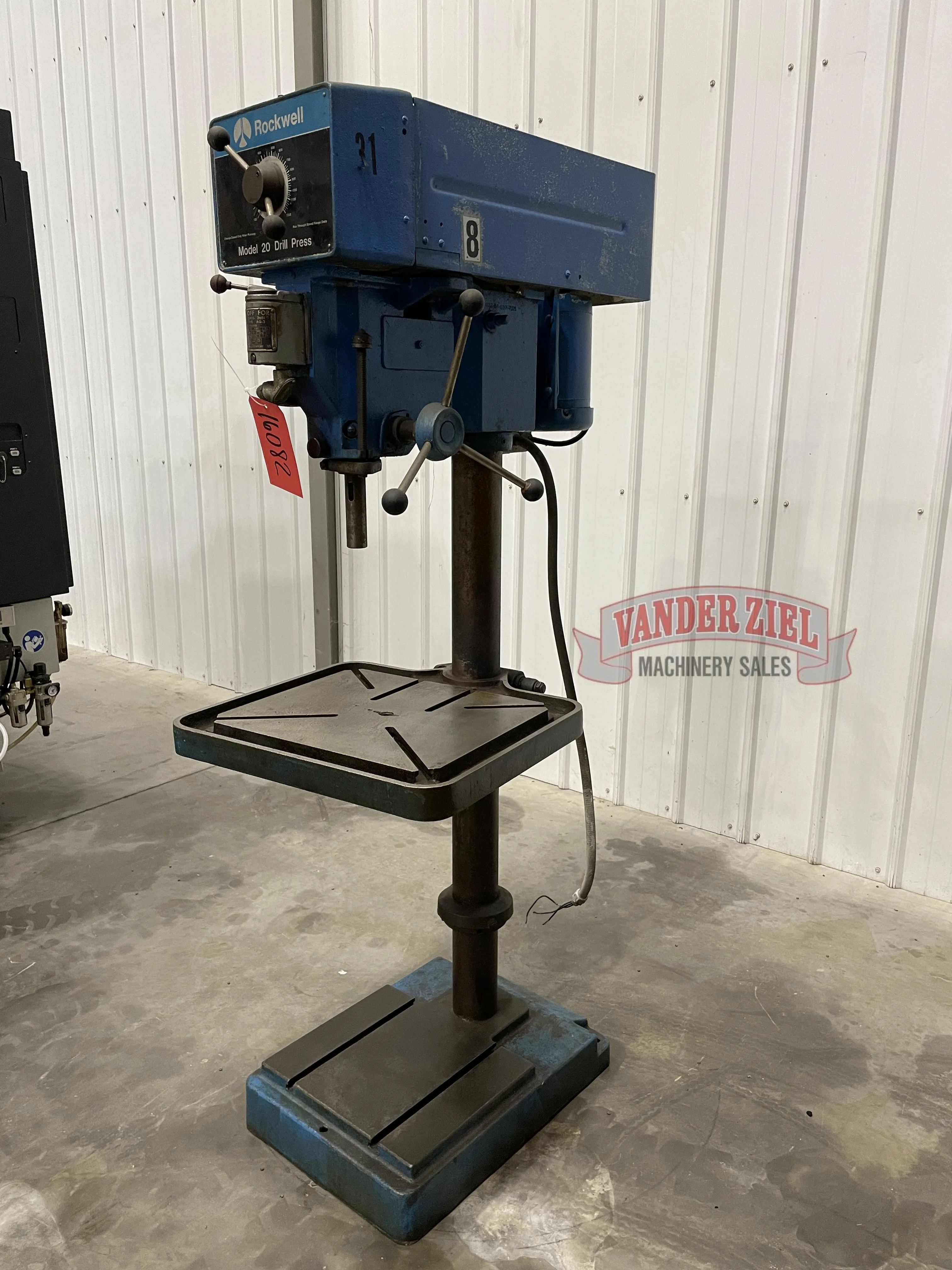

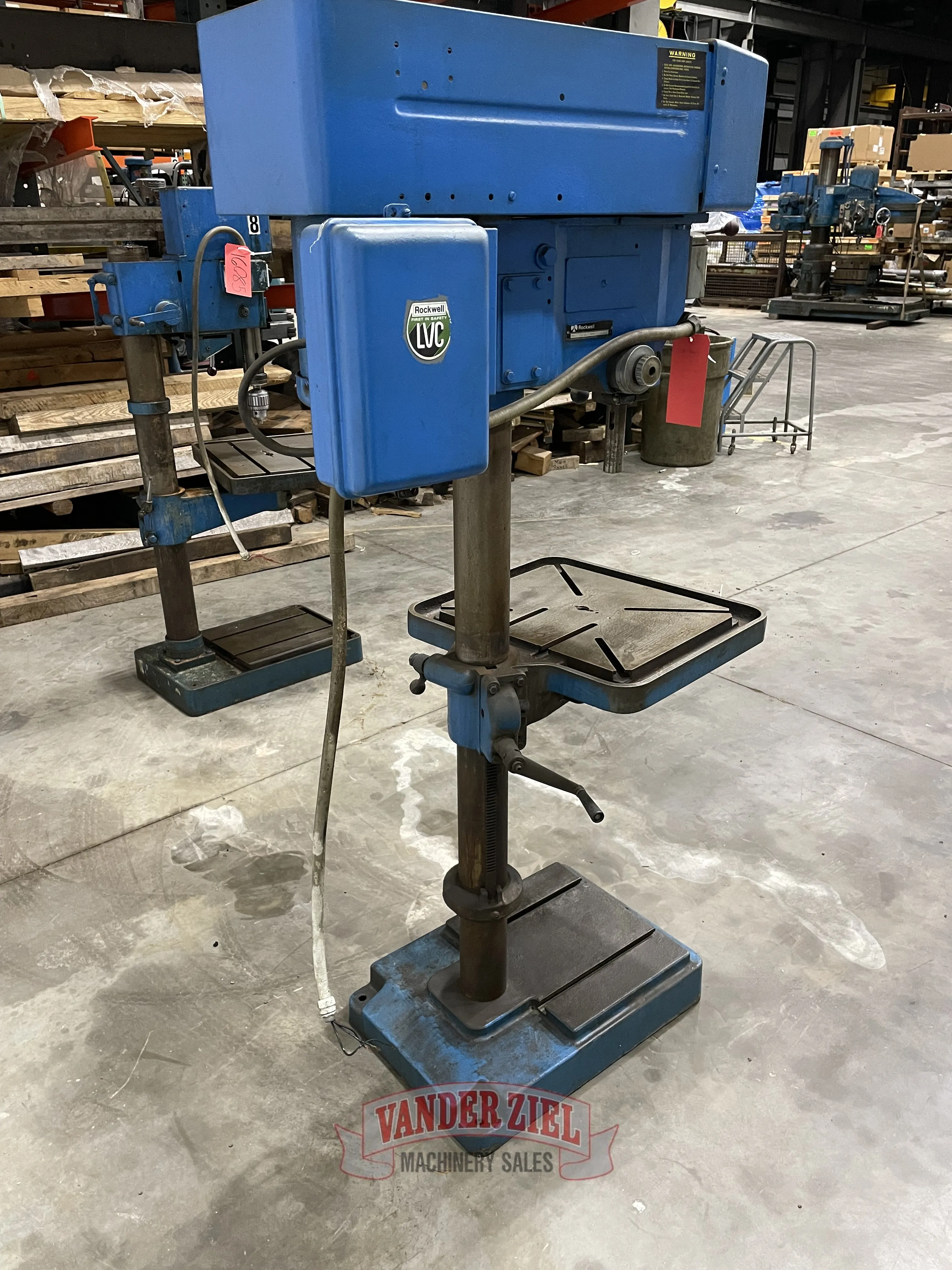

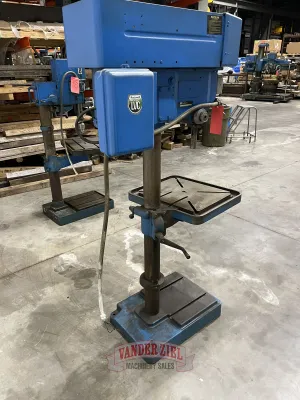

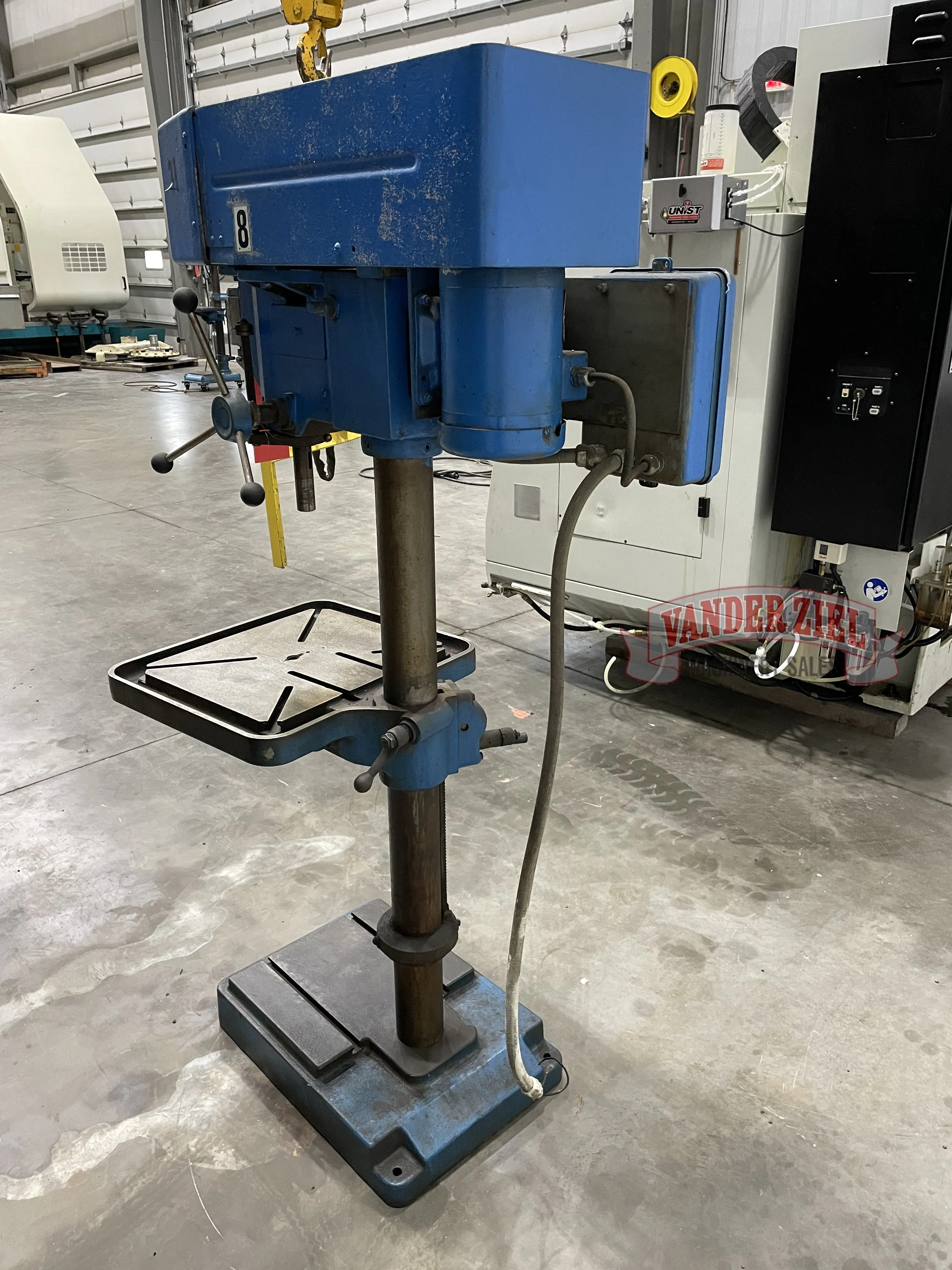

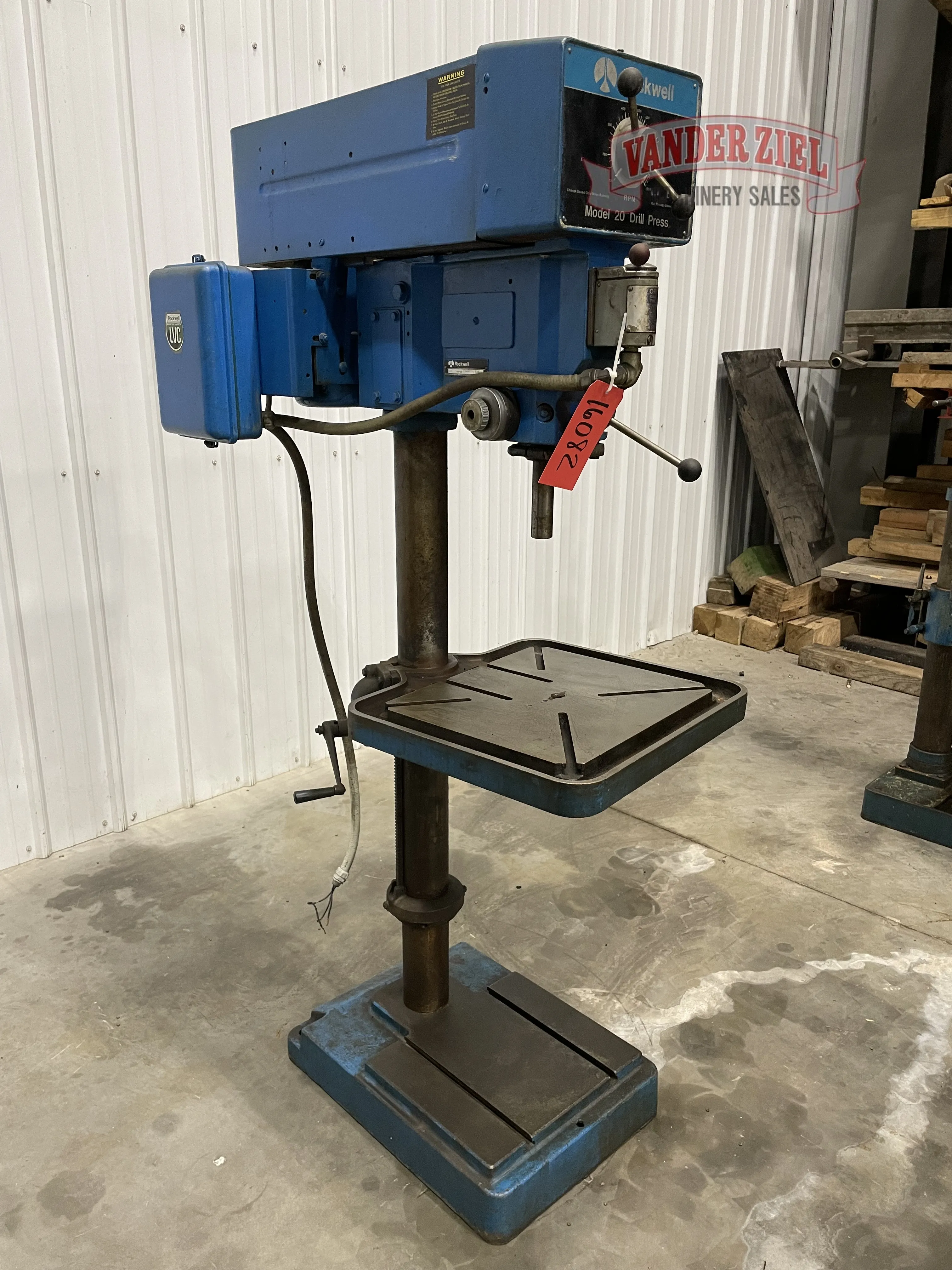

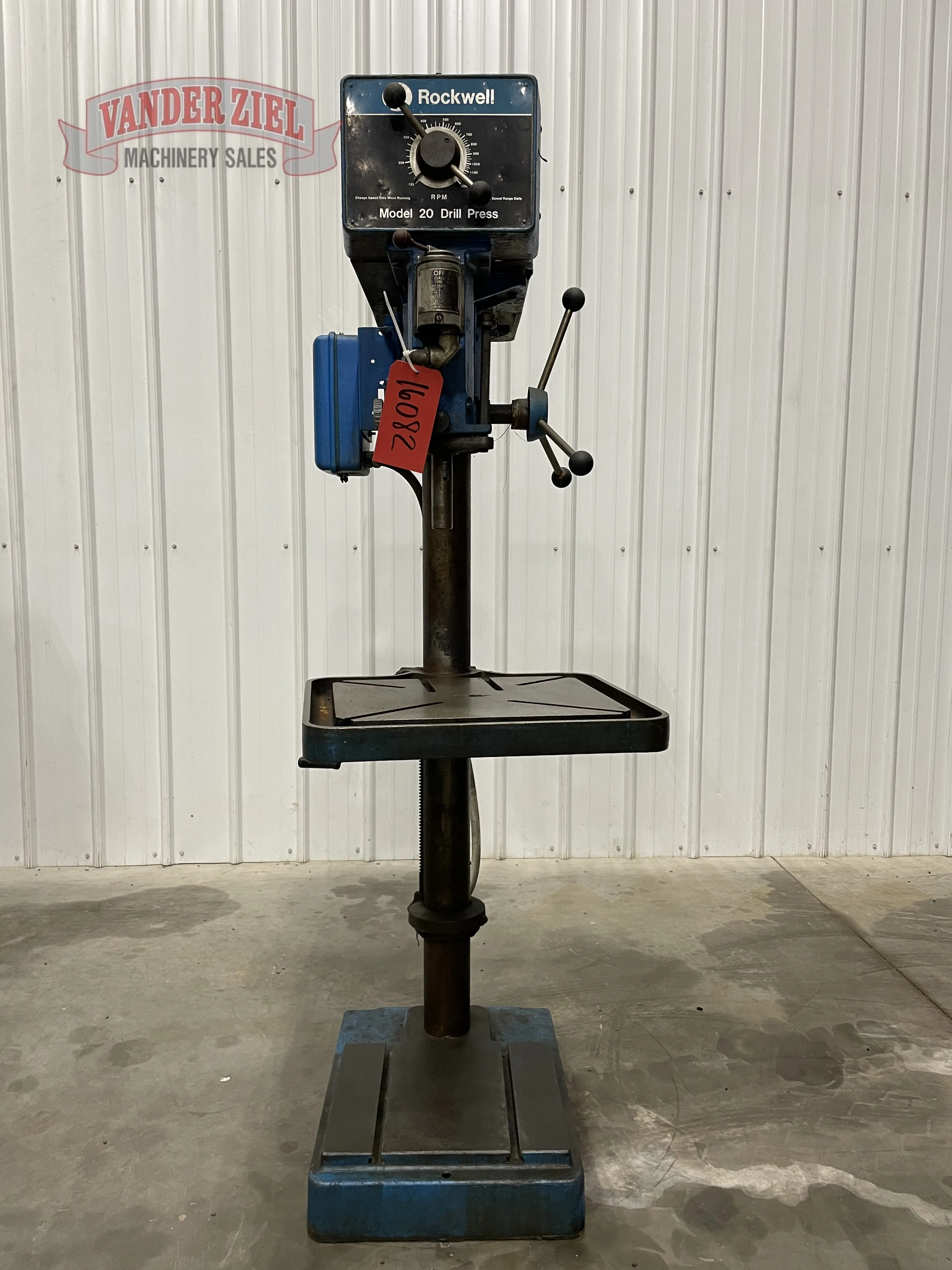

Rockwell Delta 20" Drill Press

Rockwell Delta 20" Drill Press, Model 70-6X0

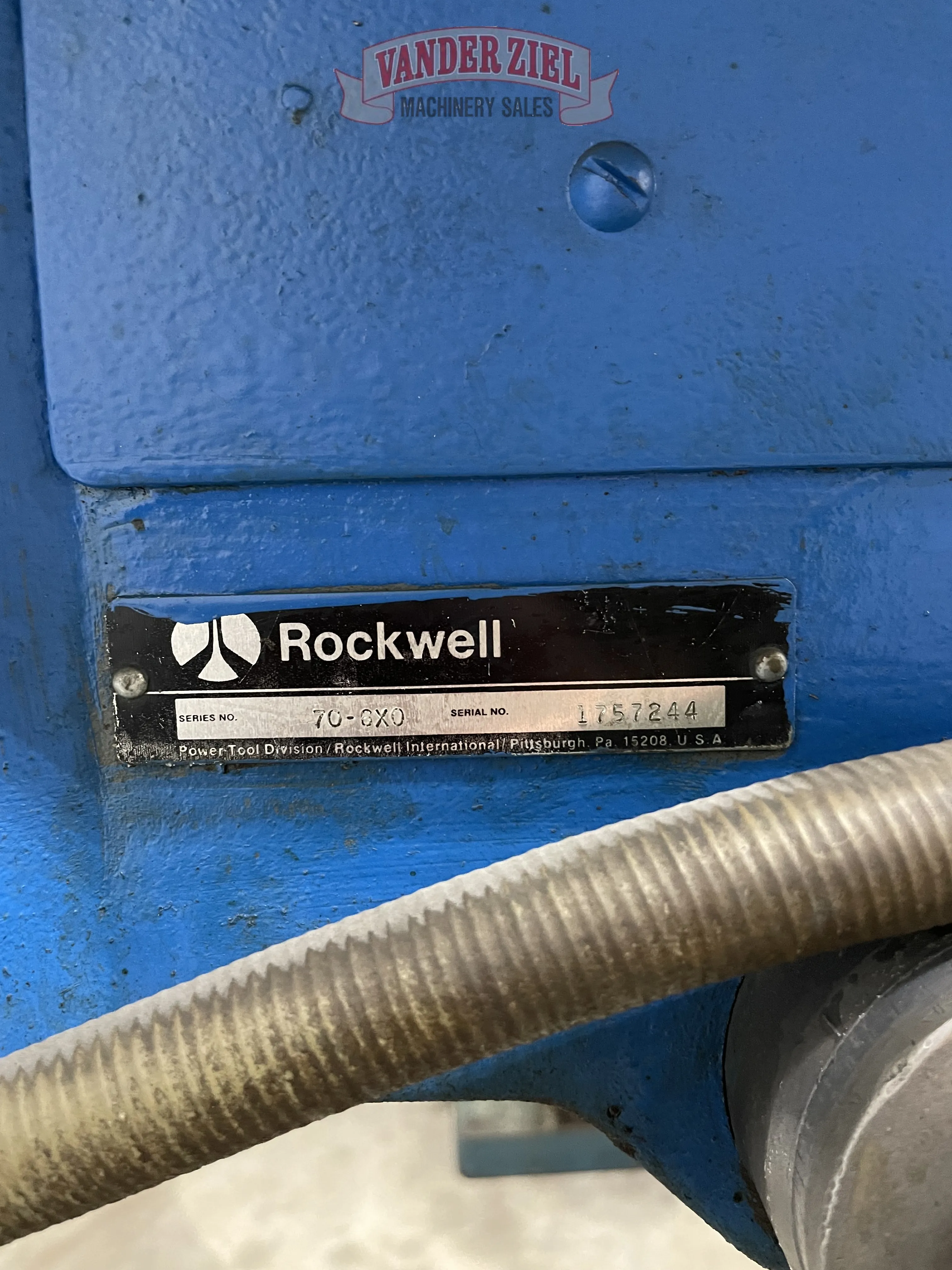

Serial # 1757244
Asset # 16082

Specification:
Drilling Capacity, In Mild Steel: 1" Diameter
Quill Taper: #3 MT
Stroke of Quill: 6"
Spindle Speeds, Variable: 375 - 3750 RPM
Throat Depth: 10"

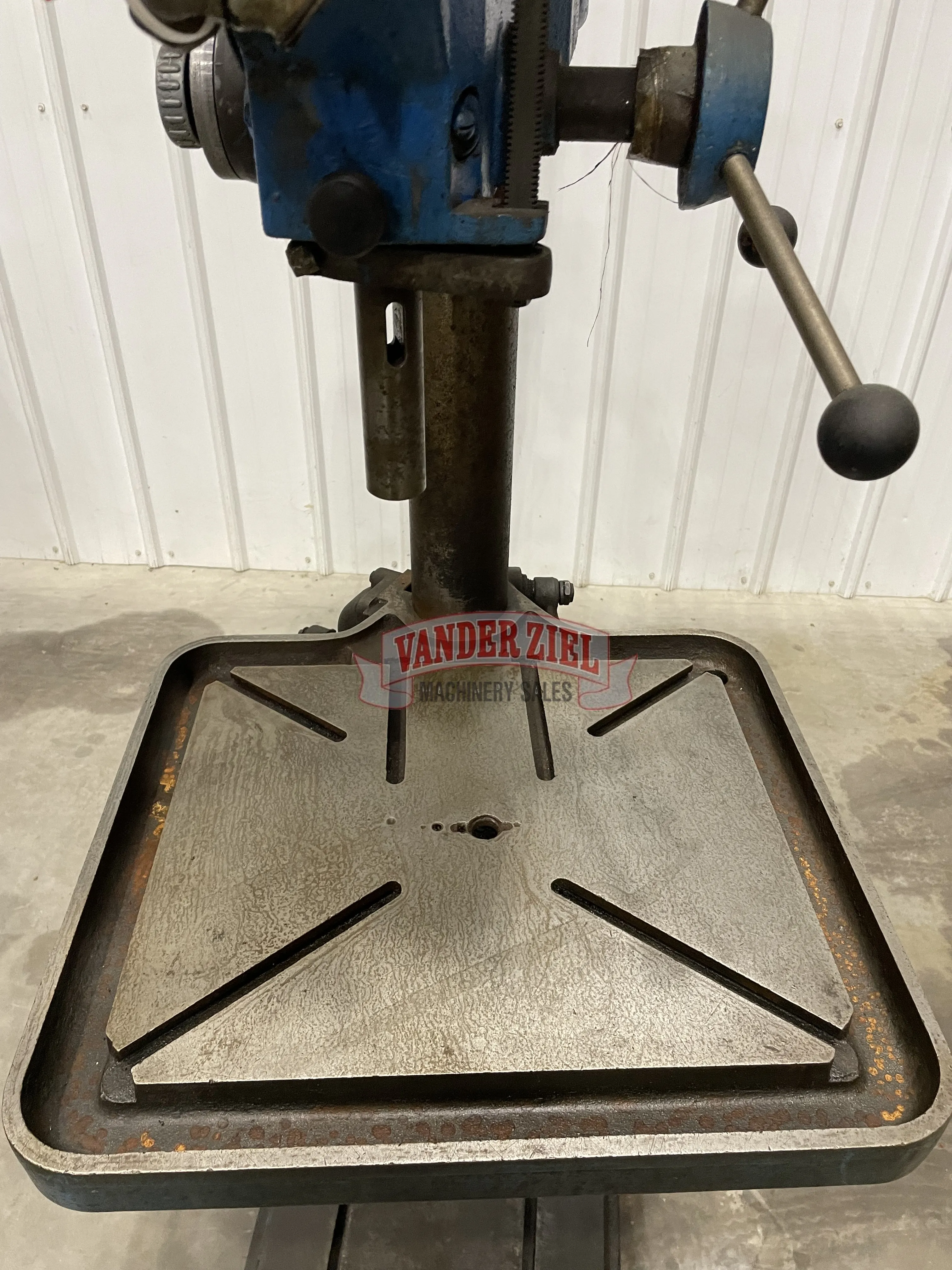

Tilting Work Table Size: 18" x 16"
Table Tilts: +/- 90 Deg.
Table Rotates Around Column: 360 Deg.
Vertical Adjustment of Table in One Setting: 12"
Maximum Distance Spindle Nose to Base Table: 44"
Base Table Size: 16" x 13-1/2"
Column Diameter: 3-3/4"
Overall Dimensions: 22" x 36" x 75" High
Machine Weight, Approx. 500 Lbs.

Preliminary Specifications - Subject to Verification
