Scotchman 50 Ton Ironworker

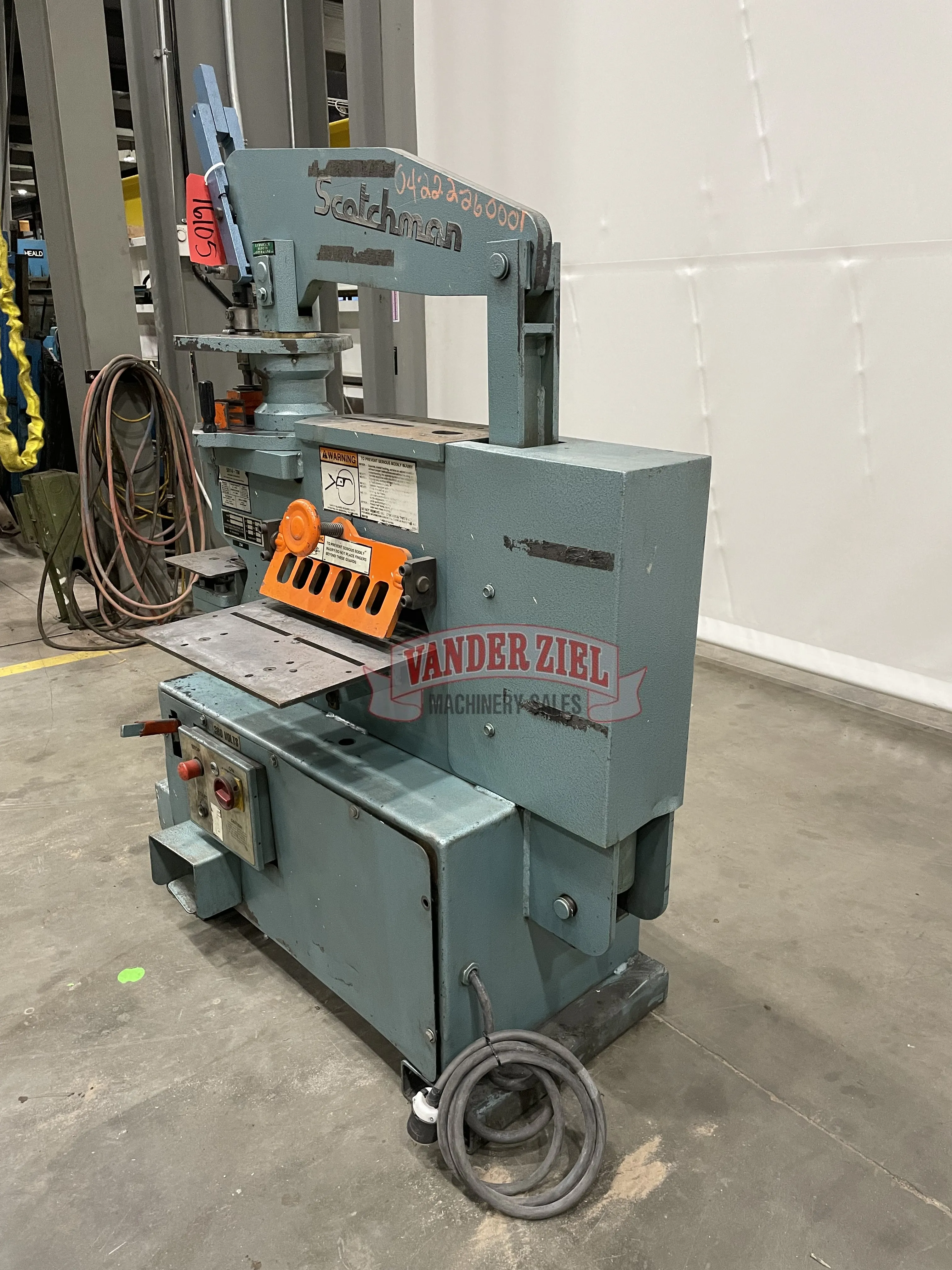

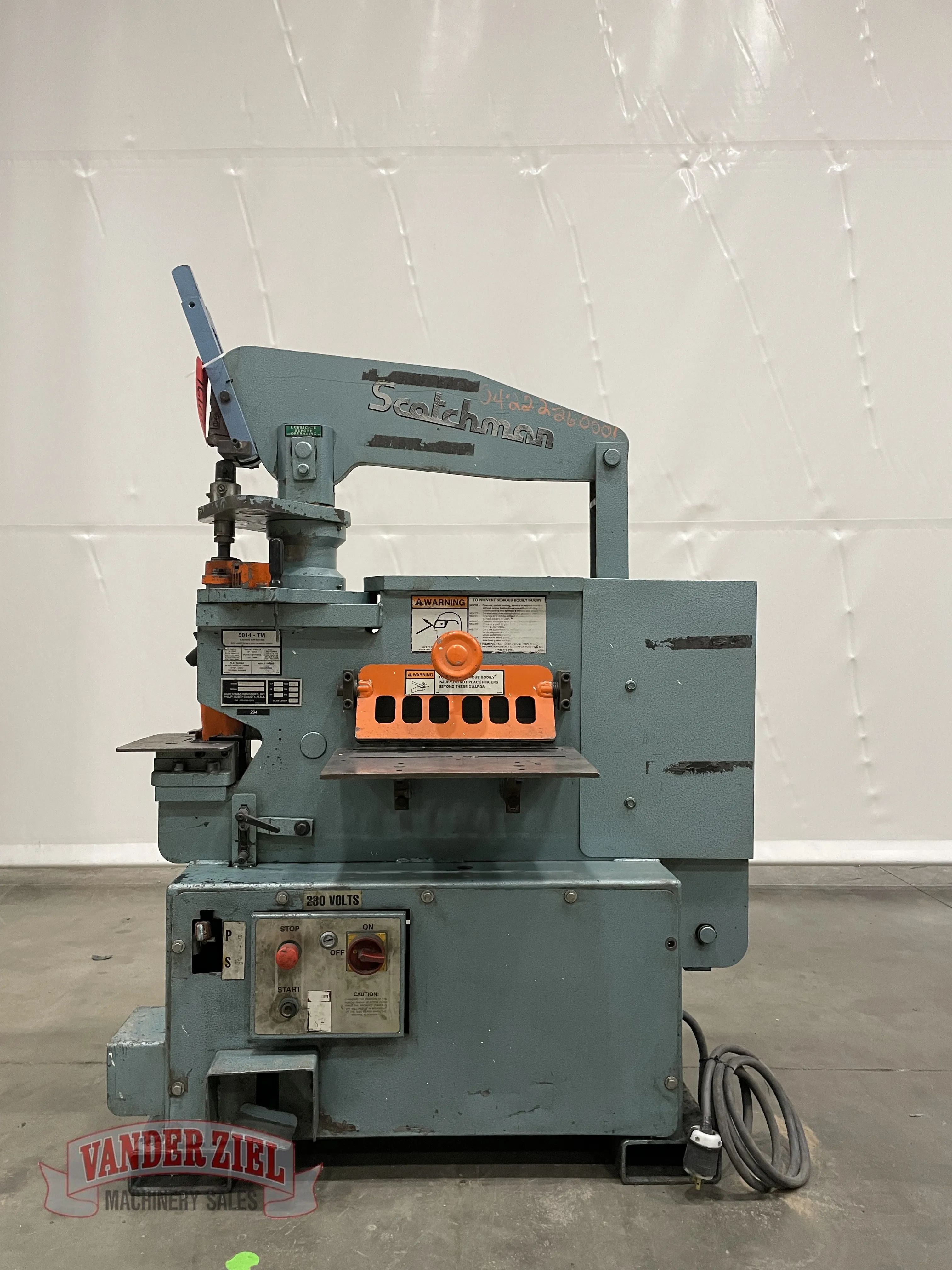

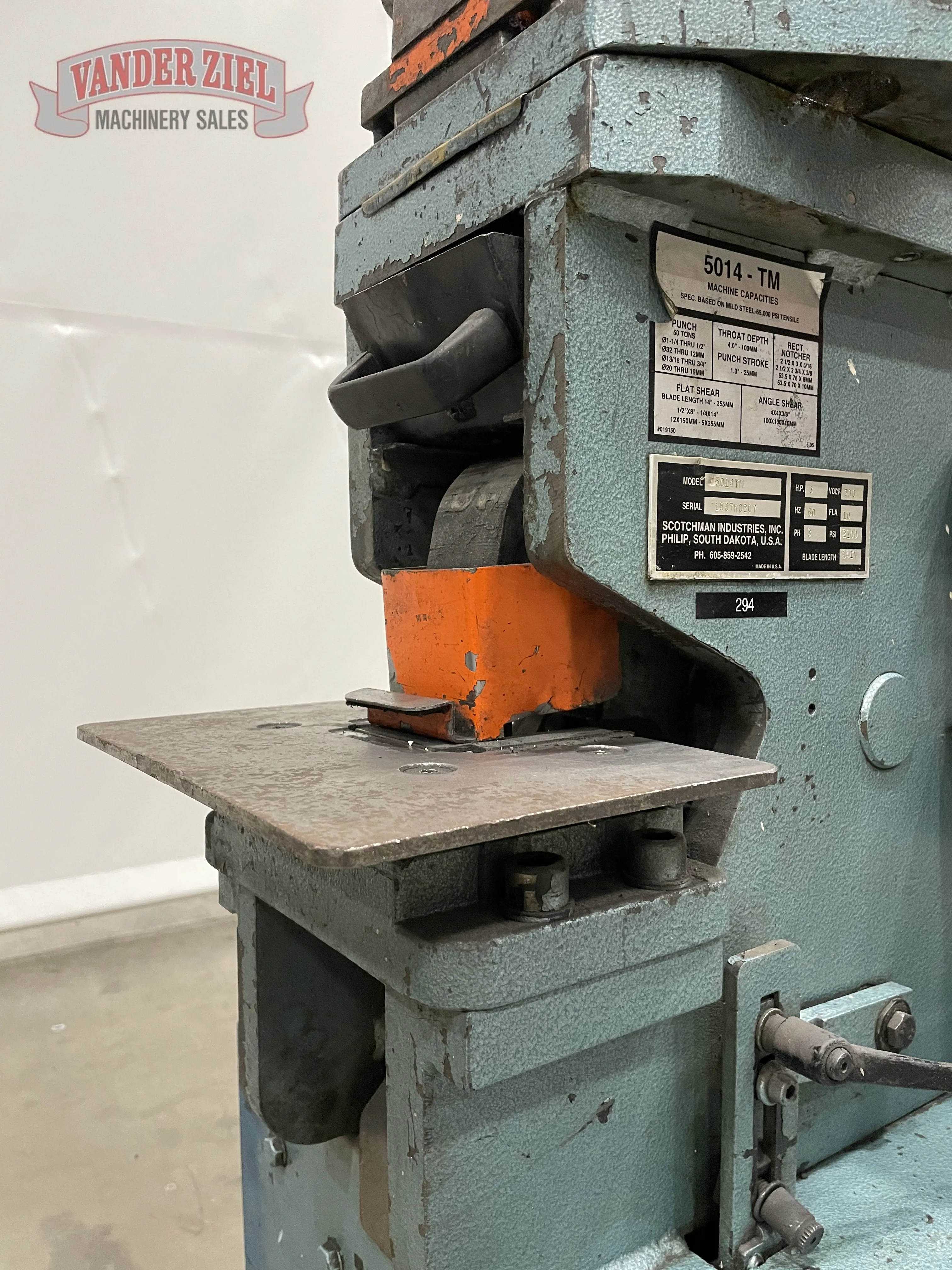

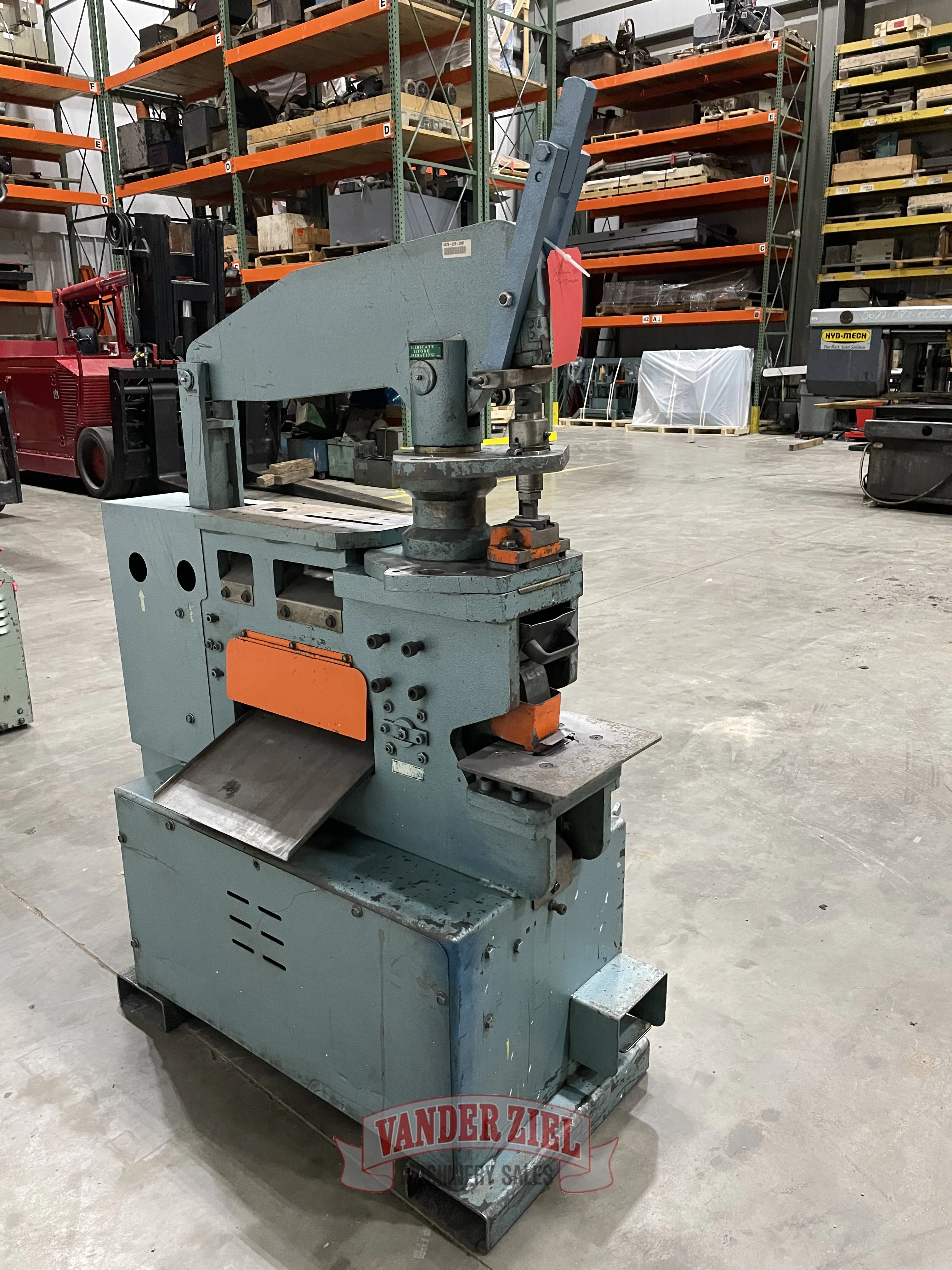

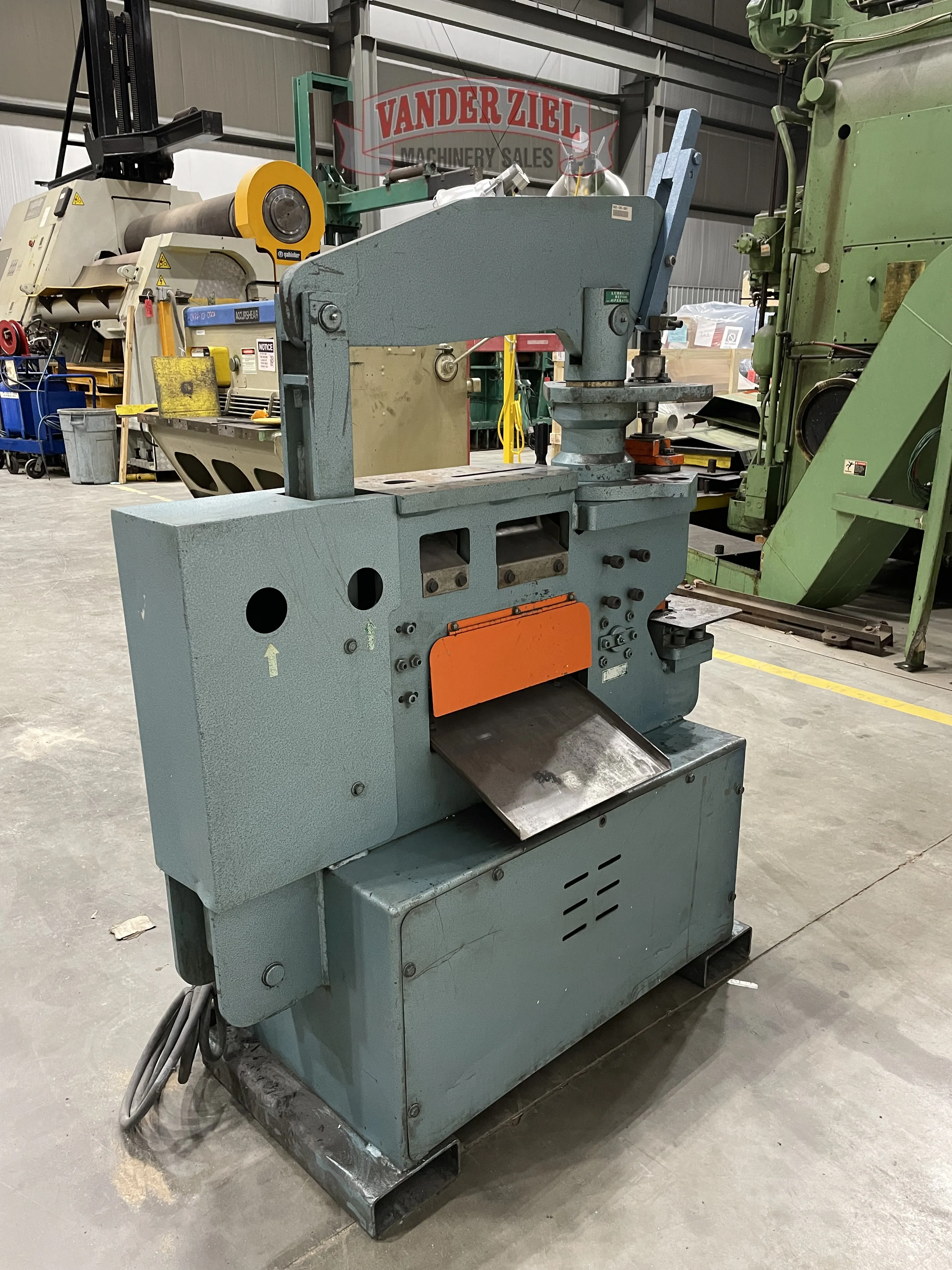

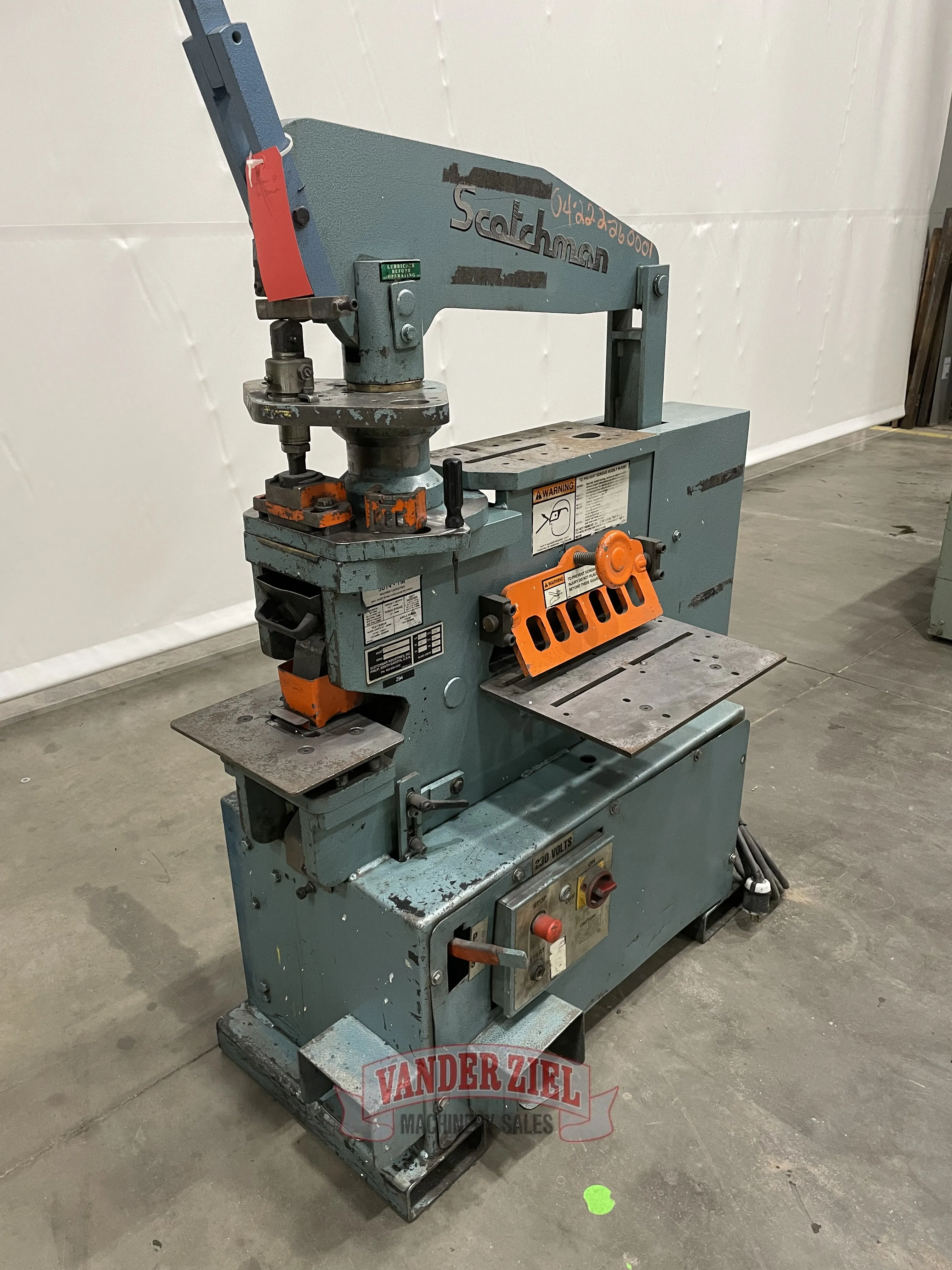

Scotchman 50 Ton Turret Style Ironworker, Model 5014-TM

Serial # 1567K0207
Asset # 16105

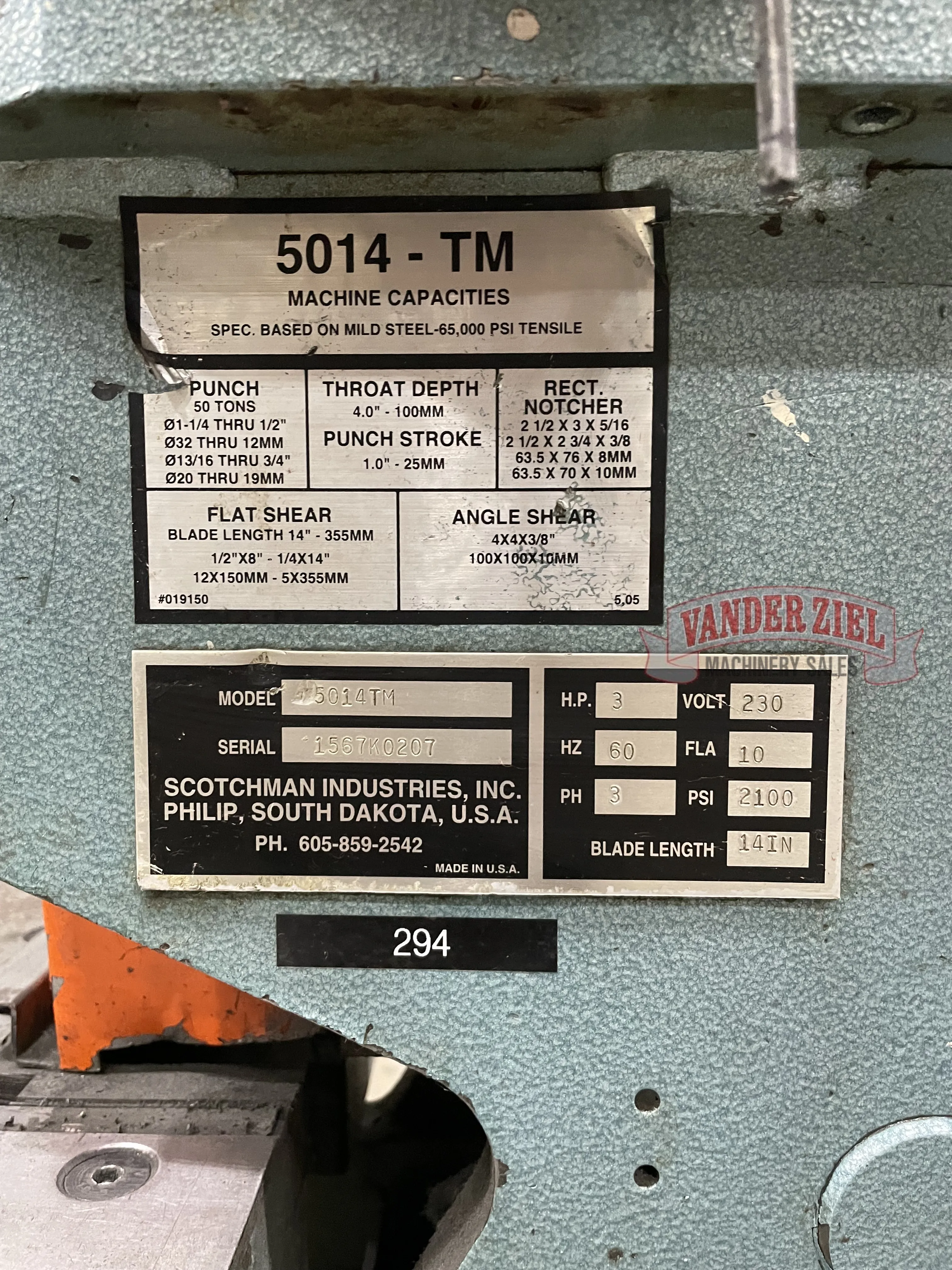

Specifications:
Punching Capacity 50 Tons
1-1/4" in 1/2"
13/16" in 3/4"
Special Tooling 2 1/4" Max Diameter
Throat Depth 4"
Flat Bar Shear 14"
3/4" x 4"
1/2" x 8"
3/8" x 10"
1/4" x 14"
Optional Sabre Blade
3/4" x 4"
1/4" x 10"
3/8" x 12"
1/4" x 14"
Angle Shear 90 Degrees 4" x 4" x 3/8"
Angle Shear 45 Degrees 2" x 2" x 3/8"
Brake 8" 25 Tons
Brake 12" 25 Tons
Pipe Notcher 3/4", 1"
Schedule 40 1 1/4", 1 1/2", 2"
Rectangular Notcher 2 1/2" x 3" x 5/16", 2 1/2" x 2 3/4" x 3/8"
90 Degree V- Notcher 6" x 6" x 1/8", 3" x 3" x 1/4"
Rod Shear
Round Capacity 1/4" - 1", 5 Cavity
Square Rod Capacity 1/4" - 3/4", 1 Cavity
Square Tube Shear Capacity 1/2" to 1", 12 Gauge
Picket Tool 1/2", 3/4", 1", 16 Gauge
Strokes per Minute in Light Material 40 spm (1/4" Stroke)
Strokes per Minute in Heavy Material 17 spm (3/4" Stroke)
Hydraulics 2,100 PSI
Motor 3 HP, 3 PH
Dimensions 29" x 48"
Height 67"
Weight 1,575 lbs.

Preliminary Specifications - Subject to Verification
