Samchully 24" Three Jaw Scroll Chuck, 10.8" Bore - NEW

Technical Specs

As-IsNo

Description

Samchully 24" Three Jaw Scroll Chuck, 10.8" Bore - NEW

Asset #16164

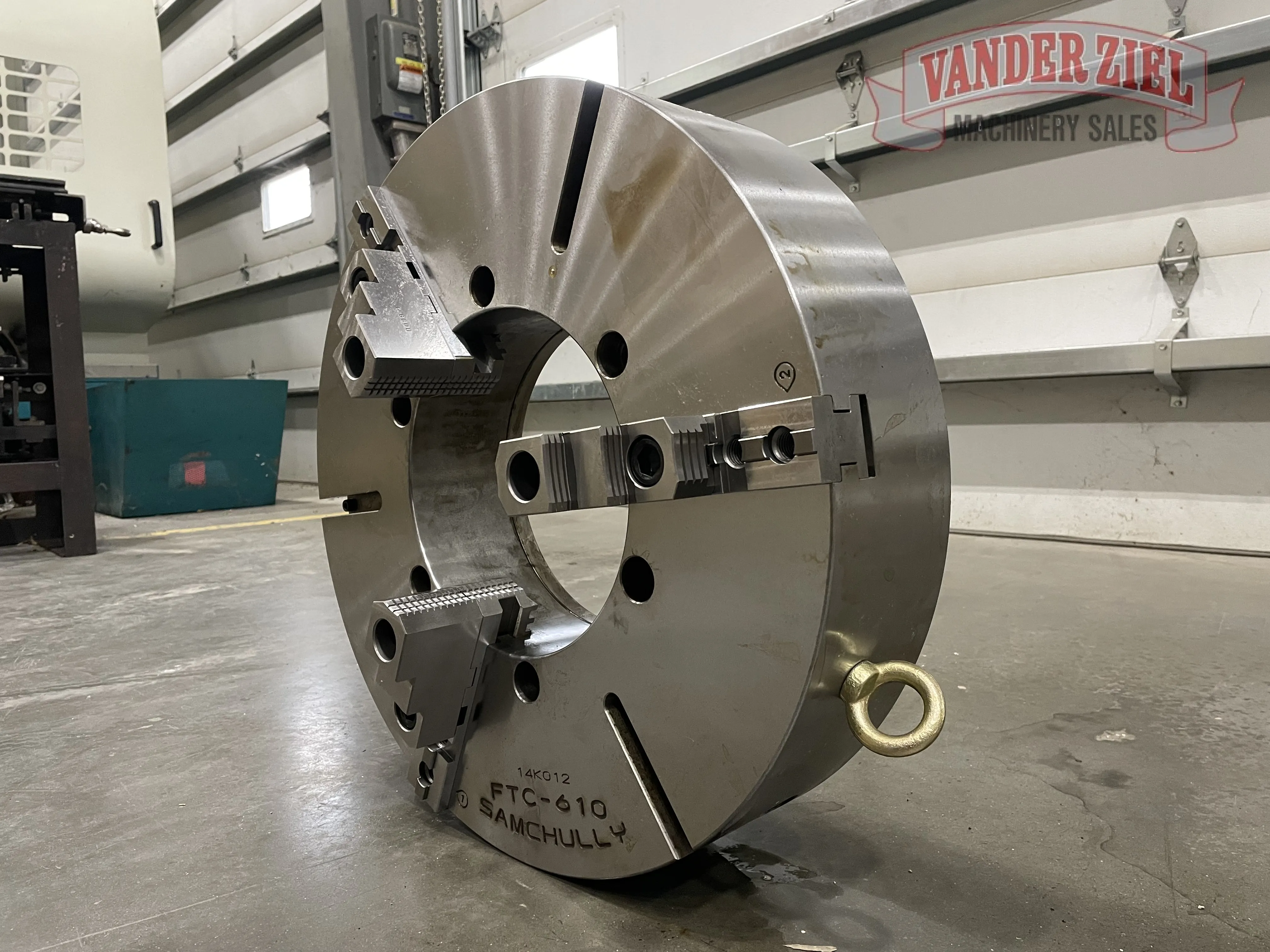

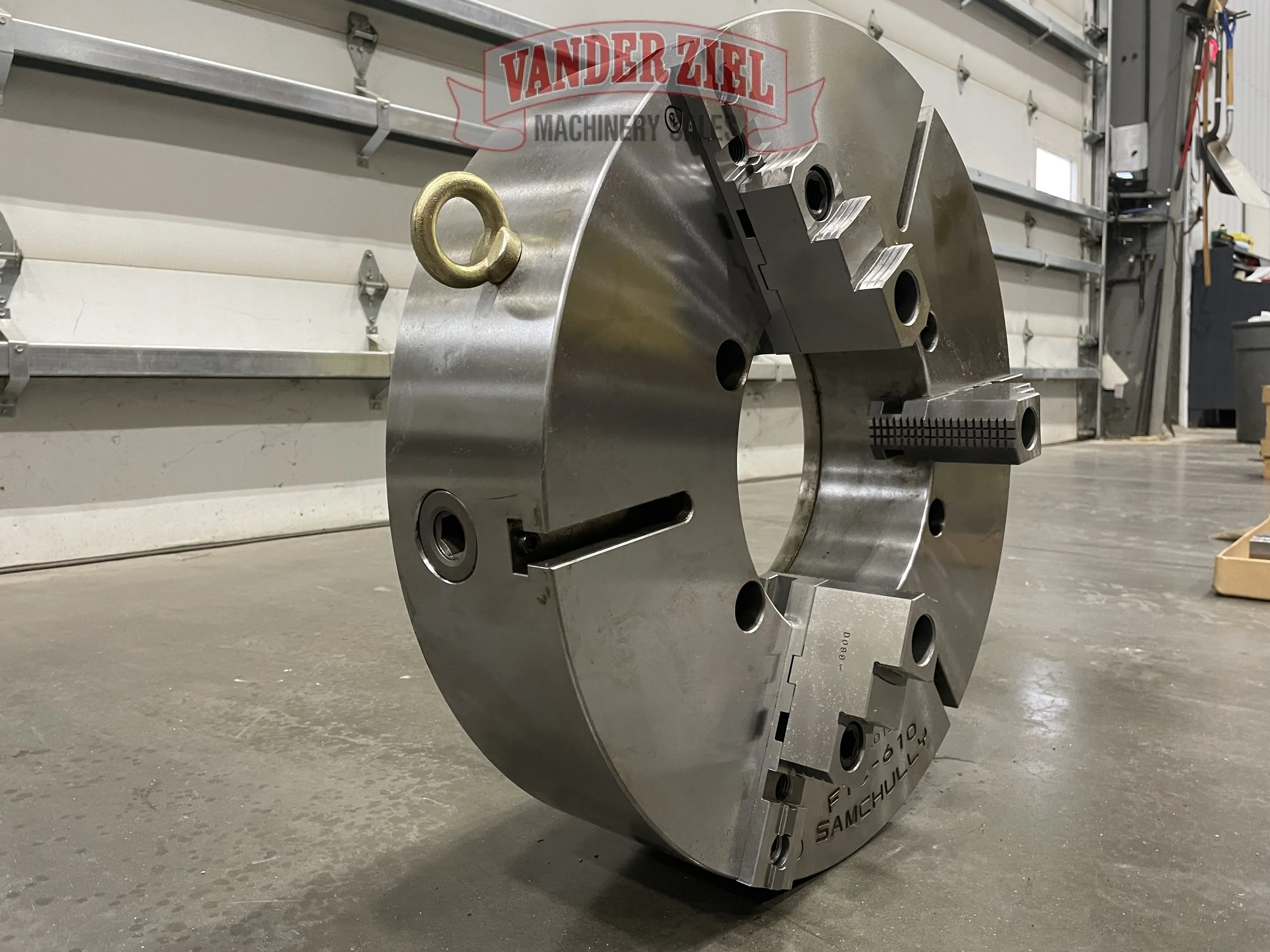

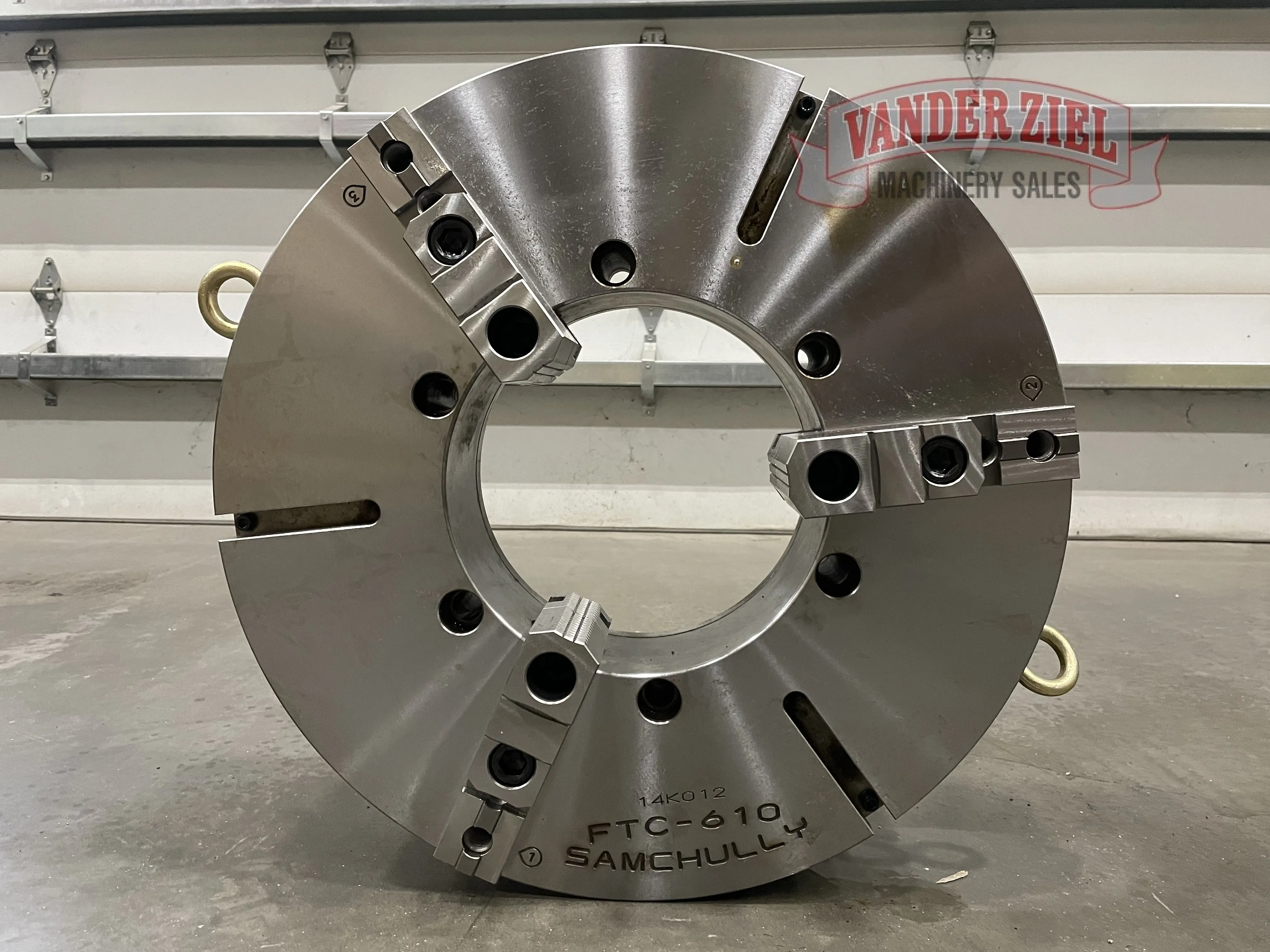

Samchully 24” Three Jaw Scroll Chuck
Type of Chuck   2 Piece
Reversable Top Jaws
Bore     10 ¾”
Mount   A1-15
24.0" 3-Jaw
Front-mounting scroll chuck with 2-piece jaws; 275mm bore; 130 ~ 576mm
External clamping range on diameter; 235mm ~ 592mm
Internal clamping range on diameter; 80KN maximum static gripping force; 850 max rpm

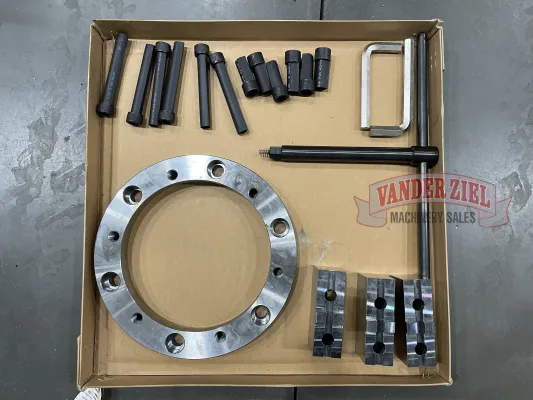

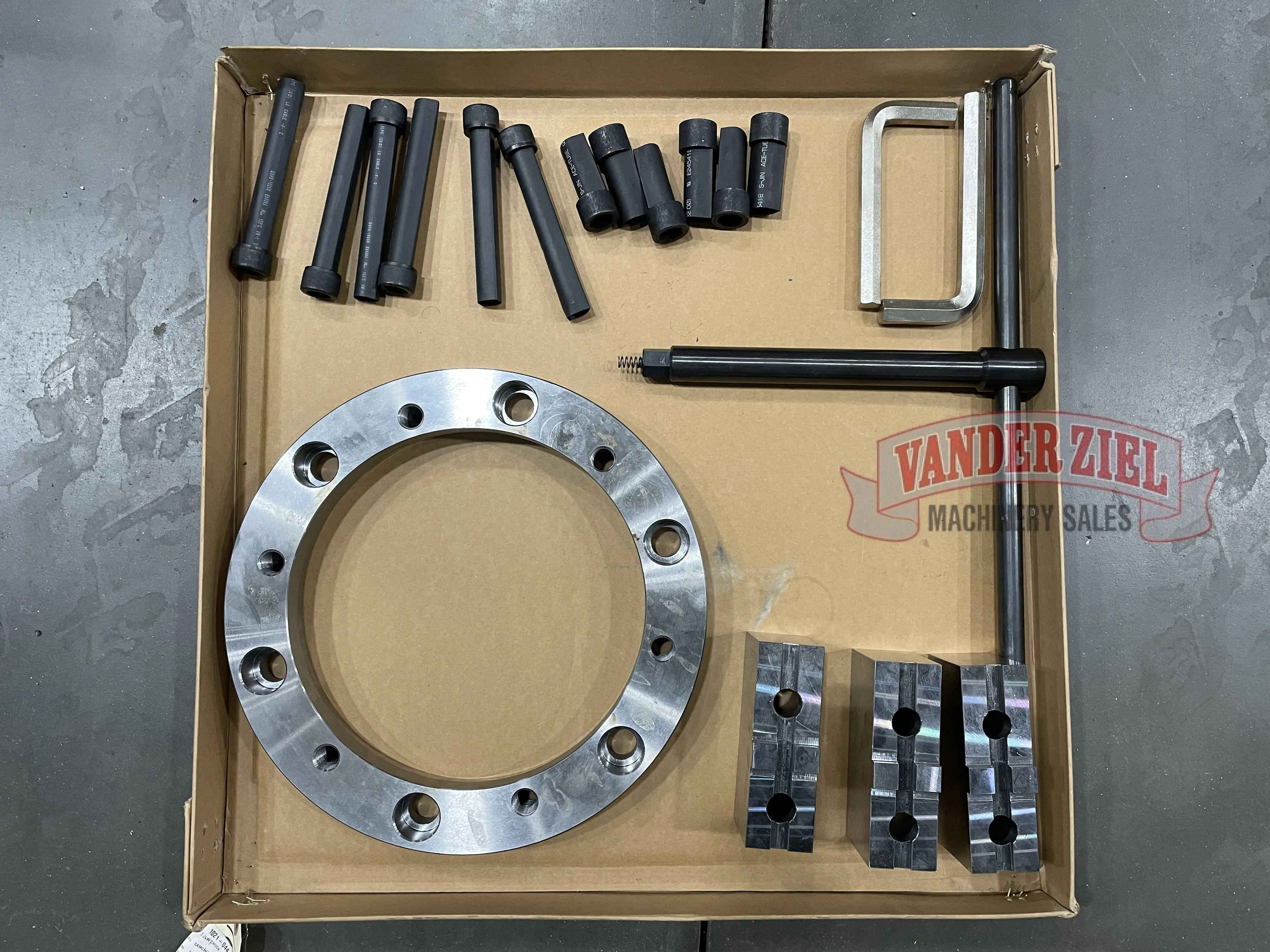

Includes one set of reversible hard and soft jaws

$13,843

Member Pricing

Asset Number
#16164I
Location
VZMS HQ (Alto)
CategoryLathe Chucks & Tooling
ManufacturerSamchully
ModelSamchully 24" Three Jaw Scroll Chuck, 10.8" Bore - NEW
ConditionUsed
REF: 001095
