Samchully 24" Three Jaw Scroll Chuck, 10.8" Bore - NEW
Samchully 24" Three Jaw Scroll Chuck, 10.8" Bore - NEW
Asset #16166

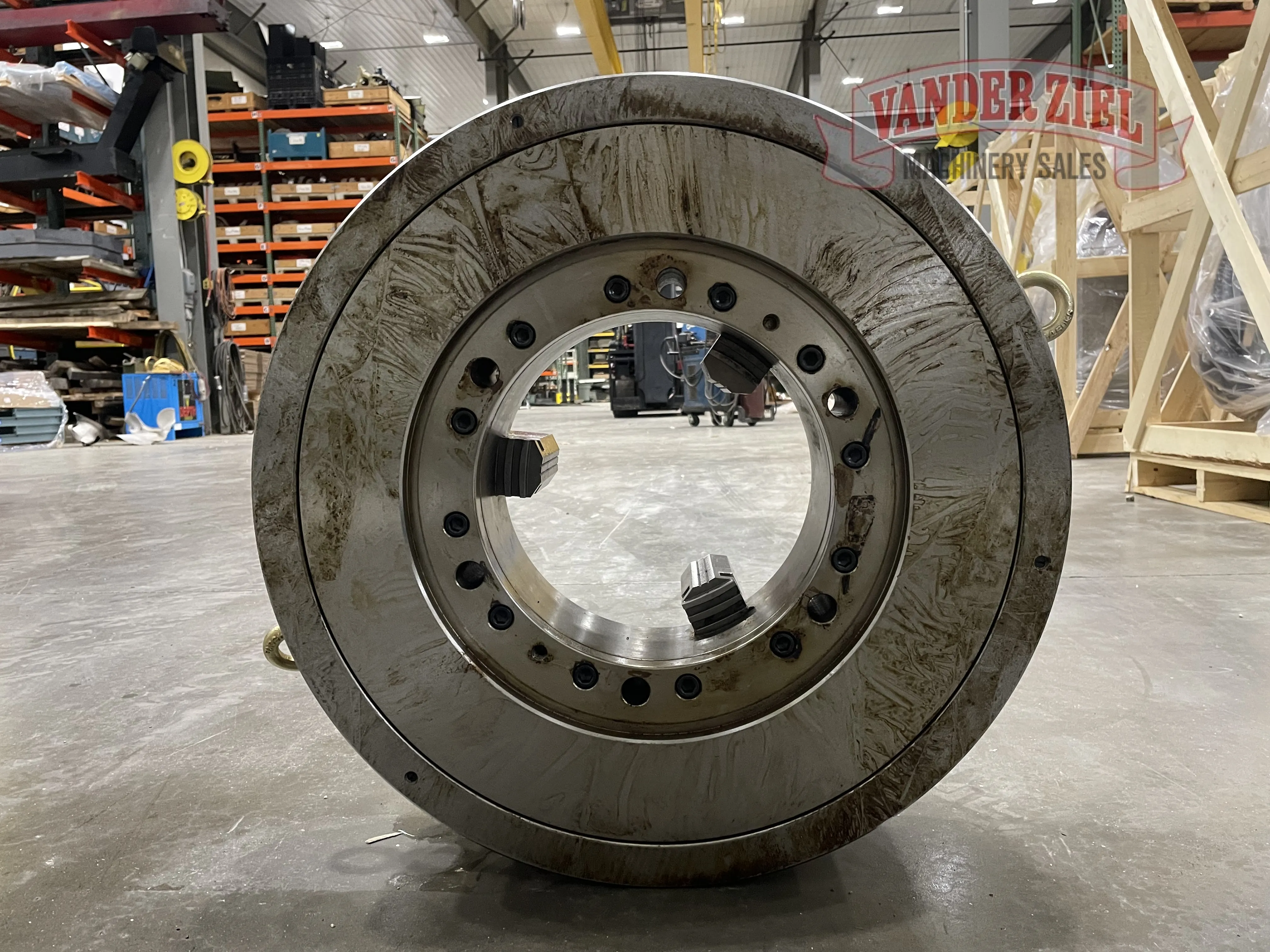

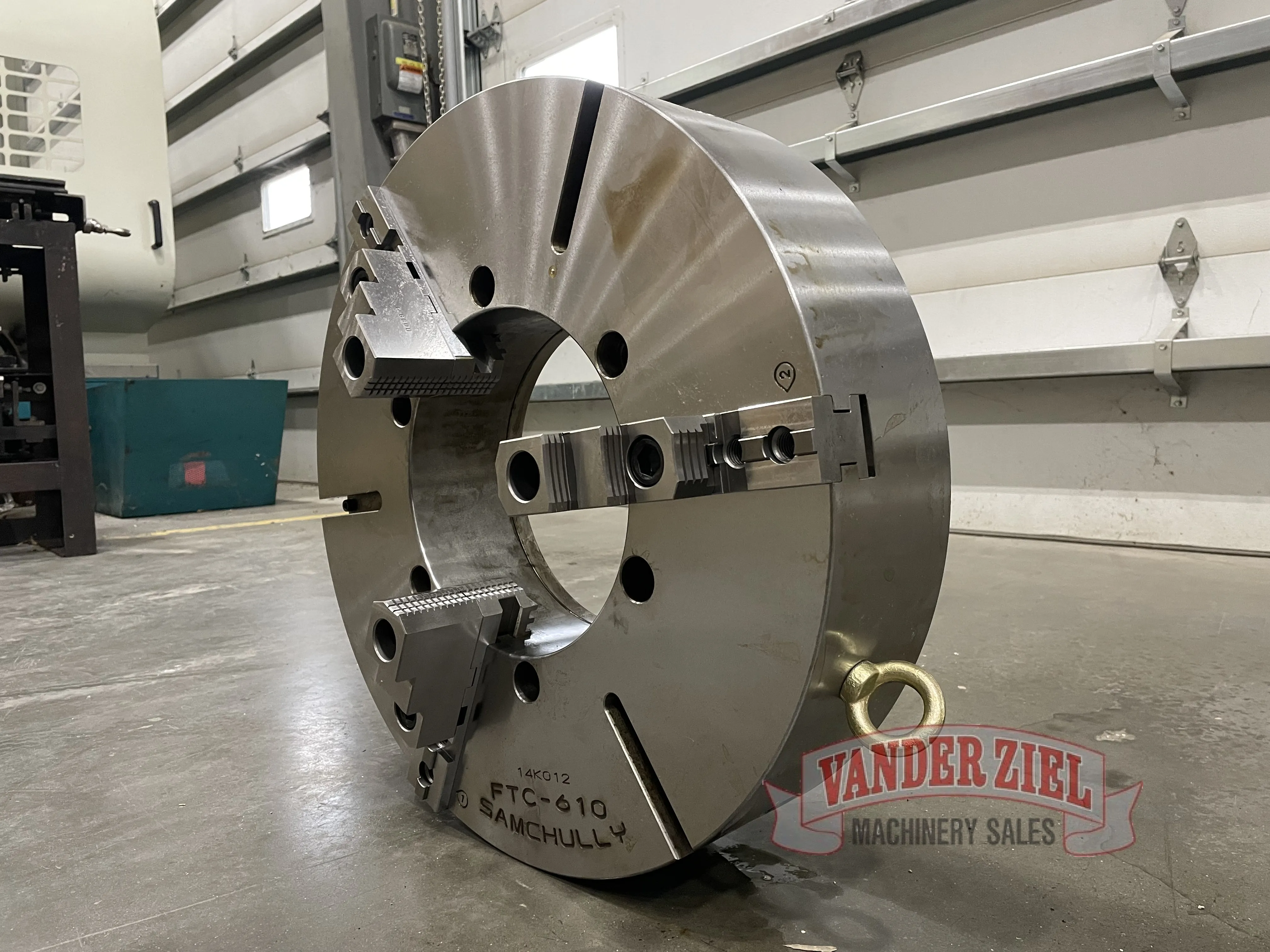

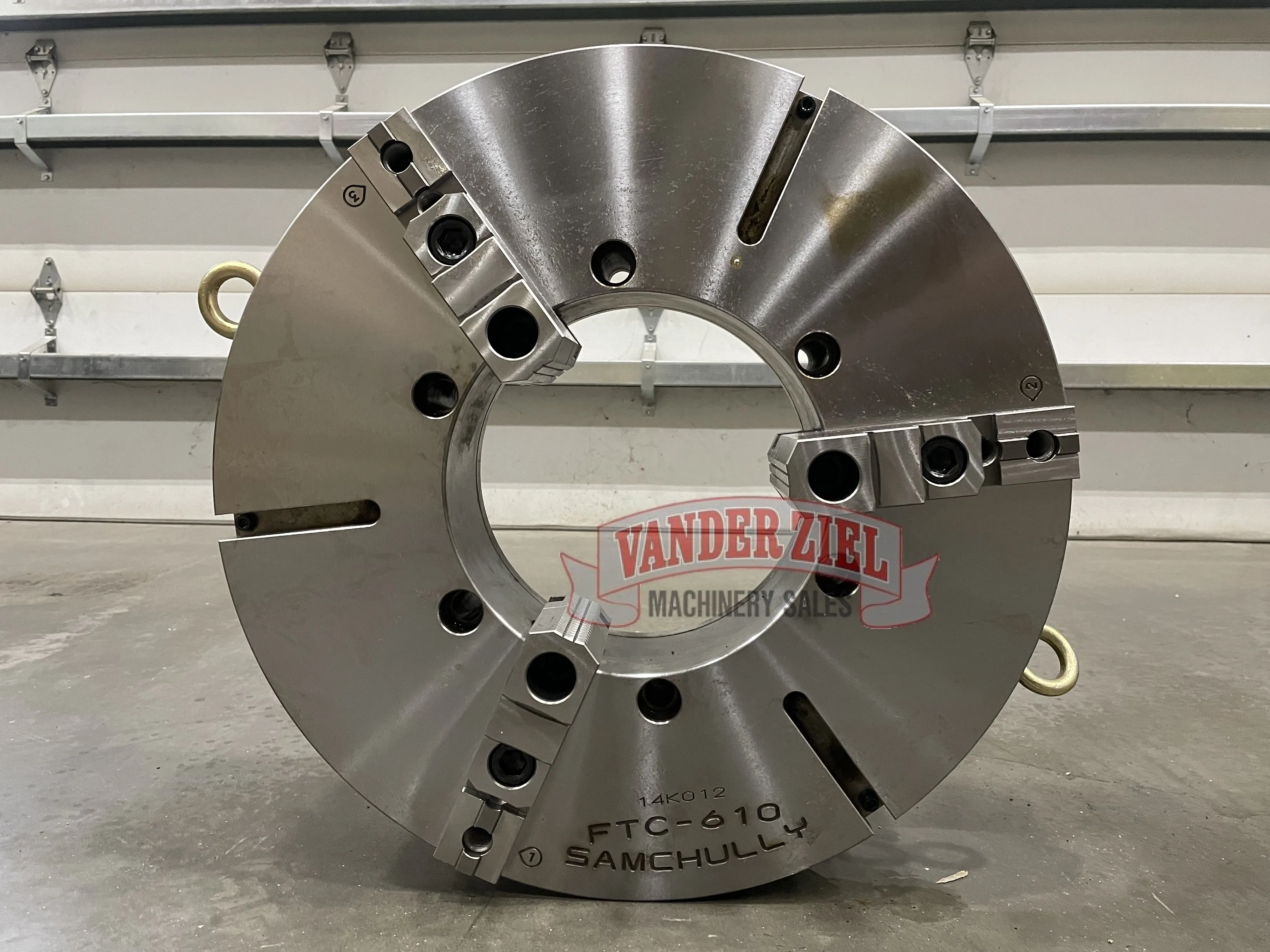

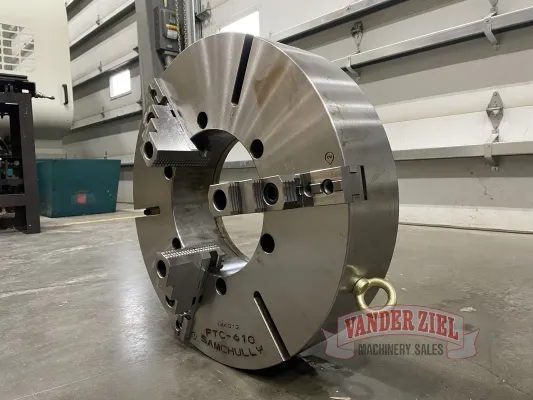

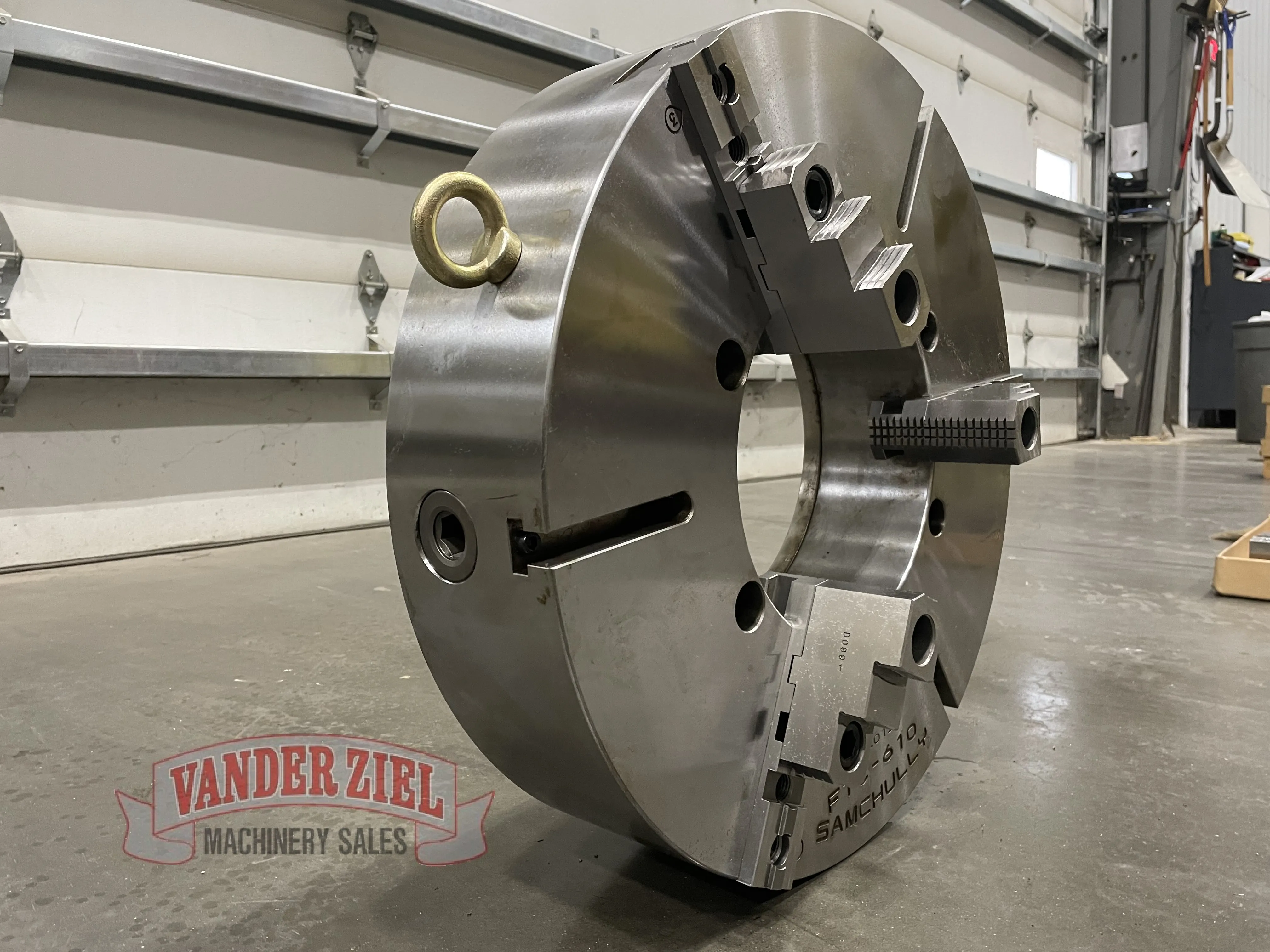

Samchully 24" Three Jaw Scroll Chuck
Type of Chuck 2 Piece
Reversable Top Jaws
Bore 10 3/4"
Mount A1-15
24.0" 3-Jaw
Front-mounting scroll chuck with 2-piece jaws; 275mm bore; 130 ~ 576mm
External clamping range on diameter; 235mm ~ 592mm
Internal clamping range on diameter; 80KN maximum static gripping force; 850 max rpm

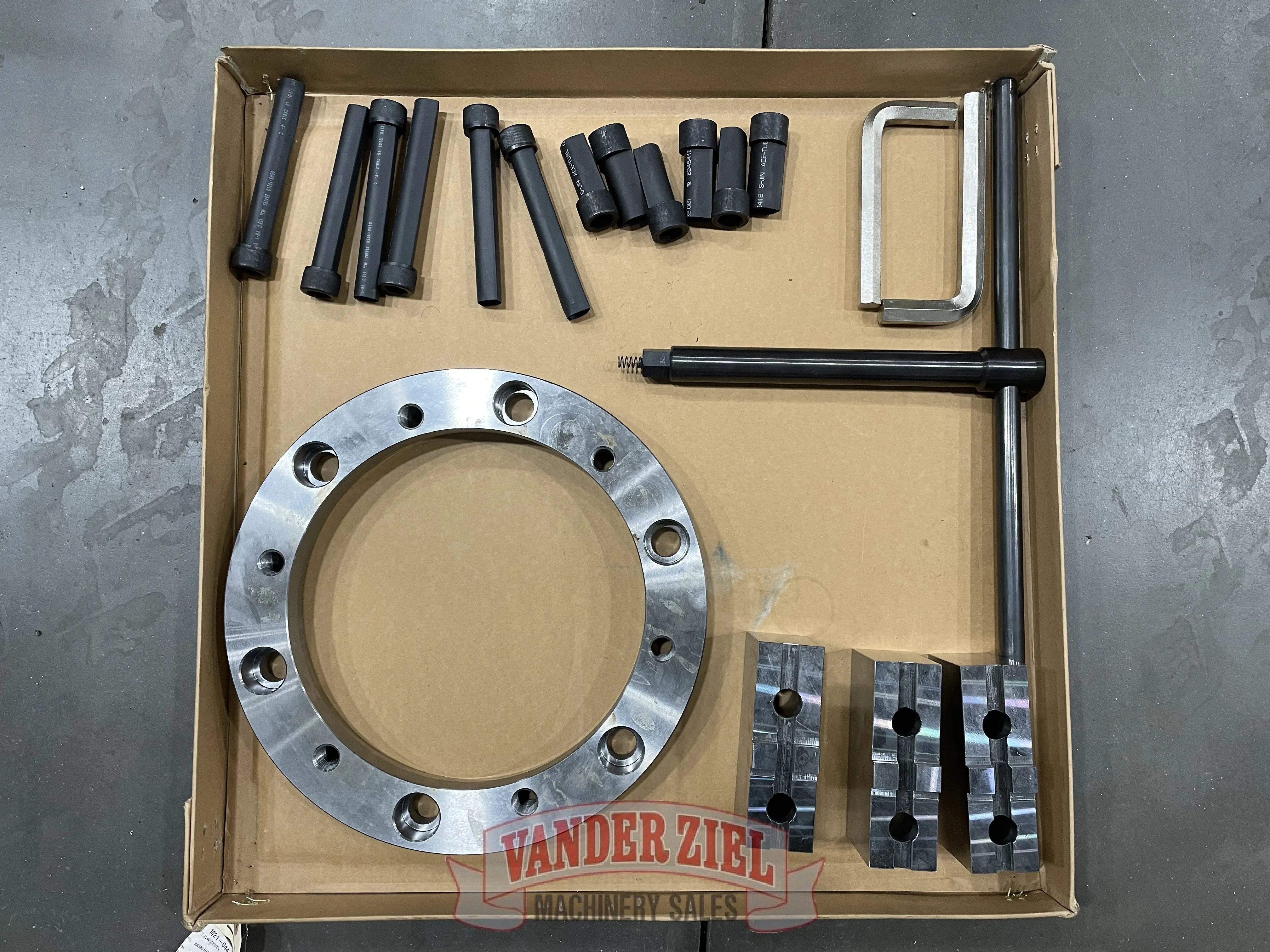

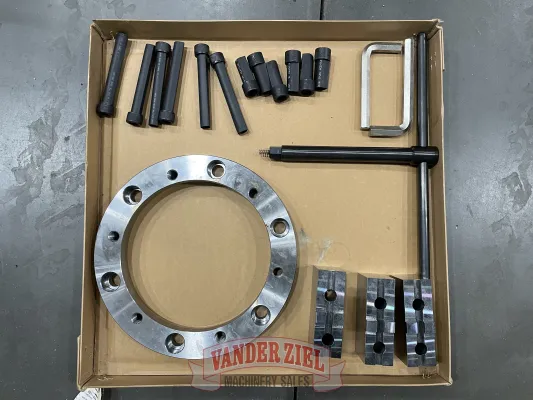

Includes one set of reversible hard and soft jaws
Preliminary Specifications - Subject to Verification
REF: 000503
