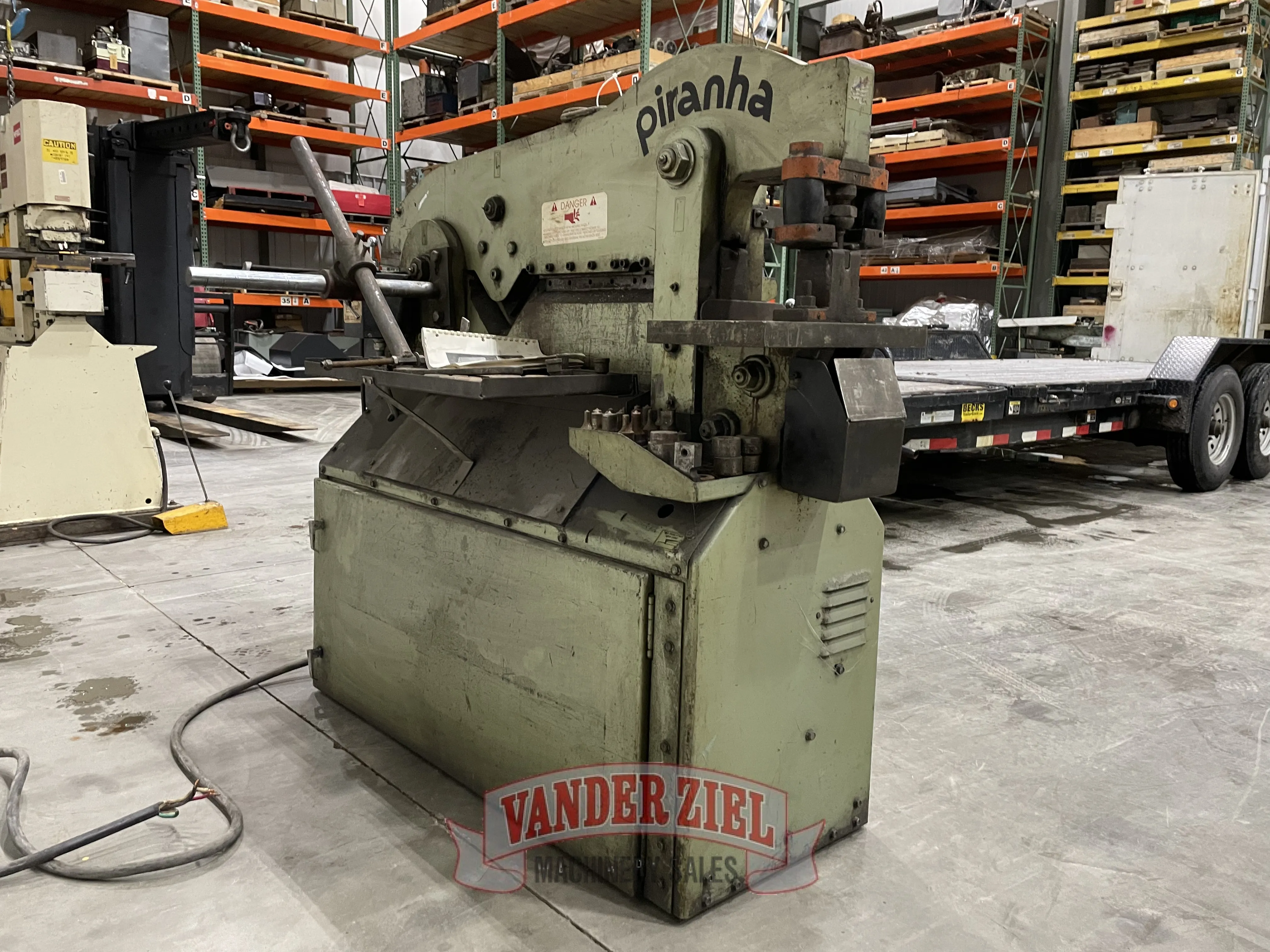

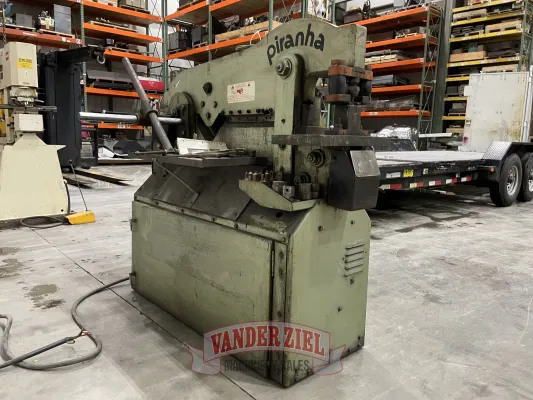

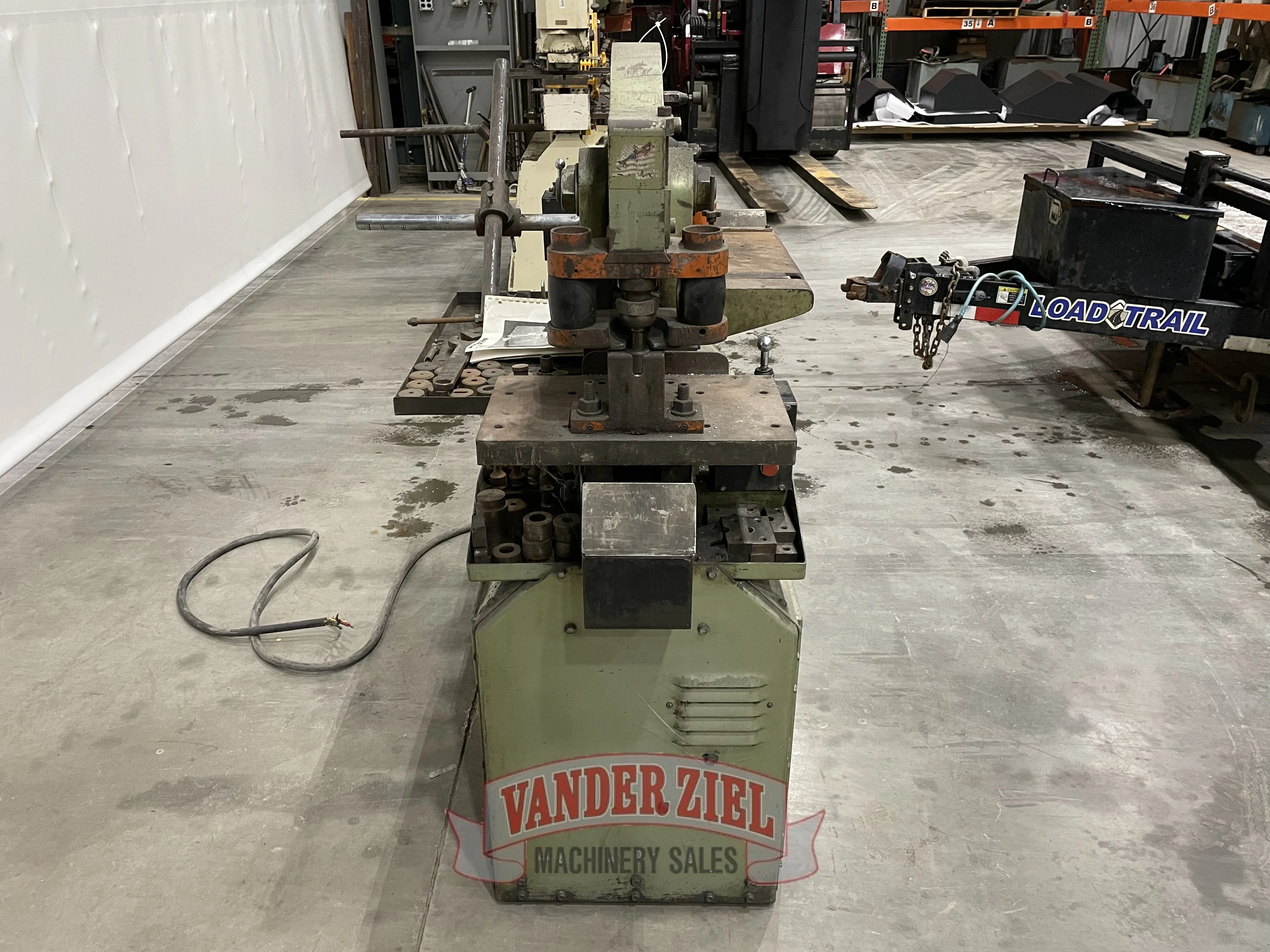

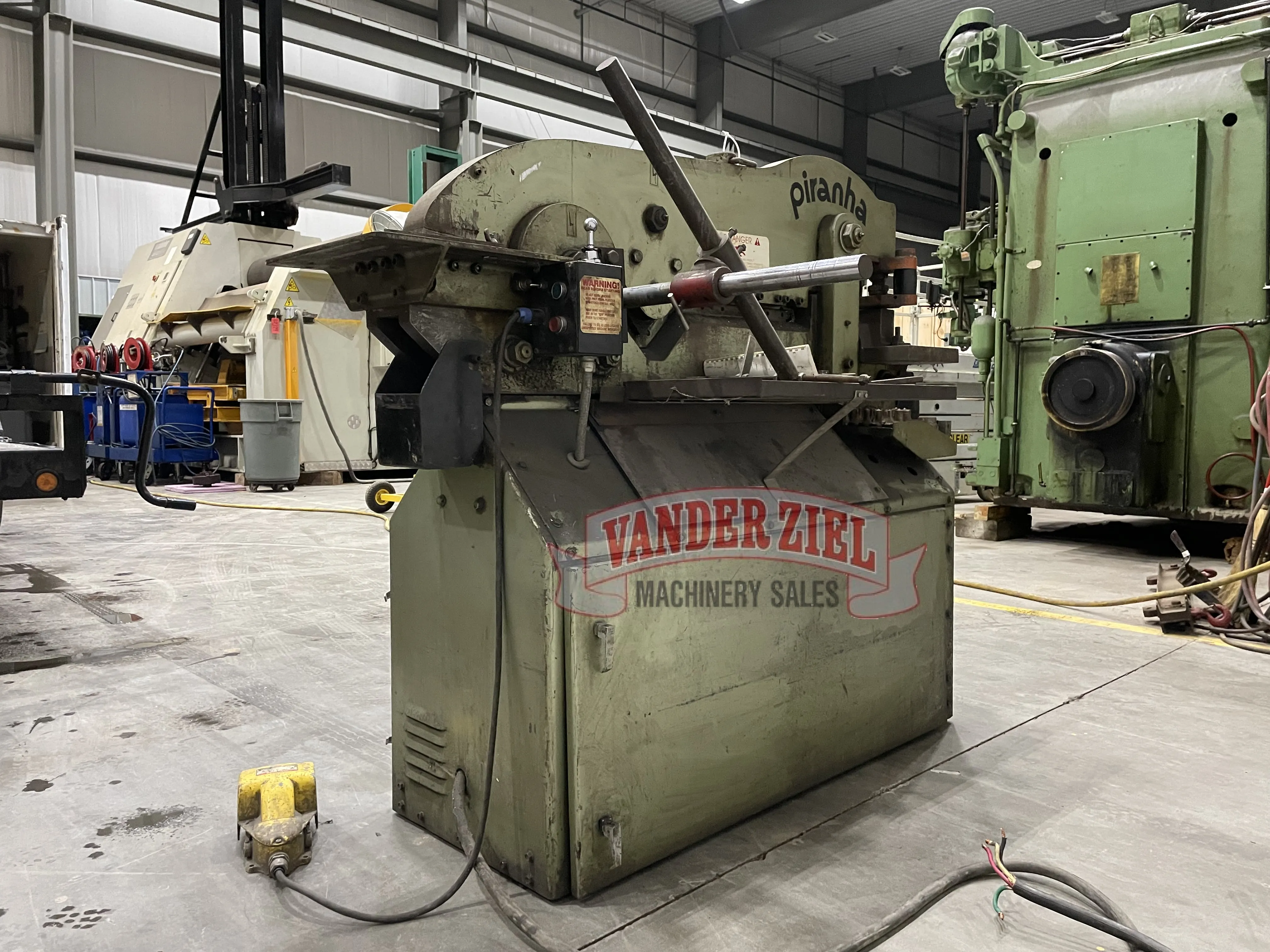

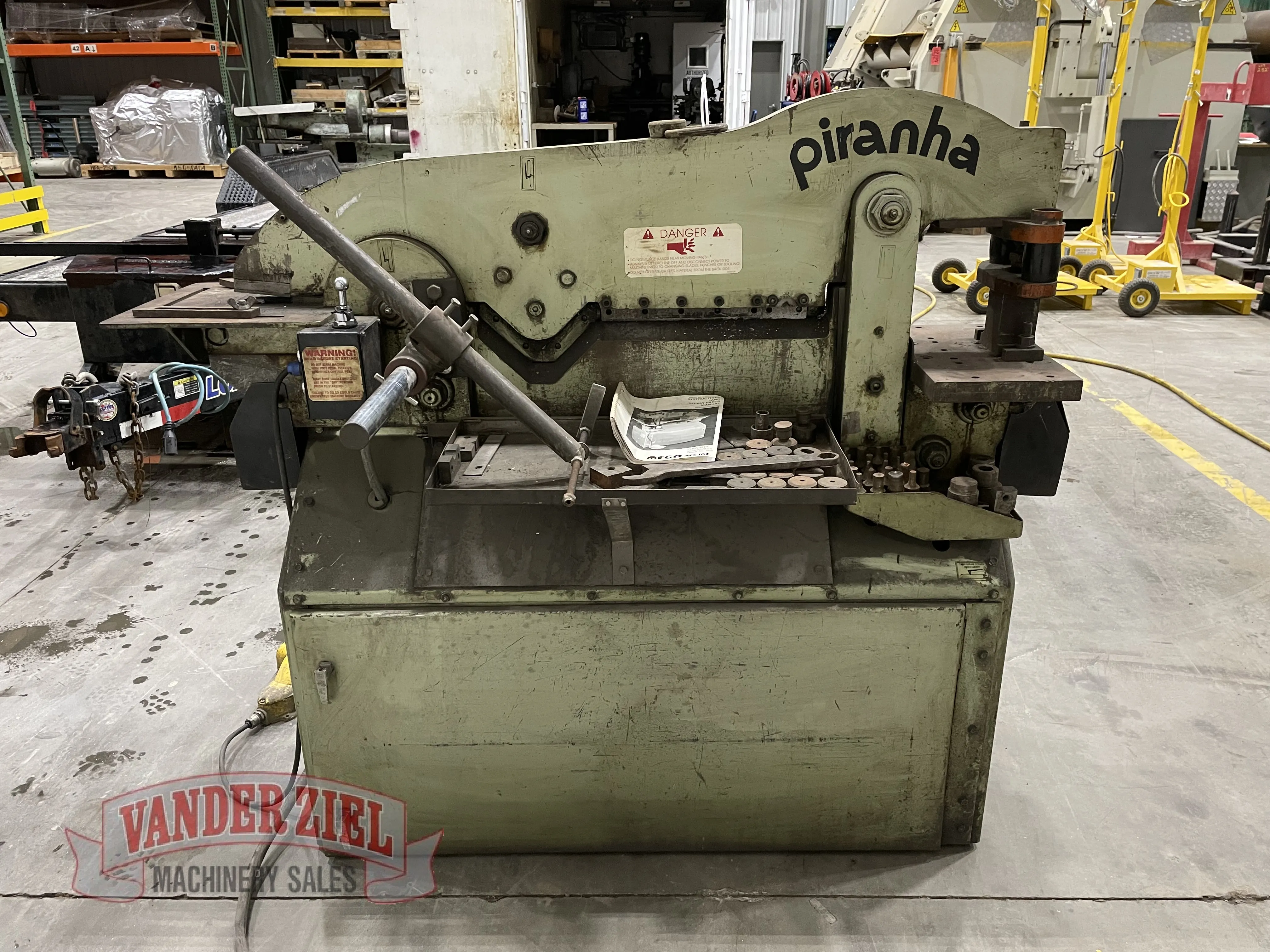

Piranha 50 Ton Ironworker

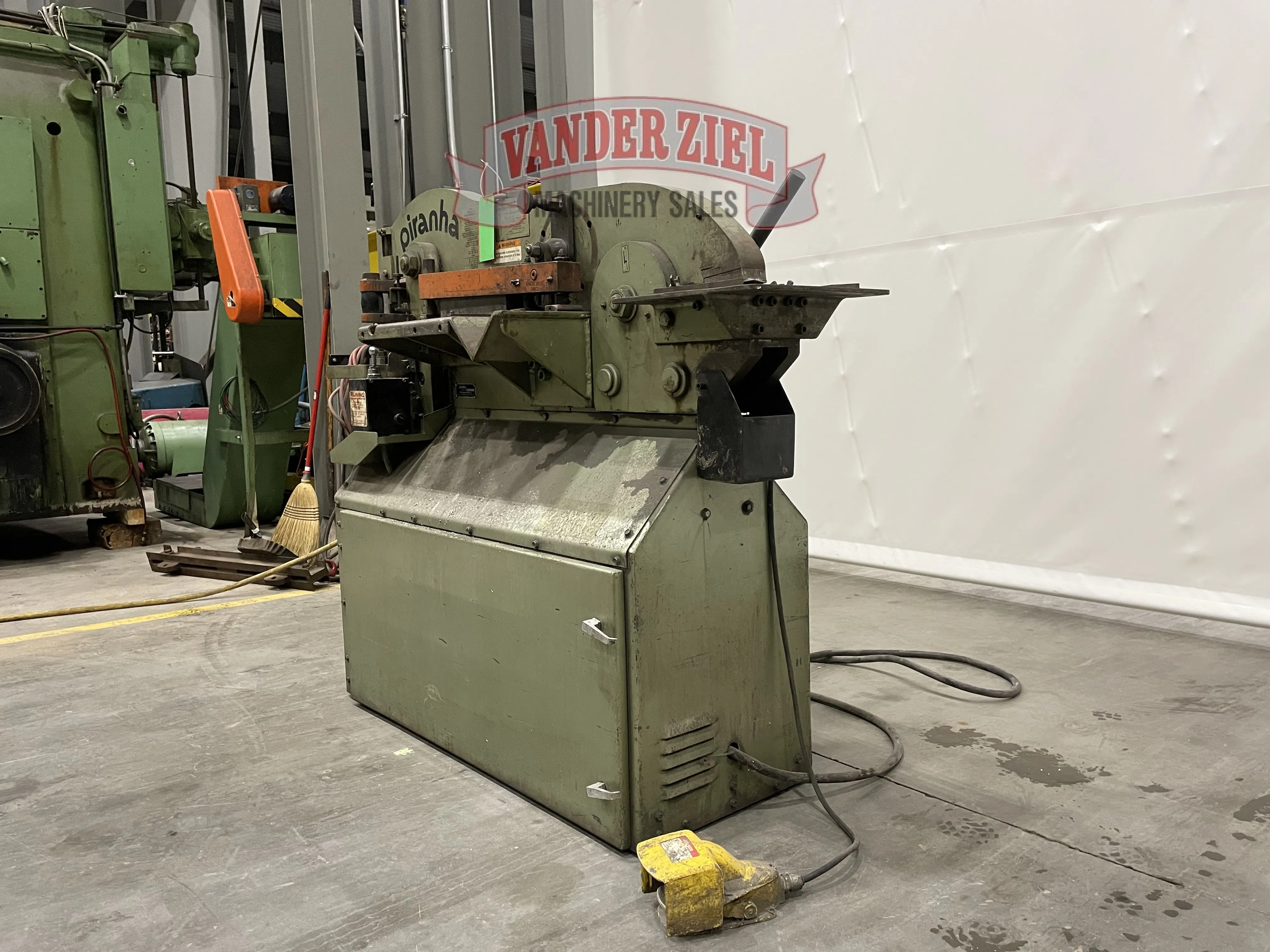

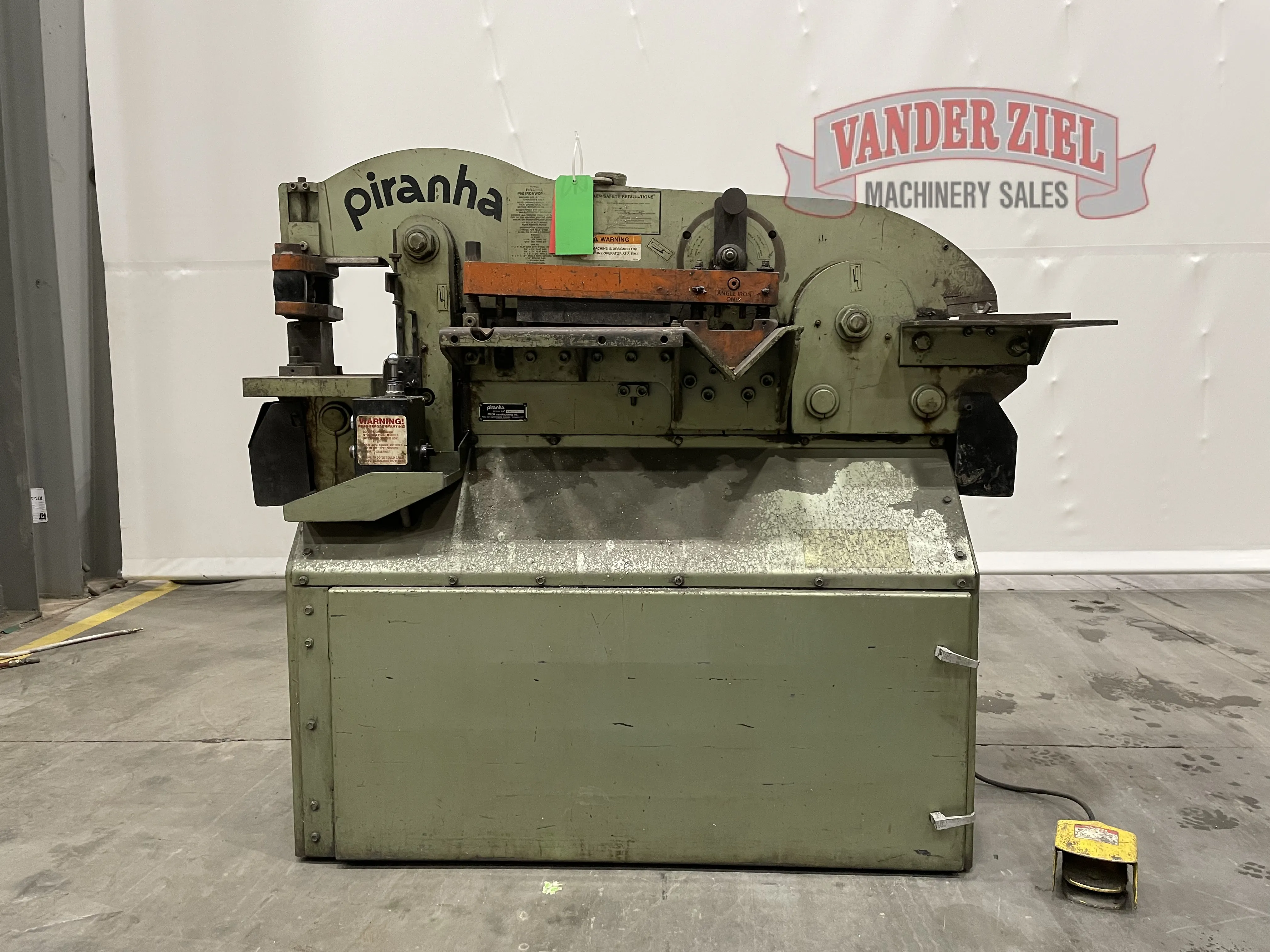

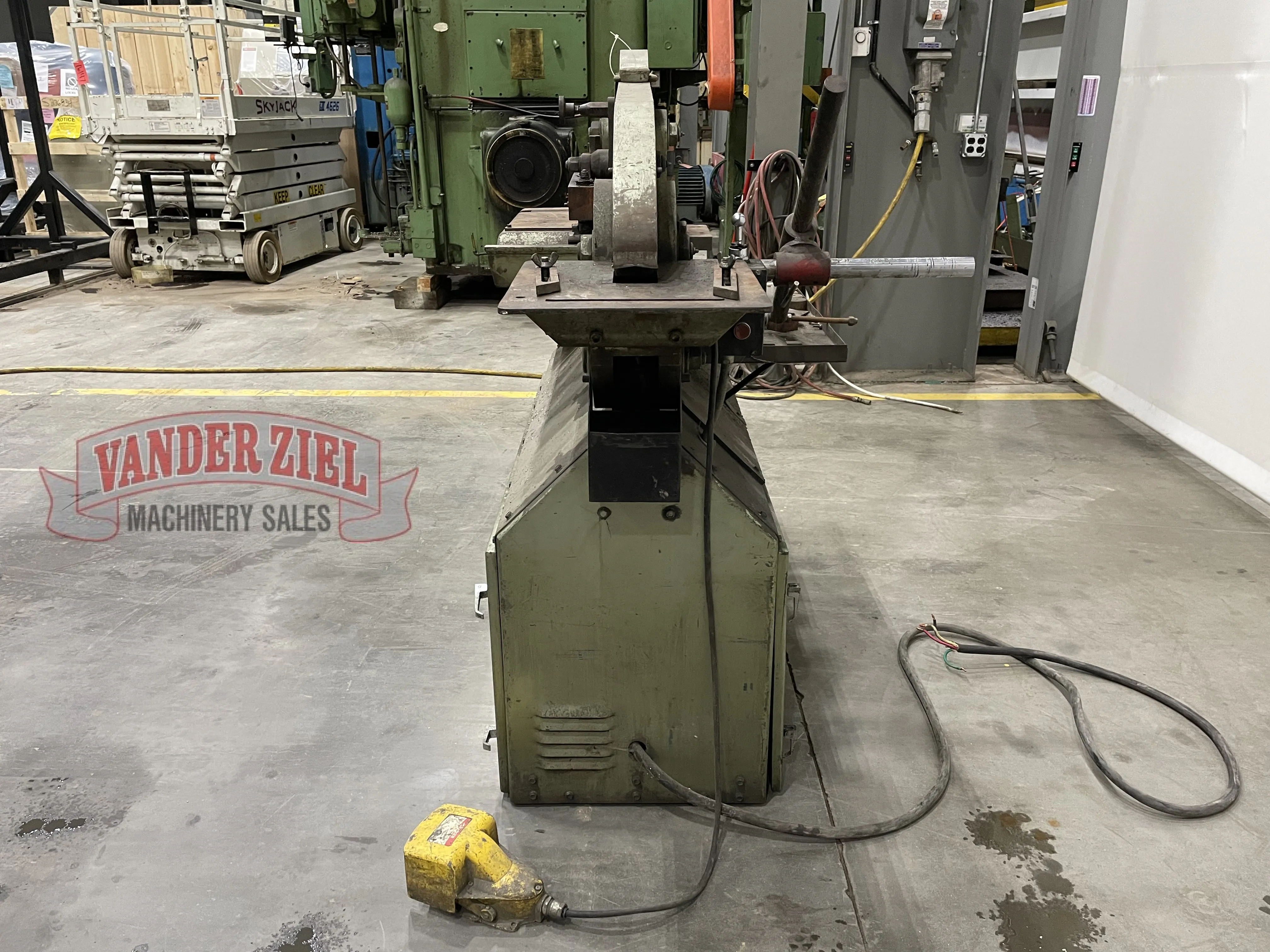

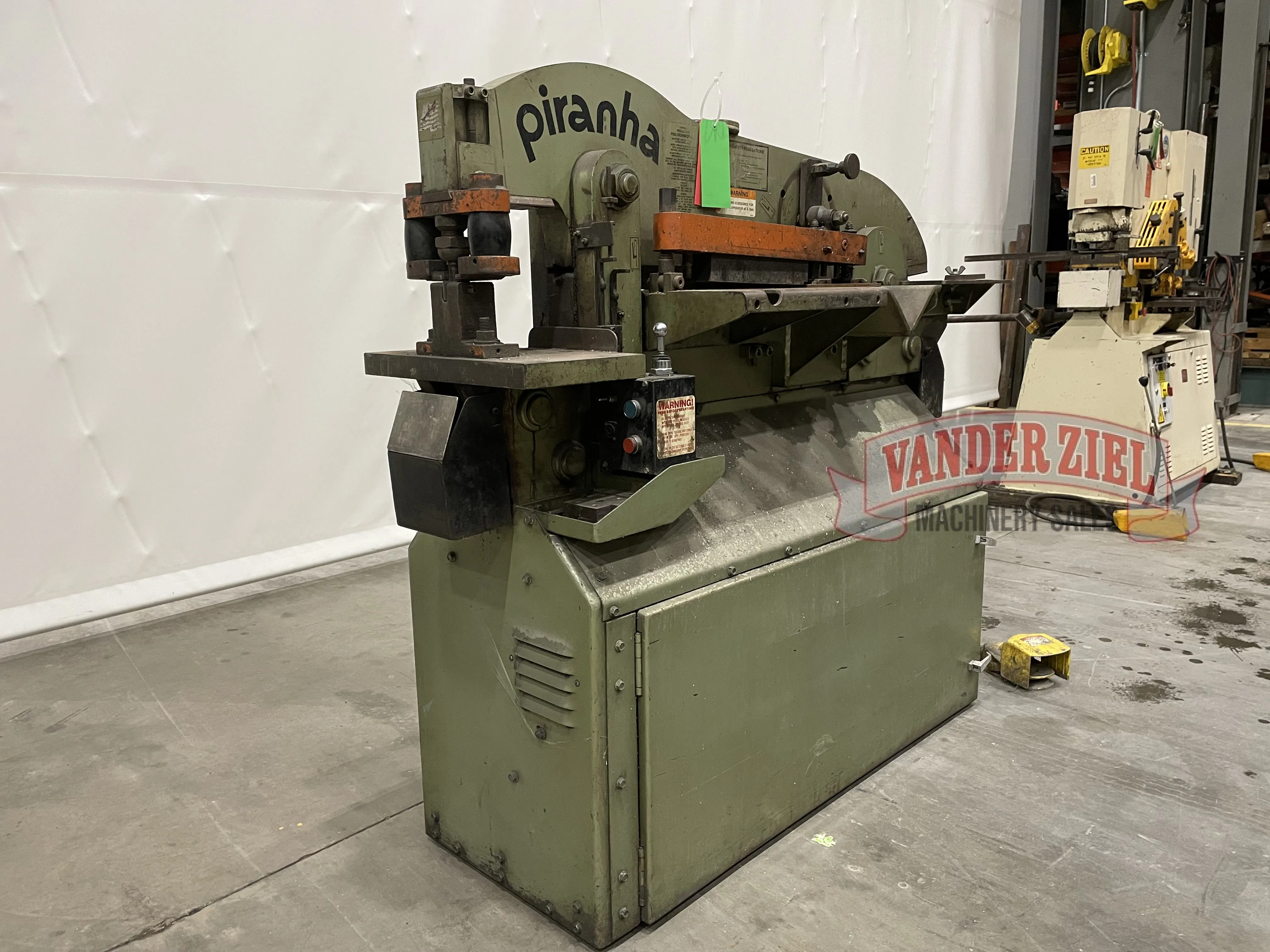

Piranha 50 Ton Ironworker, Model P-50

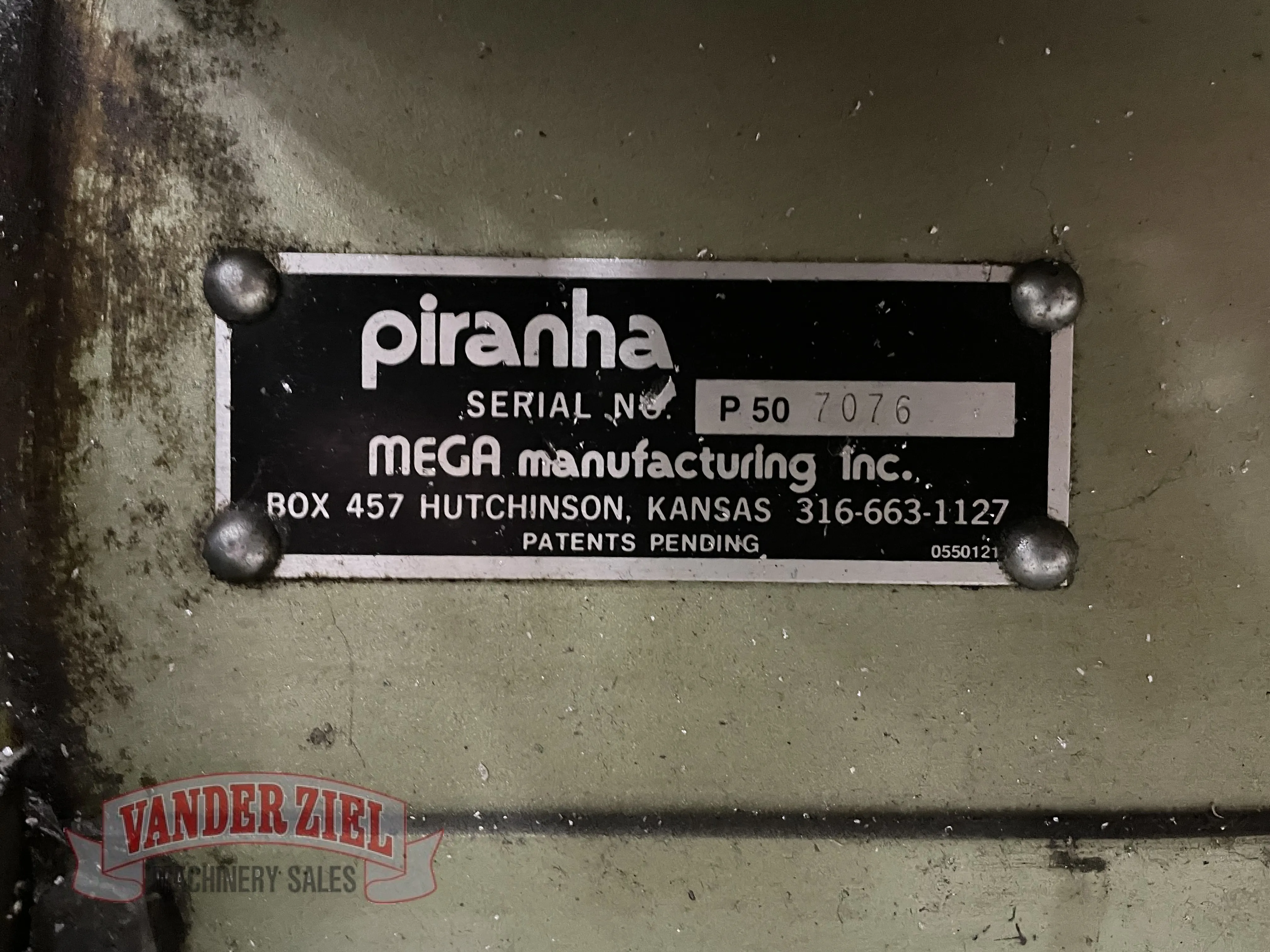

Serial # 7076
Asset # 16267

Specifications:
Throat Depth 8"
Open Height 13 1/2"
Closed Height w/o Blocks 9 1/4"
Stroke Length 4 1/4"
Platen Table 10" x 17"

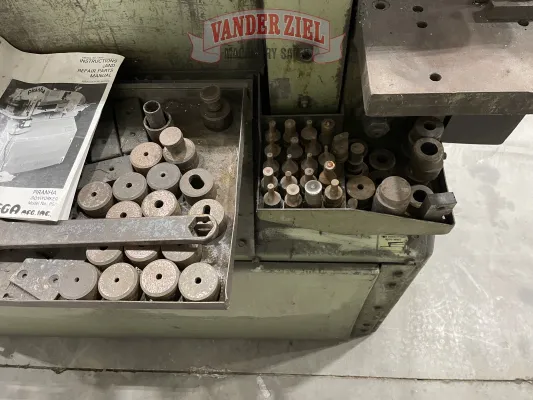

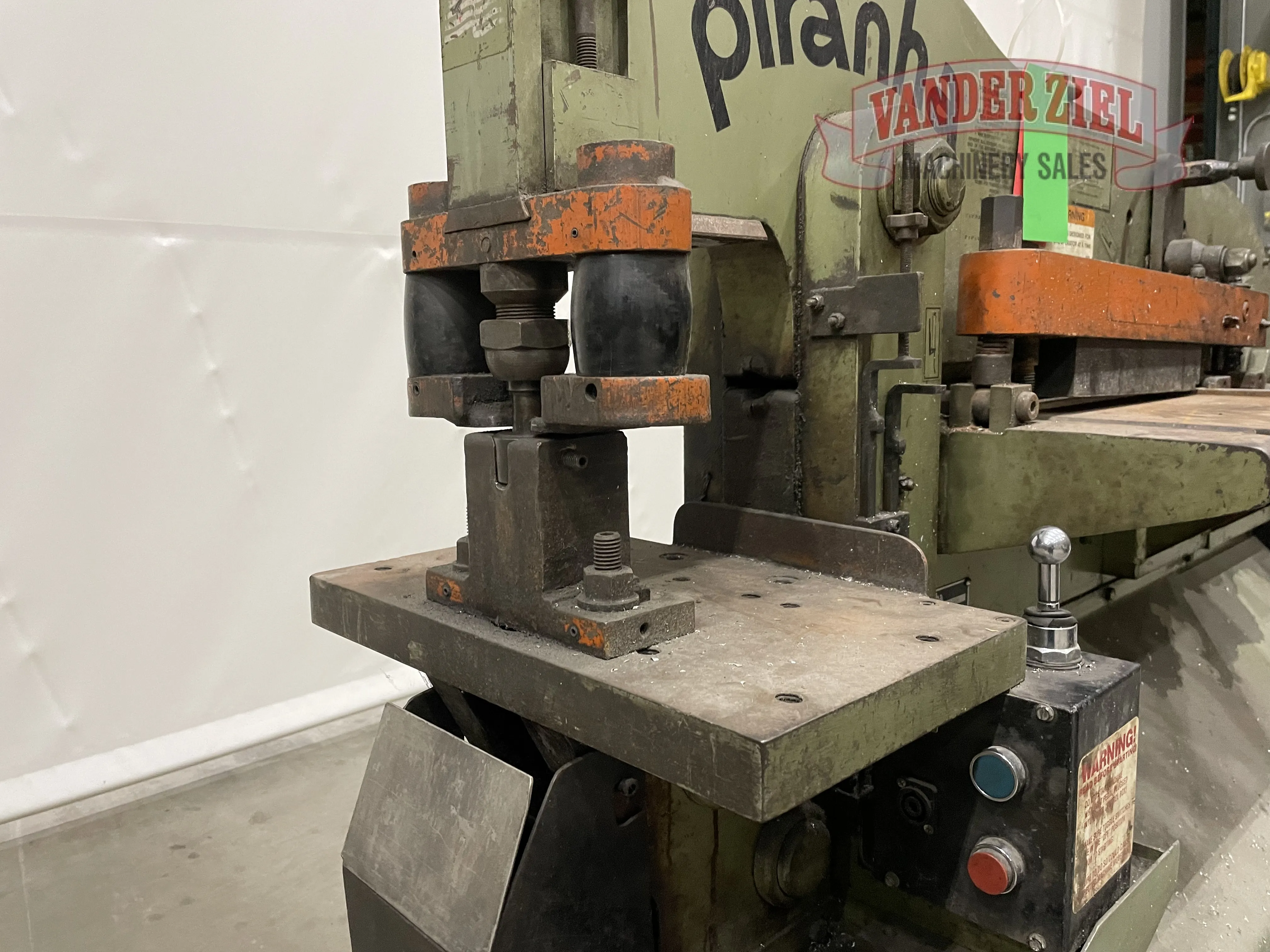

Punch 50 Tons
Max. Material 13/16" - 3/4"

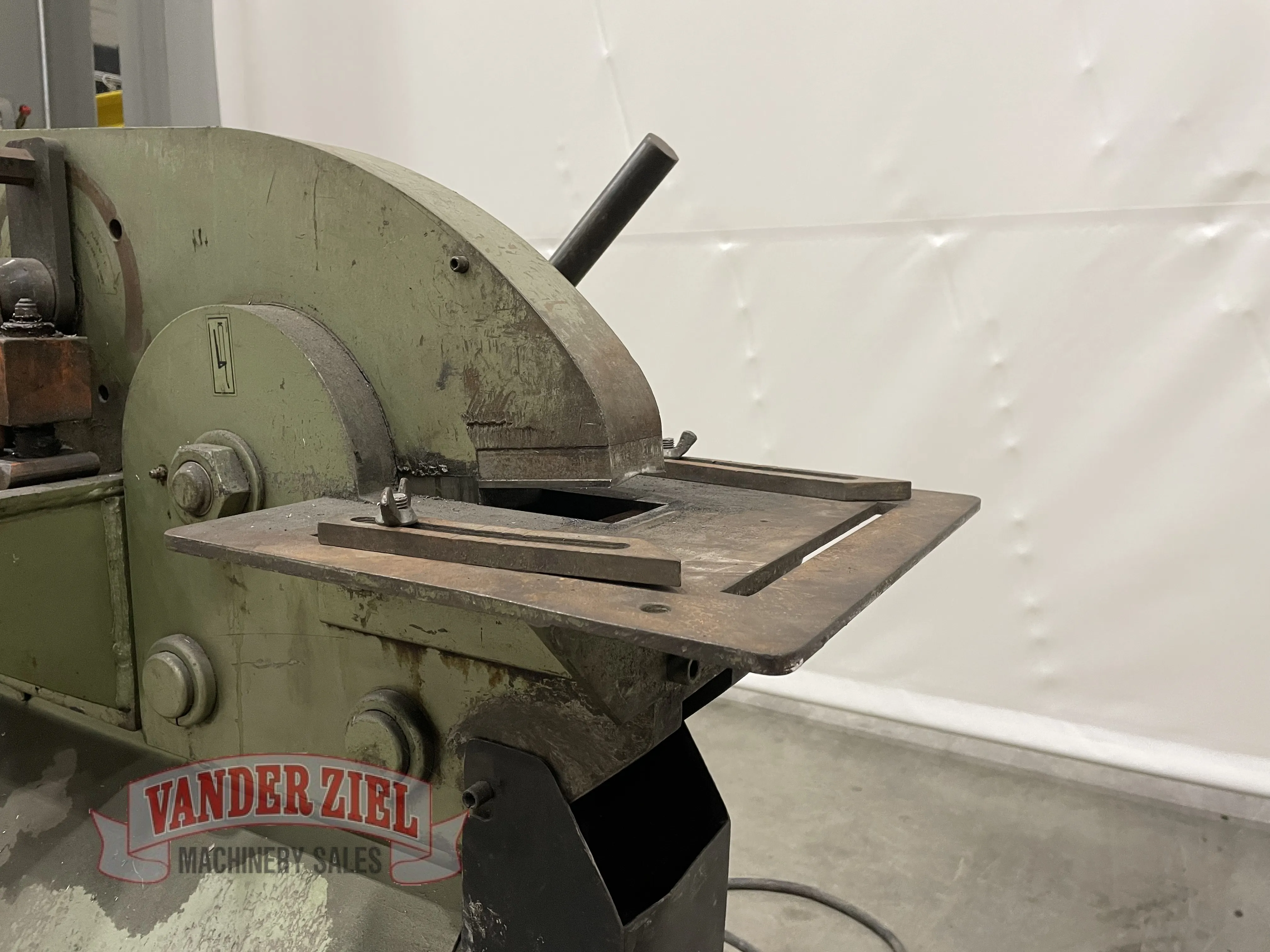

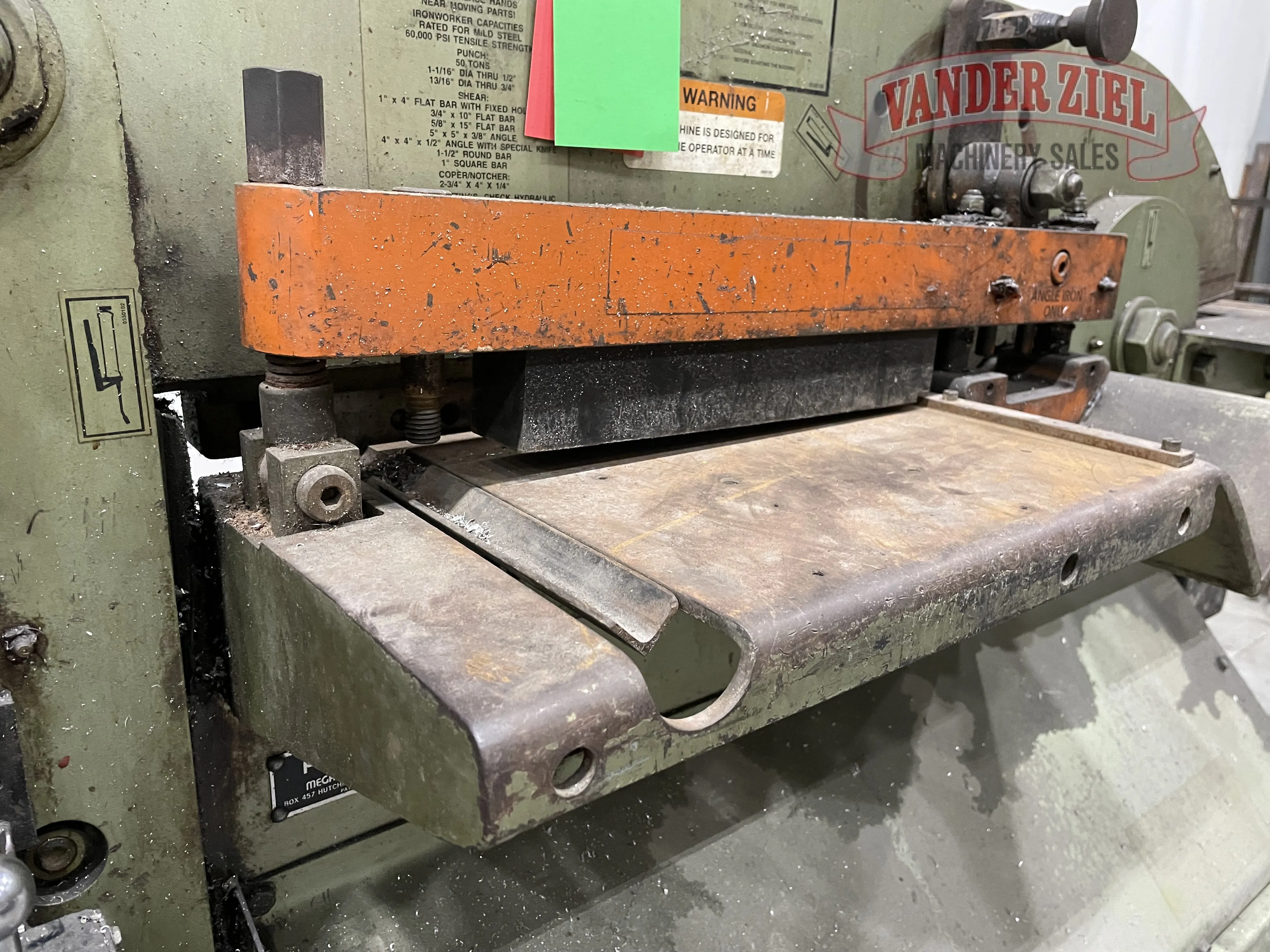

Plate Shear 15 1/2" Long
Angle Shear 5" x 5" x 3/8"
Bar Shear - Round 1/4" - 1 1/2"
Bar Shear - Square 1/2" - 1"
Coper Notcher 56 Tons
Coper Notcher Max 2 3/4" x 4" x 1/4"
Bending Attachment 8"
Punch End Strokes per Minute 60 @ 1/2"
Work Station Height 42"
Hydraulics 10.5 GPM
Fluid Capacity 20 Gallons
Motor 10 HP, 3 PH
Dimensions 24" x 66" x 60"
Weight 1700 lbs.

Preliminary Specifications - Subject to Verification
