Jet 20" Drill Press

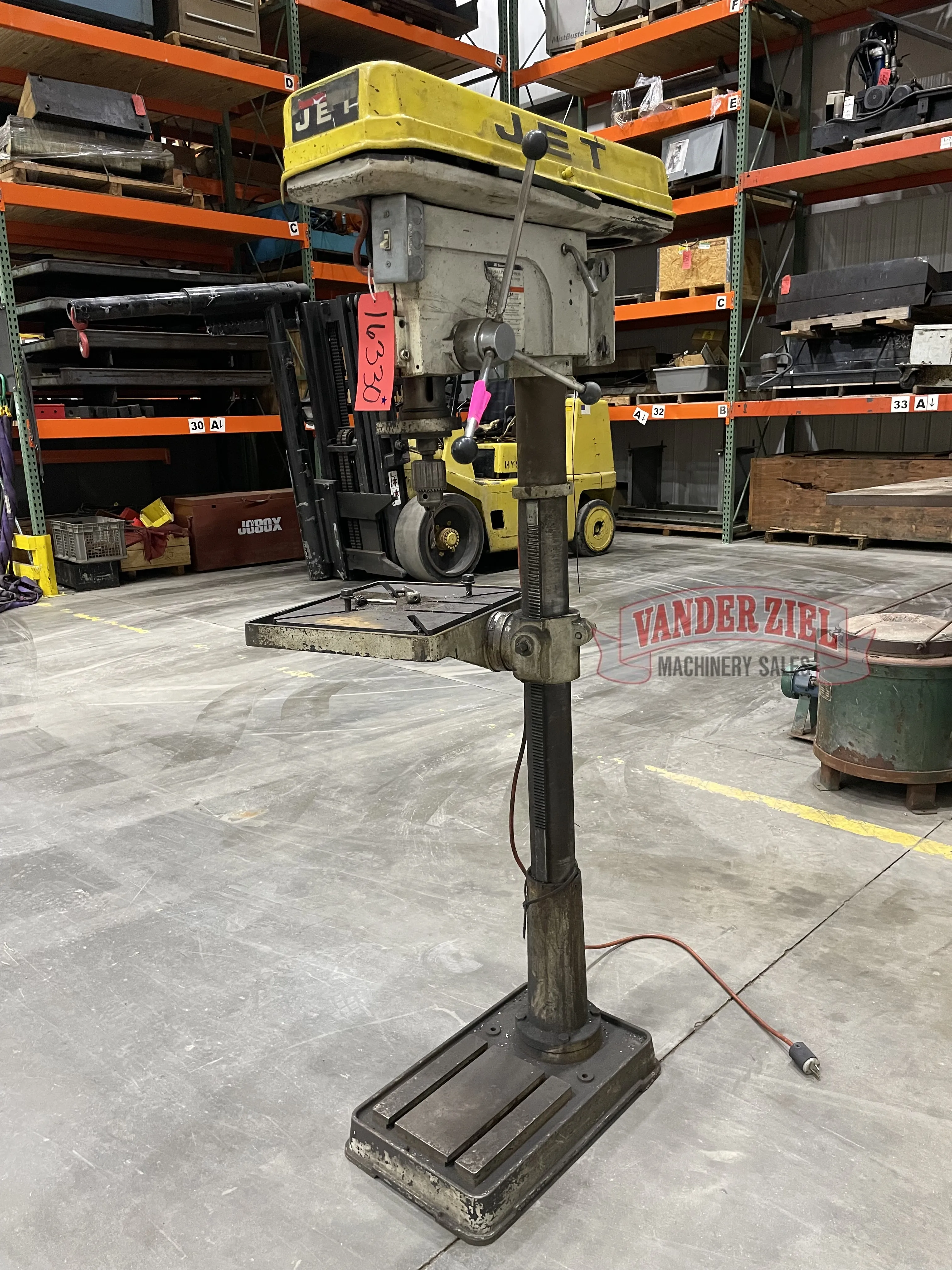

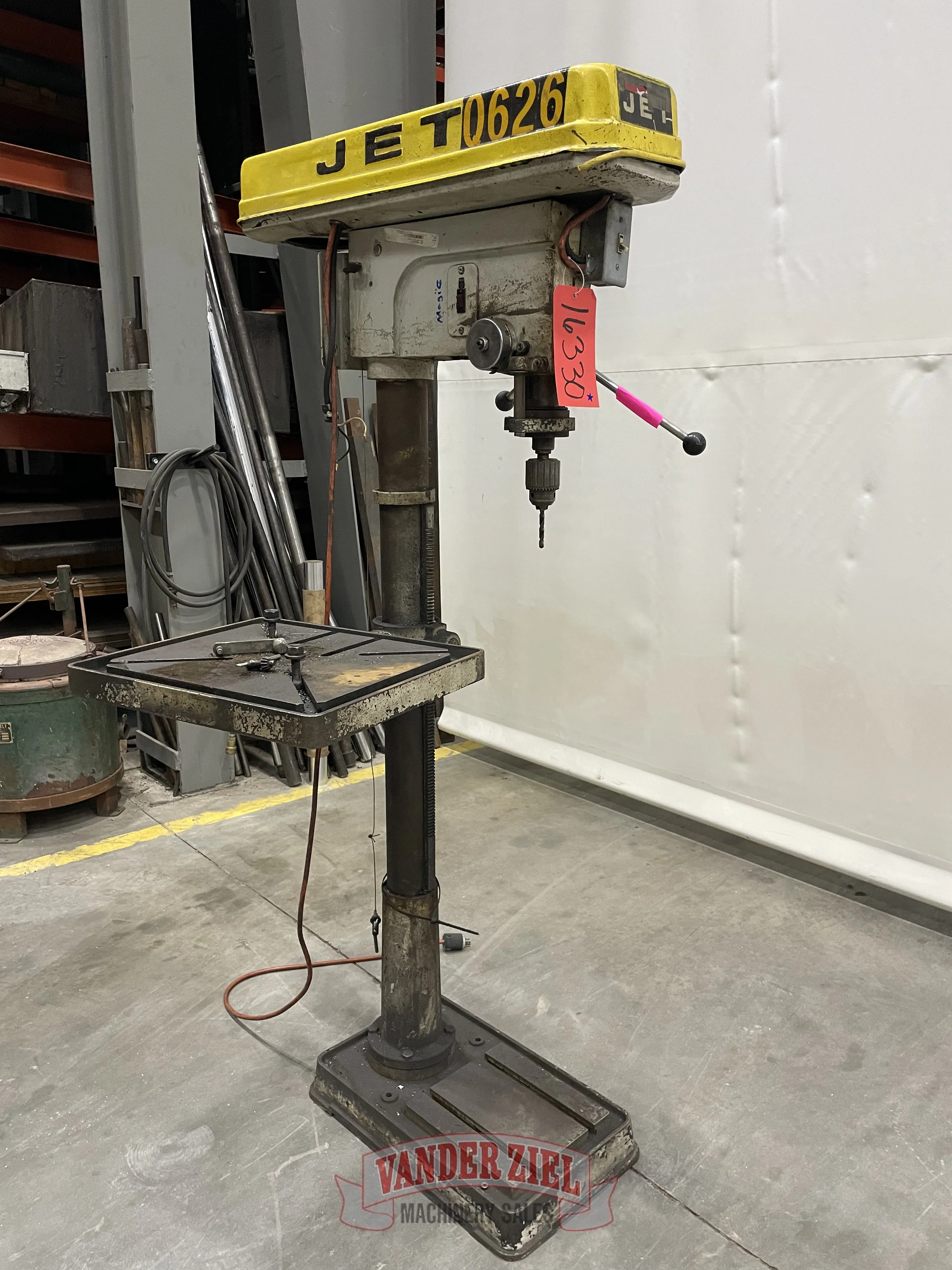

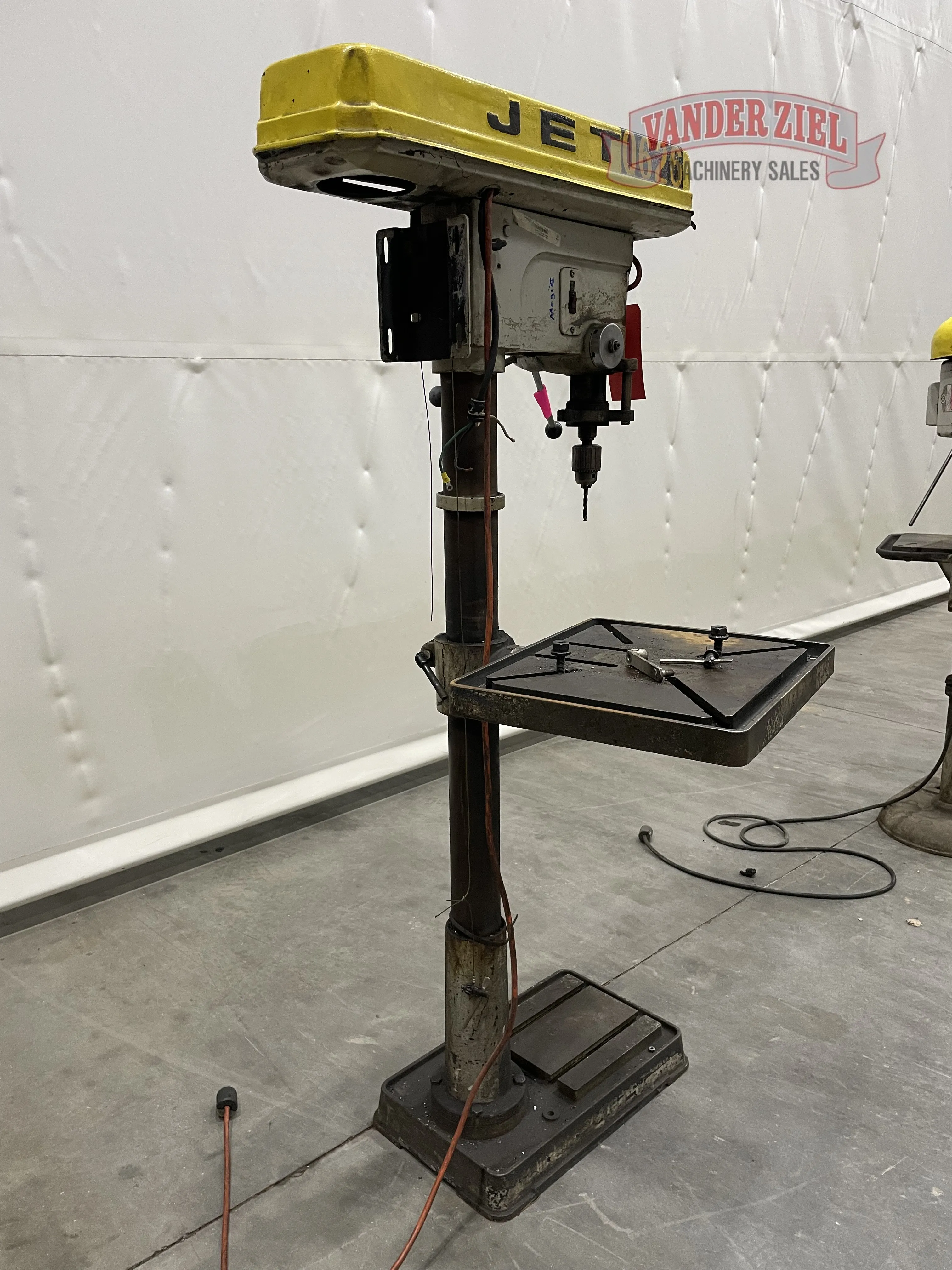

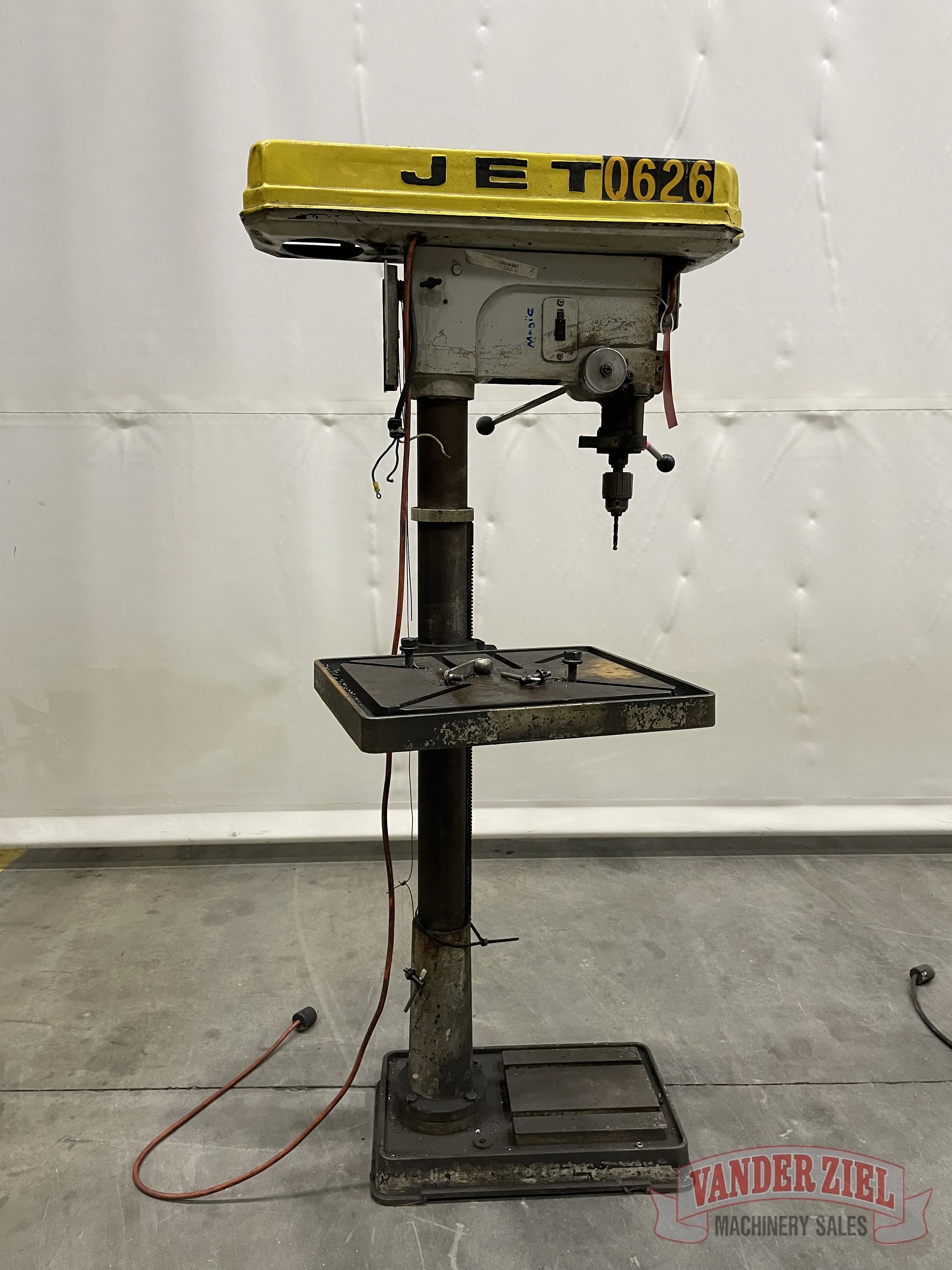

Jet 20" Drill Press, Model JDP-20MF

Serial # 354170
Asset # 16330

Base Work Table (In.) 13 x 8-1/2
Column Diameter (In.) 3-3/8
Distance Column to Spindle (In.) 10
Drilling Capacity Cast Iron (In.) 1
Drilling Capacity Mild Steel (In.) 3/4
Drills to Center of Circle (In.) 20
Motor (HP) 1-1/2 HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
Range of Spindle Speeds (RPM) 150 - 4,200
Spindle Distance to Base (In.) 46-3/4
Spindle Distance to Table (Max.) (In.) 29-1/8
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-5/8
Style (Type) Variable
T-Slot Centers (In.) 3-1/2
T-Slots Number and Size (In.) 6 and 1/2

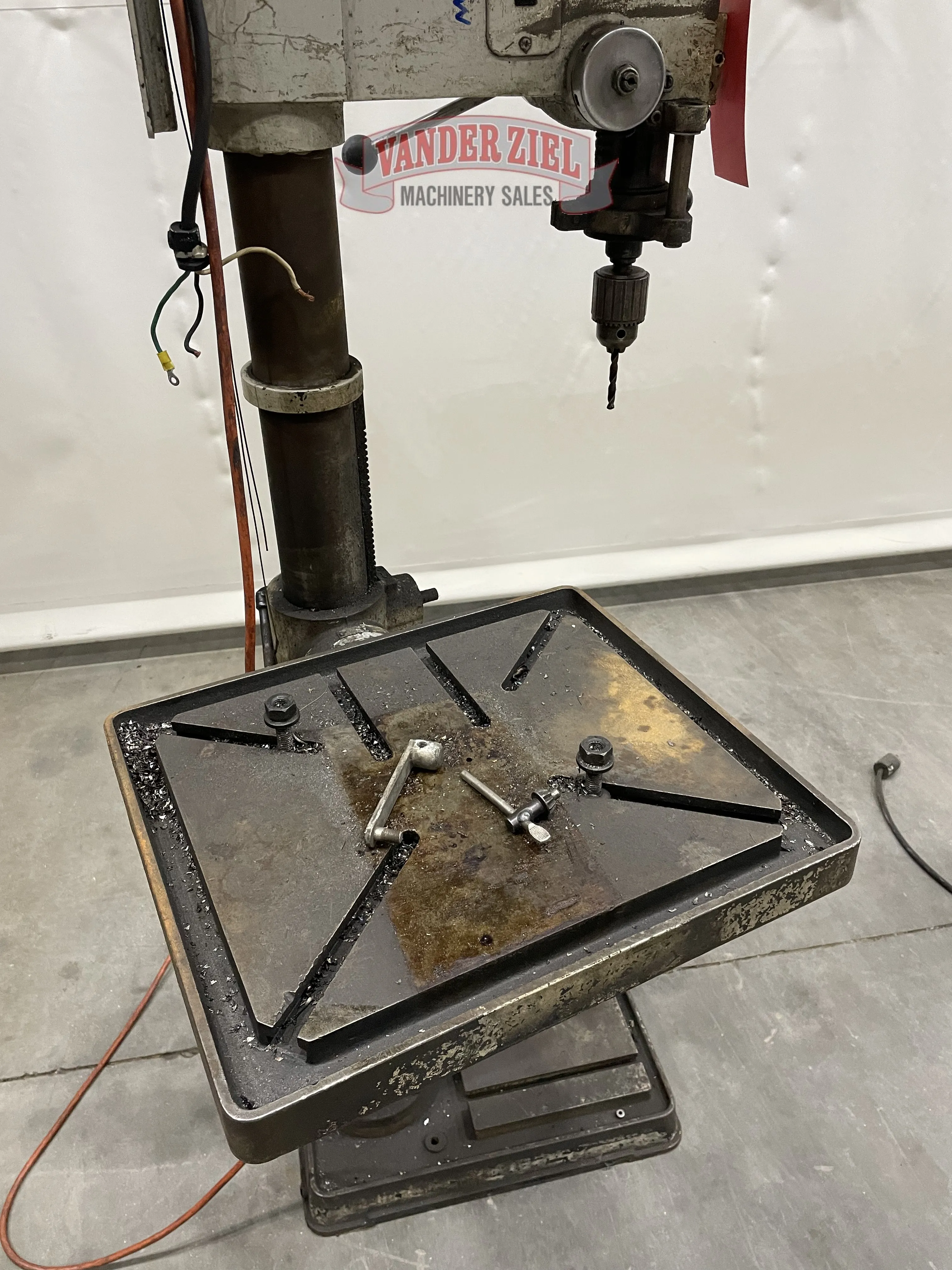

Table Size (L x W) (In.) 18-1/2 x 16
Table Travel (In.) 21-1/2
Work Table Weight Capacity (Lbs.) 80
Base Dimensions (In.) 13-3/4 x 22-3/4
Weight (Lbs.) 282 lbs.

Preliminary Specifications - Subject to Verification
