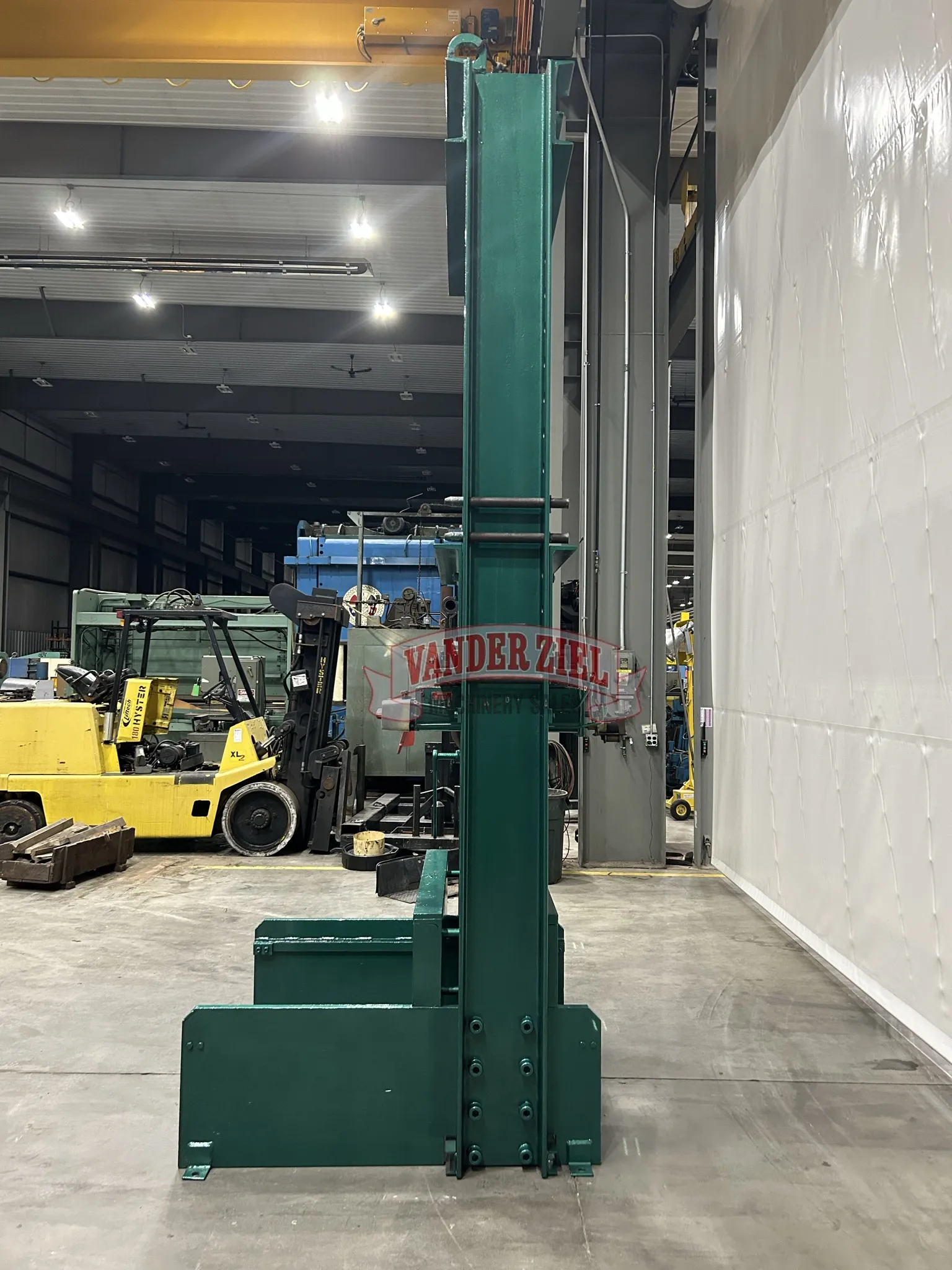

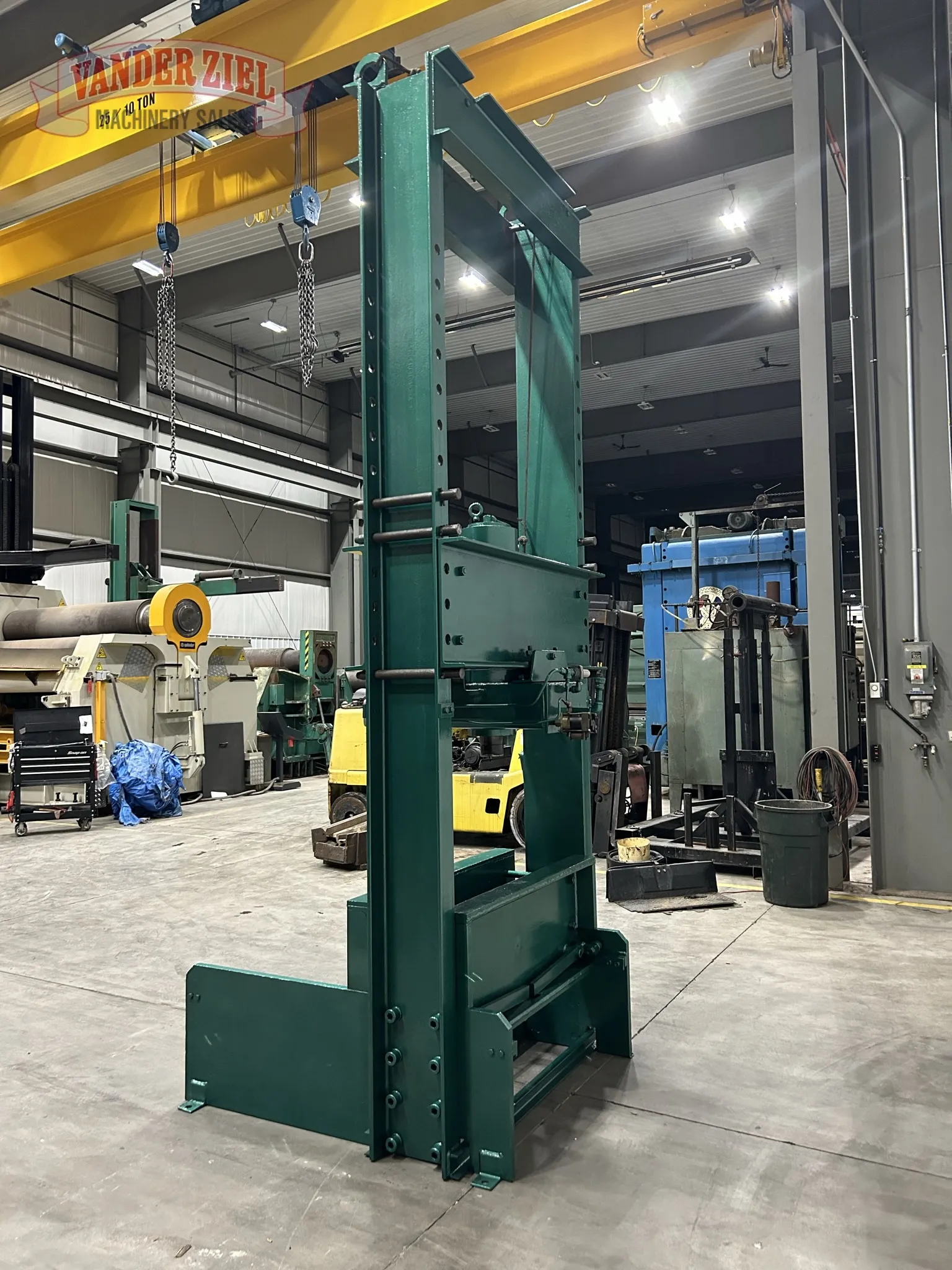

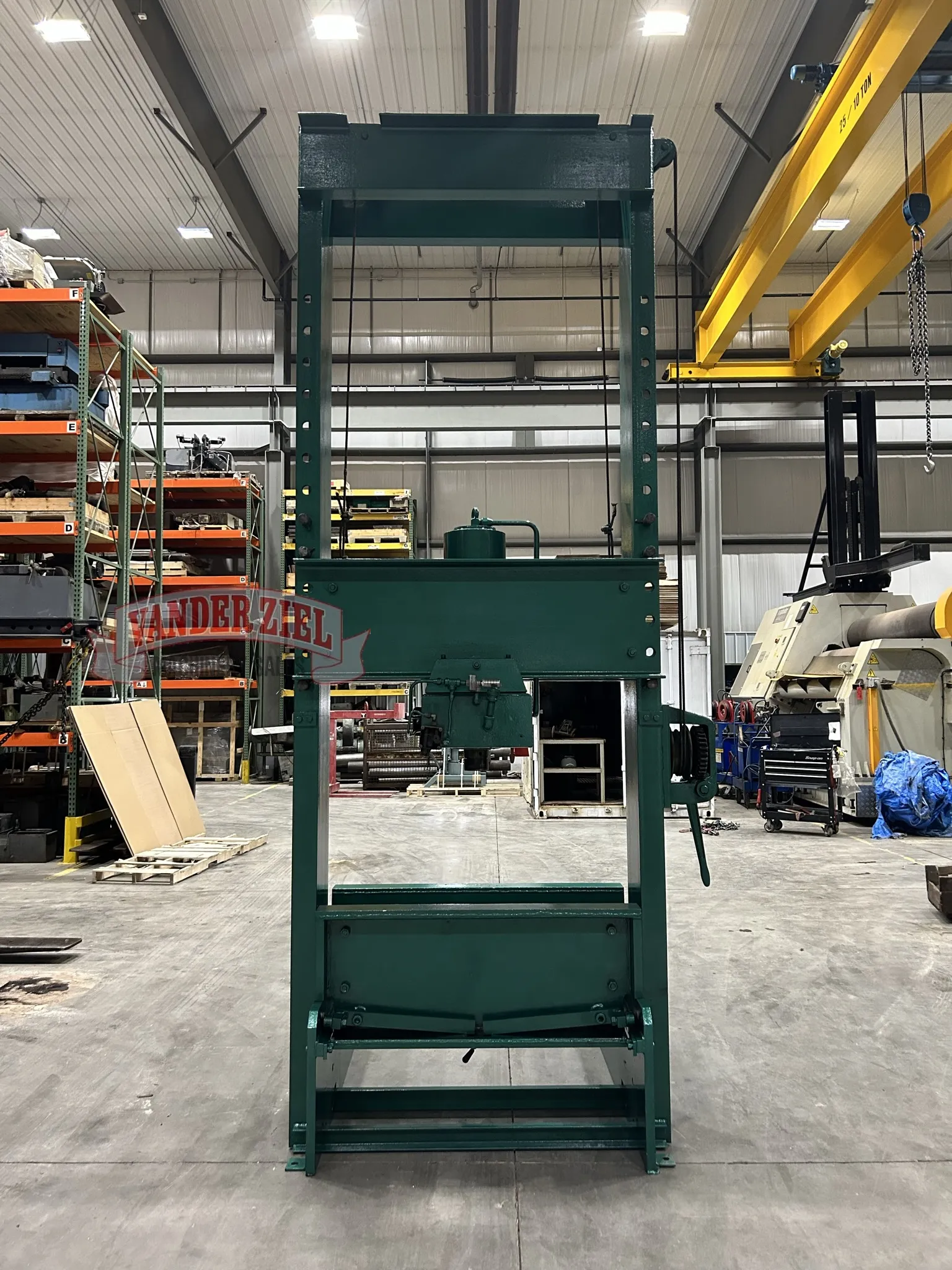

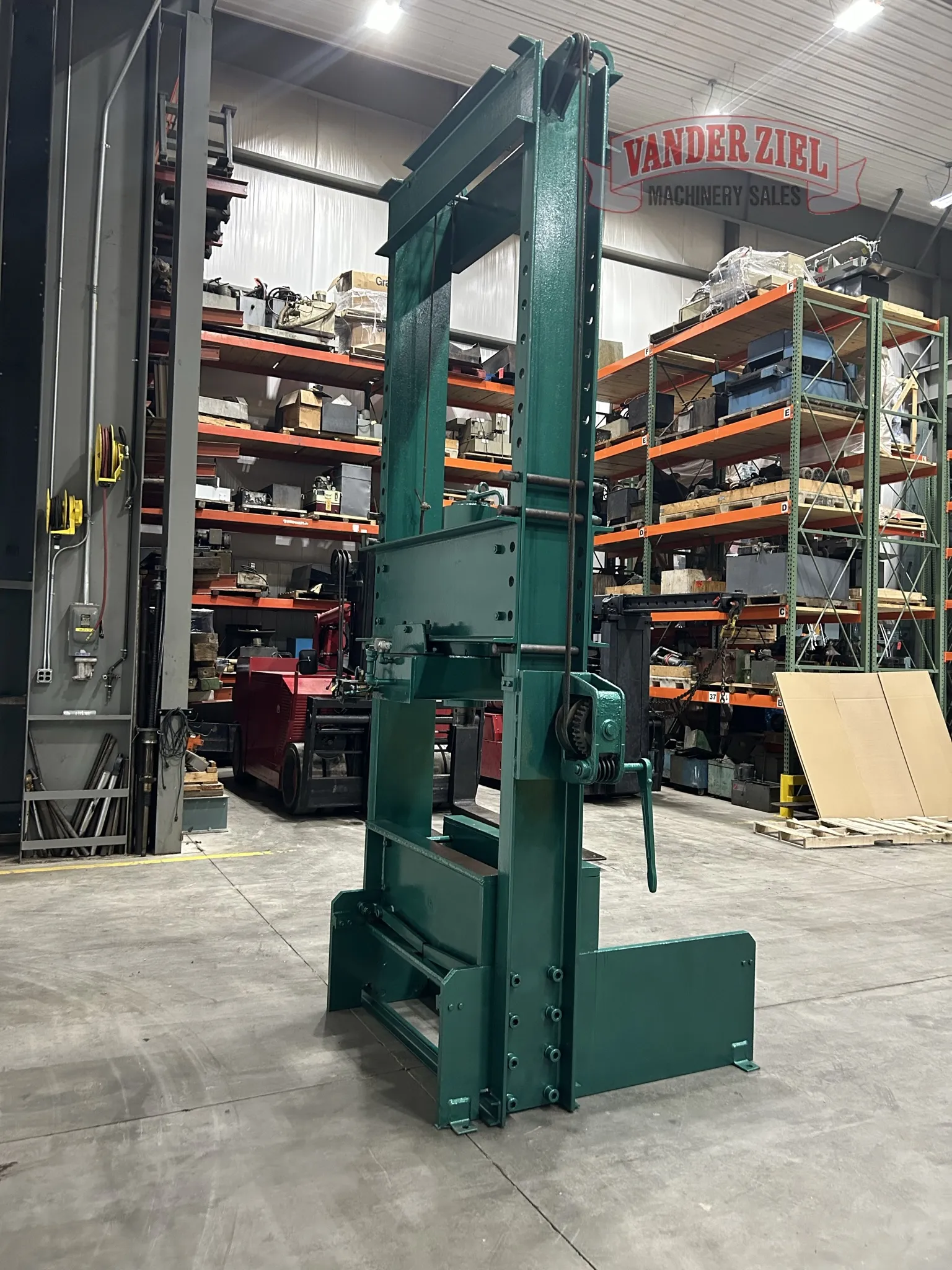

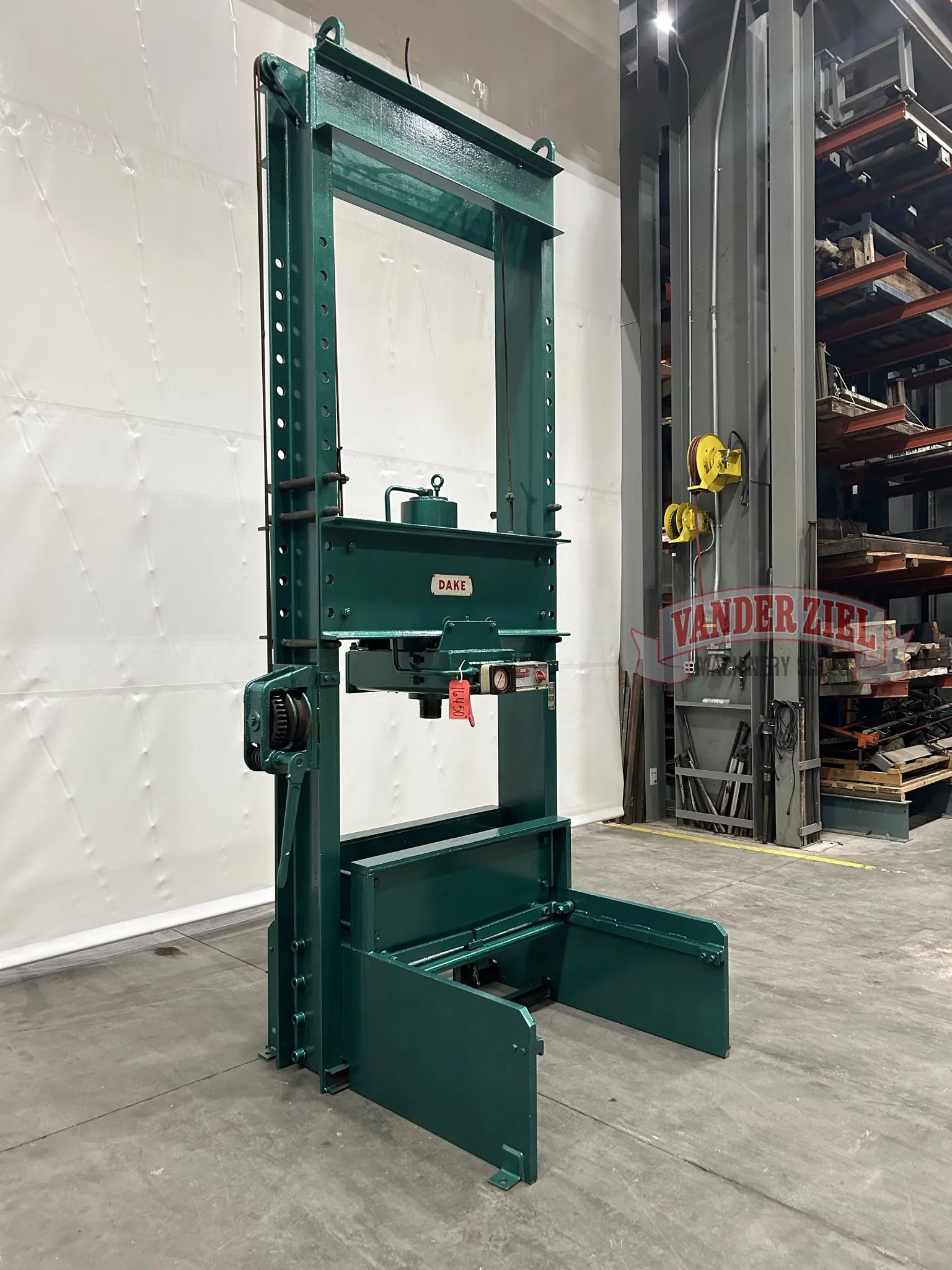

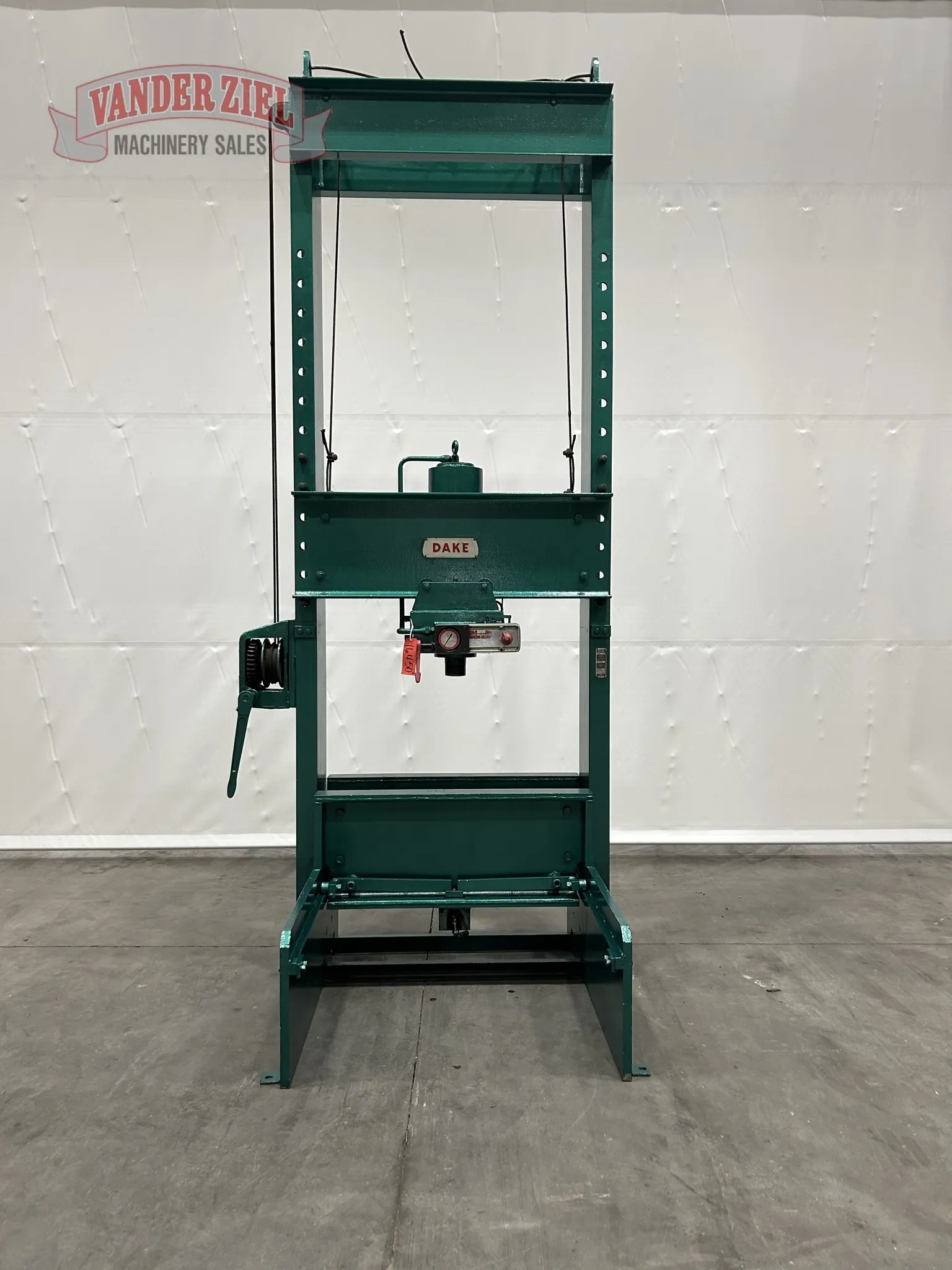

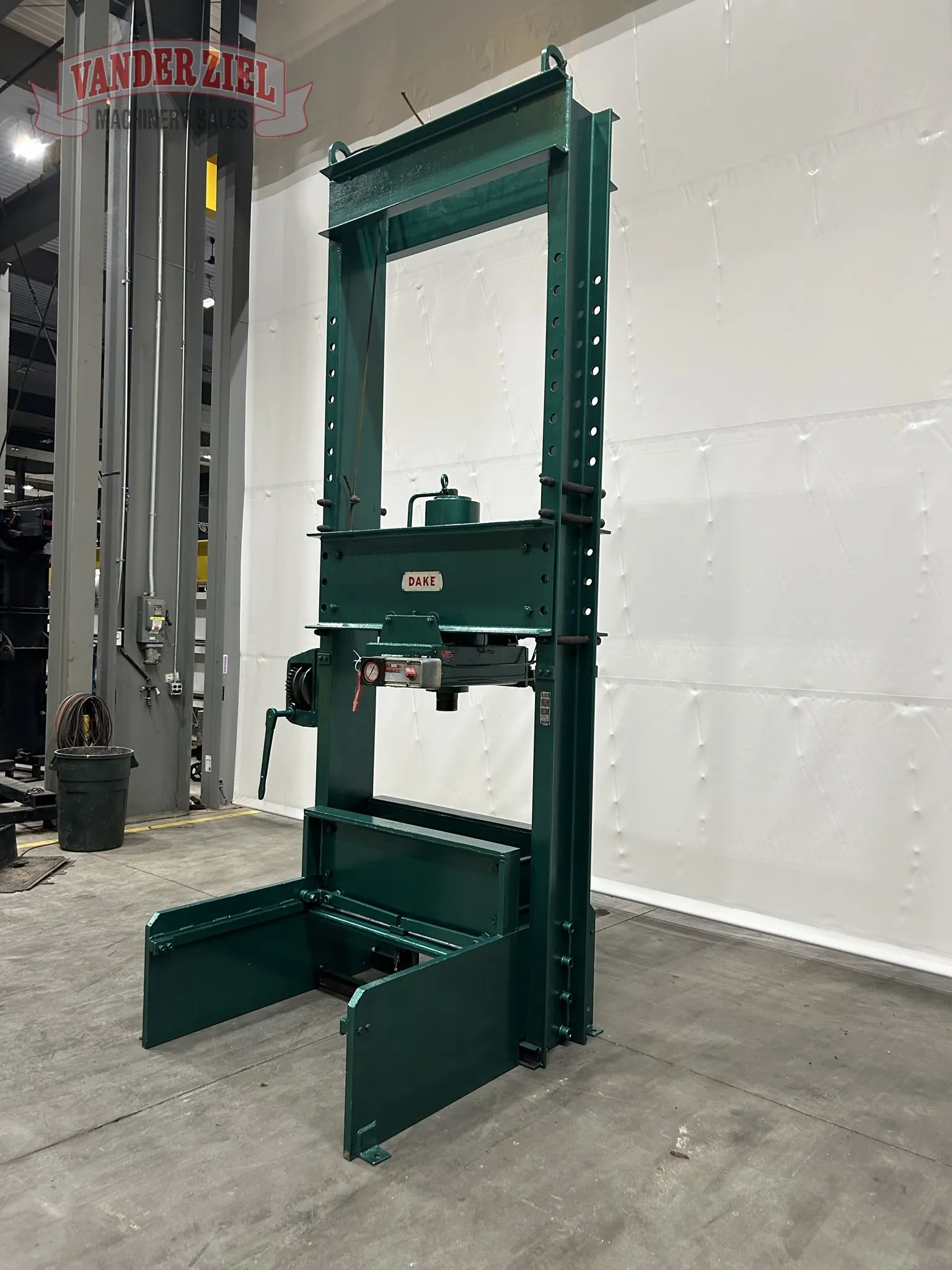

Dake 150 Ton Air Operated H Frame Press, Model 42-312

Dake 150 Ton Air Operated H Frame Press, Model 42-312

Serial #7834

Asset #16450

Specifications:

Model 42-312
Operation: Air
Capacity (tons): 150
Table (lbs.): 4200
Ram speed-advance: 25 IPM
Ram speed-press: 1 IPM
Ram Speed-return: 15 IPM
Horsepower: N/A
Width between uprights: 48"
Width between table channels: 12.25"
Minimum ram to table: 14.25"
Maximum ram to table: 64.25"
Ram travel: 16"
Table travel: 30"
Floor to tabletop: 34"
Base (inches): 58" x 56"
Height (inches): 145"
Weight (lbs.): 3660 lbs.

Preliminary Specifications - Subject to Change
