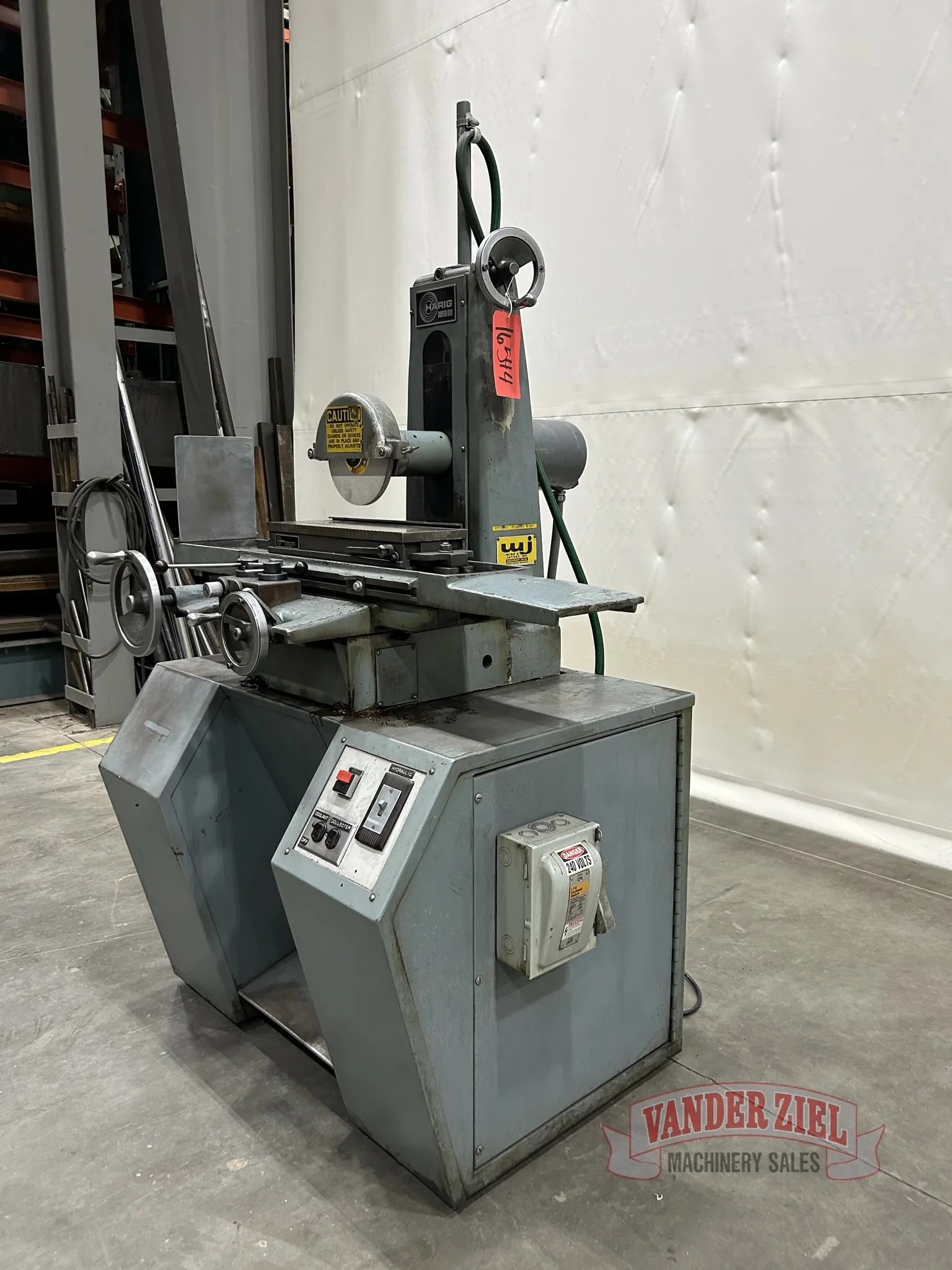

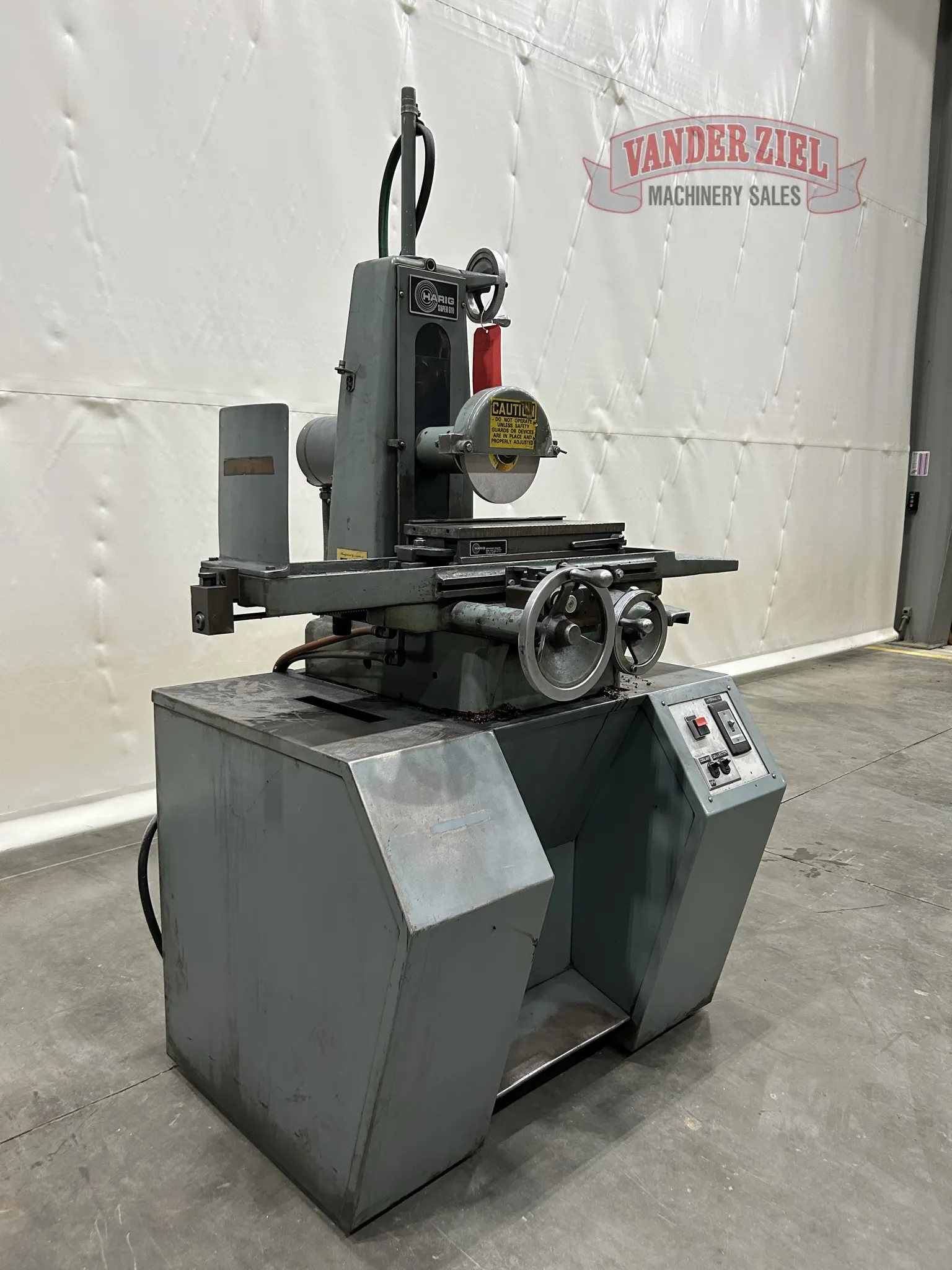

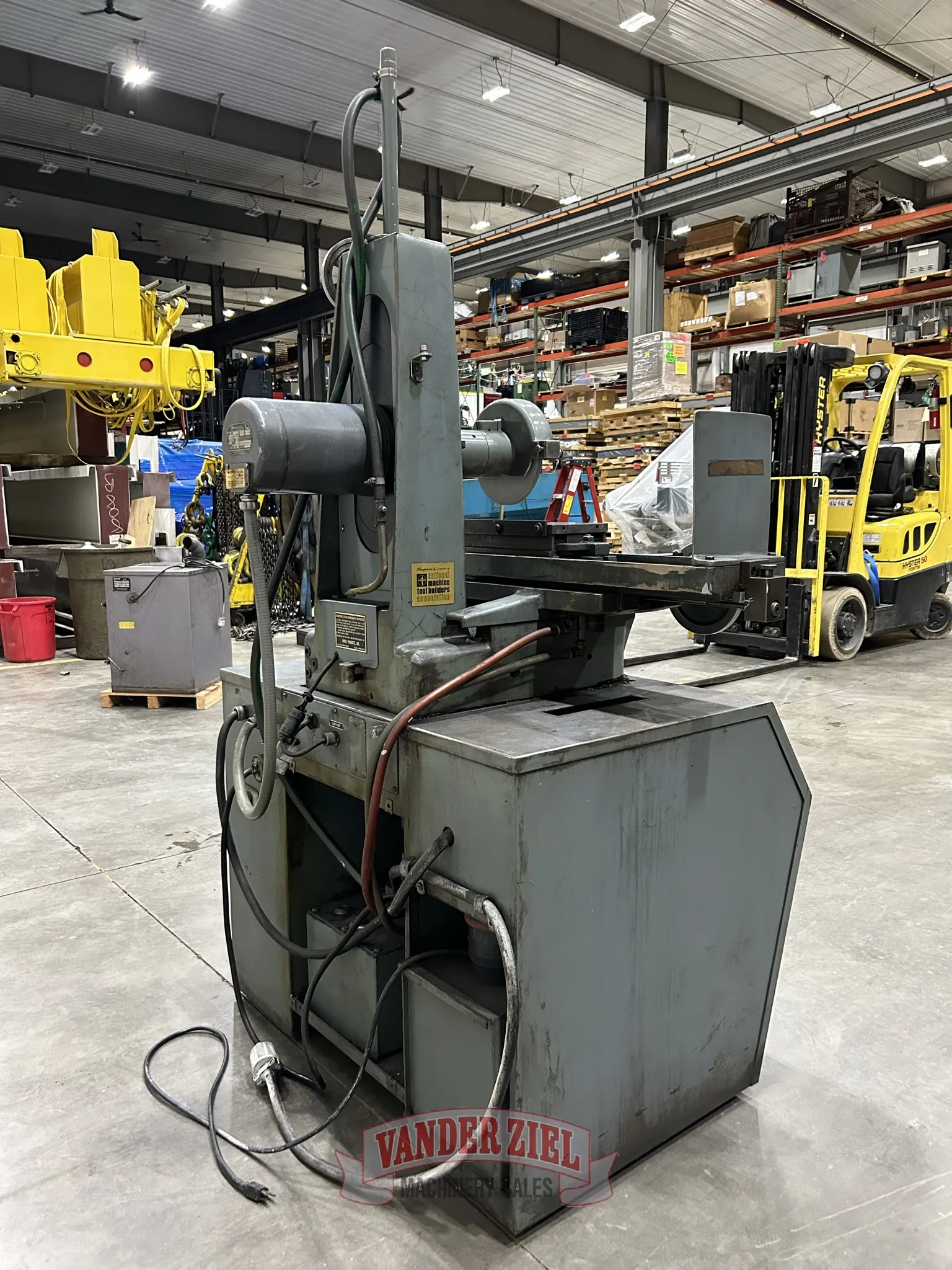

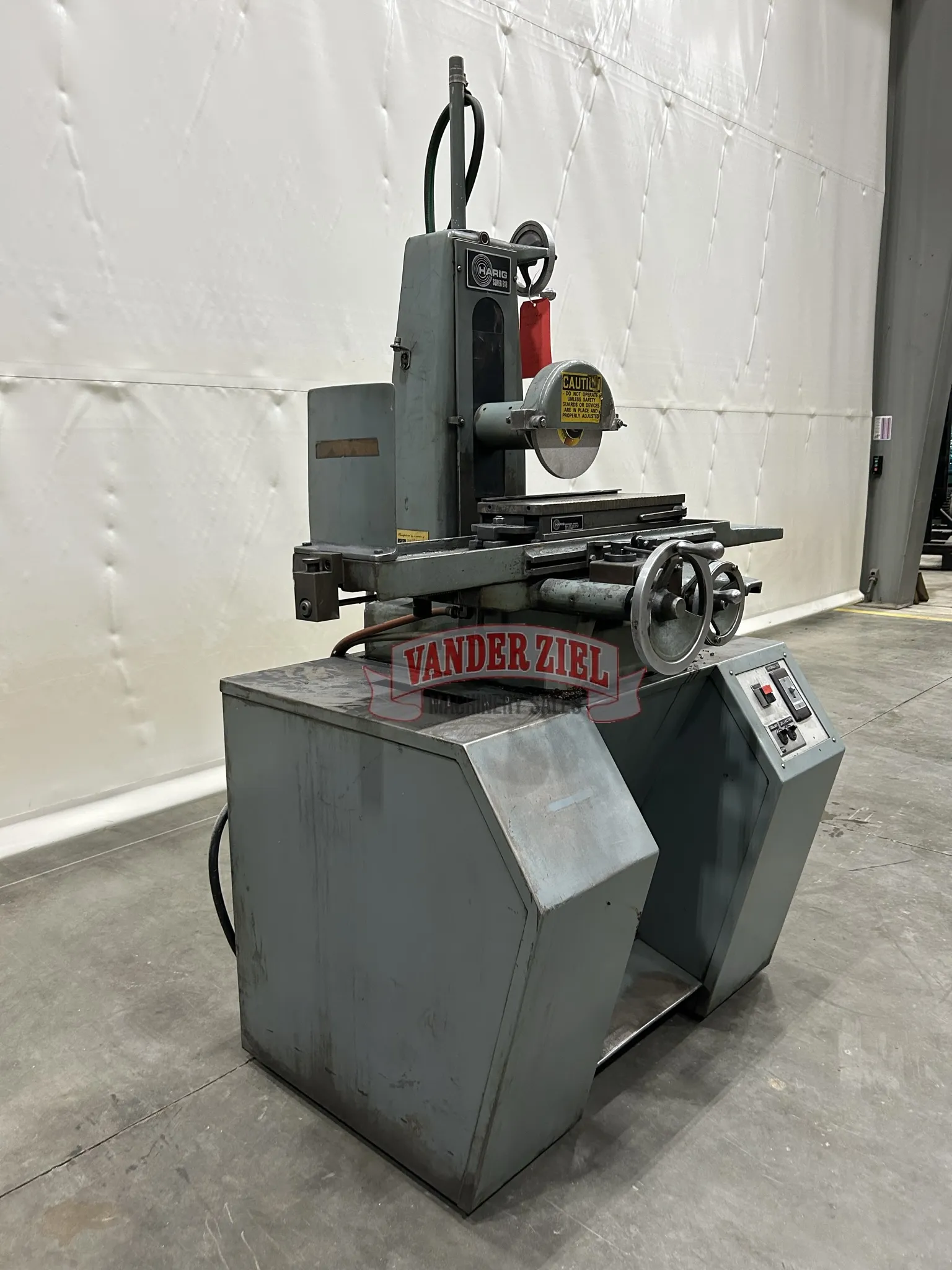

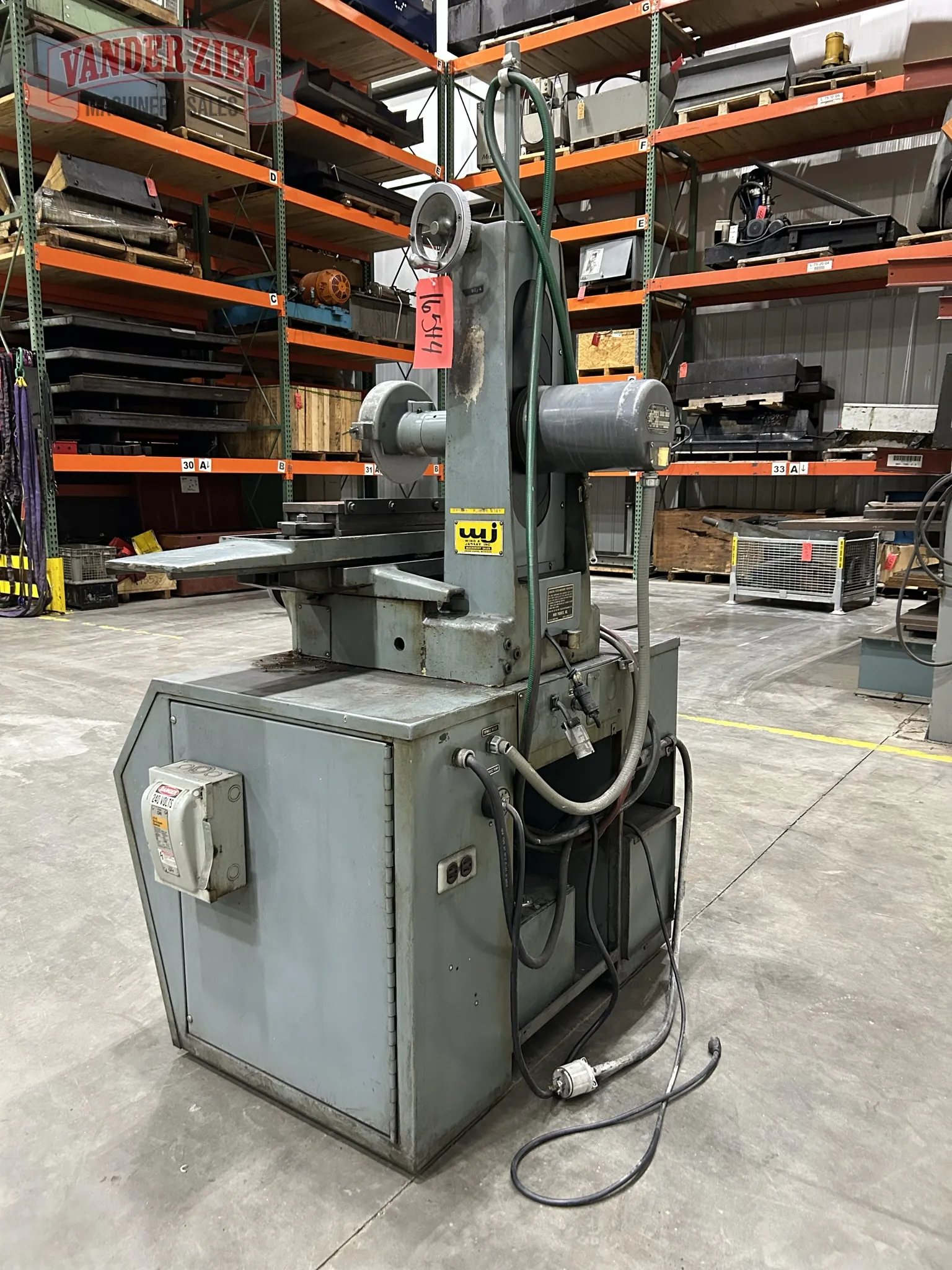

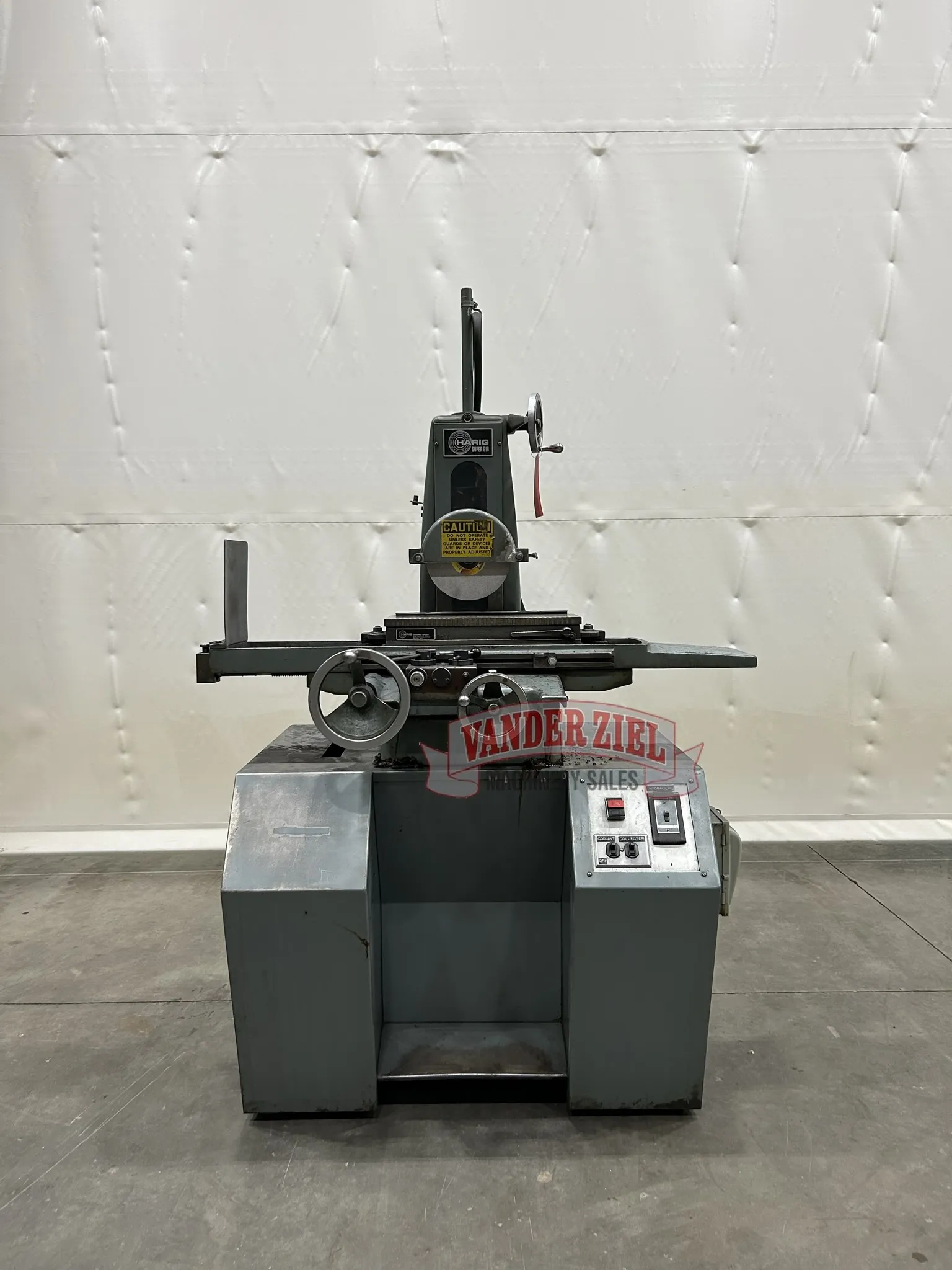

Harig 6” x 18” Hand Surface Grinder, Model Super 618

Harig 6” x 18” Hand Surface Grinder, Model Super 618

Serial # 77818
Asset # 16544

Specifications:
Longitudinal Travel 18 ¾”
Cross Feed Travel 6 ¾”
Vertical Working Height Under 7” Wheel 12”
Platen Working Surface 6” x 18”
Standard Grinding Wheel 7” x ½” x 1 ¼”
Grinding Wheel Maximum Capacity 8” x 1 ¼”
Elevator Handwheel Graduation .0005”
Cross Feed Handwheel Graduation .001”
Motor HP 1 HP
Spindle Speed 3450 RPM
Floor Area Cabinet 40” x 31”
Floor Area Operating Space 73” x 47”
Weight of Machine 820 lbs.
Weight of Cabinet 350 lbs.

Preliminary Specifications – Subject to Verification
