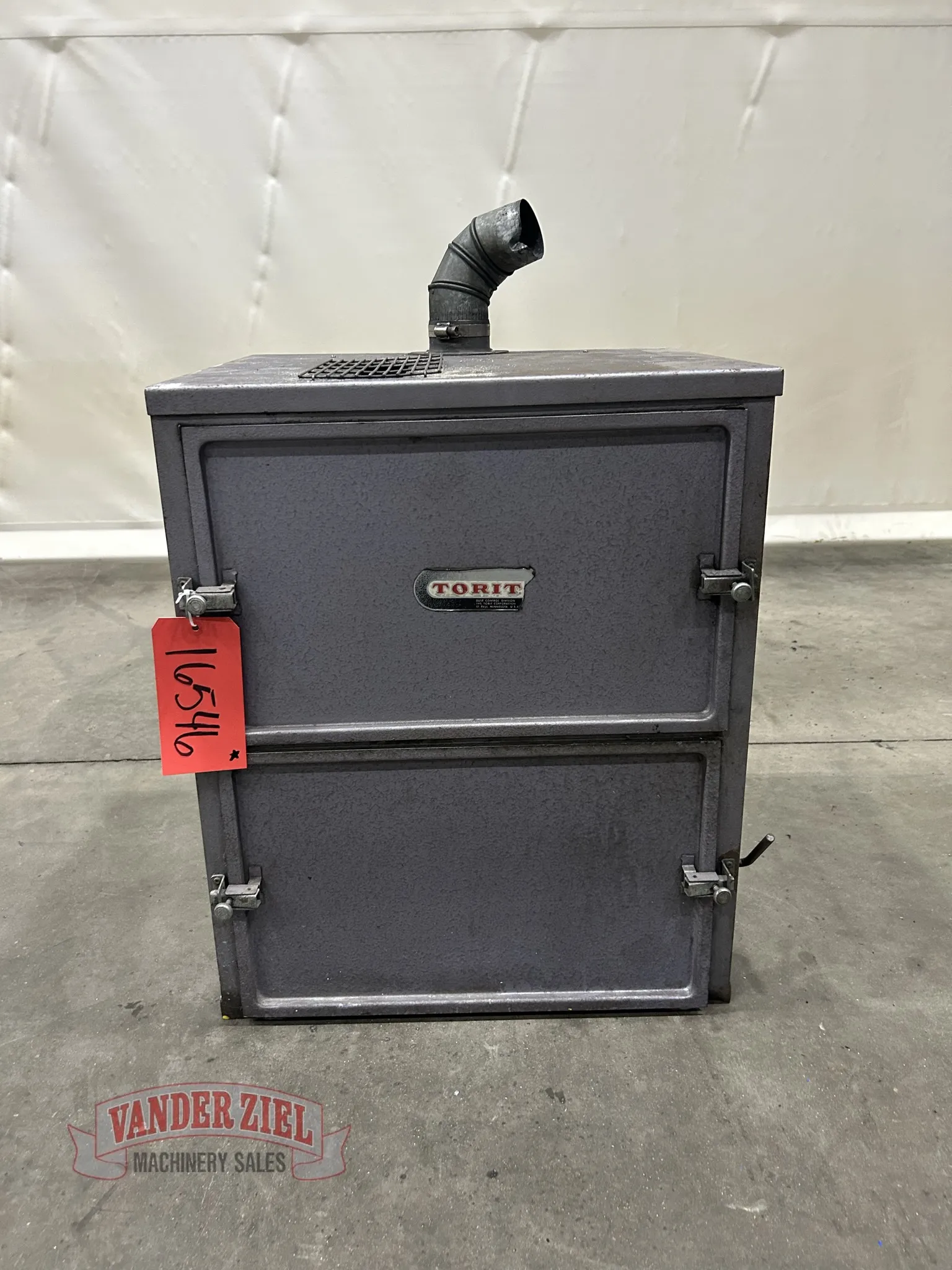

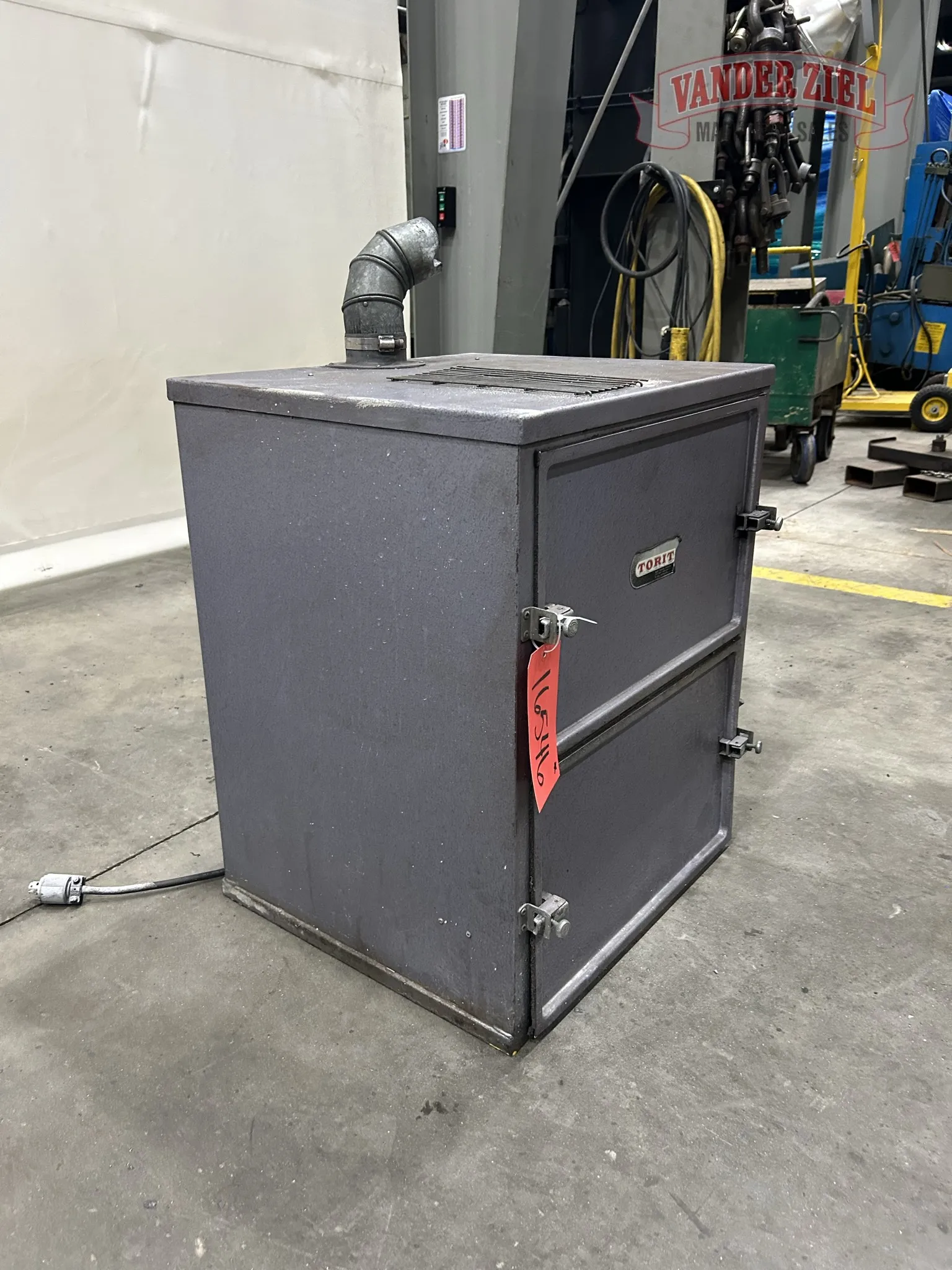

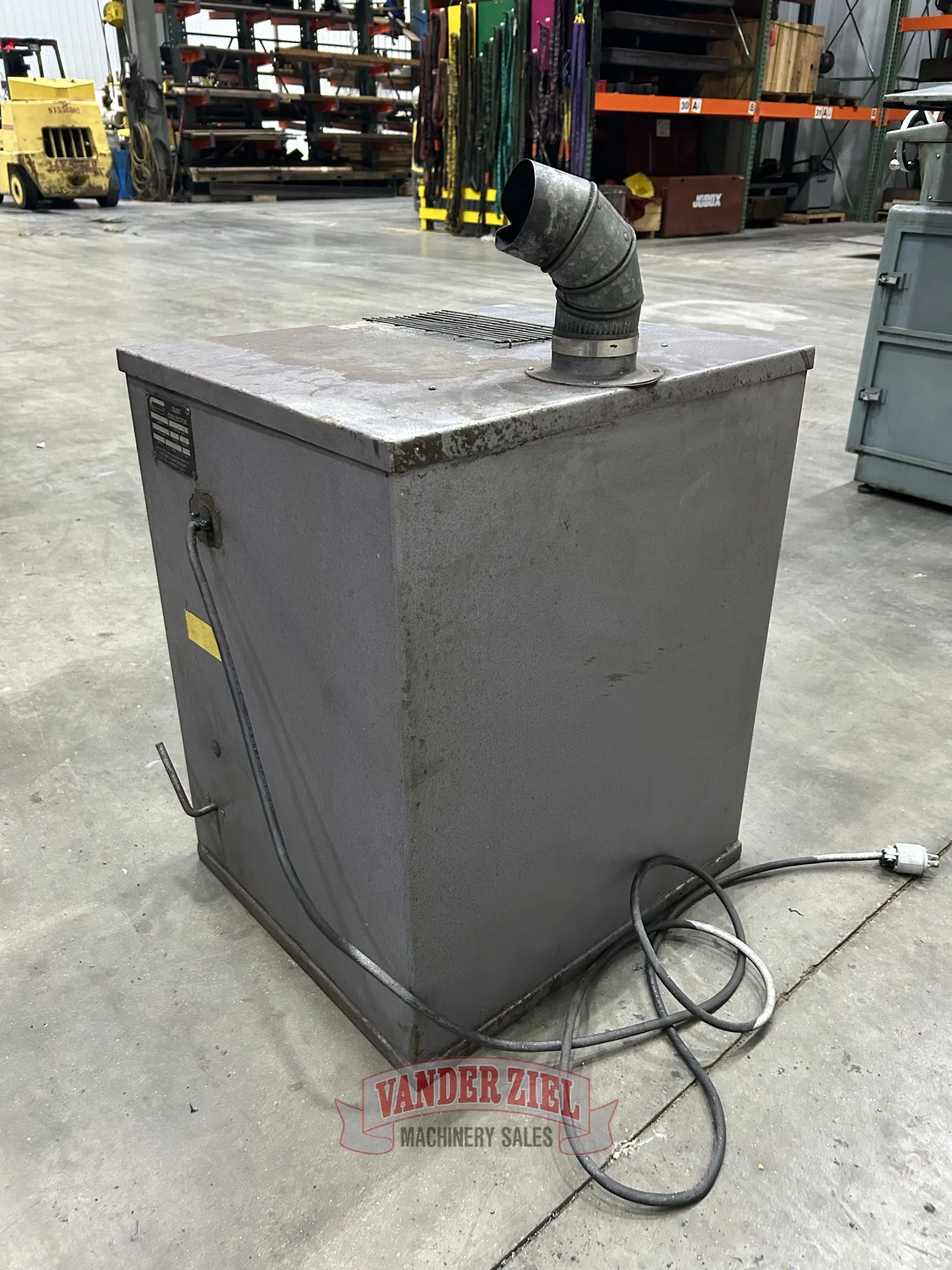

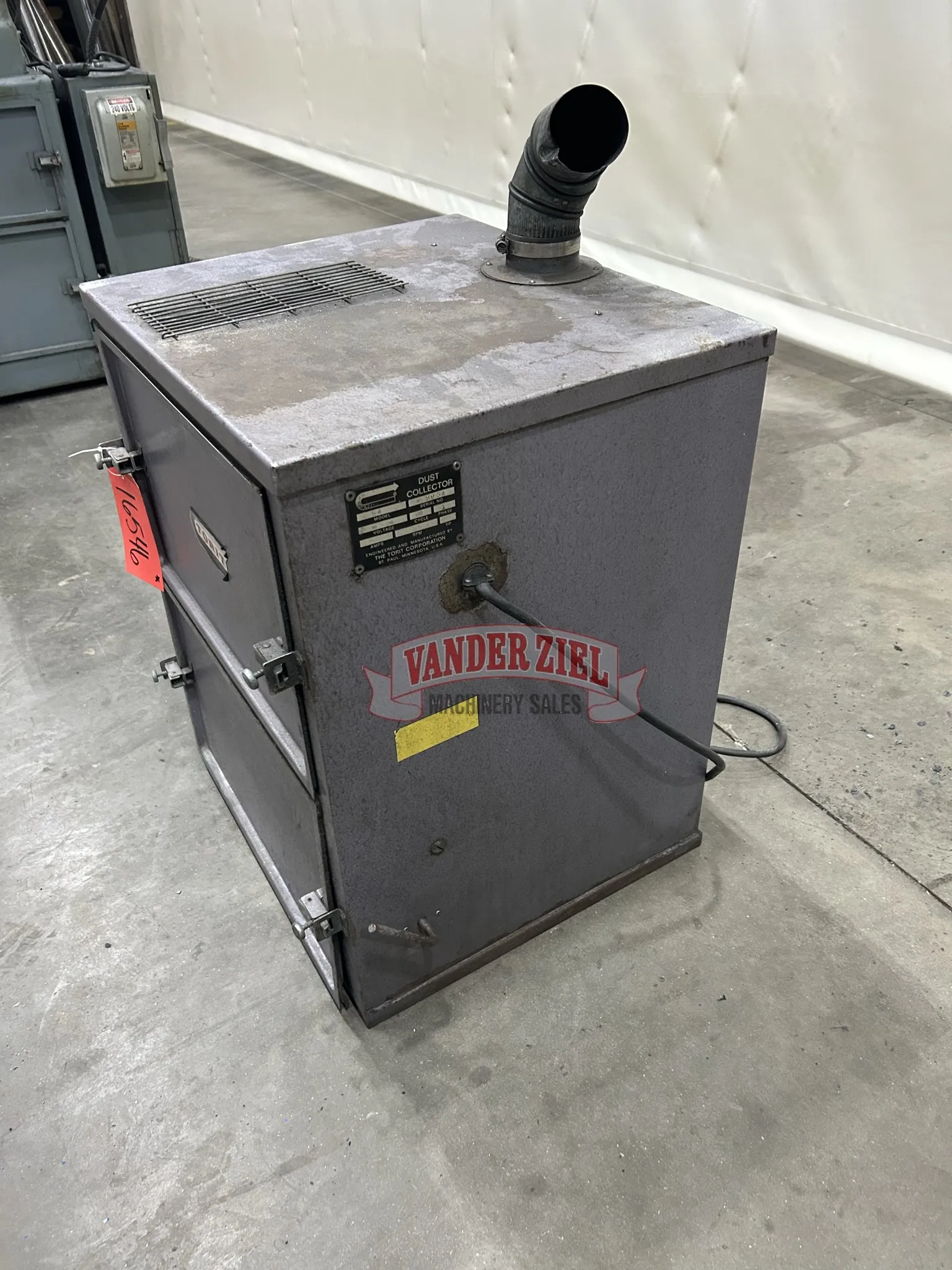

Torit Model 54 Dust Collector

Torit Model 54 Dust Collector

Asset # 16546

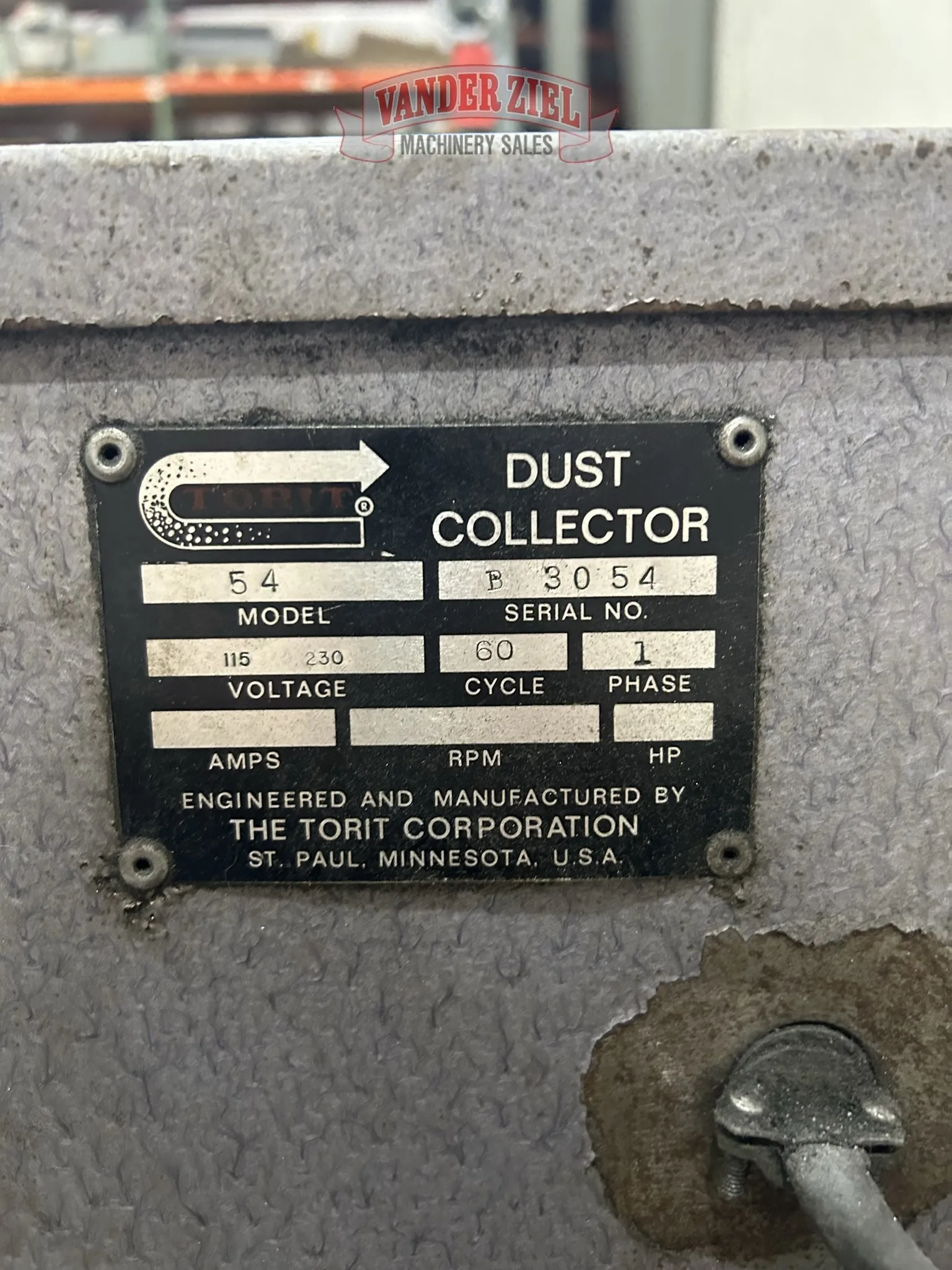

Serial # B3054

Specifications:
Nominal Air Flow 284, 231, 171 CFM
Velocity 5804, 4705, 3491 fpm
Motor .5 HP
Inlet Size 3"
External Static Pressure 3.16, 3.35, 3.55
Pressure Drop Clean Filter .45, .35, .30
Filter Area 30 ft Sq.
No. of Bags 24
Dust Drawer Capacity .43 ft Cubed
Hopper Capacity 1.86 ft cubed
Motor 115V, 230V, 1 PH
Shipping Weight 165 lbs.

Cabinet Dimensions:

21 1/2" L x 20" W x 27" H

Preliminary Specifications - Subject to Verification
