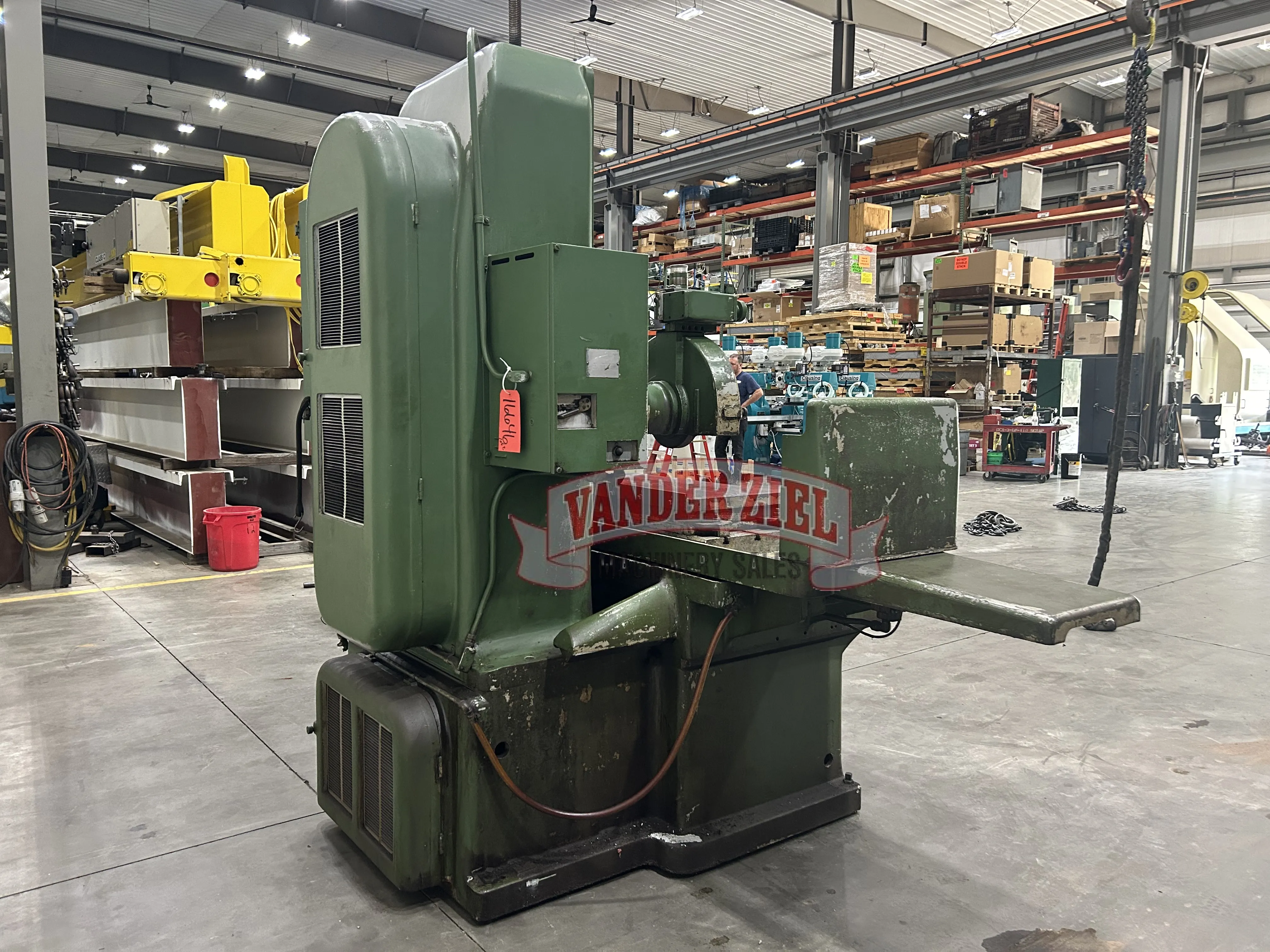

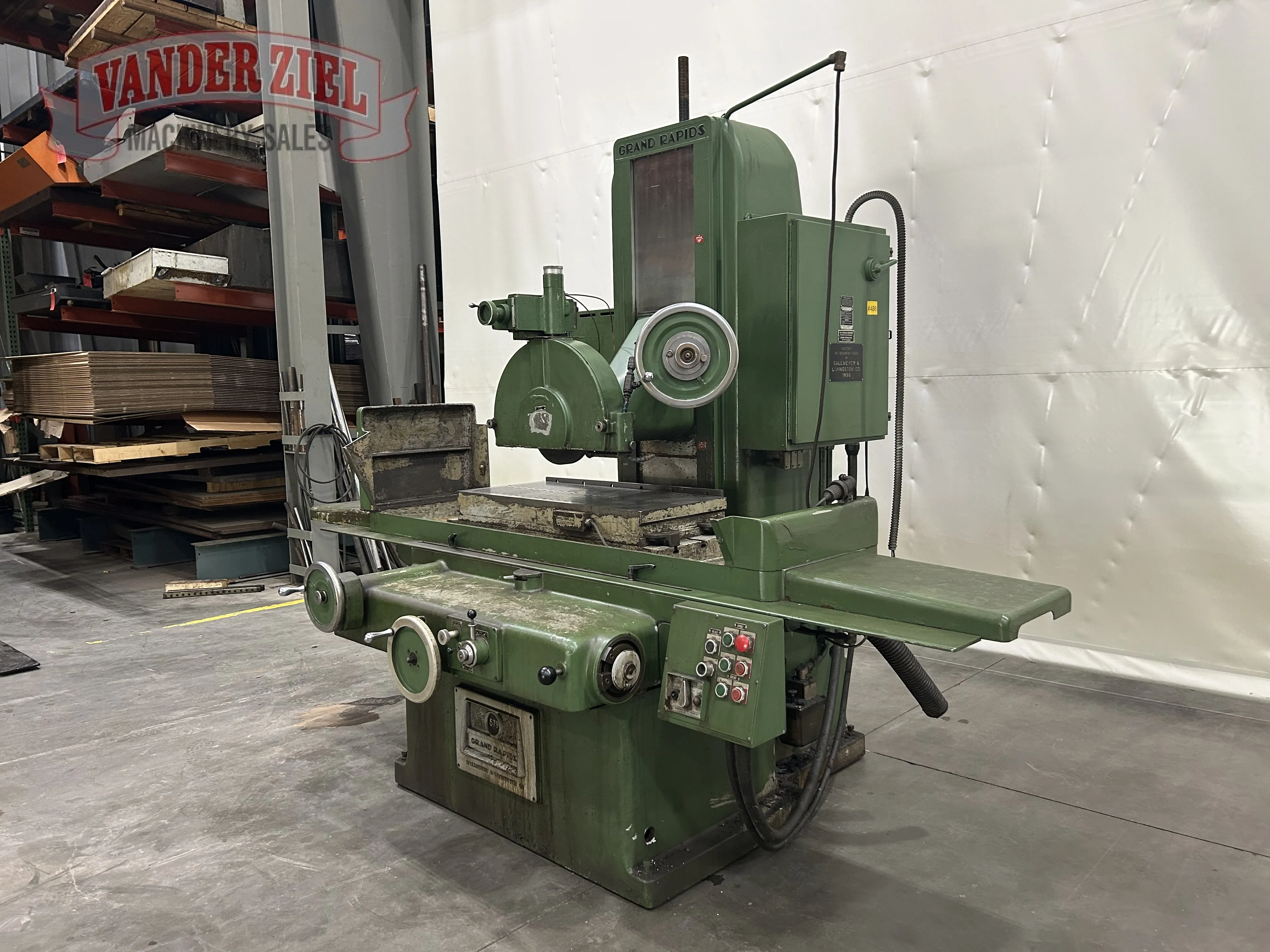

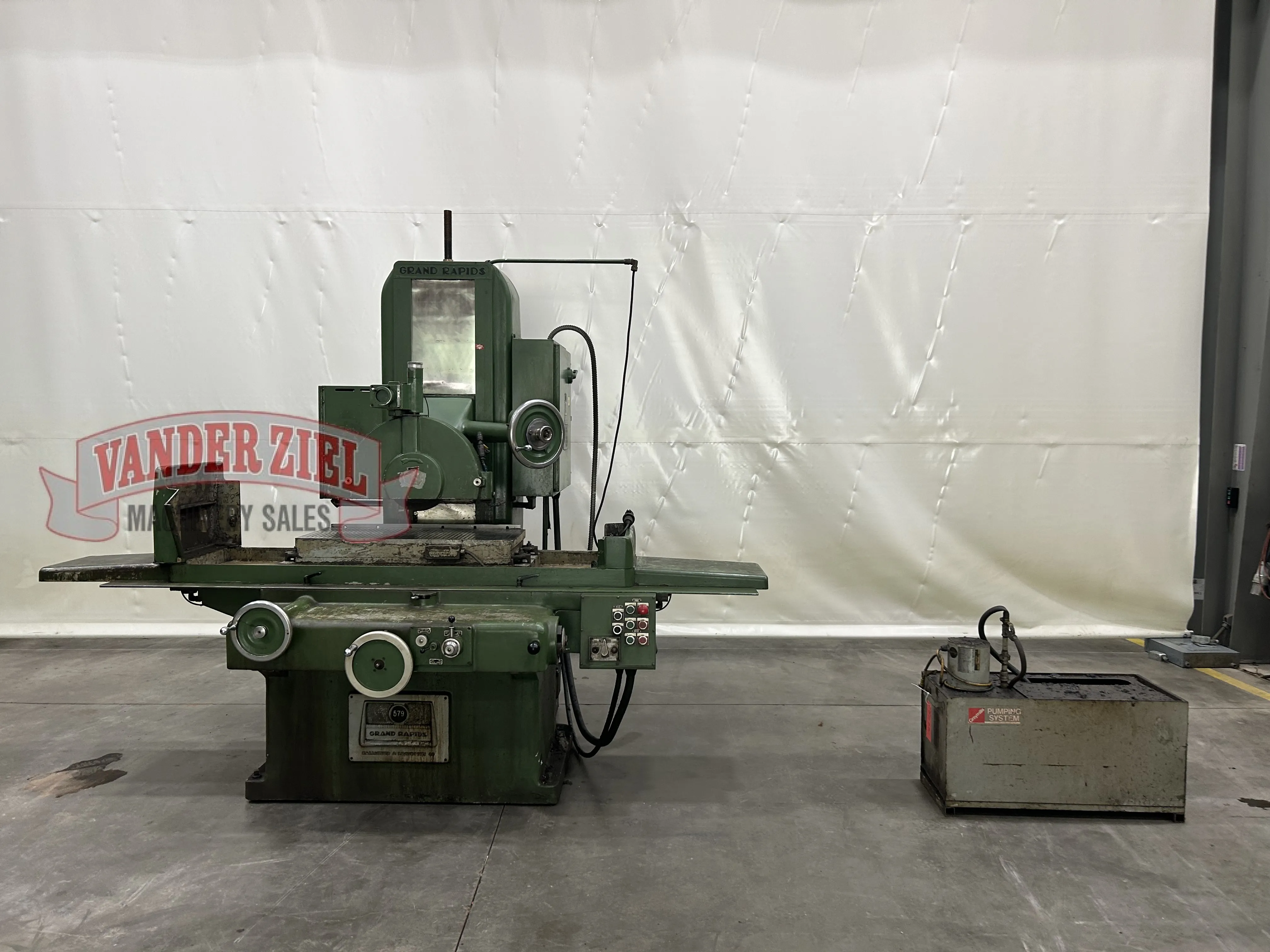

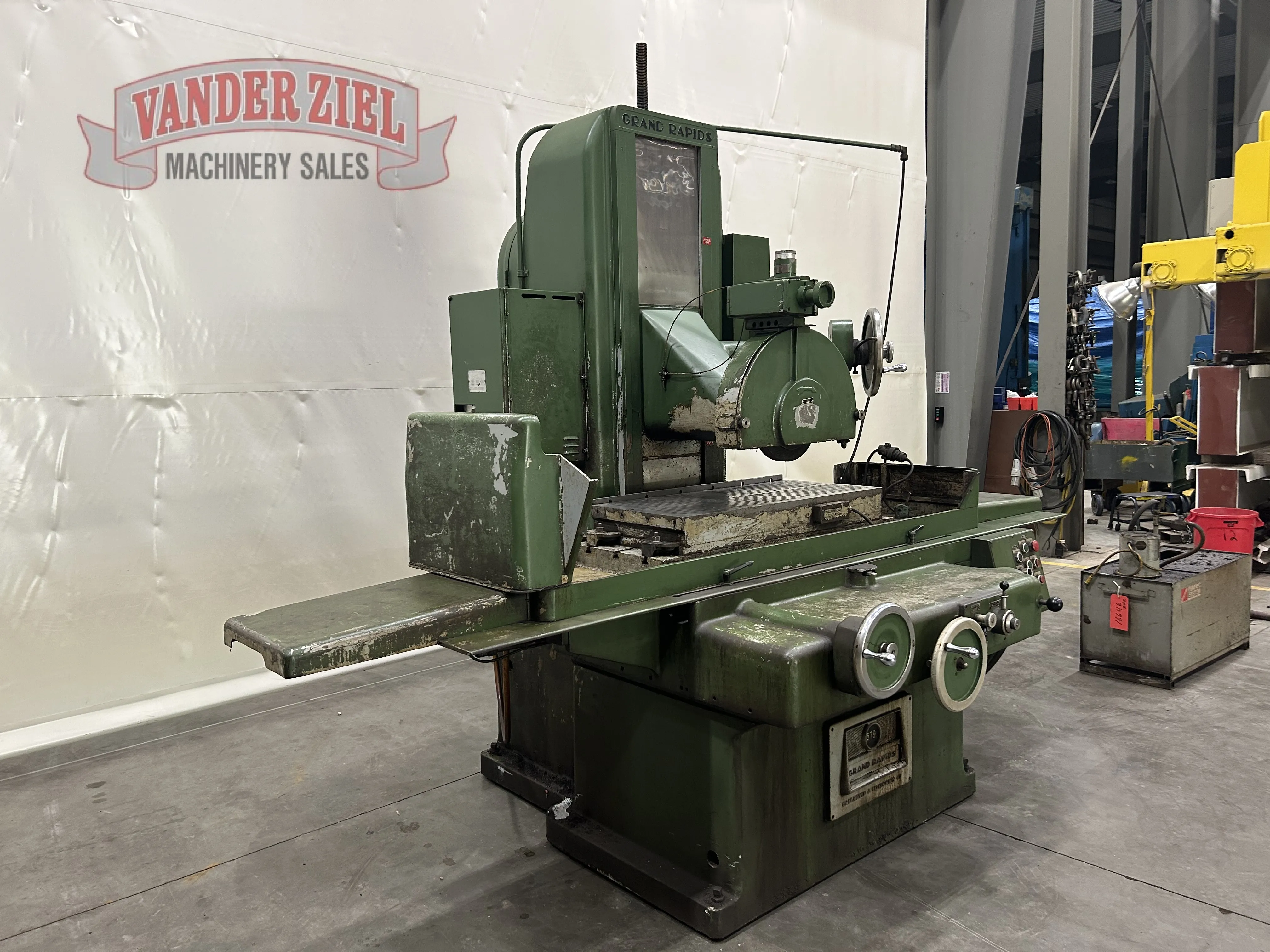

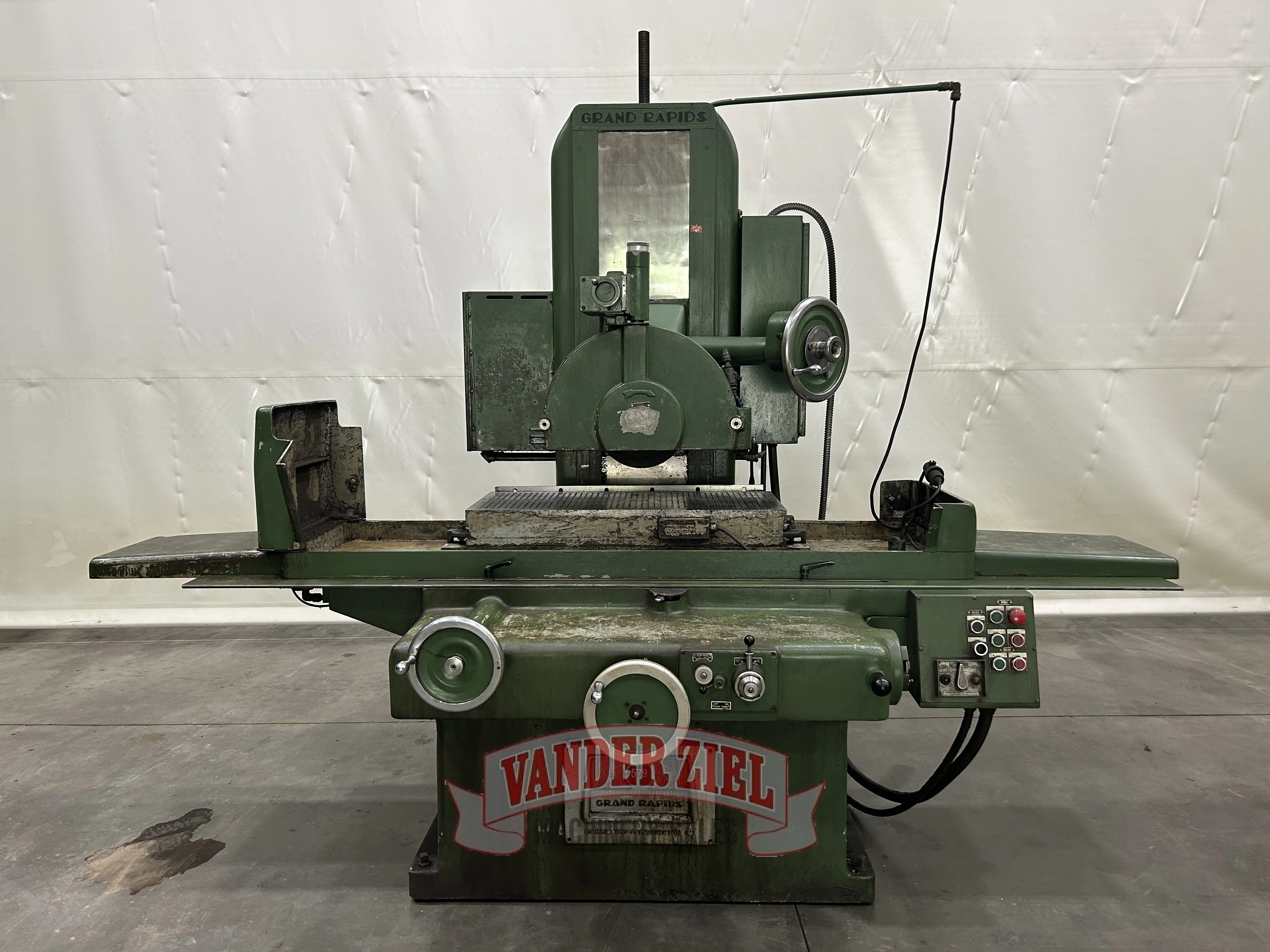

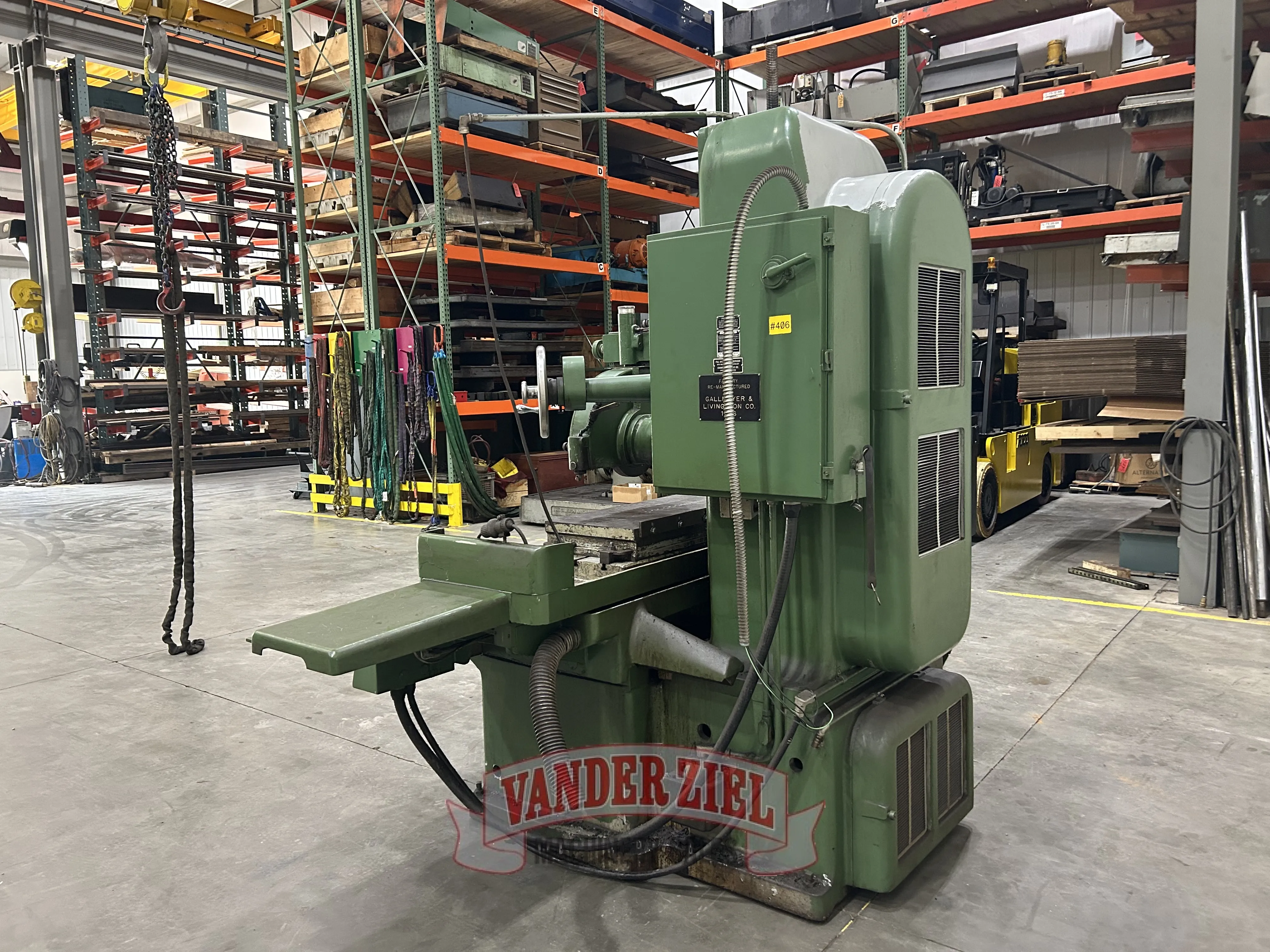

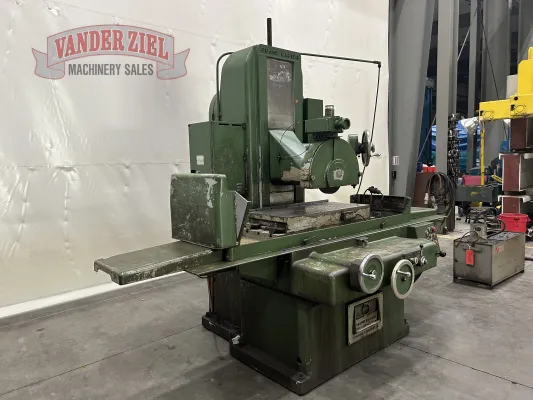

Gallmeyer & Livingston 16" x 36" Hydraulic Surface Grinder

Gallmeyer & Livingston 16" x 36" Hydraulic Surface Grinder, Model 579

Asset # 16627

Specifications:
Working Surface of Table 16" x 36"
Longitudinal Table Speed 3" - 150' per Minute
Hydraulic Table Travel, Longitudinal 47 1/2"
Hydraulic Table Travel, Transverse 17 3/4"
Standard Wheel Size 14" x 1 1/2" x 5"
Vertical Movement of Wheelhead 19"
Maximum Distance from Wheel to Table under 14" Wheel 27"
Distance Center of Spindle to Bottom of Spindle Housing 3"
Spindle Speeds 1750 & 2100 RPM
Hydraulic Pump Motor 3 HP, 1140 RPM
Spindle Drive Motor 7 1/2 HP, 1750 RPM
Year 1977
Floor Space 172" x 89"
Weight 11,700 lbs.

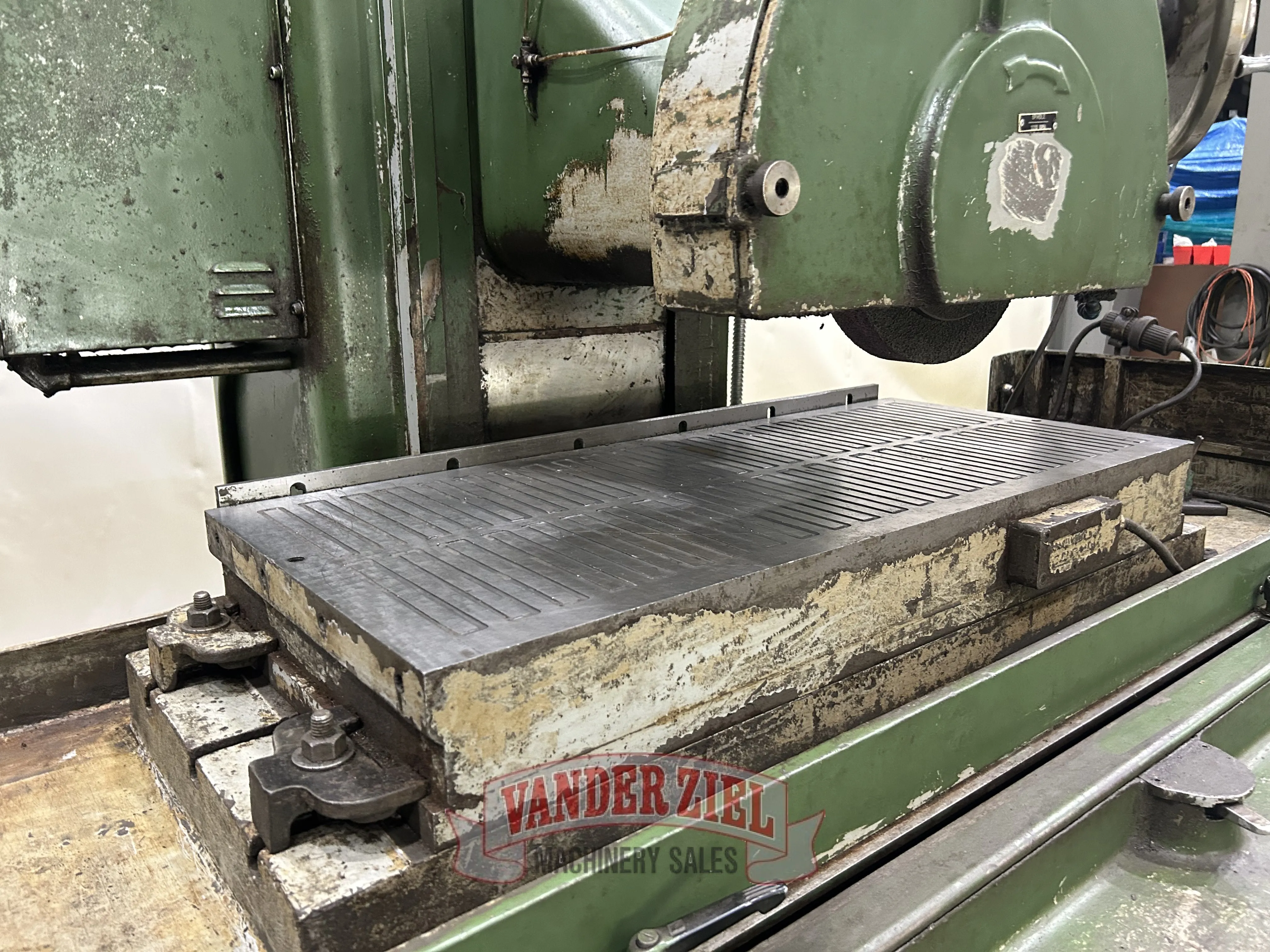

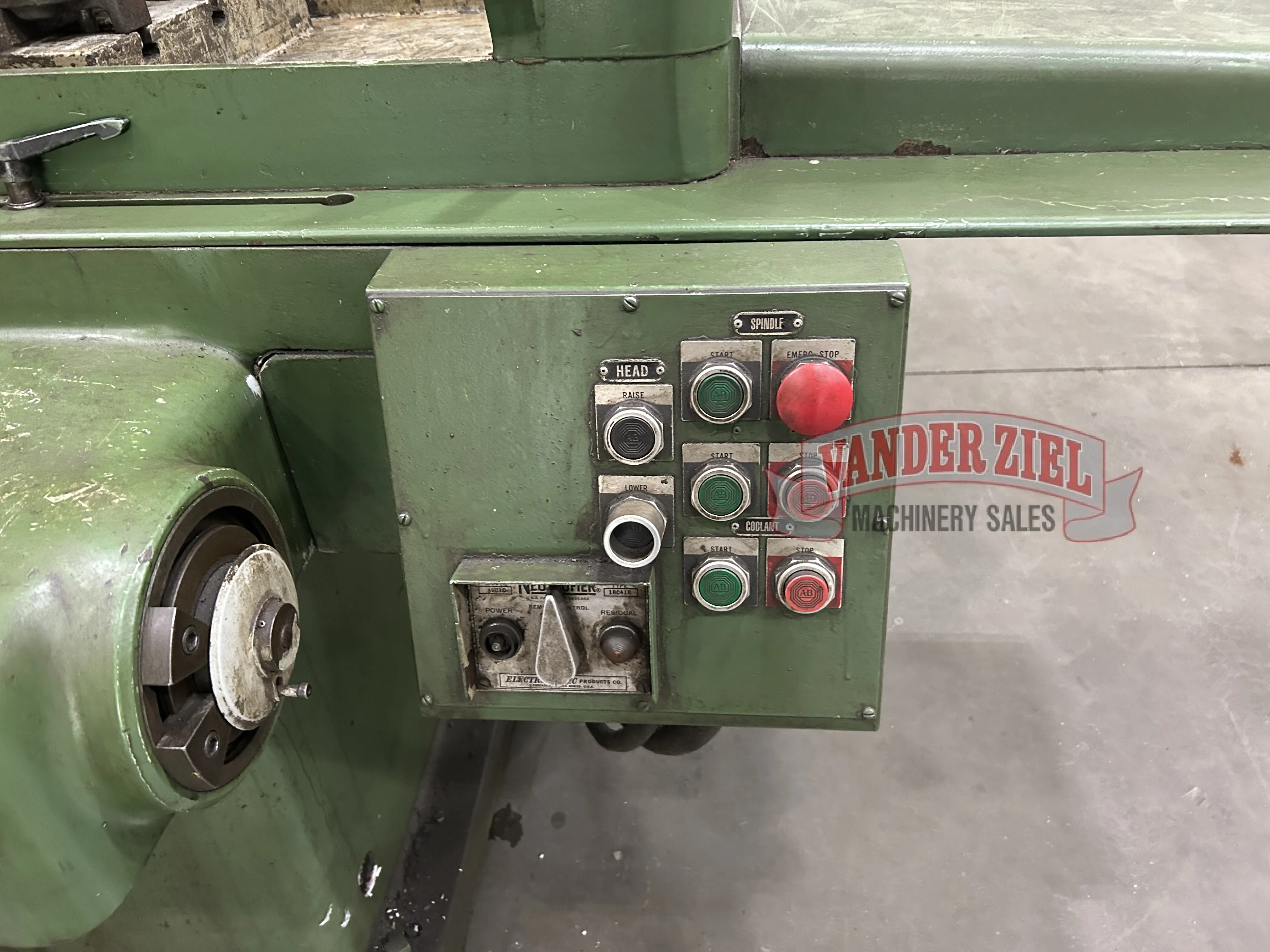

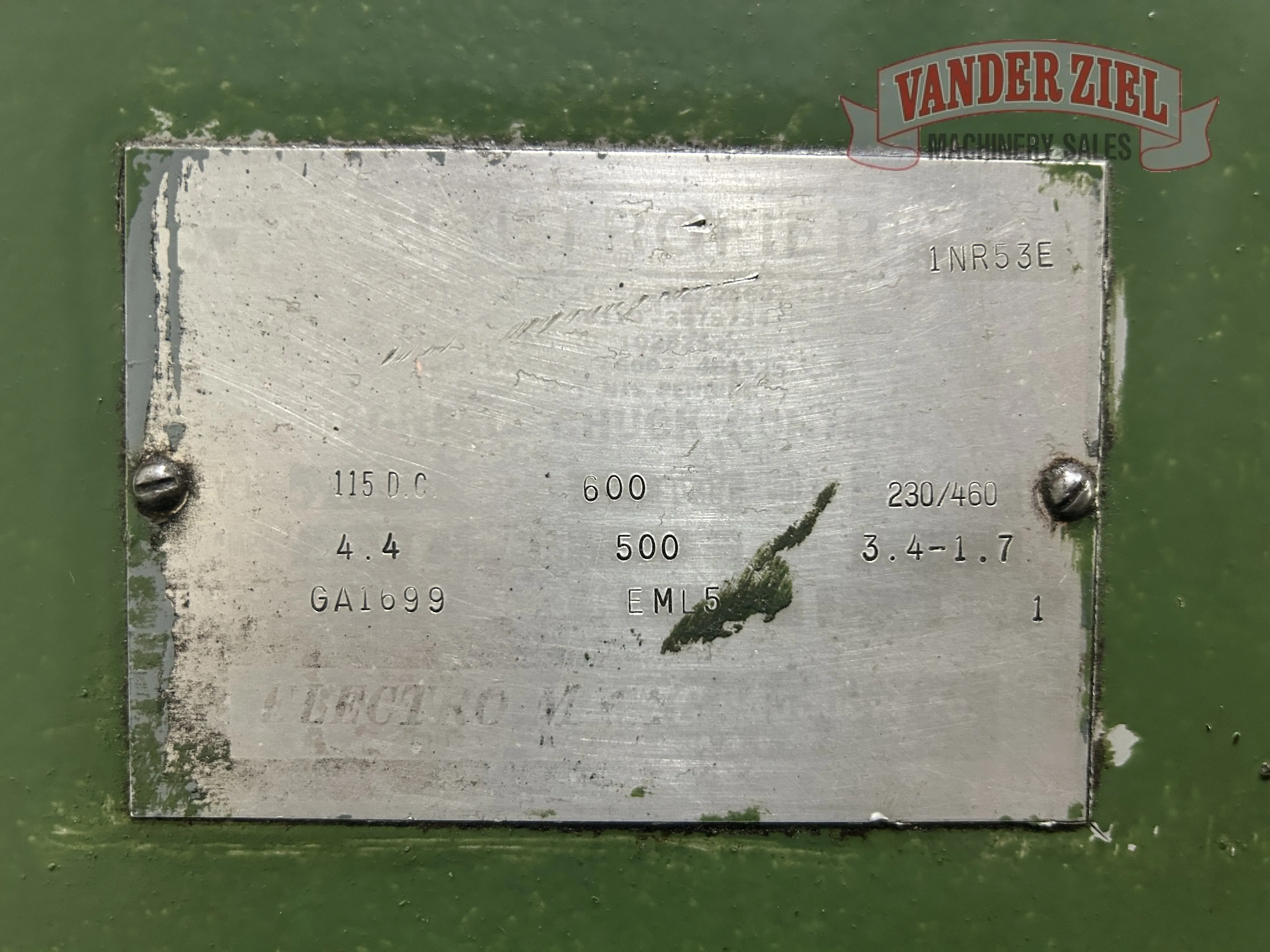

Grinder was remanufactured by Gallmeyer & Livingston in 1994. Grinder is equipped with an over the wheel dresser and neutrofier chuck control.

Preliminary Specifications - Subject to Verification
