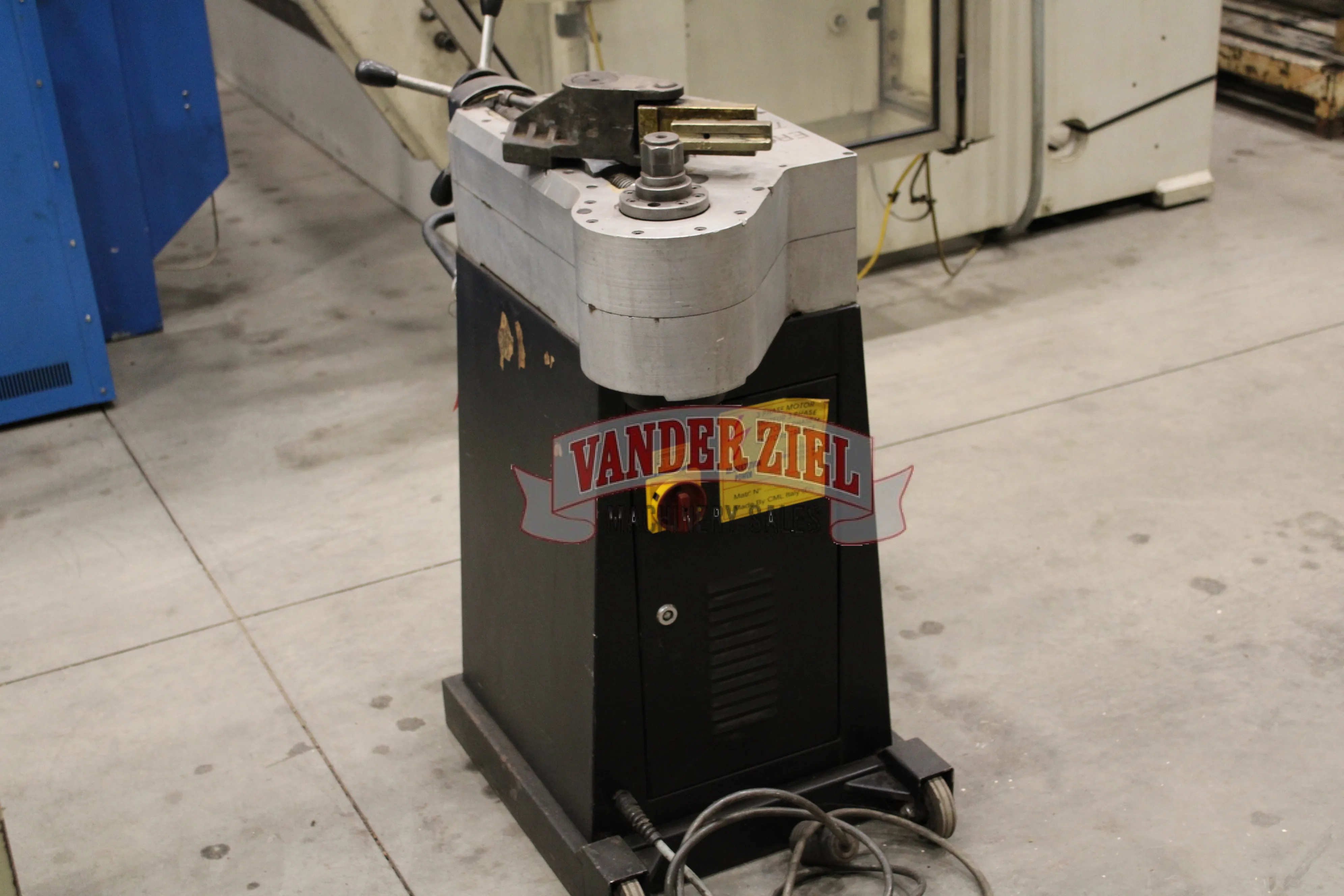

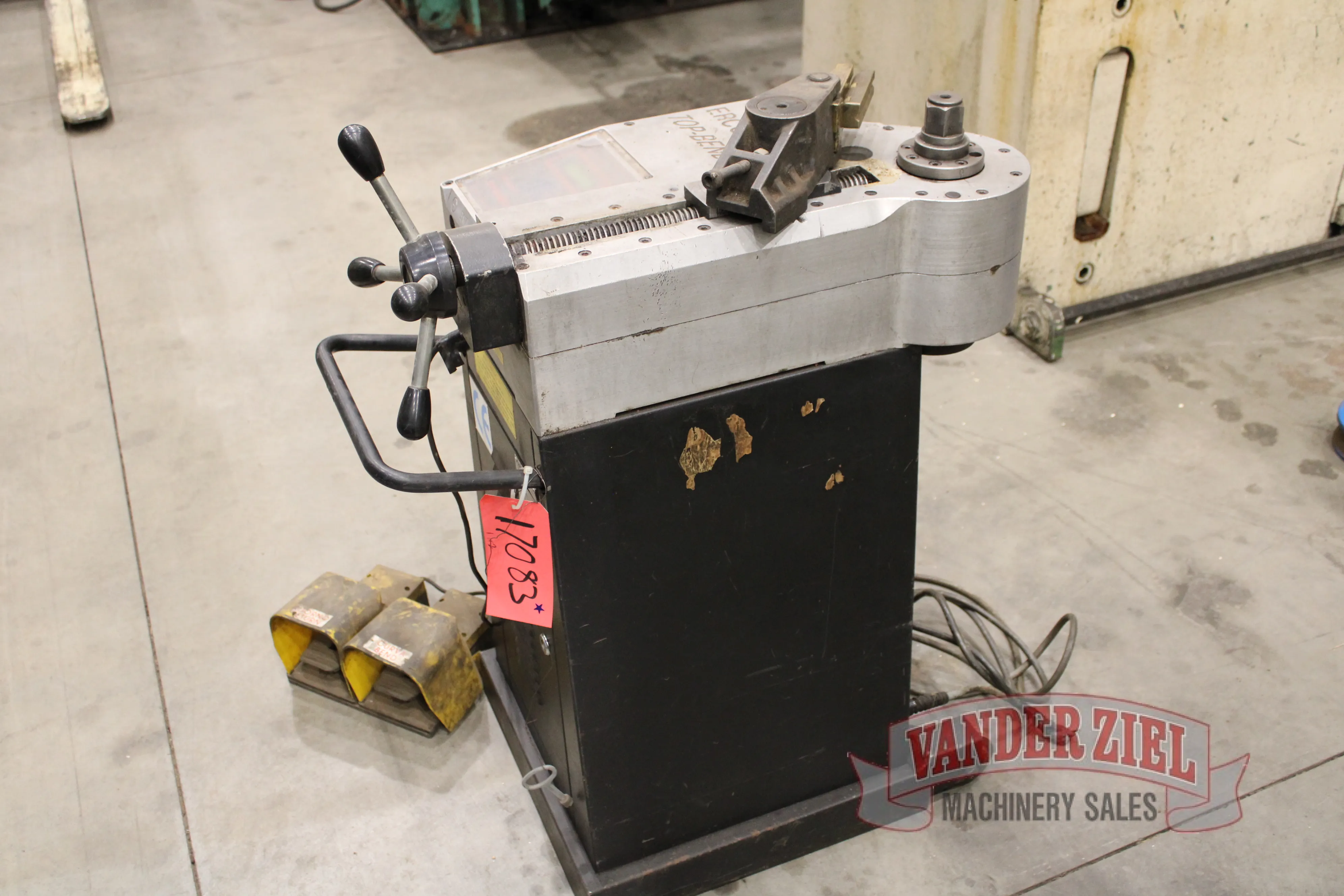

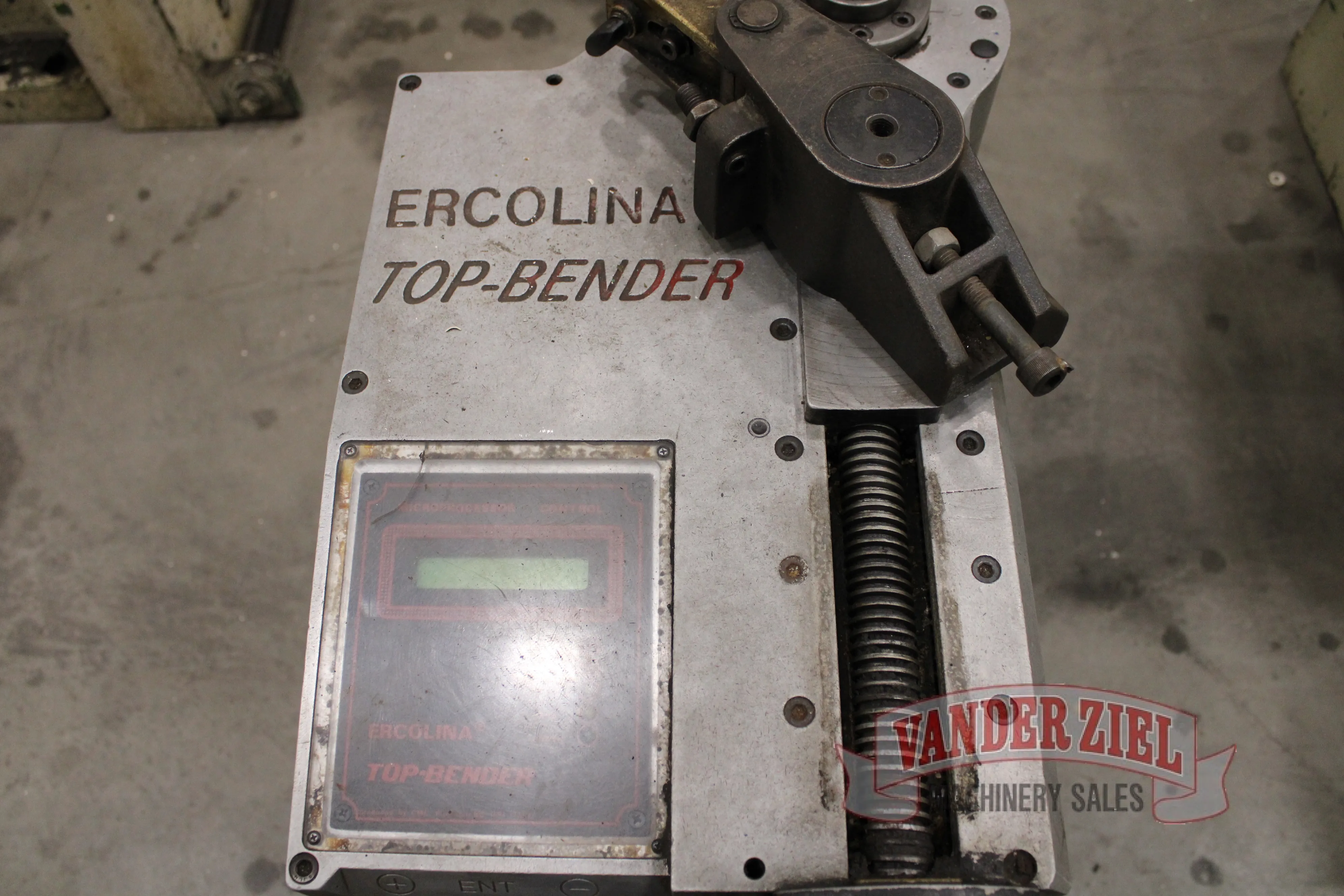

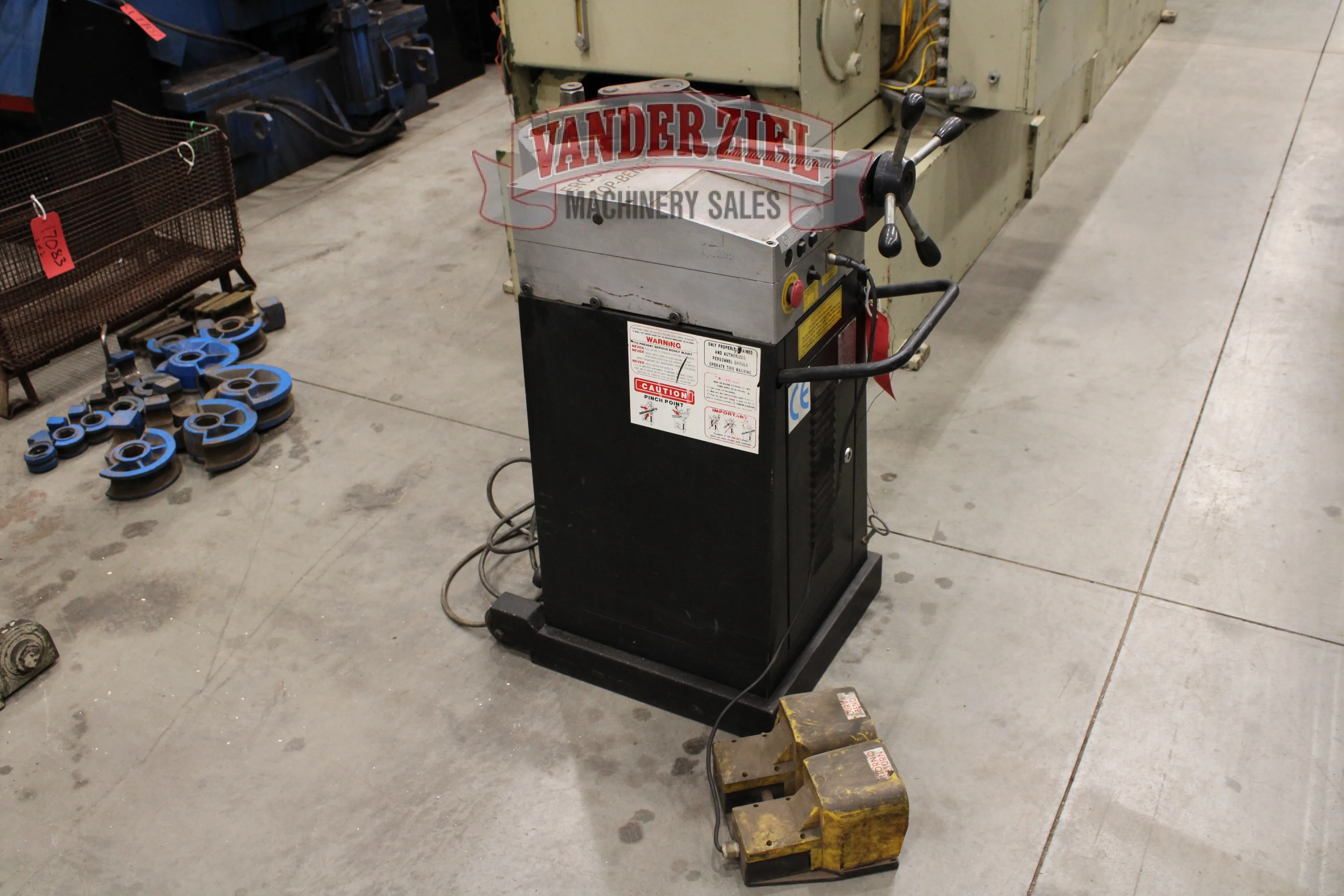

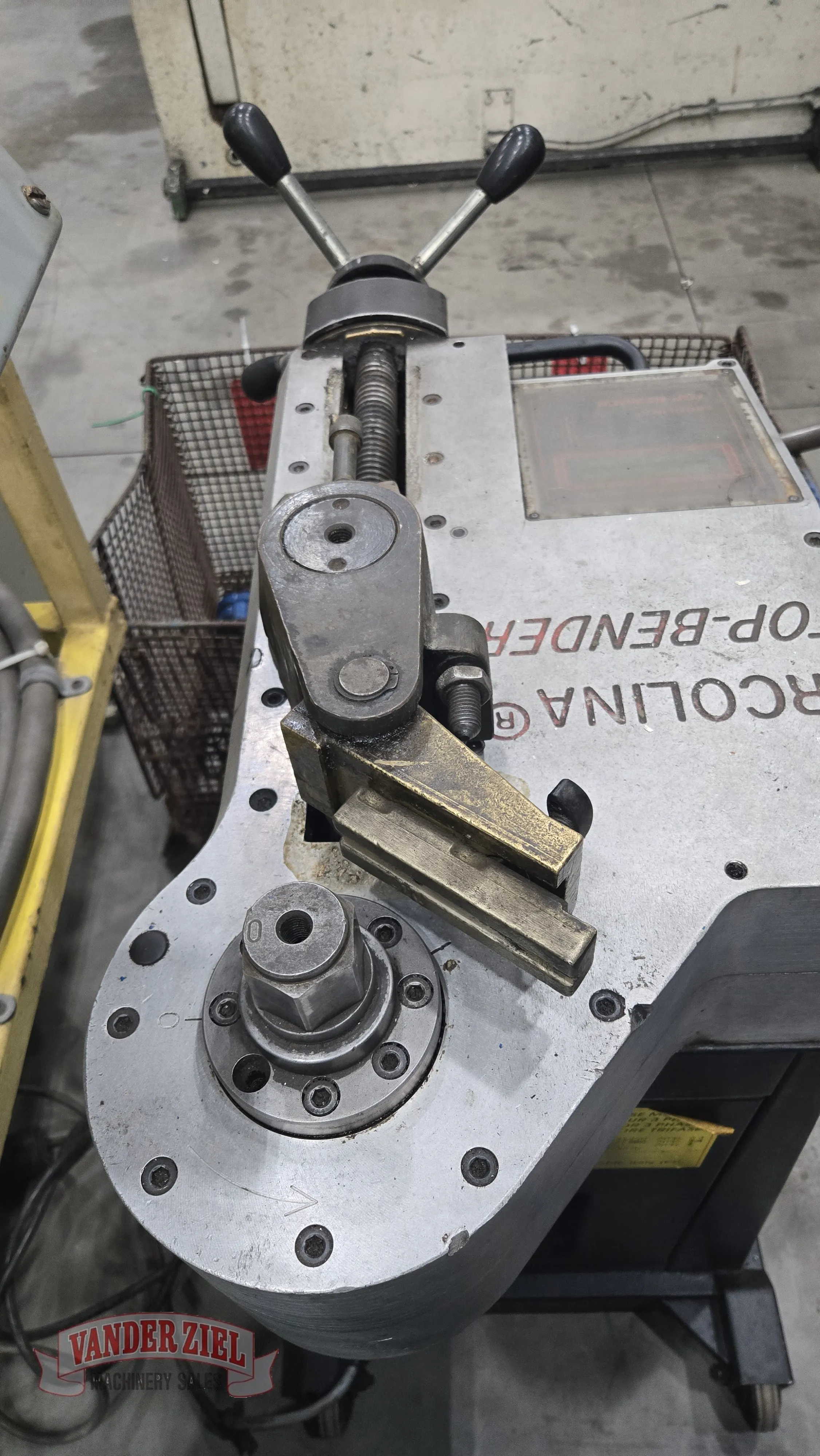

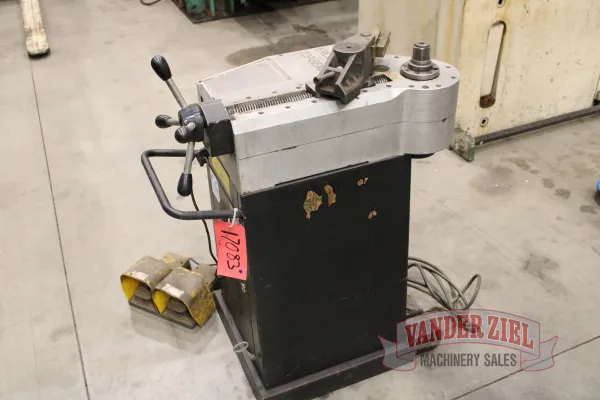

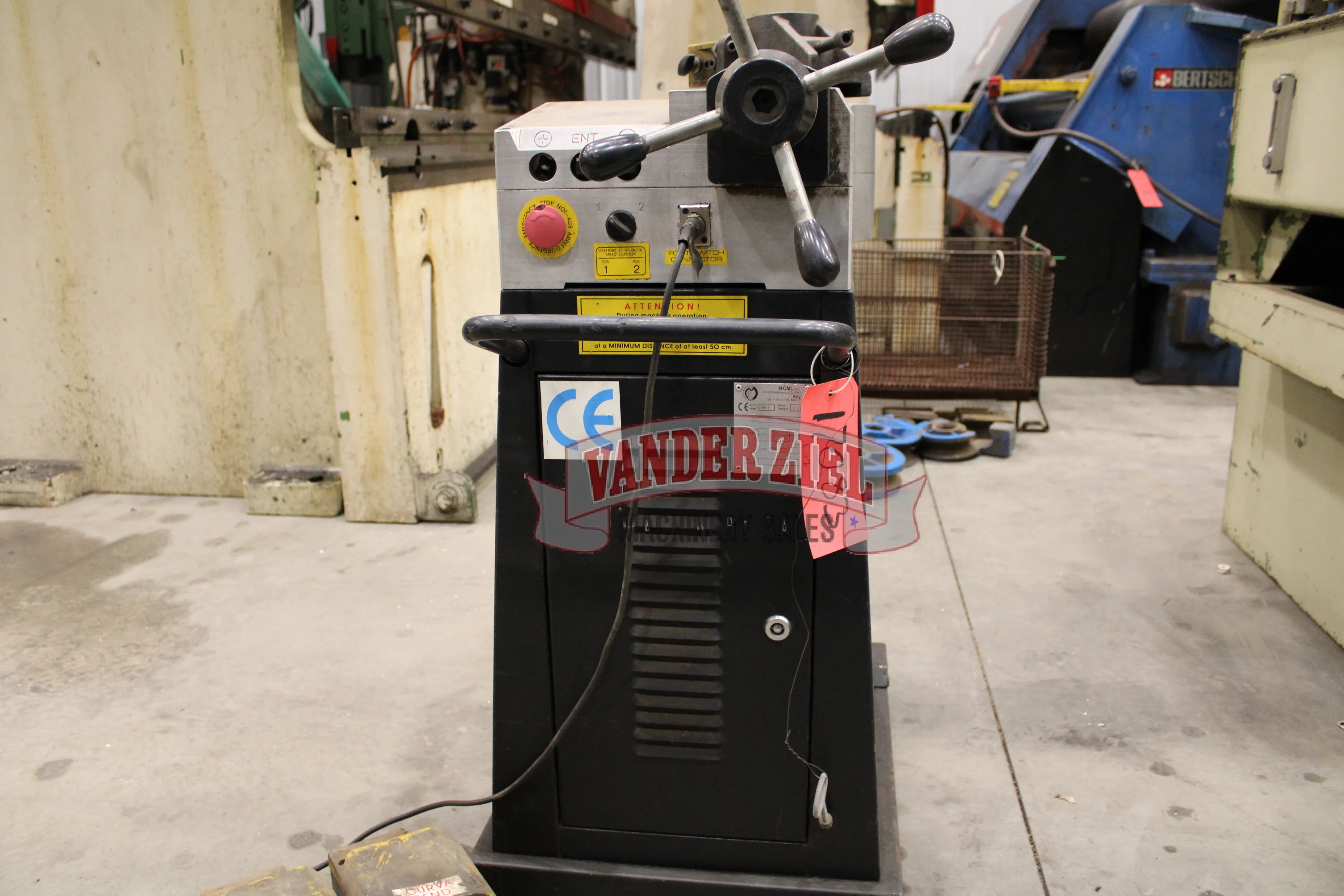

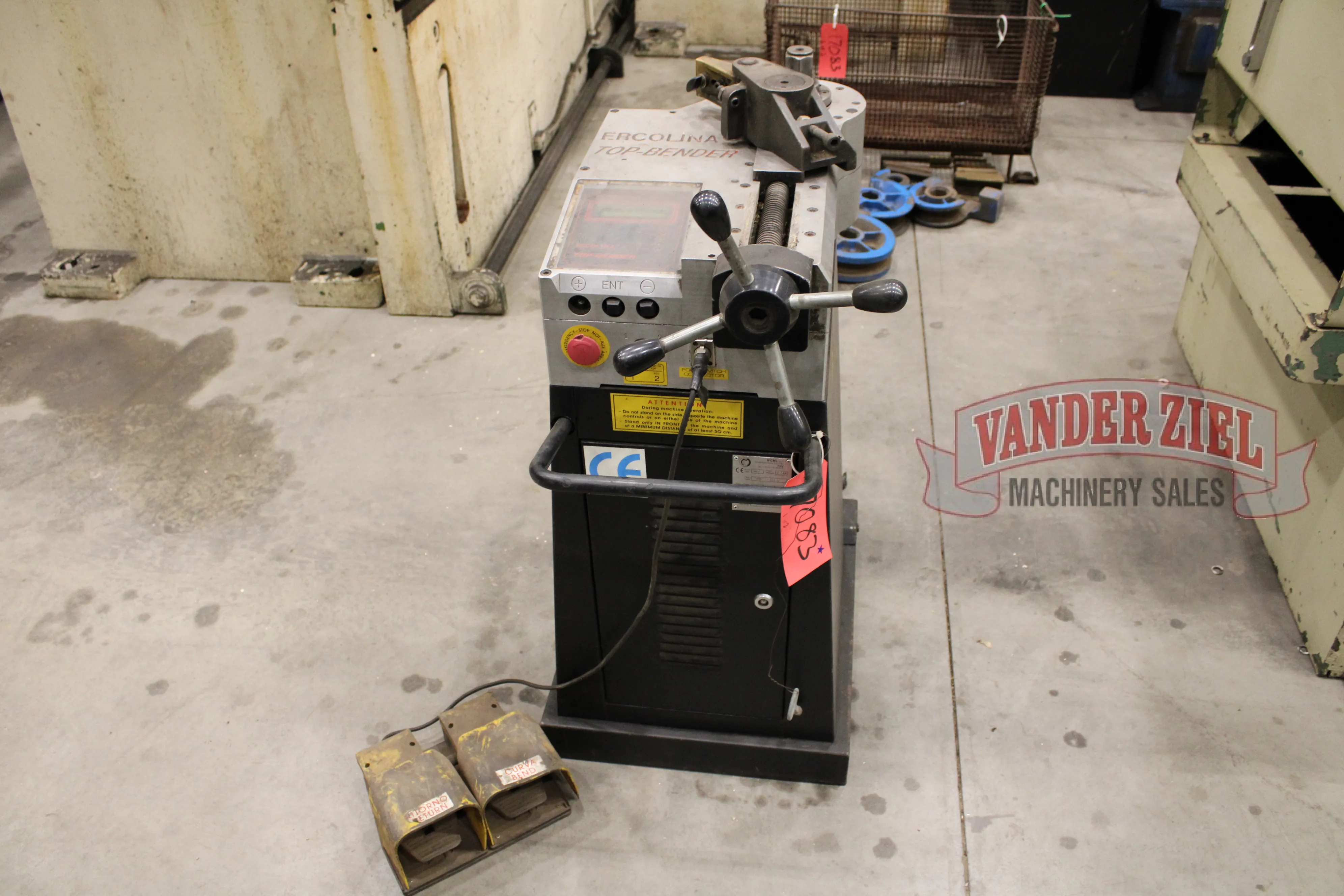

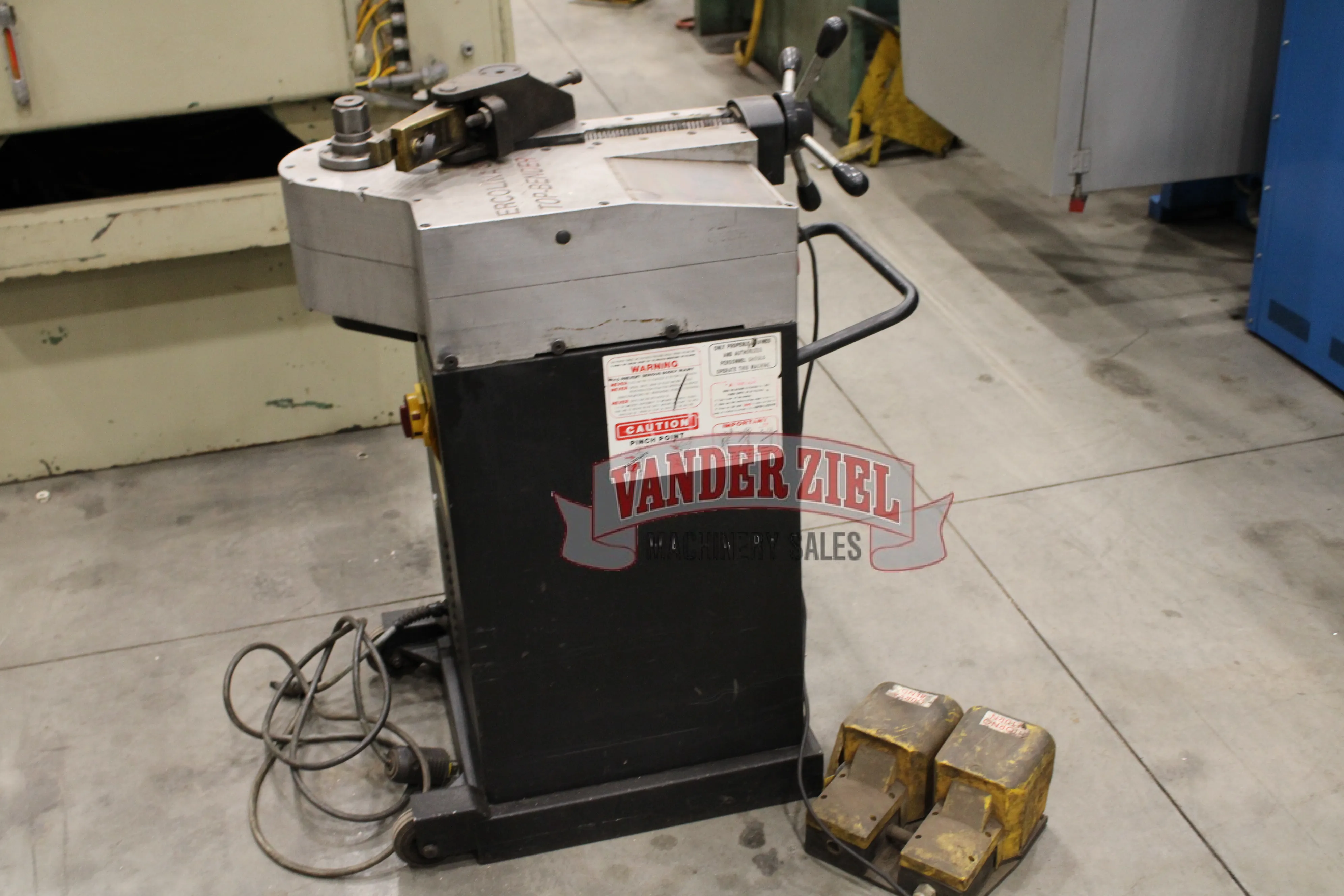

Ercolina 2" Tube Bender, Model Top Bender with Dies

Ercolina 2" Tube Bender, Model Top Bender with Dies

Asset 17083
Serial # 5980172

Machine Capacities
Maximum Material Diameter        Maximum Thickness
Pipe 2″ ID                                          Schedule 40
Mild steel tube 2½″                        .120
Stainless steel 2½″                          .157
Hydraulic tube 2½″                         .065
Hard copper and aluminum 2½″ .187
Round solids 1½″                            NA
Rectangular solids ½″ x 2″           NA
Rectangular tube 1″ x 2″               .120
Square tube 2″ x 2″                        .125
Square solids 1¼″ x 1¼″              NA
All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile
materials reduce machine capacity.  Consult supplier for material specifications.

Dimensions and Specifications
Length x Width x Height 27″ x 20″ x 39″
Bending speed 1.2 RPM
Motor 220V 1ph
Minimum and Maximum CLR ¼″ - 11⅞″
Bending angle range 0 to 210◦
Weight 430 lbs.

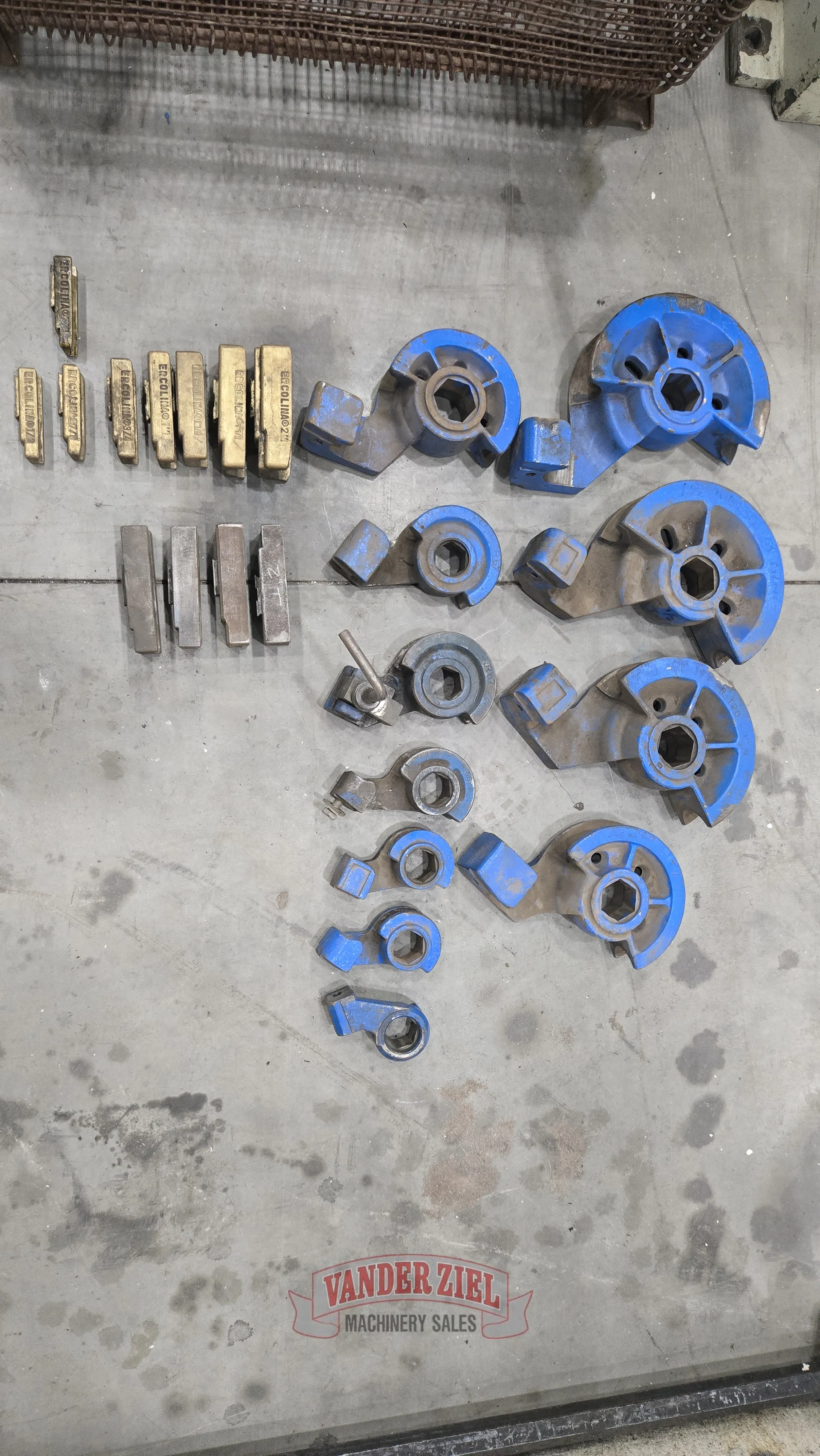

Center form Dies Provided

• R130 2" 60


• R130 1.5" 88


• R100 1.5" 48


• R120 2" 50


• R90 1.25" 47


• R67 1"


• R67  7/8" 22


• R56 .75"


• R46 7/8" 22


• R46 1/4"


• R36 3/8"

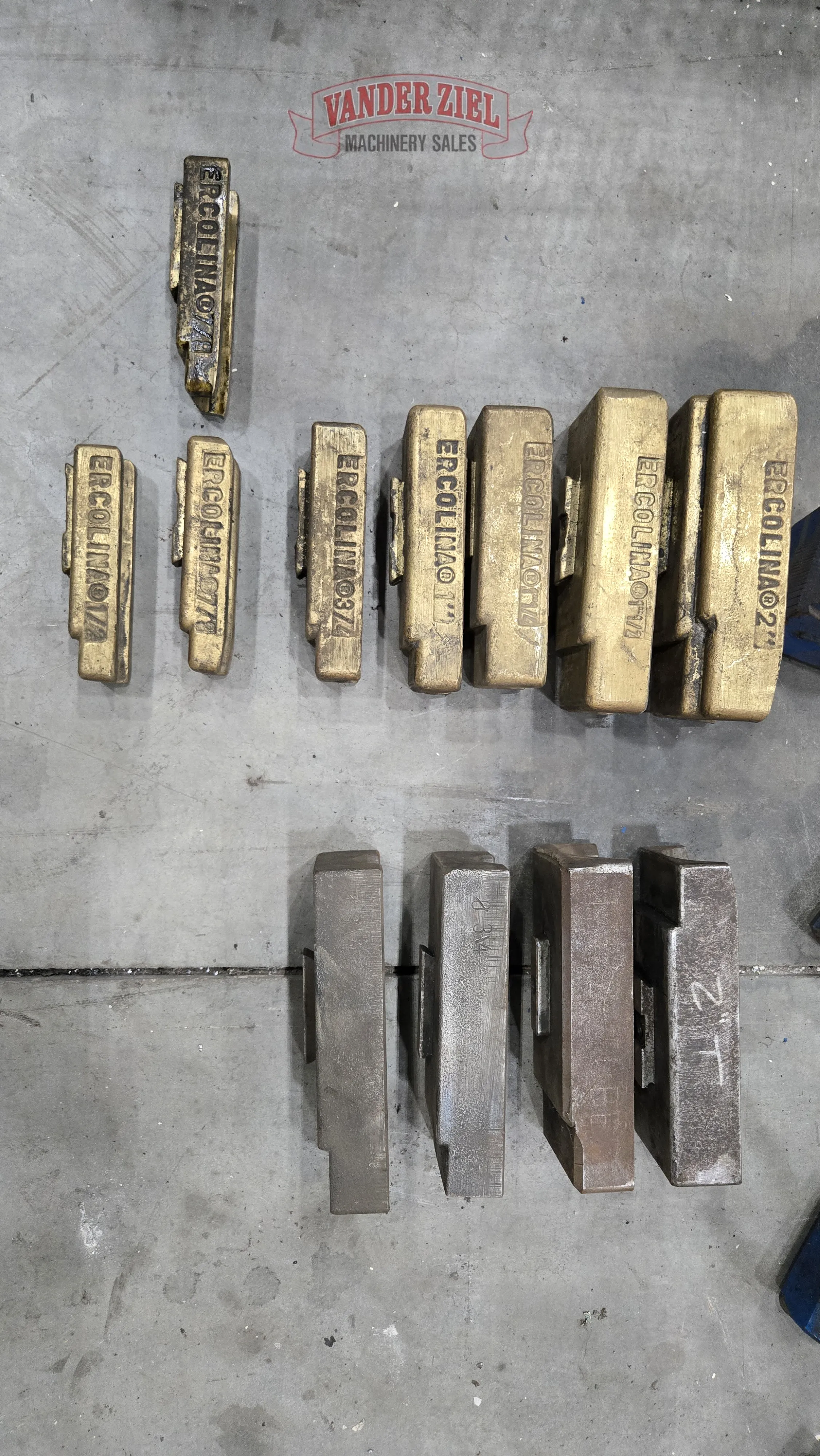

Counter Bend Dies
Ercolina 2", 1 1/2", 1 1/4", 1", 3/4", 2) 7/8", 1/2"
Off Brand 2", 1 1/2", 2) 3/4"

Preliminary Specifications - Subject to Verification
