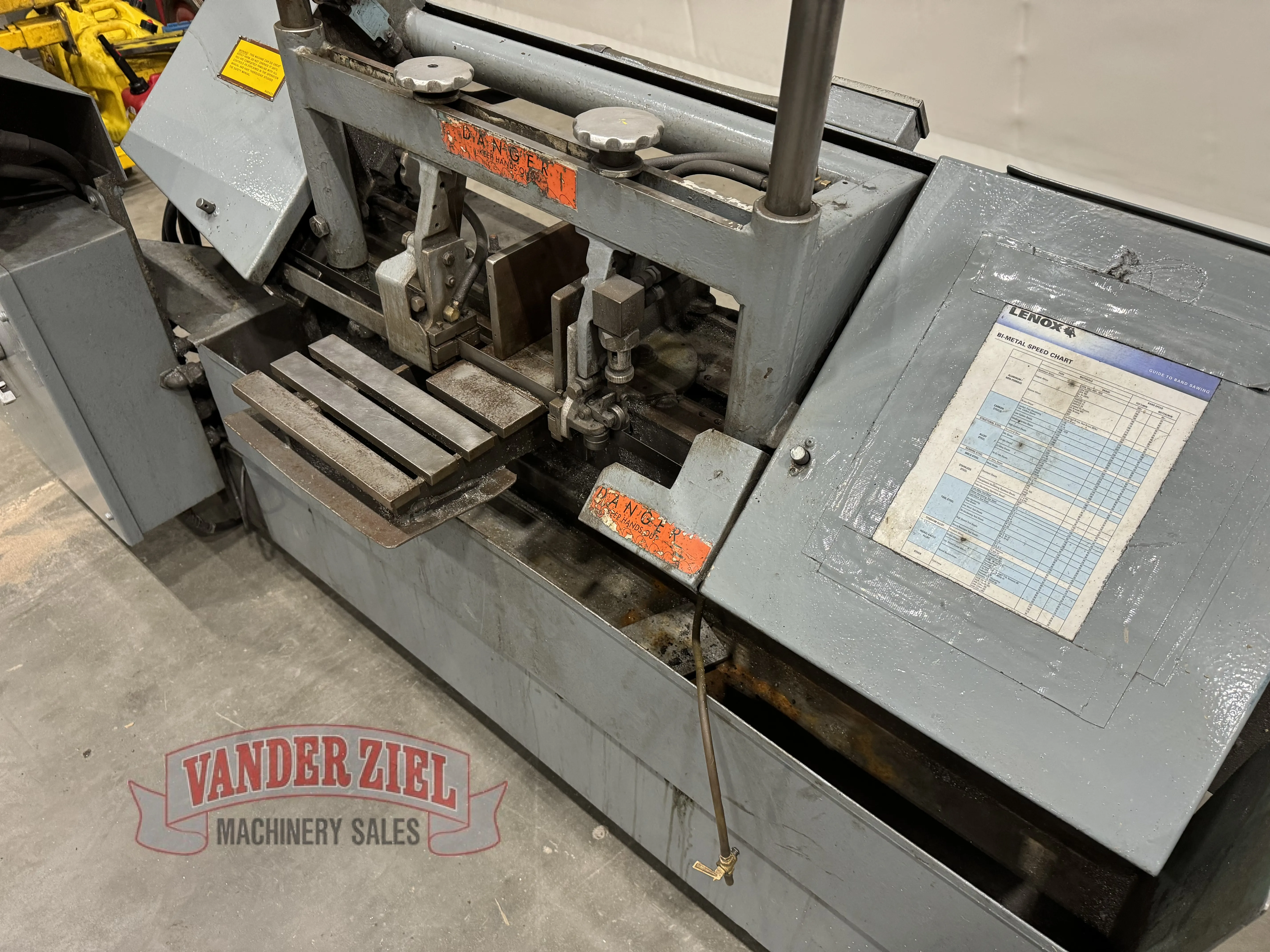

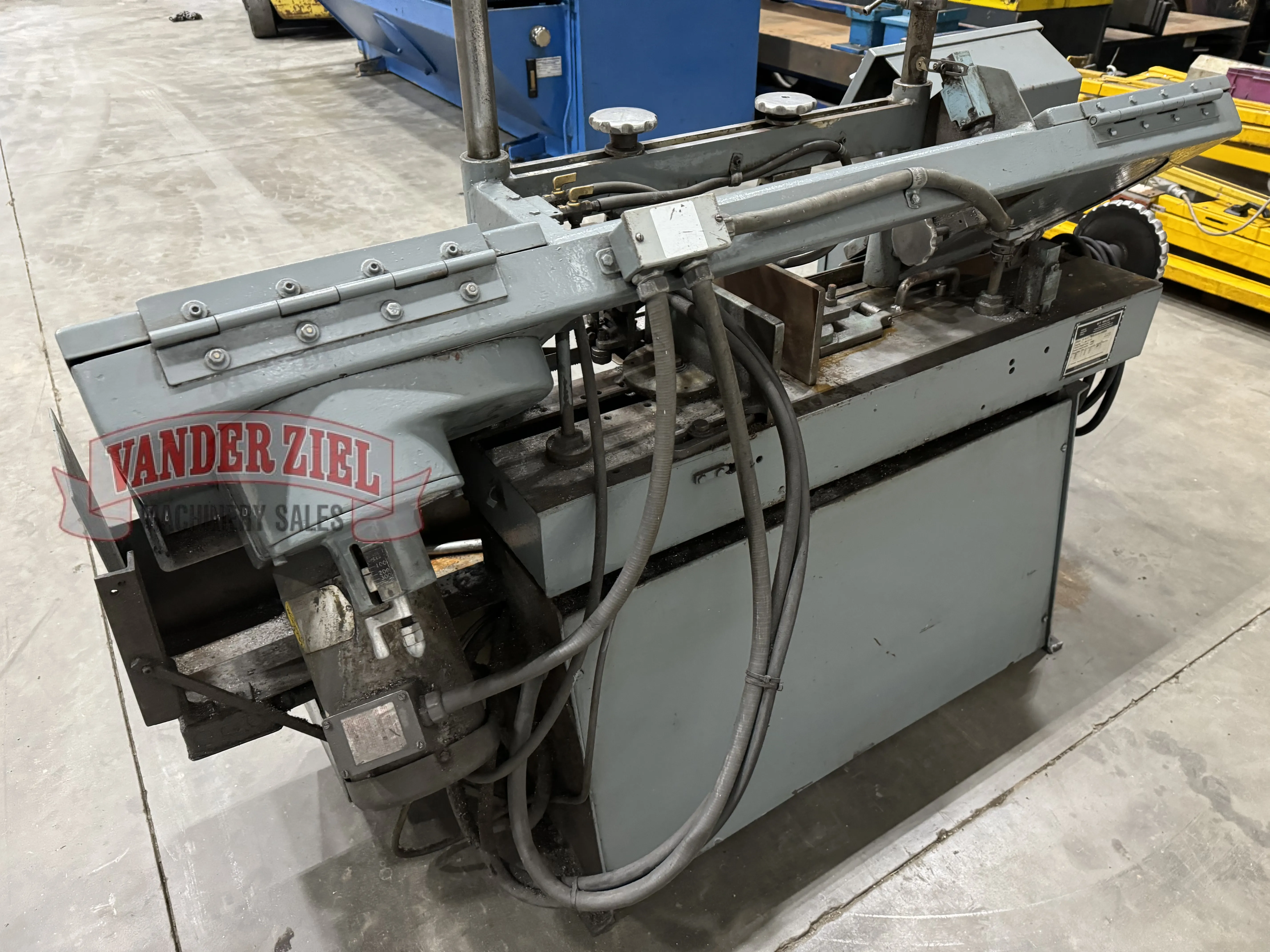

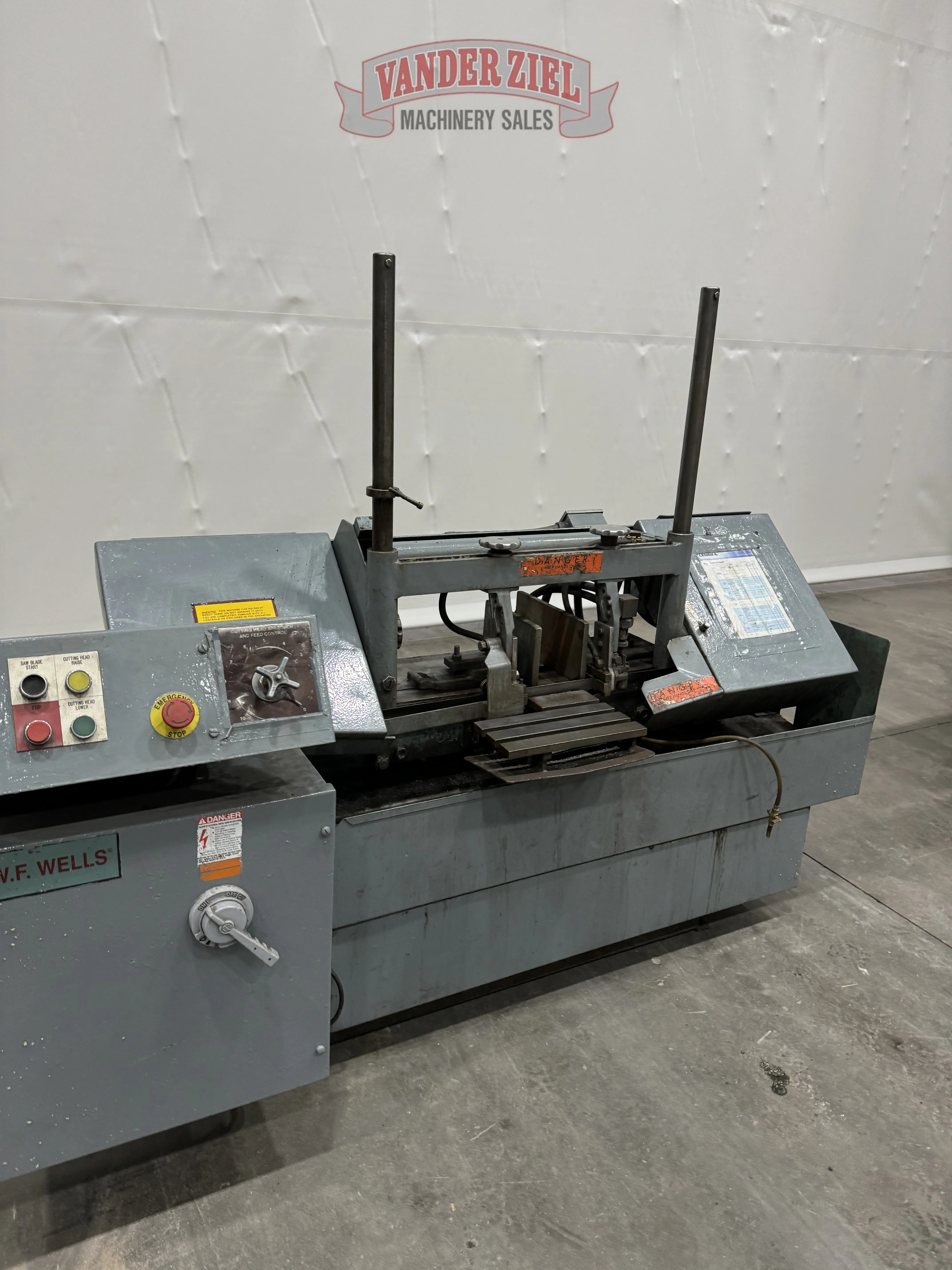

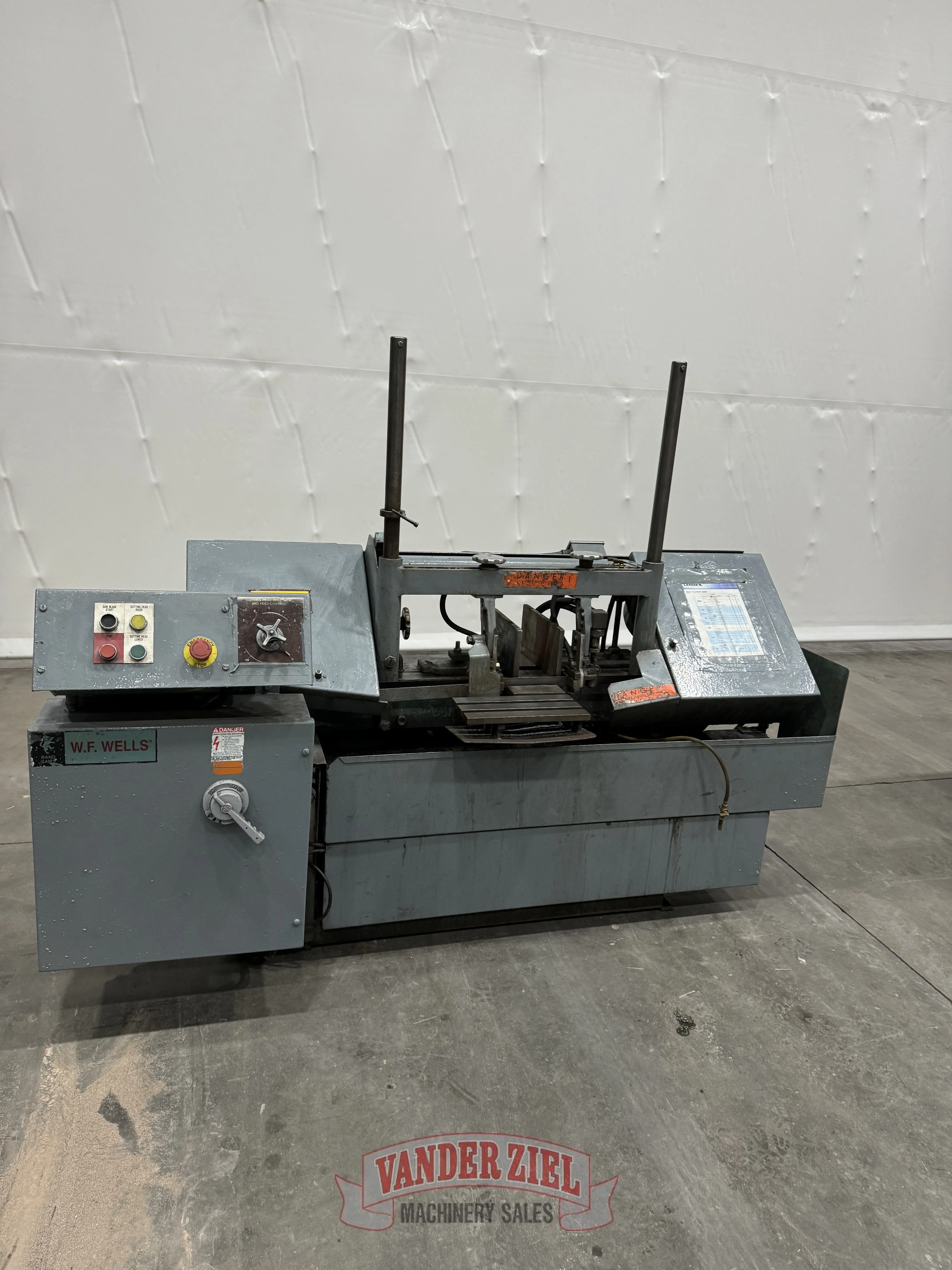

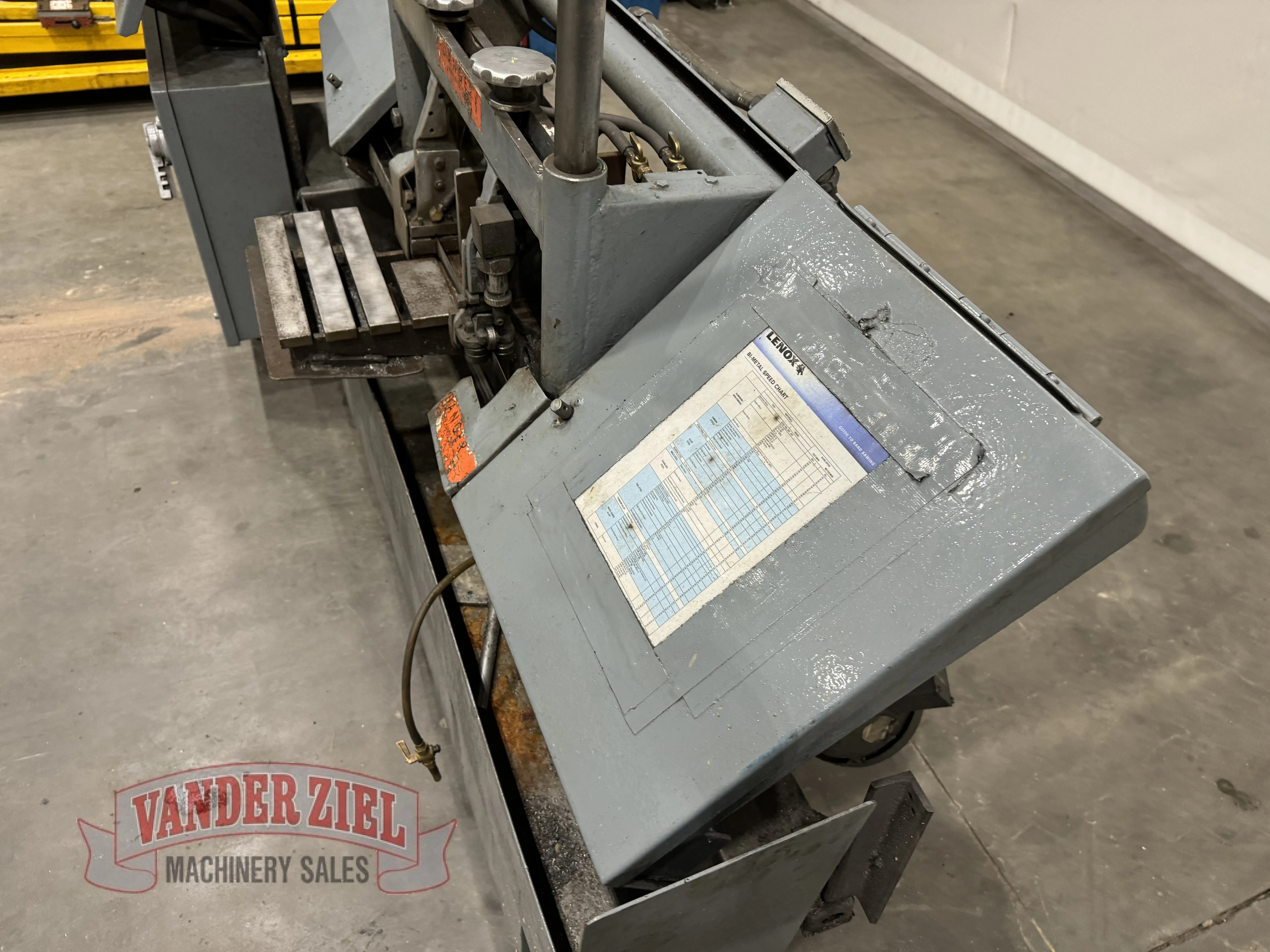

WF Wells Model W-9 Horizontal Saw

Description

Asset # 17099

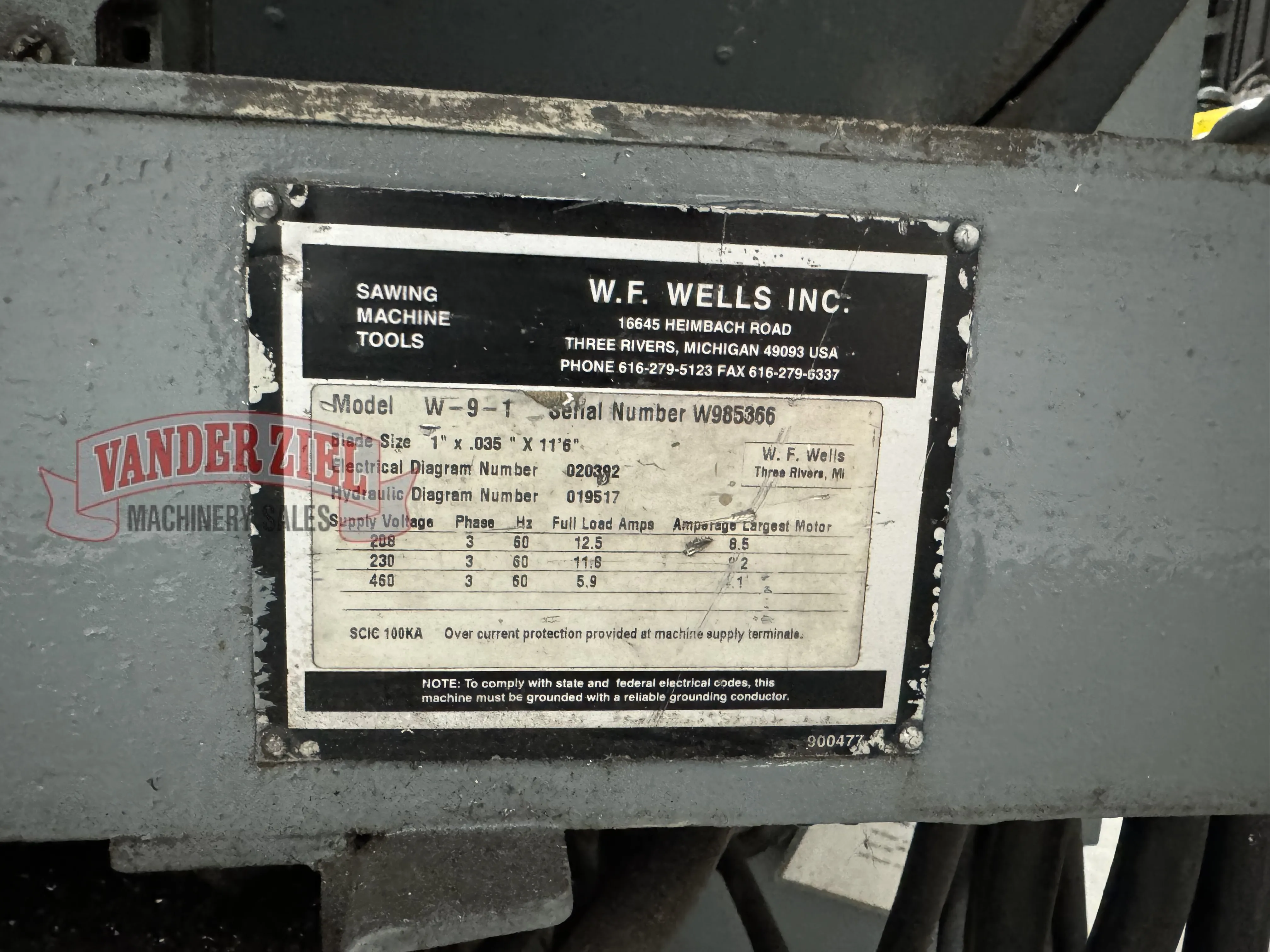

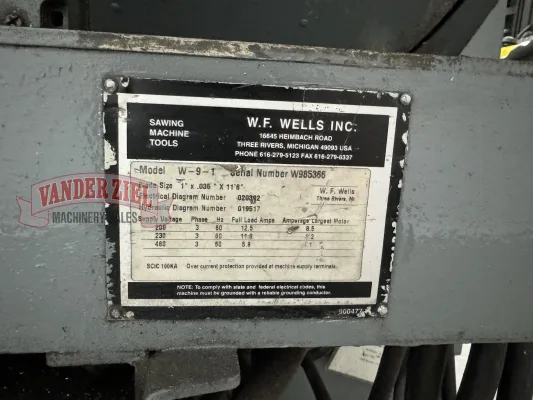

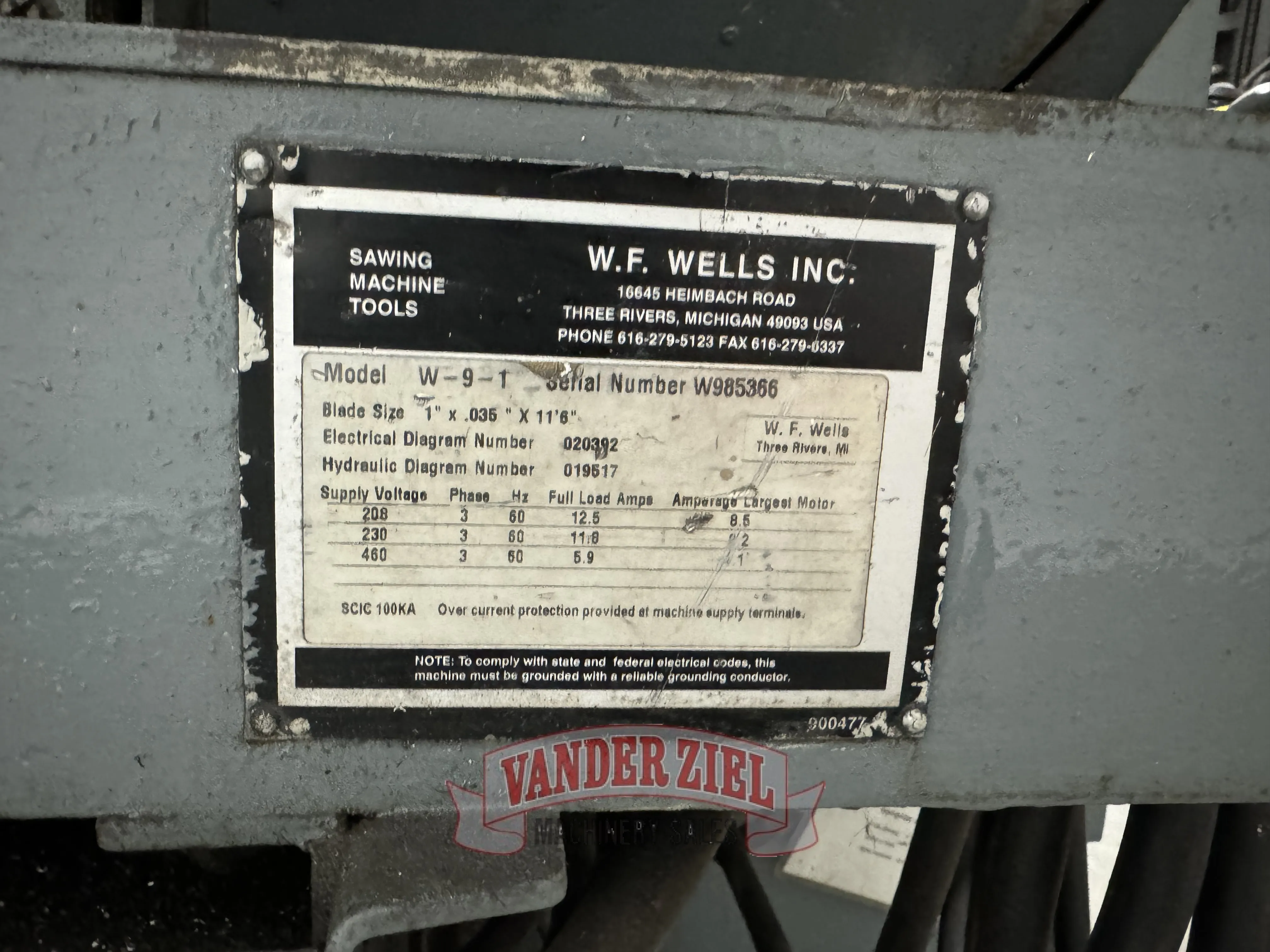

Serial #W985366

Capacity: Rectangular at 90deg. 9" High x 17" Wide, Round at 90deg. 9" Dia.
Rectangular at 45deg. 9" High X 8" Wide, Round at 45deg. 8" Dia.
Weight Capacity: 2,000 lbs
Blade Speed: 70-380 SFPM
Blade Size: 1" X .035" X 11′-6"
Sawing Feed: Variable, Hydraulic
Blade Guide: Carbide with Backup Rollers
Blade Tension: Manual
Bandwheel Size: 14 1/2"

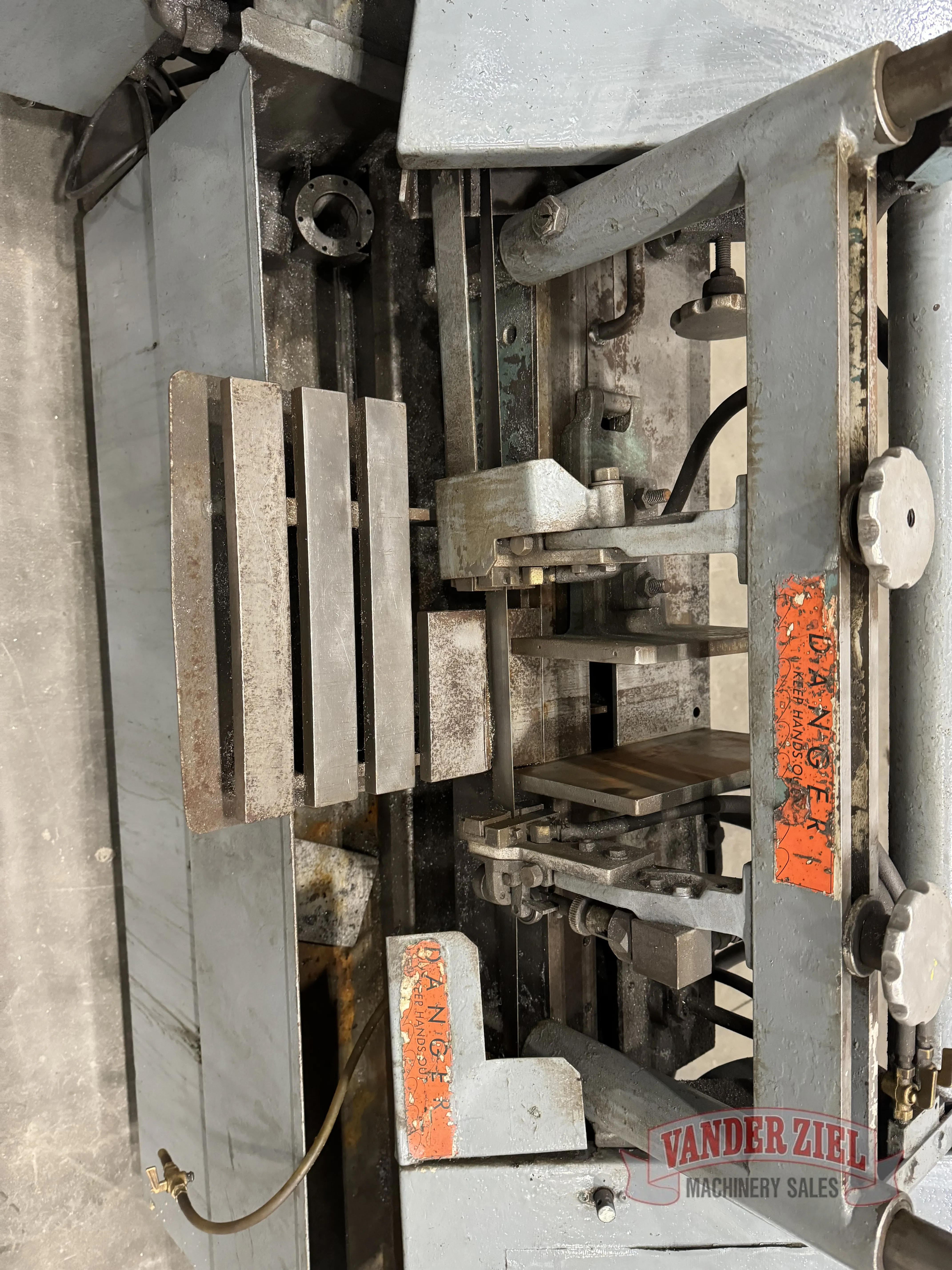

Vise: Manual
Blade Drive: 3HP, 3ph, 1 1/2 HP, 1ph
Sawing Force: 30-120 lbs
Coolant Capacity: 10 Gallons
Hydraulic Capacity: 3/4 Gallon Capacity
Hydraulic Drive: 1/3 HP Motor
Work Height: 26"
Shipping Weight: 990 lbs
Machine Dimensions: 81" Length x 43" Width x 63" Height
