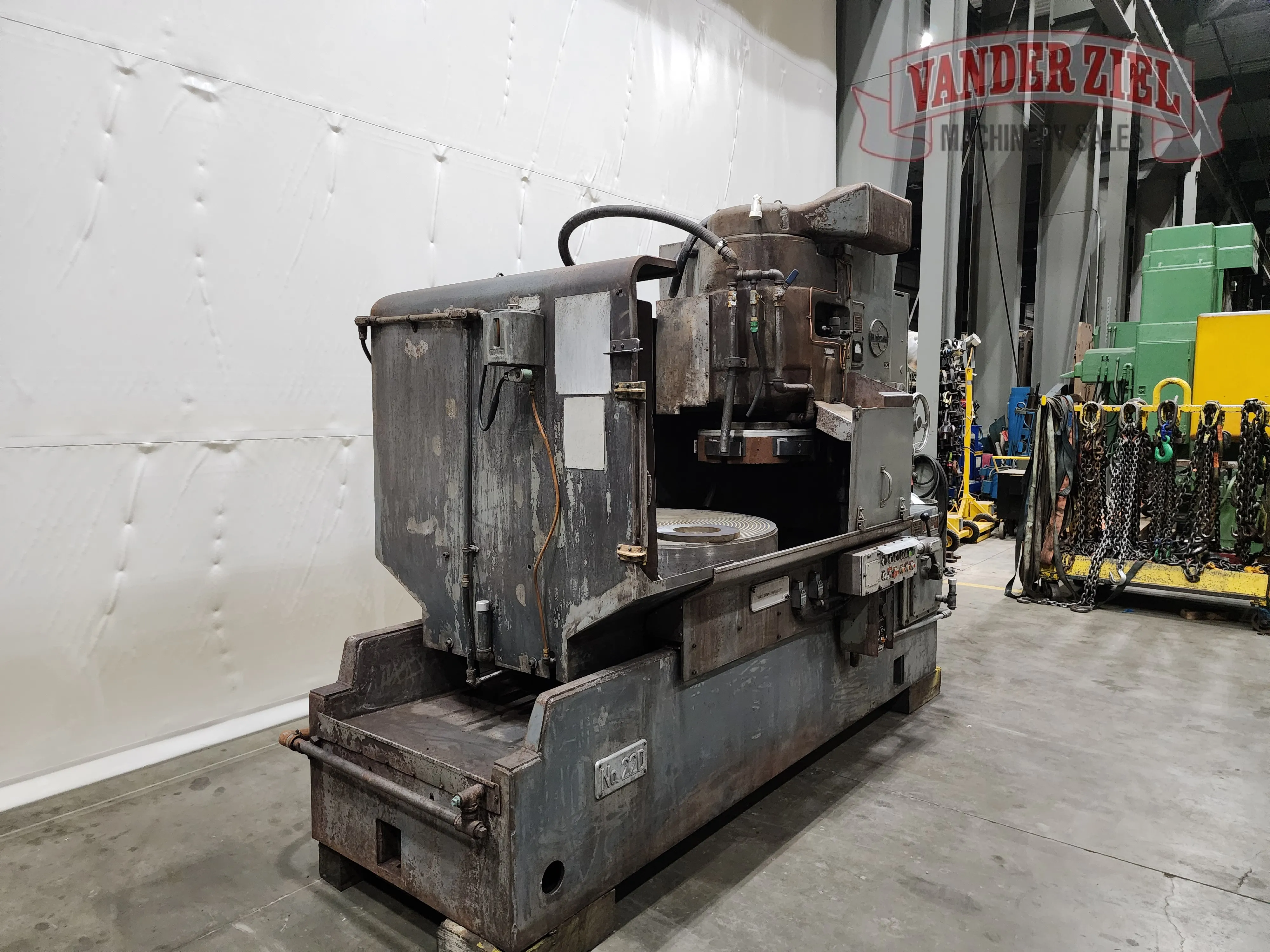

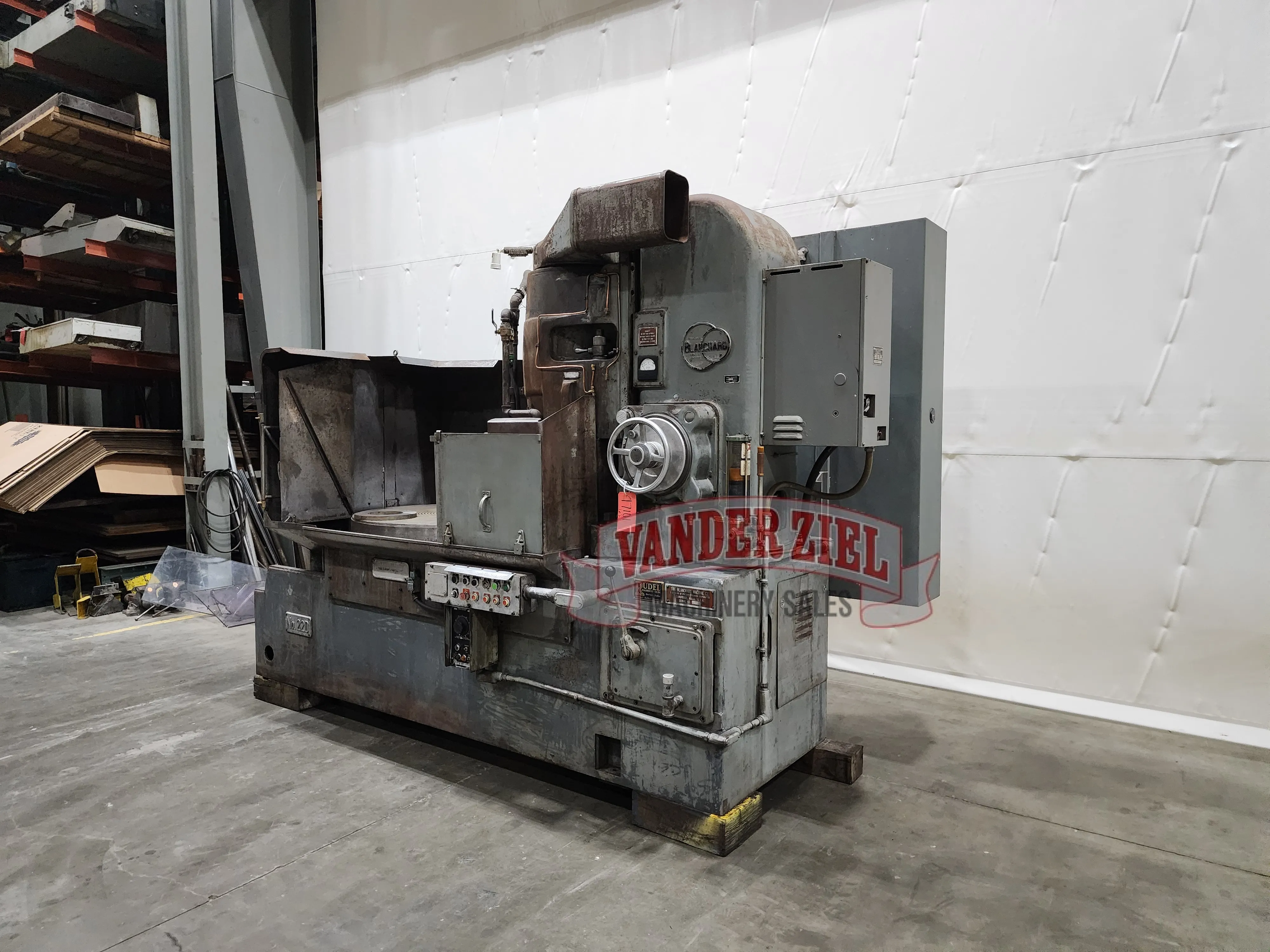

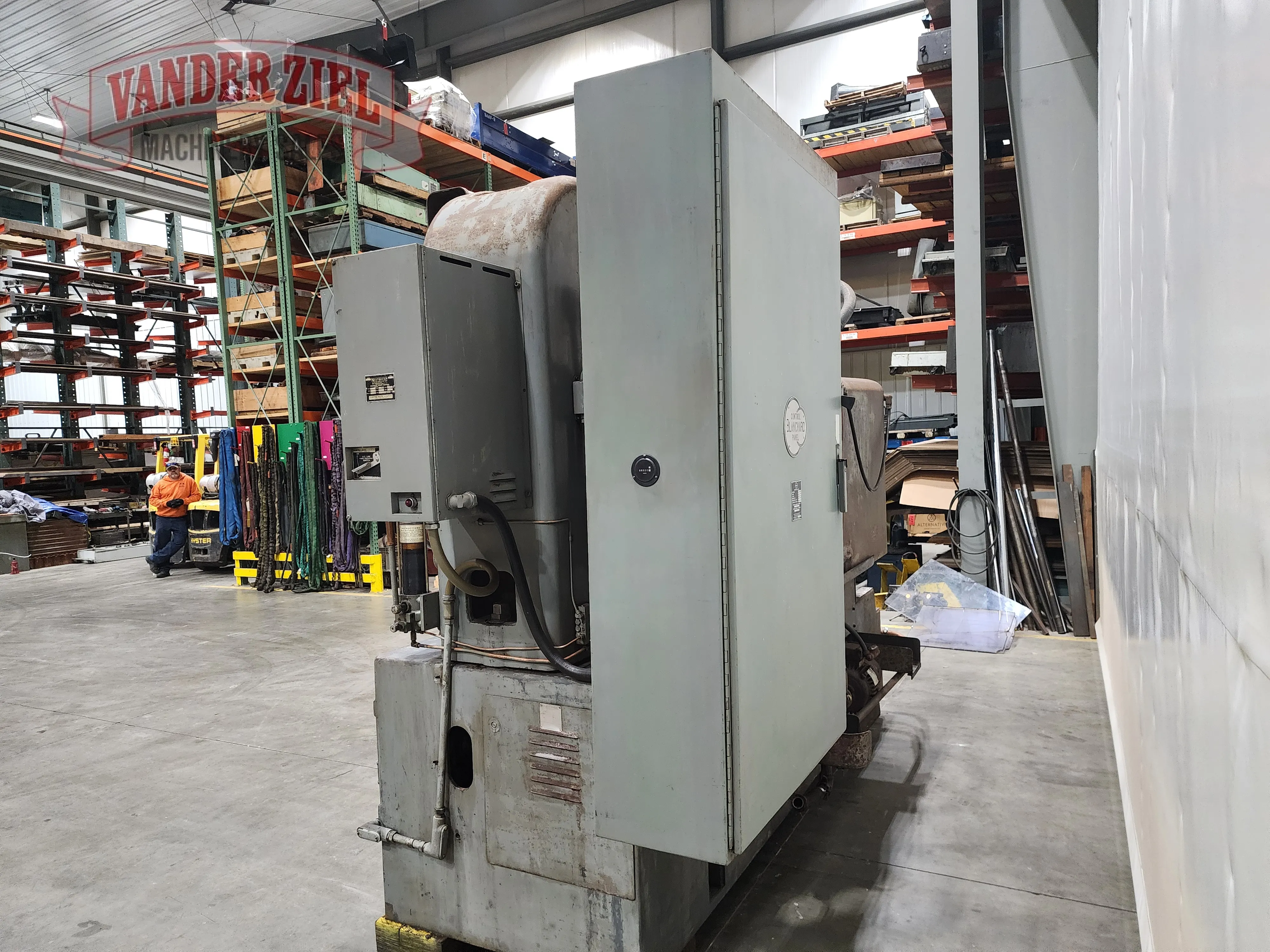

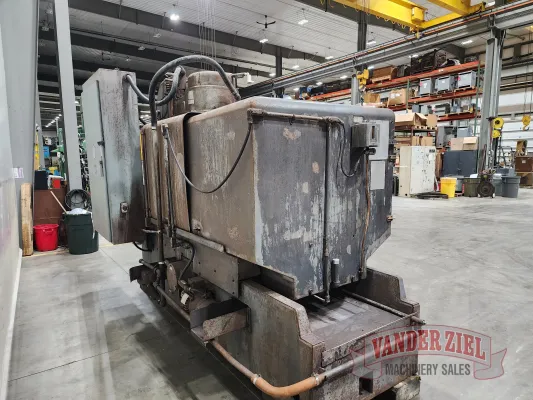

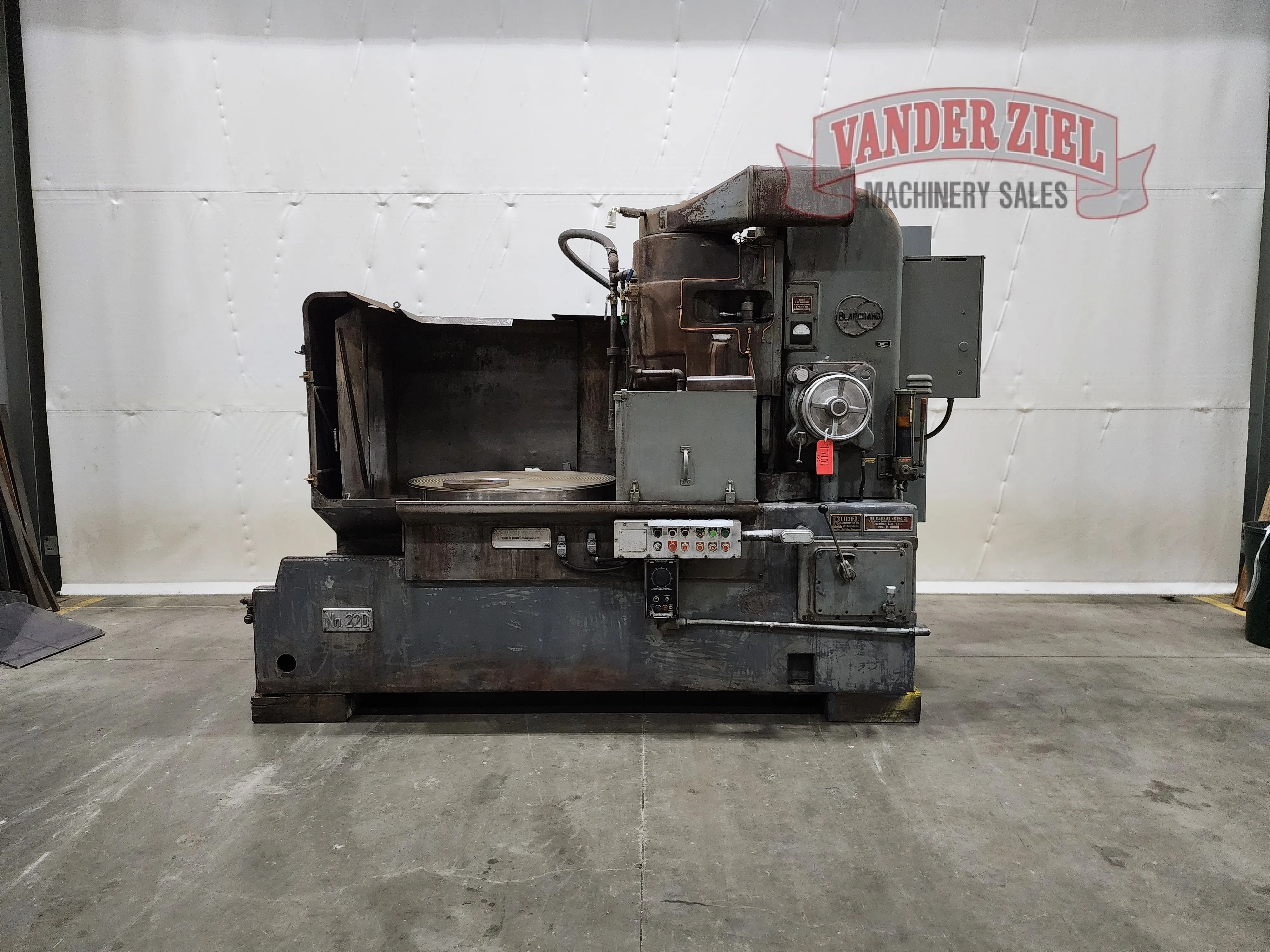

Blanchard 42" Rotary Grinder, Model 22D

Blanchard Rotary Grinder, Model 22D

Asset # 17101

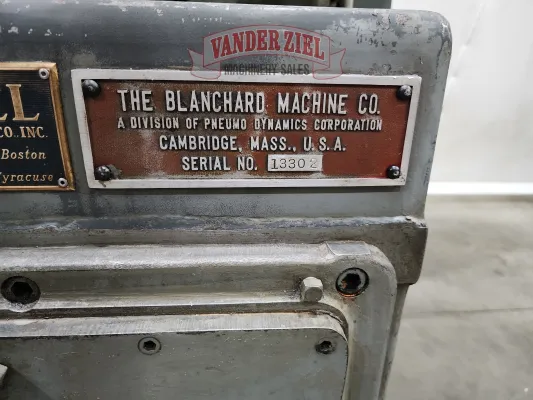

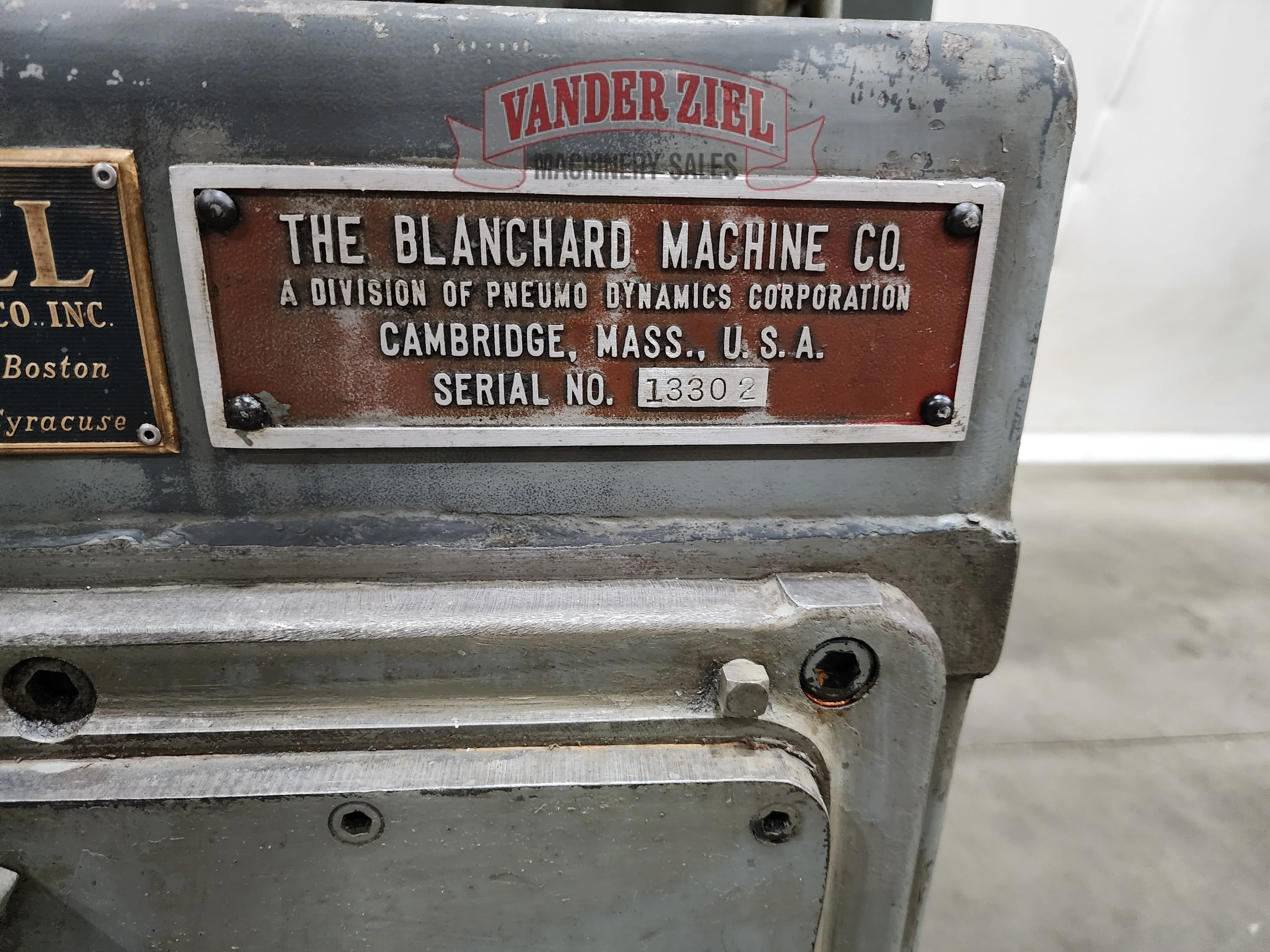

Serial # 13302

CAPACITIES:
Swing Inside Splash Guards 48"
Diameter of Magnetic Chuck 42"
Chuck Center Hole Diameter 2"
Height Under New Wheel 24"
Diameter of Wheel Chuck 22"
Main Motor 50 HP
Grinding Spindle Speed 720 RPM
Chuck Rotation Speeds 6 to 33 RPM
Automatic Downfeeds 0-80 IPM
Chuck Life Approx. 1/2"
Floor Space 142" x 100"
Machine Height 109"
Approximate Machine Weight 14,550 Lbs.
Equipped With:

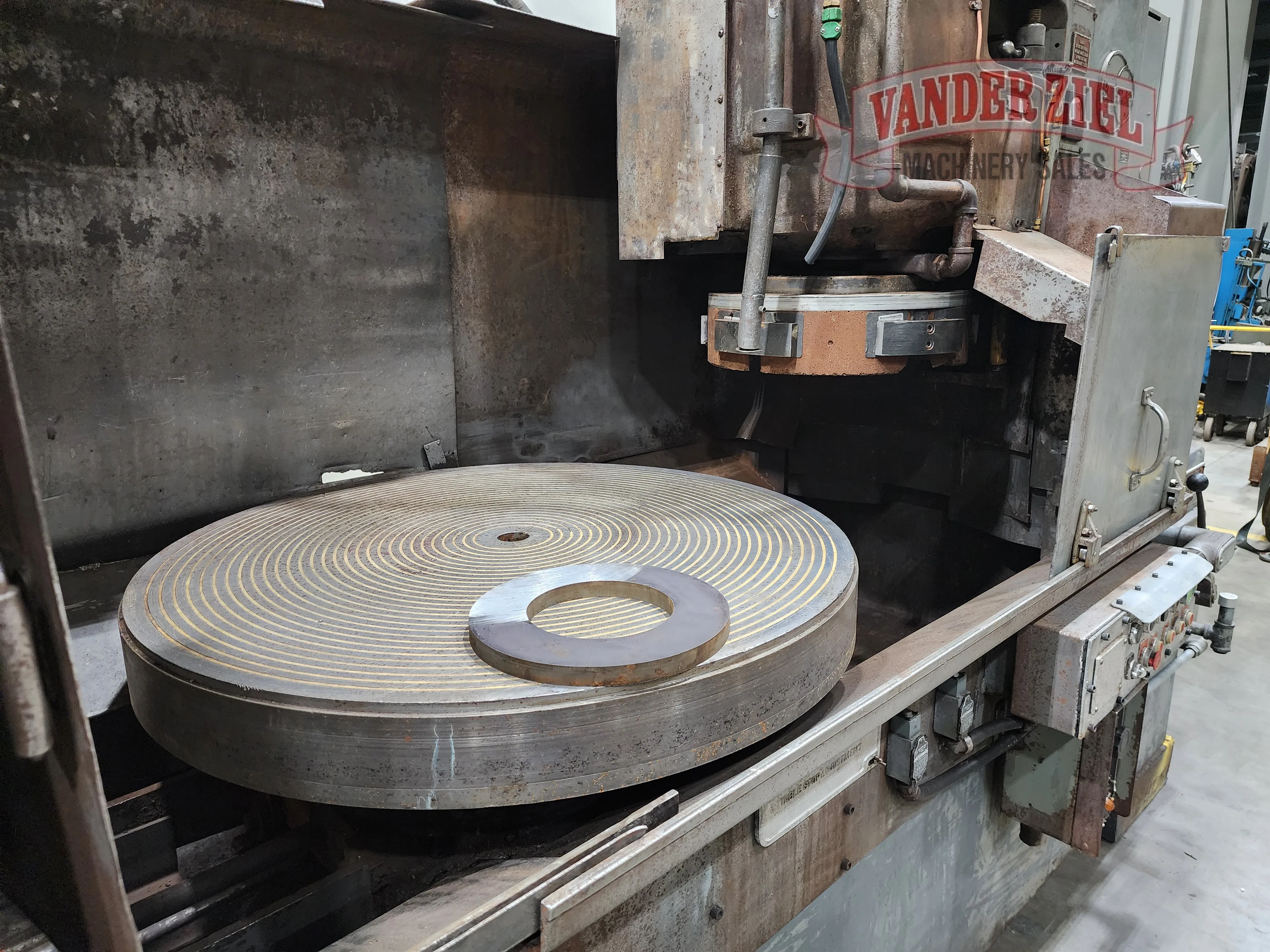

42" Magnetic Chuck

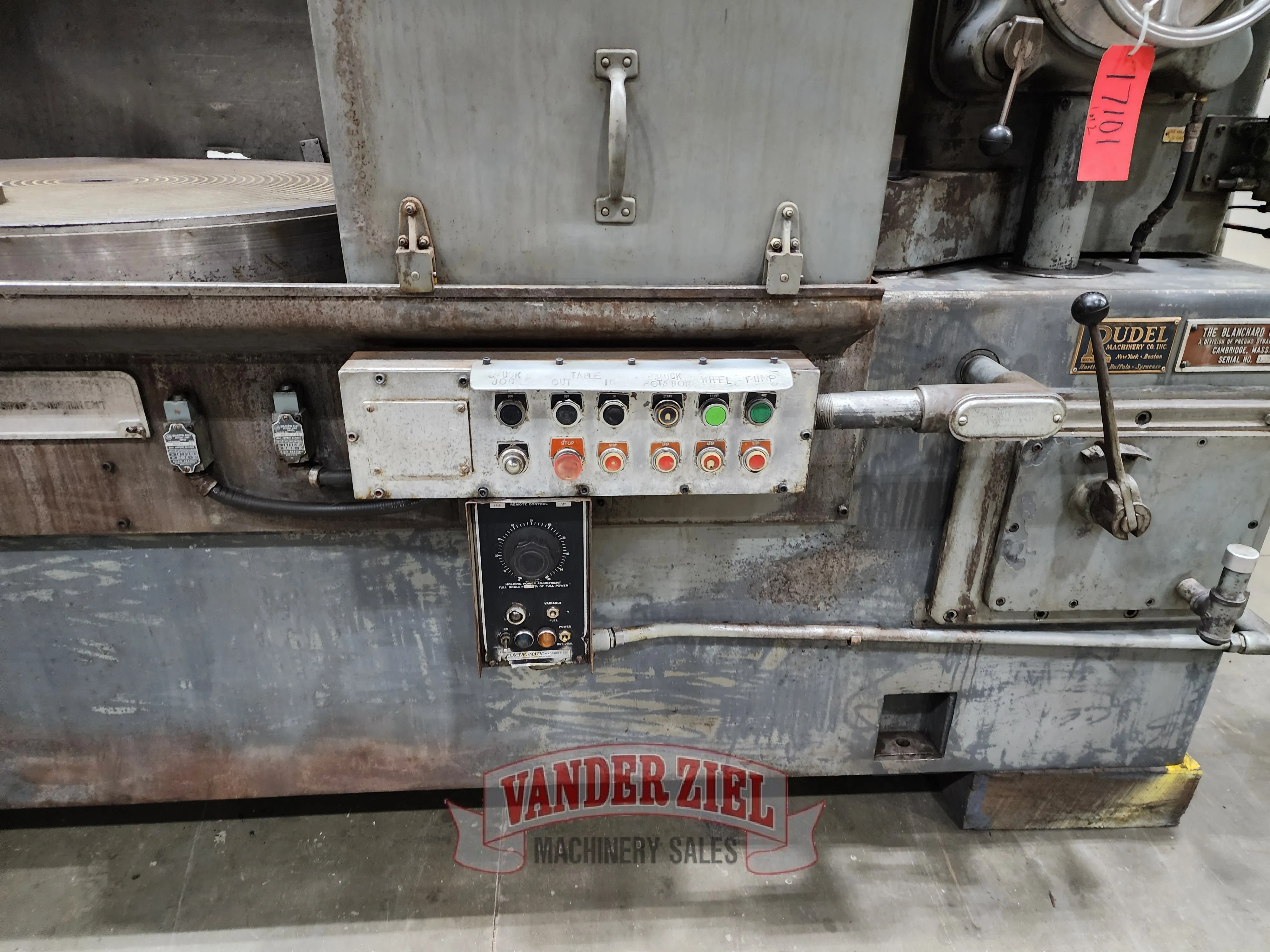

Neutrofier II Magnetic Chuck Control

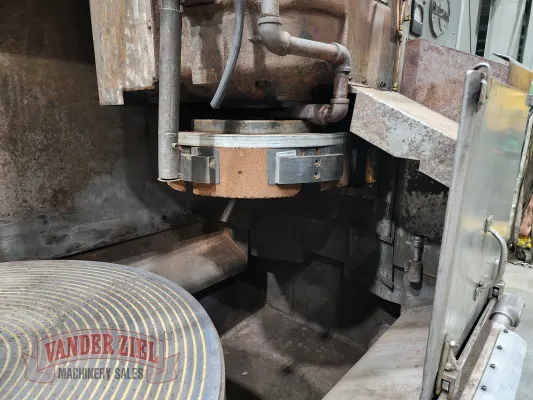

22" Segmented Wheel Chuck

Preliminary Specifications - Subject to Verification
