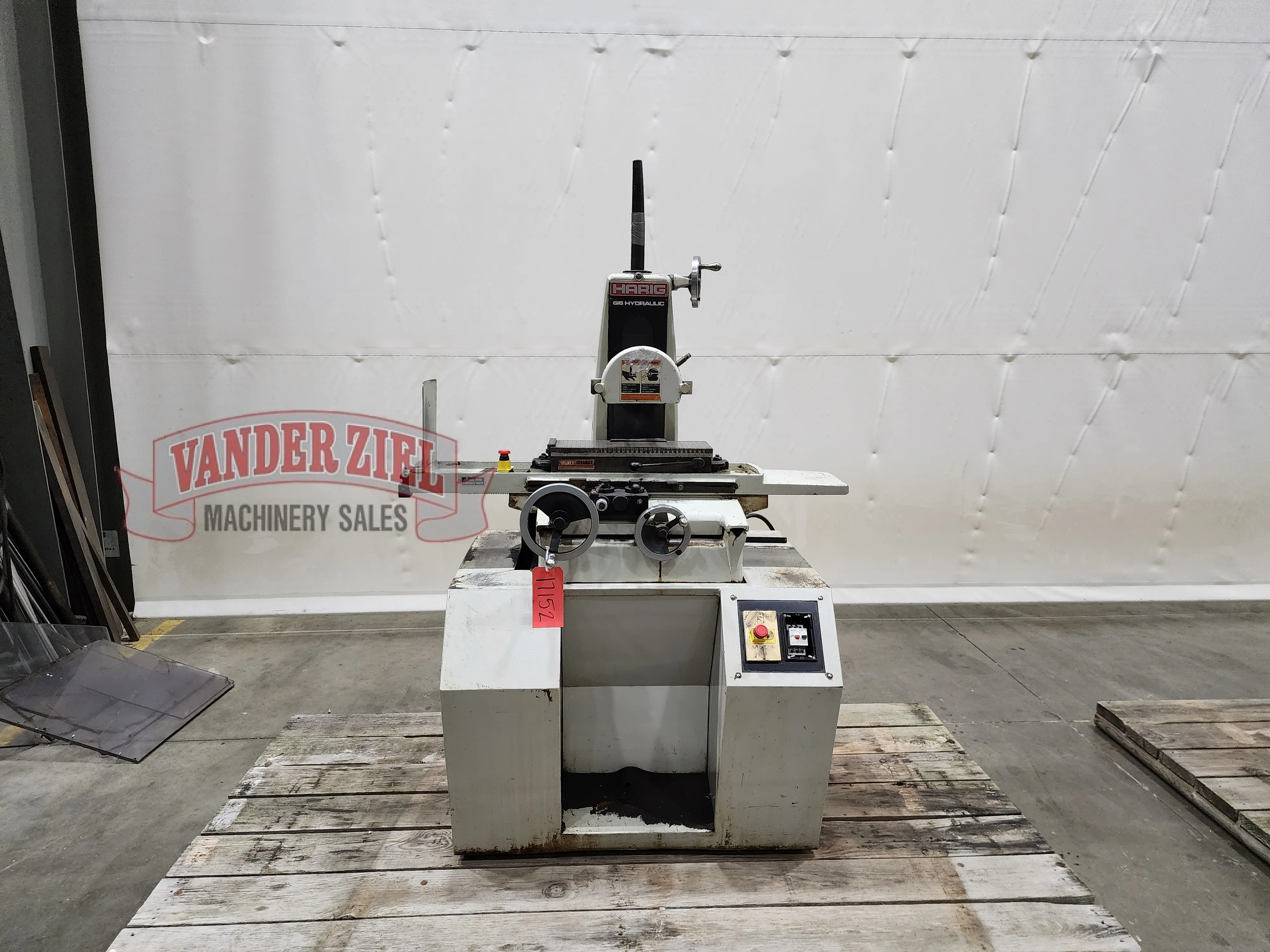

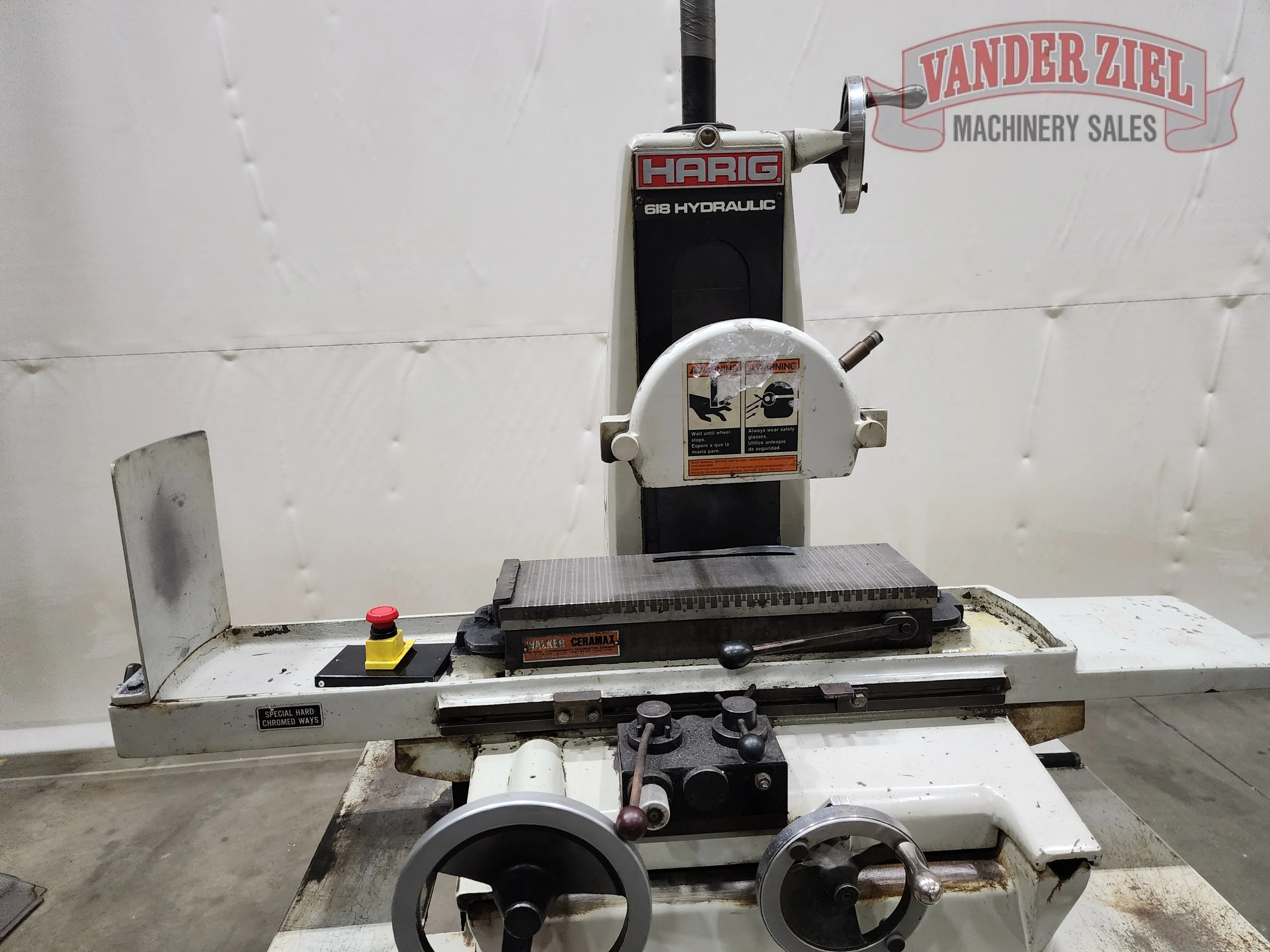

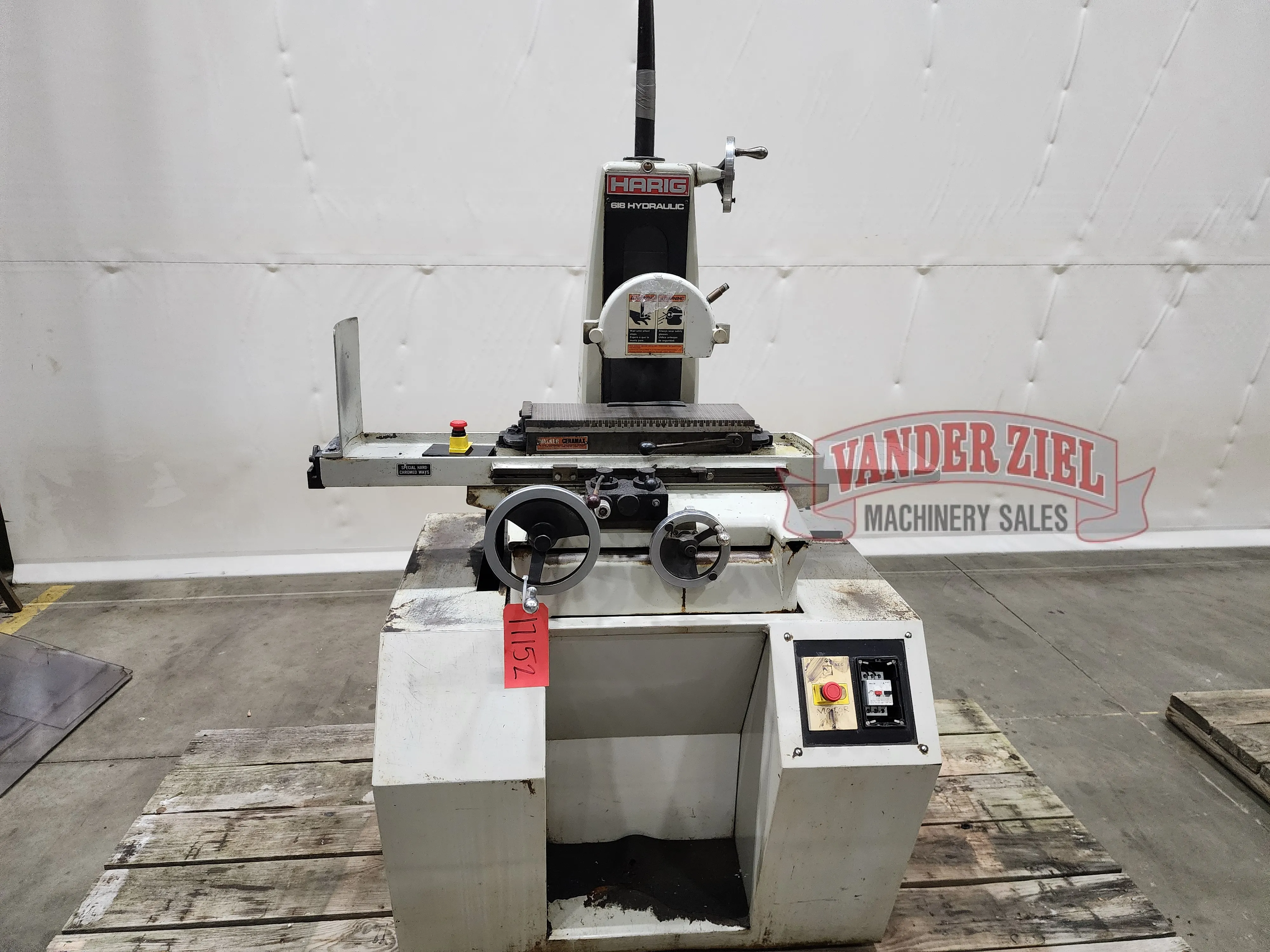

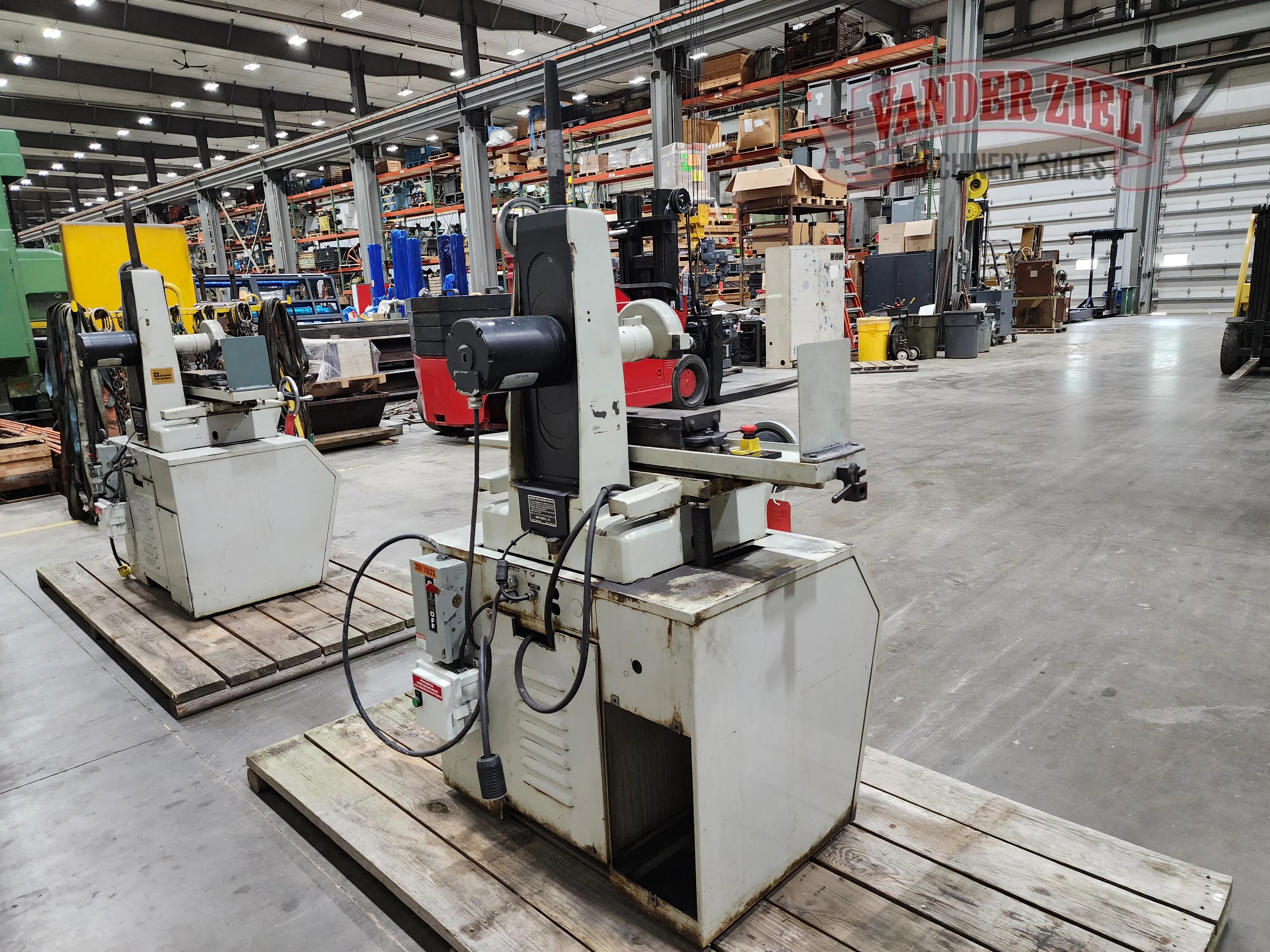

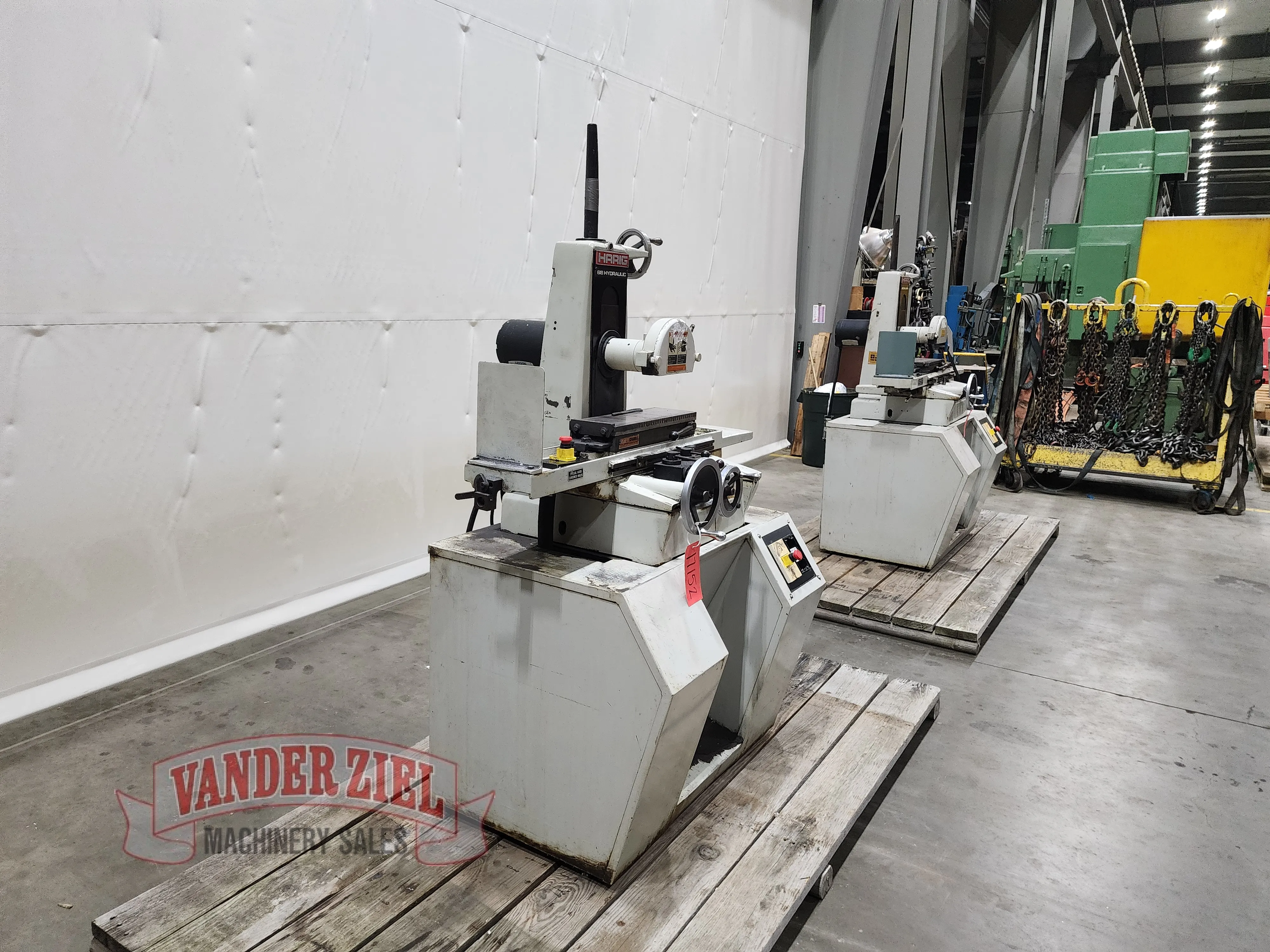

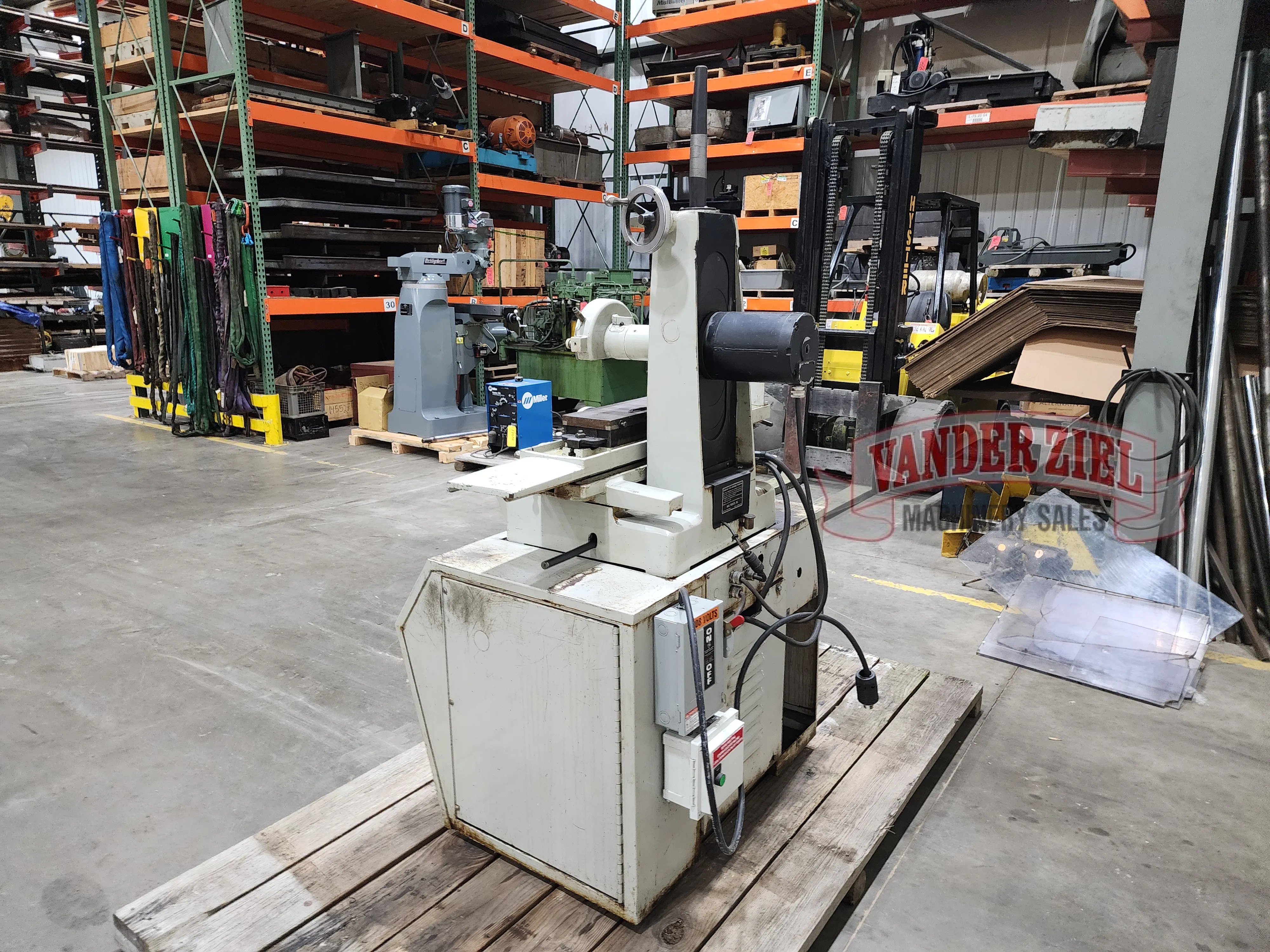

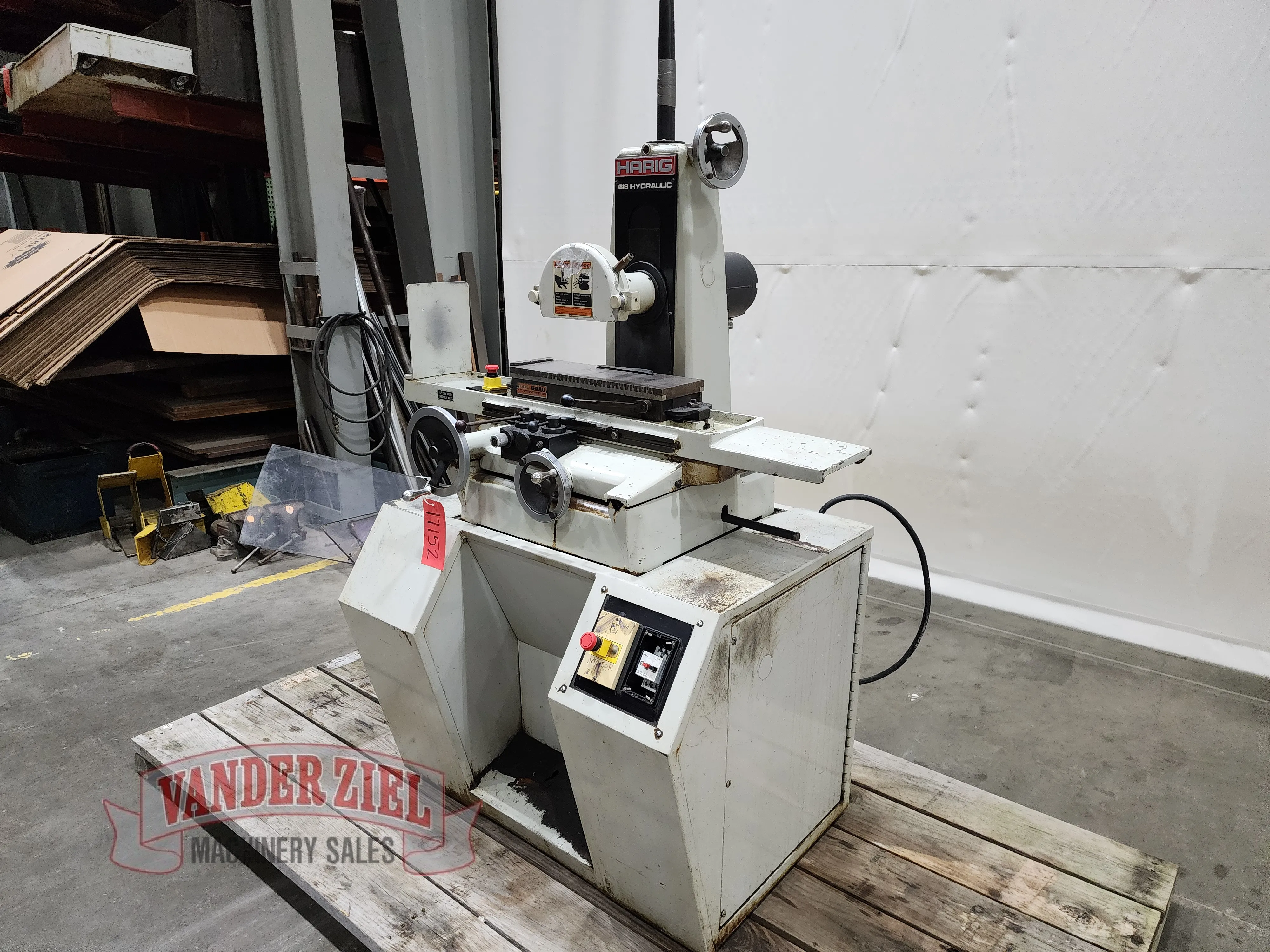

Harig 6” x 18” Hydraulic Grinder, Model 618
Technical Specs
As-IsNo
Description
Harig 6” x 18” Hydraulic Grinder, Model 618
Serial # 5170-W
Asset # 17152
Specifications:
Platen Work Area 6” x 18”
Longitudinal Travel 20”
Longitudinal Table Speed 3 – 70 fpm
Cross Feed Travel 6 ¾”
Vertical Working Height 12”
Griding Wheel Max. Capacity 8” x 1 ¼” x 1 ¼”
Elevating Handweel Graduation 0.0001”
Cross Feed Handweel Graduation 0.001”
Spindle Motor 1 ½ HP
Spindle Speed 3450 RPM @ 1 ½ HP
Dimensions 40” x 31” x 45” H
Weight 1,360 lbs.
Preliminary Specifications – Subject to Verification
REF: 001447
