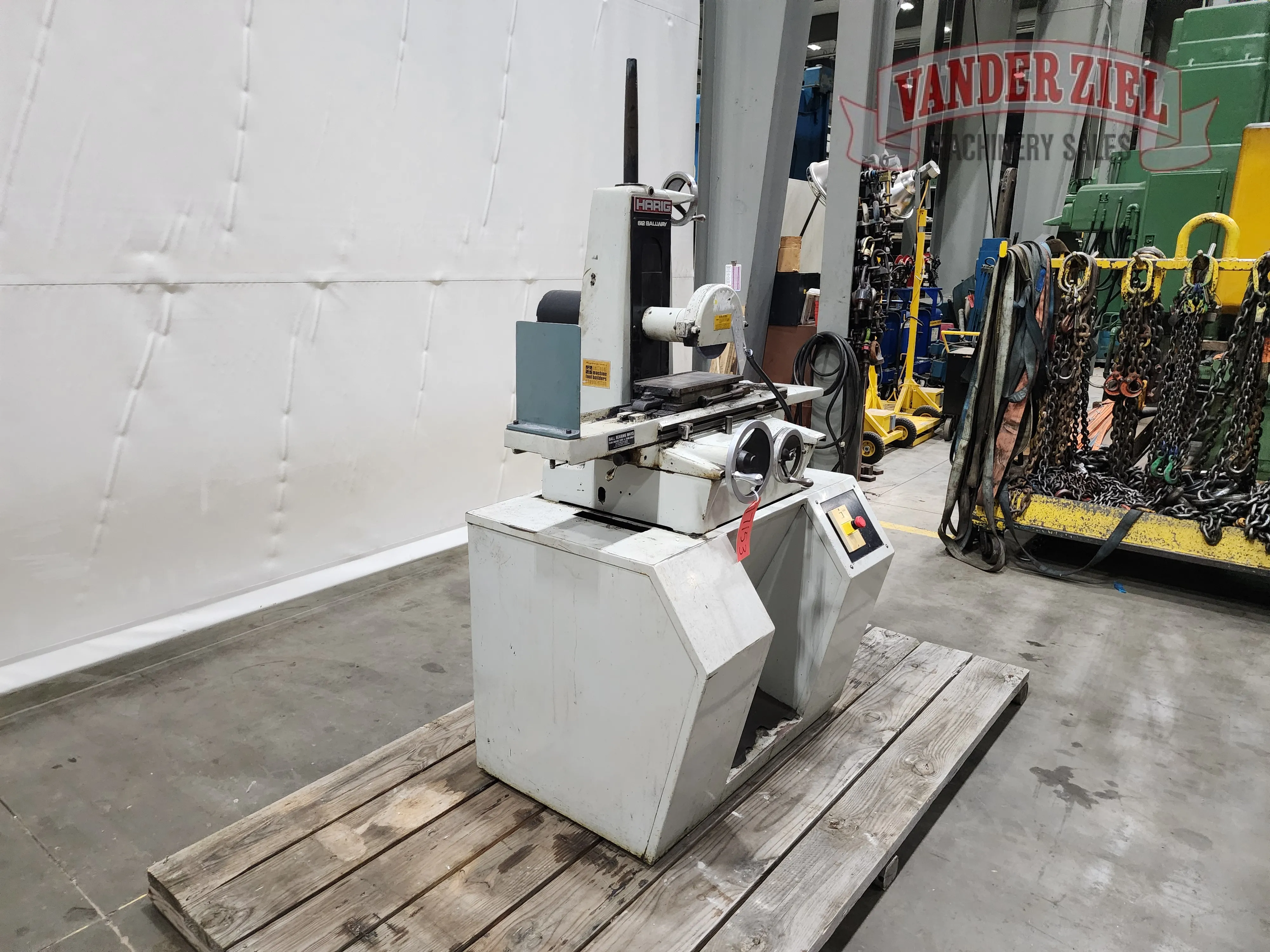

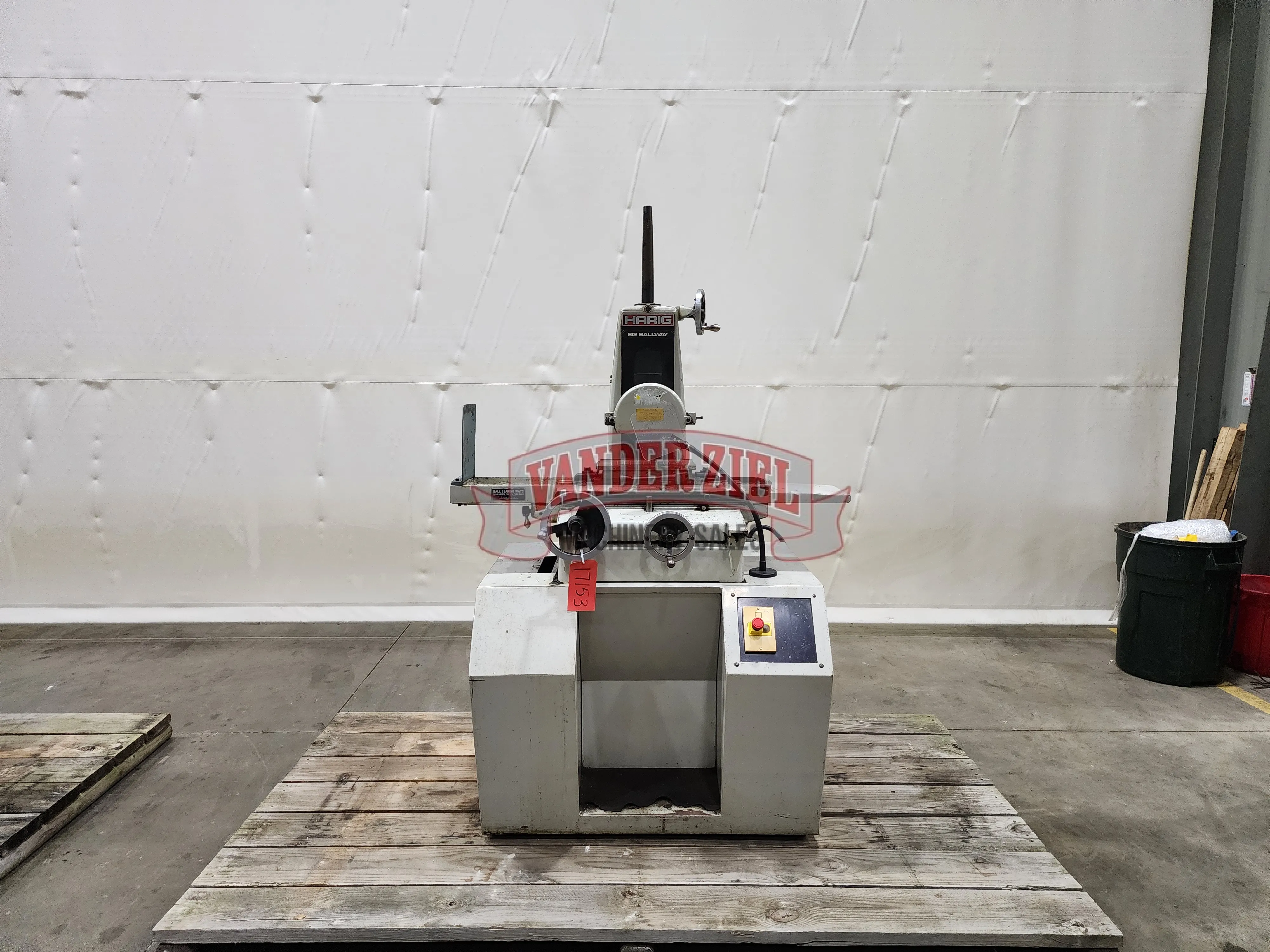

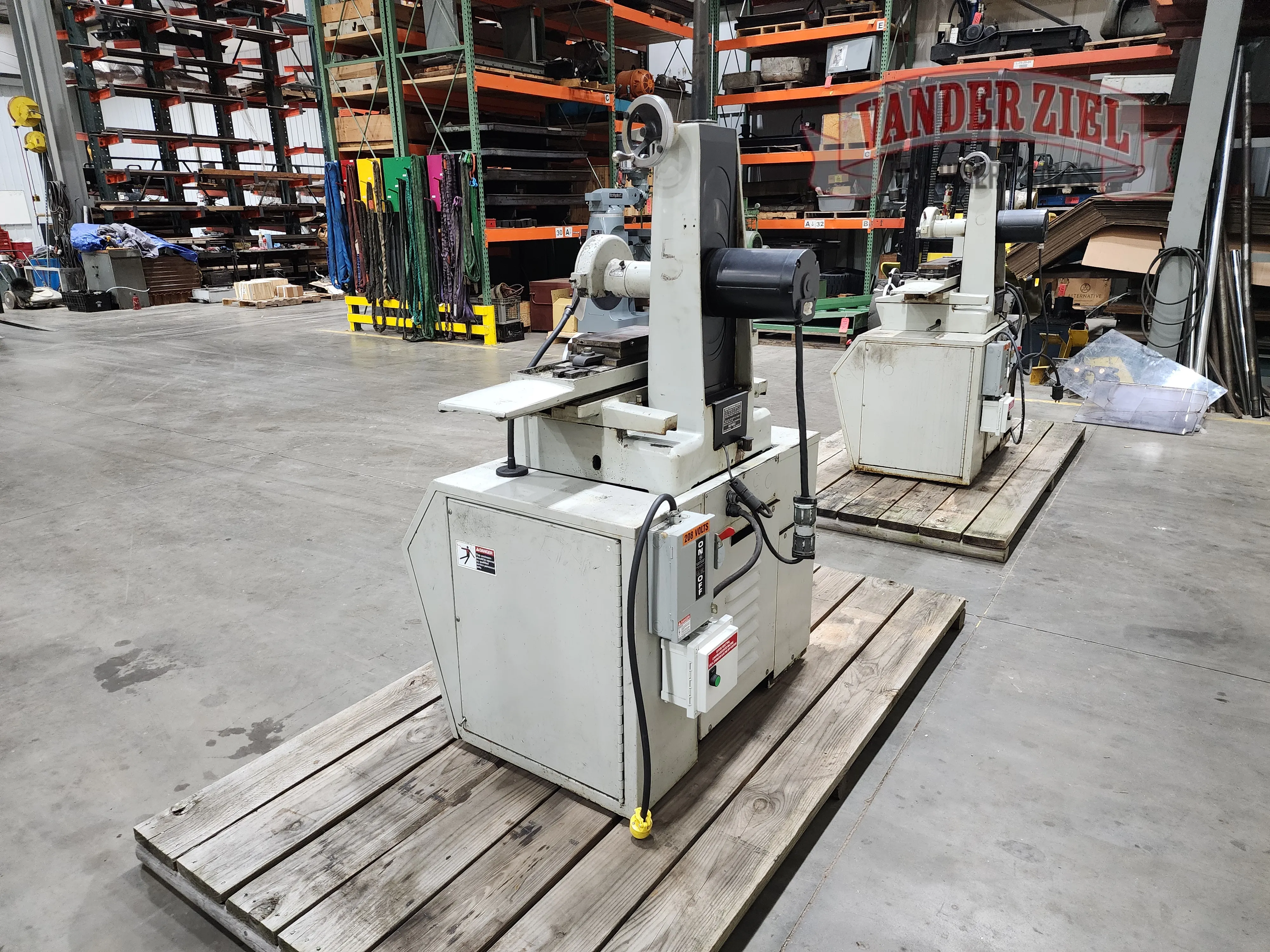

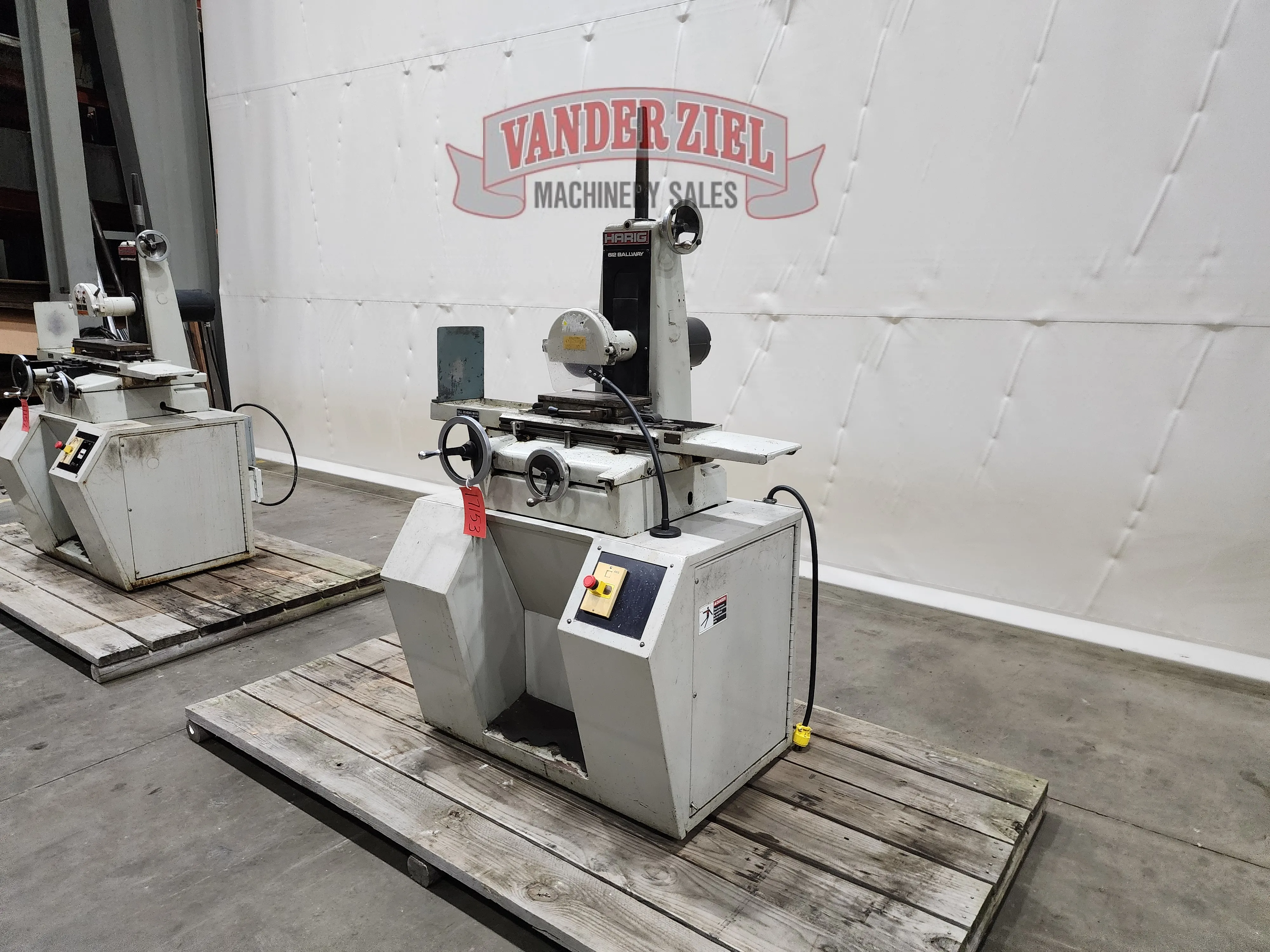

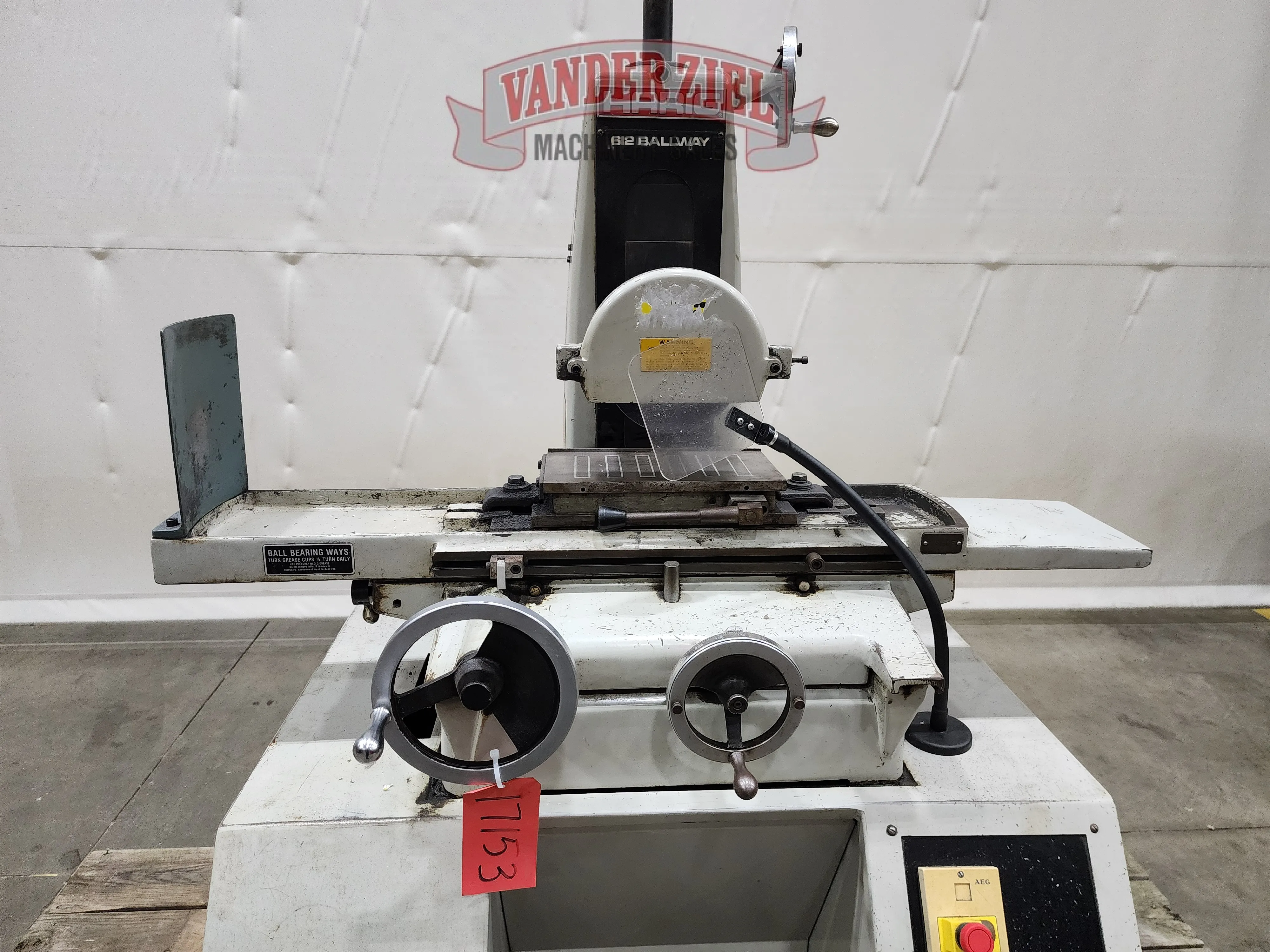

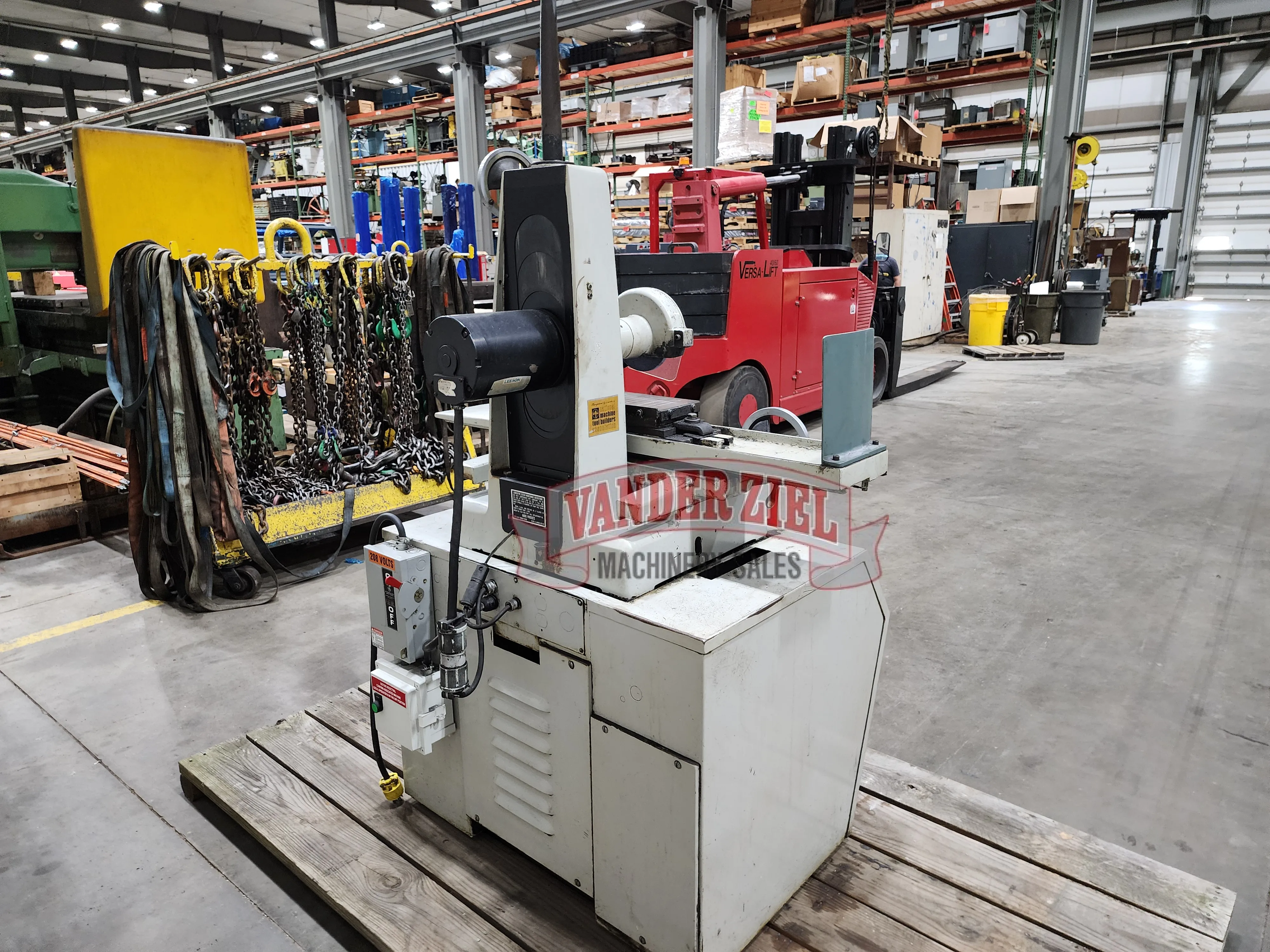

Harig 6” x 12” Ballway Hand Grinder, Model 612

Harig 6” x 12” Ballway Hand Grinder, Model 612

Serial # B-15392
Asset # 17153

Specifications:
Platen Work Area 6” x 12”
Longitudinal Travel 12 ¾”
Cross Feed Travel 6 ¾”
Vertical Working Height 12”
Griding Wheel Max. Capacity 8” x 1 ¼” x 1 ¼”
Elevating Handweel Graduation 0.0001”
Cross Feed Handweel Graduation 0.001”
Spindle Motor 1 ½ HP
Spindle Speed 3450 RPM @ 1 ½ HP
Dimensions 21” x 25” x 45” H
Weight 850 lbs.

Preliminary Specifications – Subject to Verification
