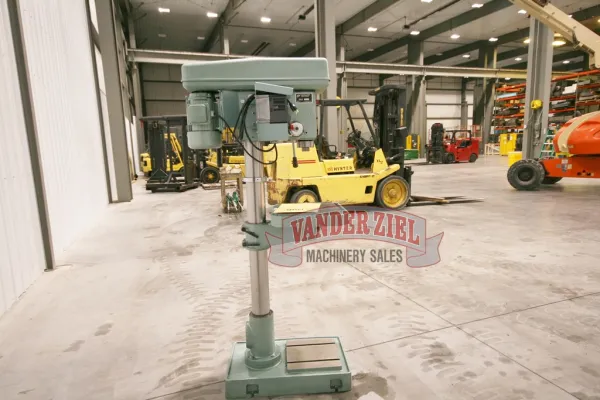

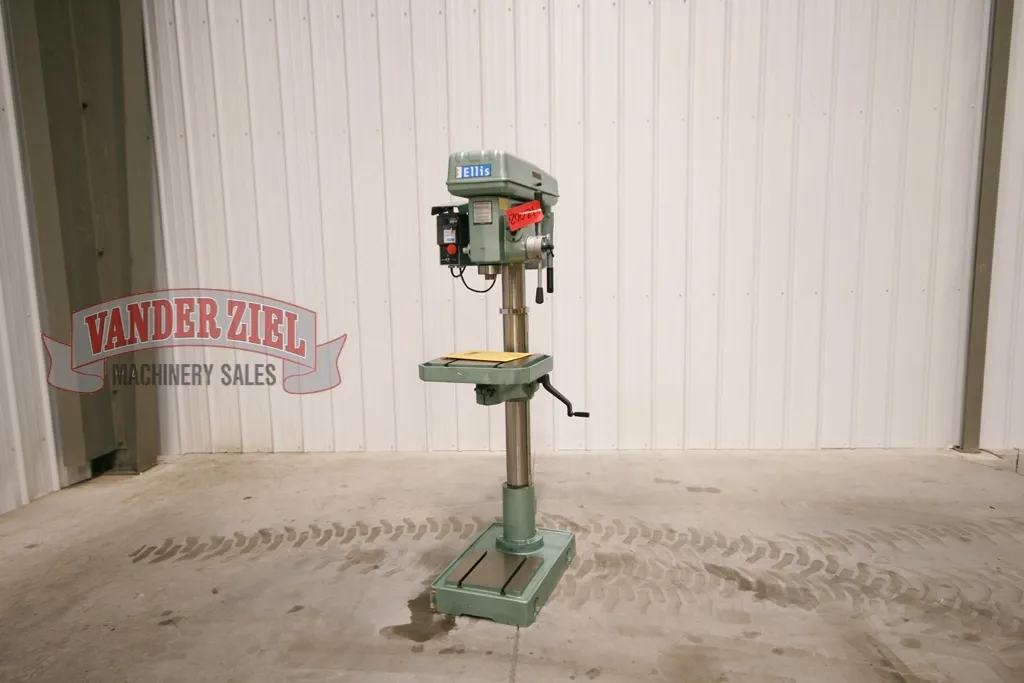

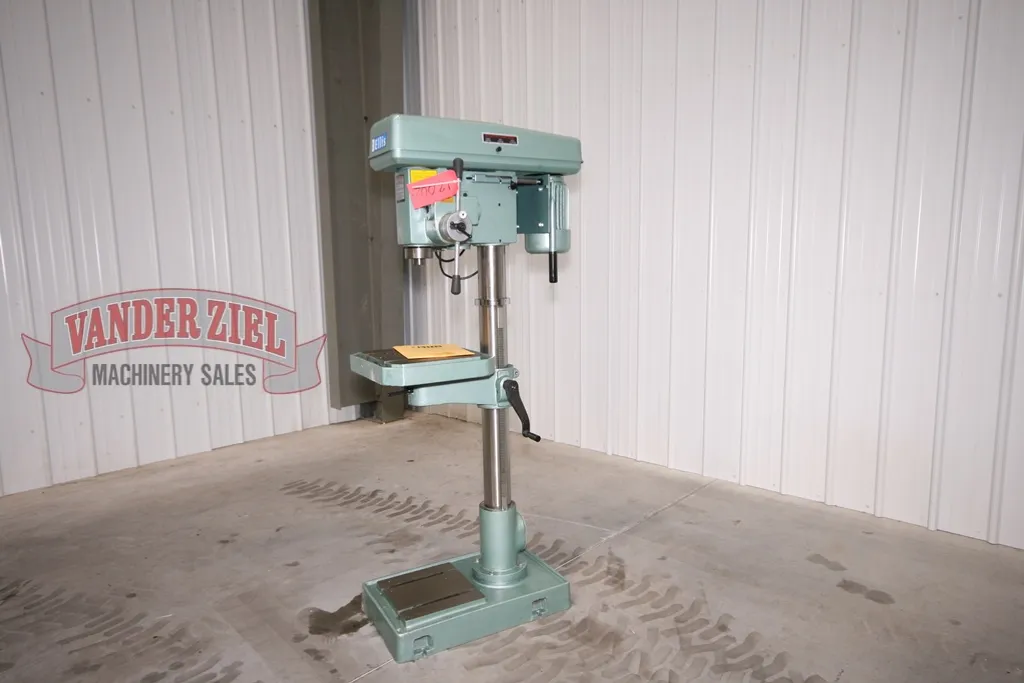

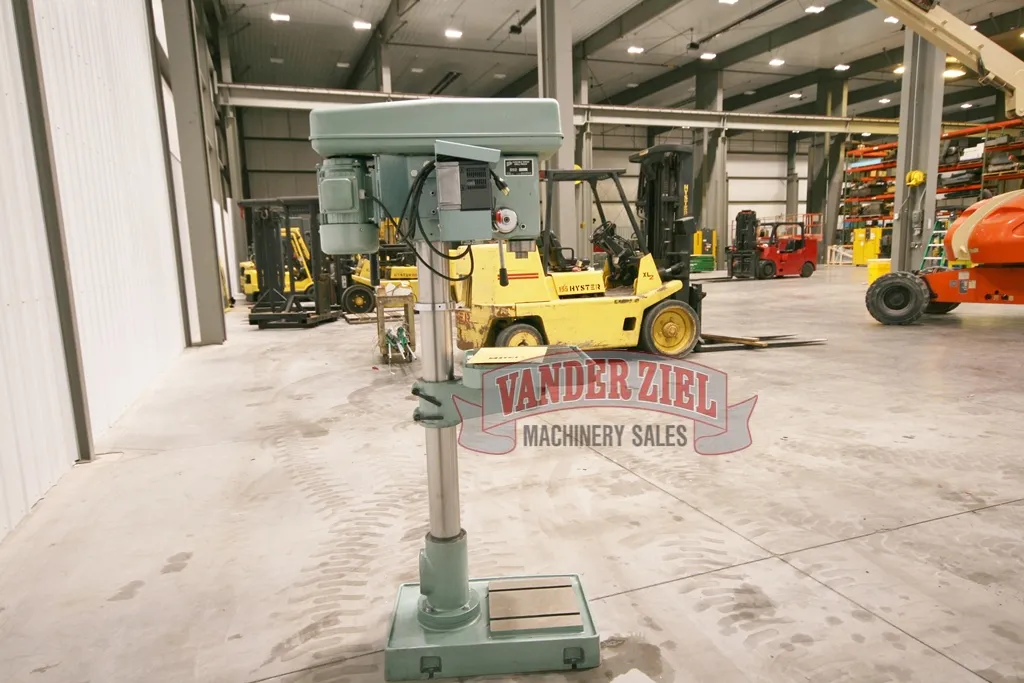

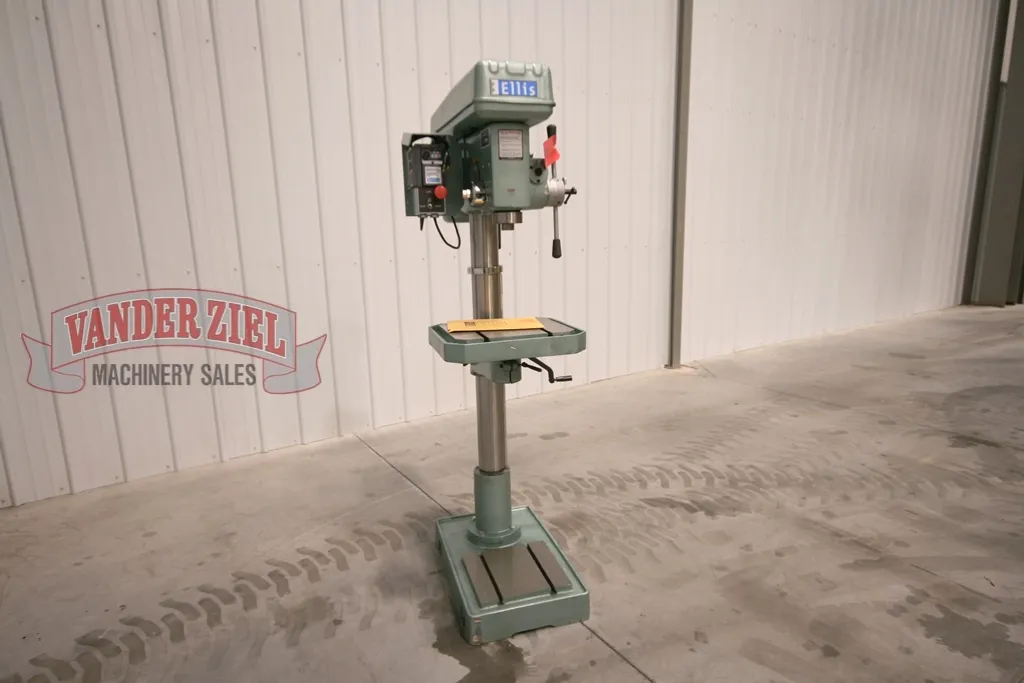

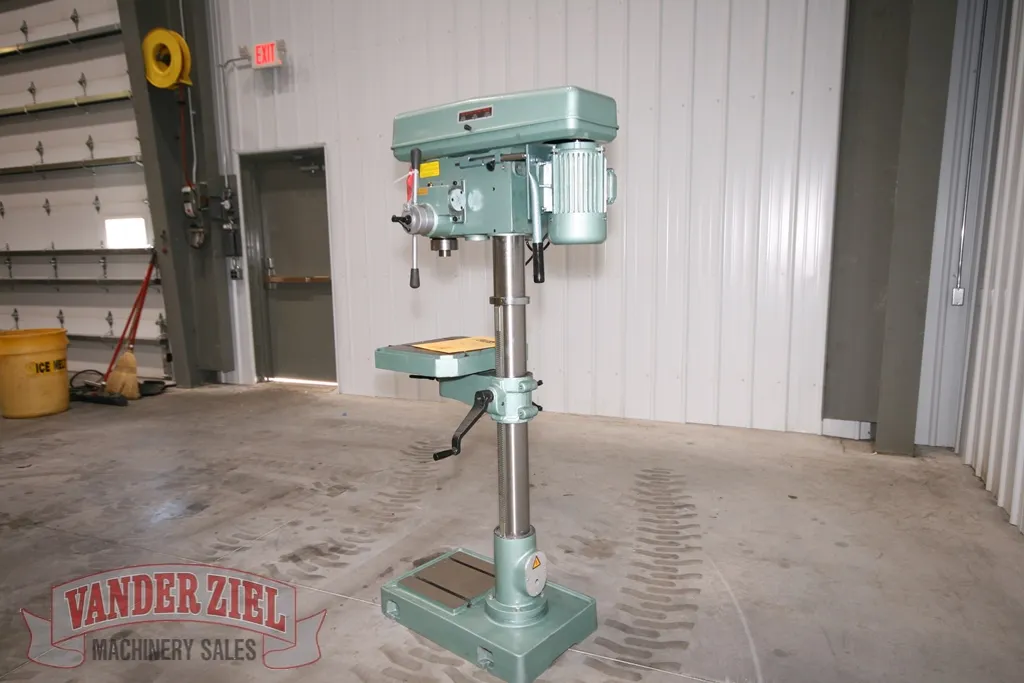

Ellis 18" Drill Press
Ellis 18" Drill Press, Model 9400, Single Phase / 110 Volt
Asset #17258N
Serial # 94PD24-0153
Infinitely Variable Speed
Features
- Variable speed from 0 to 1200 RPM
- Adjust speeds while operating in the material
- High torque at low RPM speeds
- Electronic reversing for tapping
- Tapping head is not needed
- Taps left or right handed threads
- Drill table rotates 360° around column
- Smooth operating table crank
- Fully enclosed spindle
- Quill lock and depth control
Speed control
- Continuous speed adjustment while in operation
- Electronic reversing for tapping
- One turn on knob for adjusting speed (0 to 1200 RPM)
Specifications:
| MOTOR | 2HP A.C. Single PhaseChoose 110V or 220V |
| CONTROL BOX |
|
| STANDARD | Power down feed |
| SPINDLE SPEEDS | 0 - 1200 RPM |
| DRILLS TO CENTER | 18-1/8" |
| DRILLING CAPACITY | Steel 1-1/16"Cast iron 1-1/4" |
| TAPPING CAPACITY | 3/4" |
| MORSE TAPER | No. 3 |
| QUILL DIAMETER | 3" |
| COLUMN DIAMETER | 4" |
| SPINDLE TRAVEL | 5-3/8" |
| SPINDLE TO TABLE (MAX.) | 27-1/4" |
| SPINDLE TO BASE | 46-1/4" |
| SHIPPING WEIGHT | 675 lbs |
| TABLE | Production type:T- slotted 15-7/8" X 17-7/8"2 Slots for 1/2" t-boltsGround working surfaceCoolant trough |
| BASE | T- slotted16-3/8" x 26-5/8"2 slots for 1/2" t-boltsGround working surface |
| SIZE | Height 69-1/2"Width 20"Depth 29" |
REF: 000877
