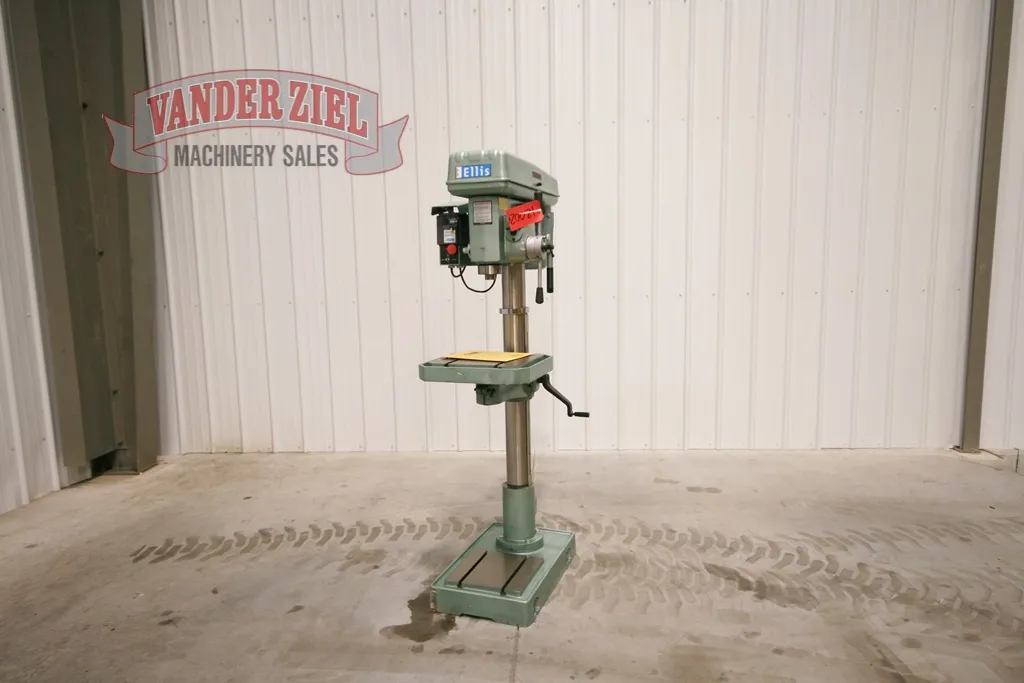

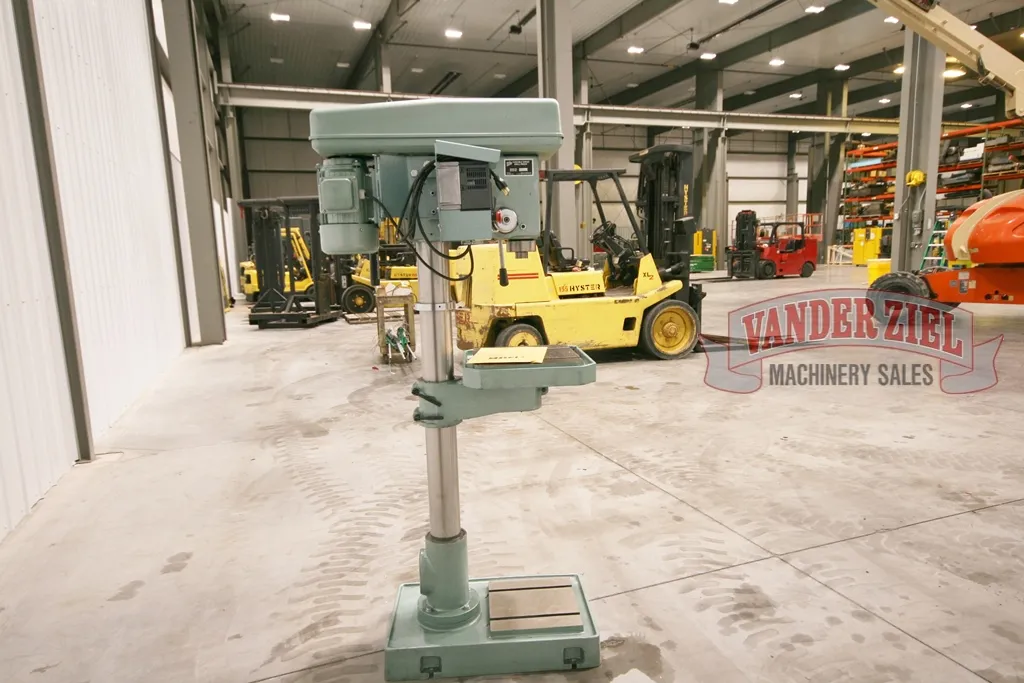

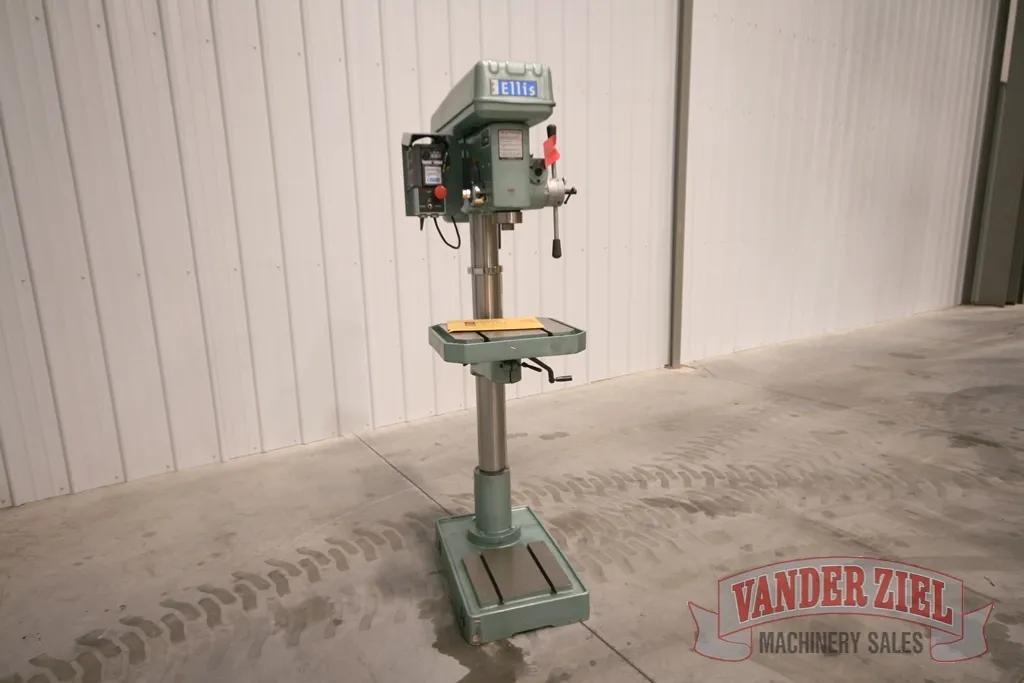

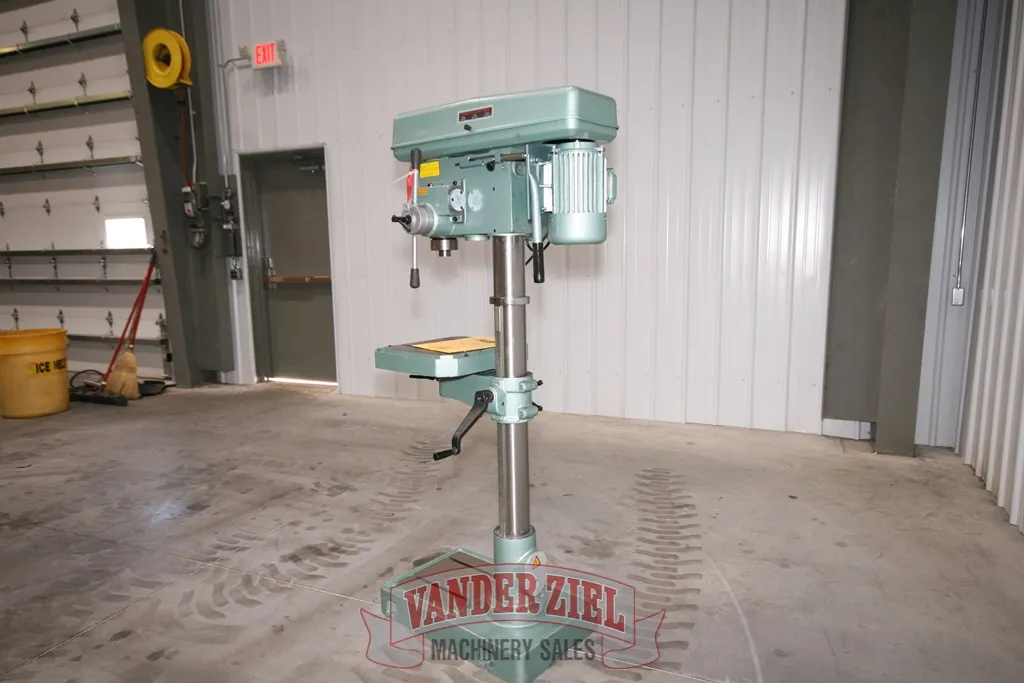

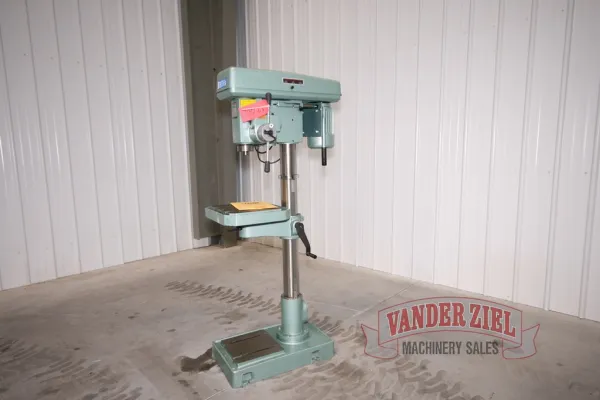

Ellis 18" Drill Press, Model 9400, Single Phase / 110 Volt

Ellis 18" Drill Press, Model 9400, Single Phase / 110 Volt

Asset #17259N

Serial # 94PD24-0154

Infinitely Variable Speed

Features

• Variable speed from 0 to 1200 RPM


• Adjust speeds while operating in the material


• High torque at low RPM speeds


• Electronic reversing for tapping


• Tapping head is not needed


• Taps left or right handed threads


• Drill table rotates 360° around column


• Smooth operating table crank


• Fully enclosed spindle


• Quill lock and depth control

Speed control

• Continuous speed adjustment while in operation


• Electronic reversing for tapping


• One turn on knob for adjusting speed (0 to 1200 RPM)

Specifications:

MOTOR	2HP A.C. Single PhaseChoose 110V or 220V
CONTROL BOX	Infinitely variable speed by turning the dial Electronic reversing Full torque at low speeds All solid state circuitry Continuous speed adjustment while in operation
STANDARD	Power down feed
SPINDLE SPEEDS	0 – 1200 RPM
DRILLS TO CENTER	18-1/8″
DRILLING CAPACITY	Steel 1-1/16″Cast iron 1-1/4″
TAPPING CAPACITY	3/4″
MORSE TAPER	No. 3
QUILL DIAMETER	3″
COLUMN DIAMETER	4″
SPINDLE TRAVEL	5-3/8″
SPINDLE TO TABLE (MAX.)	27-1/4″
SPINDLE TO BASE	46-1/4″
SHIPPING WEIGHT	675 lbs
TABLE	Production type:T- slotted 15-7/8″ X 17-7/8″2 Slots for 1/2″ t-boltsGround working surfaceCoolant trough
BASE	T- slotted16-3/8″ x 26-5/8″2 slots for 1/2″ t-boltsGround working surface
SIZE	Height 69-1/2″Width 20″Depth 29″
