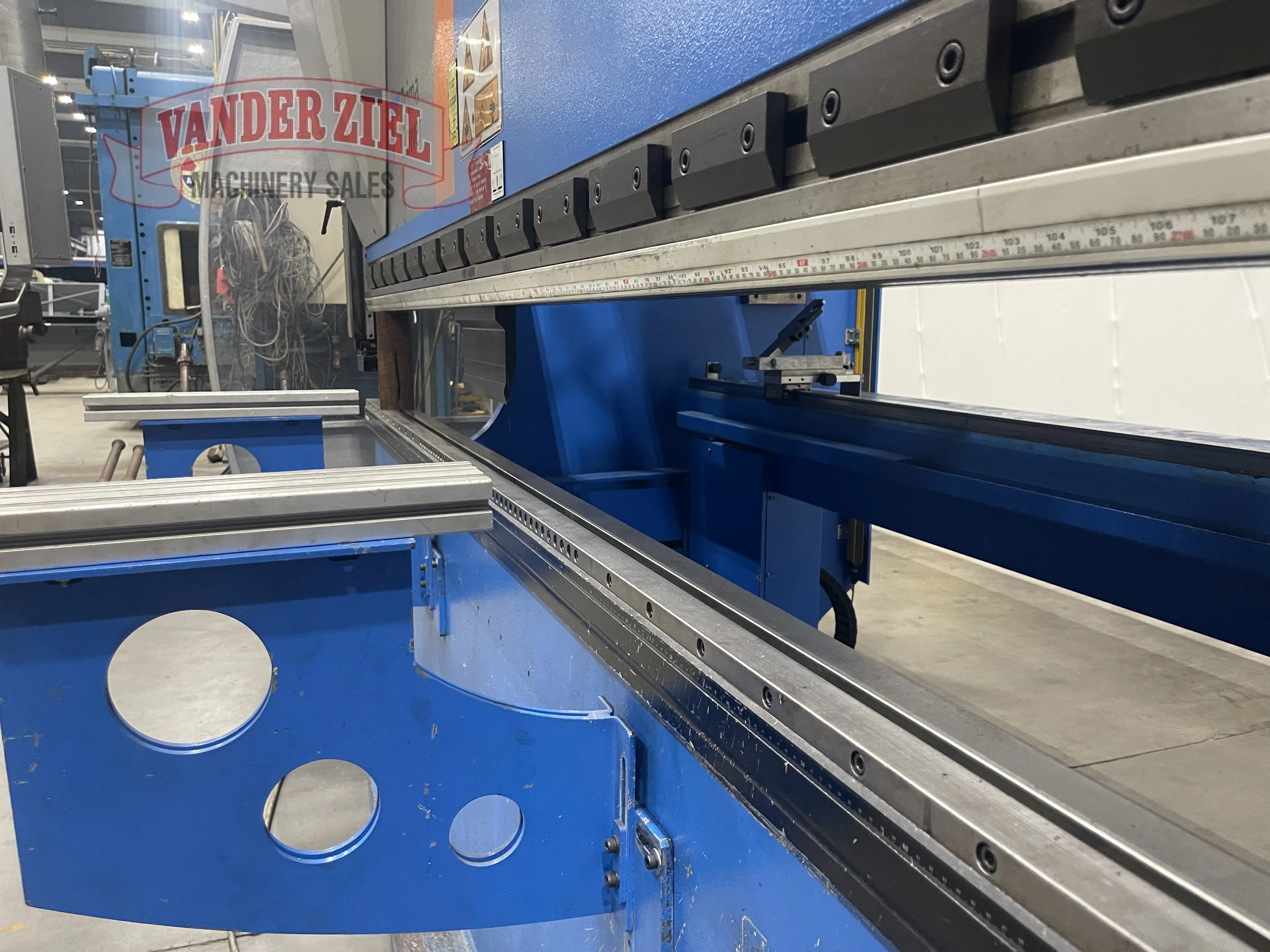

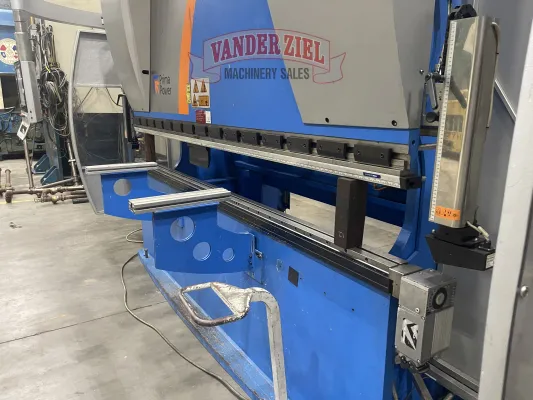

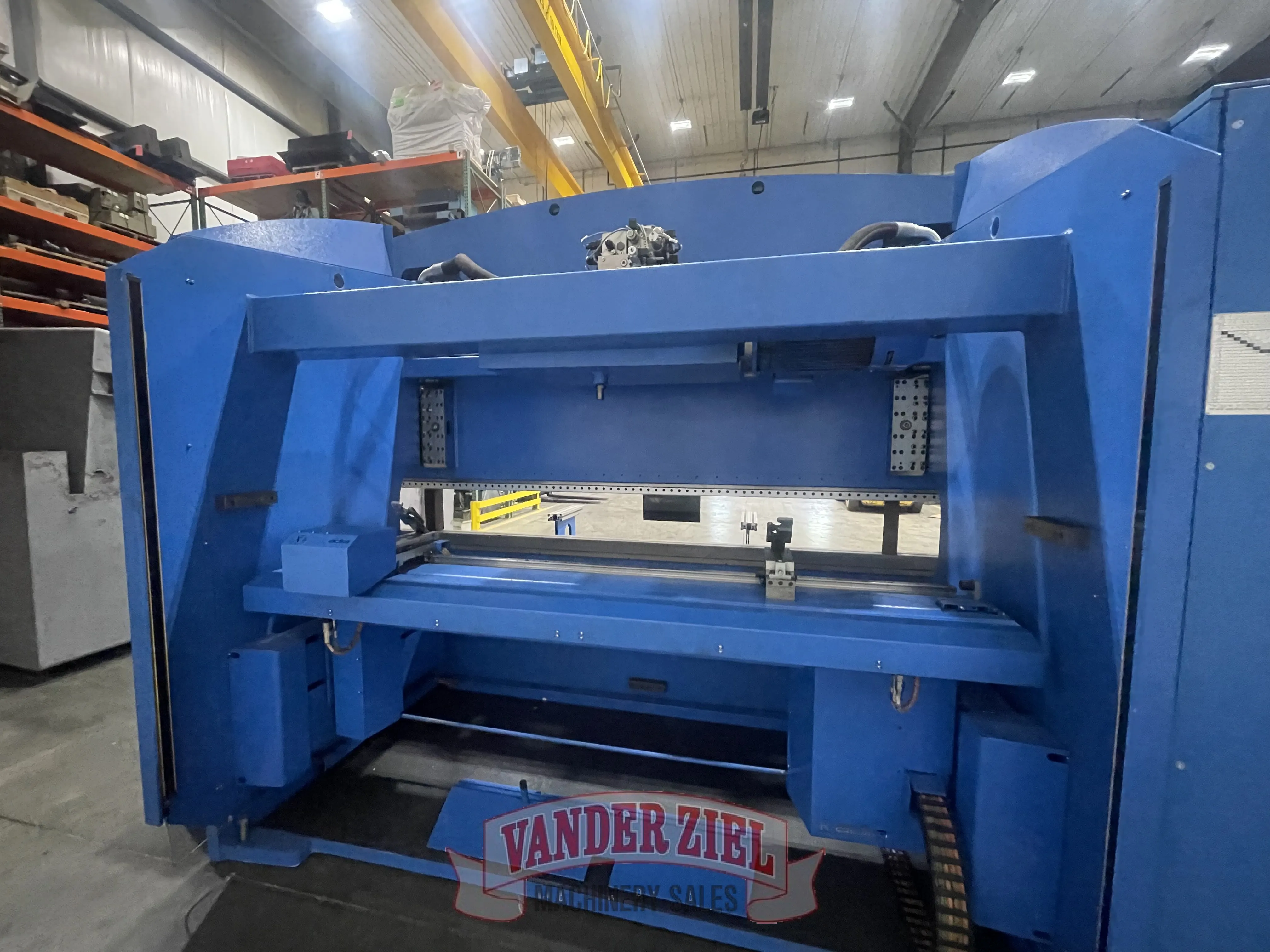

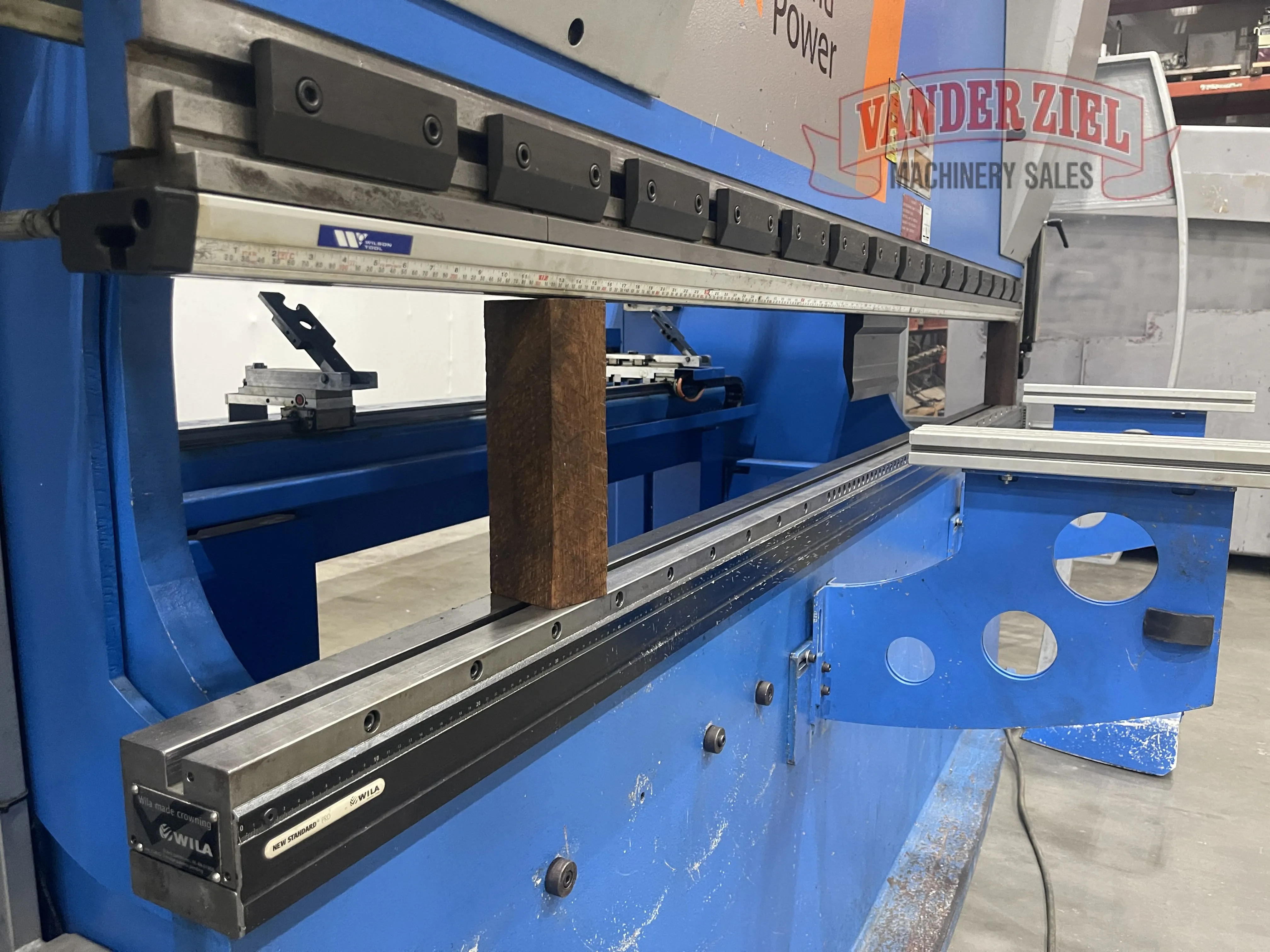

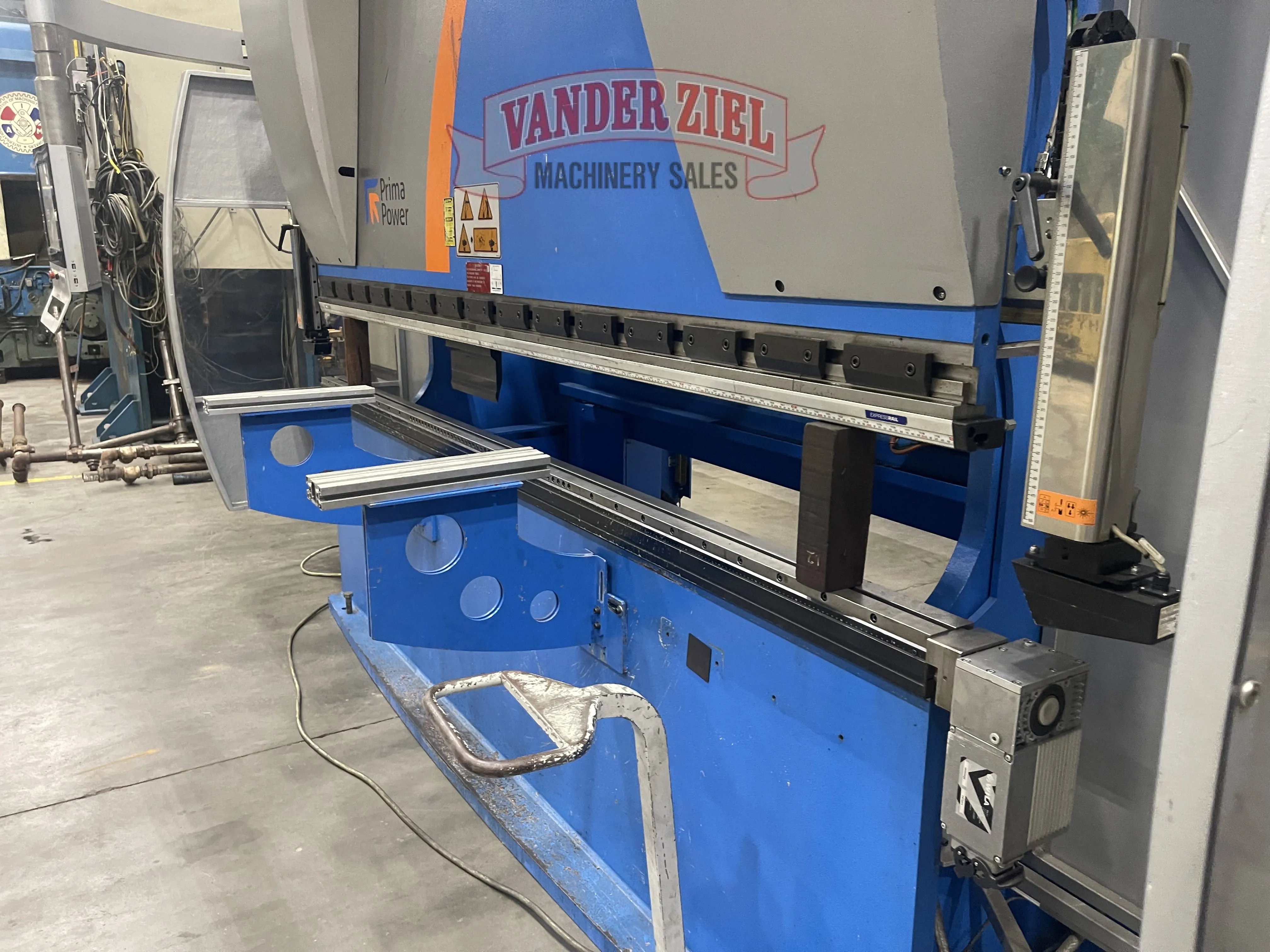

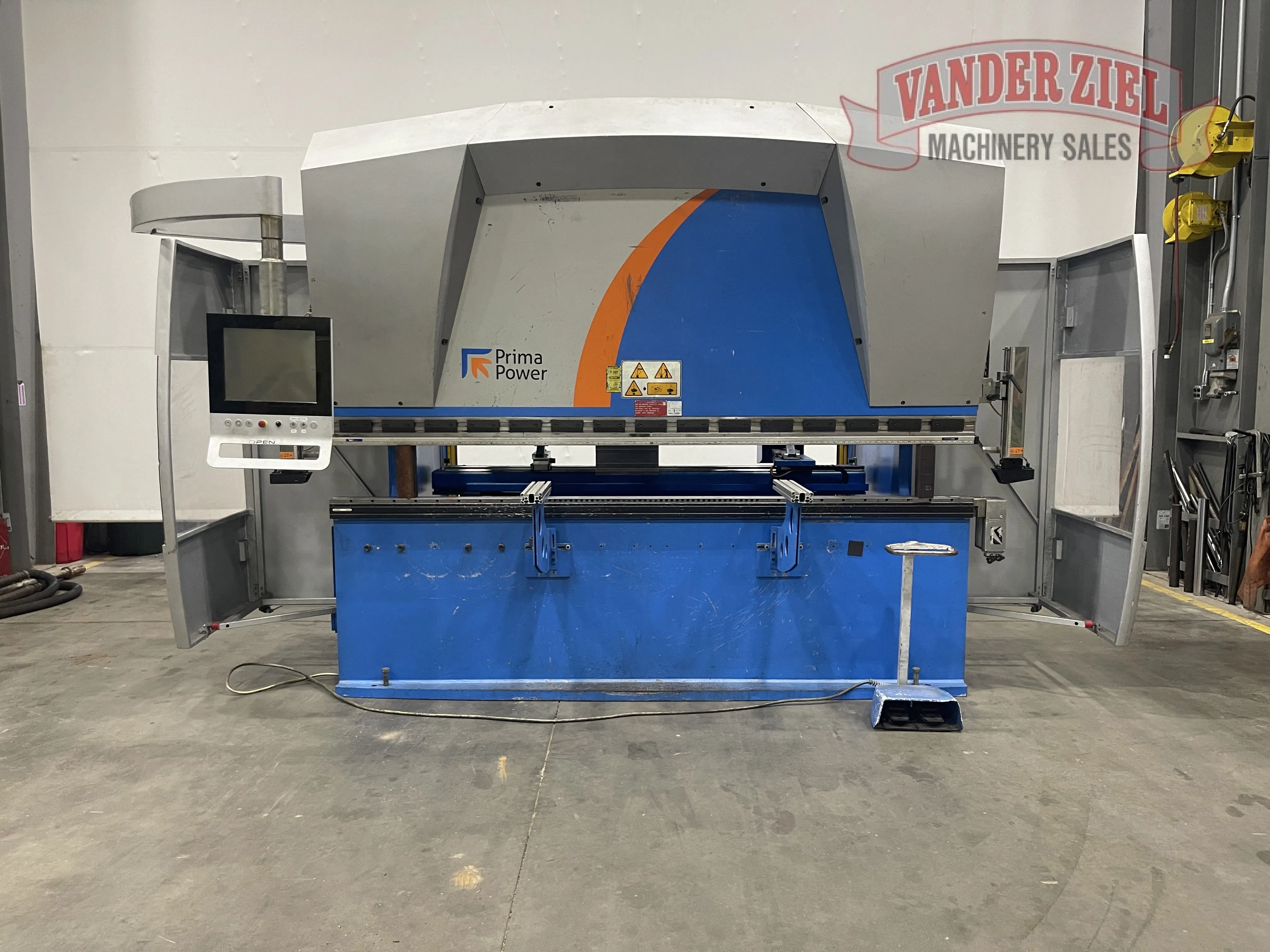

Adira Prima Power 10' x 110 Ton Press Brake - 2011

Adira Prima Power 10' Press Brake

Asset # 17271C

Serial # QUO-0012-V3-0042

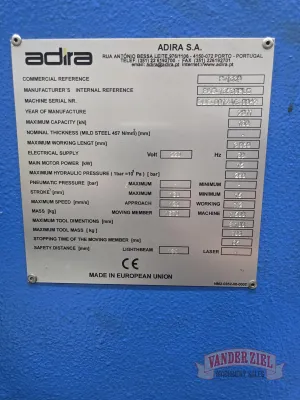

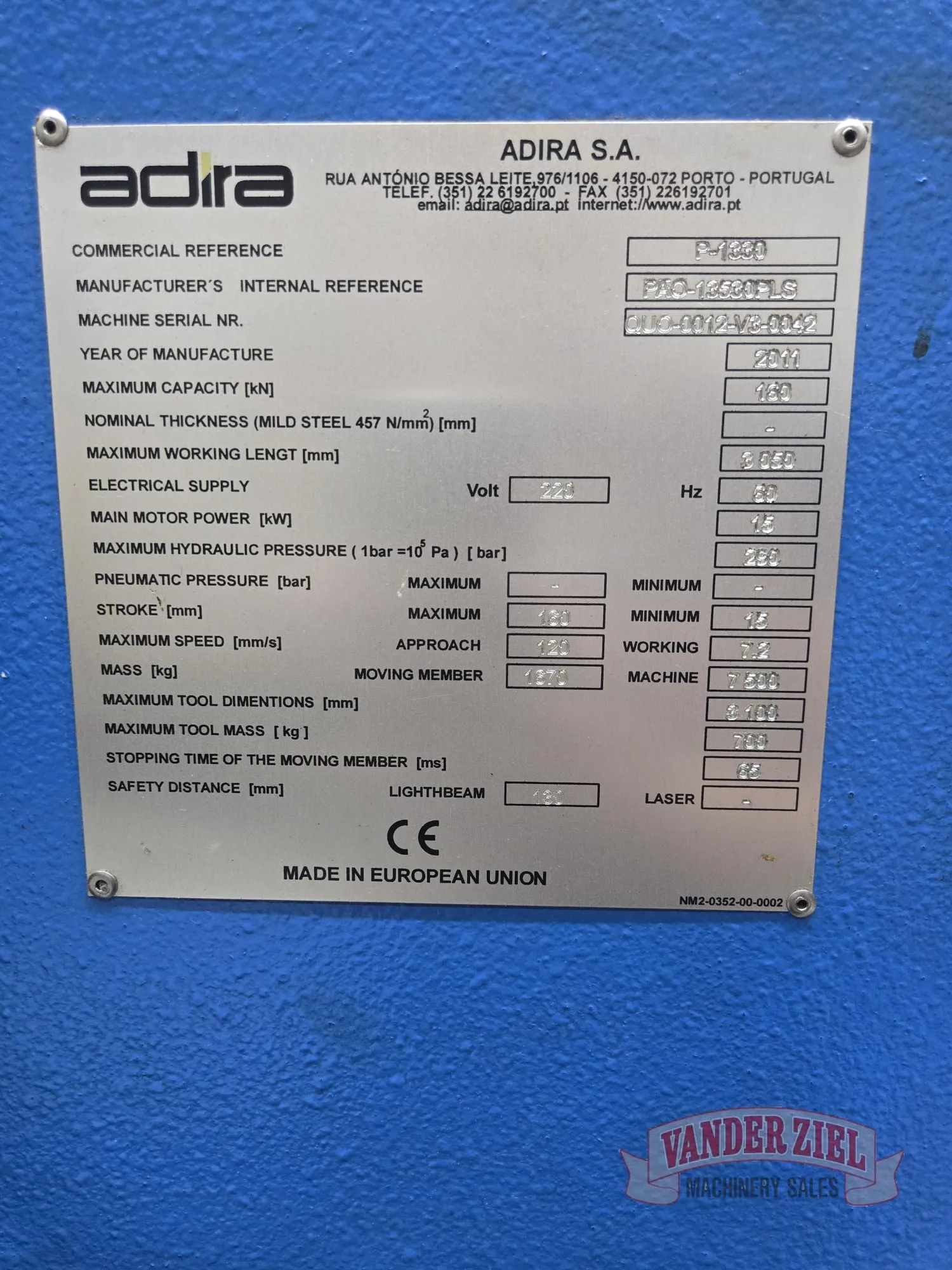

COMMERCIAL REFERENCE                                                                                      P-1330

MANUFACTURER'S INTERNAL REFERENCE                                                          PAO-13530PLS

MACHINE SERIAL NR.                                                                                                QUO-0012-V3-0042

YEAR OF MANUFACTURE                                                                                         2011

MAXIMUM CAPACITY [Ton]                                                                                    110

NOMINAL THICKNESS (MILD STEEL 457 N/mm) [mm]                                     -

MAXIMUM WORKING LENGT [inch]                                                                     120

ELECTRICAL SUPPLY                                                                                                   220 V60 HZ

MAIN MOTOR POWER [kW]                                                                                   15

MAXIMUM HYDRAULIC PRESSURE ( 1bar =10 Pa) [ bar]                                  290

PNEUMATIC PRESSURE [bar] -    MAXIMUM         -              MINIMUM          -

STROKE[inch]                                   MAXIMUM         6.3         MINIMUM          -

MAXIMUM SPEED [in/s]                Approach            4.72       WORKING           0.28

MASS [lbs]                         Moving Member             3,682     MACHINE            16,535

MAXIMUM TOOL DIMENTIONS [in]                                                                      122

MAXIMUM TOOL MASS [lbs]                                                                                  1544

STOPPING TIME OF THE MOVING MEMBER [ms]                                              65

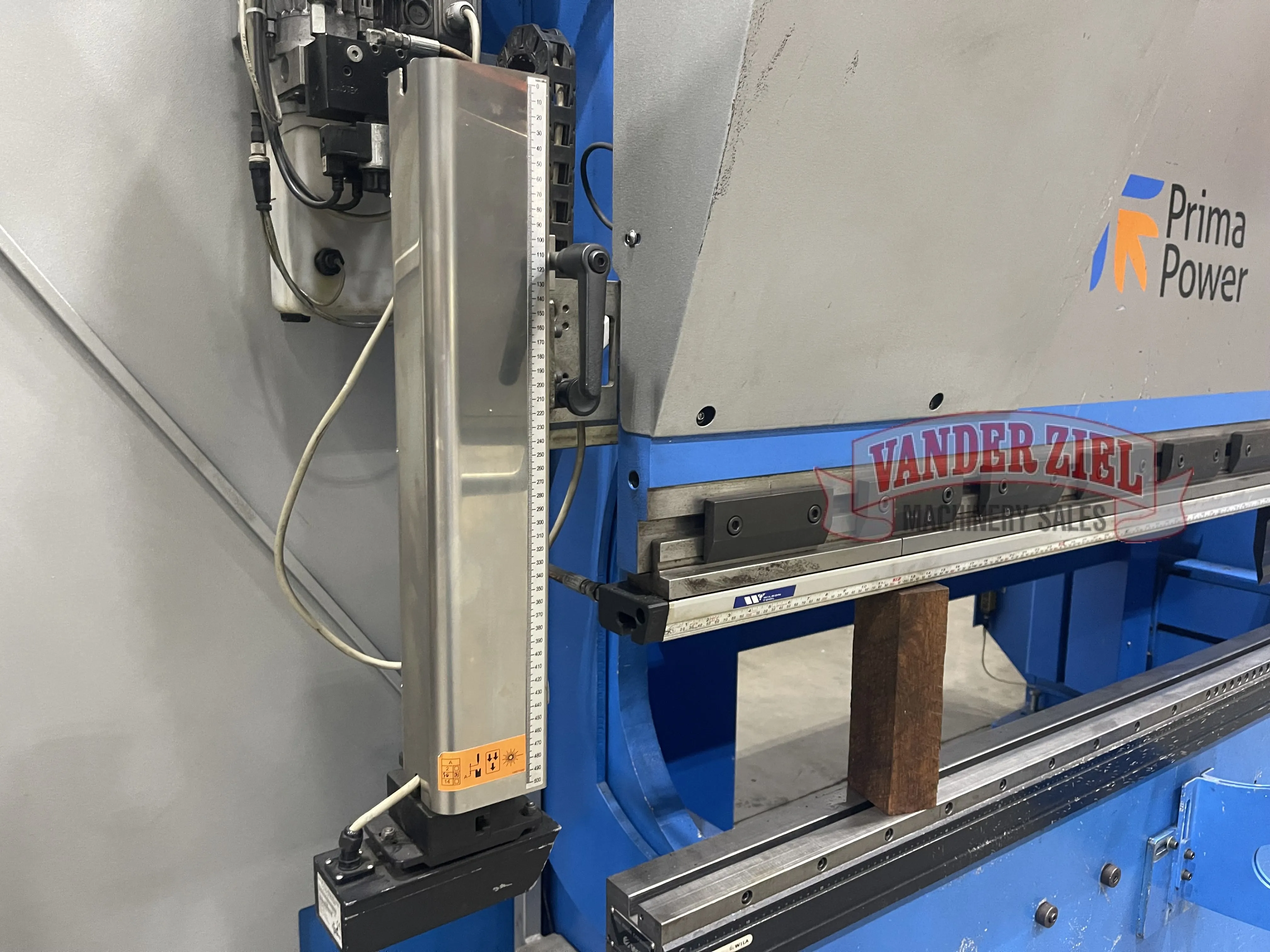

SAFETY DISTANCE [inch]               LIGHTHBEAM     5.12       Laser     -

PRELIMINARY SPECS - SUBJECT TO VERIFICATION
